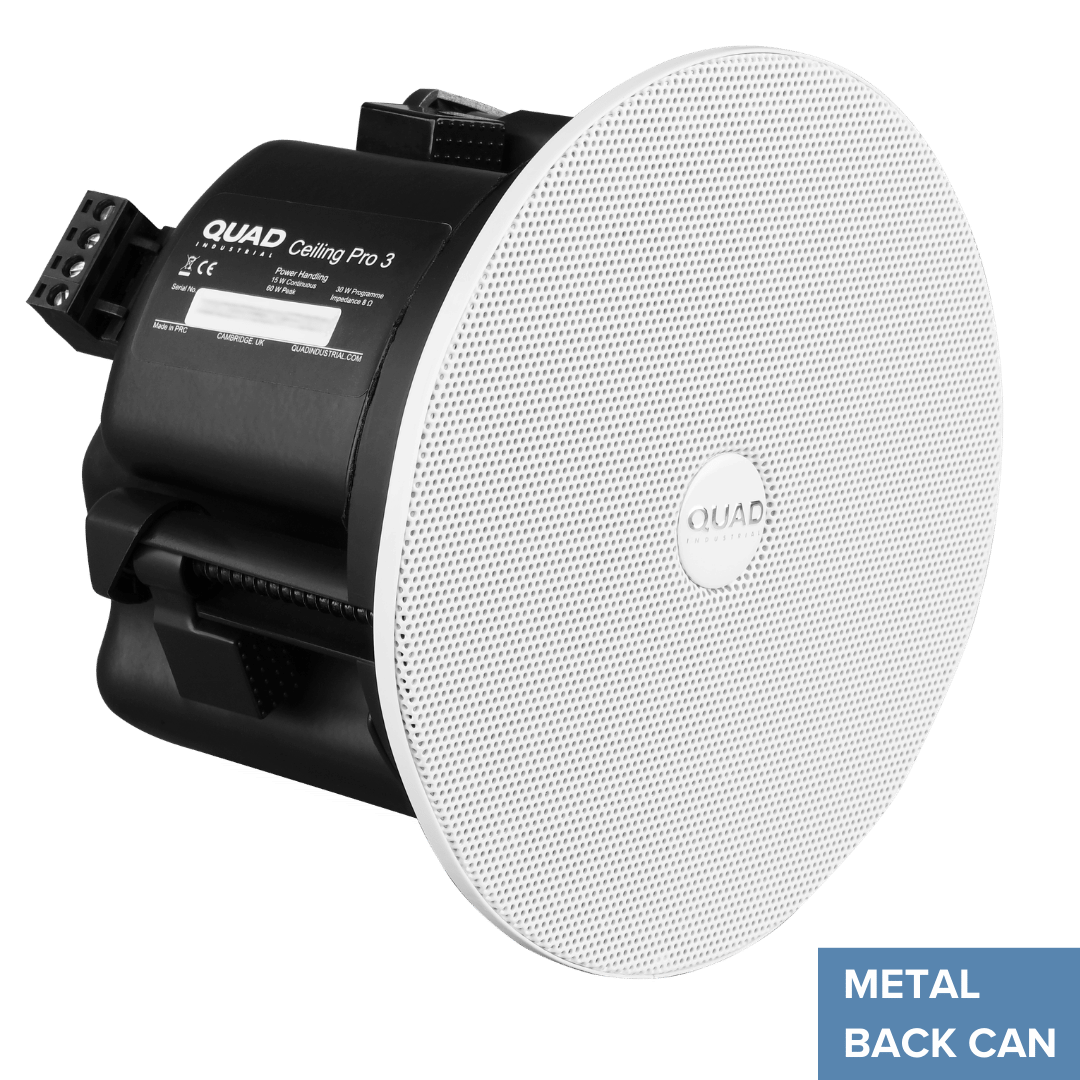

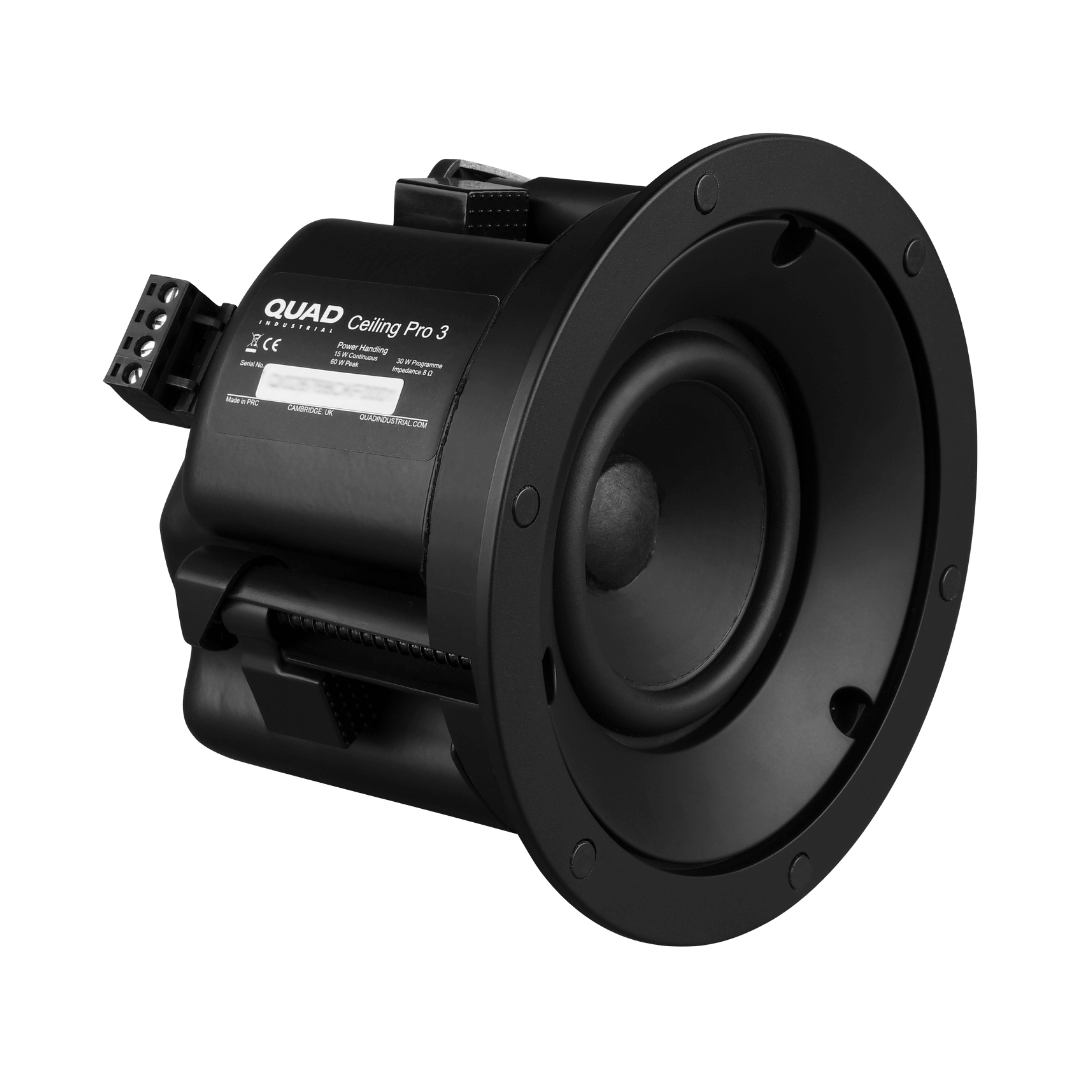

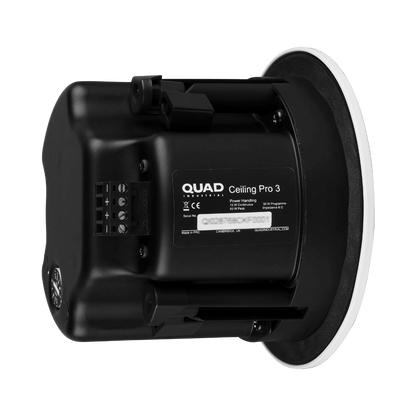

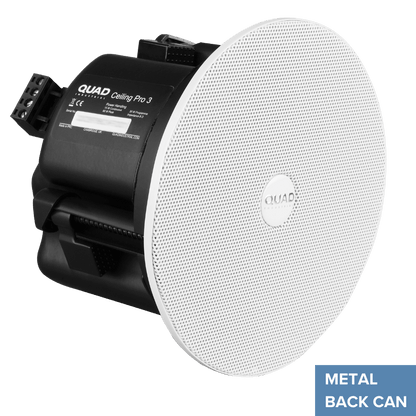

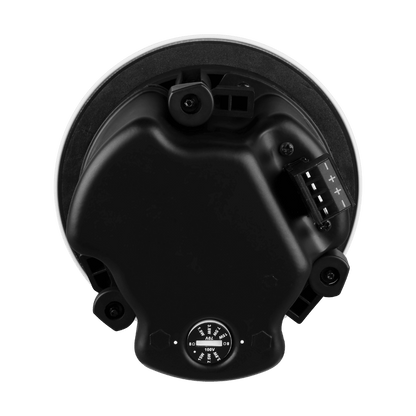

QI-CPRO3 - Ceiling Pro 3" Loudspeaker (White)

Compact 3" Ceiling Loudspeaker for Discreet Background Music & Clear Speech

The Quad Industrial QI-CPRO3 is a compact, high-performance 3-inch full-range ceiling loudspeaker designed for premium commercial environments where audio needs to be heard but not seen. Featuring an ultra-wide 130° coverage pattern, it ensures consistent sound distribution throughout retail stores, restaurants, boutiques, and galleries, reducing the number of units needed for even coverage.

Engineered for professional performance, the CPRO3 features a durable ABS enclosure and an integrated metal back can to meet commercial fire safety standards. Its bezel-free magnetic grille provides a sleek, modern finish that sits flush against the ceiling, making it virtually invisible in contemporary architectural spaces.

Installation is streamlined thanks to the quick-fit 4-pin Euroblock connector and integrated mounting clamps. With a multi-tap transformer, the QI-CPRO3 integrates seamlessly into 70V/100V distributed systems or 8Ω low-impedance setups via a simple tap switch.

Key Features:

• Compact 3" Full-Range Driver: Delivers natural, clear audio for background music and voice announcements.

• Ultra-Wide Coverage: 130° x 130° dispersion ensures an even soundstage across the venue.

• Bezel-Free Magnetic Grille: Provides a discreet, professional finish that blends into modern ceilings.

• Integrated Metal Back Can: Enhances audio performance and ensures compliance with commercial fire safety standards.

• Flexible Integration: Multi-tap power options for 70V/100V systems or 8Ω low-impedance operation.

• Quick Installation: Features a 4-pin Euroblock connector and easy-to-use mounting clamps.

Technical Specifications:

• System Type: 3" Full-Range Passive

• Power Handling: 15W (Continuous) / 30W (Programme) / 60W (Peak)

• Sensitivity: 85 dB (2.83v / 1m)

• Frequency Range: 170 Hz - 8 kHz (-10 dB)

• Max SPL: 103 dB

• Transformer Taps: * 70V: 15W / 7.5W / 3.75W / 1.9W

  • 100V: 15W / 7.5W / 3.75W

• Input Connector: 4-Pin Euroblock

• Cut-out Size: Refer to template

• Weight: 1.5kg (Net)

QI-CPRO3 Technical Brief
