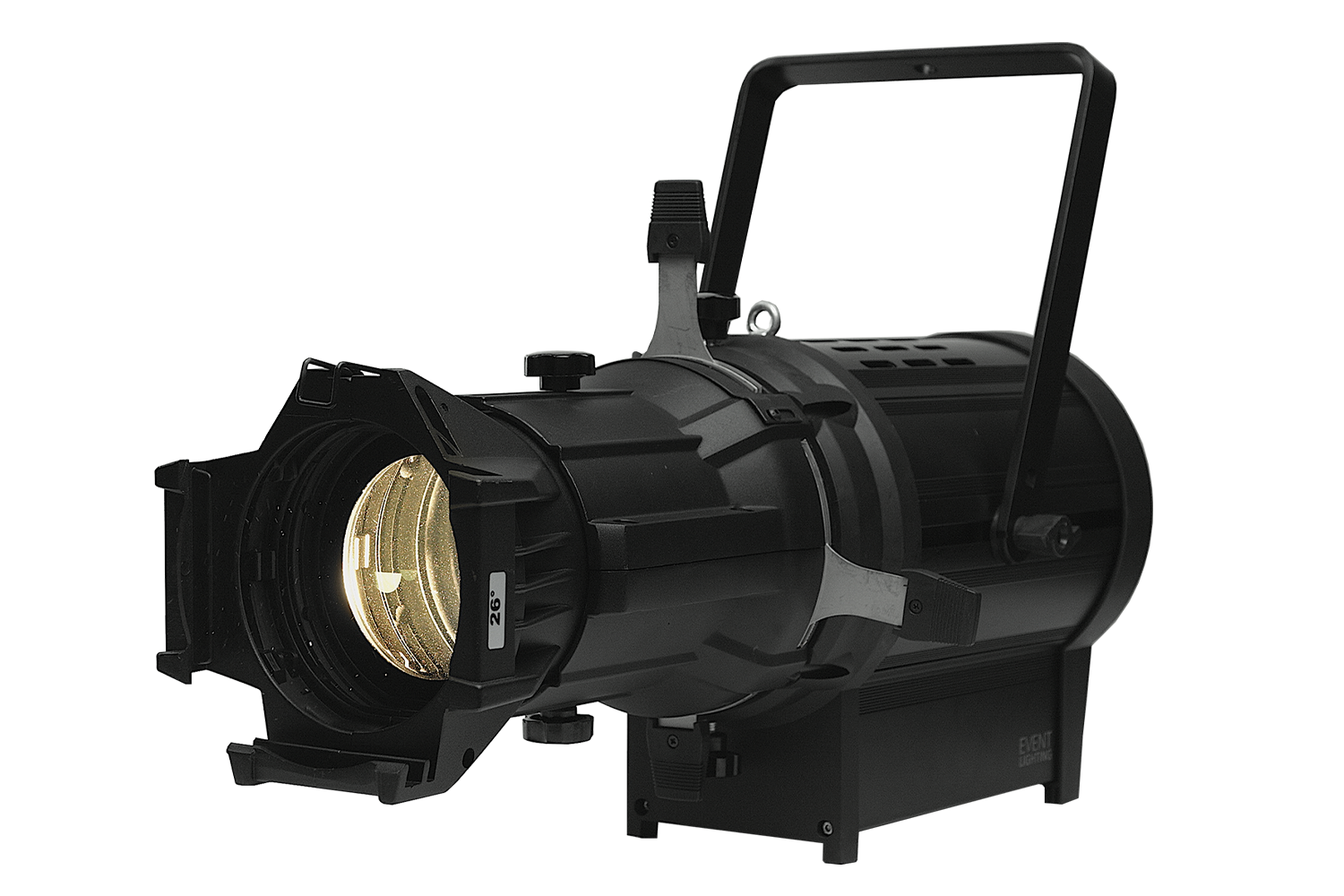

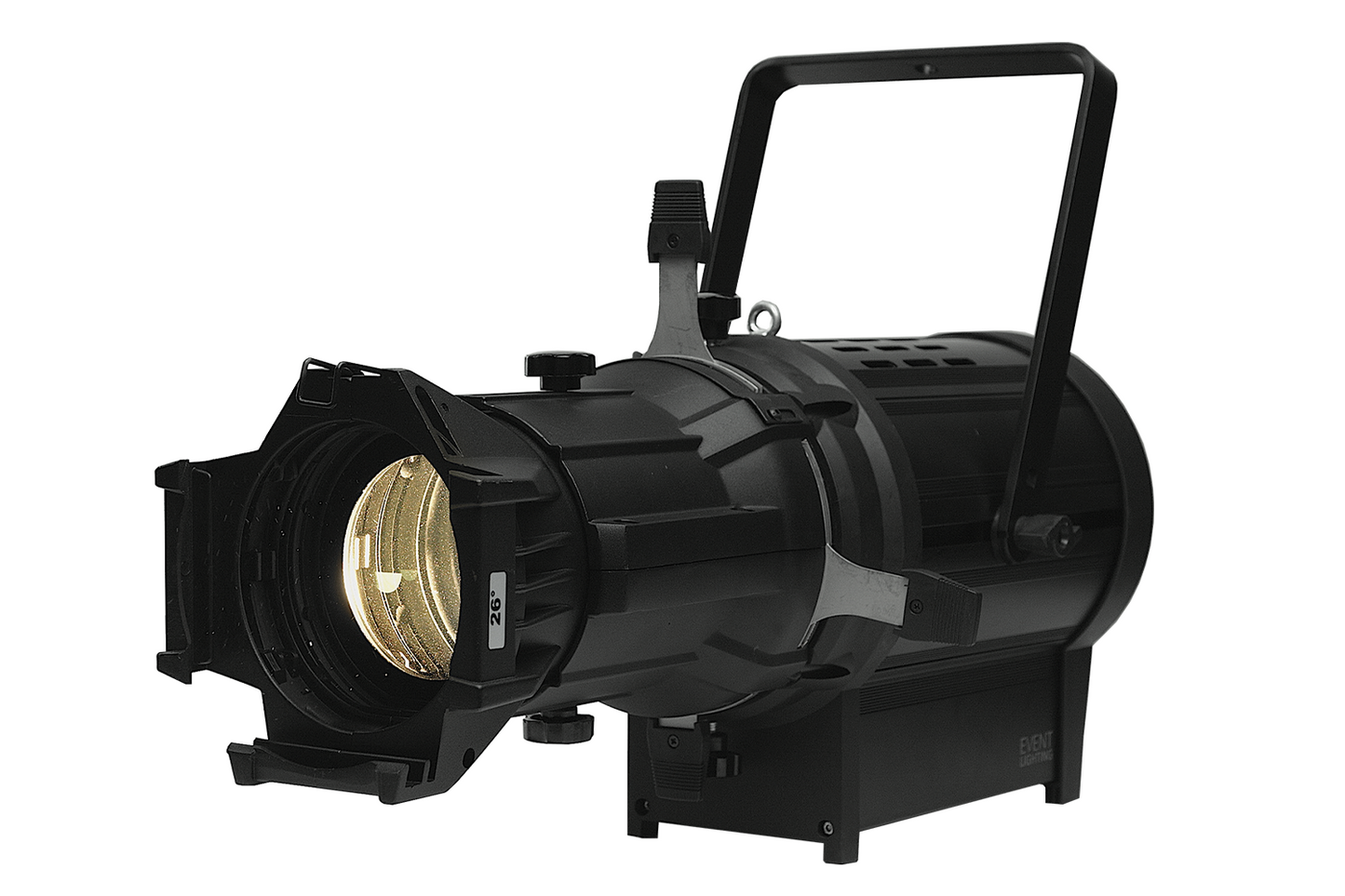

PS300LEWW - 300W Warm White Profile Spot Light Engine

This Product has been Discontinued.

See new range of Theatre Lighting - OPERA Z Series

Photometrics

• Light Source: 300W 3,200K COB LED
• CRI: 90
• Beam Angle: 19°, 26°, 36°, 25°-50° or 15°-30°
• Output: 4,822 lux @ 5m @ 19°, 4,465 lux @ 5m @ 26°, 3,192 lux @ 5m @ 36°

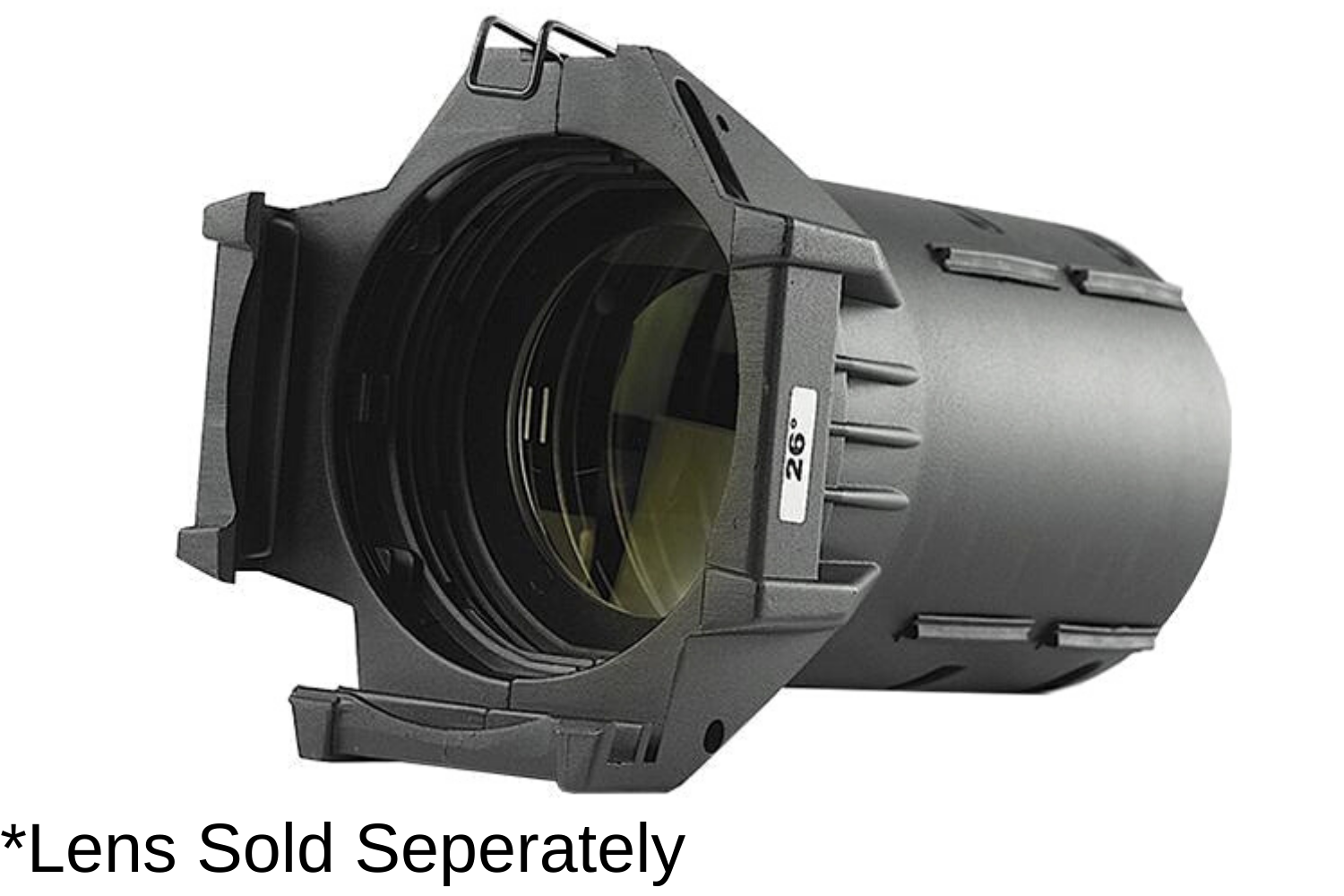

• Optional Lens: PSLII19, PSLII26, PSLII36, PSLII2550, PSLII1530
• PWM: 8,000Hz
• LED Lifespan: 50,000 hours

Effects

• Dimming: 0~100%, 16-bit
• Strobe: 1~25Hz

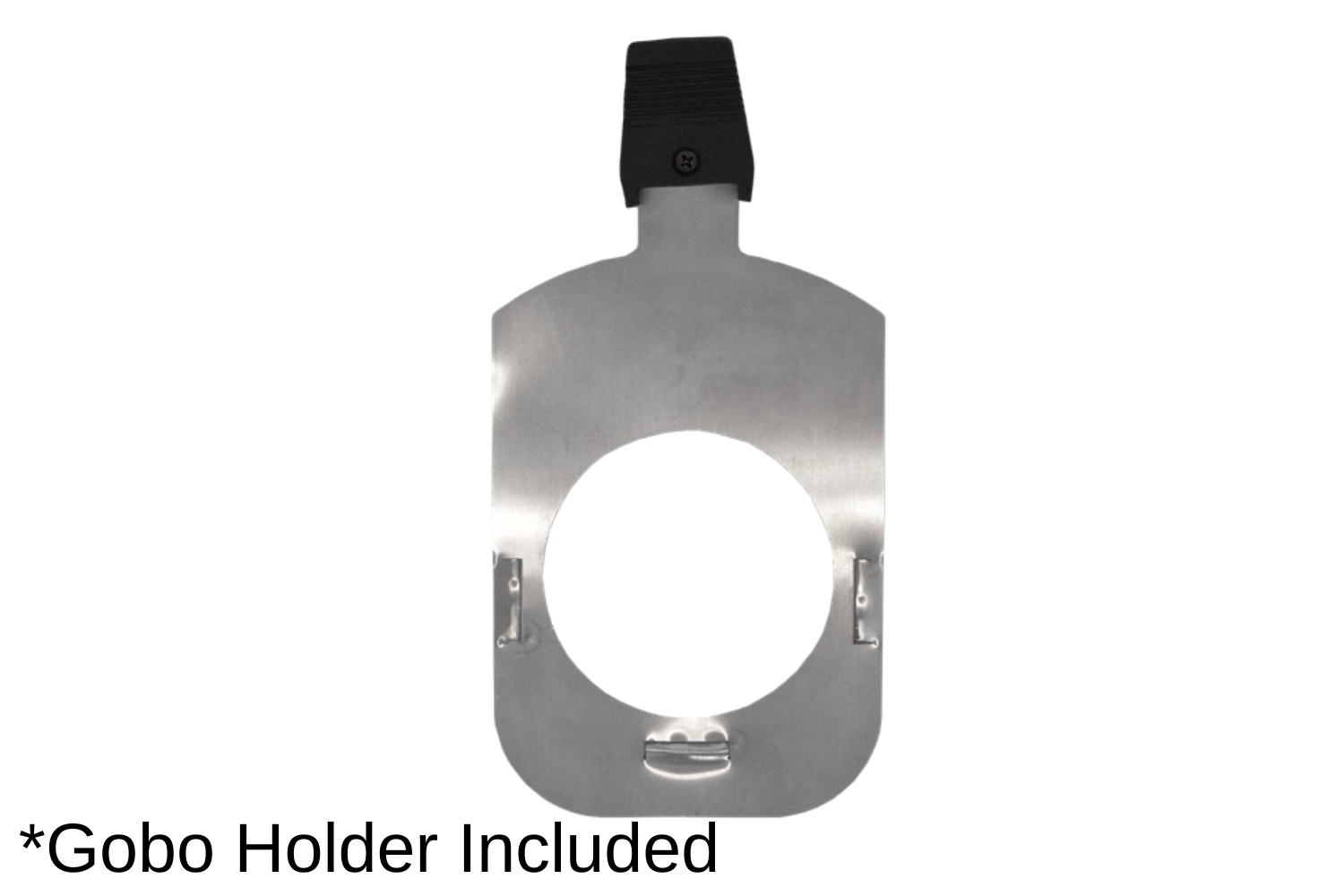

• Gobo holder size: 'B' 87.5mm overall size, 35mm image size

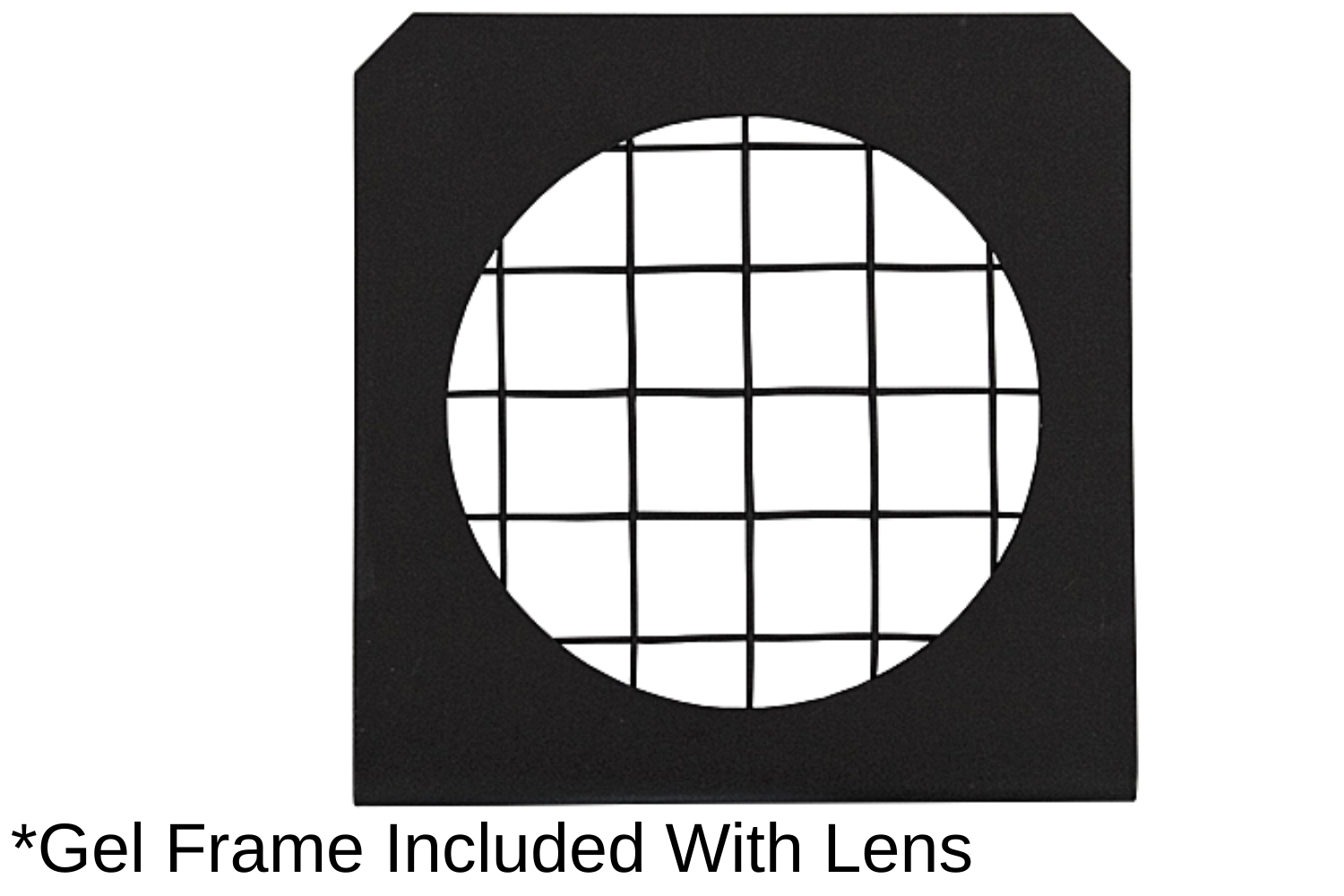

• Gel Frame: Optional

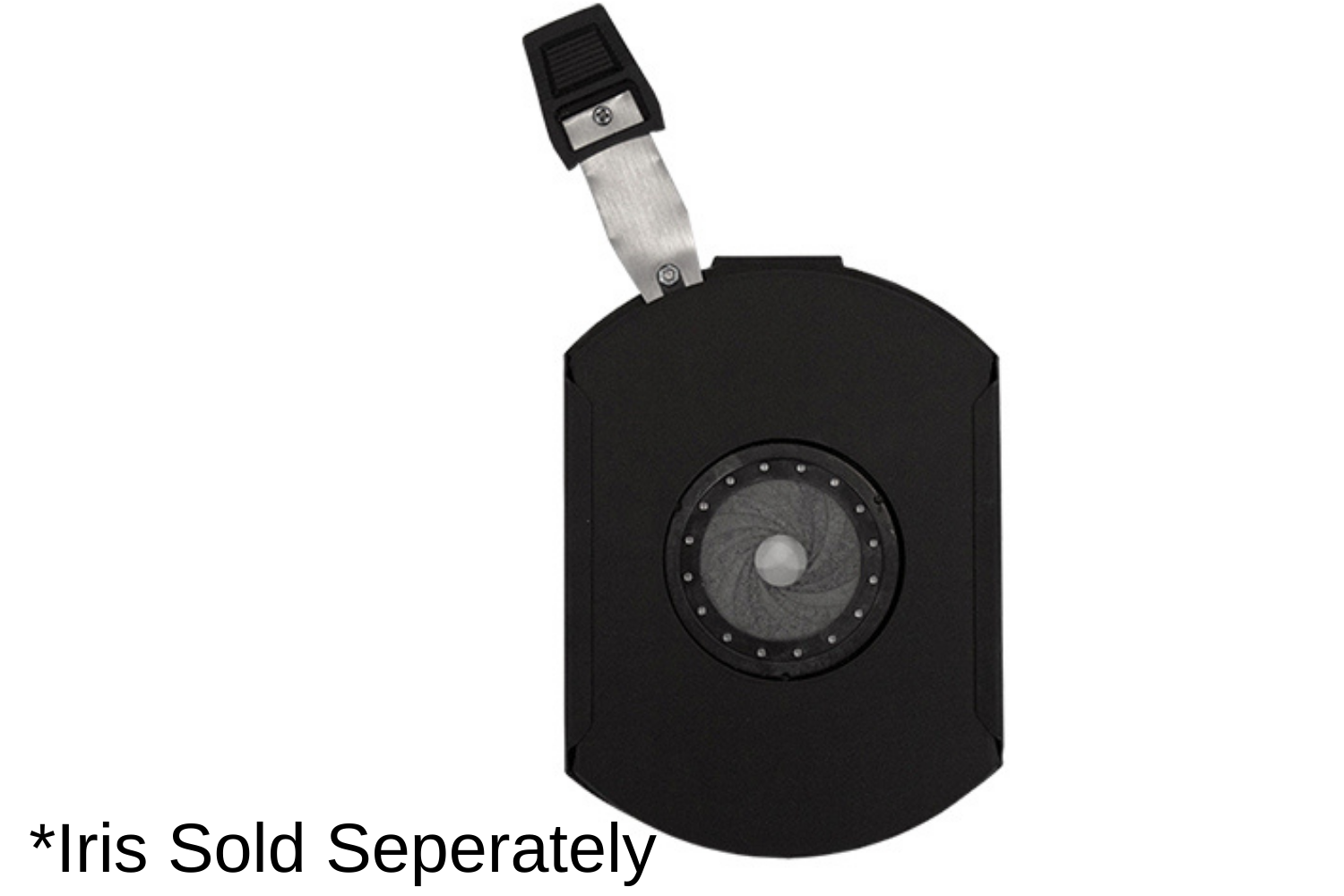

• Iris: PSIRIS (Optional)

Power

• Power Supply: 100~240V AC, 50/60Hz, 300W
• Power Connection: Neutrik® PowerCON in/out

Control

• Operational Modes: DMX, manual, master/slave

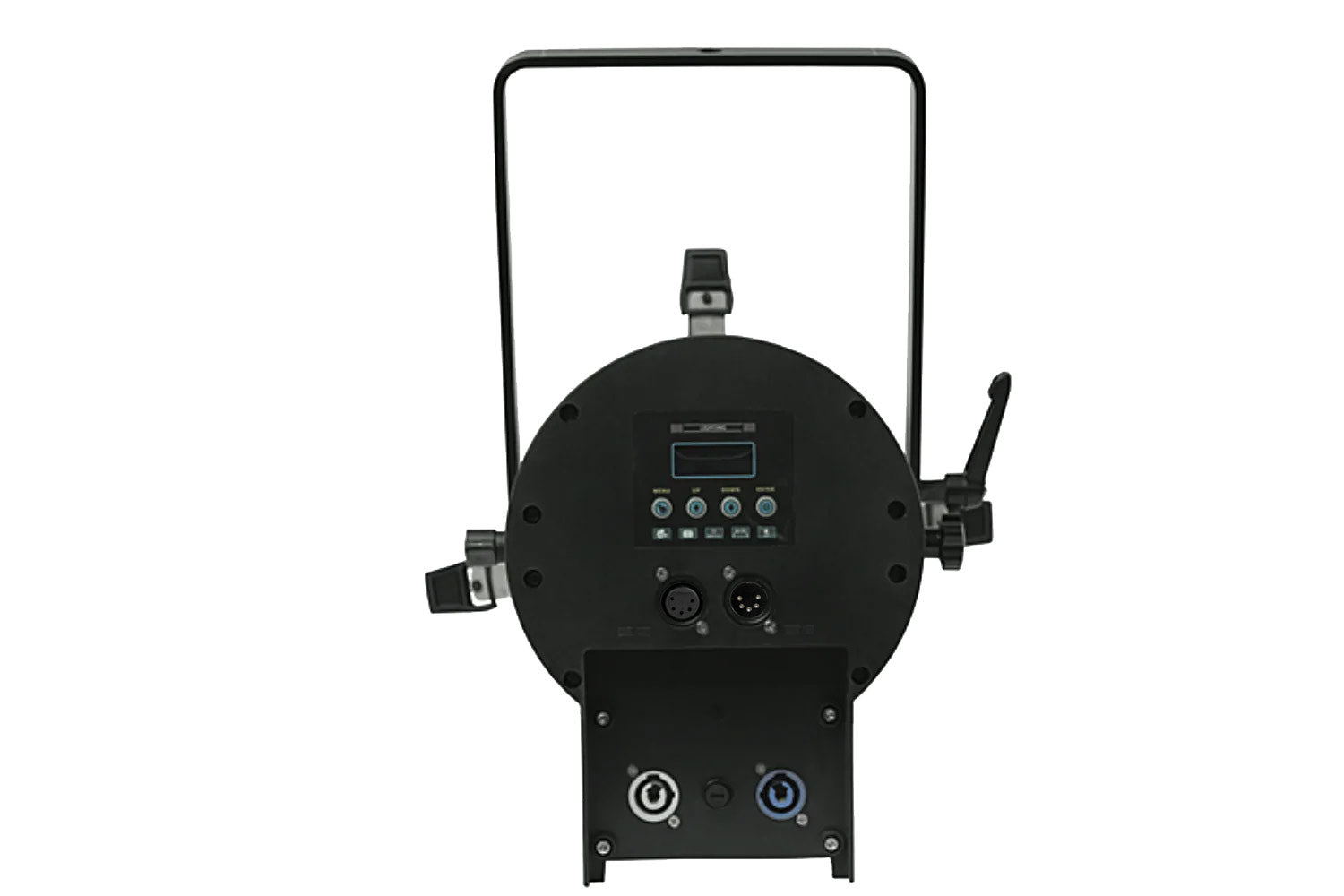

• Display: 4-button LCD control panel
• DMX Protocol: DMX512
• DMX Channel Mode: 1 / 2 / 3
• DMX Interface: 5-pin XLR

Housing

• Housing Materials: Aluminium & ABS, matte black finish
• Cooling: Variable Speed Fan
• Net Weight: 9.5kg

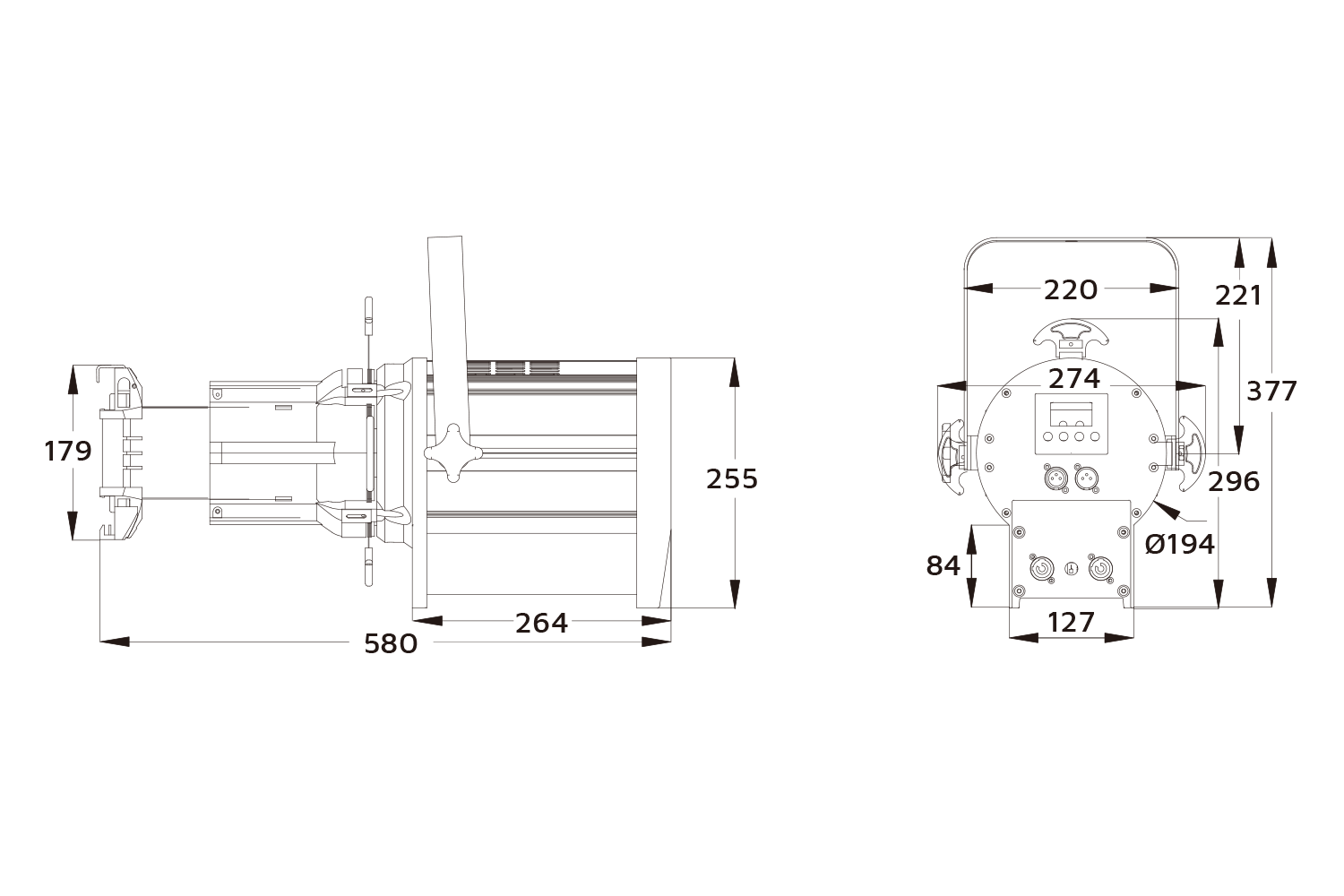

• Overall Size: 538 x 270 x 427mm

Download Product Datasheet

Download User Manual

Marketing Assets

Warranty: 3 years
