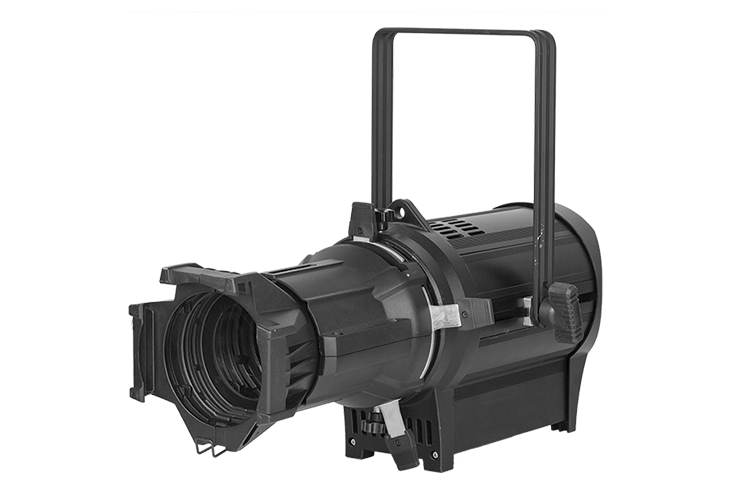

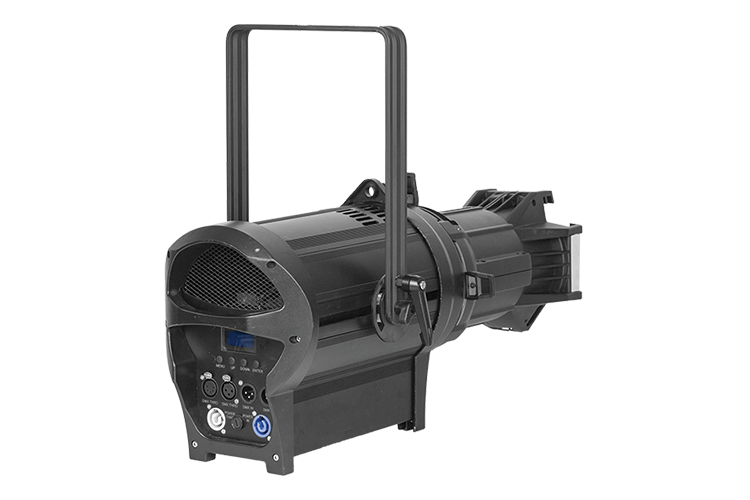

PS200RGBL

Power

• Power Supply: 100~240V AC, 50/60 Hz
• Power Consumption: 200W
• Power Connection: Seetronic® True 1 in / out

Photometrics

• Light Source: 200W RGBL LEDs

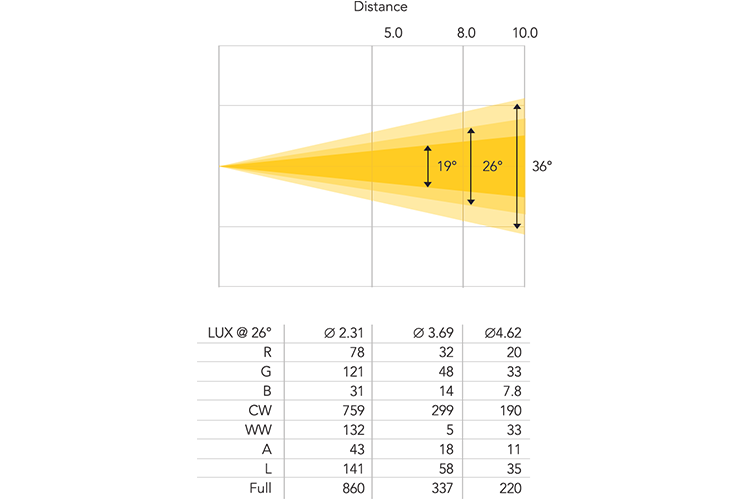

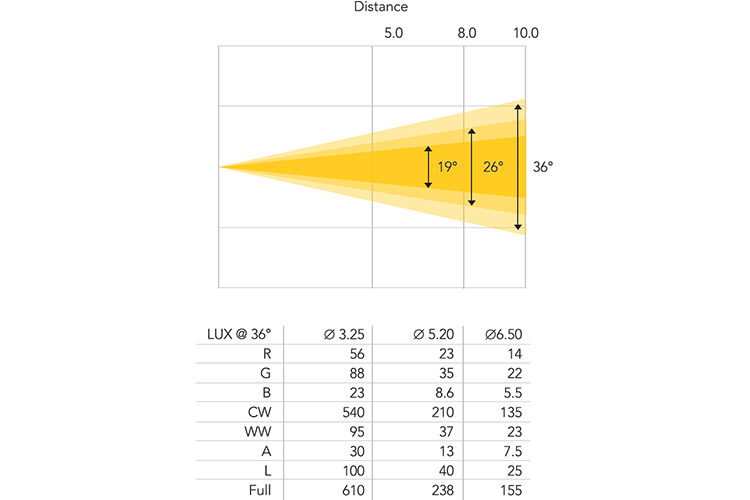

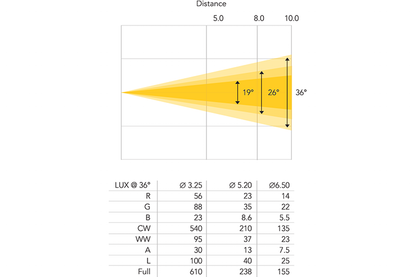

• Beam Angle: 19°, 26° or 36°

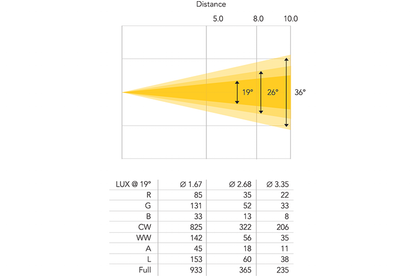

• Output: 933 lux @5M at 19°

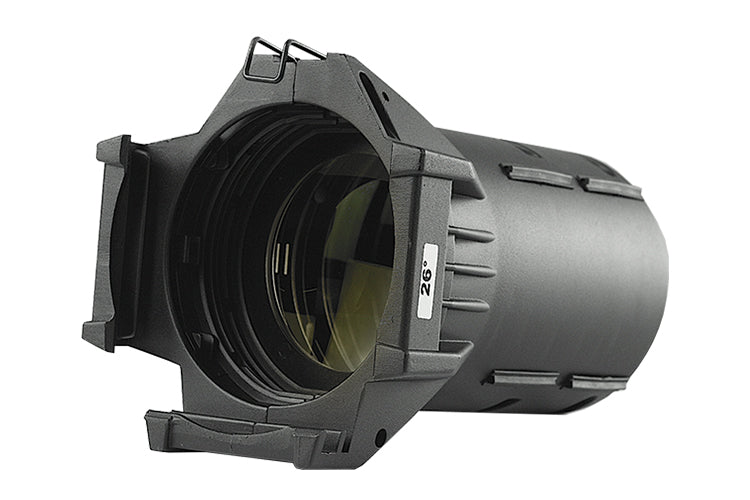

• Optional Lens: PSLII19, PSL1126, PSLII36
• PWM: 8,000Hz
• LED Lifespan: 50,000 hours

Effects

• Dimming: 0 - 100%, 8-bit / 16-bit
• Strobe: 1 – 25 Hz

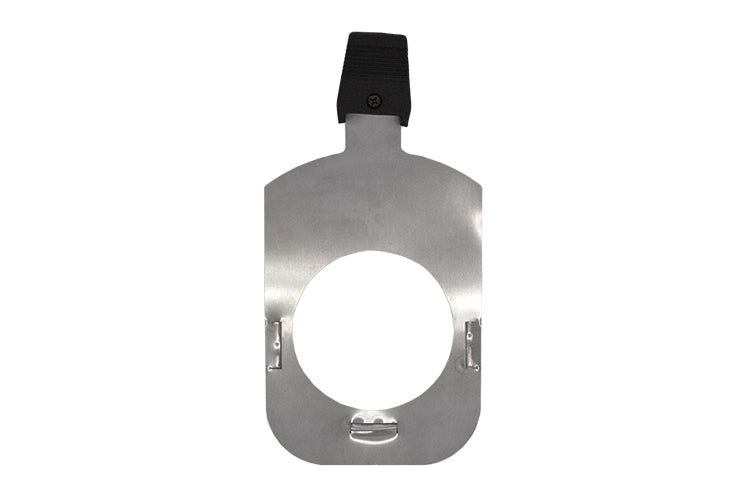

• Gobo Holder: 'B' 86mm overall size

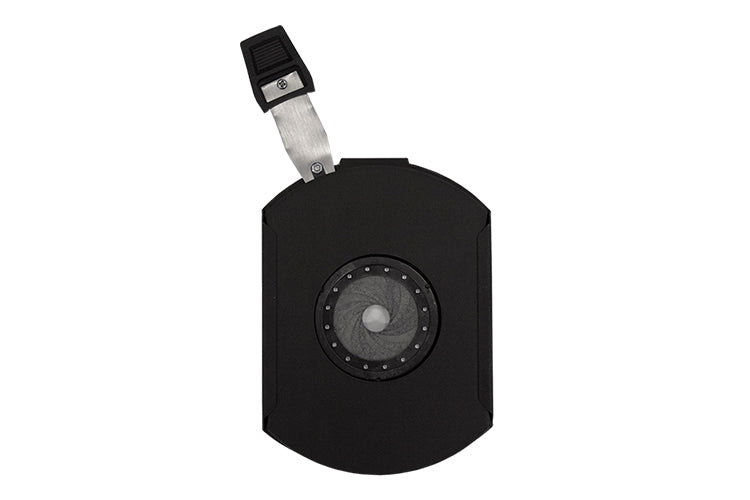

• Iris: PSIRIS (Optional)

Control

• Operational: DMX, Manual & Master / Slave
• Display: 4-Button LCD control panel
• DMX Protocol: DMX512
• DMX Channel: 8
• DMX Interface: 3-Pin & 5-Pin XLR

Housing

• Housing Materials: Aluminium
• Housing Finishing: Matte Black
• Cooling: Sensor Thermostat Controlled Variable Speed Fan
• Net Weight: 12 kg

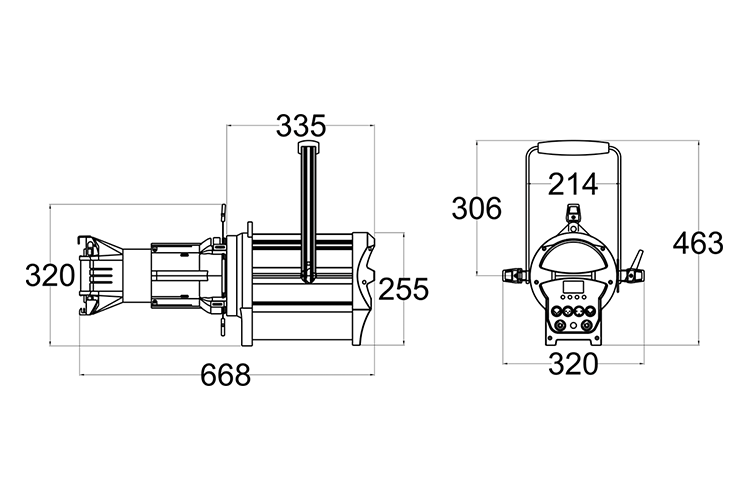

• Overall Size: 668 X 320 X 463mm
