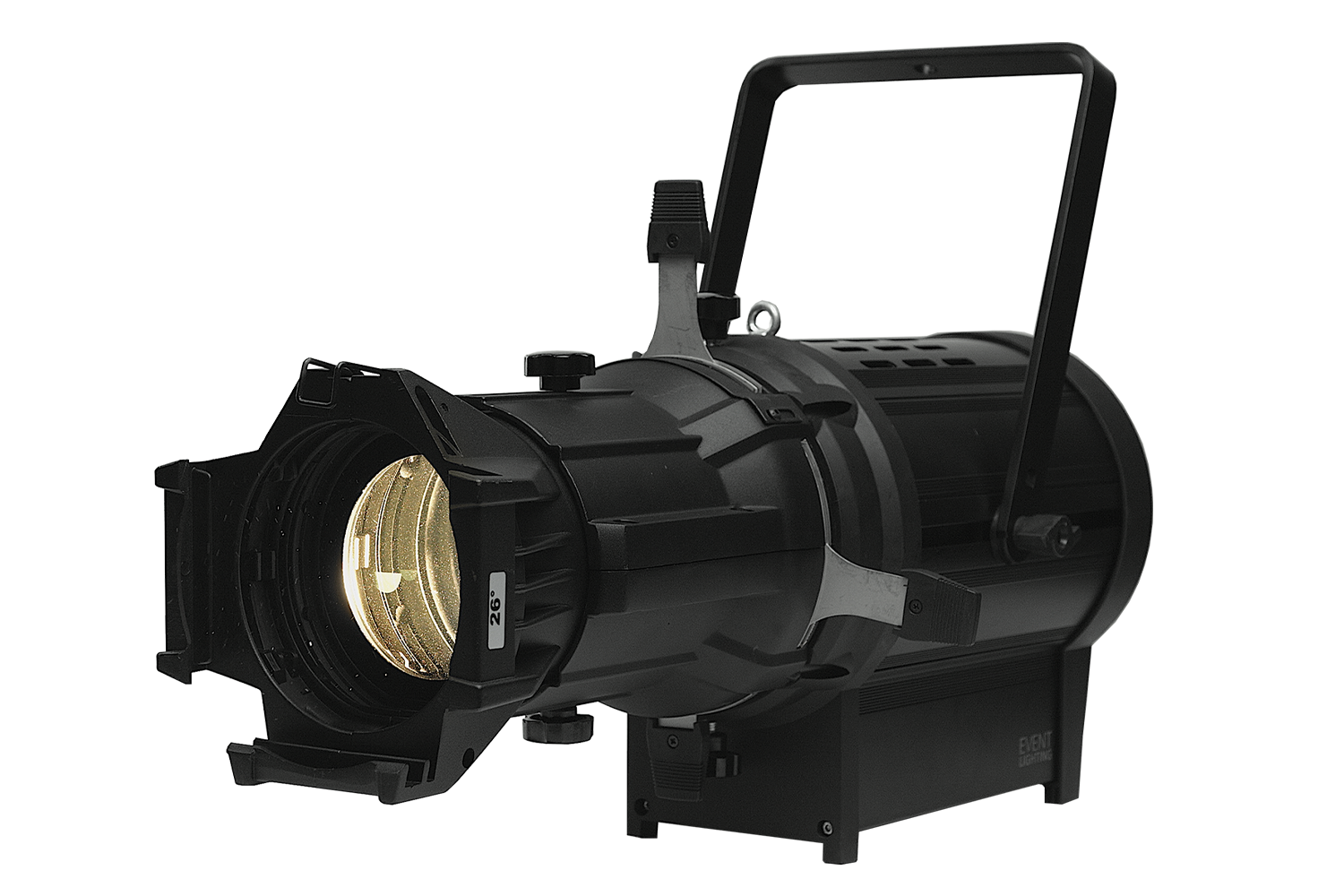

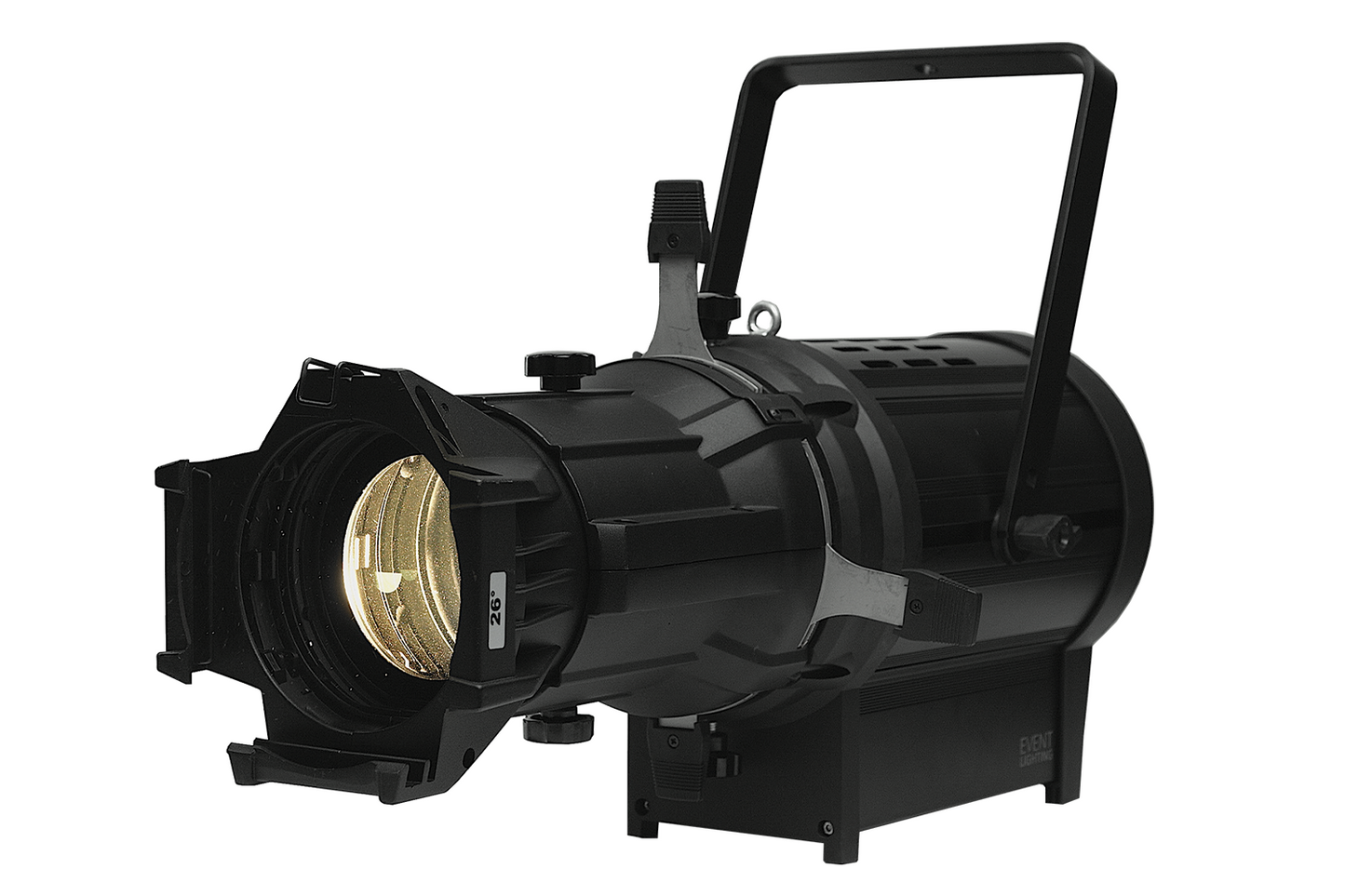

PS200LEWW - 200W Warm White Profile Spot Light Engine

This product is discontinued.

See related products - PS300LEWW

See all Profile Spots



Photometrics

• Light Source: 200W 3,000K COB LED
• CRI: 97
• Beam Angle: 19°, 26°, 36°, 25°-50° or 15°-30°

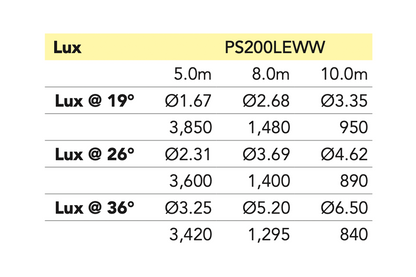

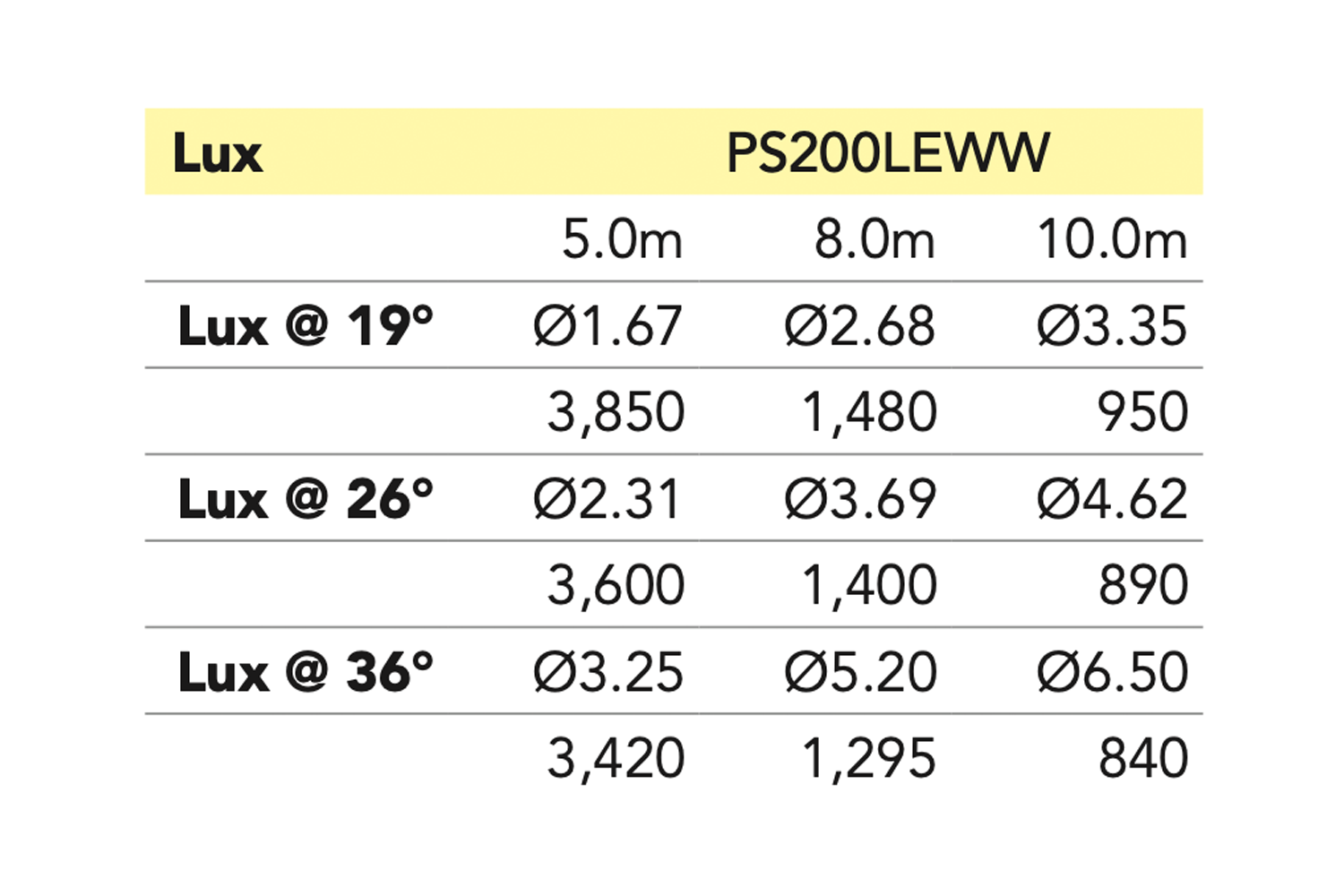

• Output: 4157 lux @ 5m @ 19°, 3848 lux @ 5m @ 26°, 2748 lux @ 5m @ 36°

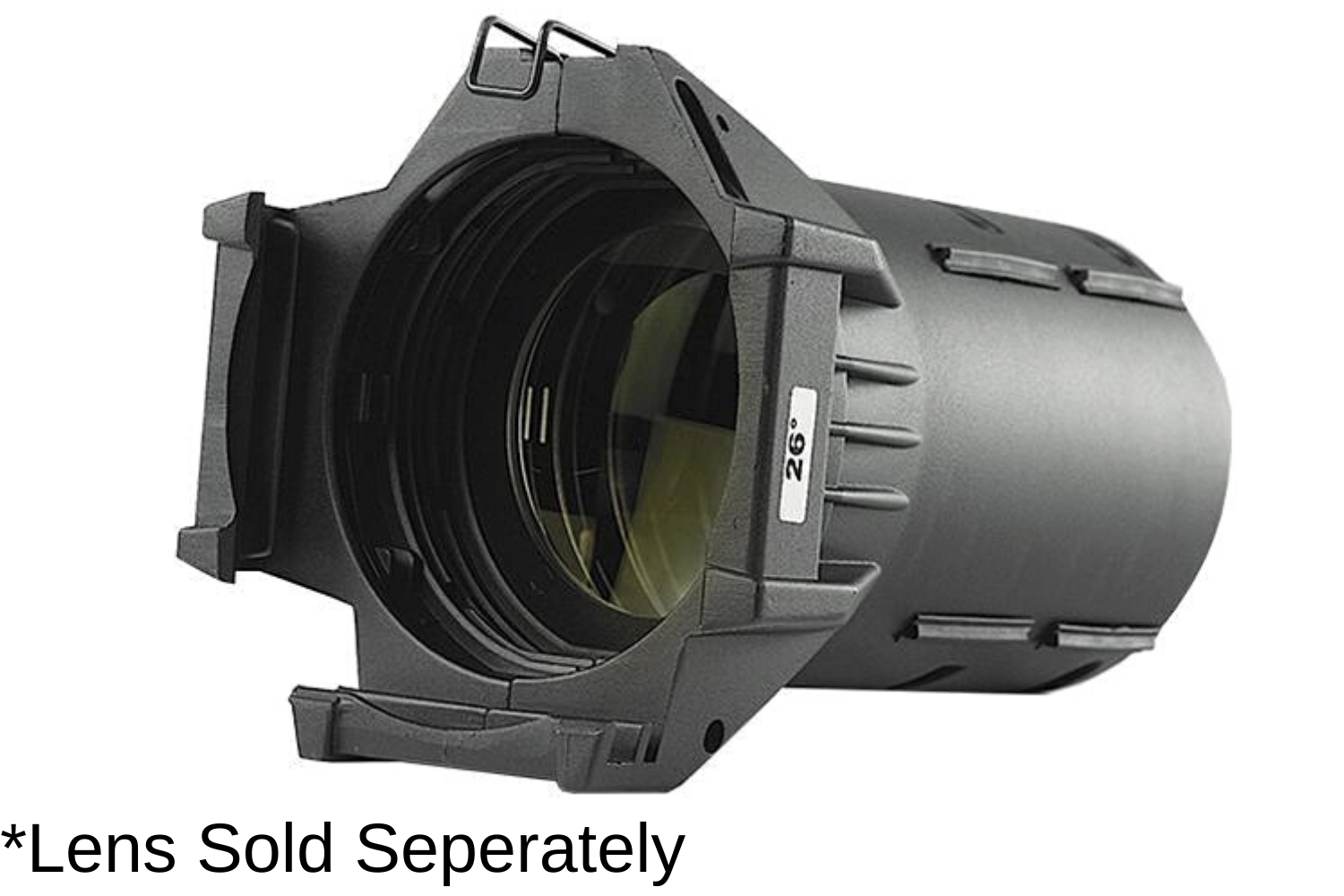

• Optional Lens: PSLII19, PSLII26, PSLII36, PSLII2550, PSLII1530
• PWM: 8,000Hz
• LED Lifespan: 50,000 hours

Effects

• Dimming: 0~100%, 16-bit
• Strobe: 1~25Hz

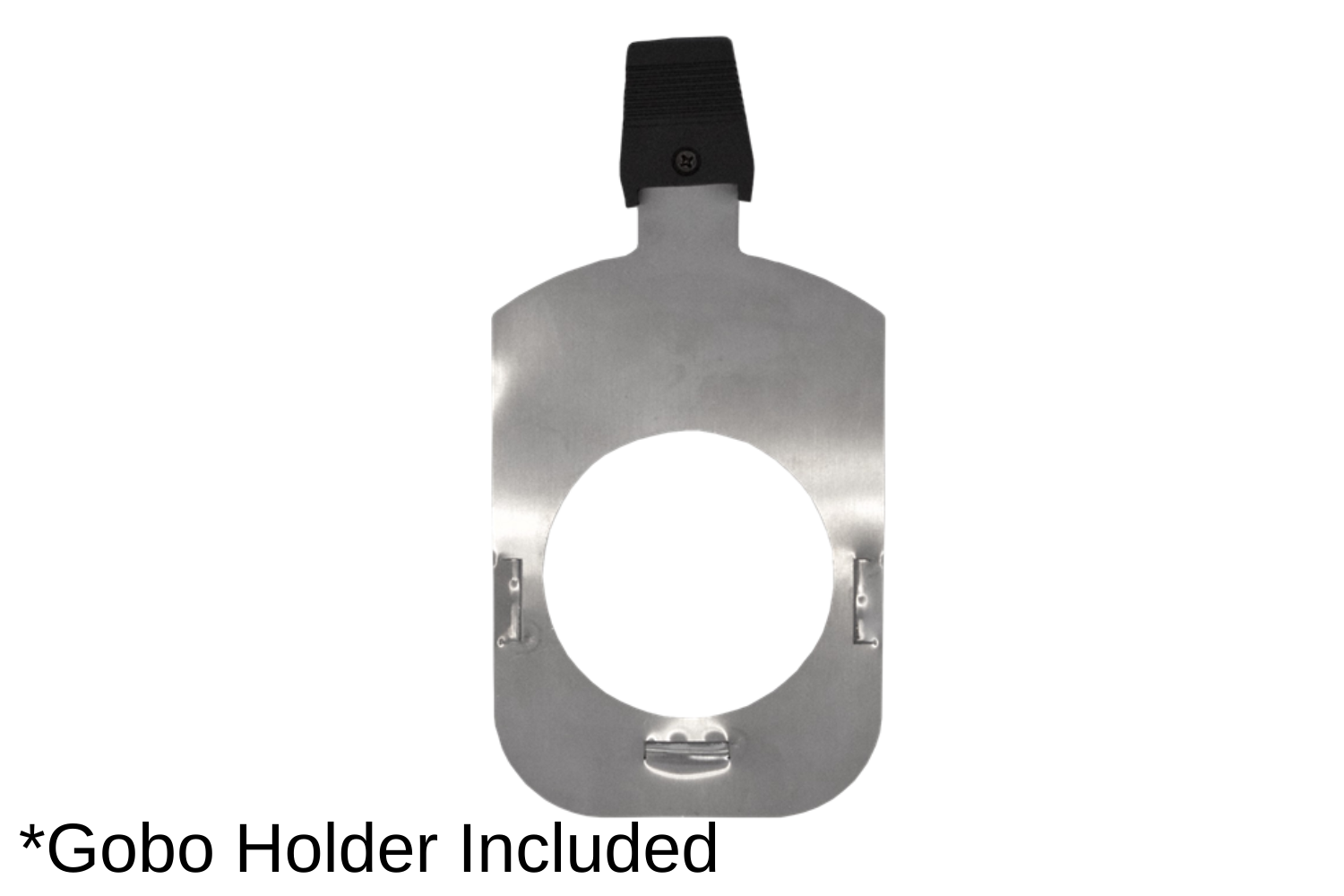

• Gobo holder size: 'B' 87.5mm overall size, 35mm image size

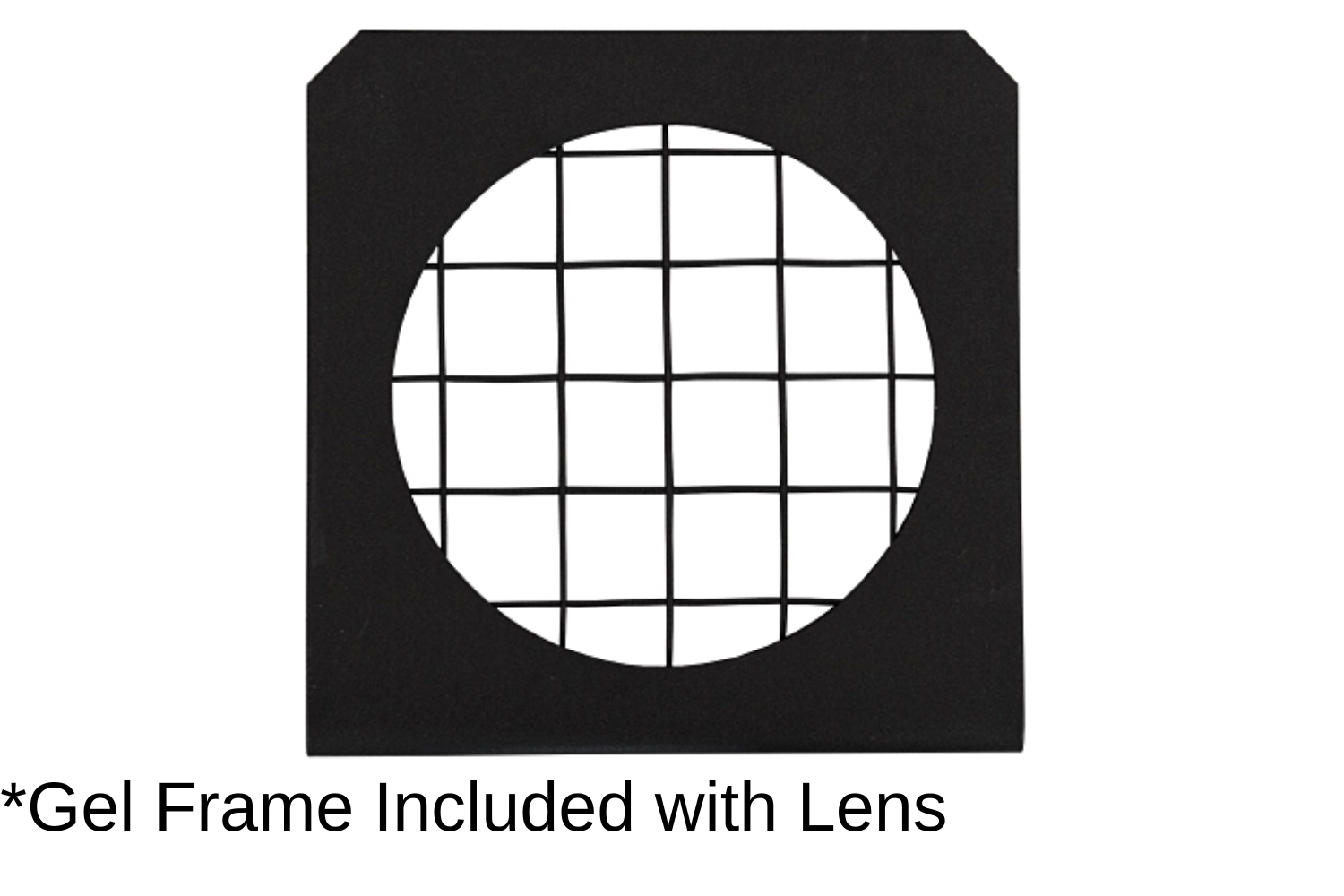

• Gel Frame: Included

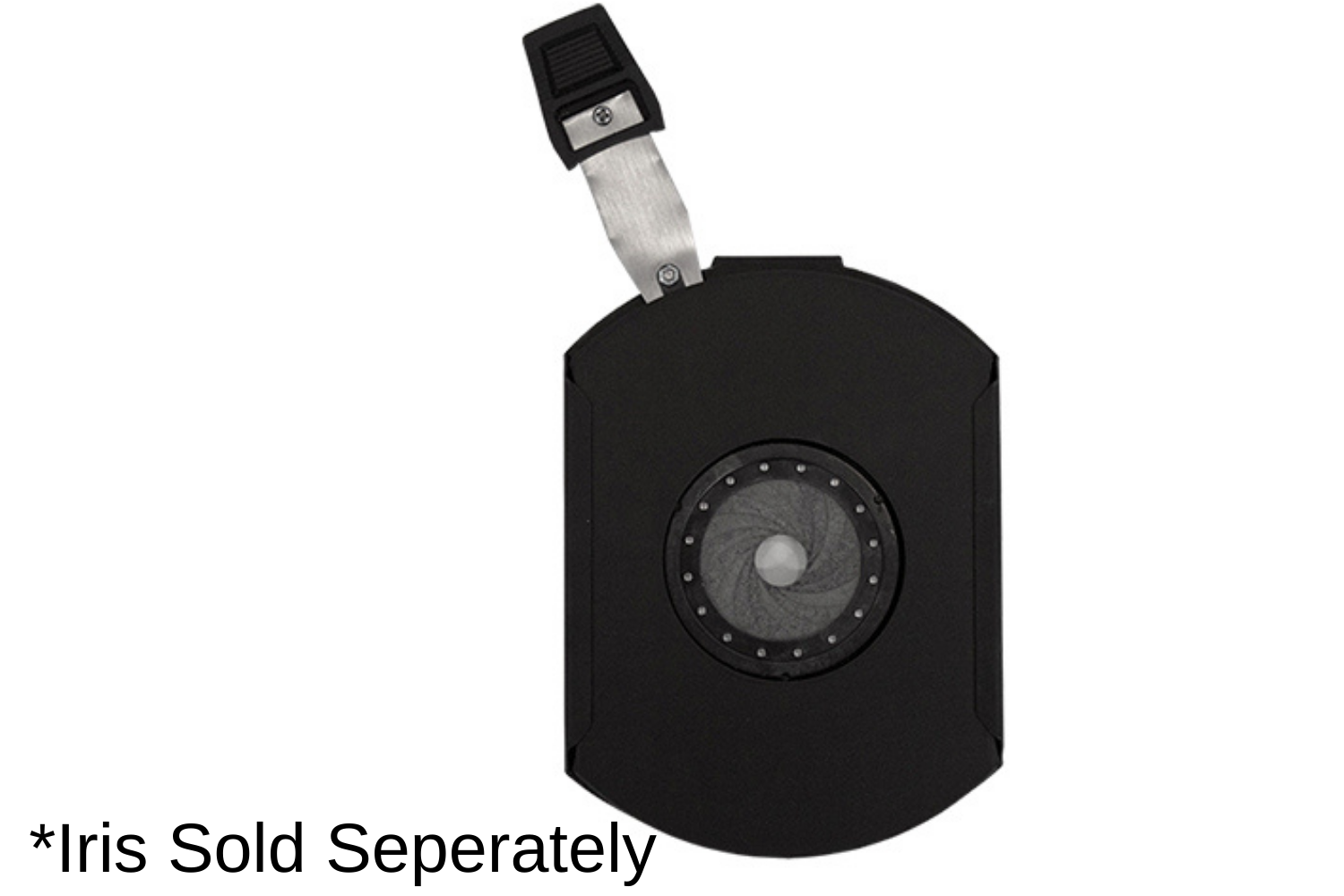

• Iris: PSIRIS (Optional)

Power

• Power Supply: 100~240V AC, 50/60 Hz 200W
• Power Connection: Neutrik® PowerCON in / out

Control

• Operational Modes: DMX, manual, master/slave

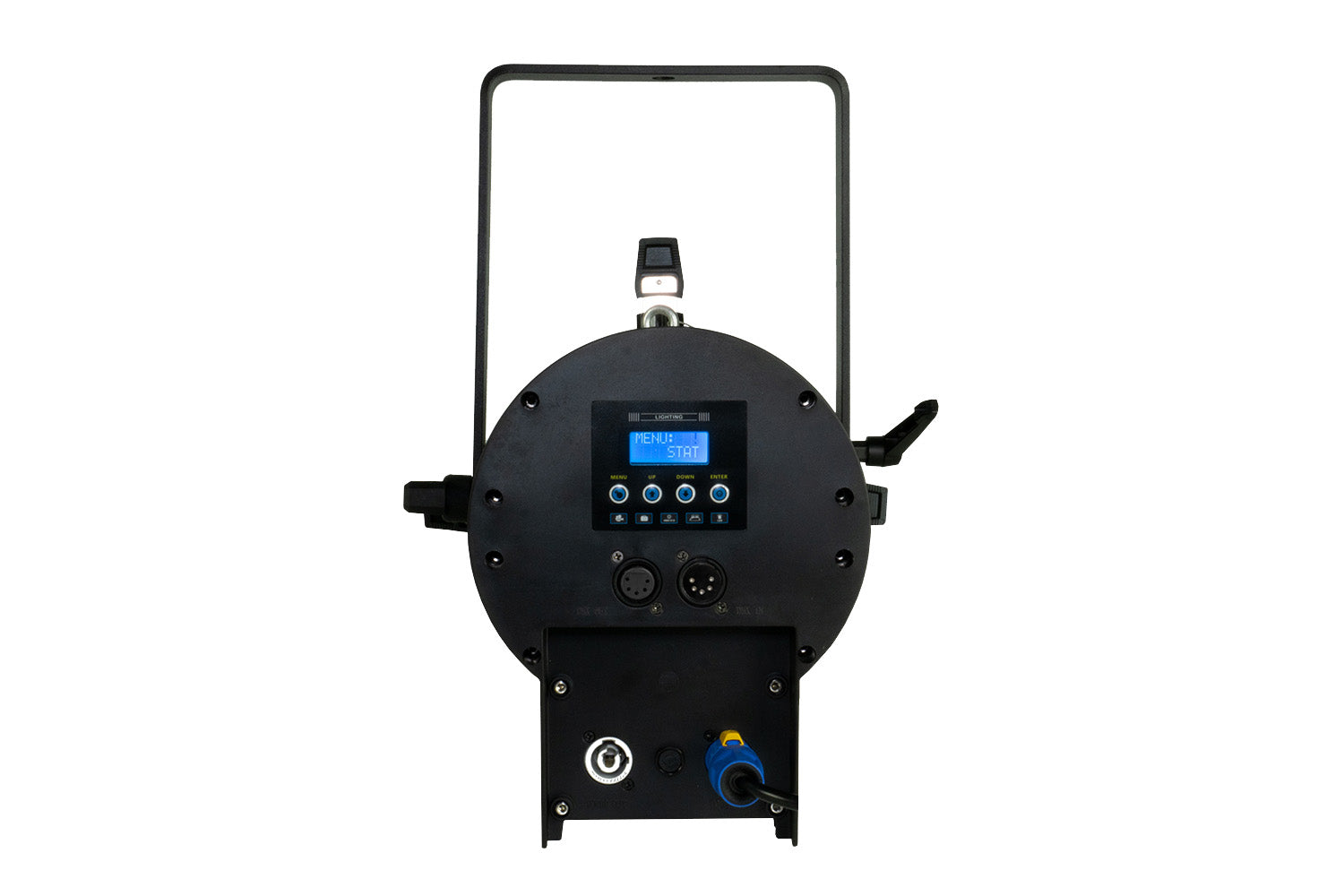

• Display: 4-button LCD control panel
• Control Protocol: DMX512
• DMX Channels: 1 / 2 / 3
• Control Interface: 5-pin XLR

Housing

• Housing Materials: Aluminium and ABS, matte black finish
• Cooling: Variable Speed Fan
• Net Weight: 8.6kg

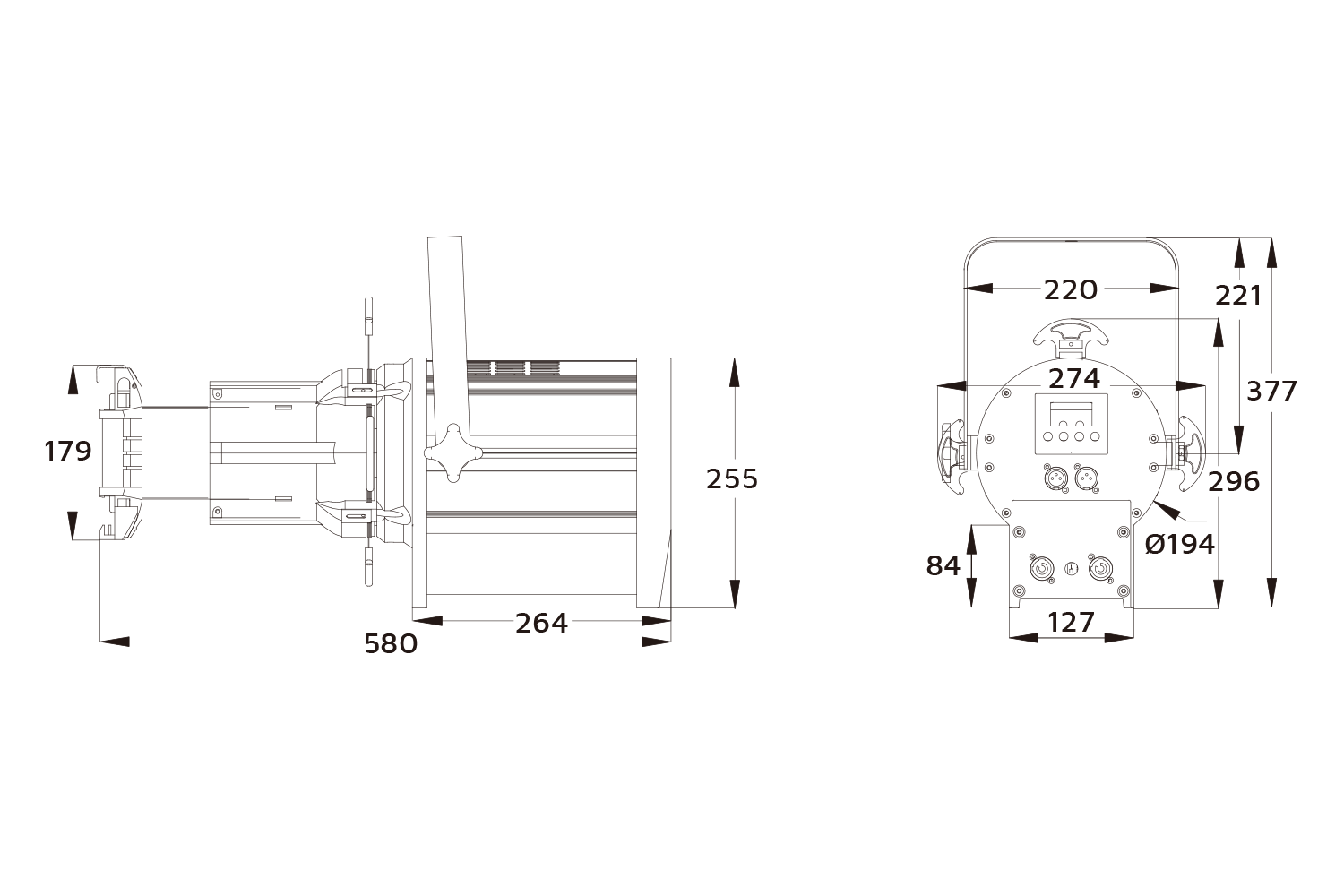

• Overall Size: 538 x 270 x 395mm

Comparison Chart Download

Product Specification Sheet Download



User Manual v1.8.0 Download

Warranty: 3 years
