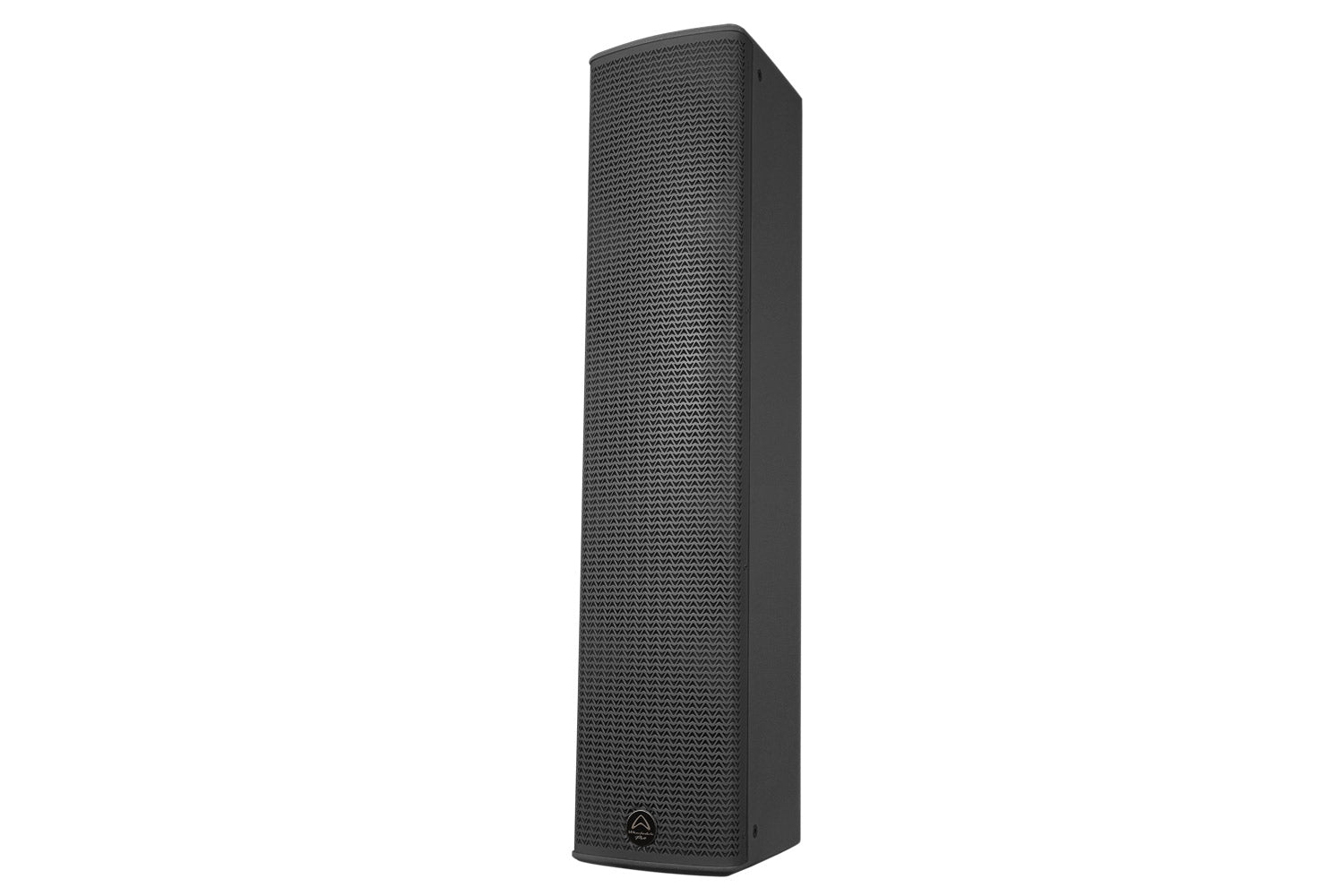

Wharfedale Pro PROGRAMME-X406T Installation Speaker
Wharfedale Pro PROGRAMME-X406T Installation Speaker
PROGRAMME-X406T is a 4 x 6.5″ passive loudspeaker from our PROGRAMME-X Series, purpose-built for high-performance distributed audio systems operating on 70 V / 100 V lines.
Equipped with four precision-engineered LF drivers and low-distortion internal transformers, PROGRAMME-X406T delivers powerful, consistent coverage across its 90° x 60° dispersion pattern. Designed for clarity and output in demanding installations, it’s ideal for auditoriums, hospitality spaces, retail environments, and houses of worship.
Installation is simple and secure thanks to 18 M8 rigging points and a supplied U-bracket for flexible wall or ceiling mounting. Its clean, durable design is available in black or white, blending seamlessly into any modern interior.
Selectable 70 V taps (15 / 30 / 60 / 120 W) and 100 V taps (30 / 60 / 120 W) provide system flexibility, while 8 Ω operation remains an option. Handling 300 W continuous (1200 W peak) power, PROGRAMME-X406T combines precision sound, adaptability, and professional-grade reliability for fixed installation environments.
| Specification | Value |
|---|---|
| Active or Passive | Passive |
| System Type | Full-Range |
| Configuration | 2-way |
| System Continuous Power | 300 W |
| System Programme Power | 600 W |
| System Peak Power | 1200 W |
| Max SPL @ 1m | 129 dB |
| Freq Range (-10 dB) | 55 Hz - 20 kHz |
| Freq Response (+/-3 dB) | 60 Hz - 20 kHz |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 4 x 6.5" |
| LF Voice Coil Size | 1″ |
| LF Rated Impedance | 8 Ω |
| LF Power (RE:AES2-2012) | 4 x 65 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 1" |
| HF Diaphragm Material | Rugged Phenolic |
| HF Exit Size | 1″ |
| HF Power (RE:AES2-2012) | 20 W |
| HF Rated Impedance | 8 Ω |
| HF Nominal Coverage (H x V) | 90° x 60° |
| Input Connector | 2 x 4 Pole Speaker Connector + Barrier Strip |
| Waveguide Type | Square |
| Enclosure Material | MDF |
| Grille Material and Finish | Steel Black or White |
| Finish | Black or White |
| Deployment | Flying, Wall Mount |
| Pole Mount | None |
| Brackets Included | Yes |
| Rigging | Yes |
| M8 | 18 |
| Sensitivity 2.83v / 1m | 98 dB |
| System Rated Impedance | 8 Ω |
| Crossover Frequency | 2.1 kHz |
| Recommended HPF = BW 18 dB/OCT. | 55 Hz |
| Transformer (T) | Yes |
| Transformer Taps (70 V) | 15 / 30 / 60 / 120 W |
| Transformer Taps (100 V) | 30 / 60 / 120 W |
| Input Connectors (T) | Barrier Strip |
| Included Accessory | Black or white U bracket, User Manual |
| Unpacked - Height (mm) | 980 |
| Unpacked - Width Front (mm) | 215 |
| Unpacked - Width Rear (mm) | 140 |
| Unpacked - Depth (mm) | 275 |
| Packed - Height (mm) | 1055 |
| Packed - Width Front (mm) | 291 |
| Packed - Width Rear (mm) | 291 |
| Packed - Depth (mm) | 345 |
| Weight - Net (kg) | 21 |
| Weight - Gross (kg) | 23.8 |
