Wharfedale Pro
Wharfedale Pro PROGRAMME-X206 Installation Speaker
Wharfedale Pro PROGRAMME-X206 Installation Speaker

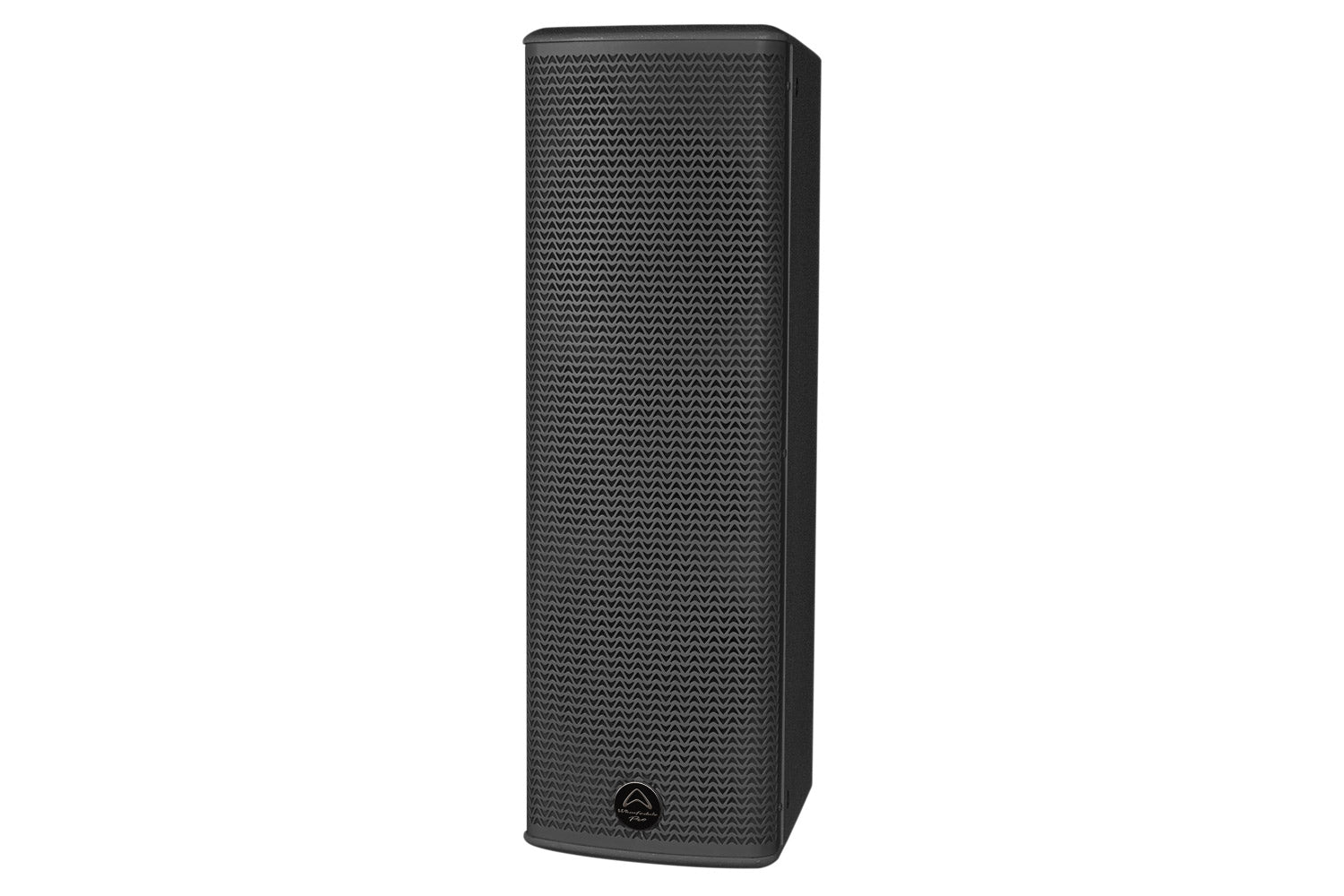

PROGRAMME-X206 is a dual 6.5″ passive loudspeaker from our PROGRAMME-X Series, engineered to deliver superior output, clarity, and coverage in professional fixed installation environments.
With twin LF drivers and a refined crossover network, PROGRAMME-X206 offers a significant SPL increase and smoother frequency response compared to the original PROGRAMME range. Its 90° x 60° dispersion pattern ensures consistent coverage across wide listening areas, making it ideal for restaurants, retail, and entertainment spaces.
Built for installation flexibility, PROGRAMME-X206 includes 18 M8 rigging points and a U-bracket for easy wall or ceiling mounting. The cabinet’s clean aesthetic, available in black or white, blends seamlessly into any architectural environment while maintaining rugged reliability.
Operating at 8 Ω, it handles 150 W continuous (600 W peak) power and features both barrier strip and NL4 (speakON compatible) connectors for secure, versatile wiring options. Compact, powerful, and precise — PROGRAMME-X206 delivers premium performance in a discreet, installer-friendly format.
| Specification | Value |
|---|---|
| Active or Passive | Passive |
| System Type | Full-Range |
| Configuration | 2-way |
| System Continuous Power | 150 W |
| System Programme Power | 300 W |
| System Peak Power | 600 W |
| Max SPL @ 1m | 124 dB |
| Freq Range (-10 dB) | 60 Hz - 20 kHz |
| Freq Response (+/-3 dB) | 65 Hz - 20 kHz |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 2 x 6.5″ |
| LF Voice Coil Size | 1″ |
| LF Rated Impedance | 8 Ω |
| LF Power (RE:AES2-2012) | 2 x 65 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 1" |
| HF Diaphragm Material | Rugged Phenolic |
| HF Exit Size | 1″ |
| HF Power (RE:AES2-2012) | 20 W |
| HF Rated Impedance | 8 Ω |
| HF Nominal Coverage (H x V) | 90° x 60° |
| Preset | Yes |
| Input Connector | 2 x 4 Pole Speaker Connector + Barrier Strip |
| Waveguide Type | Square |
| Enclosure Material | MDF |
| Grille Material and Finish | Steel Black or White |
| Finish | Black or White |
| Deployment | Flying, Wall Mount |
| Pole Mount | None |
| Brackets Included | Yes |
| Rigging | Yes |
| M8 | 18 |
| Sensitivity 2.83v / 1m | 96 dB |
| System Rated Impedance | 8 Ω |
| Crossover Frequency | 2.1 kHz |
| Recommended HPF = BW 18 dB/OCT. | 60 Hz |
| Included Accessory | Black or White U Bracket, User Manual |
| Unpacked - Height (mm) | 660.5 |
| Unpacked - Width Front (mm) | 215 |
| Unpacked - Width Rear (mm) | 140 |
| Unpacked - Depth (mm) | 275 |
| Packed - Height (mm) | 735 |
| Packed - Width Front (mm) | 291 |
| Packed - Width Rear (mm) | 291 |
| Packed - Depth (mm) | 345 |
| Weight - Net (kg) | 11.36 |
| Weight - Gross (kg) | 13.4 |
