Wharfedale Pro

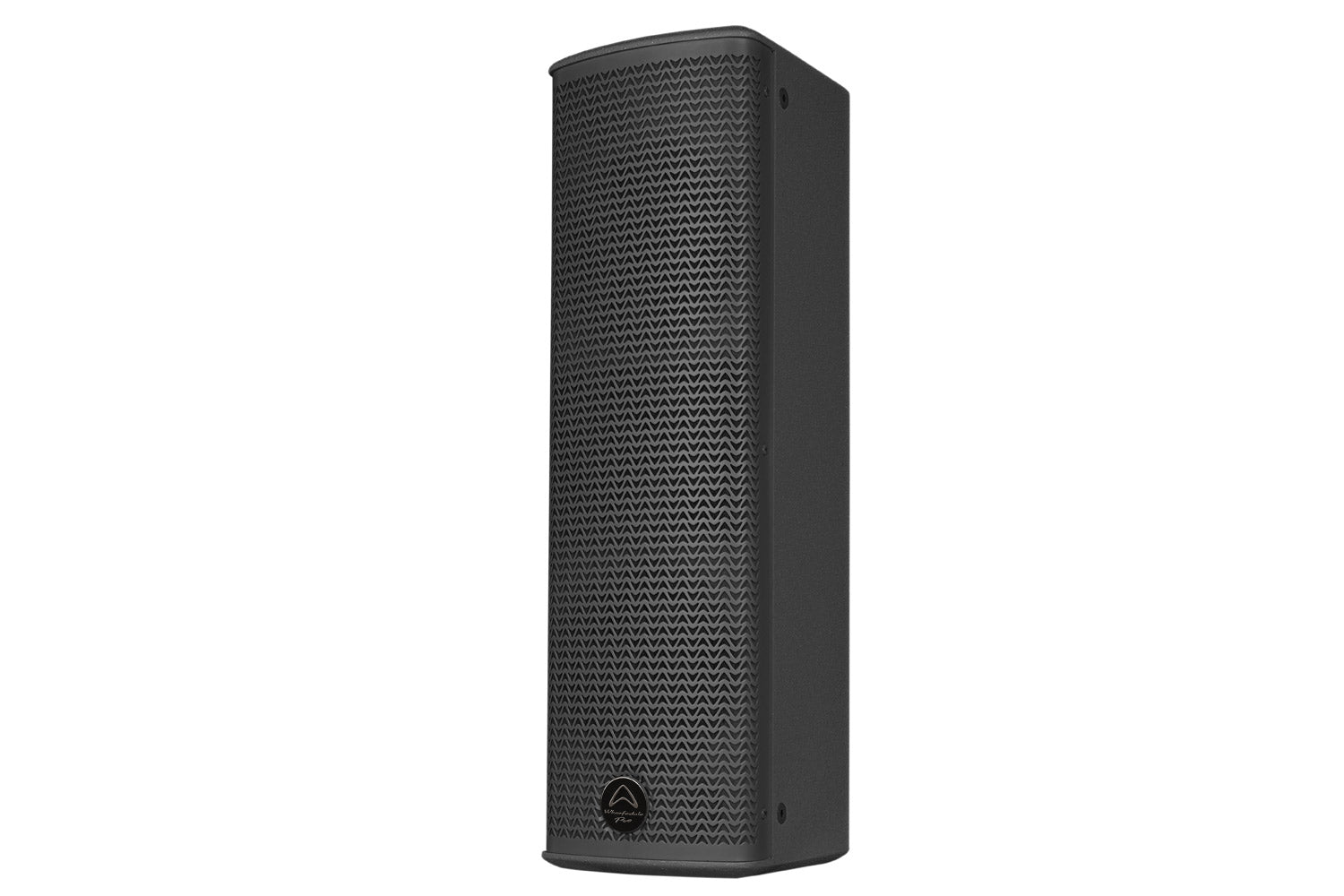

Wharfedale Pro PROGRAMME-X205 Installation Speaker
Wharfedale Pro PROGRAMME-X205 Installation Speaker
Regular price
$289.00
Regular price
Sale price
$289.00
Unit price
per
PROGRAMME-X
LETS CHANGE THE PROGRAMME
- Improved SPL (almost twice as loud as the original Programme series)
- New drivers
- Refined dimensions
- Improved horizontal coverage
- Available in Black or White
- Supplied with U brackets for easy installation
- Downloadable EASE .gll files & FIR preset files
PROGRAMME-X205T
- 2 x 5.0″ Passive
- 100 Watts Continuous power
- 200 Watts Programme power
- 400 Watts Peak power
- 18 x M8 rigging points
- 90° x 60° dispersion
FIR PRESET LIBRARY
Download the FIR presets to get the most from your Programme-X system when using with the SC-48 FIR or DP-F / N series amplifiers.
LOW -Z
Standard Programme-X models are 8 Ohm and many models feature both Barrier strip and NL4 (speakON compatible) connectors
HI -Z
All Programme-X models are available with quality, specifically selected low distortion internal transformers. The ‘T’ models allow for easy installation into any 70 V / 100 V system. T Models can also operate at 8 Ohms.
EASY 4-U TO INSTALL
All Programme-X models are supplied with U-brackets for easy, quick and tidy installation.
SPECIFICATIONS
| Model Name | Programme-X205 / X205T |
|---|---|
| System Type | 2 x 5″ Passive |
| Configuration | Two-way |
| Frequency Response (+/-3 dB) | 70 Hz – 20 KHz |
| Frequency Range (- 10 dB) |
65 Hz – 20 KHz |
| Sensitivity (2.83v/1m) | 94 dB |
| Calculated Maximum SPL @1 m | 120 dB |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size | 2 x 127 mm / 2 x 5″ |
| Voice Coil Size | 25.5 mm / 1″ |
| Rated Impedance | 8 Ω |
| LF Power (re:AES2-2012) |
2 x 50 W |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Voice Coil Size | 25.4 mm / 1″ |
| Exit Size | 25.4 mm / 1″ |
| Diaphragm Material | Rugged Phenolic |
| Rated Impedance | 8Ω |
| HF Power (re:AES2-2012) |
20 W |
| Nominal Coverage (H x V) |
90˚x 60˚ |
| Power | |
| System Continuous Power | 100 W |
| System Programme Power | 200 W |
| System Peak Power | 400 W |
| Crossover frequency | 2.0 KHz |
| Recommended HPF = BW 18 dB/oct. | 55 Hz |
| Input Connector | Barrier Strip |
| Input Connectors (T) | Barrier Strip |
| Transformer (T) | 100 V / 70 V |
| Transformer Taps (70 V) |
15,30,60,120 W |
| Transformer Taps (100 V) |
30,60,120 W |
| Hardware | |
| Rigging | M8 x 18 |
| Pole Mount | N/A |
| Enclosure | |
| Enclosure Material | MDF |
| Finish | Black / White Paint |
| Grille Material & Finish | Black / White Full (Steel) |
| Dimensions – Unpacked | |
| Height | 600 mm / 19.69″ |
| Width Front | 184 mm / 7.24″ |
| Width Rear | 130 mm / 7.24″ |
| Depth | 205 mm / 8.07″ |
| Dimensions – Packed | |
| Height | 675 mm / 26.6″ |
| Width Front | 250 mm / 9.8″ |
| Width Rear | 250 mm / 9.8″ |
| Depth | 274 mm / 10.8″ |
| Weight | |
| Net Weight : Regular / T-Version | 9.34 Kg / 10.4 Kg |
| Gross Weight : Regular / T-Version | 10.84 Kg / 11.9 Kg |
| Included accessory | black/white U bracket |
