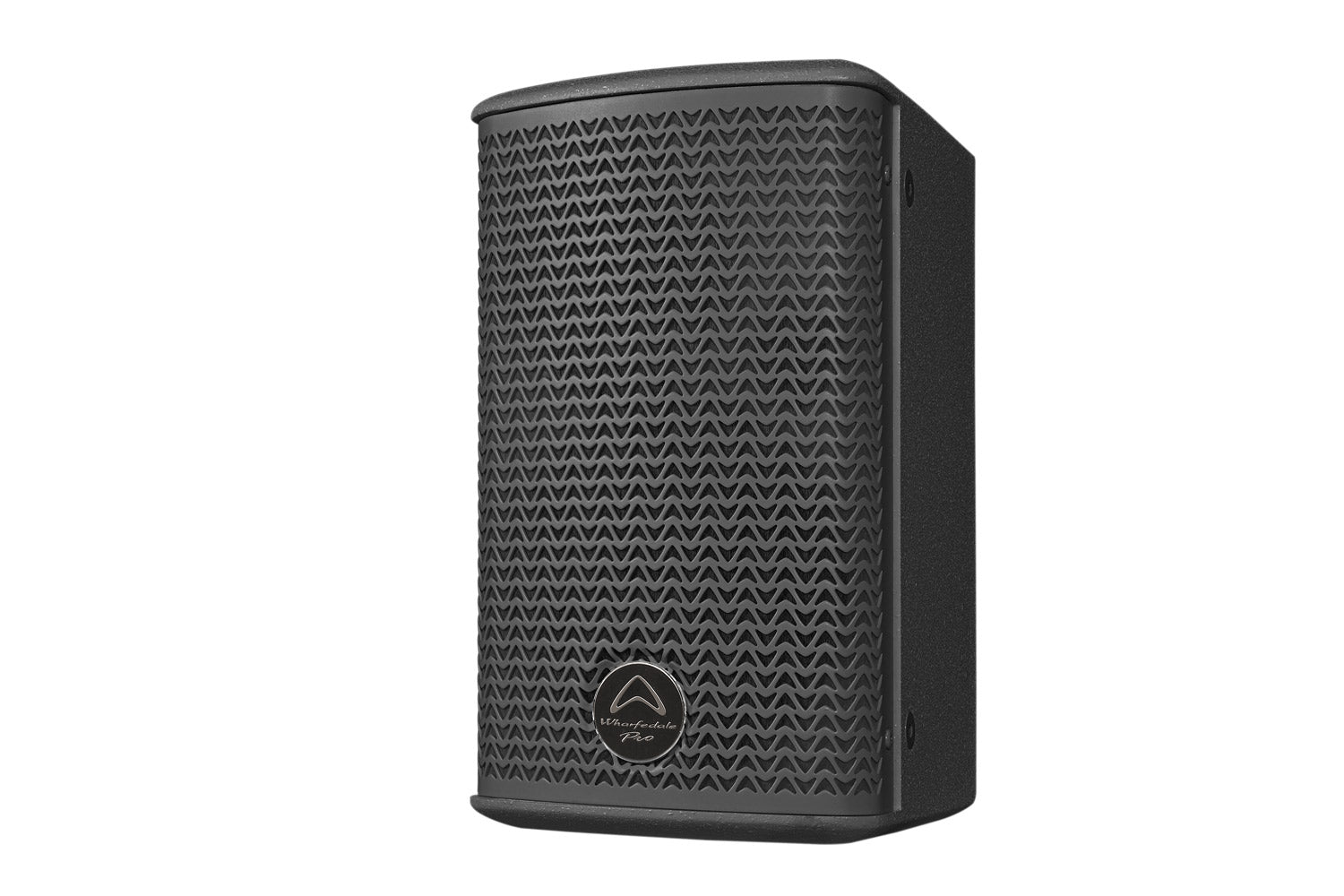

Wharfedale Pro PROGRAMME-X105 Installation Speaker
Wharfedale Pro

Wharfedale Pro PROGRAMME-X105 Installation Speaker

Regular price

PROGRAMME-X

LETS CHANGE THE PROGRAMME

  • Improved SPL (almost twice as loud as the original Programme series)
  • New drivers
  • Refined dimensions
  • Improved horizontal coverage
  • Available in Black or White
  • Supplied with U brackets for easy installation
  • Downloadable EASE .gll files & FIR preset files

PROGRAMME-X105

  • 5.0″ Passive
  • 80 Watts Continuous power
  • 160 Watts Programme power
  • 320 Watts Peak power
  • 14 x M8 rigging points
  • 60° x 60° dispersion

FIR PRESET LIBRARY

Download the FIR presets to get the most from your Programme-X system when using with the SC-48 FIR or DP-F / N series amplifiers.


LOW -Z

Standard Programme-X models are 8 Ohm and many models feature both Barrier strip and NL4 (speakON compatible) connectors

HI -Z



All Programme-X models are available with quality, specifically selected low distortion internal transformers.  The ‘T’ models allow for easy installation into any 70 V / 100 V system.  T Models can also operate at 8 Ohms.

EASY 4-U TO INSTALL



All Programme-X models are supplied with U-brackets for easy, quick and tidy installation.


SPECIFICATIONS

Model Name Programme-X105 / X105T
System Type 5″ Passive
Configuration Two-way
Frequency Response (+/-3 dB) 75 Hz – 20 KHz
Frequency Range
(- 10 dB)
70 Hz – 20 KHz
Sensitivity (2.83v/1m) 91 dB
Calculated Maximum SPL @1 m 116 dB
System Rated Impedance 8 Ω
Low Frequency Transducer
Size 127 mm / 5″
Voice Coil Size 25.5 mm / 1″
Rated Impedance 8 Ω
LF Power
(re:AES2-2012)
65 W
High Frequency Transducer
HF Driver Type Dome Tweeter
Voice Coil Size 25.4 mm / 1″
Exit Size 25.4 mm / 1″
Diaphragm Material Titanium
Rated Impedance 8Ω
HF Power
(re:AES2-2012)
15 W
Nominal Coverage
(H x V)
60˚ x 60˚
Power
System Continuous Power 80 W
System Programme Power 160 W
System Peak Power 320 W
Crossover frequency 2.3 KHz
Recommended HPF = BW 18 dB/oct. 58 Hz
Input Connector Barrier Strip
Input Connectors (T) Barrier Strip
Transformer (T) 100 V / 70 V
Transformer Taps
(70 V)
7.5,15,30,60 W
Transformer Taps
(100 V)
15,30,60 W
Hardware
Rigging M8 x 14
Pole Mount N/A
Enclosure
Enclosure Material MDF
Finish Black / White Paint
Grille Material & Finish Black / White Full (Steel)
Dimensions – Unpacked
Height 304 mm / 11.97″
Width Front 184 mm / 7.24″
Width Rear 130 mm / 5.12″
Depth 205 mm / 8.07″
Dimensions – Packed
Height 379 mm / 14.9″
Width Front 250 mm / 9.8″
Width Rear 250 mm / 9.8″
Depth 274 mm / 10.8″
Weight
Net Weight : Regular / T-Version 5.22 Kg / 6.42 Kg
Gross Weight : Regular / T-Version 6.59 Kg / 7.14 Kg
Included accessory black/white U bracket



Download user manual
