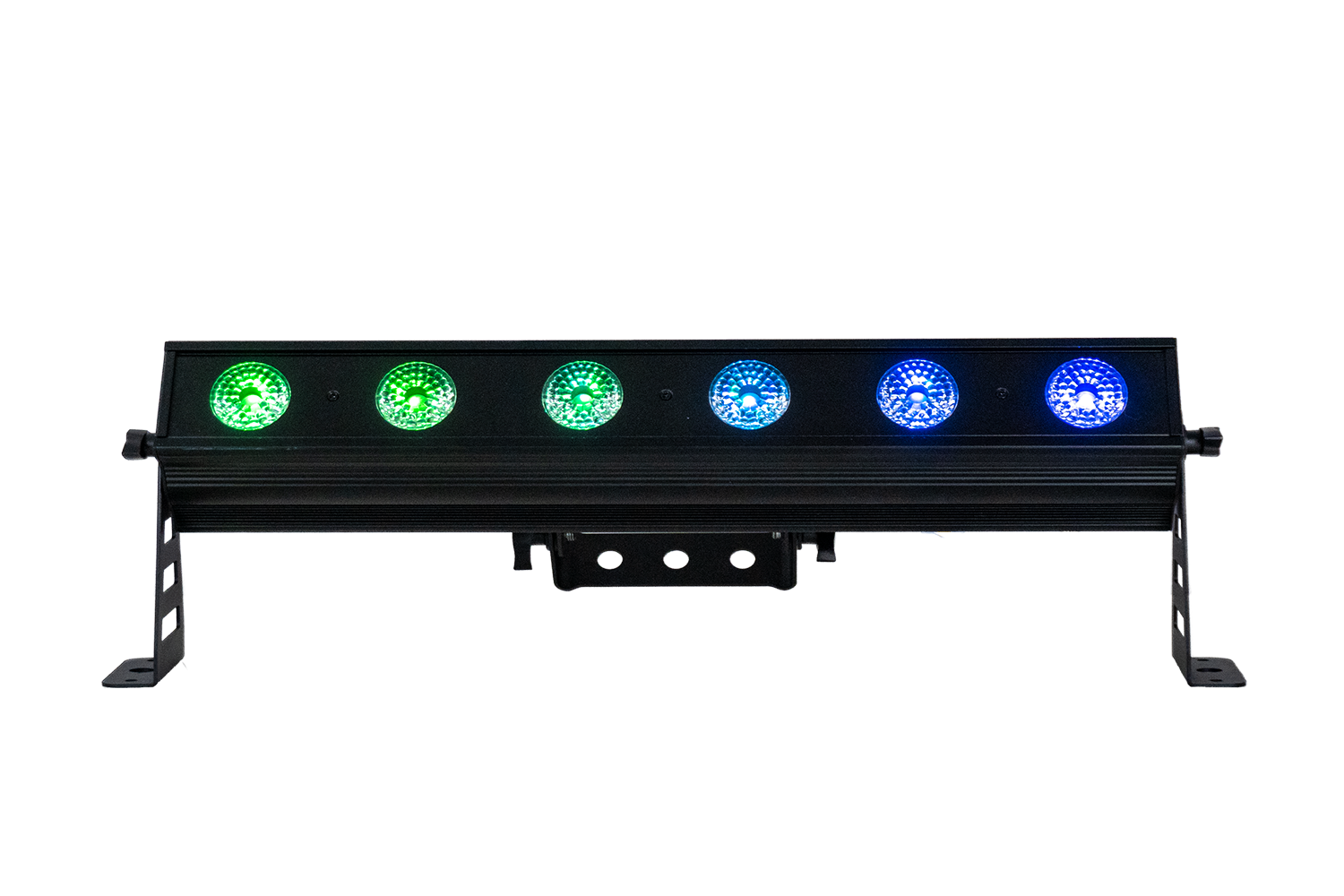

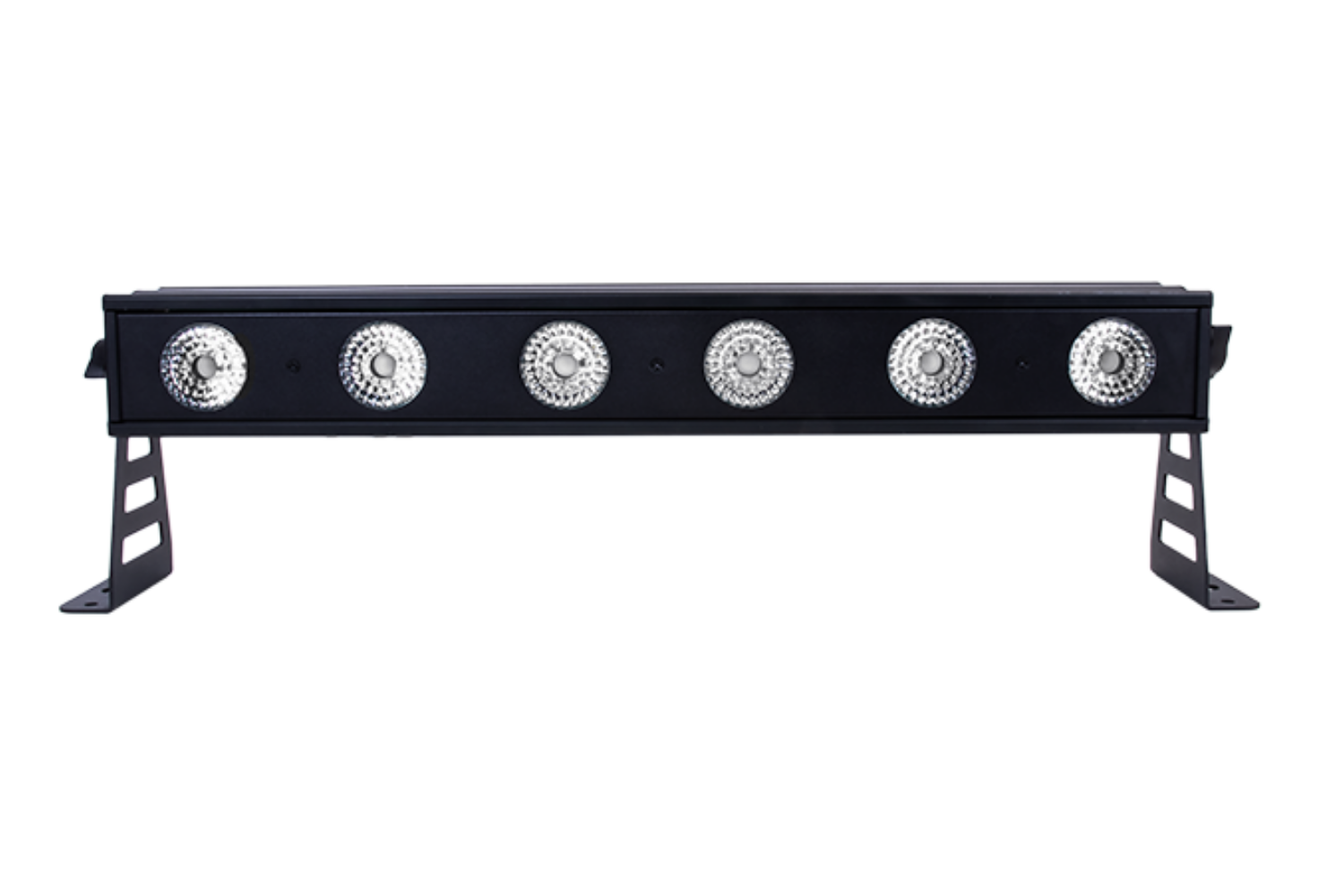

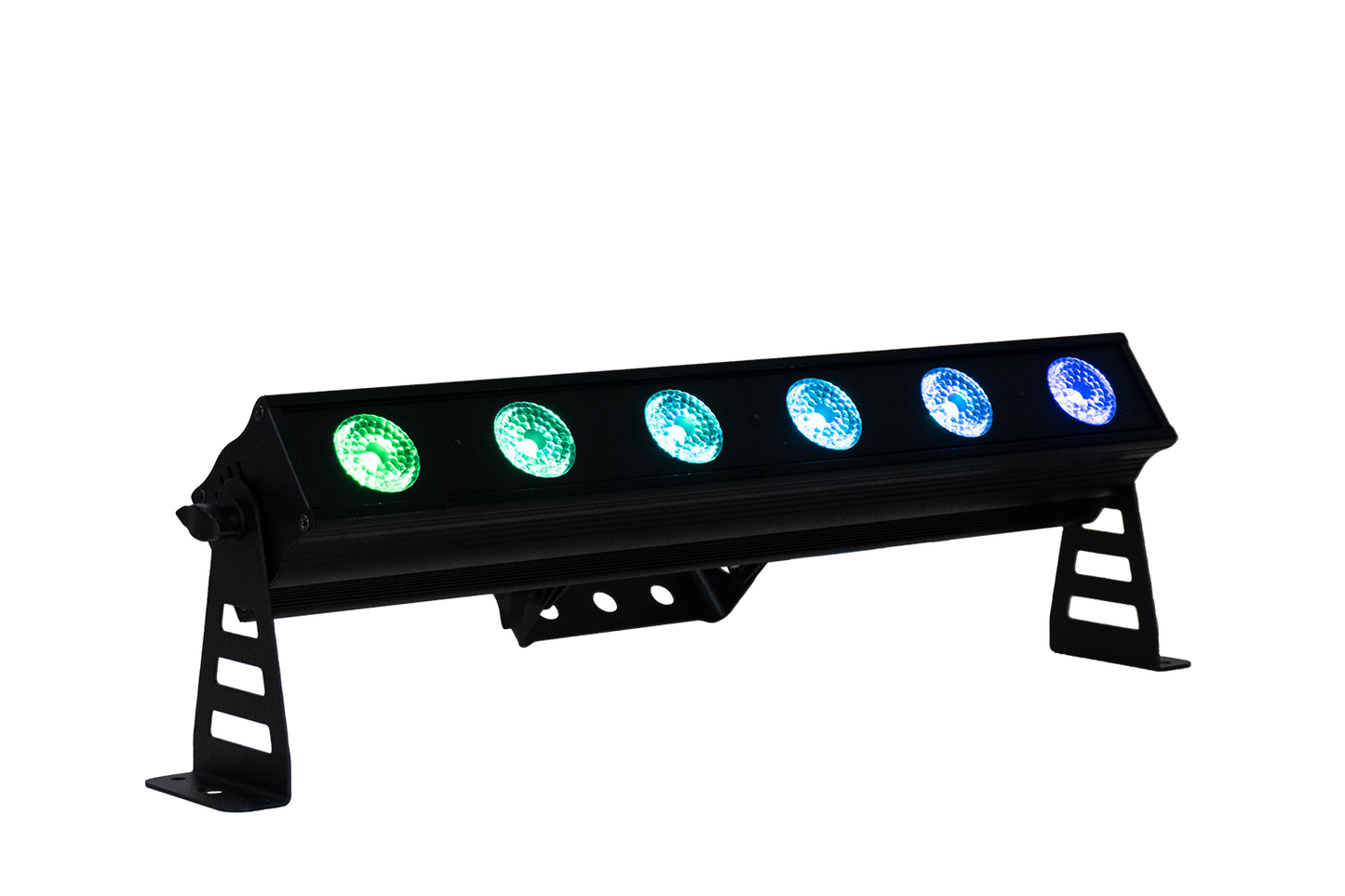

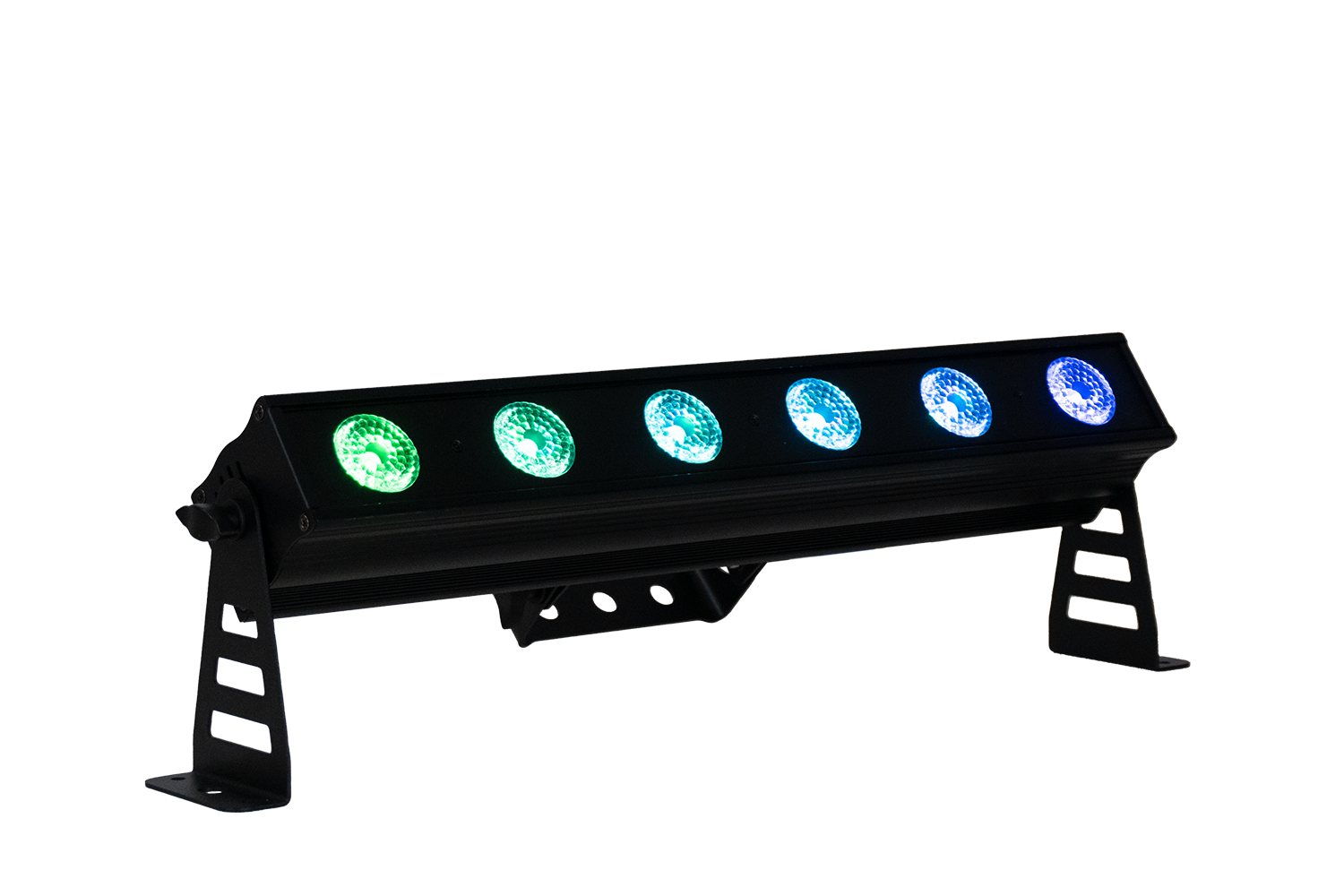

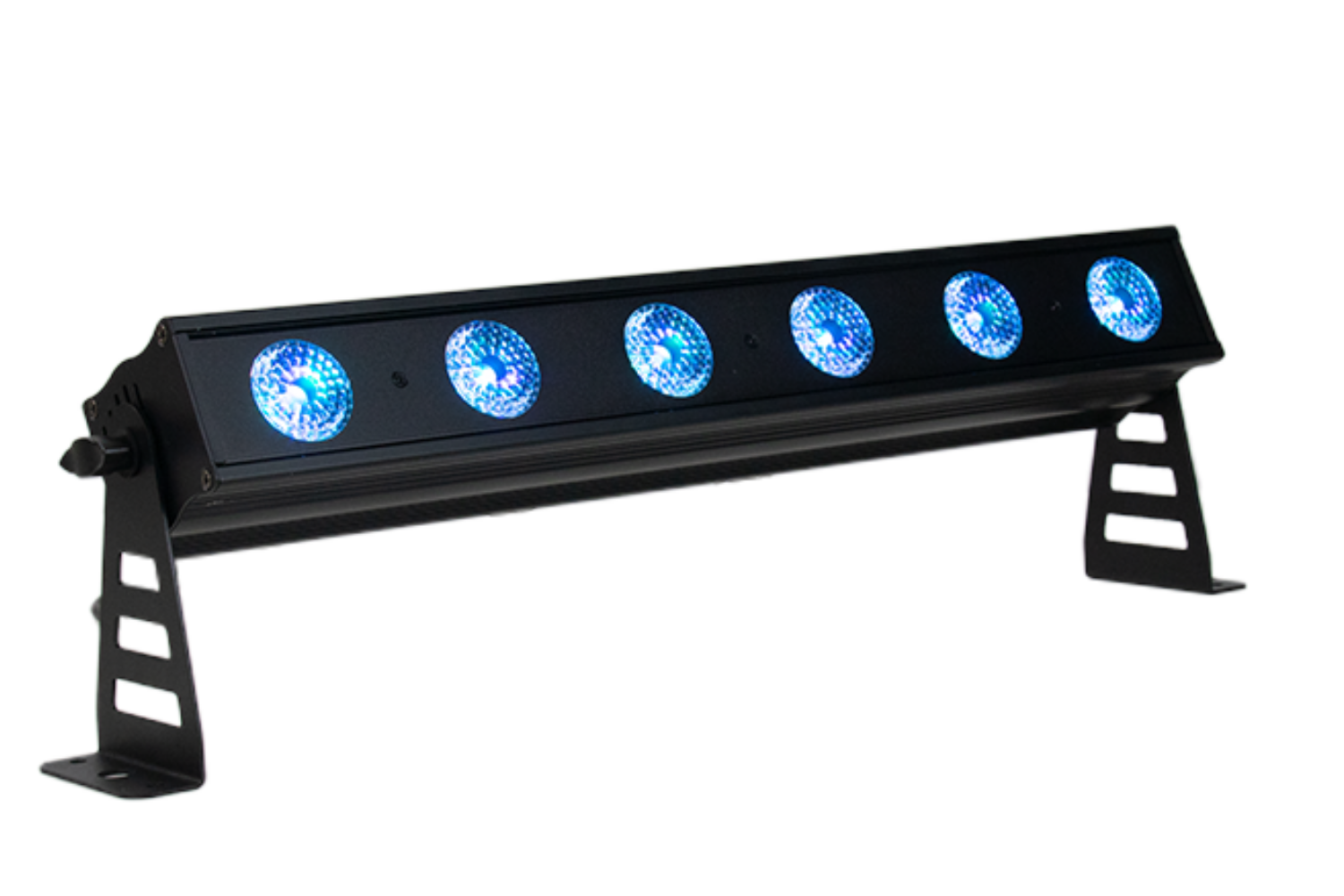

PIXBAR6X12 - 6x 12 W RGBWAU Pixel Control Bar

Name: PIXBAR6X12 - 6x 12 W RGBWAU Pixel Control Bar
Brand: Event Lighting
SKU: EP2199
Price: 469.0 AUD
Availability: InStock

$469.00

Sale Contact for Availability

This product is discontinued.

See updated model - PIXBAR6H

See other New PIXBAR12 Models - PIXBAR6VW

Event Lighting PIXBARs are perfect for fixed installations and productions. All models feature pixel control, an aluminium housing and fanless operation, making them silent and virtually maintenance free.

Photometrics

Light Source: 6x 12 W RGBWAU LEDs

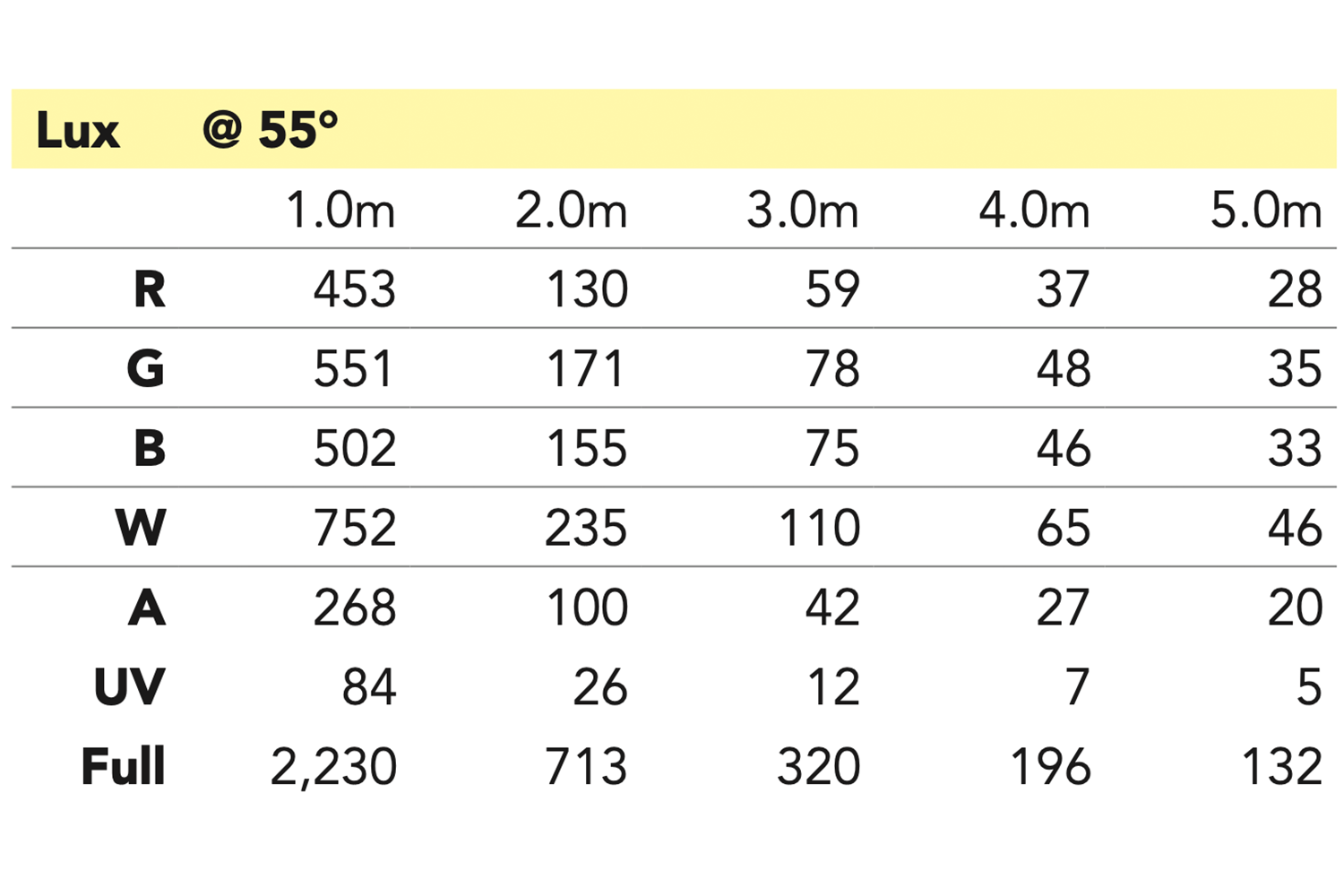

Beam Angle: 30° (optional: 55° )

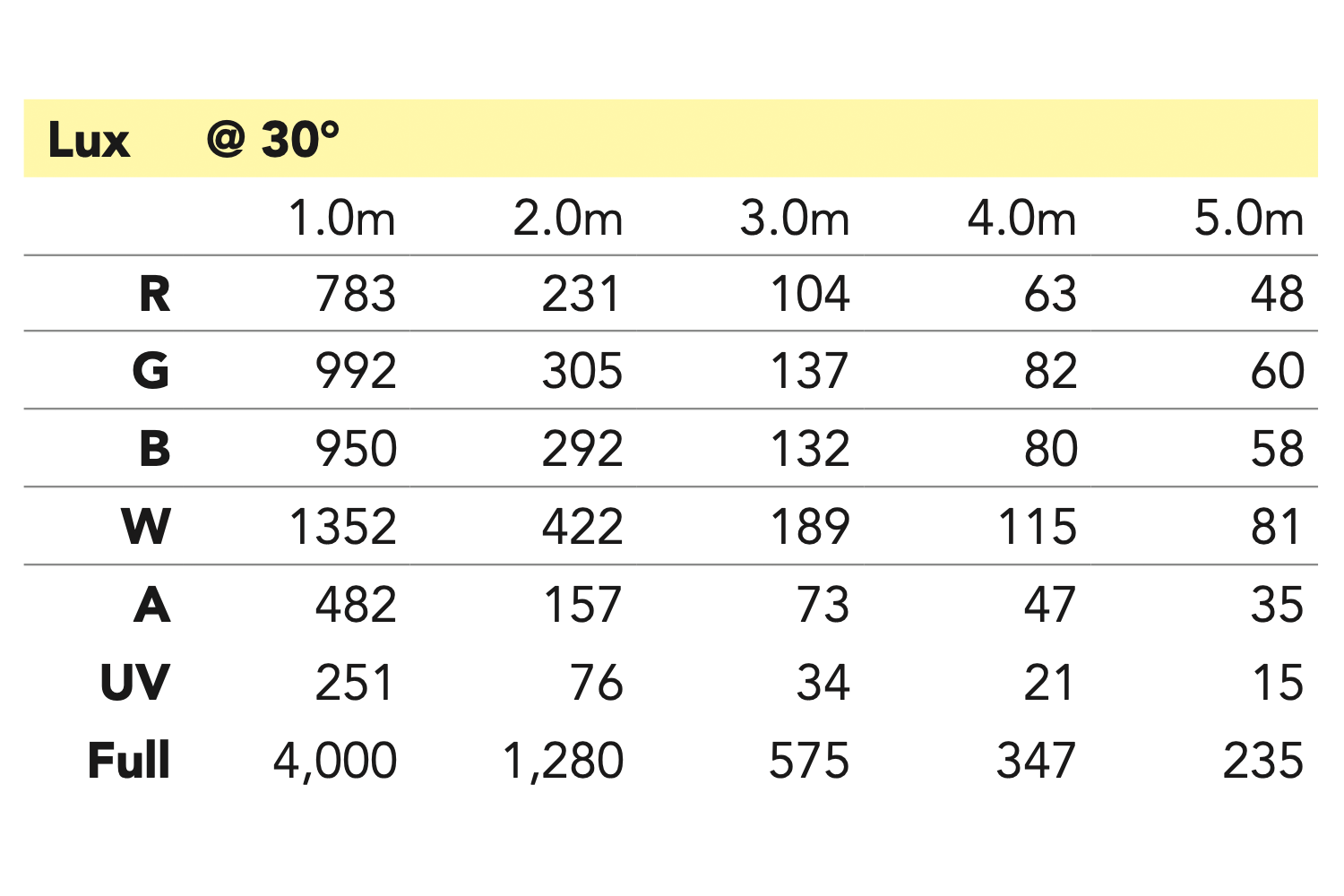

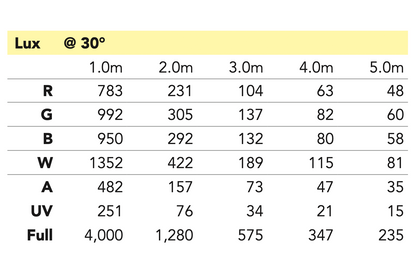

Output: 1,280 lux @ 2.0 m RGBWAU full on
PWM: 12,000 Hz
LED Life: 50,000 hours

Effects

Dimming: 0~100%, 4x 16-bit Dimming Curves
Strobe: 1~30 Hz

Power

Input Voltages: 100~240 V AC,50/60Hz, 60 W

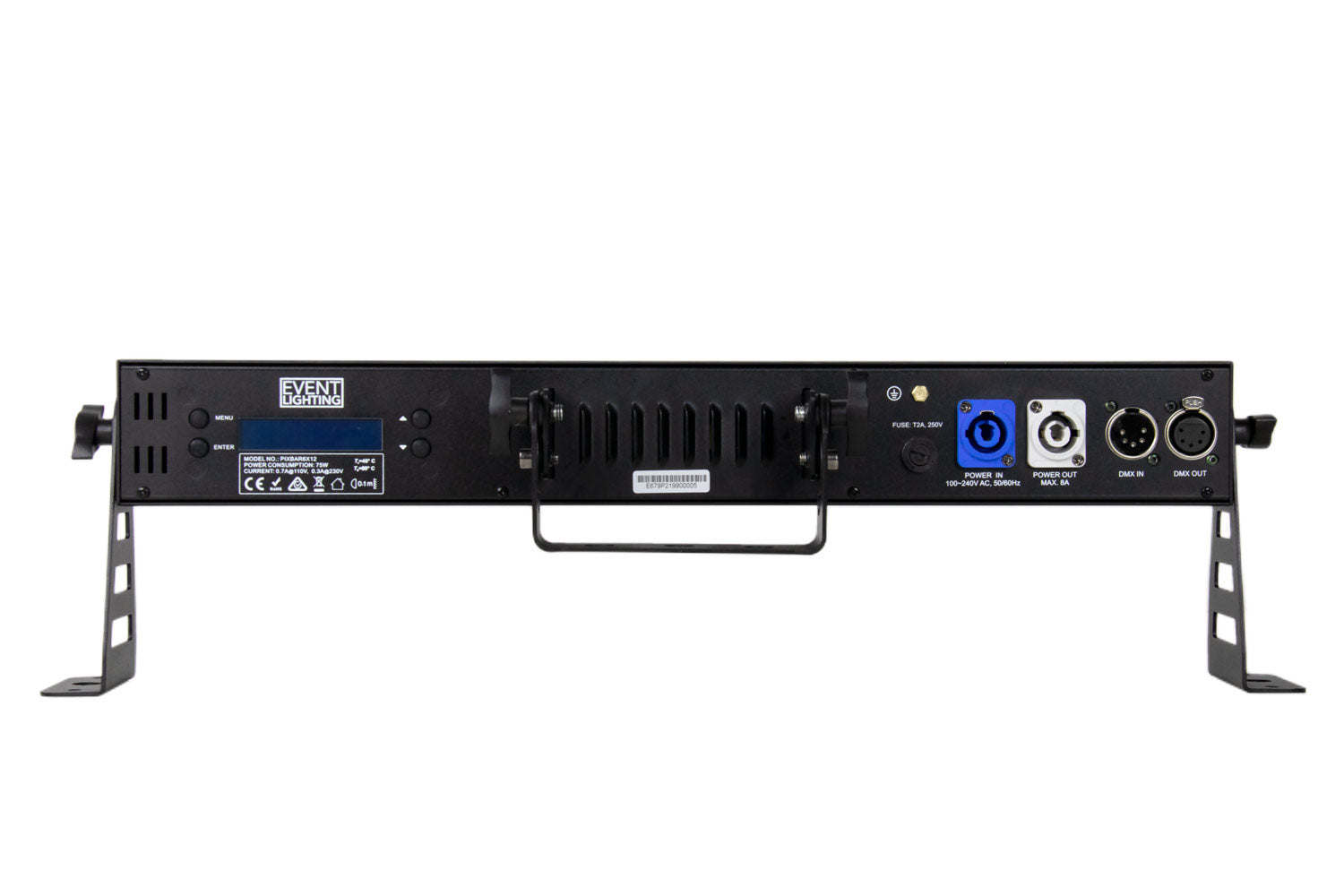

Power Connection: Neutrik® powerCON in/out

Control

Operation Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase

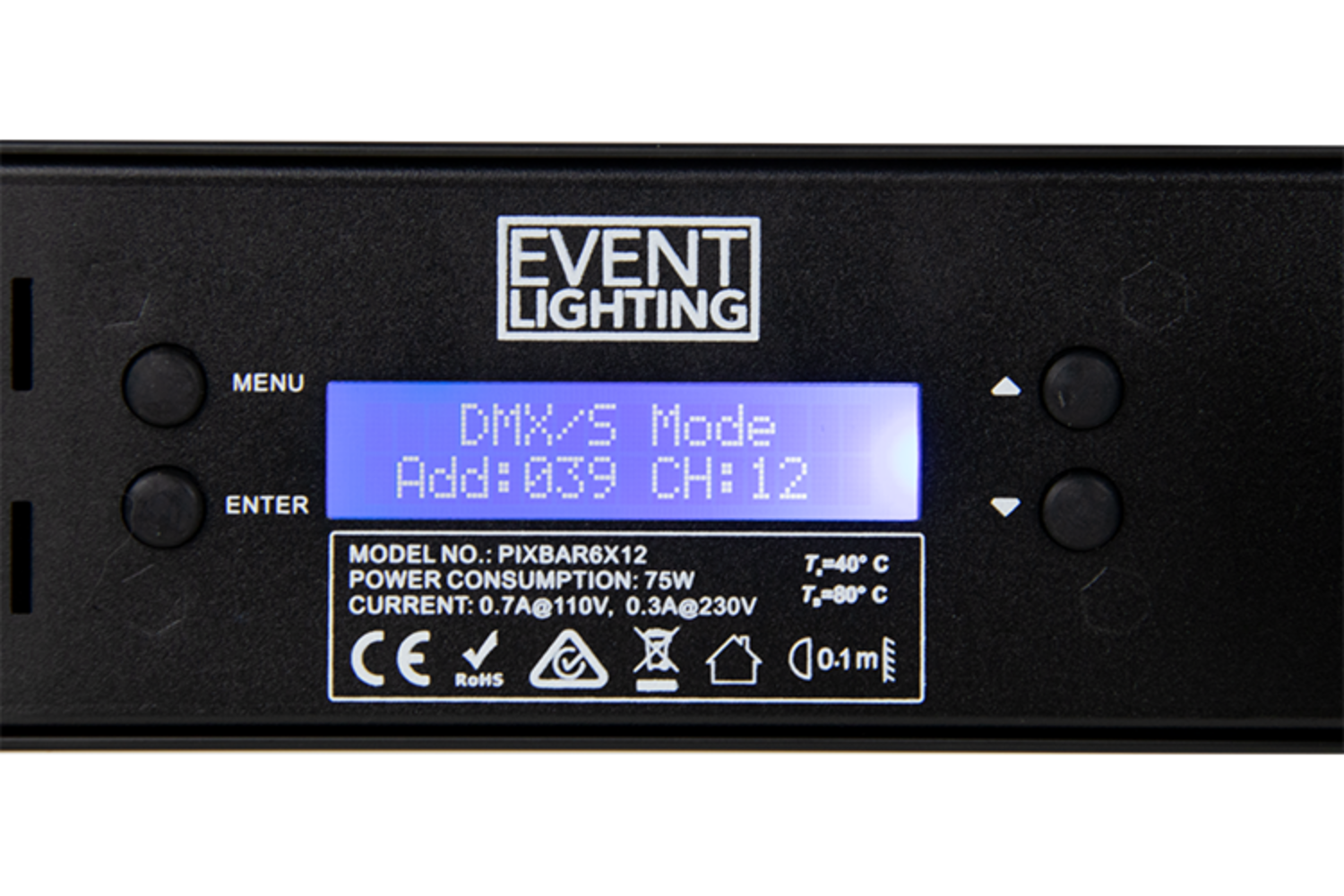

Display: 4-button LCD control panel
Control Protocol: DMX512
DMX Channels: 3 / 4 / 6 / 8 / 12 / 36 / 38
Control Interface: 5-pin XLR
Software Upgrade via DMX: Yes

Housing
