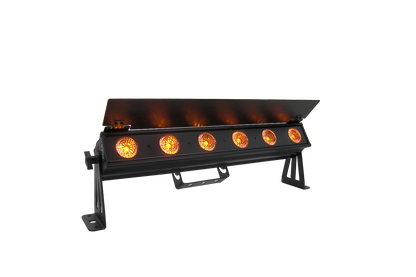

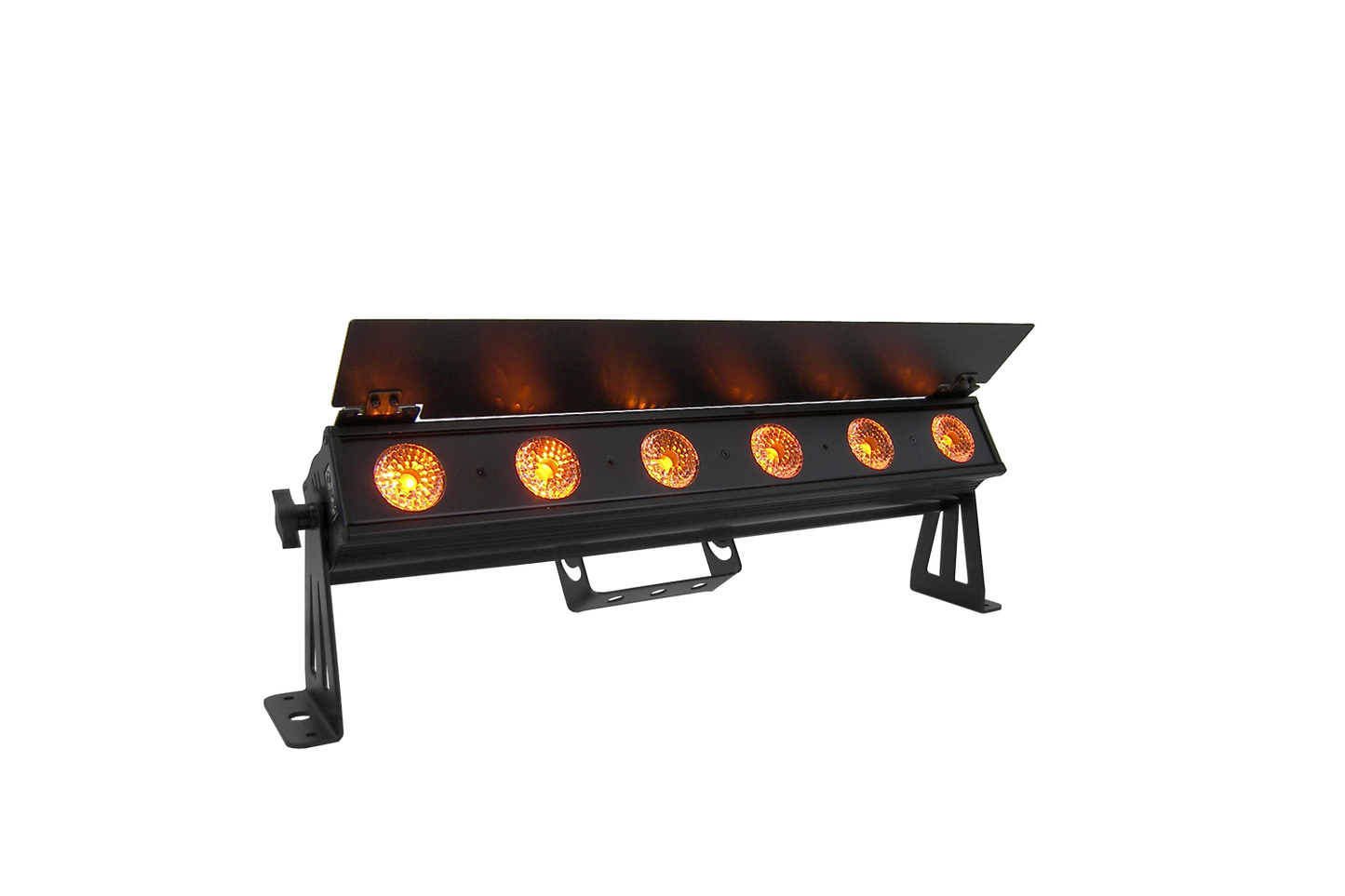

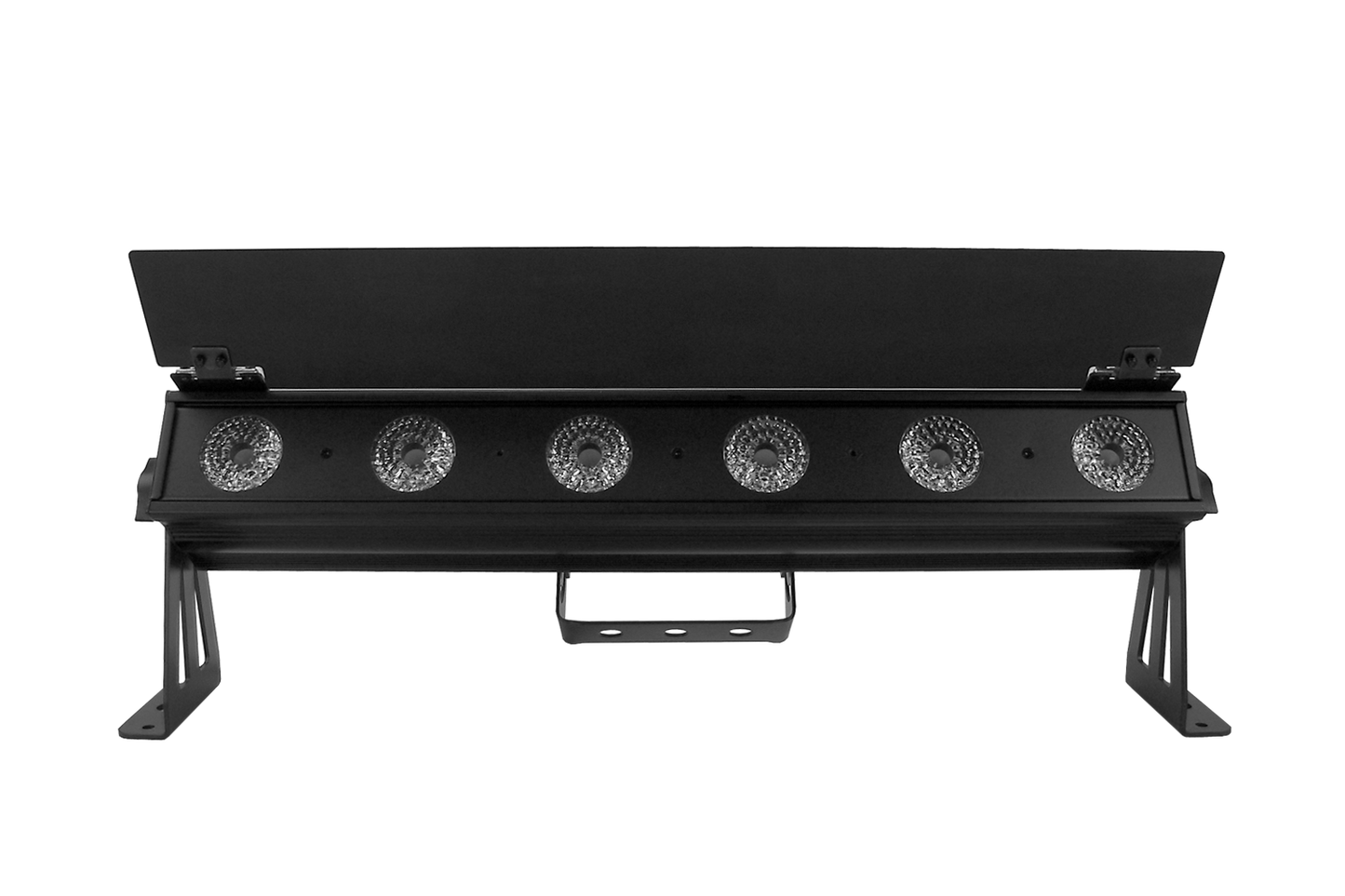

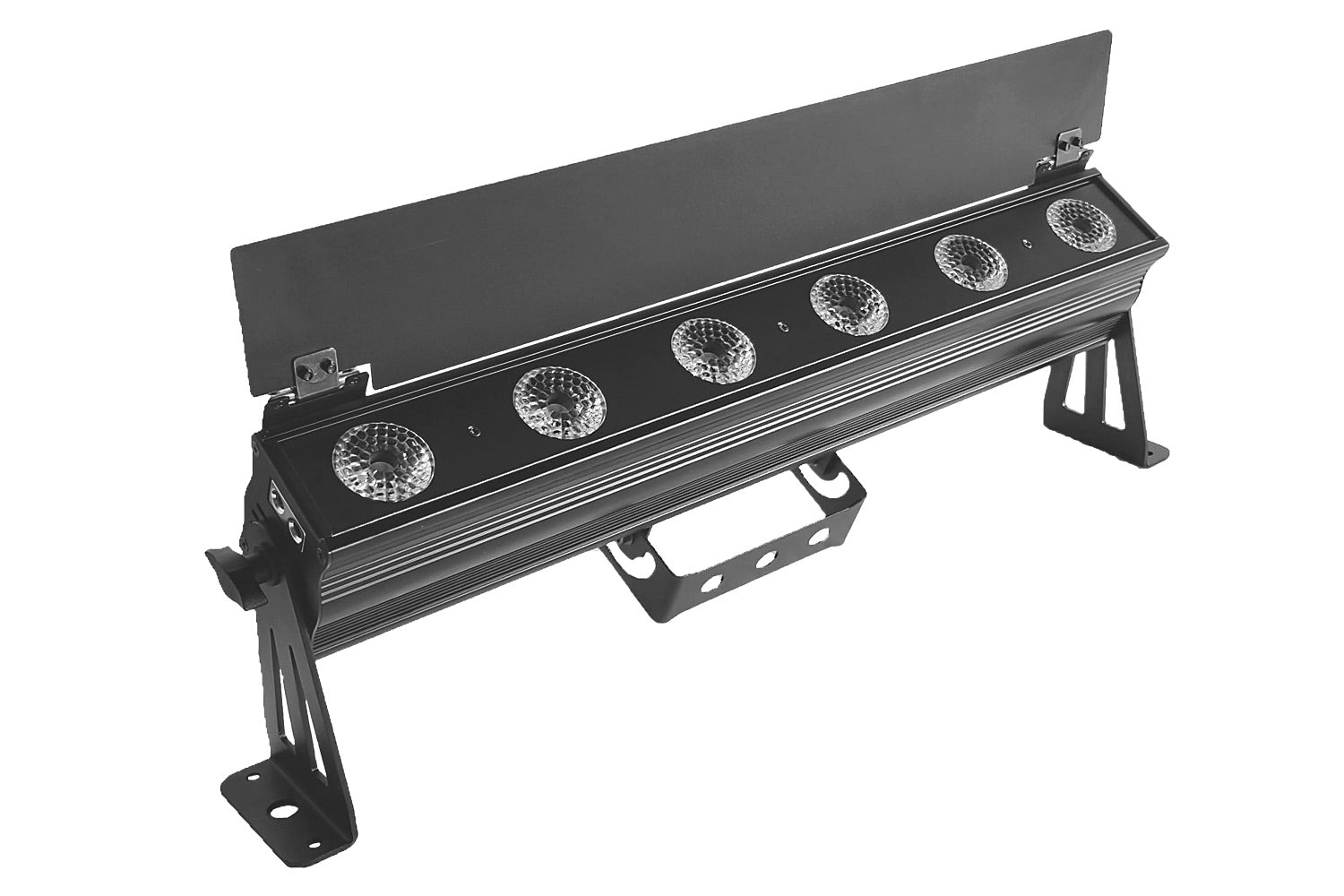

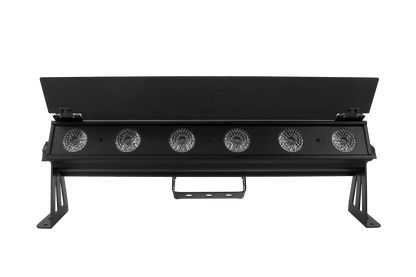

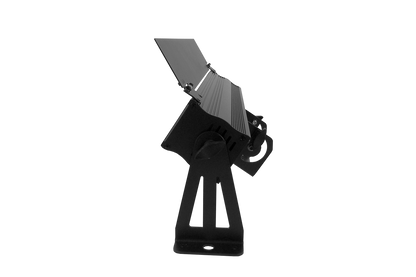

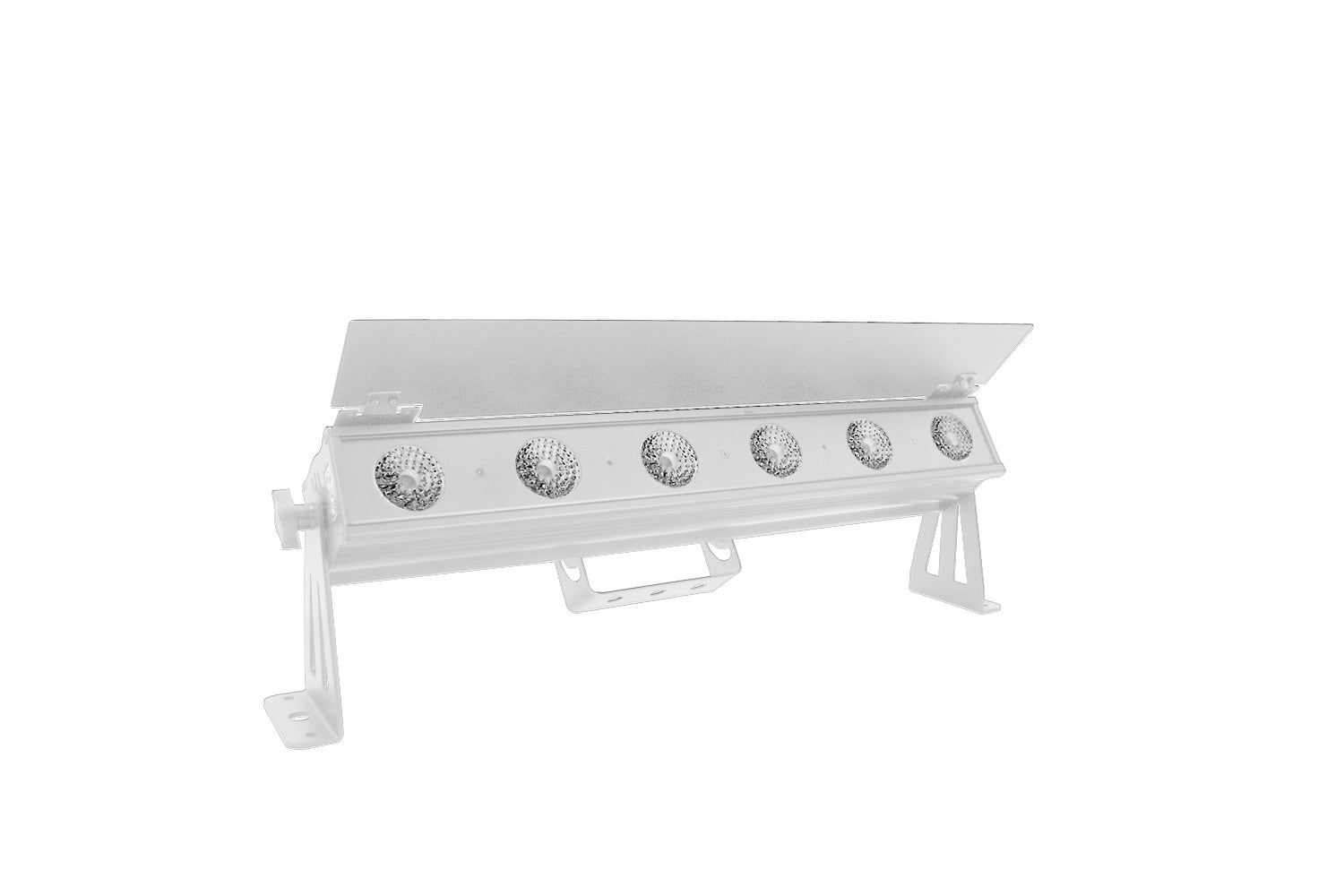

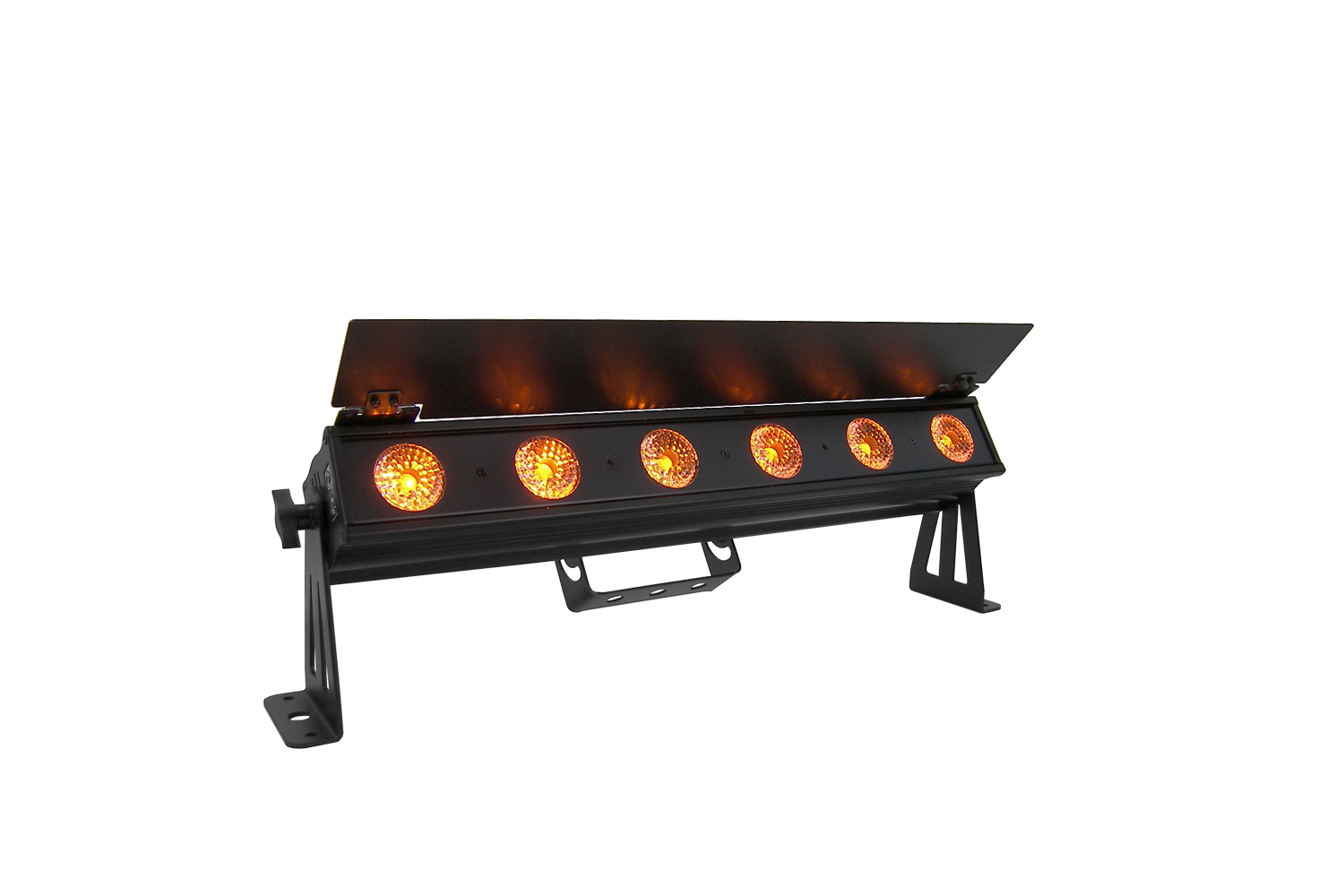

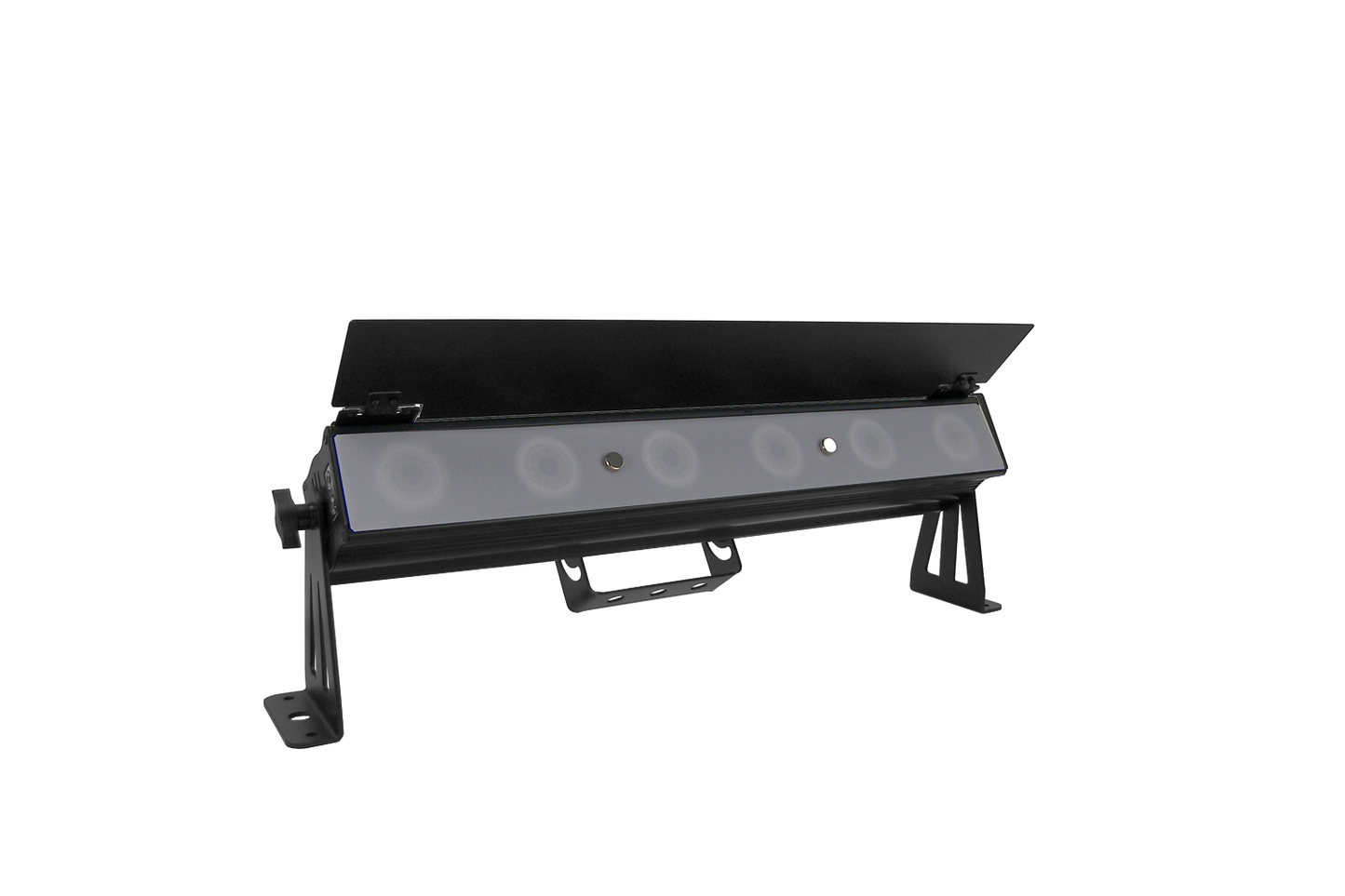

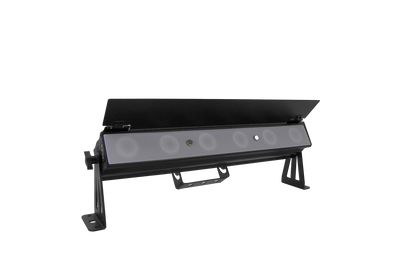

PIXBAR6VW-WH - 6 x 6W CW/WW/A Pixel Control Bar with barndoor (White)

Pixel Bar with 6 x 6W CW/WW/A LEDs, White Housing, True1 in/out, 3/5 Pin DMX in/out - includes barndoor

Photometrics

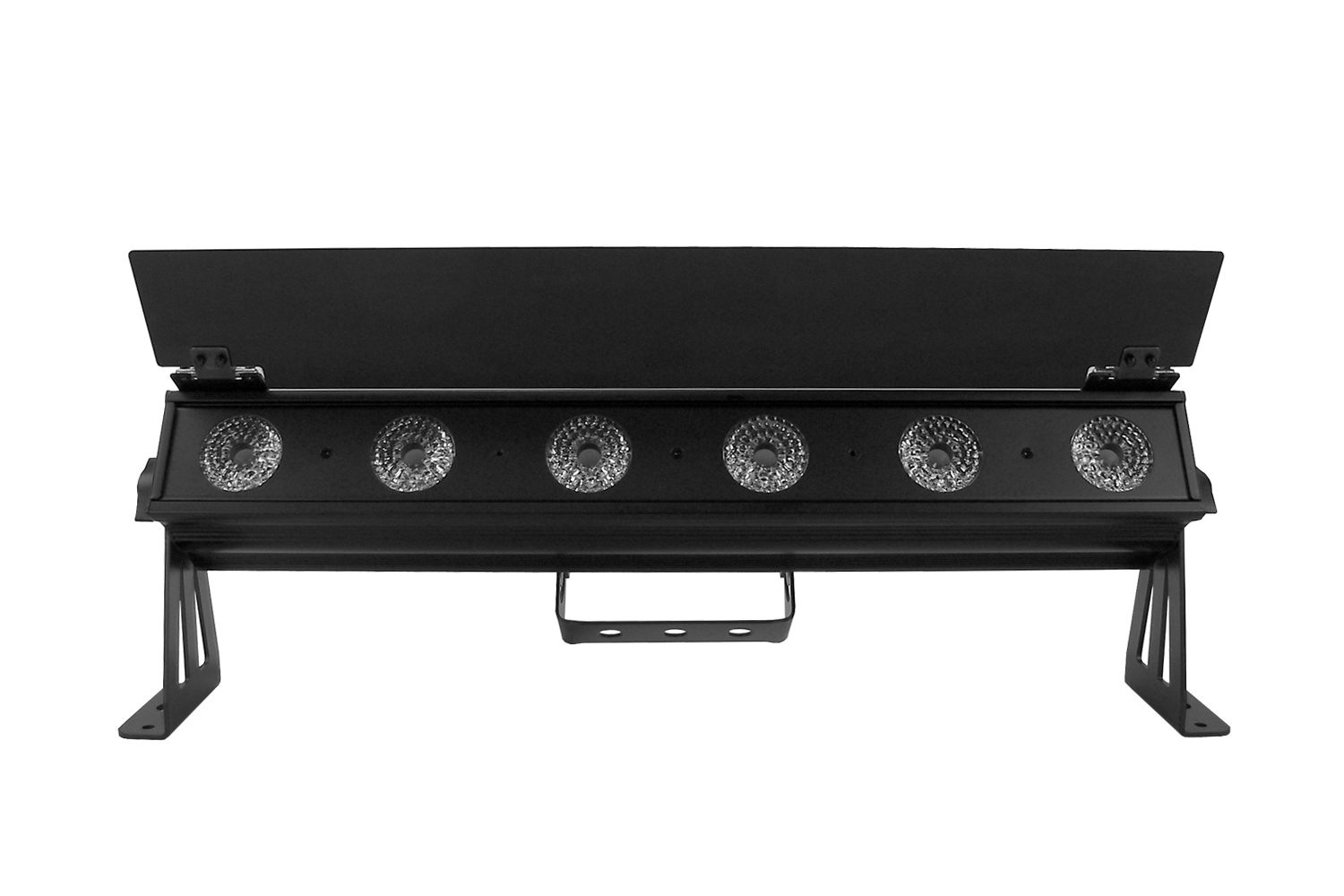

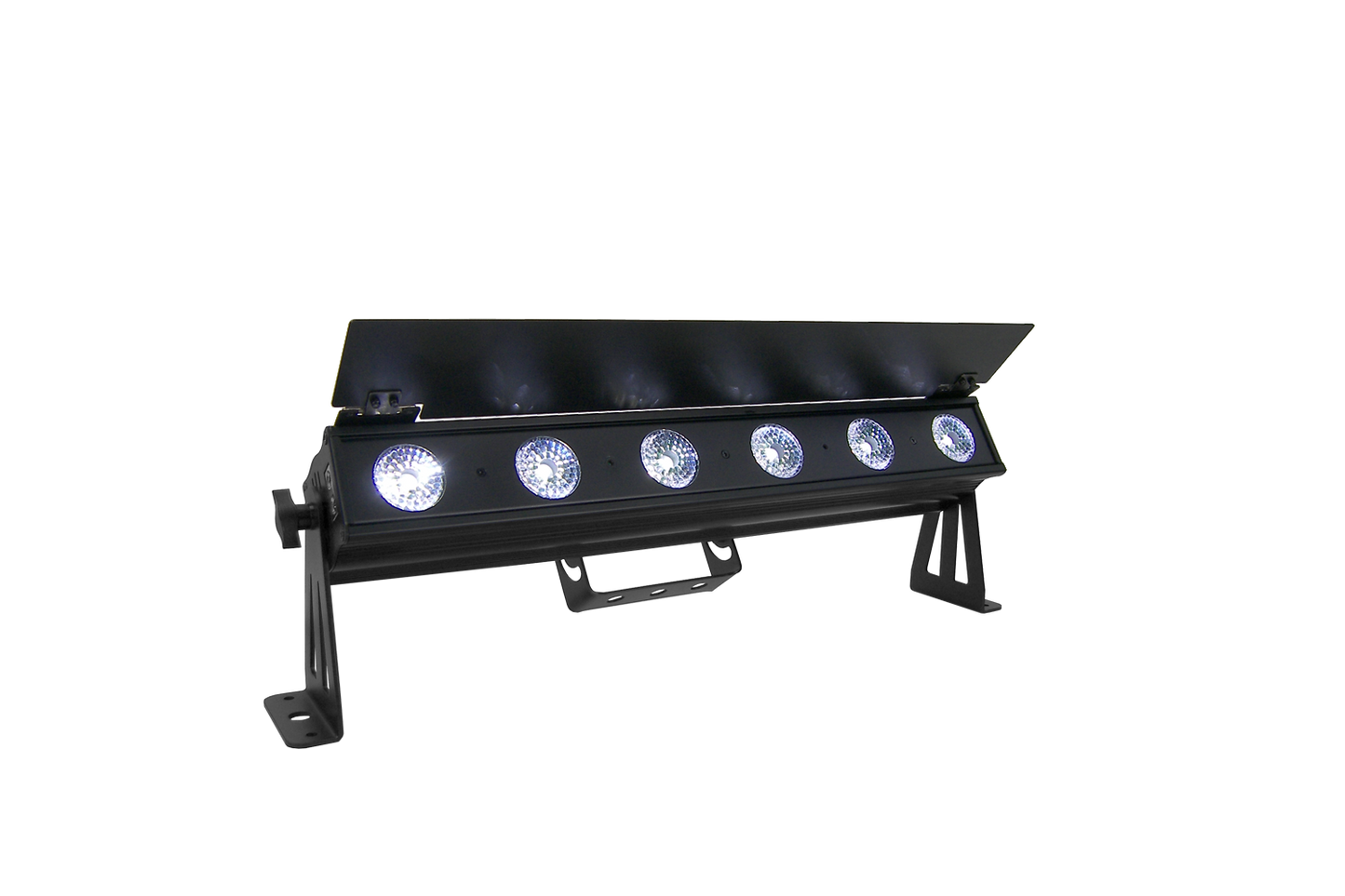

• Light Source: 6 x 6W CW/WW/A LEDs
• Beam Angle: 25° (optional: 8/15°/50°)

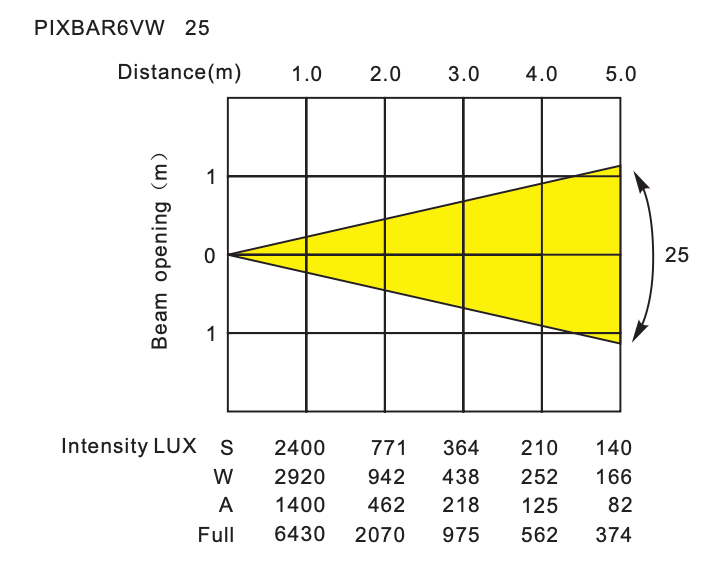

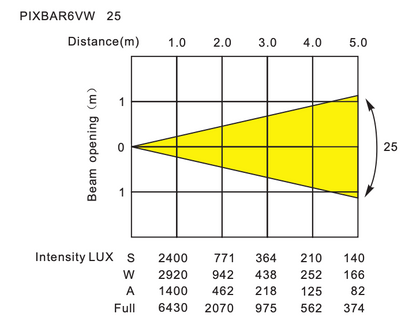

• Output: 2,070 lux @ 2m CW/WW/A full on
• PWM: 1,200Hz
• LED Life: 50,000 hours

Effects

• Dimming: 4 Dimming Curves
• Strobe: 1~30Hz

Power

• Input Voltages: 100~240V AC, 50/60Hz,
• Power Consumption: 35W

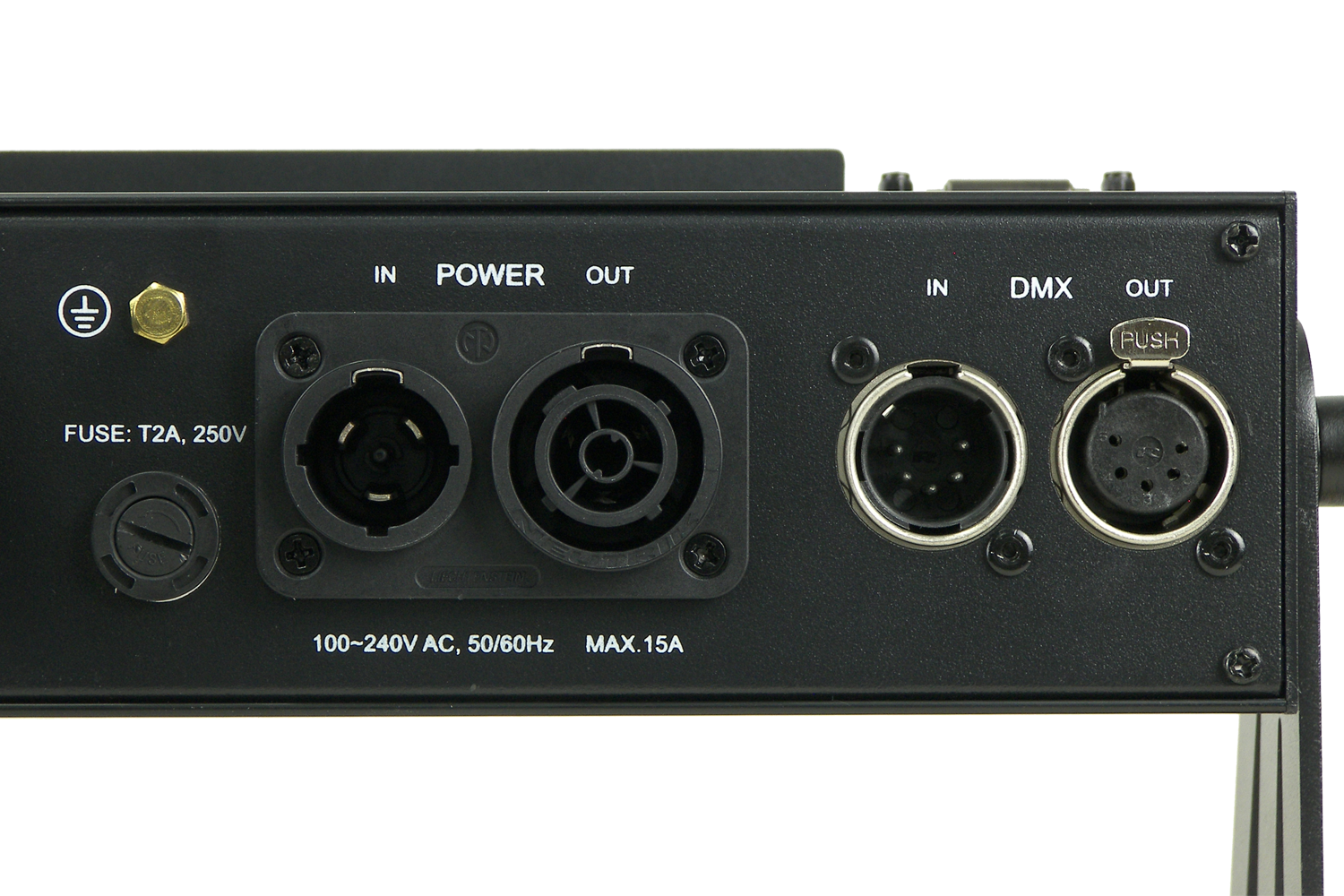

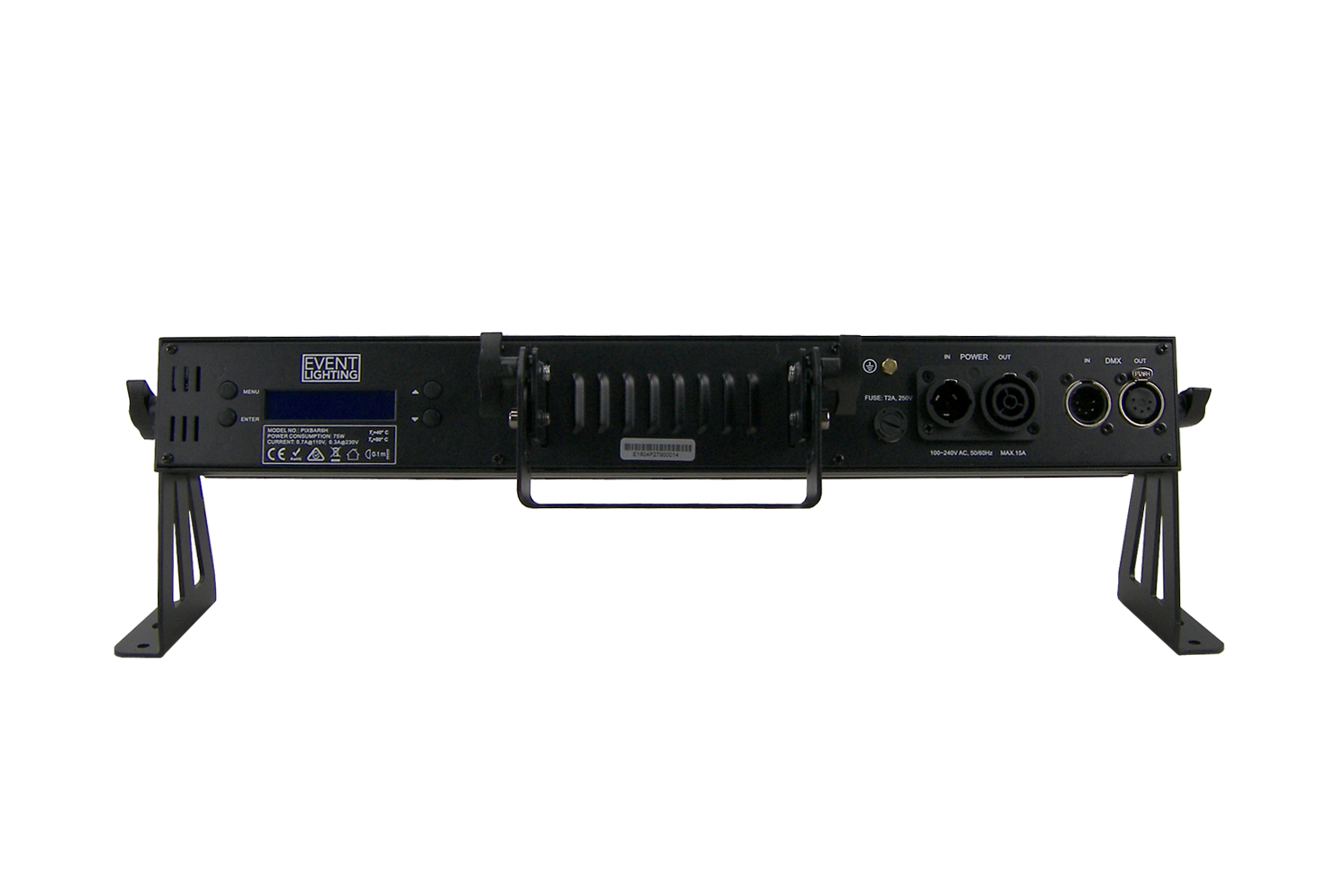

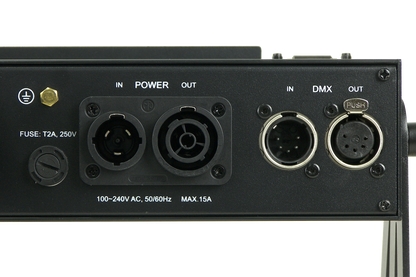

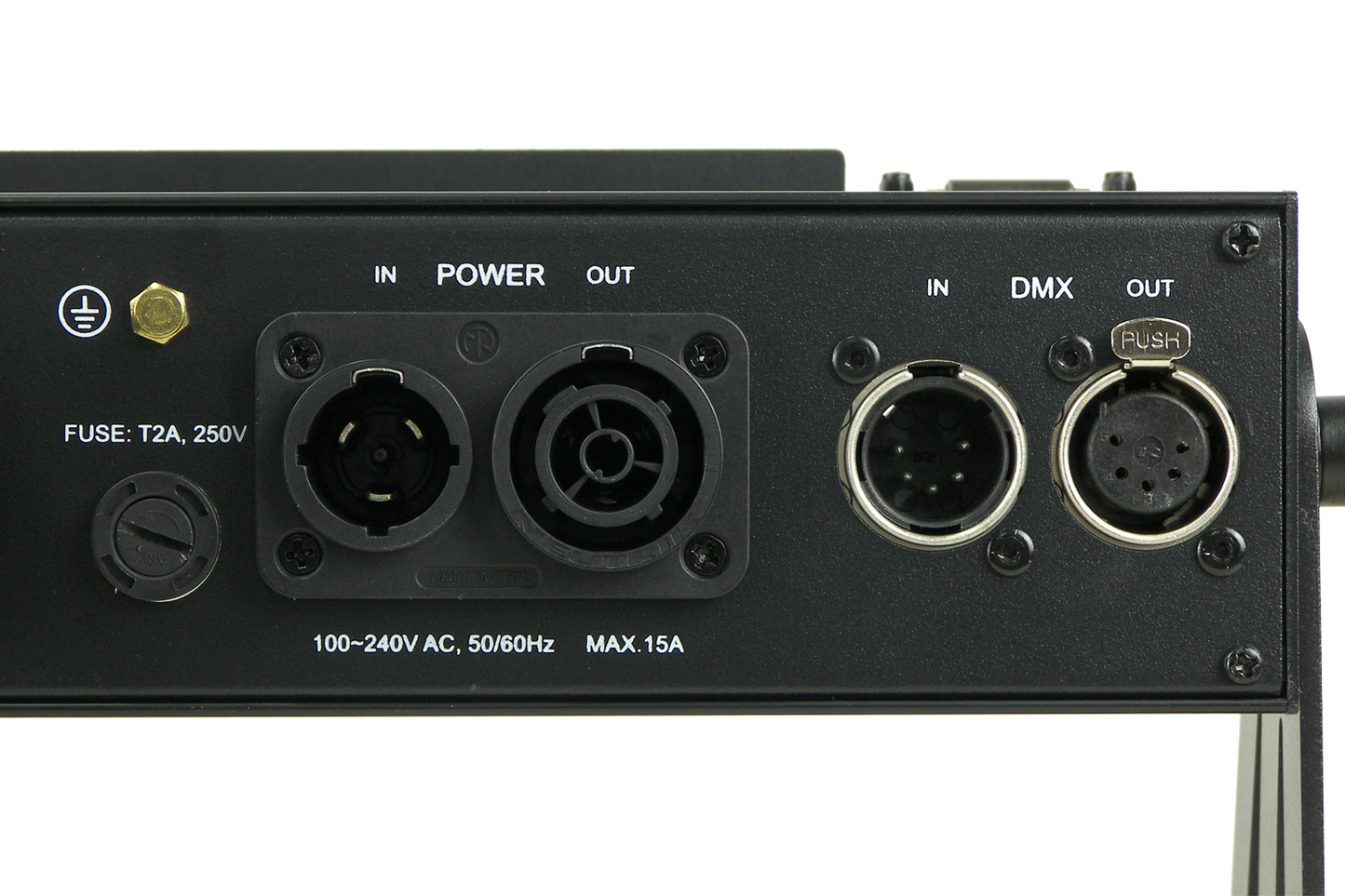

• Power Connection: True1 in/out

Control

• Operation Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase

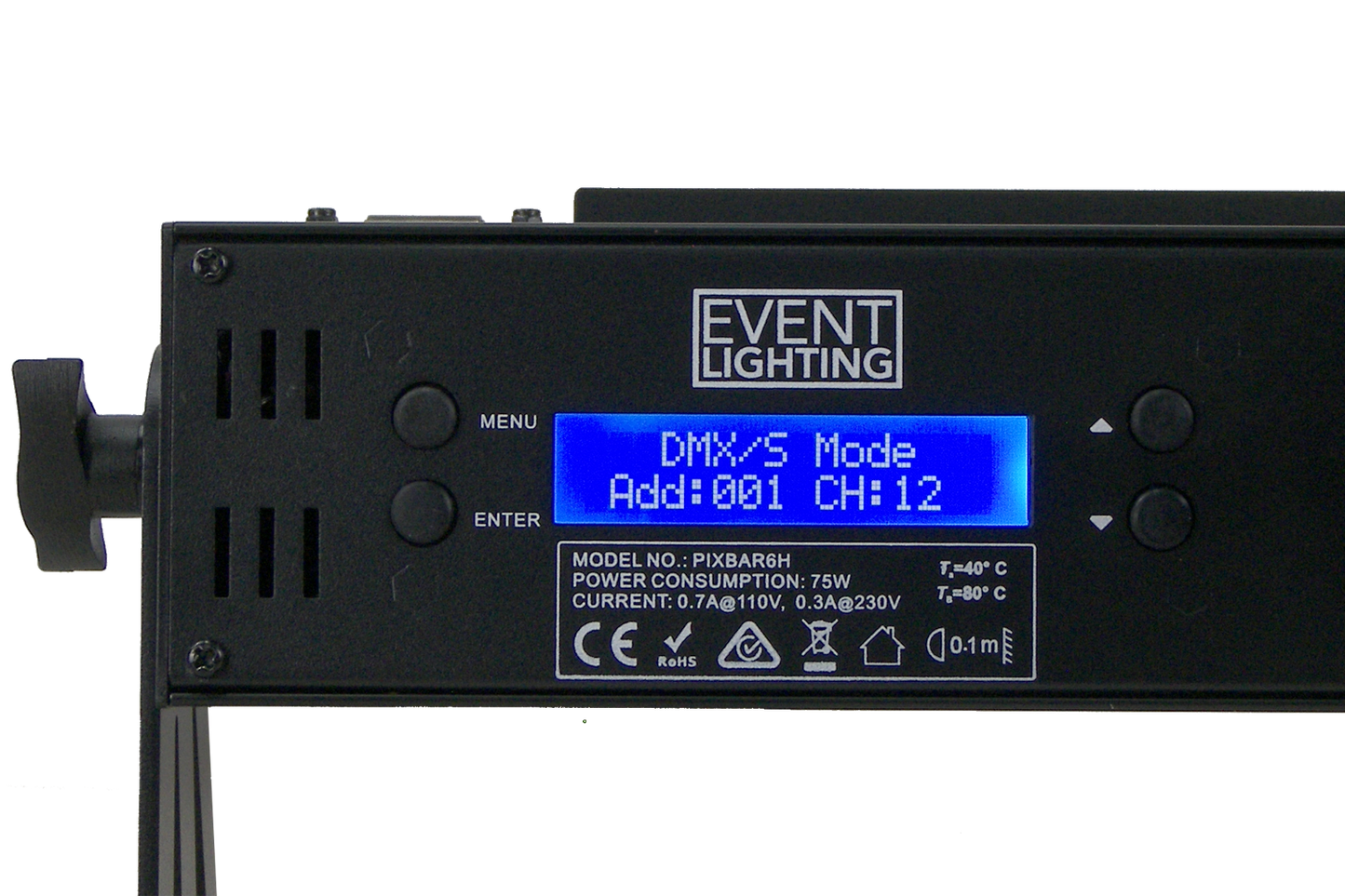

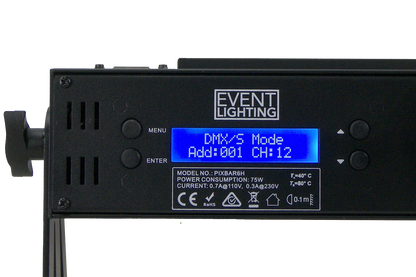

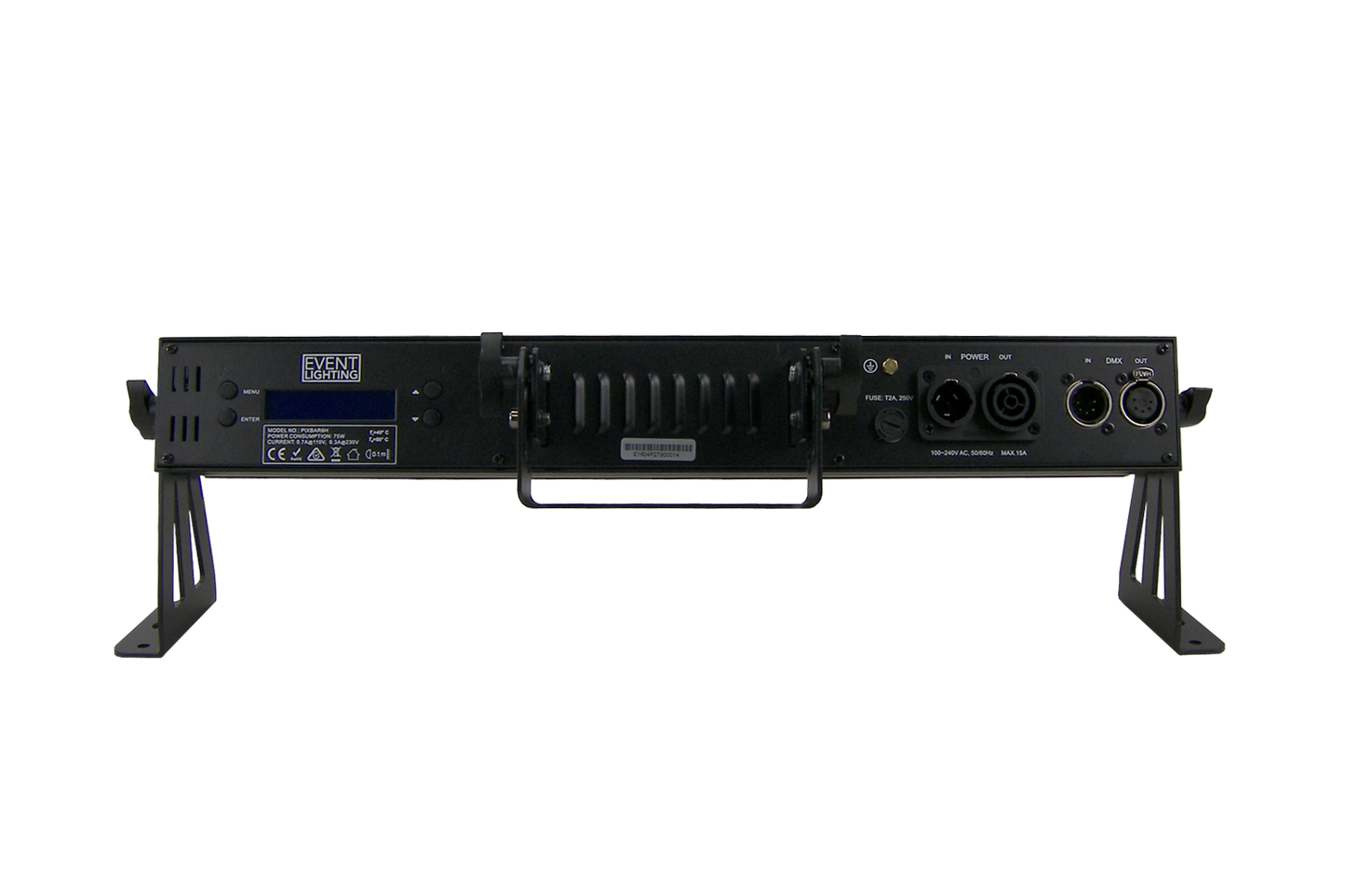

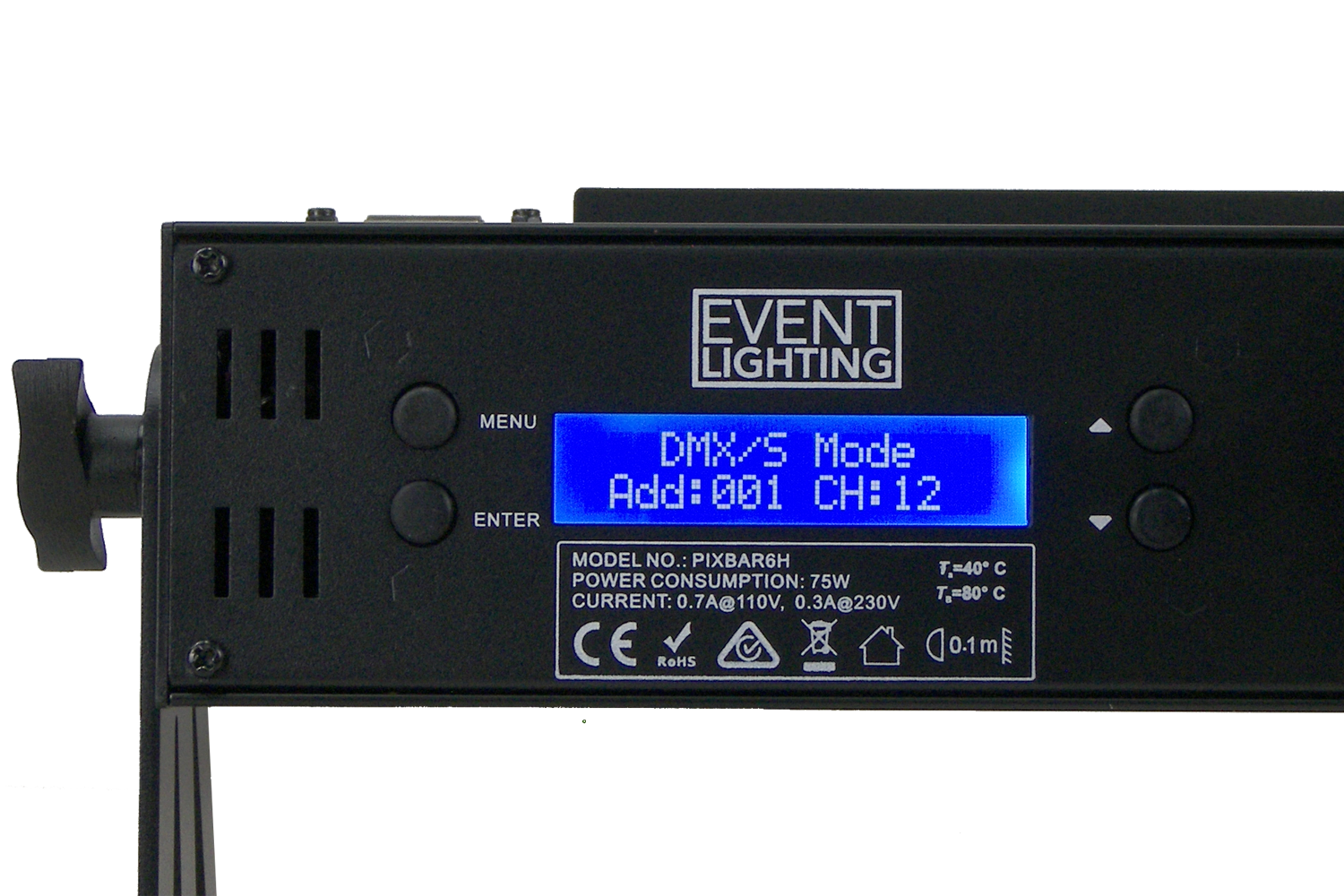

• Display: 4-button LCD control panel
• Control Protocol: DMX512, Wireless DMX
• DMX Channels: 1 / 2 / 3 / 6 / 9 / 10 / 18 / 20CH
• Control Interface: 5-pin XLR in / out
• Software Upgrade via DMX: Yes

Housing

• Housing Materials: Aluminium, matte white finish

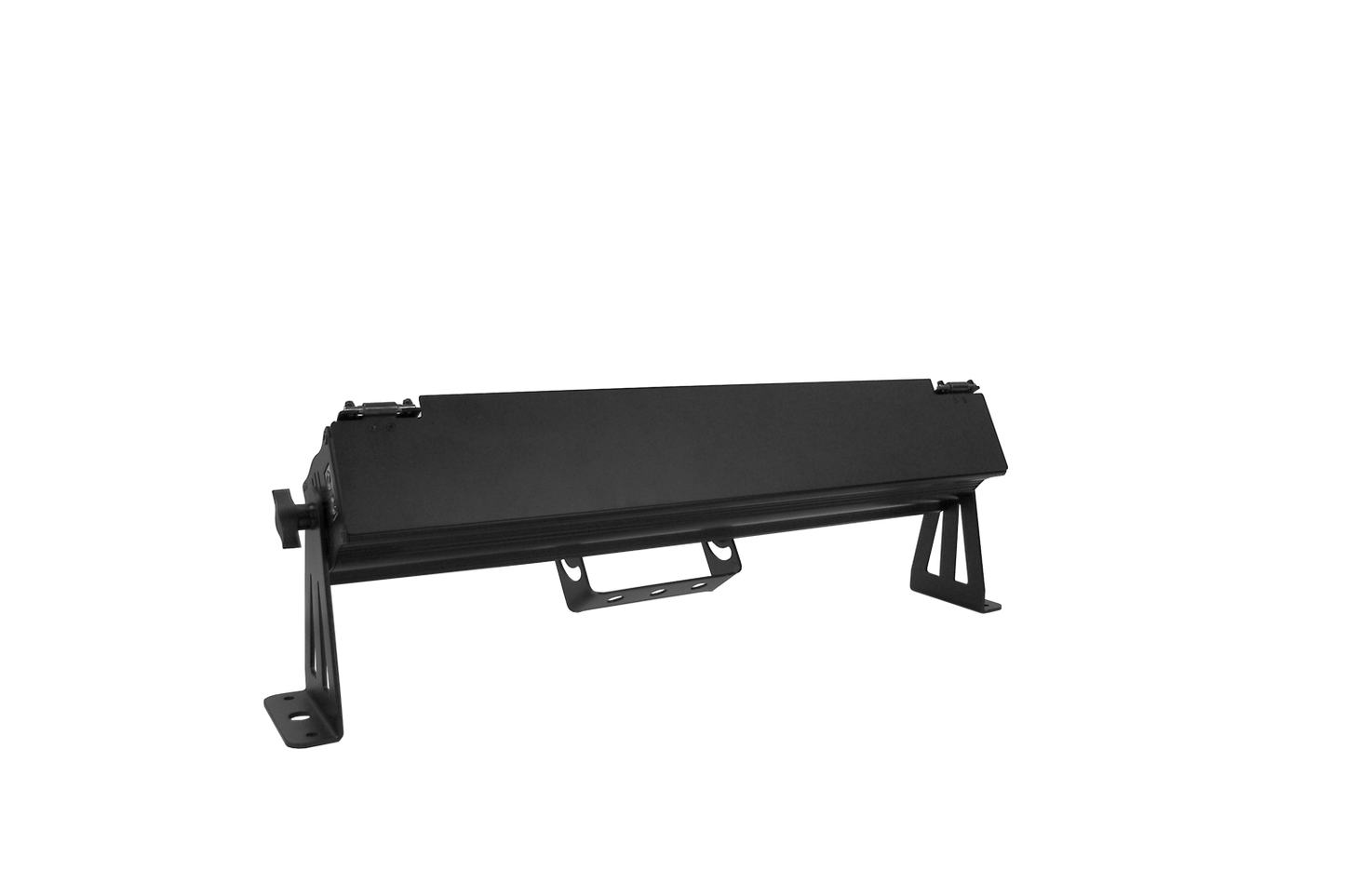

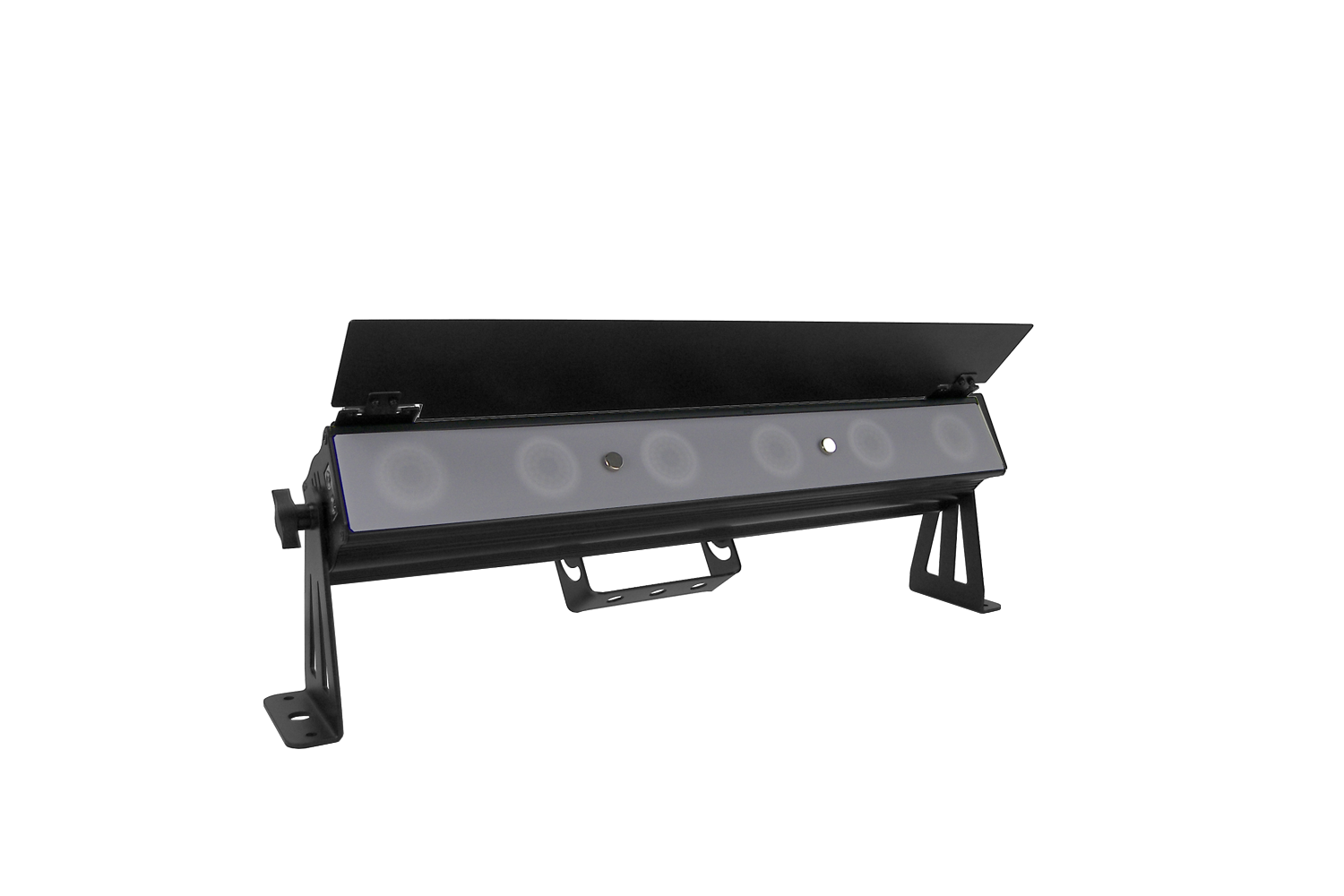

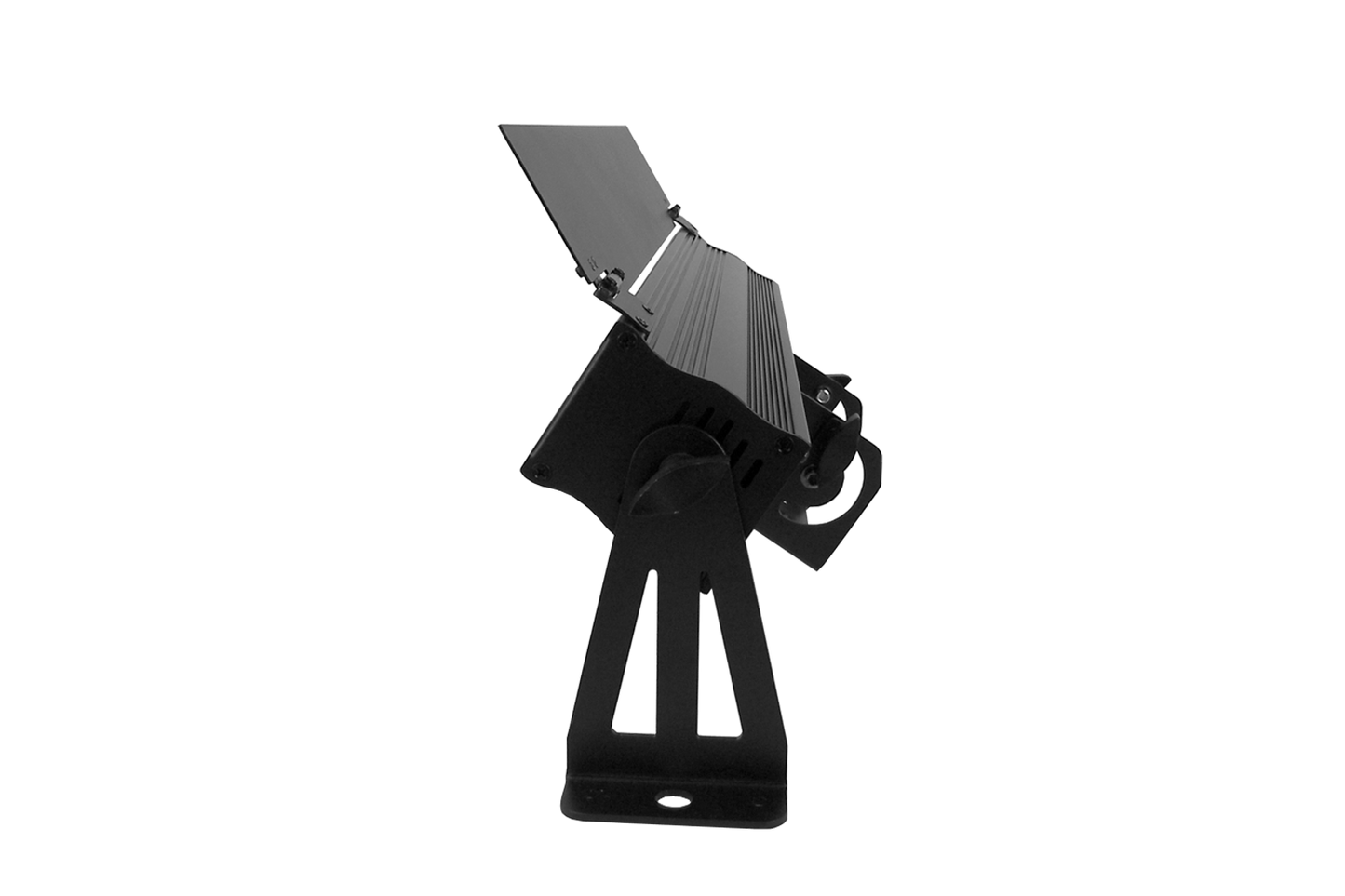

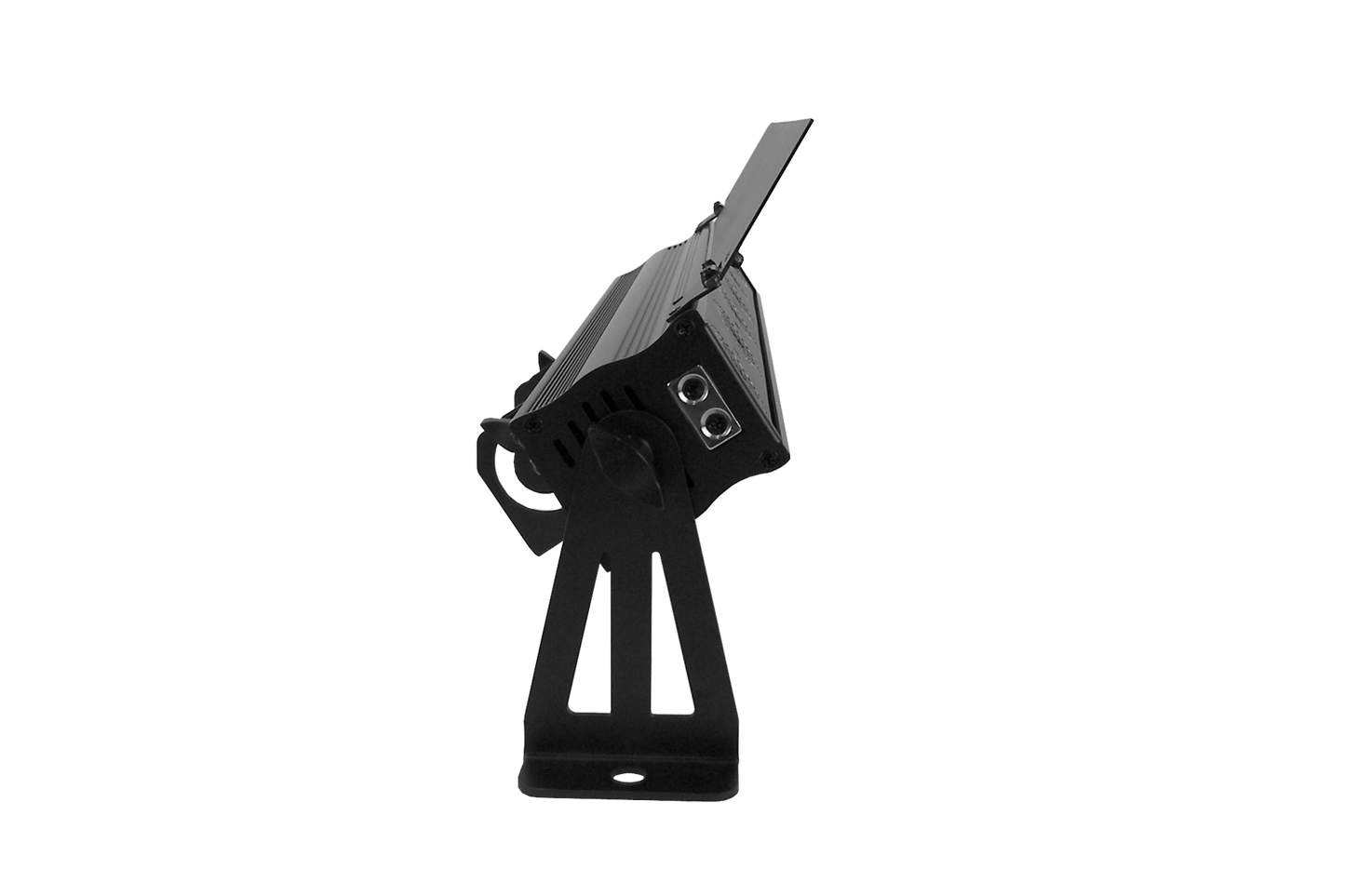

• Barndoor: included
• Frost filter: included
• Cooling: Fanless Cooling

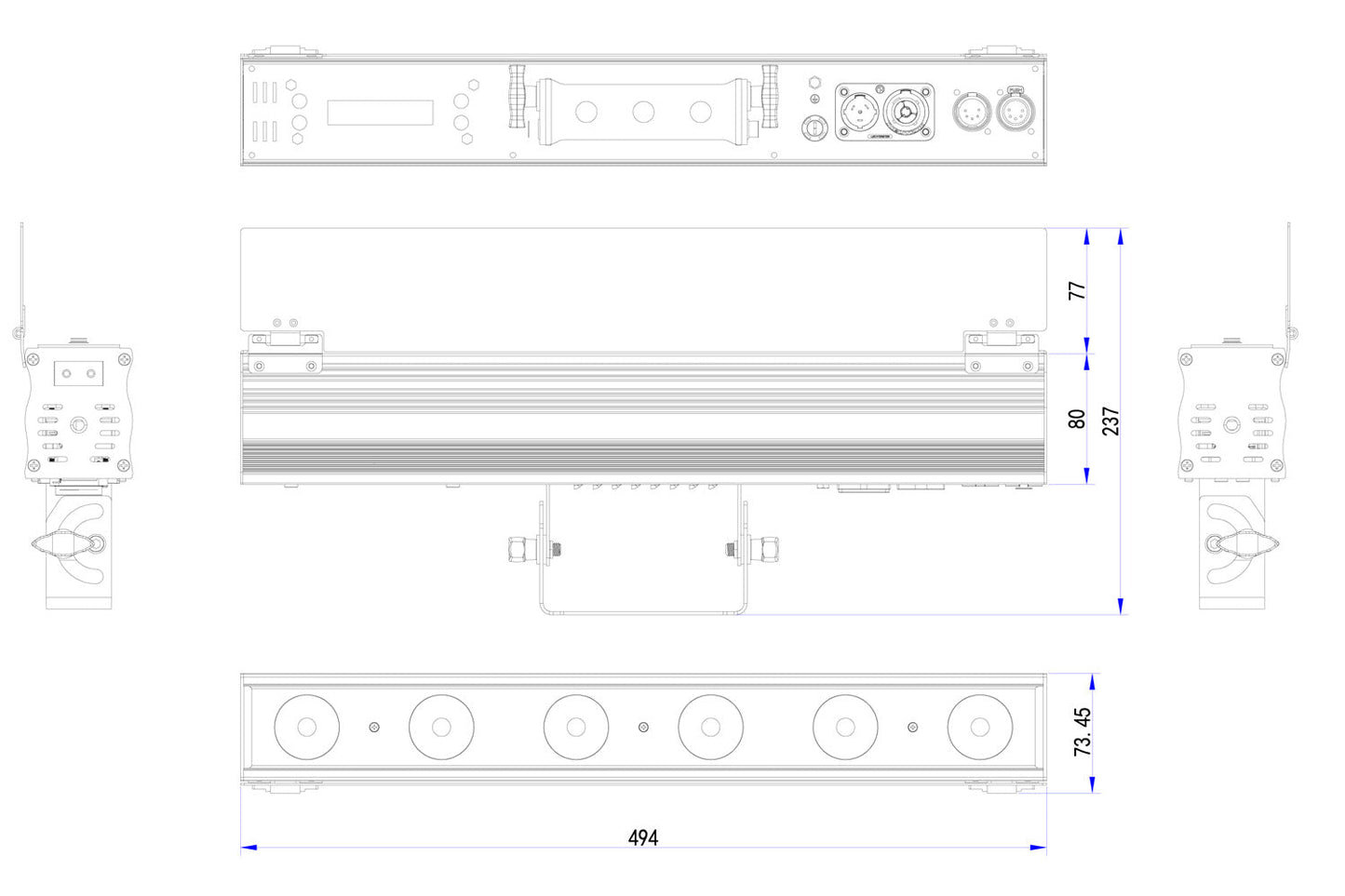

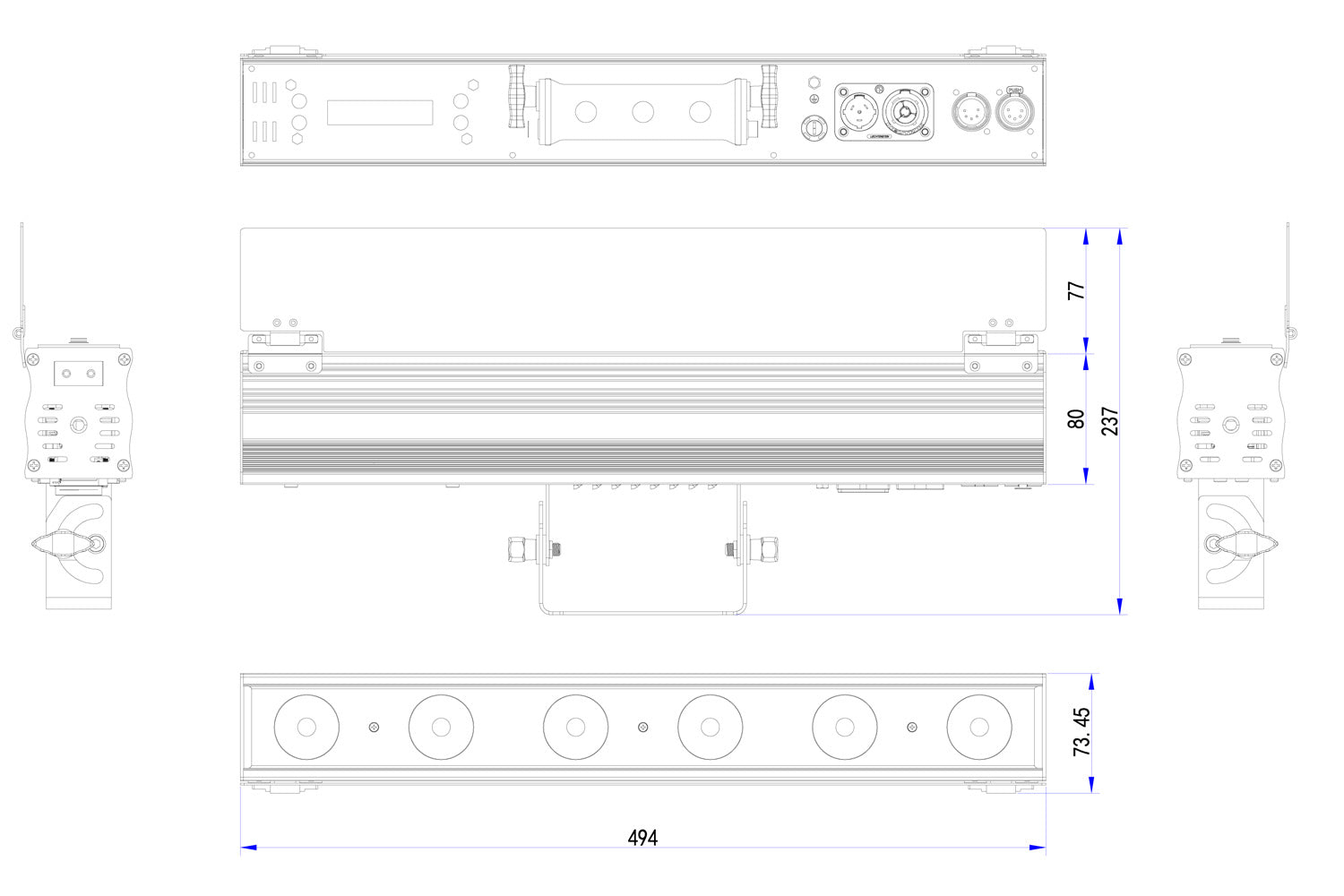

• Dimension: 568 x 165 x 80mm
• Net Weight: 2.6kg

MISC

• Road case: PIXBAR6CASEWC

Download product datasheet

Download user manual



Warranty: 3 years
