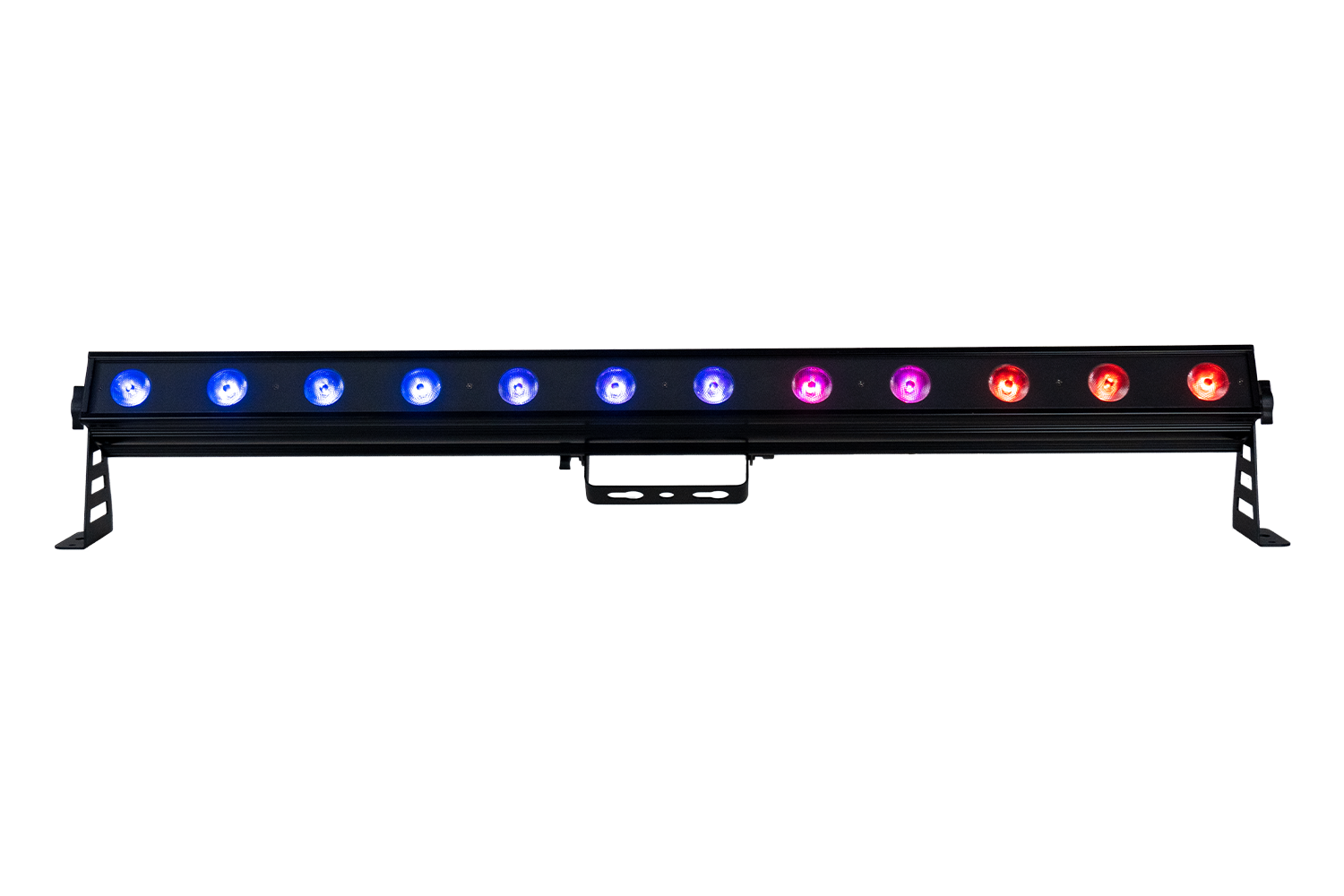

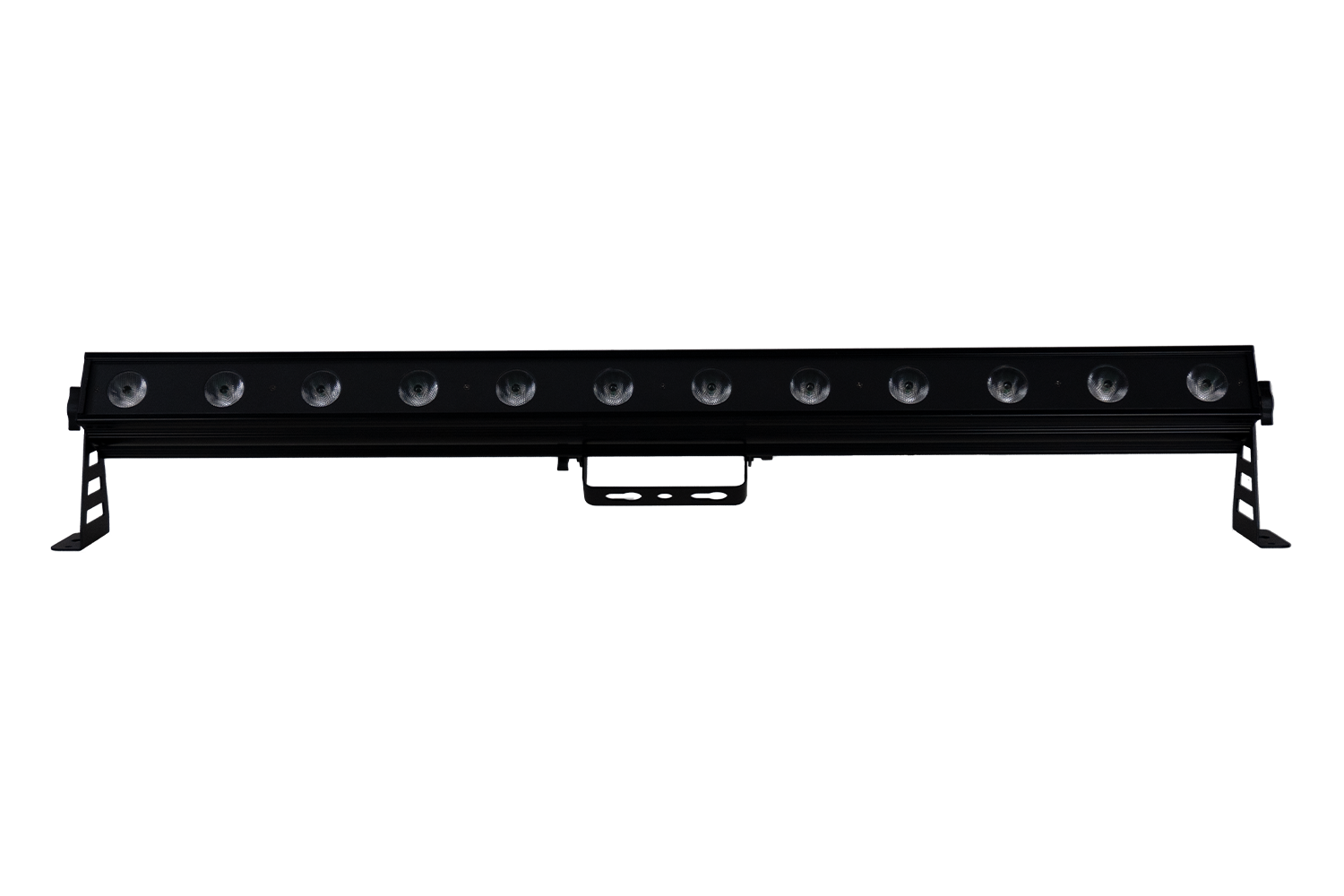

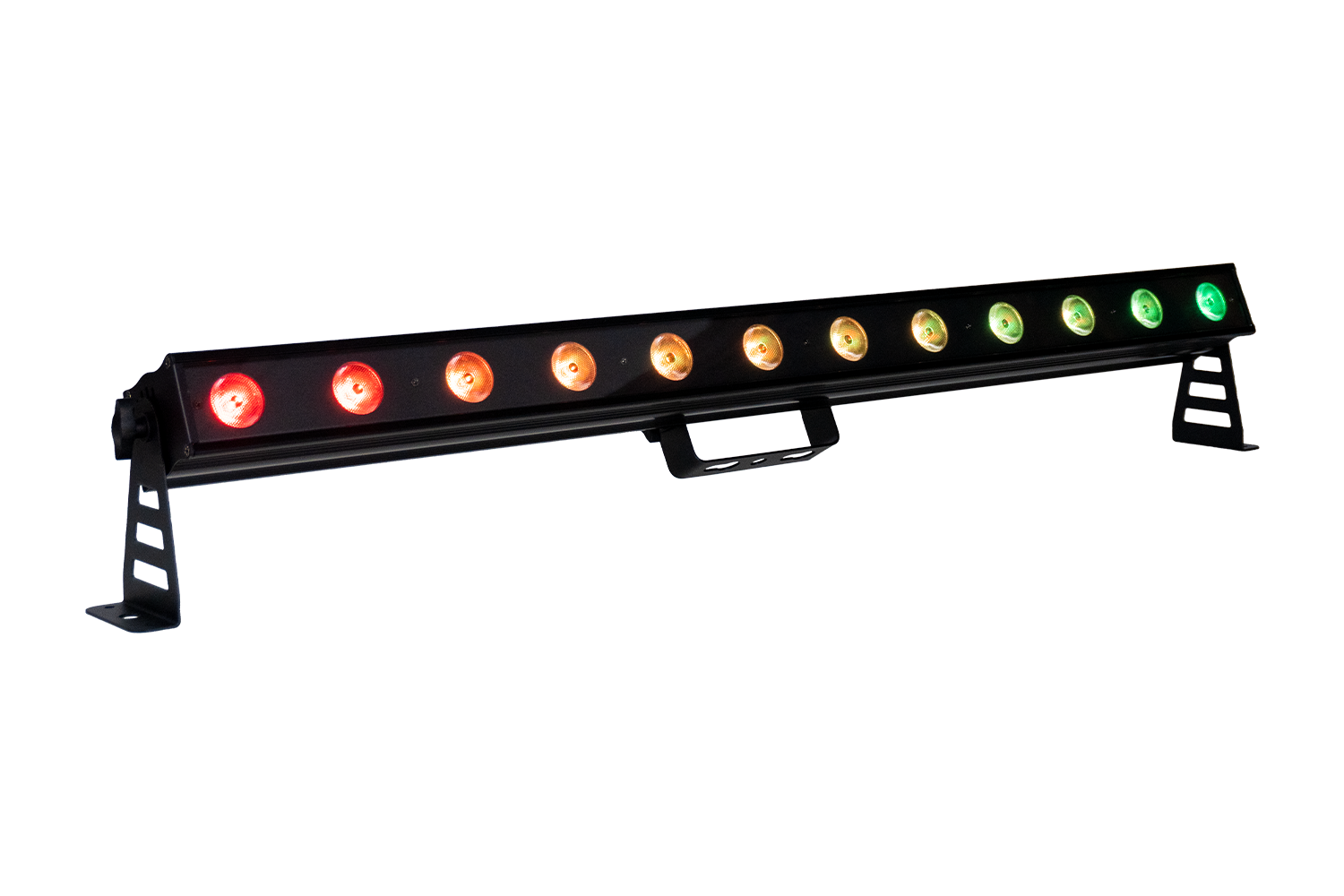

PIXBAR12X3 - 12x 3 W RGB Pixel Control Bar

Name: PIXBAR12X3 - 12x 3 W RGB Pixel Control Bar
Brand: Event Lighting
SKU: EP3
Price: 569.0 AUD
Availability: InStock

$569.00

Sale Contact for Availability

This product is discontinued.

See updated model - PIXBAR12Q

See other New PIXBAR12 Models - PIXBAR12H, PIXBAR12VW

Event Lighting PIXBARs are perfect for fixed installations and productions. All models feature pixel control, an aluminium housing and fanless operation, making them silent and virtually maintenance free.

Photometrics

Light Source: 12x 3 W RGB LEDs

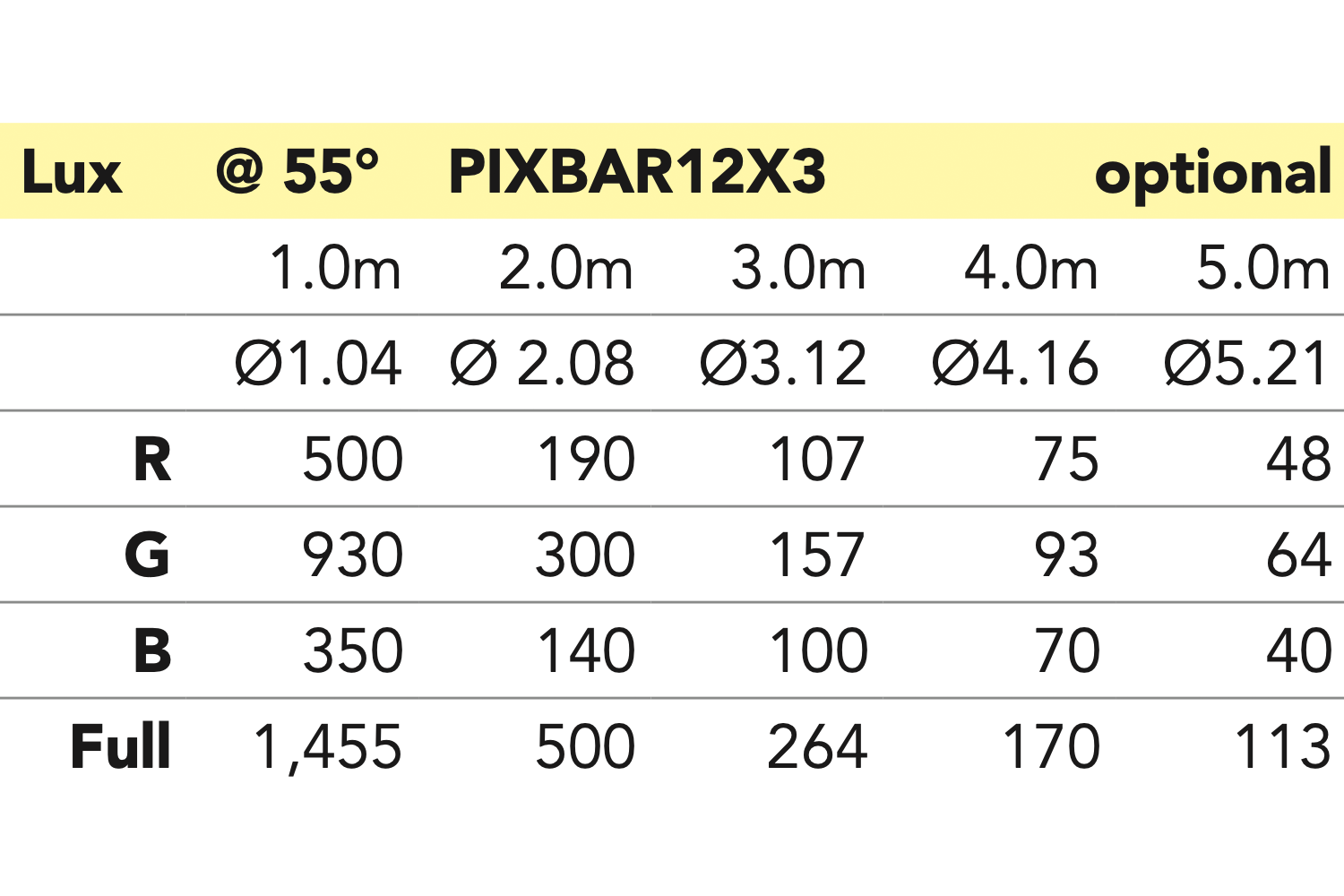

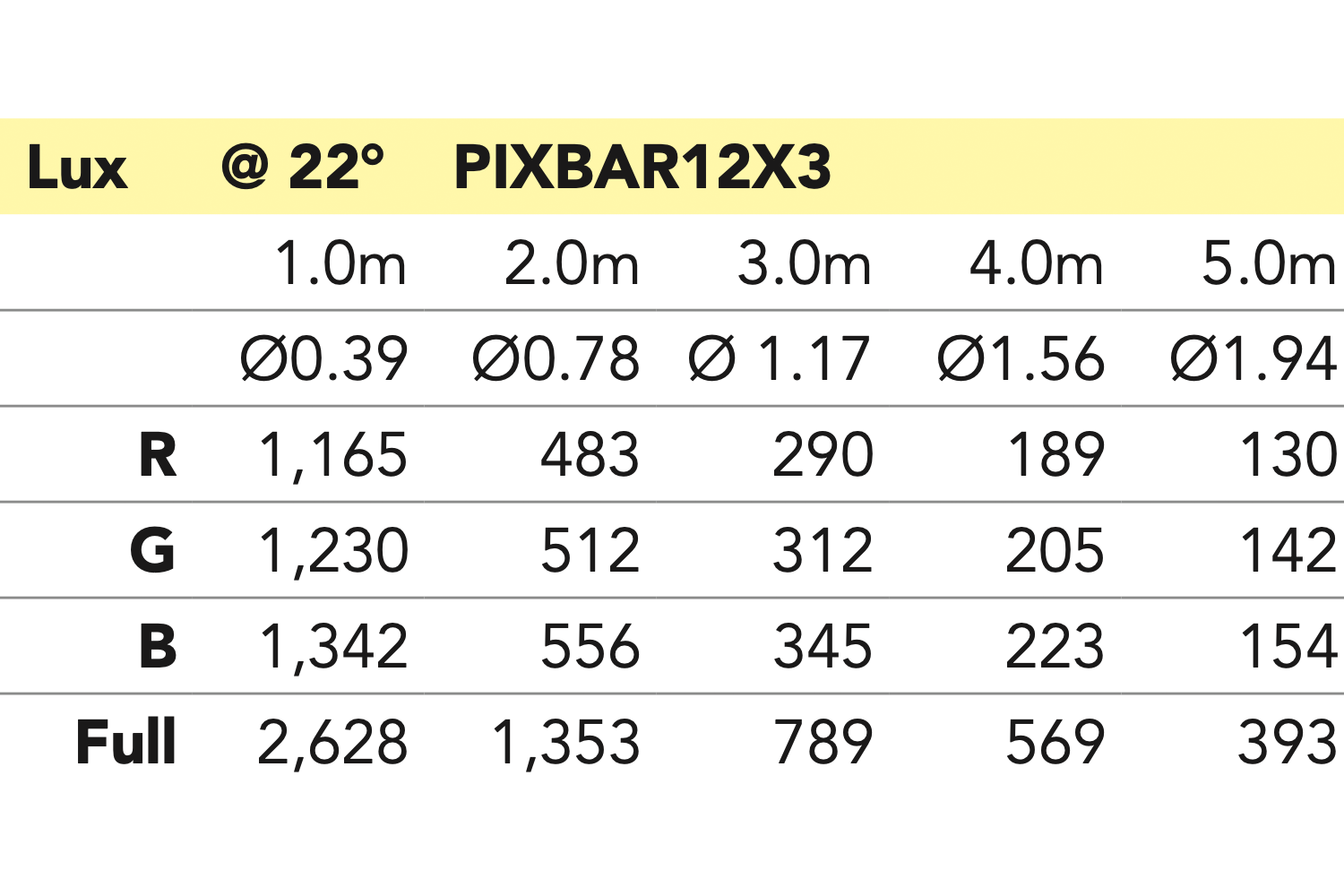

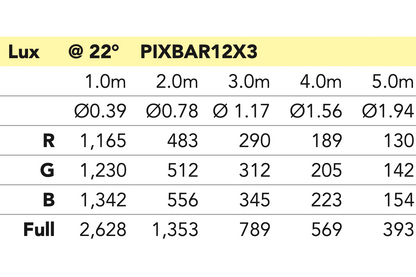

Beam Angle: 22° (optional: 55°)
Output: 1,353 lux @ 2 m RGB full on
PWM: 16,000 Hz
LED Life: 50,000 hours

Effects

Dimming: 0~100%, 8-bit
Strobe: 1~30 Hz

Power

Input Voltages: 100~240 V AC,50/60 Hz, 60 W
Power Connection: IEC in/out

Control

Operation Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase
Display: 4-button LCD control panel
Control Protocol: DMX512
DMX Channels: 3 / 5 / 6 / 7 / 9 / 12 / 18 / 36
Control Interface: 5-pin XLR
Software Upgrade via DMX: Yes

Housing
