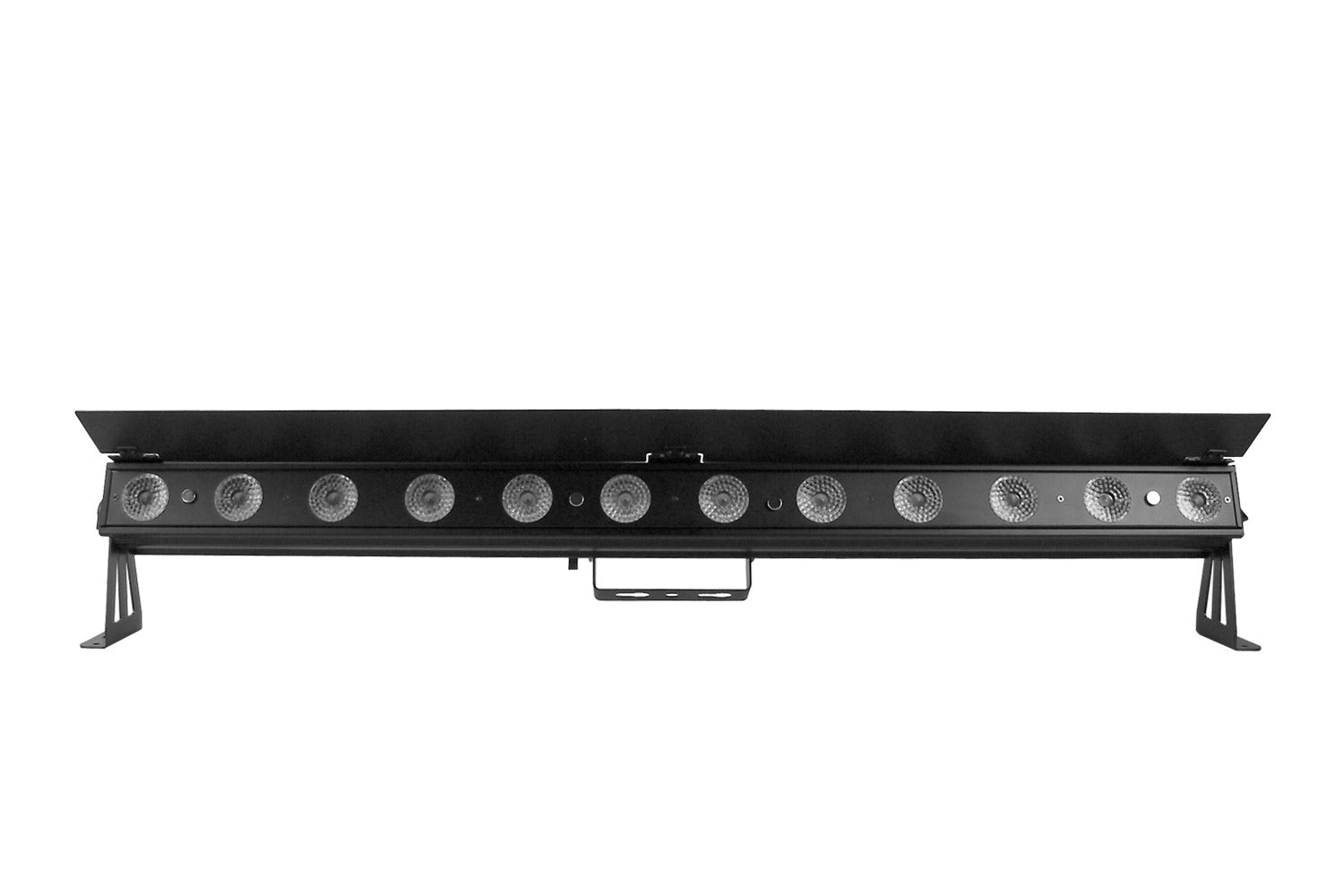

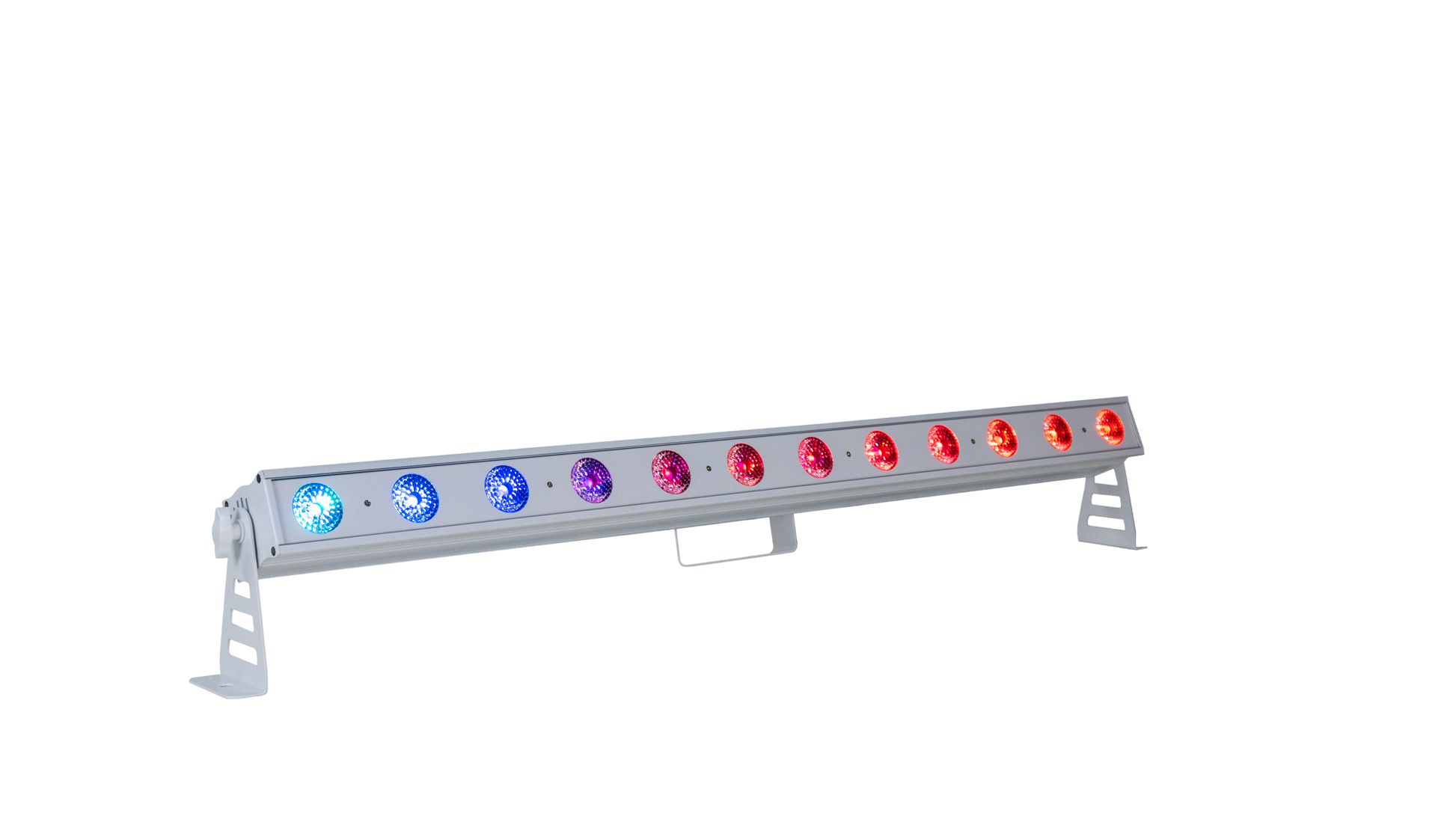

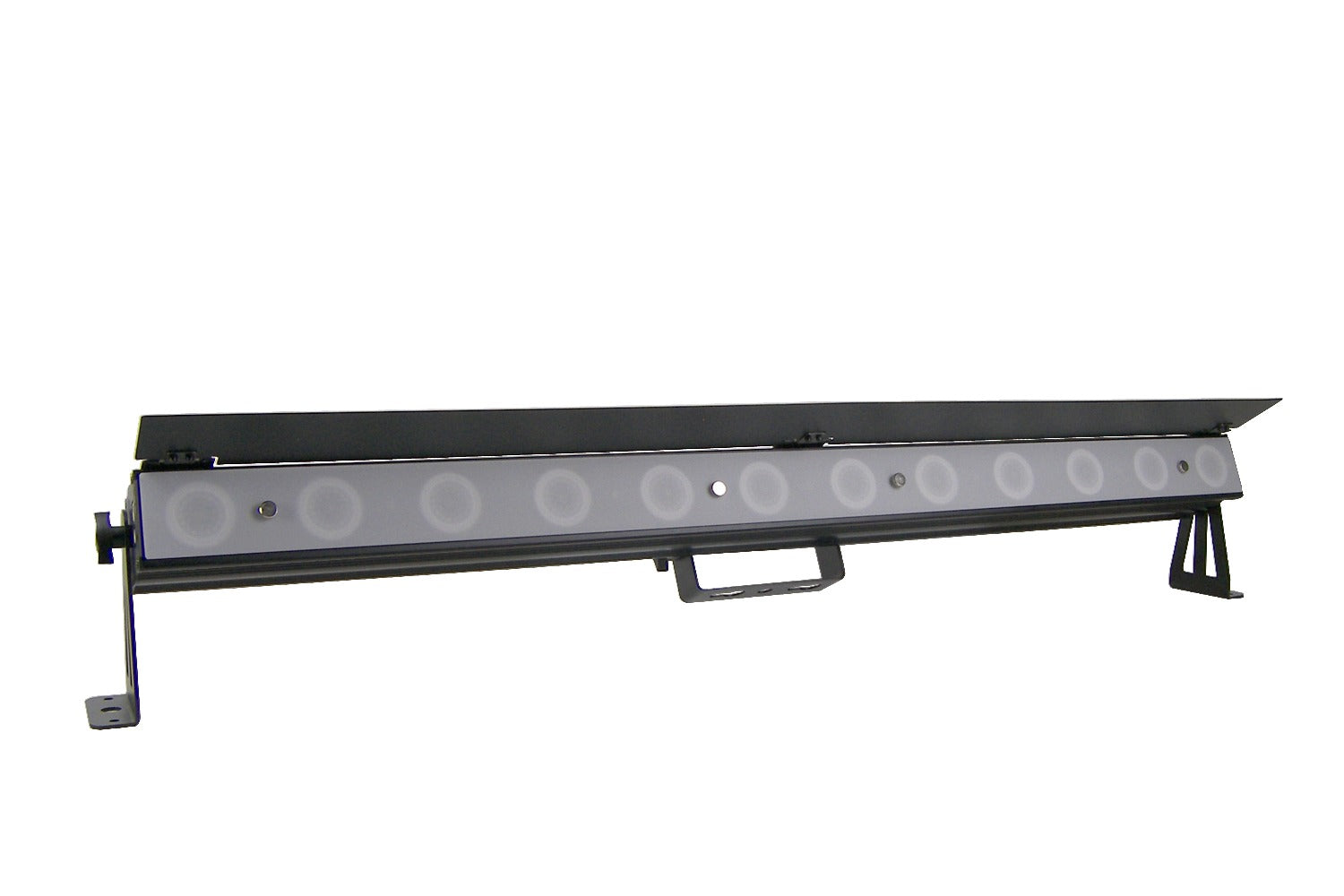

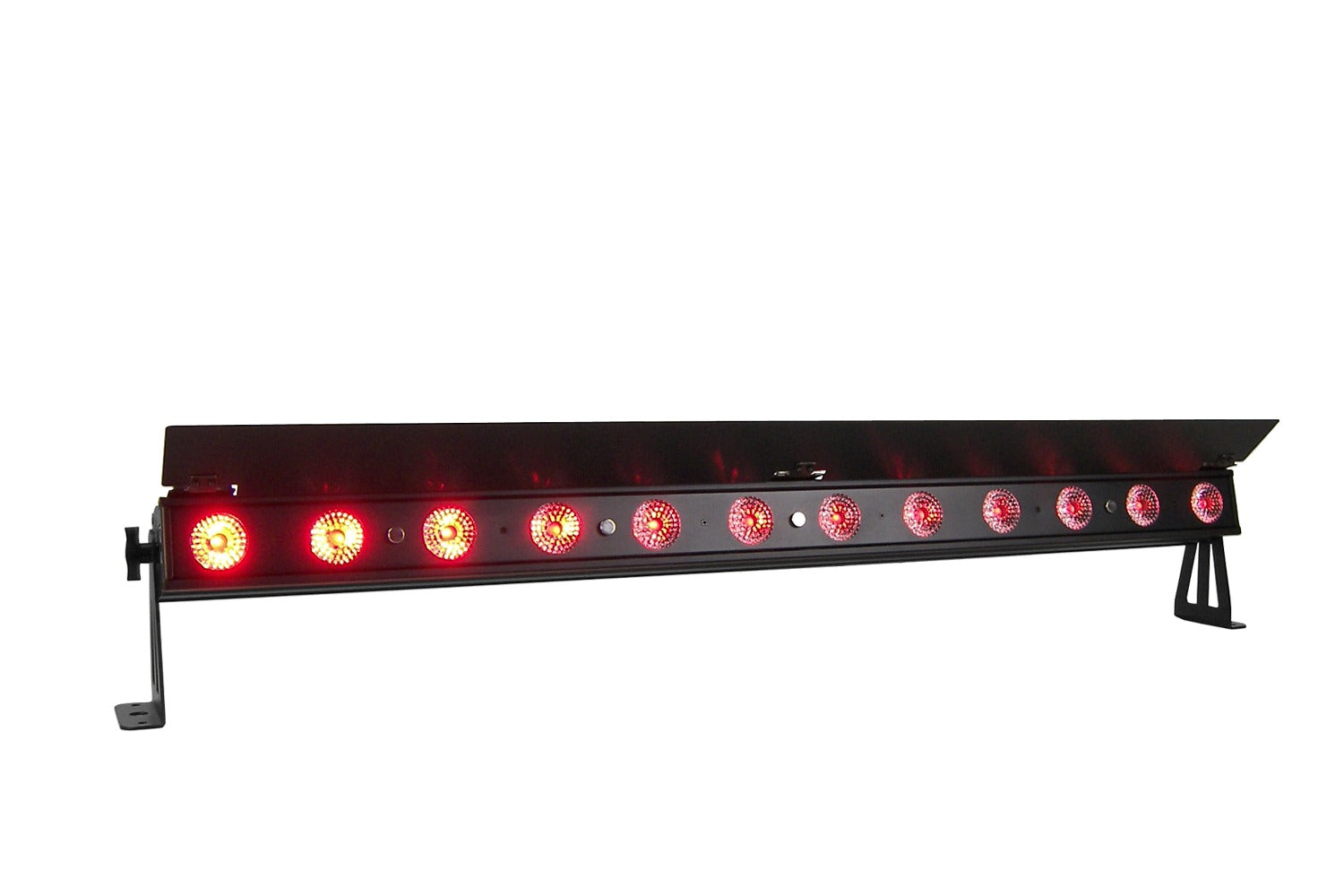

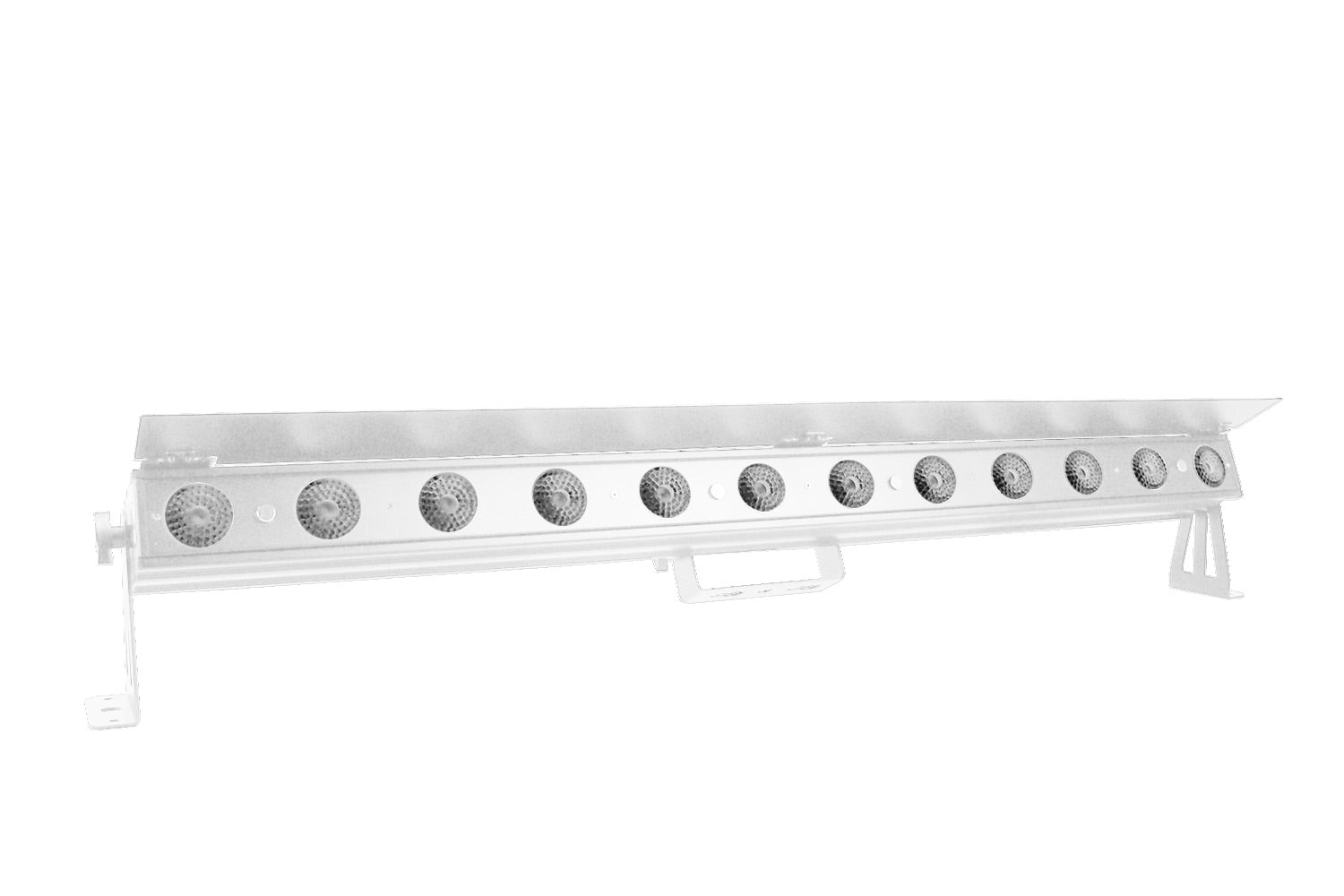

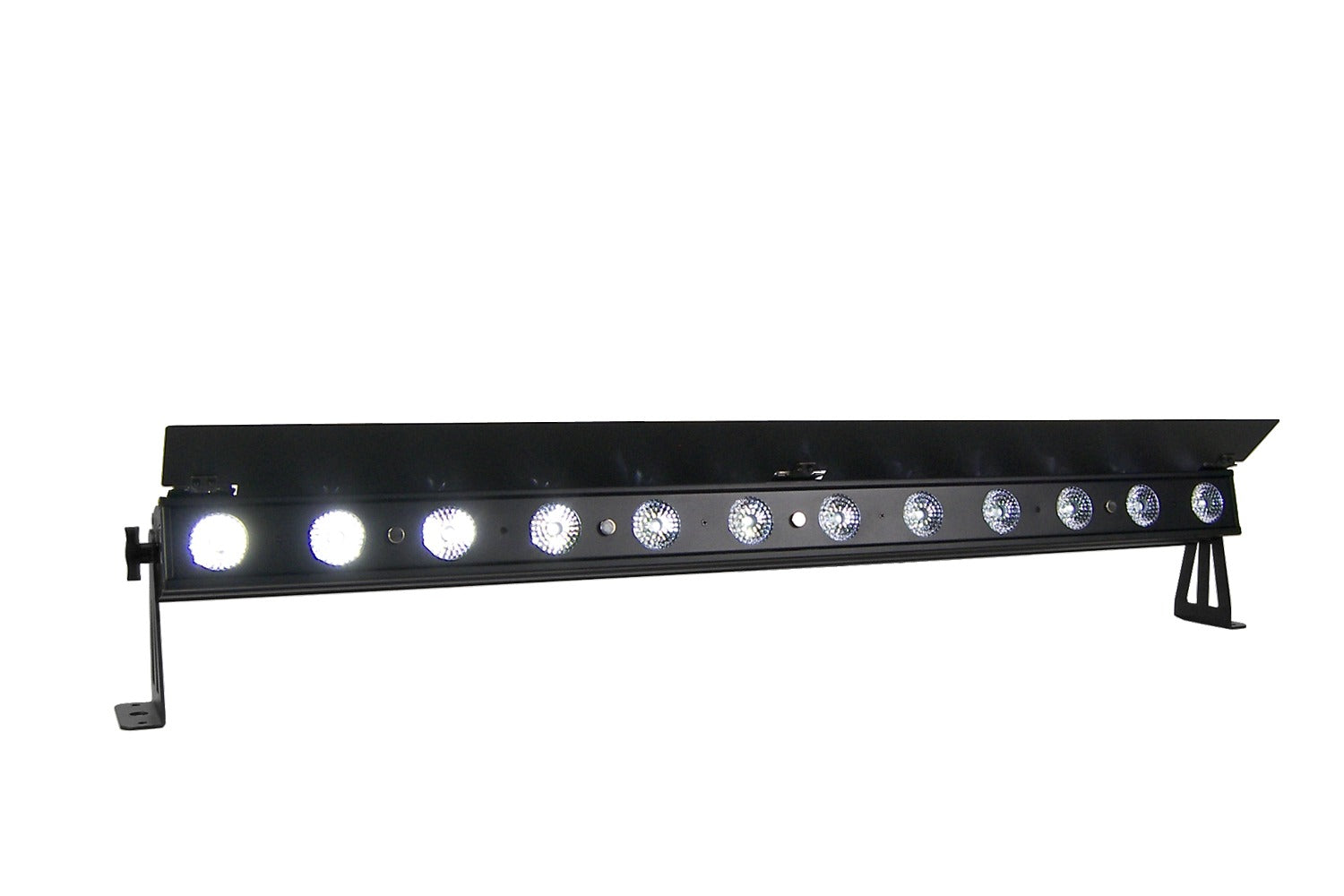

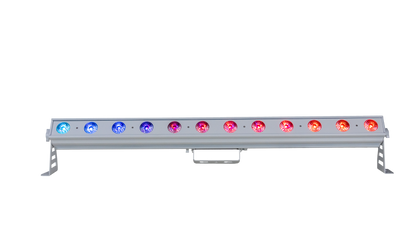

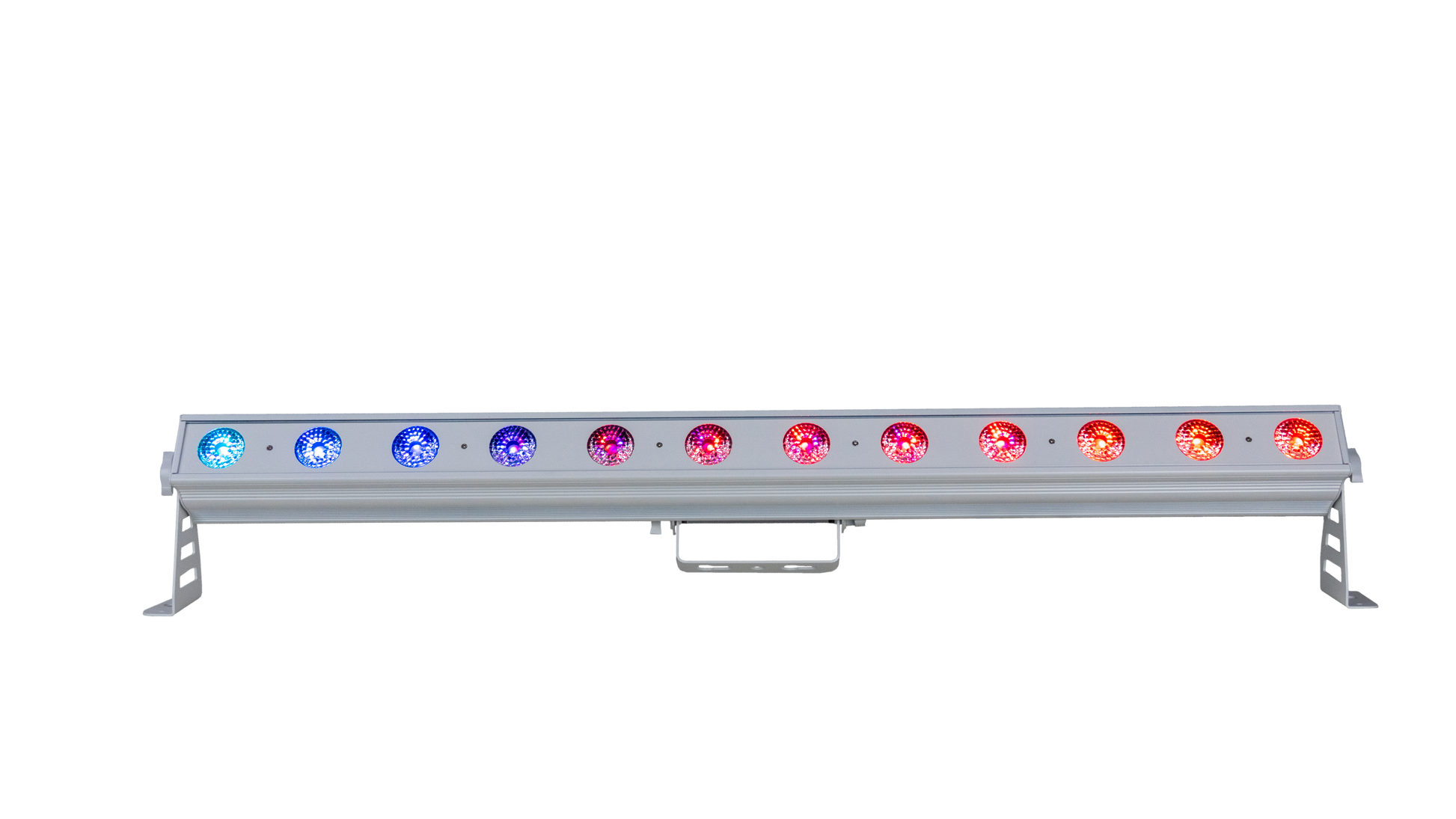

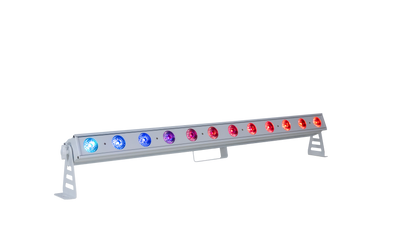

PIXBAR12Q-WH - 12 x 8W RGBW Pixel Control Bar with barndoor (White)

PIXBAR12Q-WH - 12 x 8W RGBW Pixel Control Bar with barndoor (White)

Regular price $789.00
Regular price Sale price $789.00
Sale Contact for Availability

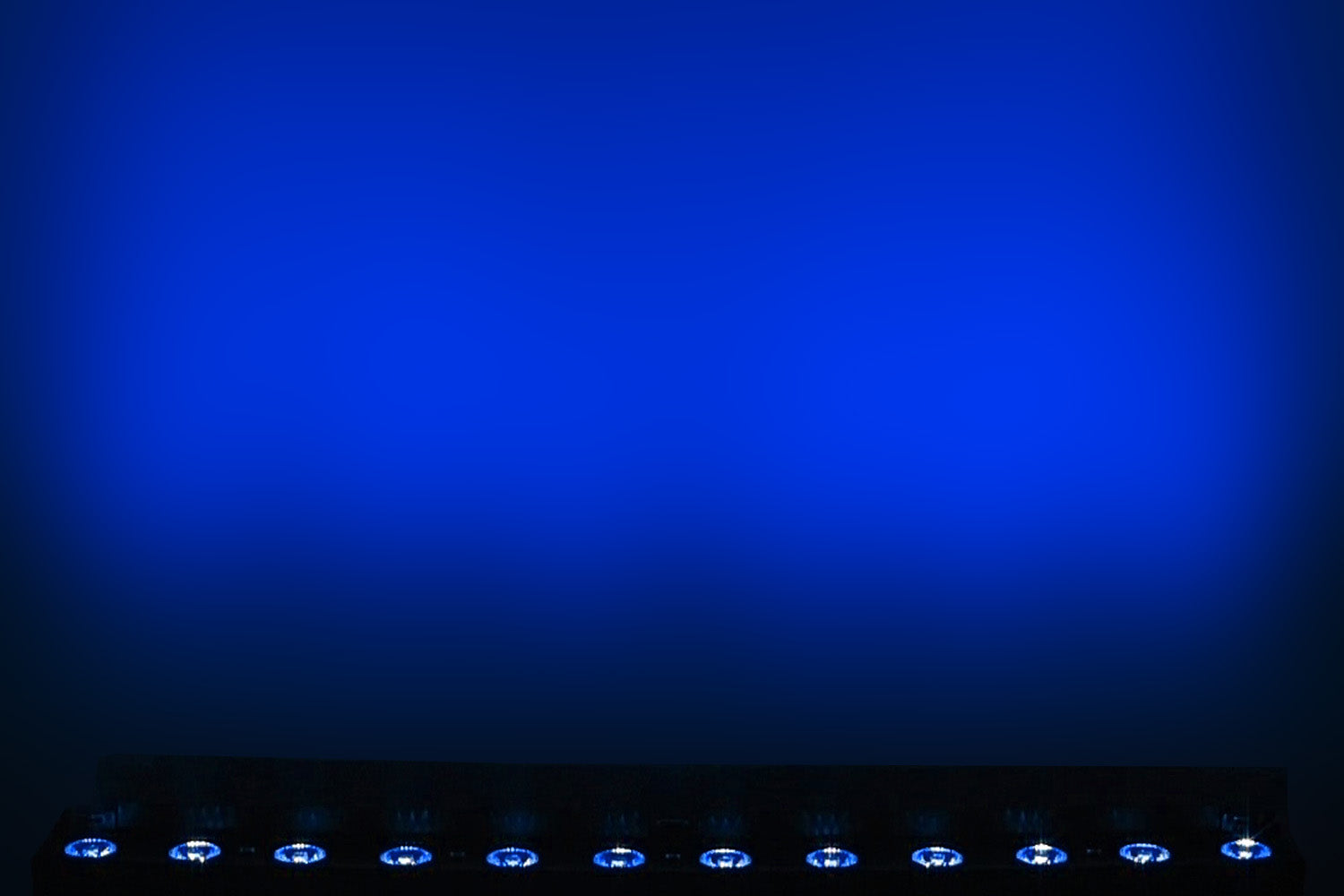

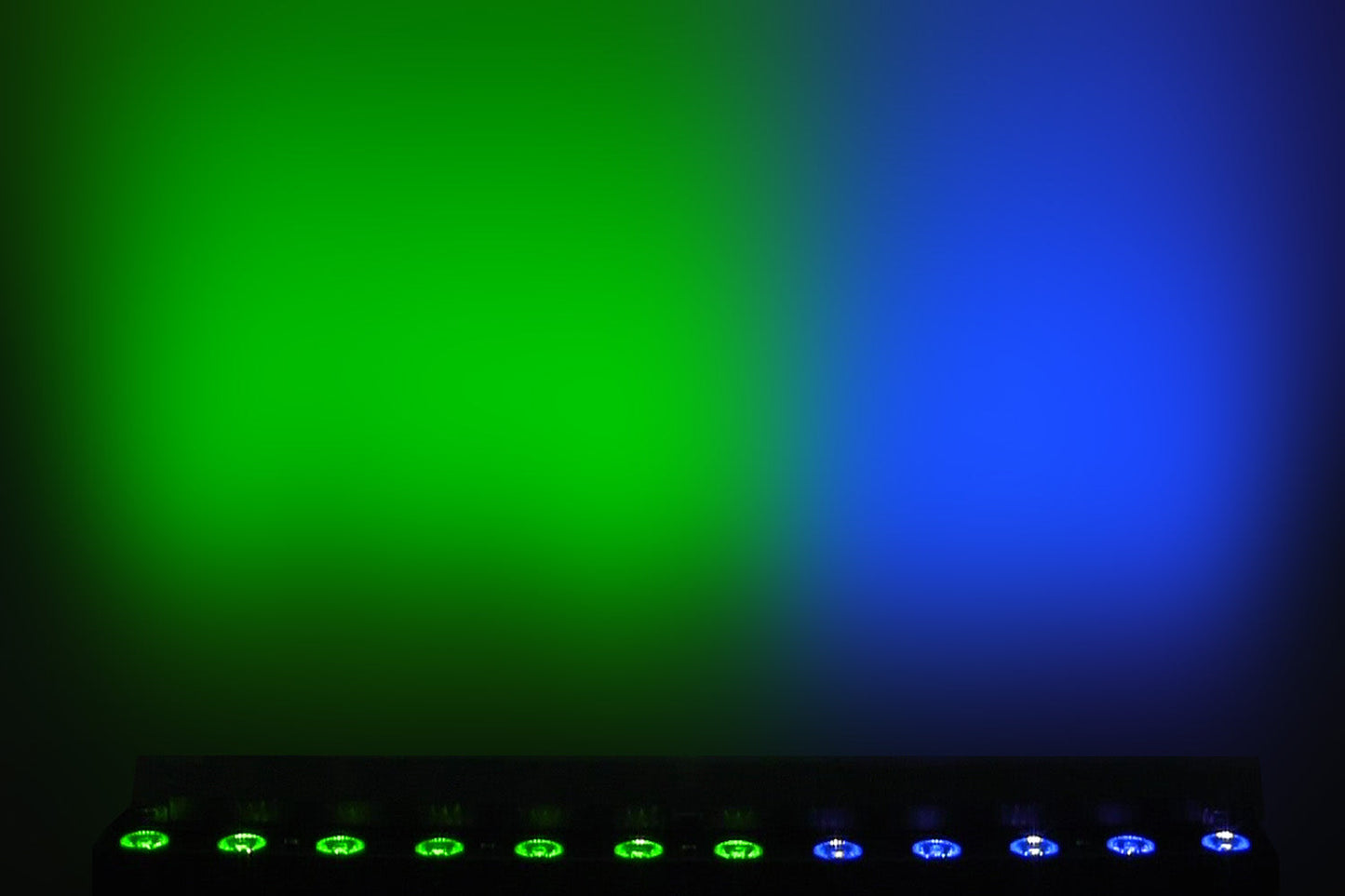

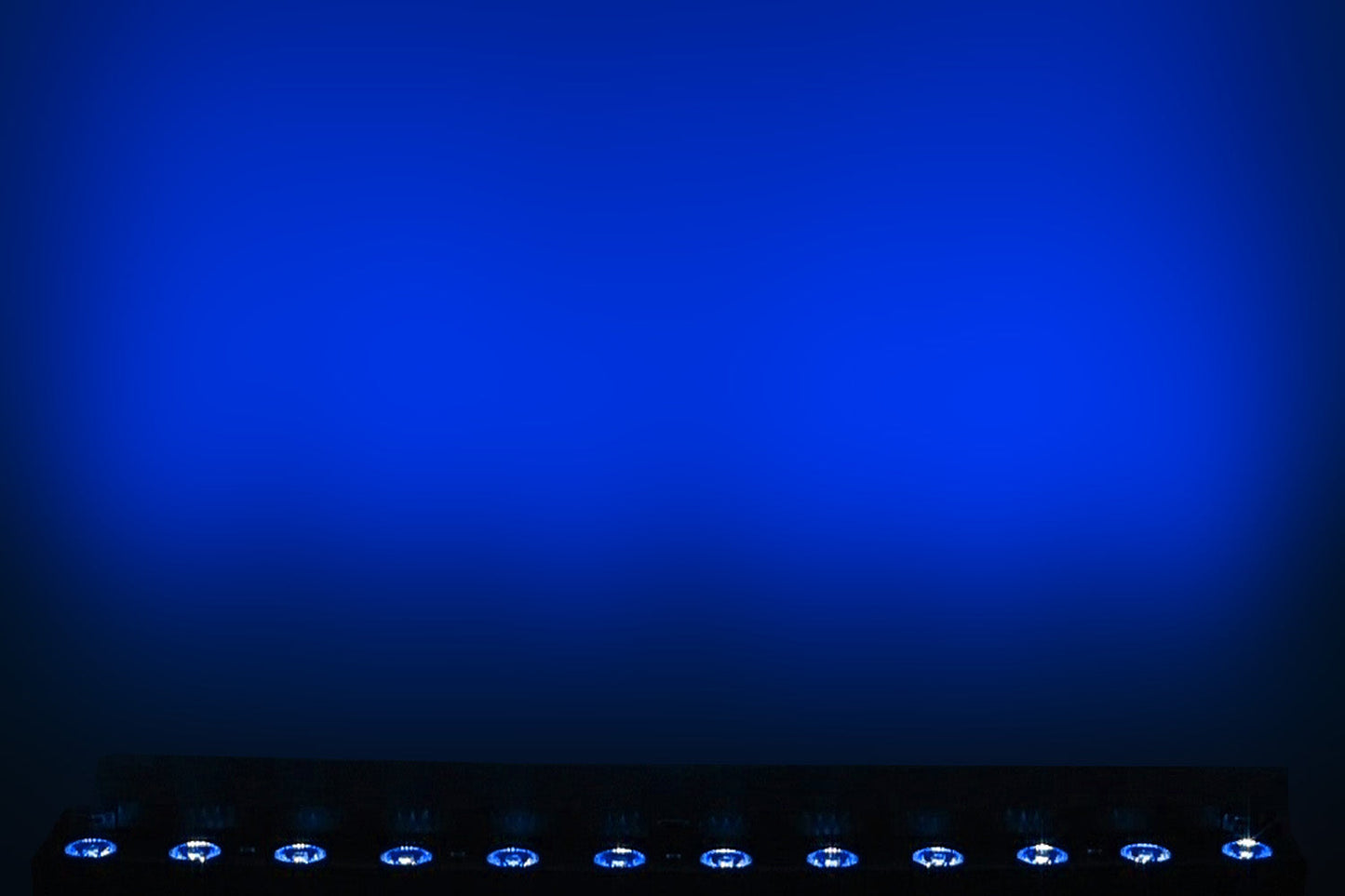

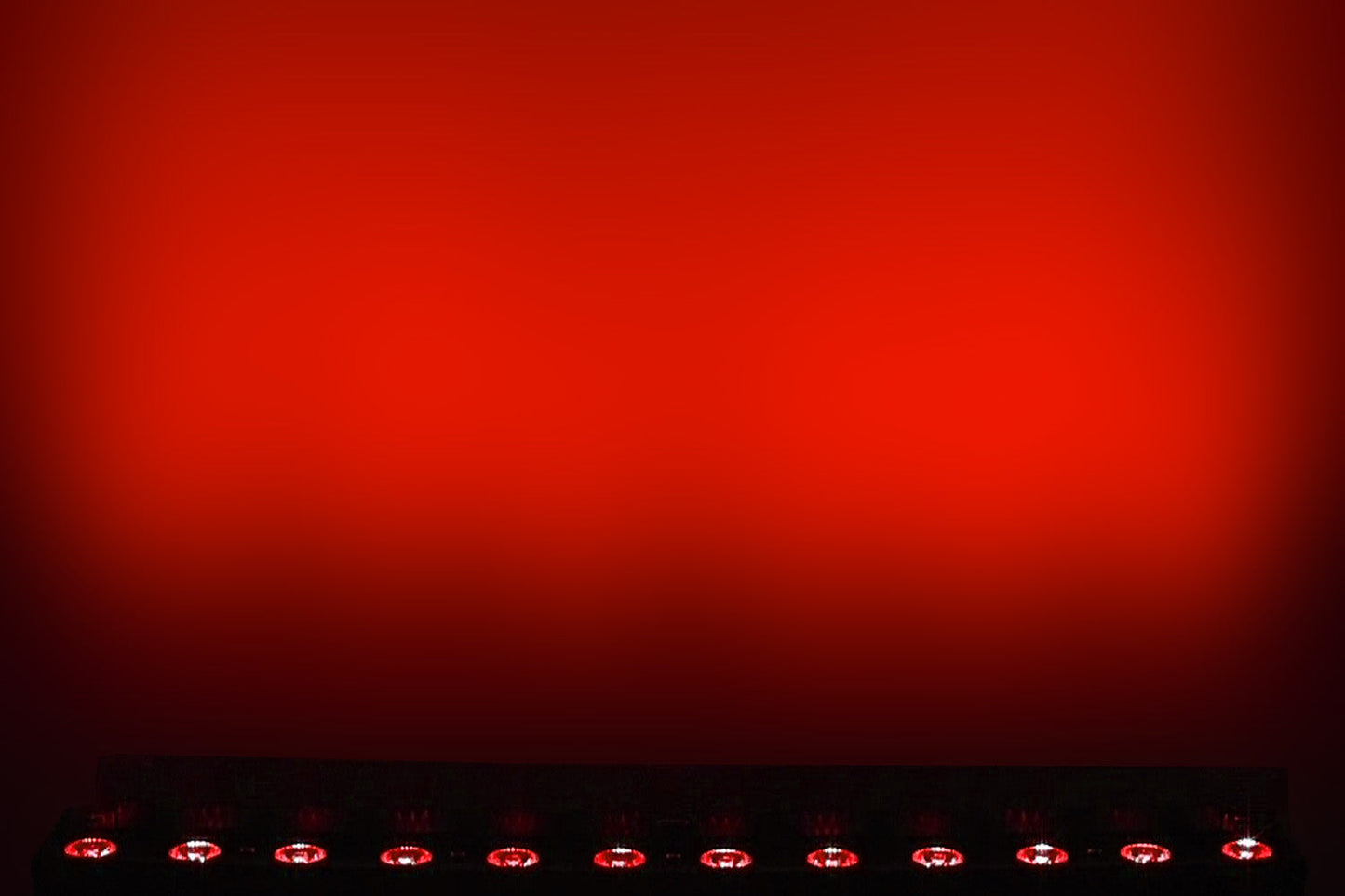

The Event Lighting PIXBAR12Q is a brilliant lighting companion for any event or production. Featuring 12 x 8W RGBW LEDs, this pixel bar delivers a stunning array of vibrant colours and dynamic effects. With a beam angle of 30° (optional 55°), you can precisely tailor the coverage to suit any venue or stage.

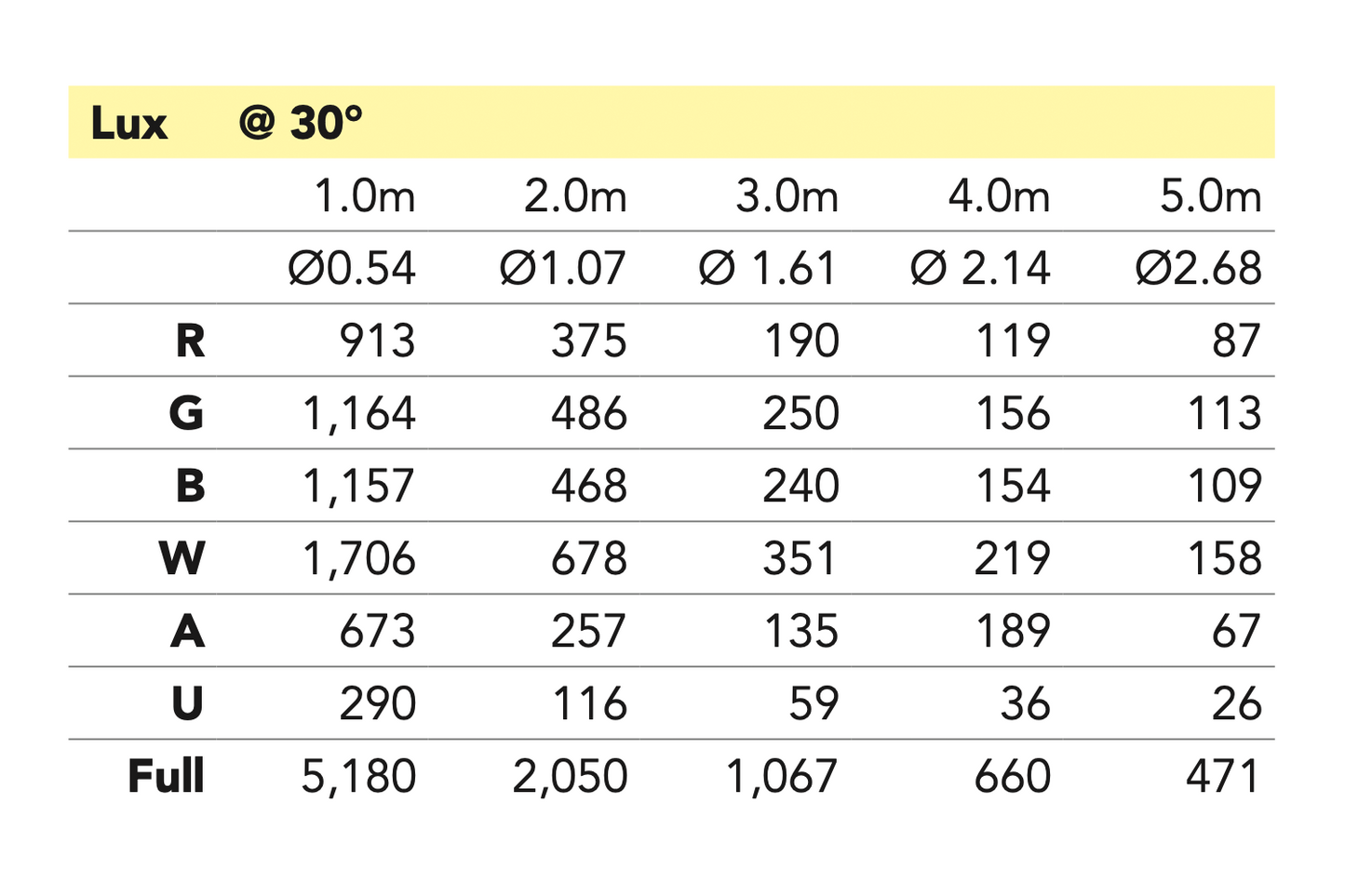

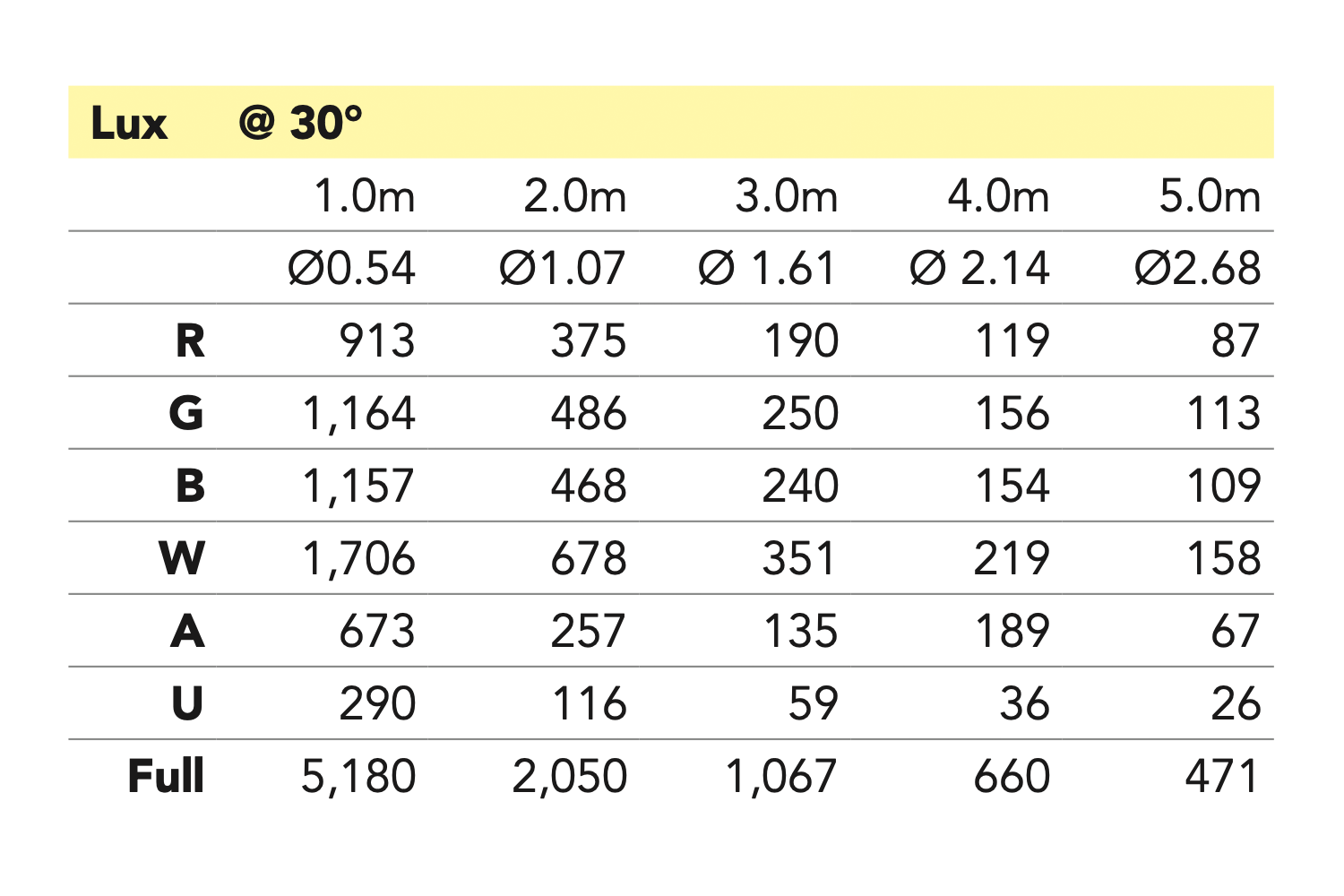

Experience dazzling illumination with an output of 2,050 lux at 2 meters. With 4 x 16-bit Dimming Curves and adjustable strobe settings from 1 to 30Hz, you have complete control over your lighting effects. Seamlessly switch between operational modes including DMX, manual, auto, and sound active, all accessible through the intuitive 4-button LCD control panel.

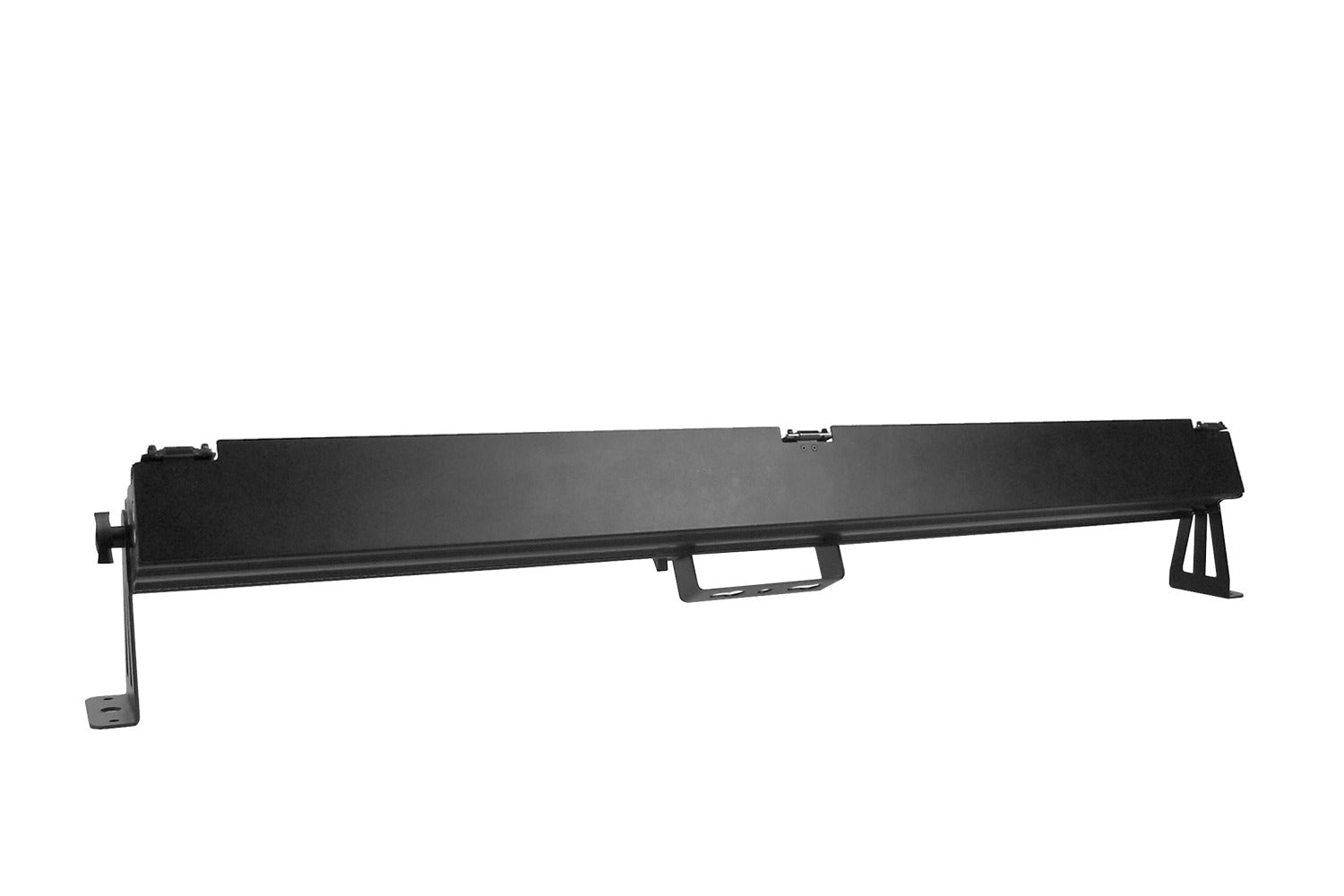

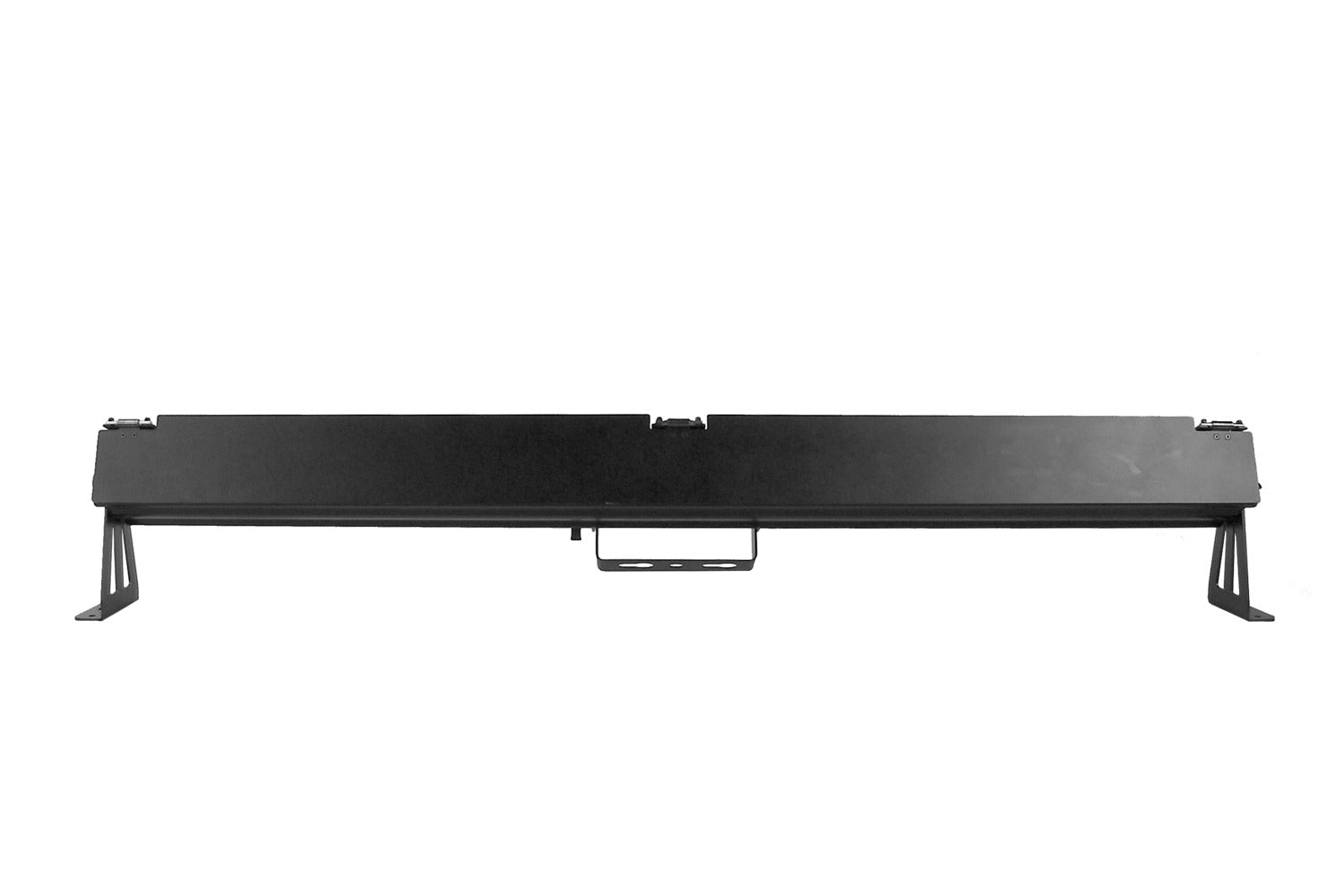

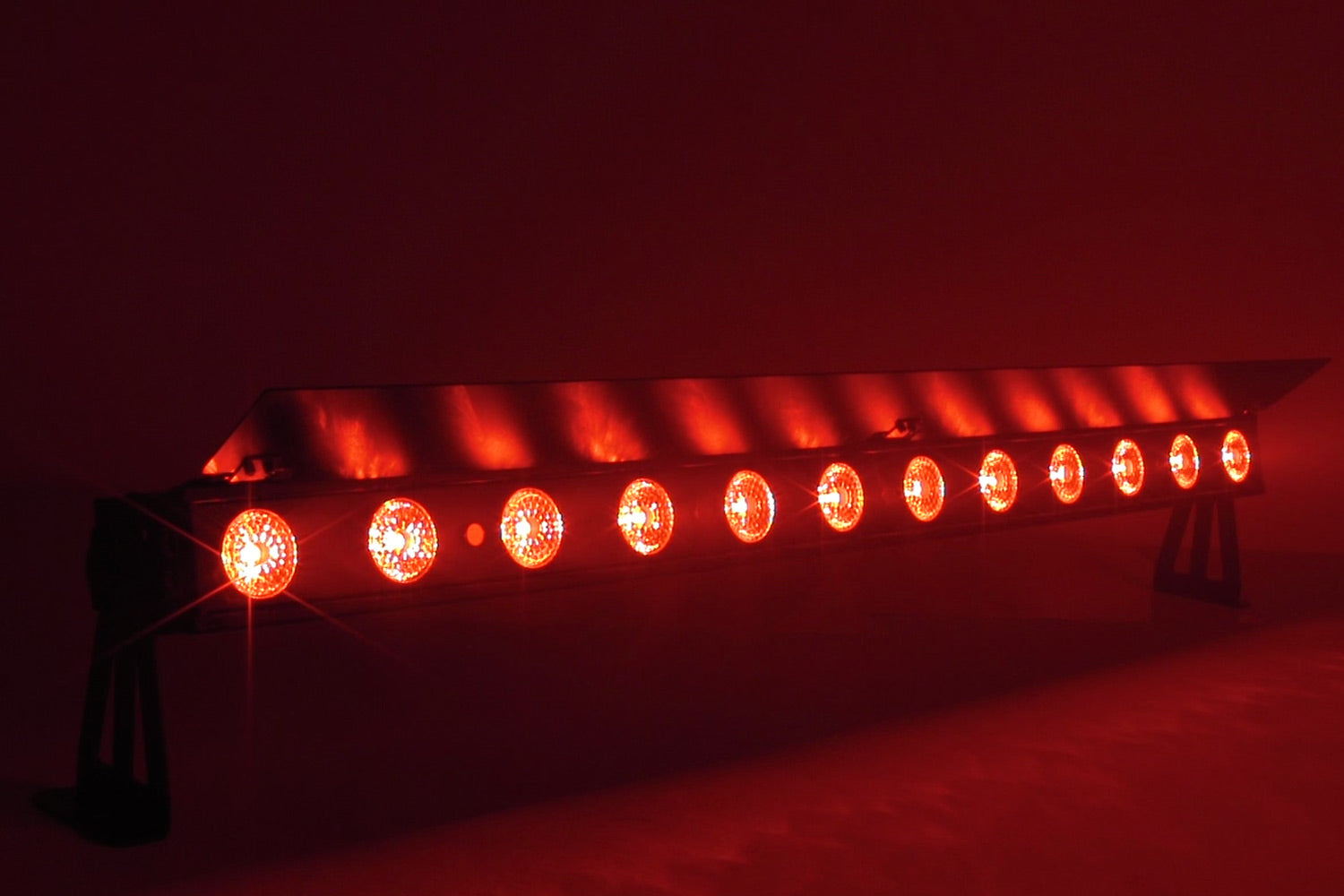

Crafted with durability in mind, the PIXBAR12Q features a sturdy aluminium housing with a sleek matte white finish. The included barndoor and frost filter enhance versatility, allowing for precise light shaping and diffusion. With True1 in/out and 3/5 Pin DMX in/out, installation is quick and hassle-free. Equipped with fanless cooling and a compact design, this pixel bar ensures reliability and consistent performance in any environment.



    Specifications:

    Photometrics

    • Light Source: 12 x 8W RGBW LEDs

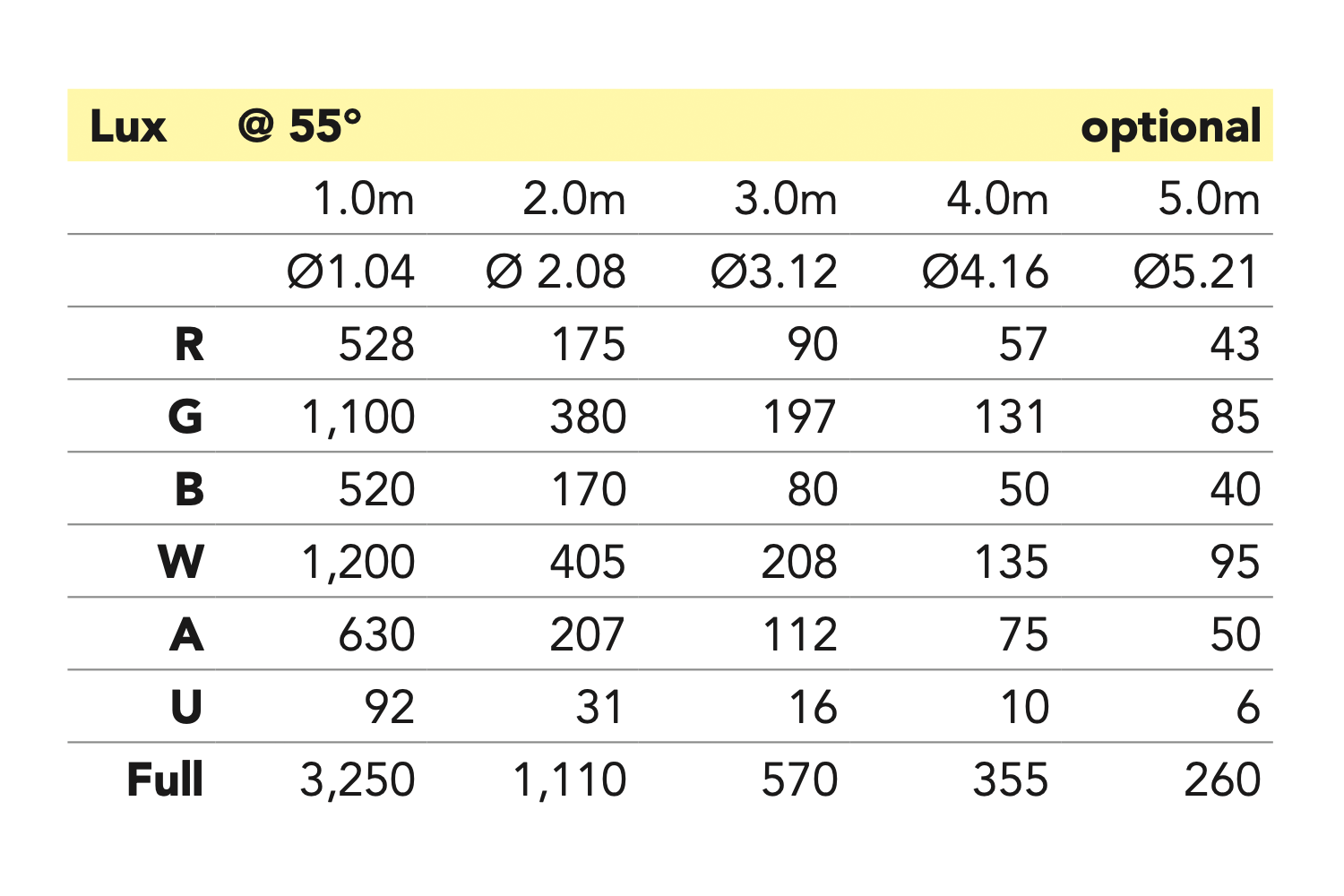

    • Beam Angle: 30° (optional: 55°)

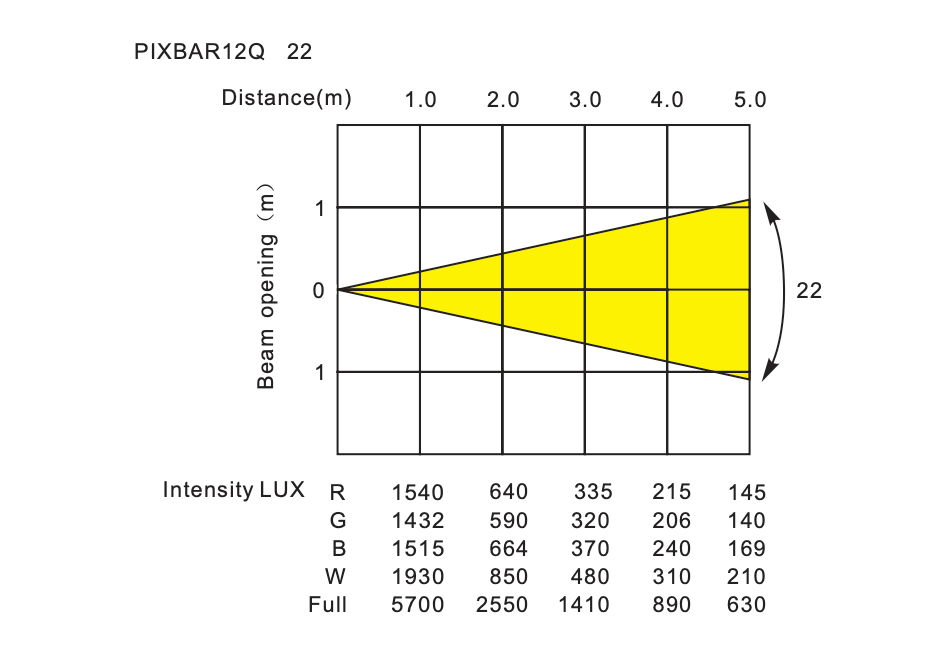

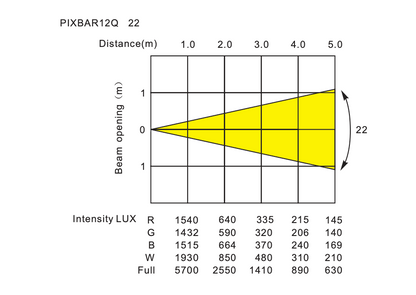

    • Output: 2,550 lux @ 2m RGBWAU full on
    • PWM: 2,940Hz
    • LED Life: 50,000 hours

    Effects

    • Dimming: 4 x 16-bit Dimming Curves
    • Strobe: 1~30Hz

    Power

    • Input Voltages: 100~240V AC, 50/60Hz,
    • Power Consumption: 120W
    • Power Connection: True1 in/out

    Control

    • Operation Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase

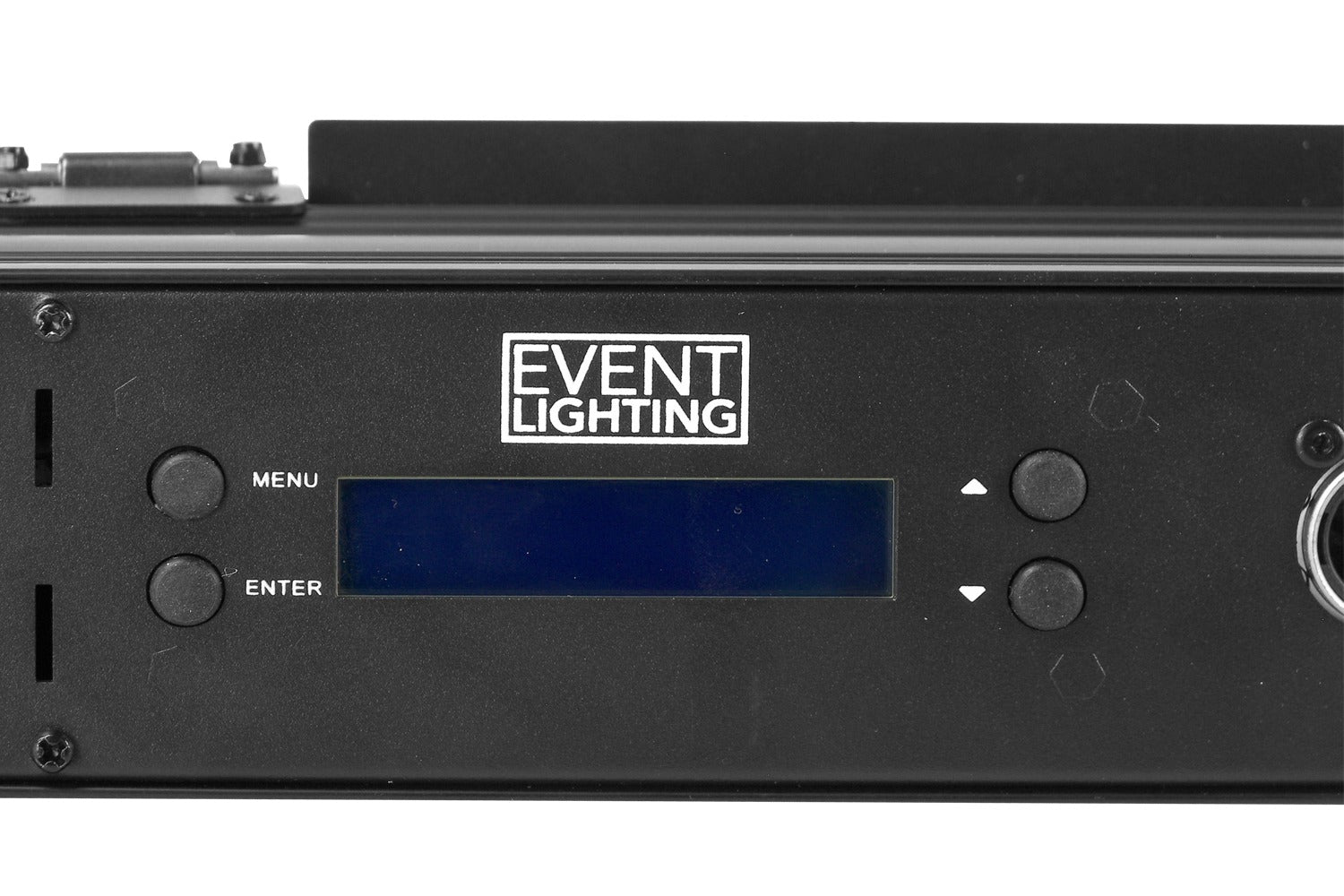

    • Display: 4-button LCD control panel
    • Control Protocol: DMX512
    • DMX Channels: 3 / 4 / 6 / 8 / 12 / 16 / 24 / 48 / 50

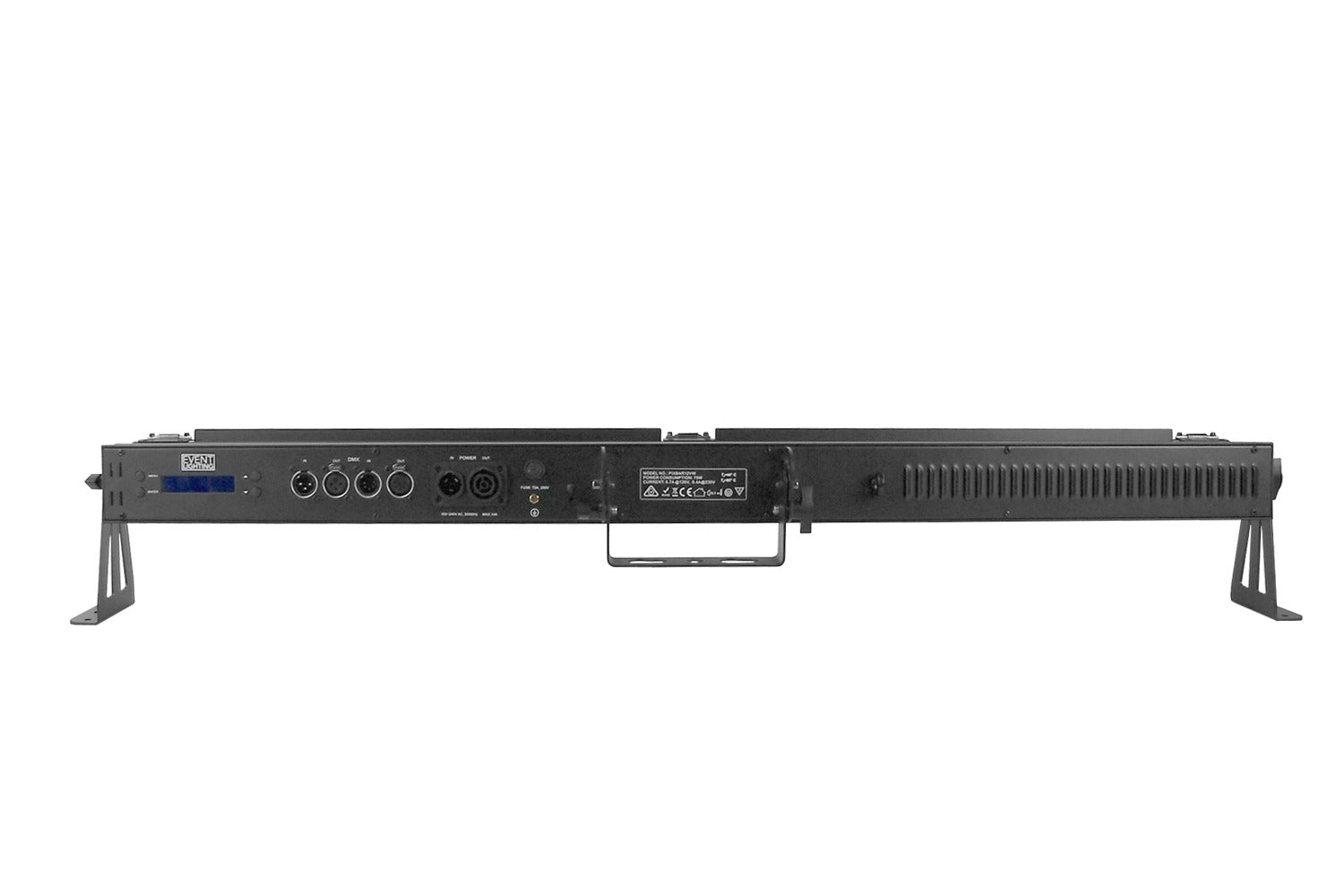

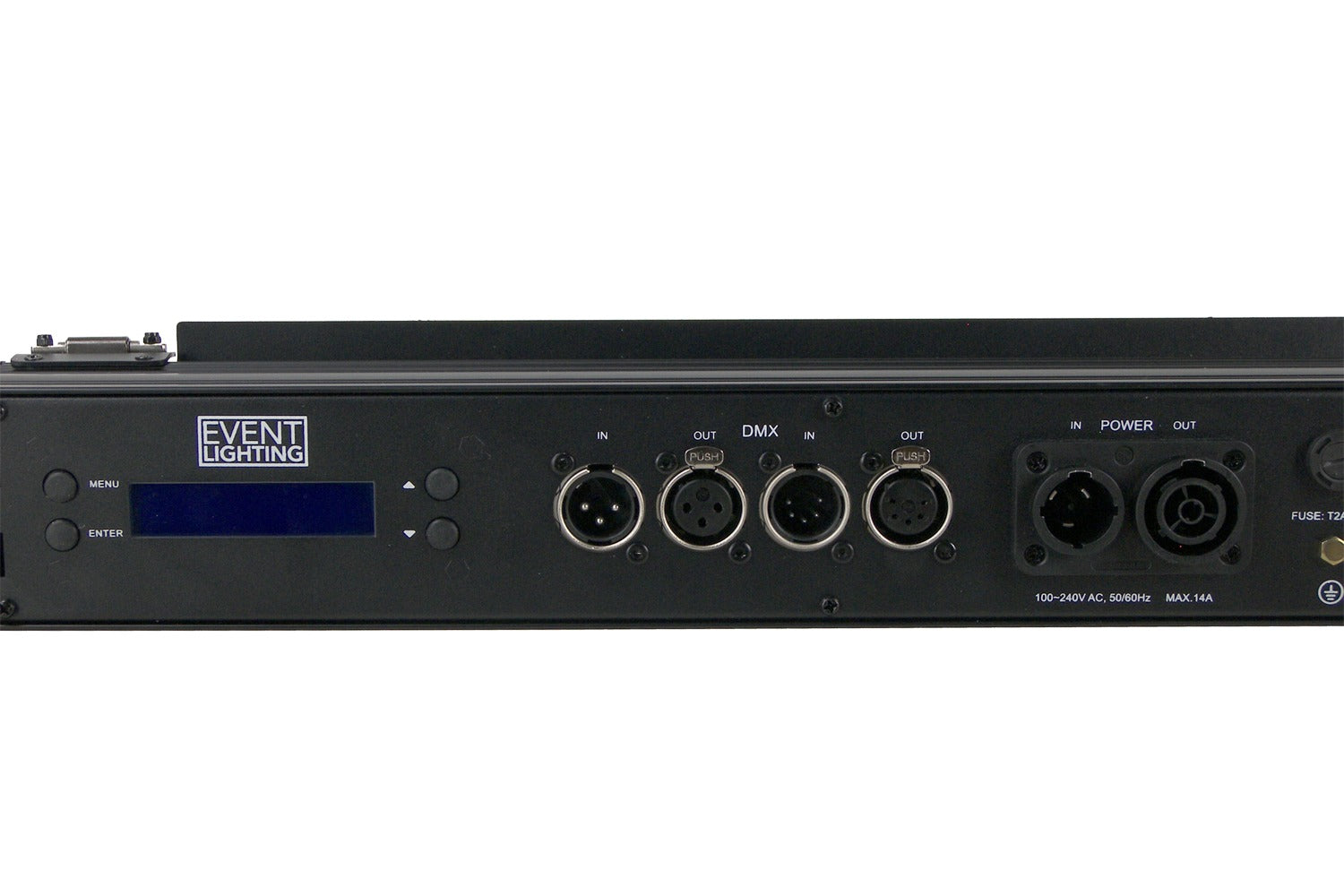

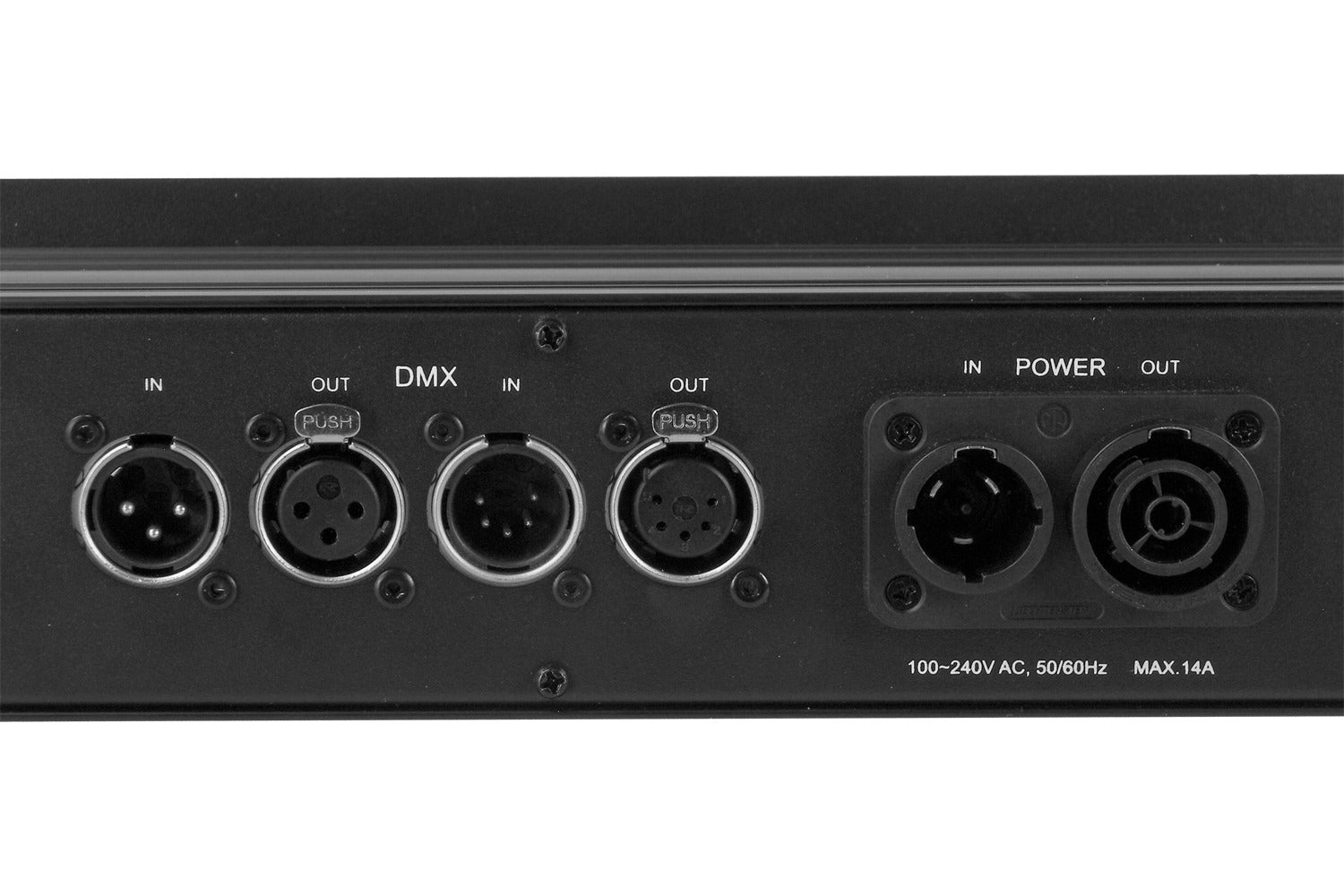

    • Control Interface: 3-pin and 5-pin XLR in/out
    • Software Upgrade via DMX: Yes

    Housing

    • Housing Materials: Aluminium, matte white finish

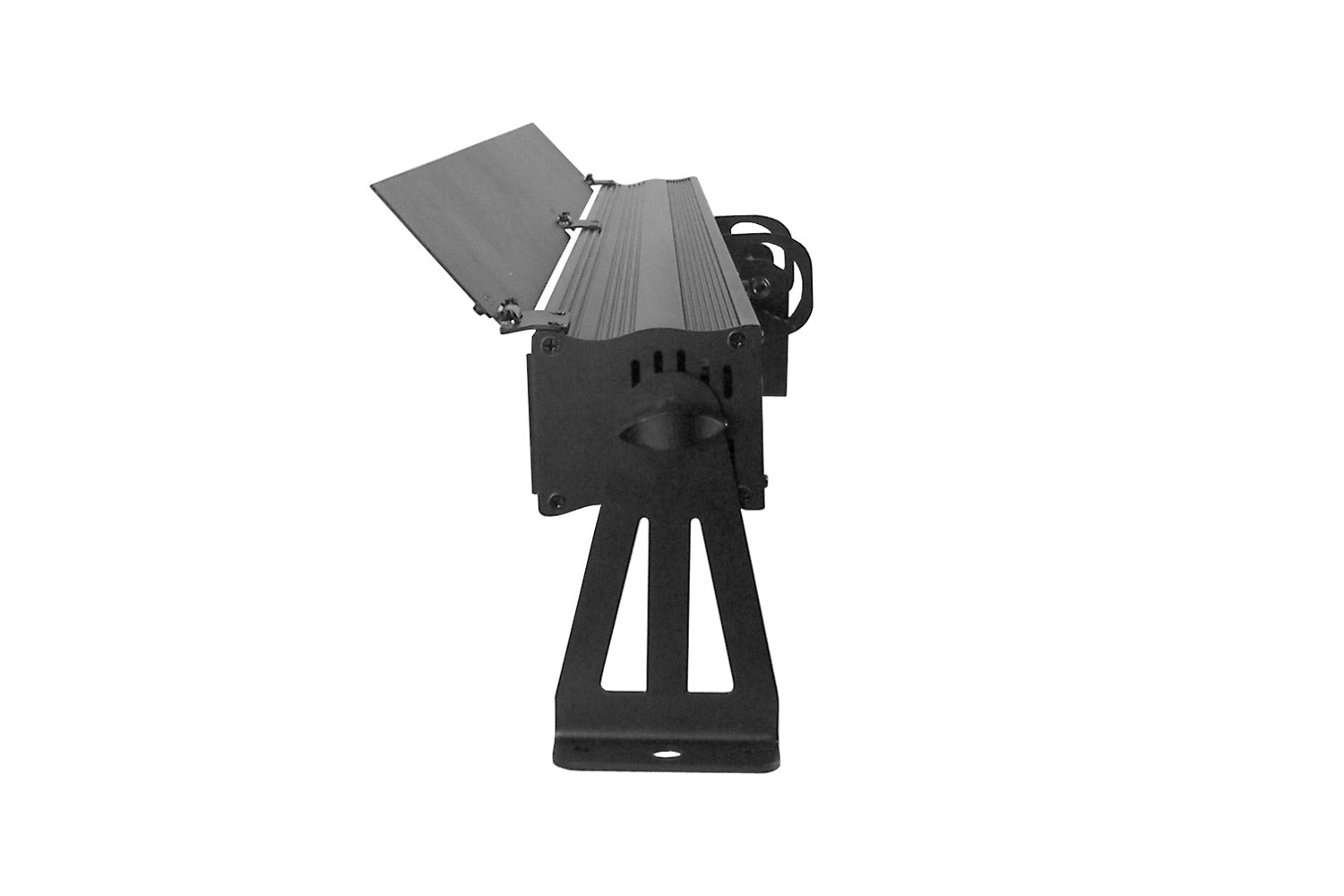

    • Barndoor: included
    • Frost filter: included
    • Cooling: Fanless Cooling
    • Dimension: 1050 x 165 x 80mm / 41.3" x 6.5" x 3.1"
    • Net Weight: 4.5 kg / 9.9 lbs

    MISC



    Download product datasheet

    Download user manual

    Warranty: 3 years
