PAR9X15O - Outdoor Pro Par with 9 x 15W RGBW LEDs

This product is in discontinued.

See similar products - PAR9X12H-IP

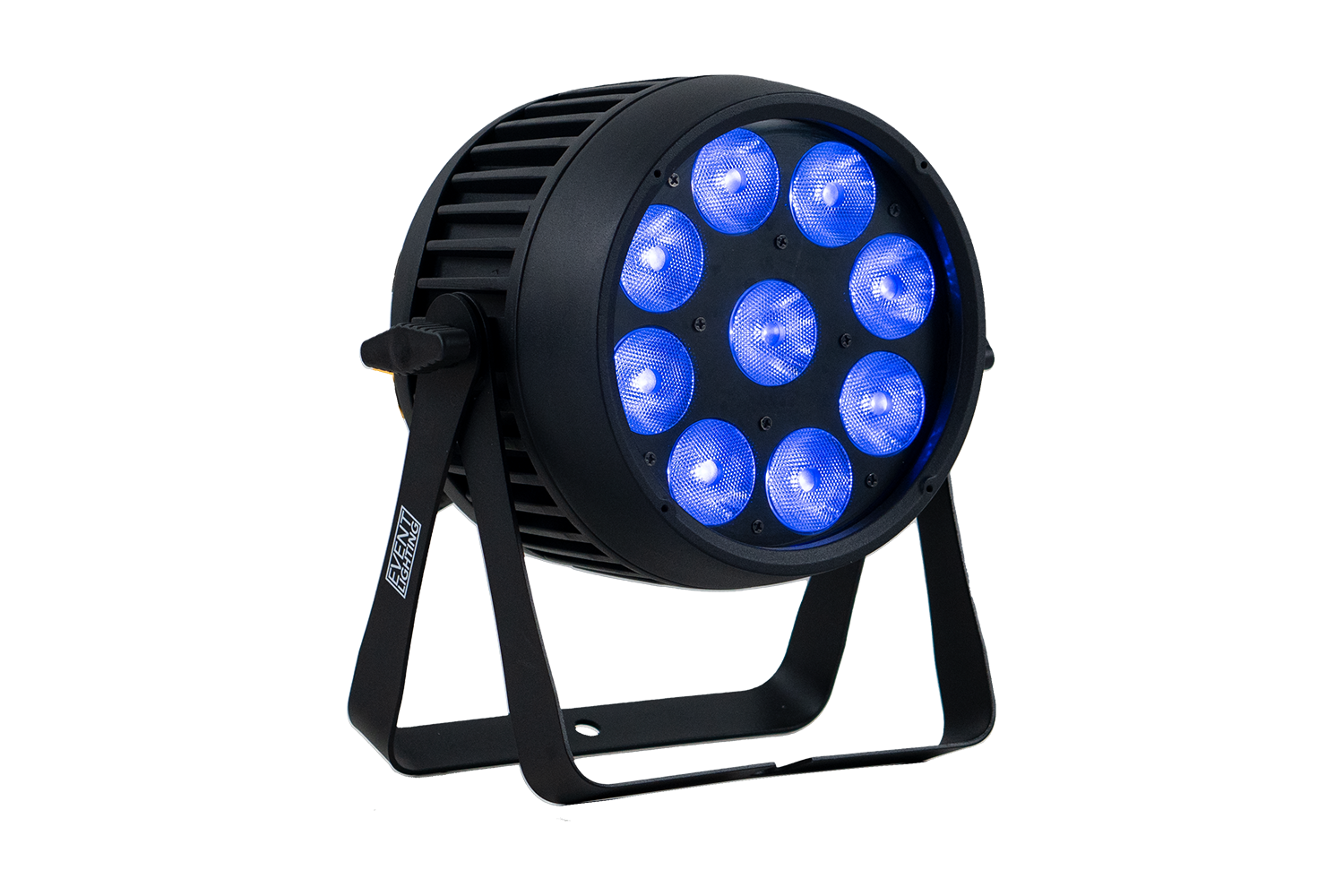

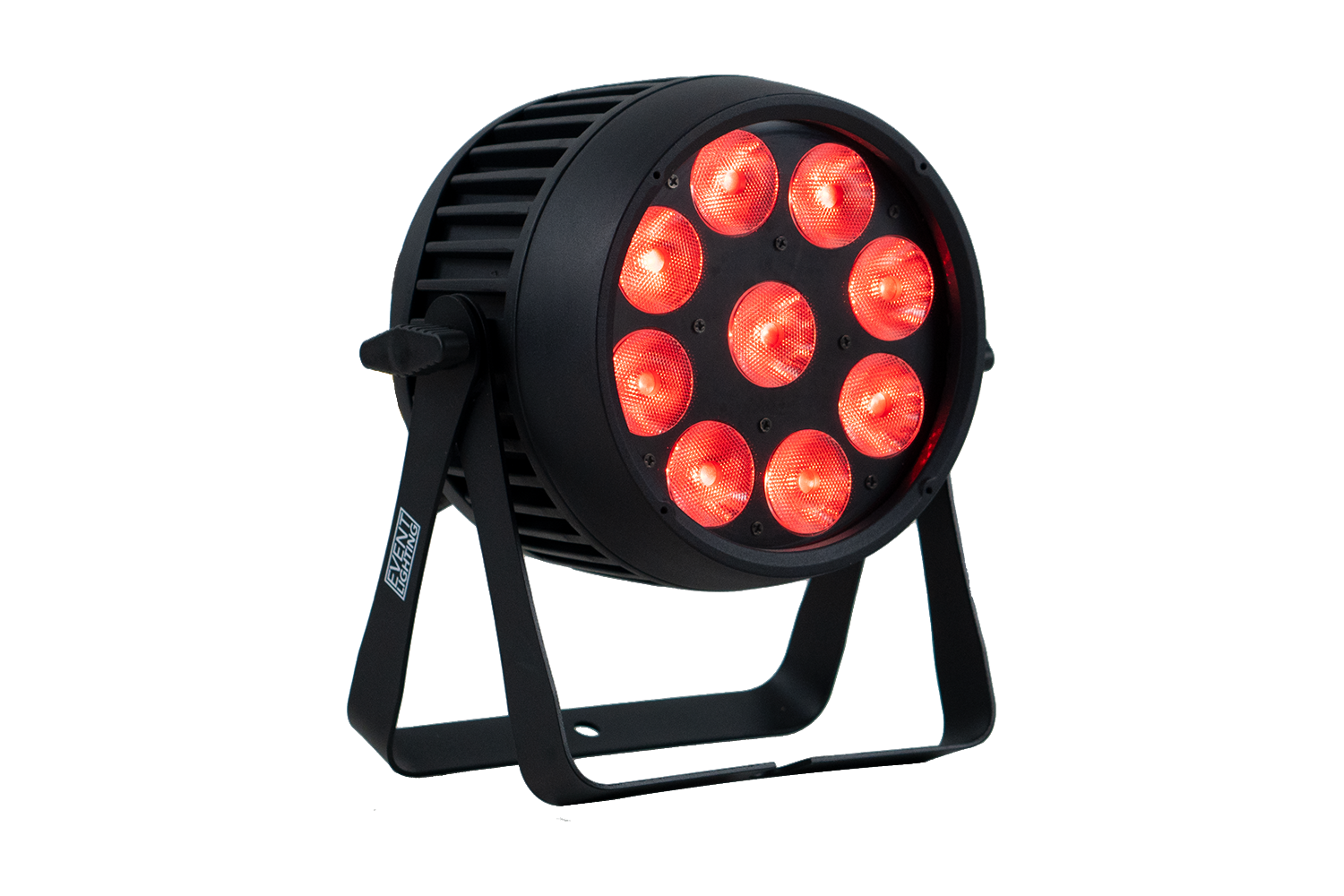

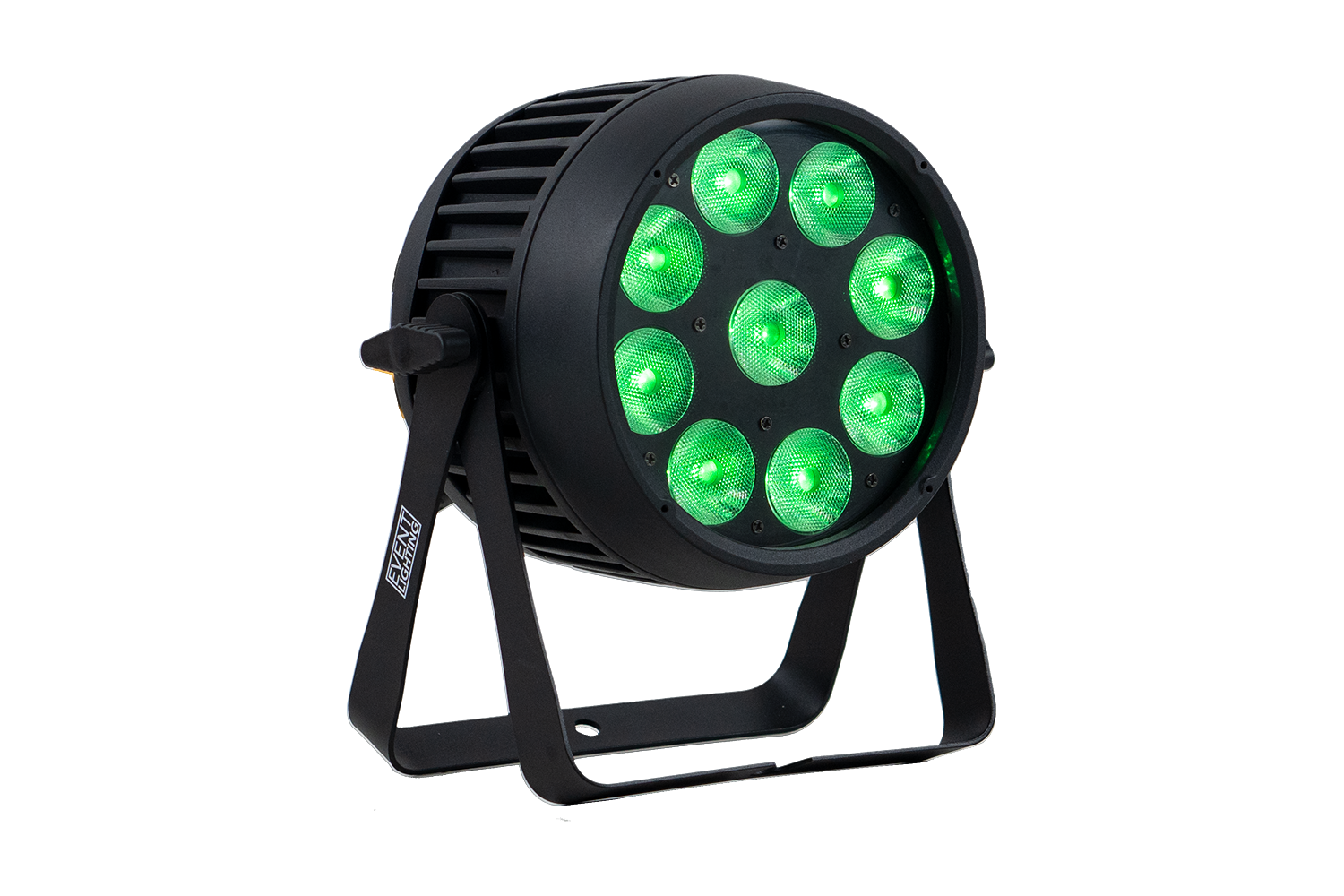

The PAR9X15O is a mid-sized outdoor rated fixture, featuring 9 x 15W RGBW LEDs in a die cast aluminium housing, a 25° beam angle, and the ability to install wireless DMX.

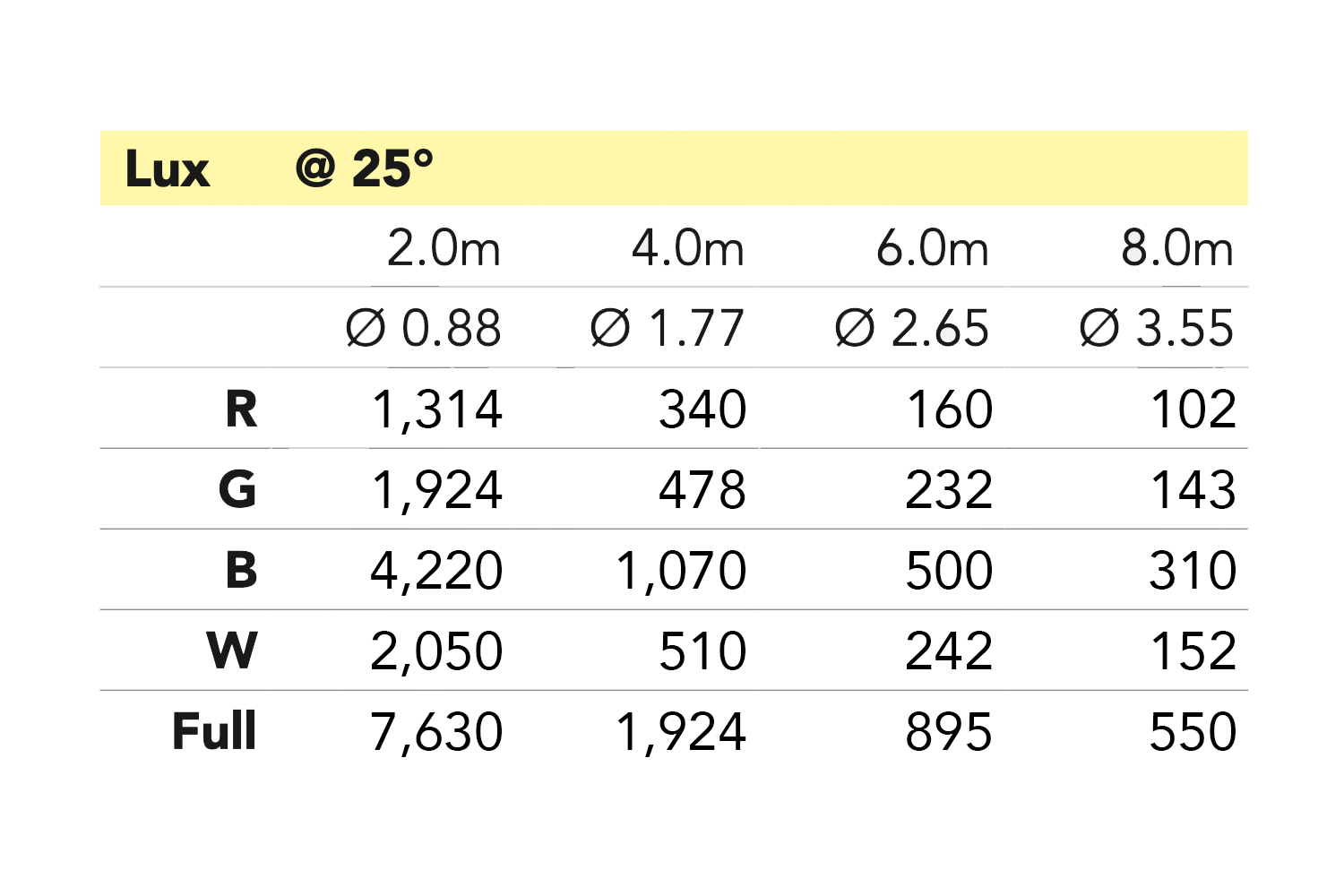

Photometrics

• Light Source: 9 x 15W RGBW LEDs
• Beam Angle: 25°

• Output: 22,500 lux on @ 2m RGBW full on
• PWM: 20,000Hz
• LED Life: 50,000 hours

Effects

• Dimming: 0~100%

• Strobe: 1~20Hz

Power

• Input Voltages: 100V~240V AC,50/60Hz, 150W
• Power Connection: True1 in/out

Control

• Operational Modes: DMX, manual, auto, sound active, master/slave (optional: Wireless DMX)
• Display: LCD full colour control panel
• Control Protocol: DMX512 (optional: Wireless DMX)

• DMX Channels: 4 / 6 / 8

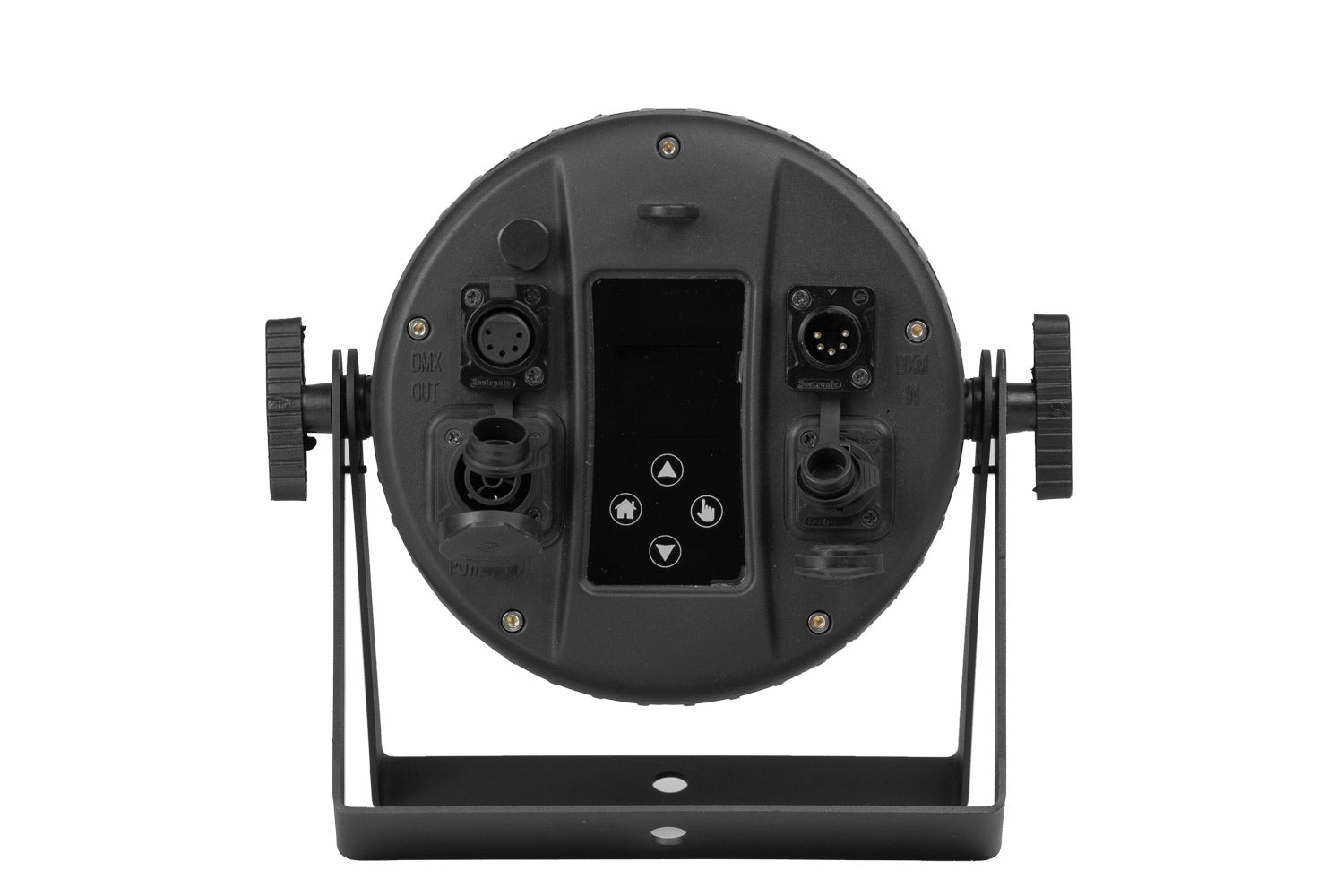

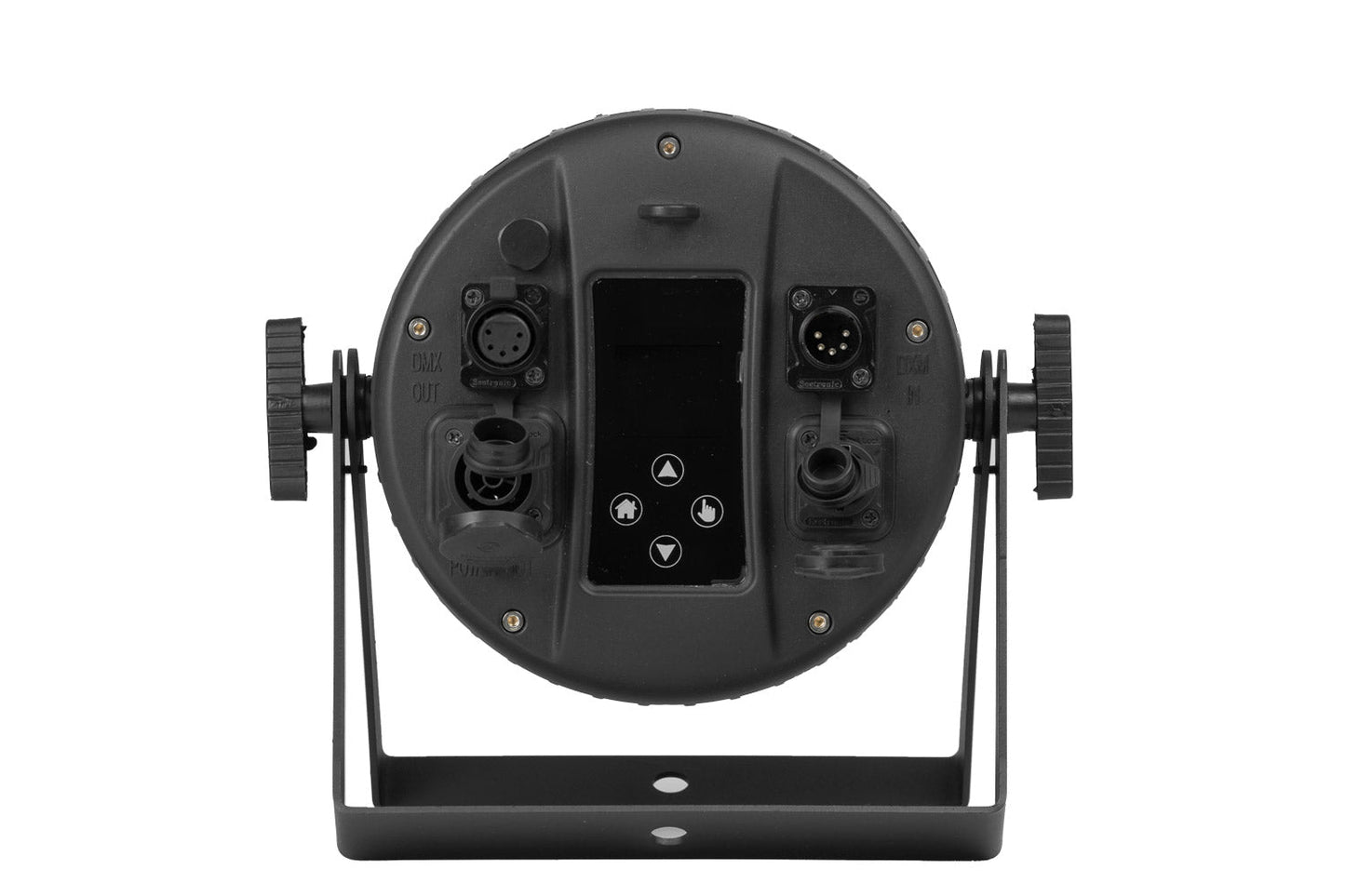

• DMX Interface: Seetronic® 5 Pin Outdoor DMX in/out

Housing

• Housing Materials: Die-cast aluminium, matte black finish
• IP Rating: IP65
• Cooling: Fanless Cooling

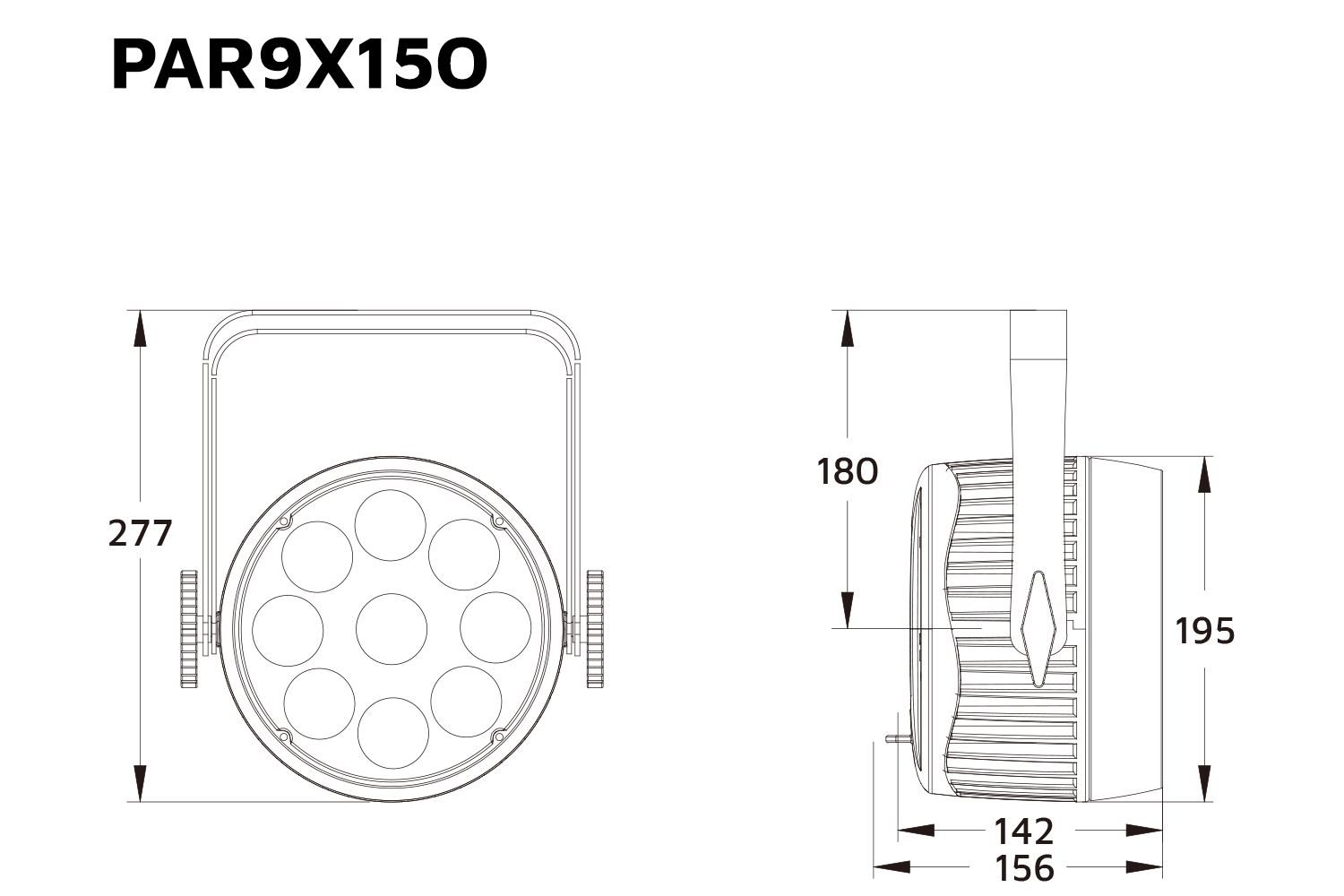

• Dimension: 195 x 234 x 144mm
• Net Weight: 6.5kg

MISC

• Accessories Included: 1M Seetronic® Outdoor Powercon,  1M Seetronic® Outdoor DMX Cable
• Road case: PAR9CASEWC Fits 6 Units.

IMPORTANT:  Only use the provided Outdoor DMX cable in the device’s DMX out port. The use of other cables will cause the cable to become stuck in the port, requiring the unit to be repaired.

Product Specification Sheet Download

Download the User Manual

Spare Parts

Warranty: 3 years
