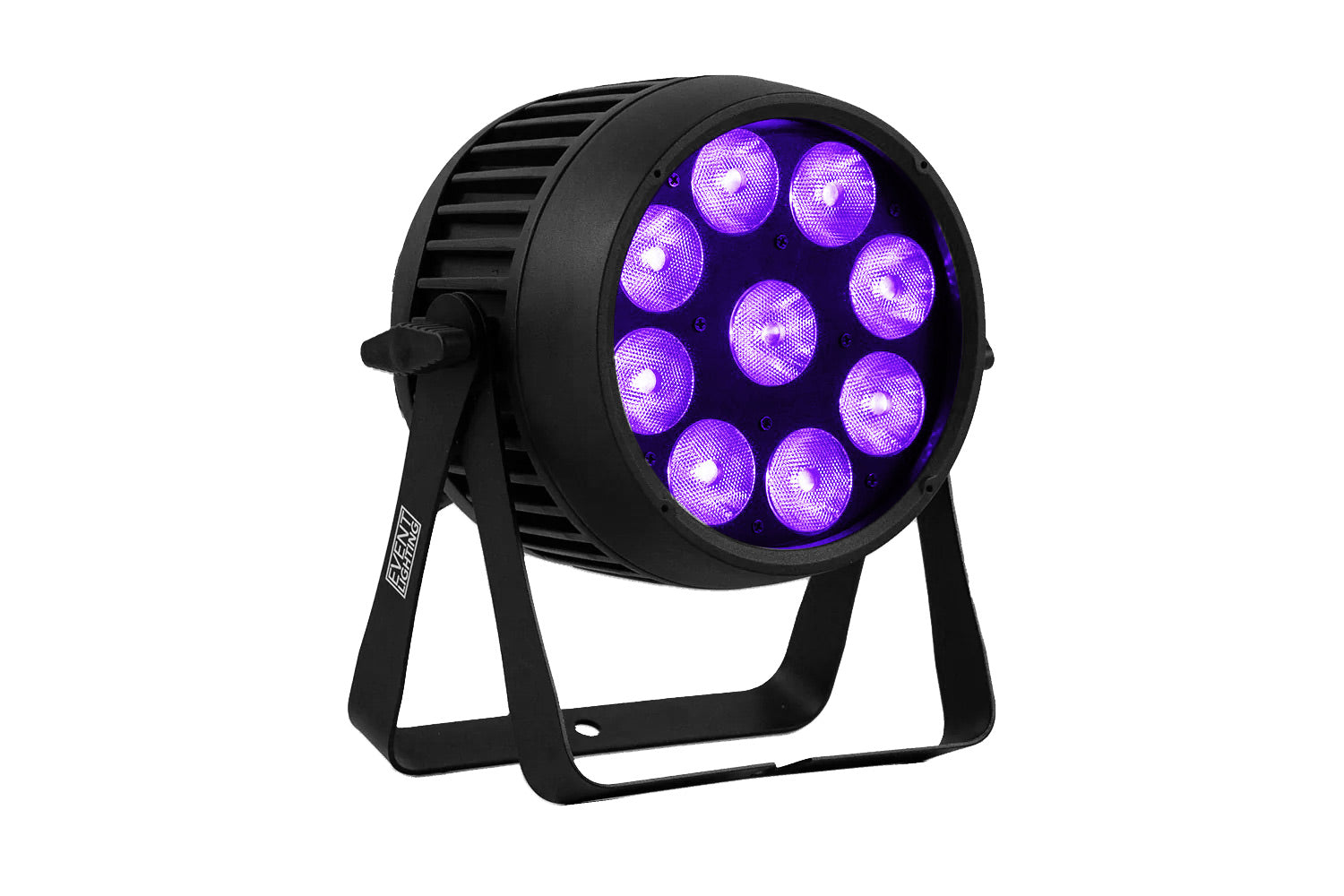

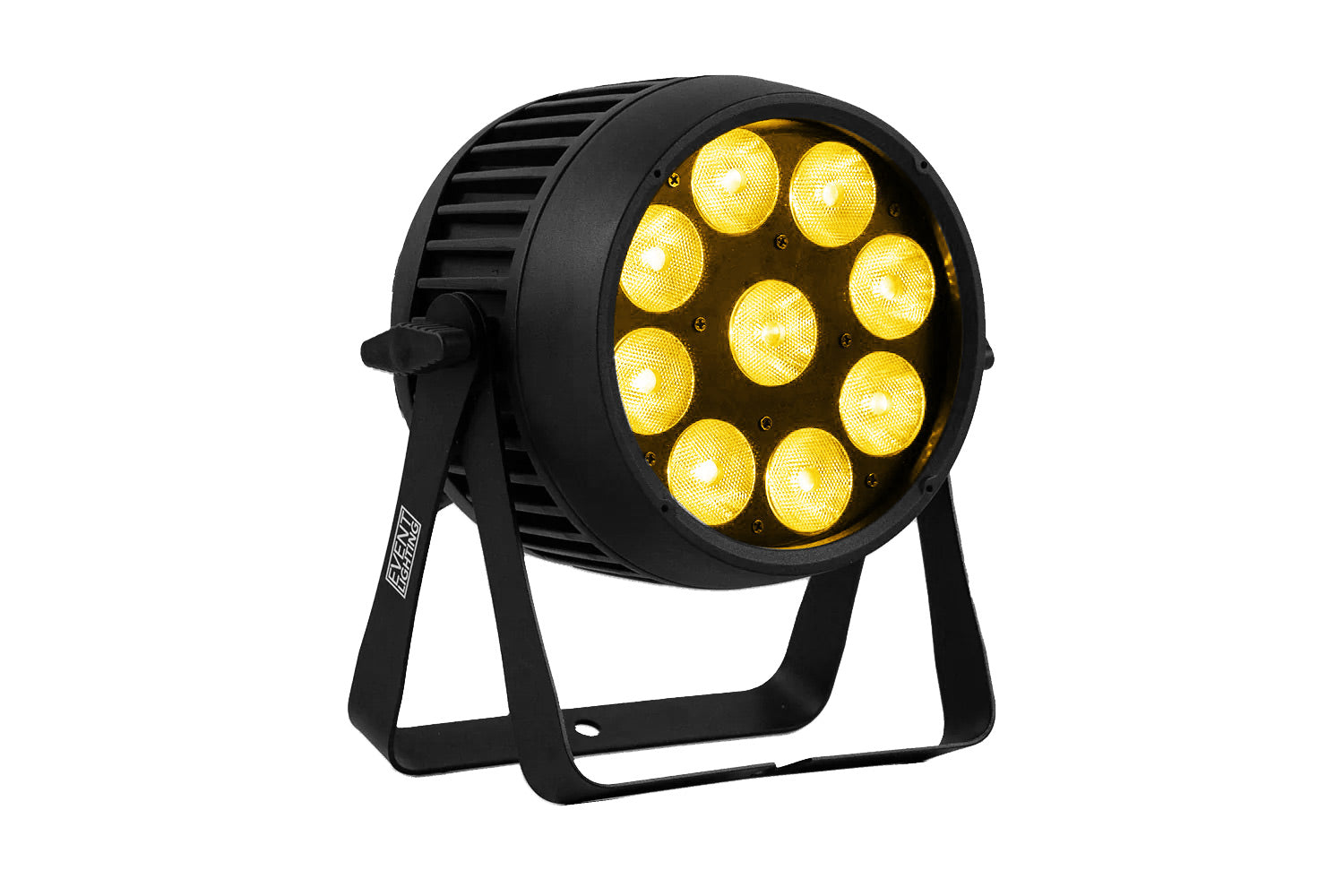

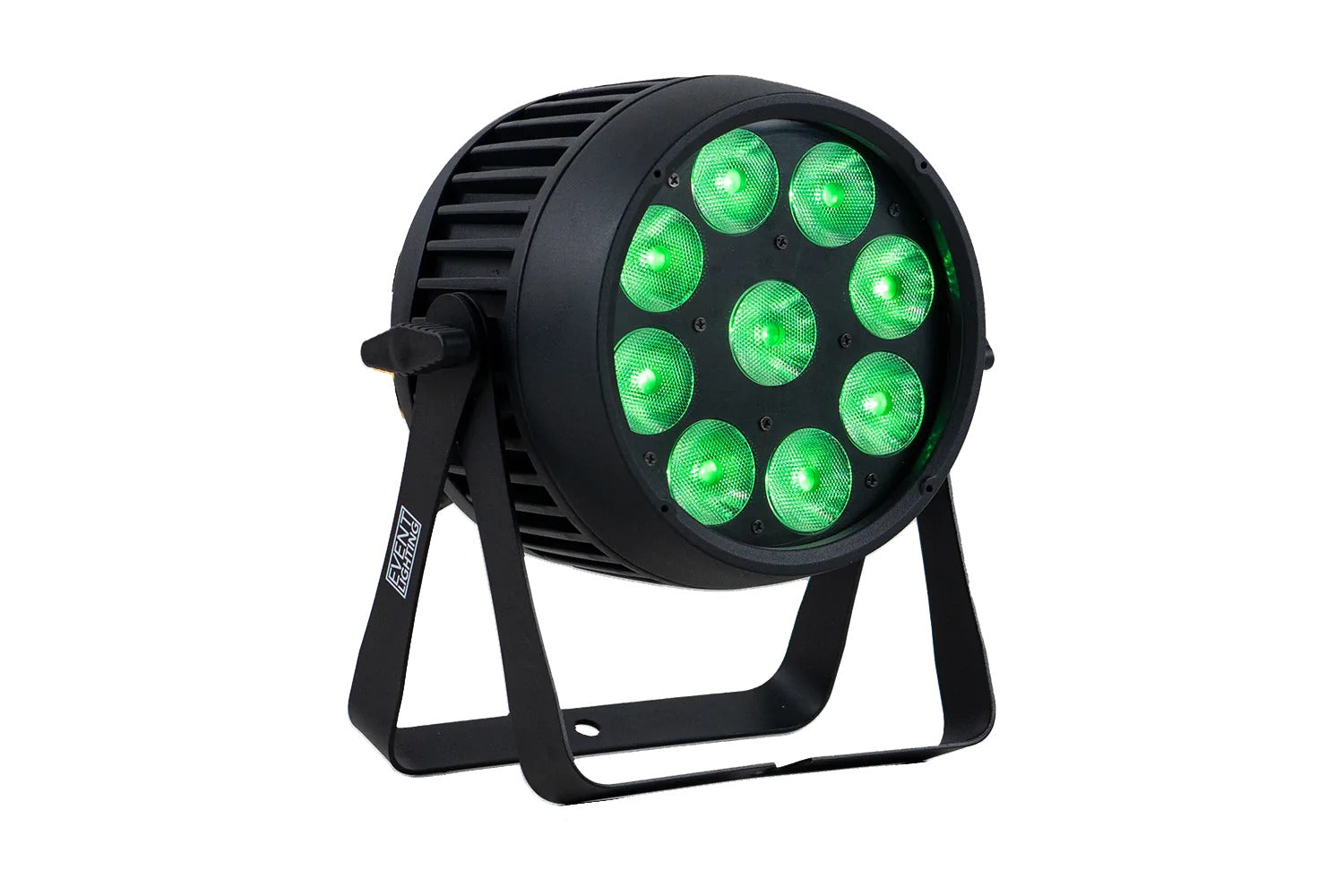

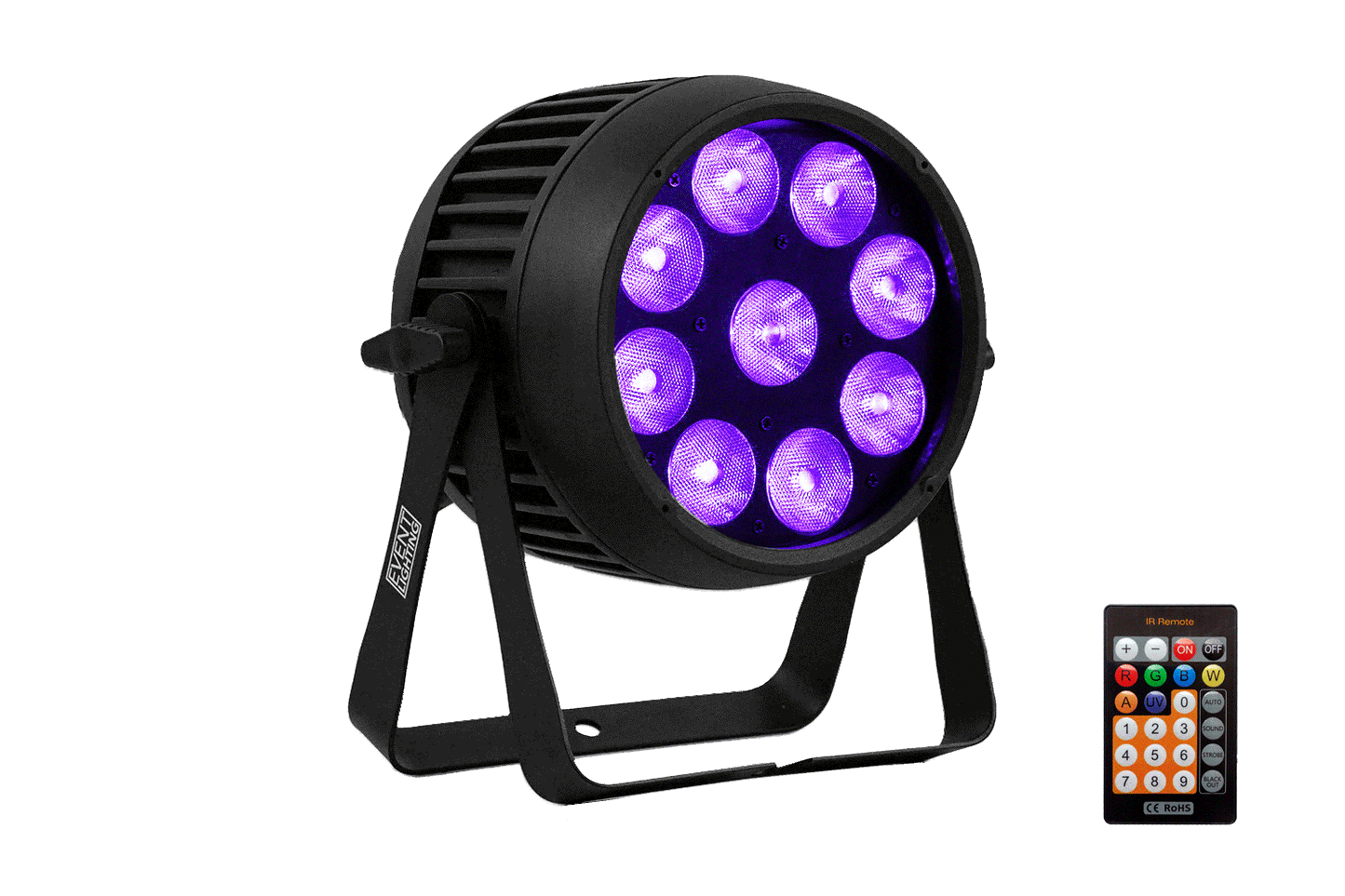

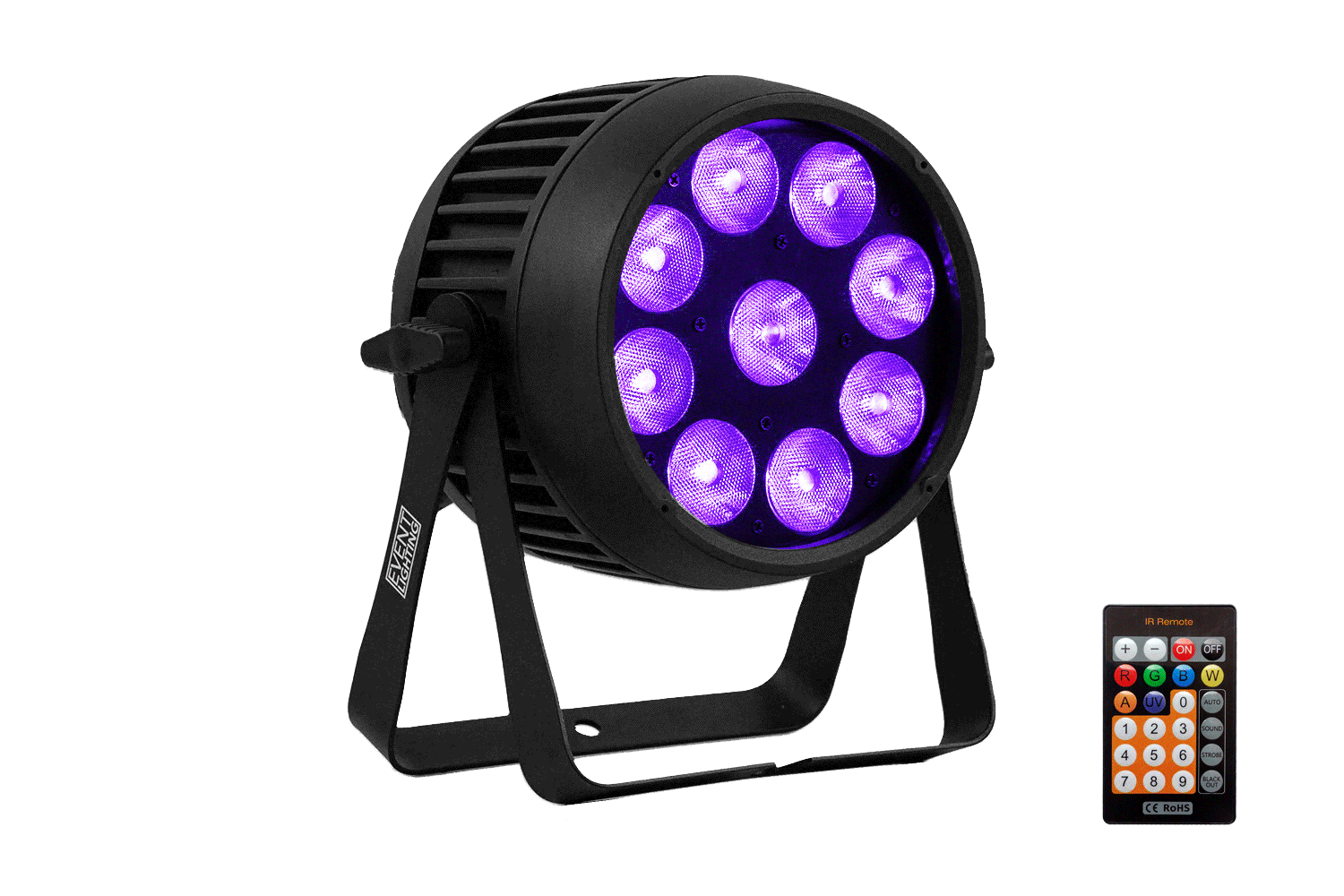

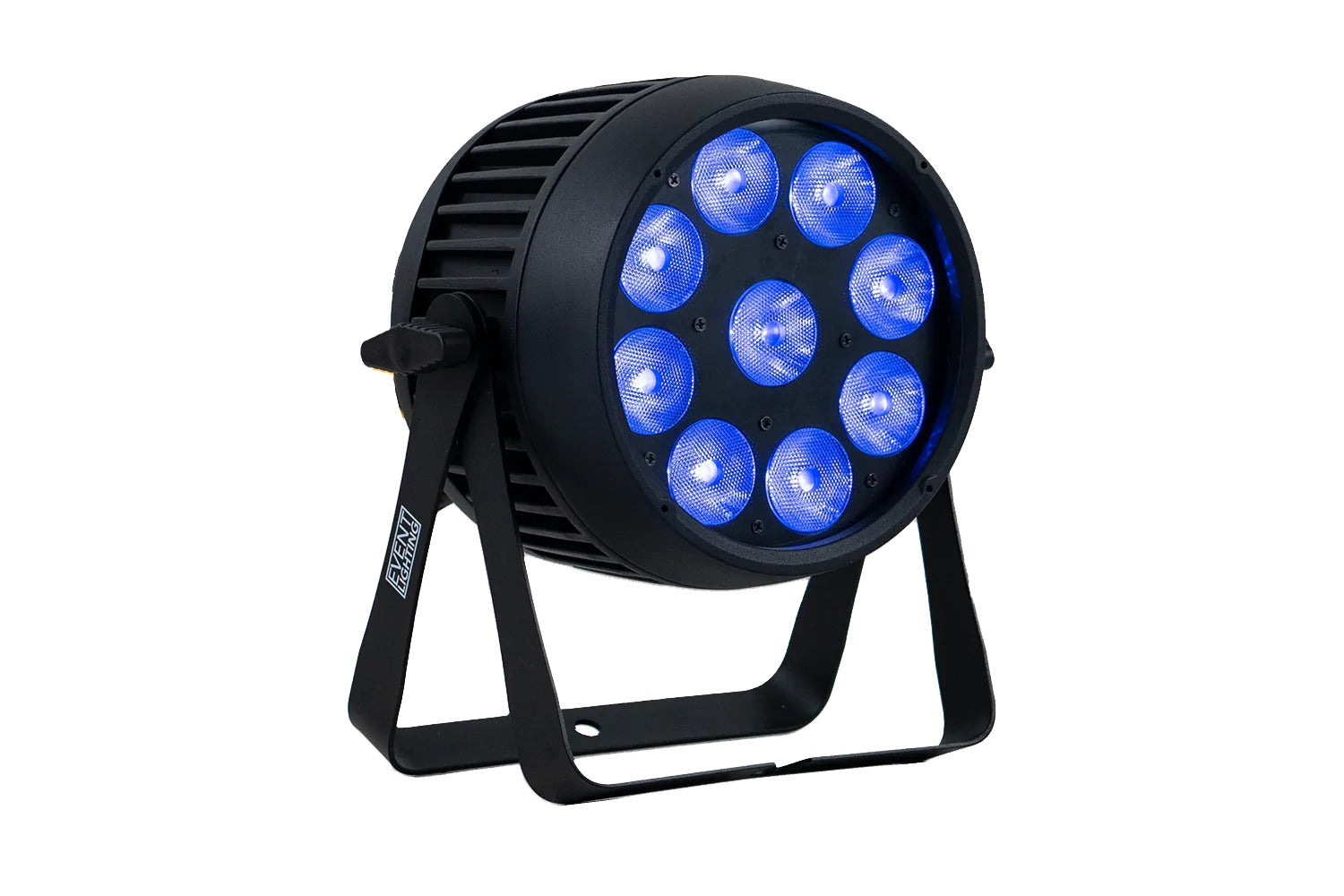

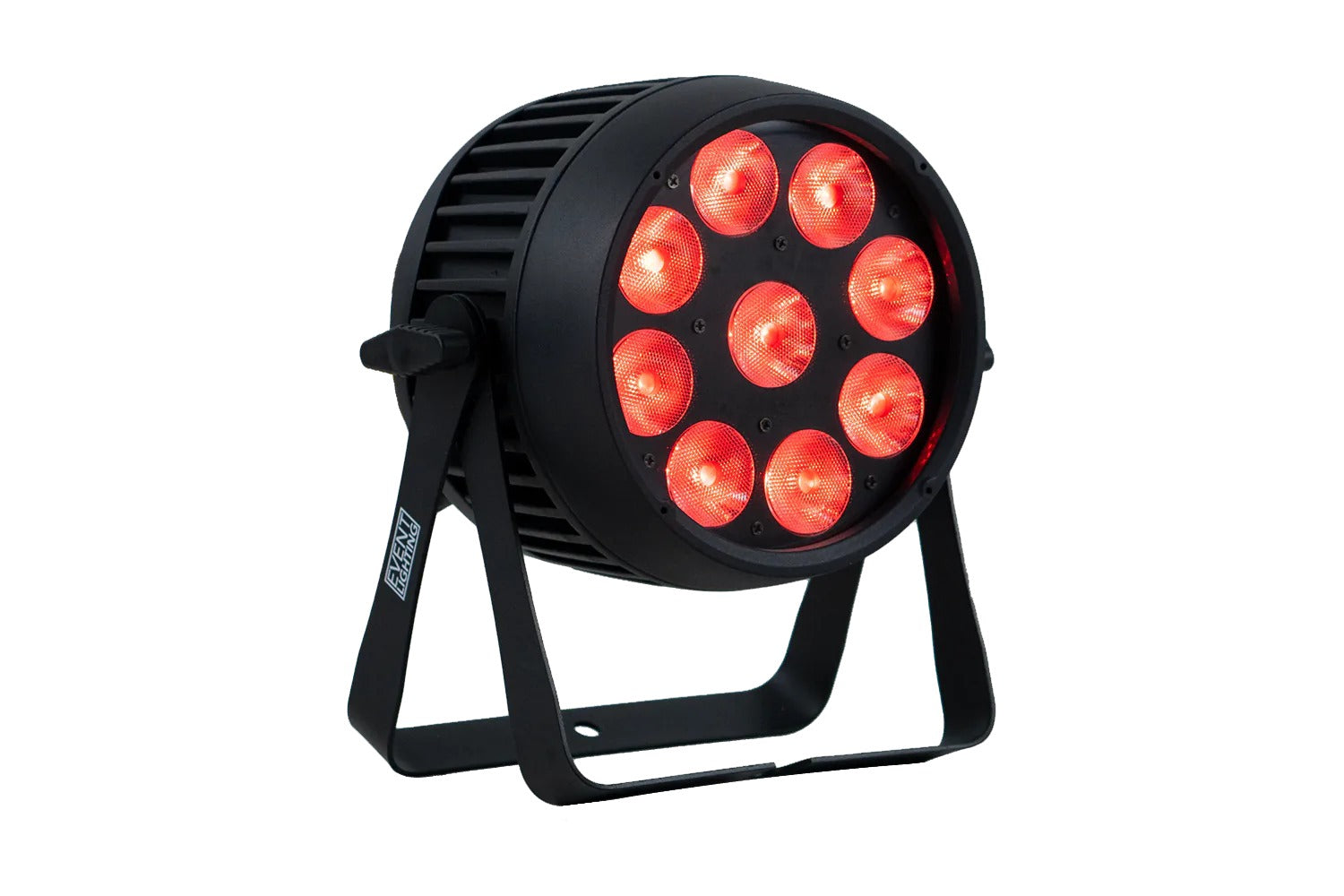

PAR9X12BH-IP - Outdoor Battery Pro Par with 9 x 12W RGBWAU LEDs

The PAR9X12BH-IP is a mid-sized outdoor rated battery fixture, featuring 9 x 12W RGBWAU LEDs in a die cast aluminium housing, a 25° beam angle, WDMX on-board and IR control.

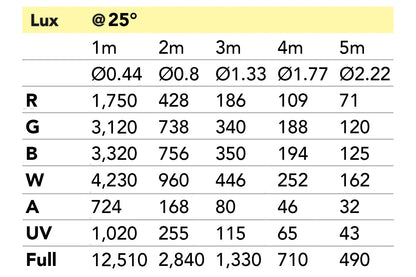

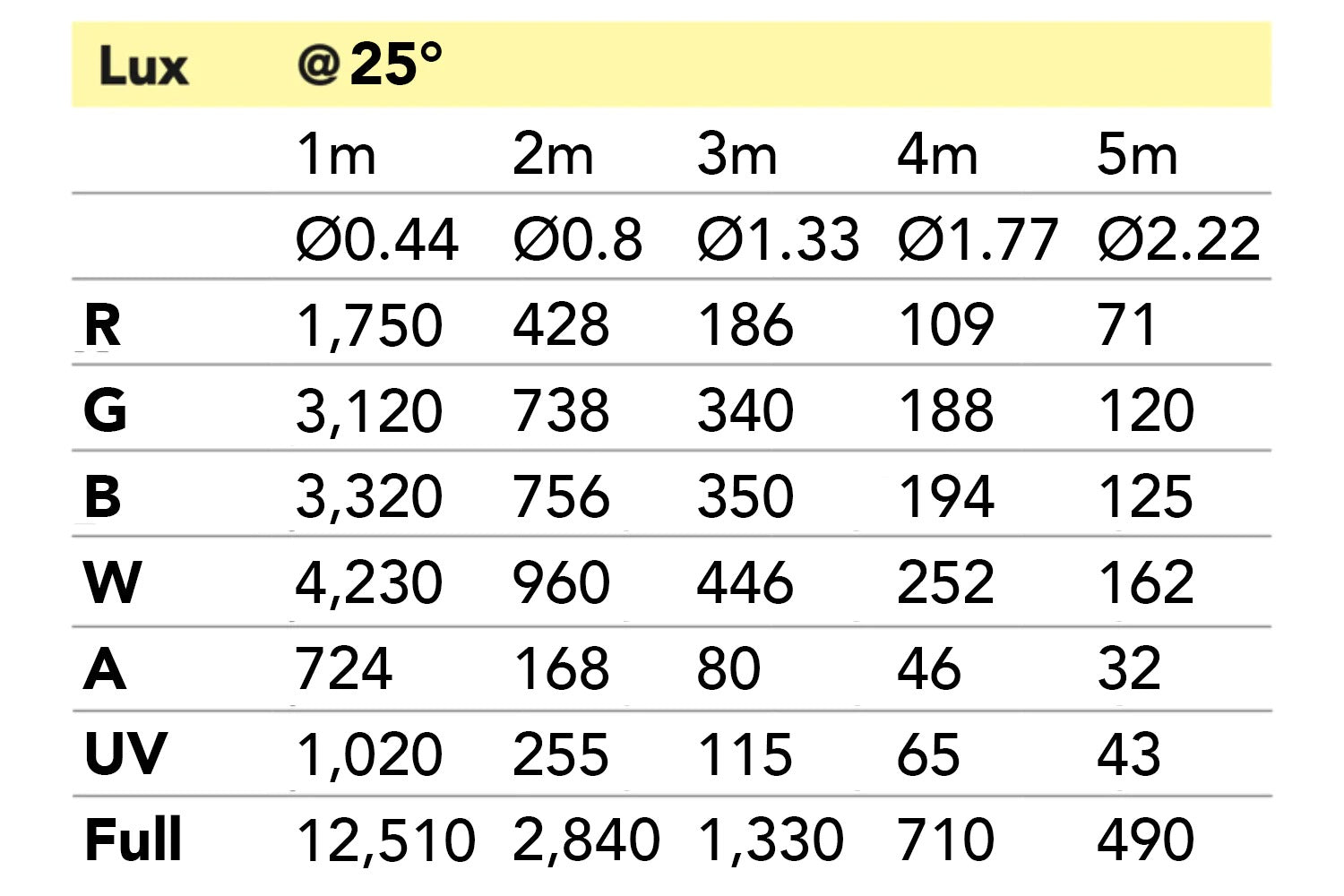

Photometrics

• Light Source: 9 x 12W RGBWAU LEDs
• Beam Angle: 25°
• LED Life: 50,000 hours

Effects

• Dimming: 0~100%

Power

• Input Voltages: 100V~240V AC, 50/60Hz, 72W
• Power Connection: Seetronic® Outdoor True1 in/out
• Battery operating time:
  - 16 hours (one colour mode)
  - 8 hours (colour fading mode)

Control

• Operational Modes: DMX, manual, auto, master/slave, Wireless DMX, IR Remote Control

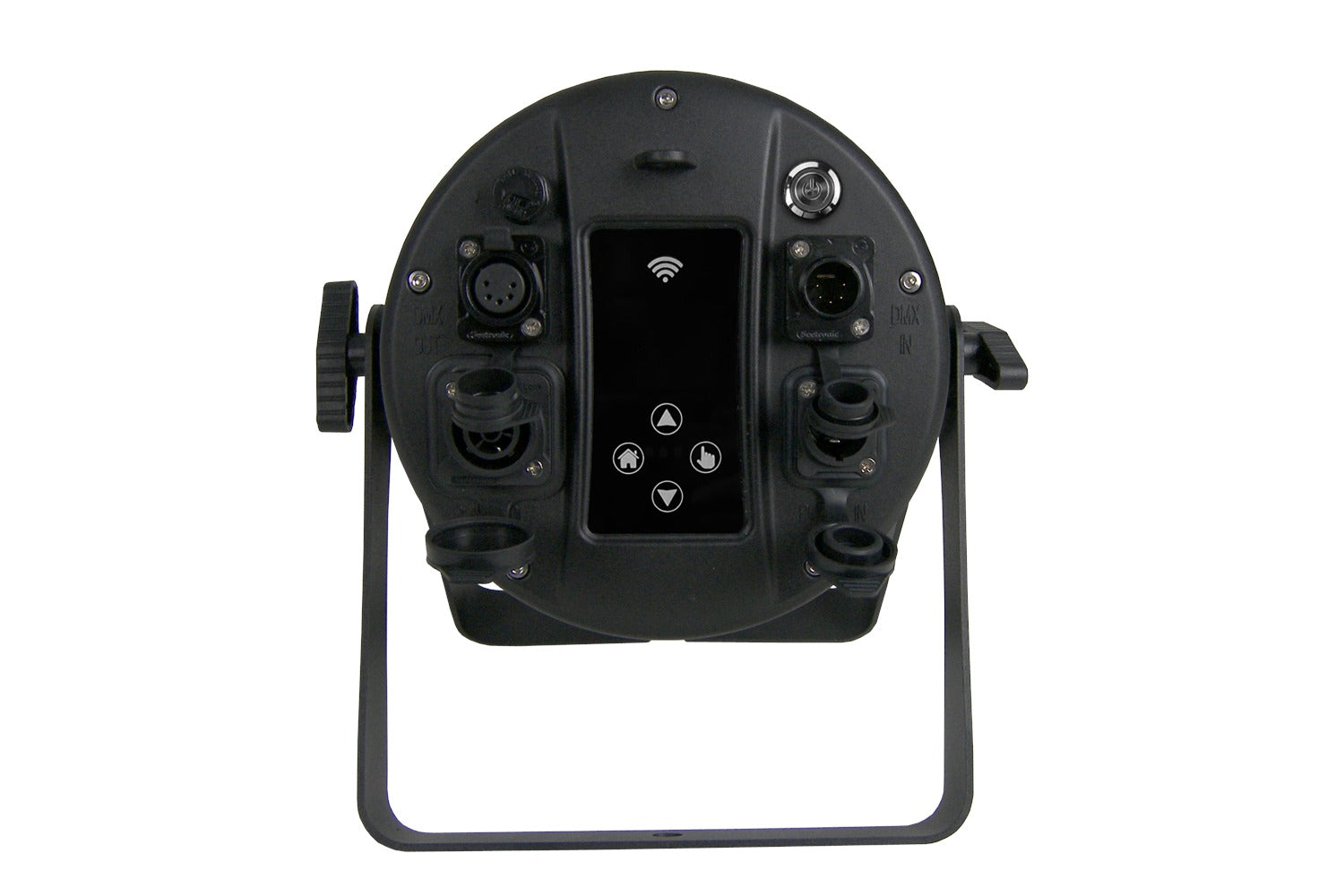

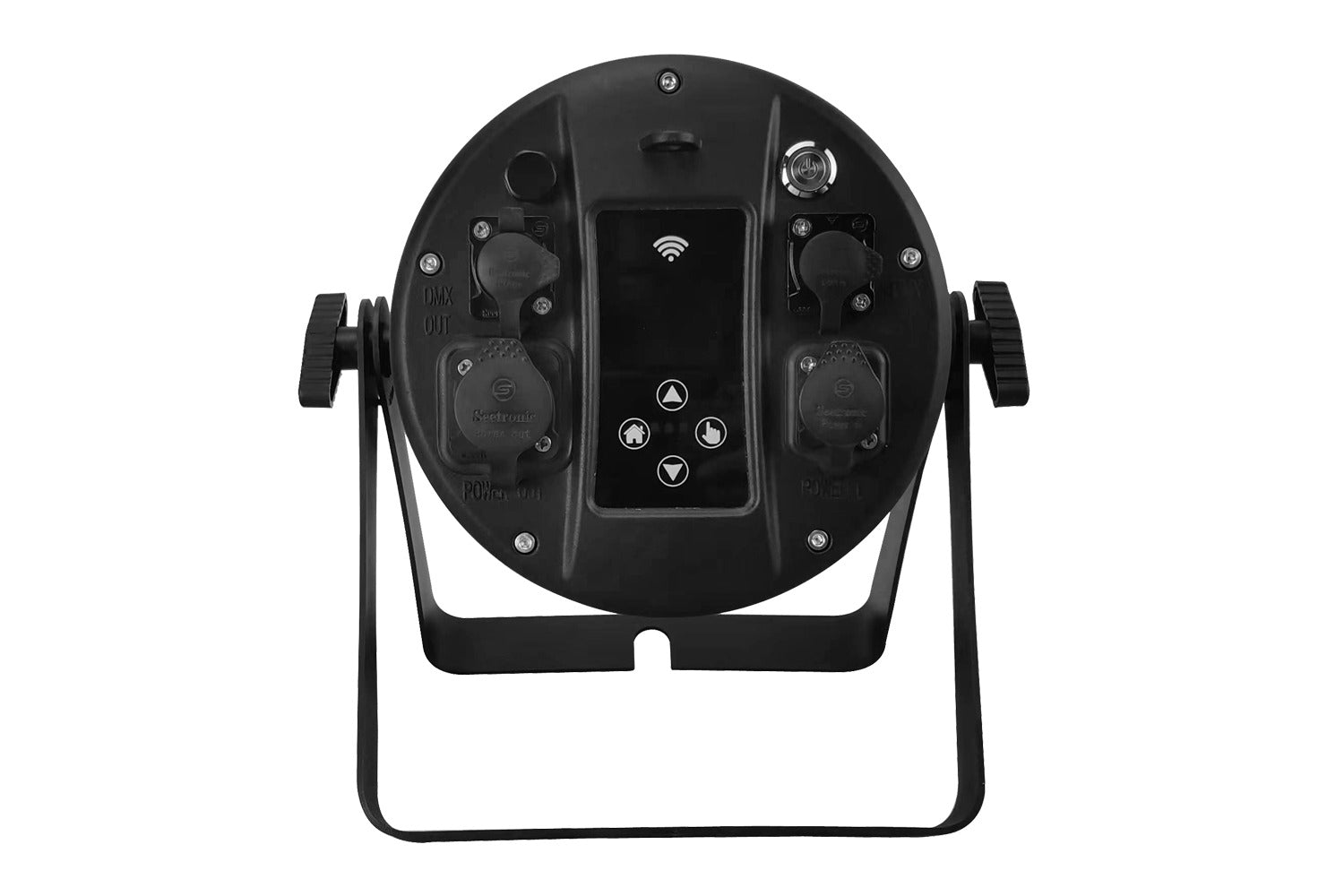

• Display: OLED touch display with glass buttons
• Control Protocol: DMX512, Wireless DMX (W-DMX)

• DMX Channels: 6 / 10
• DMX Interface: Seetronic® 5 Pin Outdoor DMX in/out

Housing

• Housing Materials: Die-cast aluminium, matte black finish
• IP Rating: IP65
• Cooling: Fanless Cooling

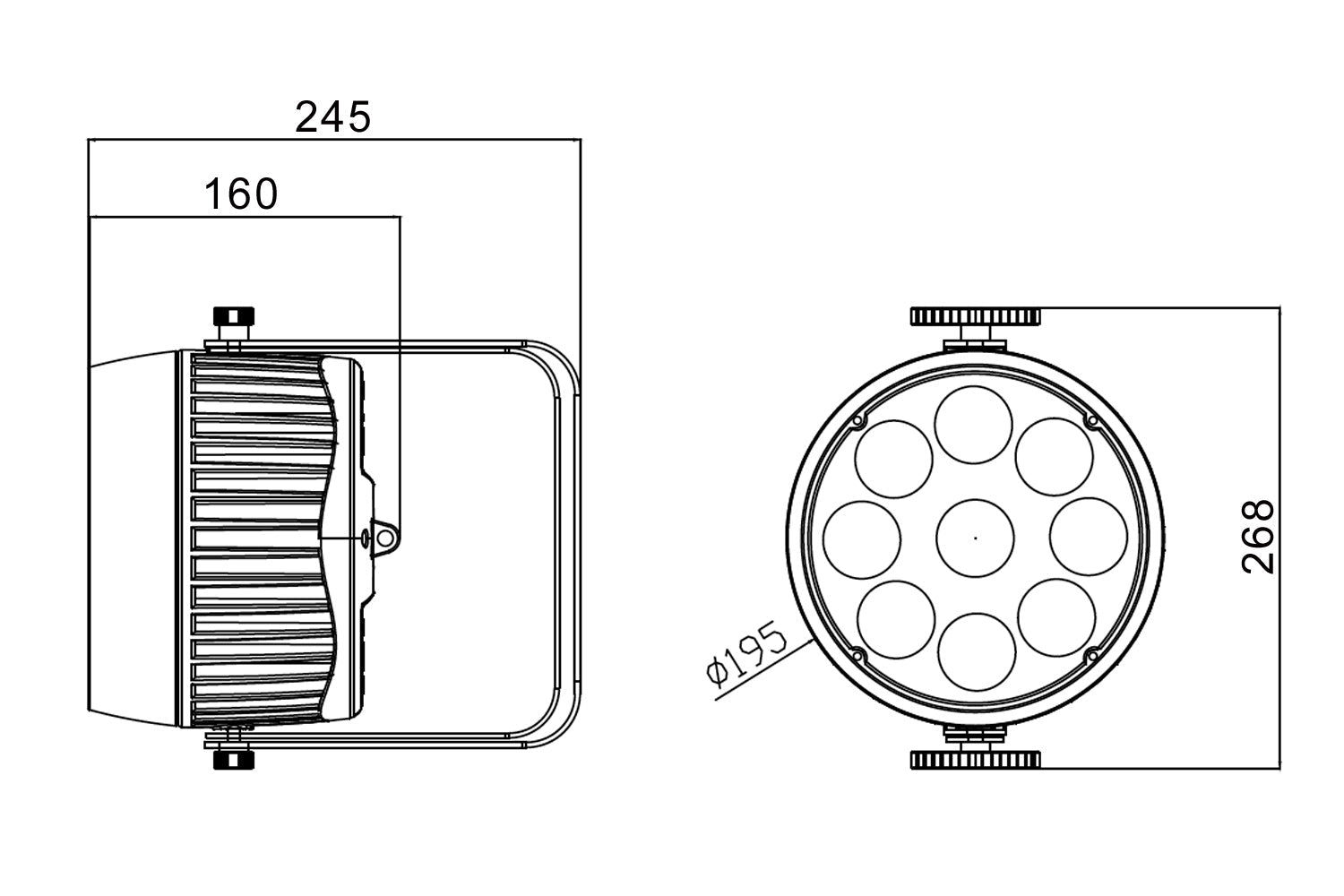

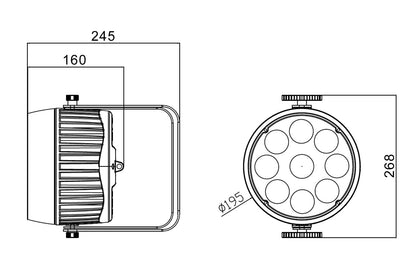

• Dimensions: 268 x 195 x 245mm
• Weight: 4.75kg

MISC

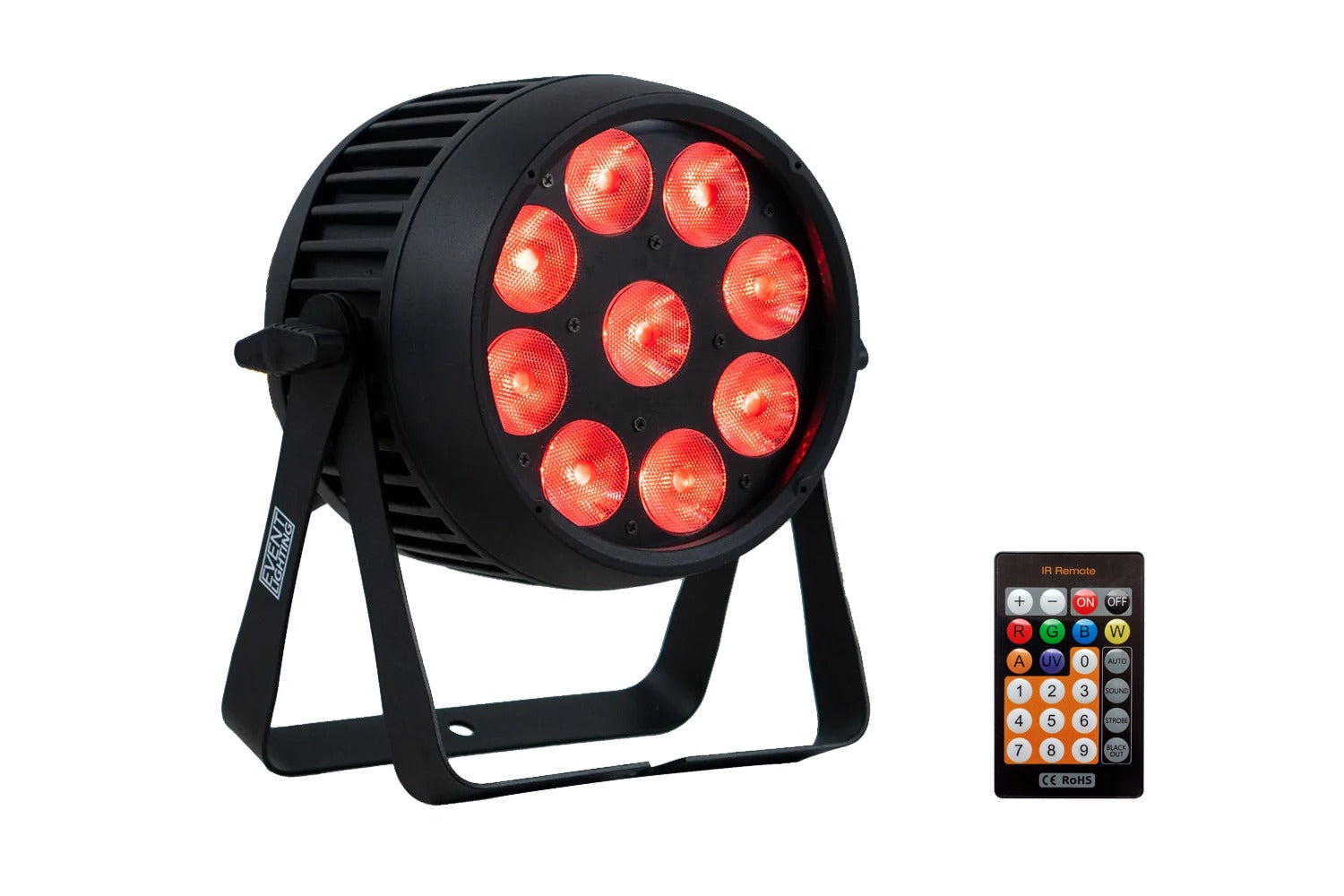

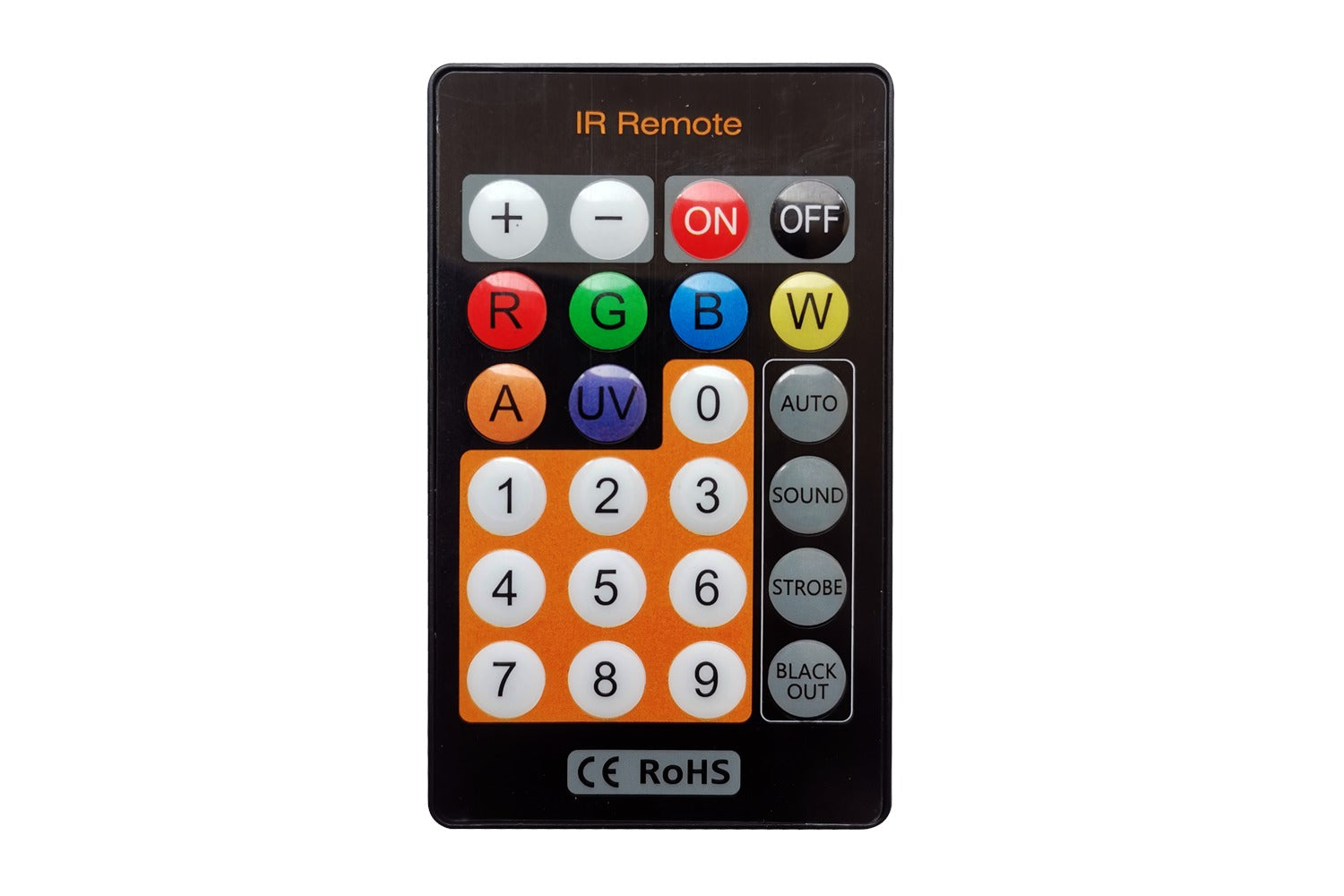

• Accessories Included: 1M Seetronic® Outdoor Powercon, 1M Seetronic® Outdoor DMX Cable, IR Remote Controller
• Road case: PAR9X12OBC - charging case, fits 6 Units.

IMPORTANT:  Only use the provided Outdoor DMX cable in the device’s DMX out port. The use of other cables will cause the cable to become stuck in the port, requiring the unit to be repaired.

Generic Battery Care

Download DMX Chart

Download Product Datasheet

Download User Manual

Warranty: 3 years
