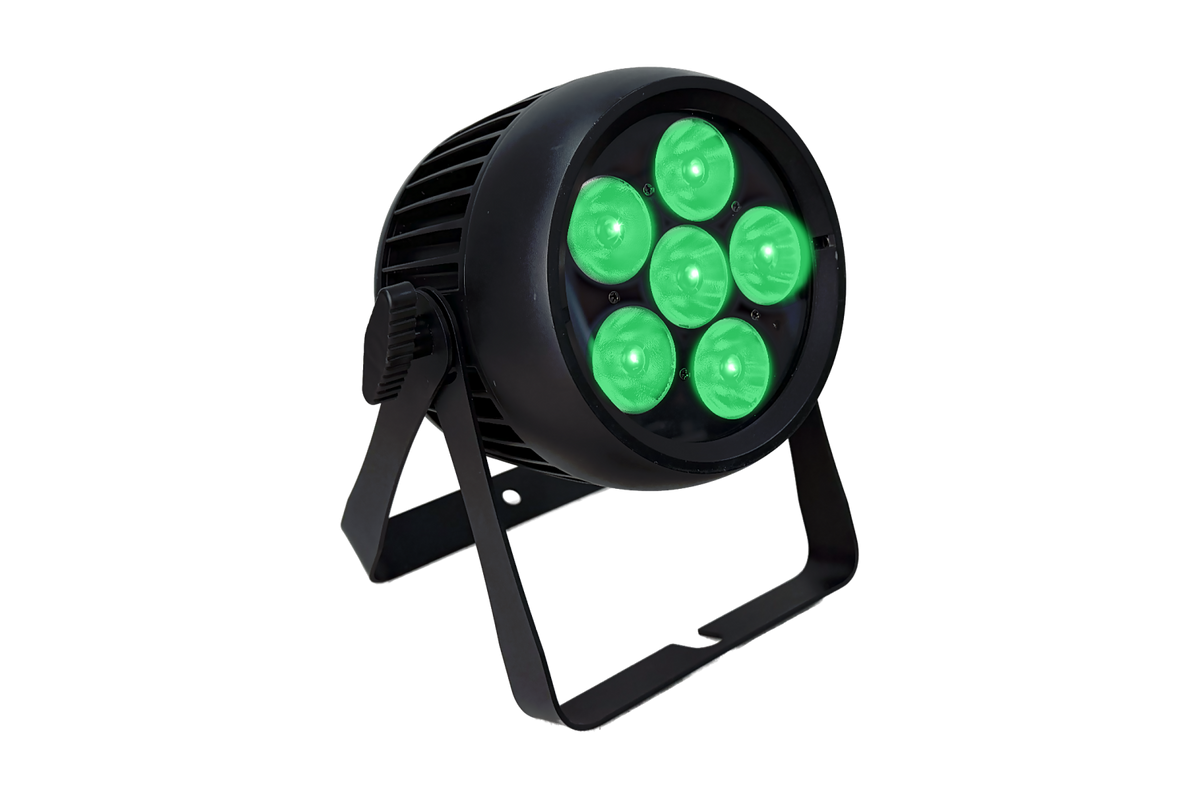

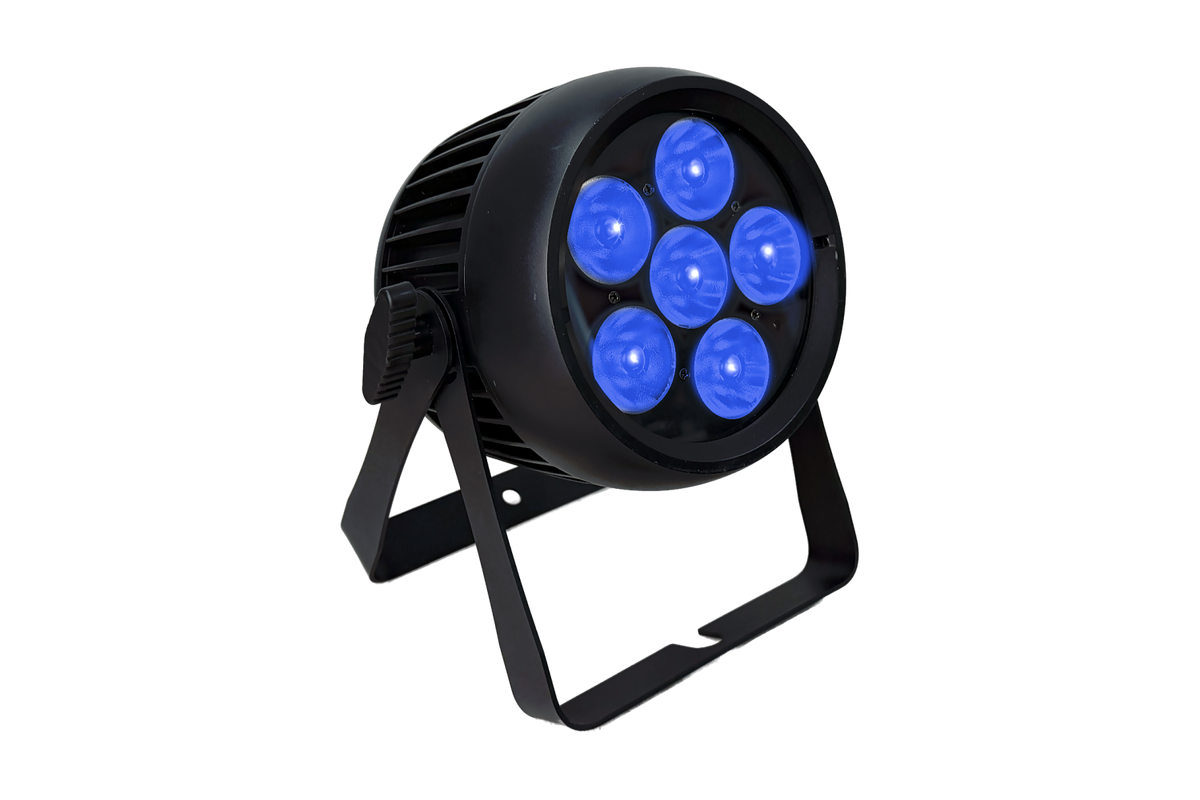

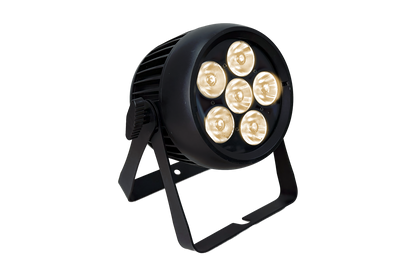

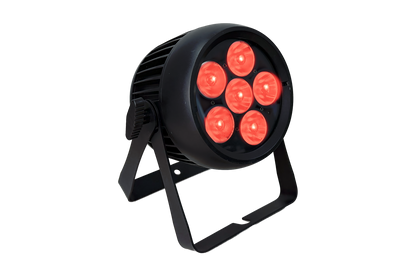

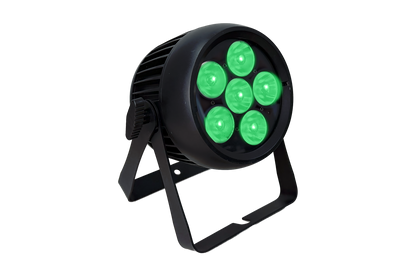

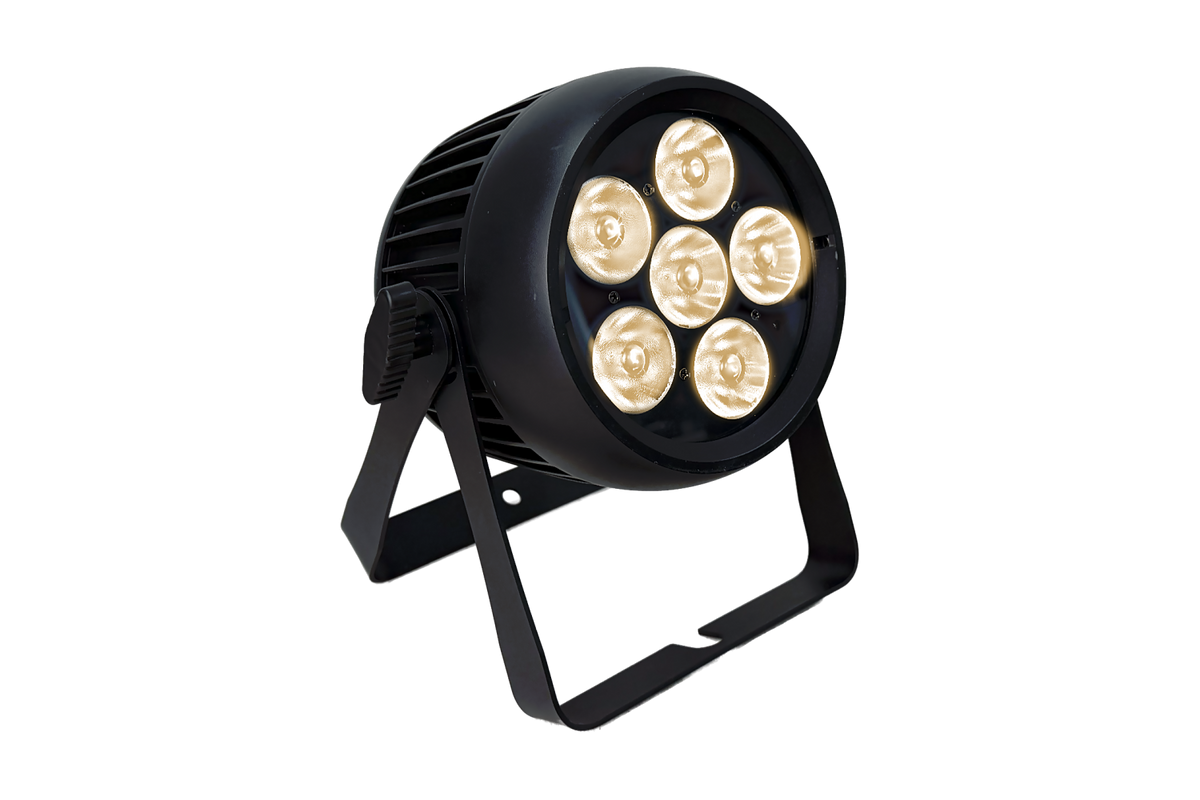

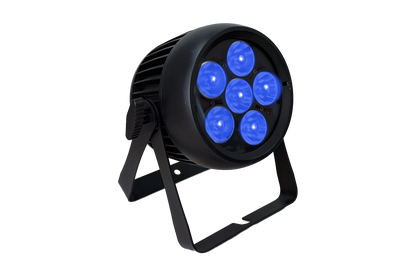

The PAR6X10BQW-IP is a mid-sized outdoor rated battery fixture, featuring 6 x 10W RGB+WW LEDs in a die cast aluminium housing, a 15° beam angle, WDMX on-board and included 40° Frost Filter.
Photometrics
Light Source: 6 x 10W RGB+WW LEDs
Beam Angle: 15°
LED Life: 50,000 hours
Effects
Dimming: 0~100%
Power
Input Voltages: 100V~240V AC, 50/60Hz, 72W

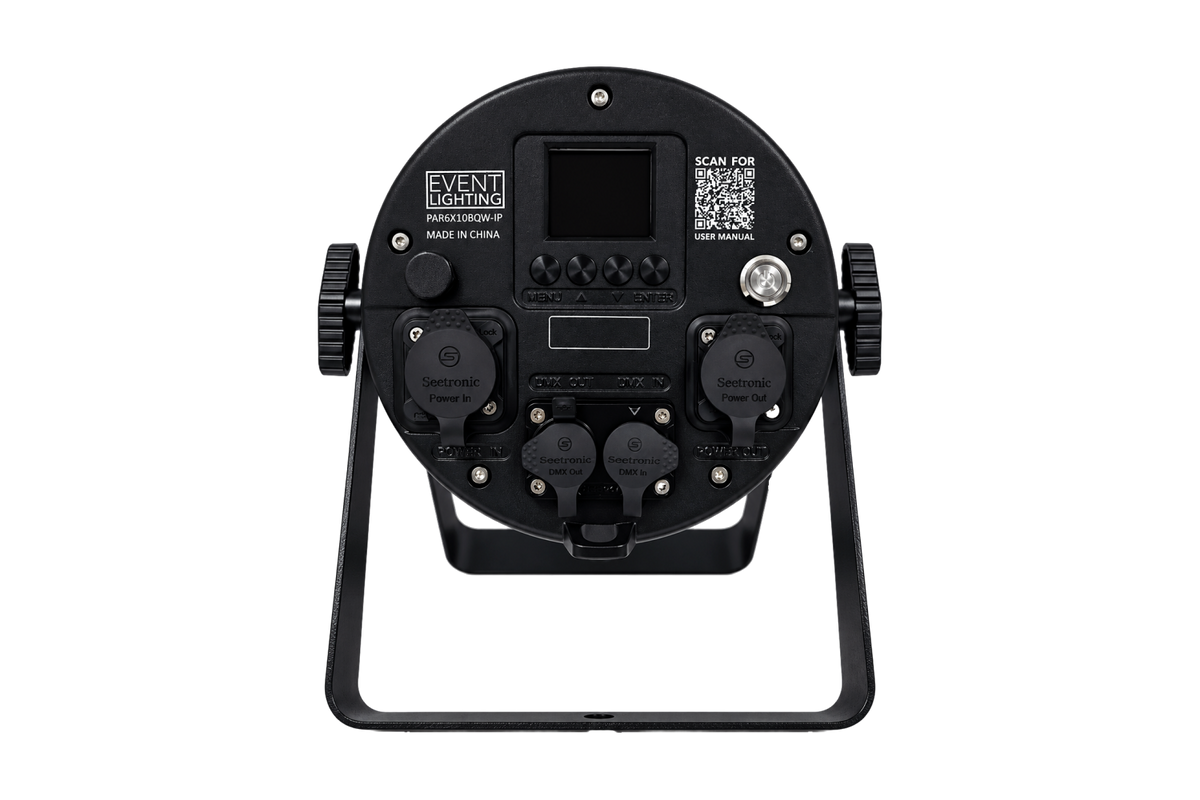

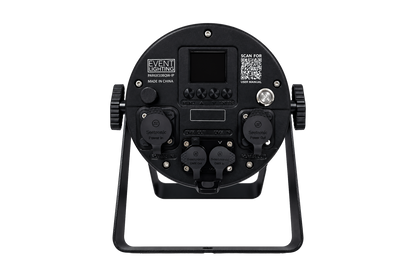

Power Connection: Seetronic® Outdoor True1 in/out
Battery operating time:
High Battery Mode
Normal Battery Mode
ECO Battery Mode
One Colour (Green)
18 Hours
20.5 Hours
32 Hours
Two Colours (Green + Blue)
10.5 Hours
13 Hours
18 Hours
Full Colours
6 Hours
7.5 Hours
9.5 Hours
Colour Fade
18 Hours
20 Hours
29 Hours
Control
Operational Modes: DMX, manual, auto, master/slave, Wireless DMX, IR Remote Control
Housing Materials: Die-cast aluminium, matte black finish
IP Rating: IP65
Cooling: Fanless Cooling
Dimensions: 238 x 195 x 254mm / 9.4" x 7.7" x 10"
Weight: 3.9kg / 8.6 lbs
Accessories
1M Seetronic® Outdoor True1 Cable (Included)
1M Seetronic® Outdoor DMX Cable (Included)
40° Frost Filter (Included)
Omega Bracket (Included)
IMPORTANT: Only use the provided Outdoor DMX cable in the device’s DMX out port. The use of other cables will cause the cable to become stuck in the port, requiring the unit to be repaired.
