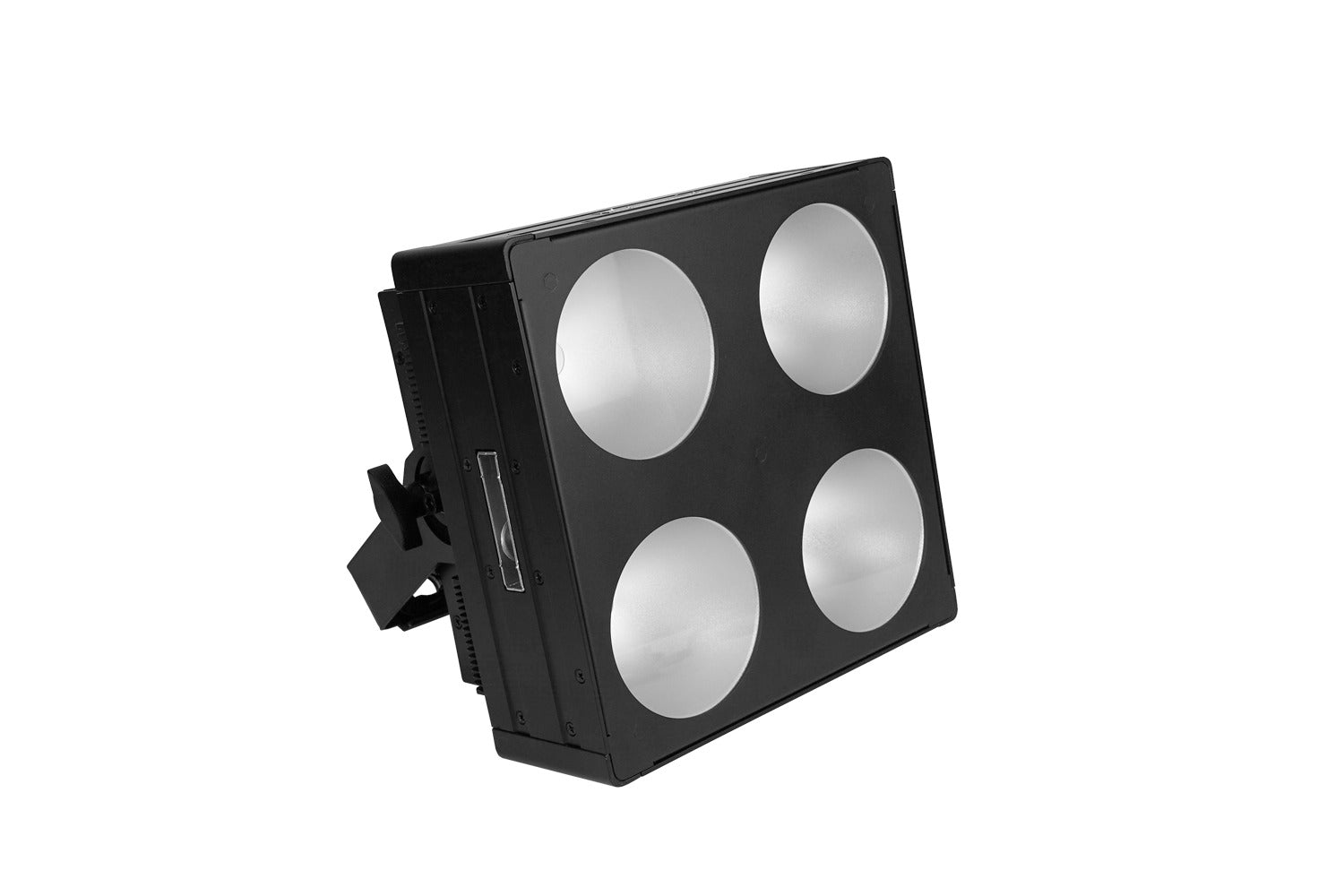

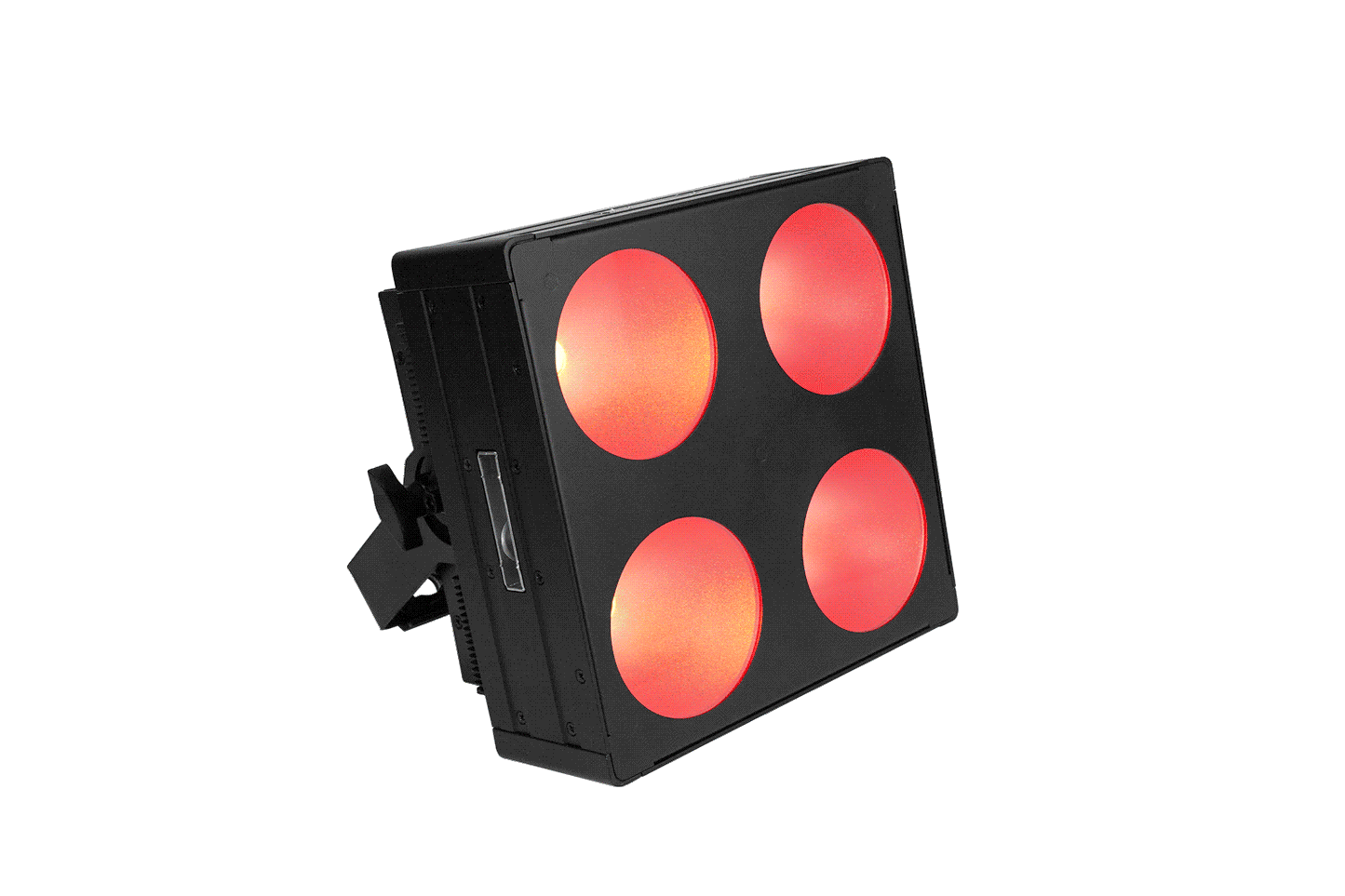

PANX22 - 2 x 2 40W COB RGB+CW+WW Pixel Control Panel

PANX22 - 2 x 2 40W COB RGB+CW+WW Pixel Control Panel

$599.00
$599.00
Sale Contact for Availability

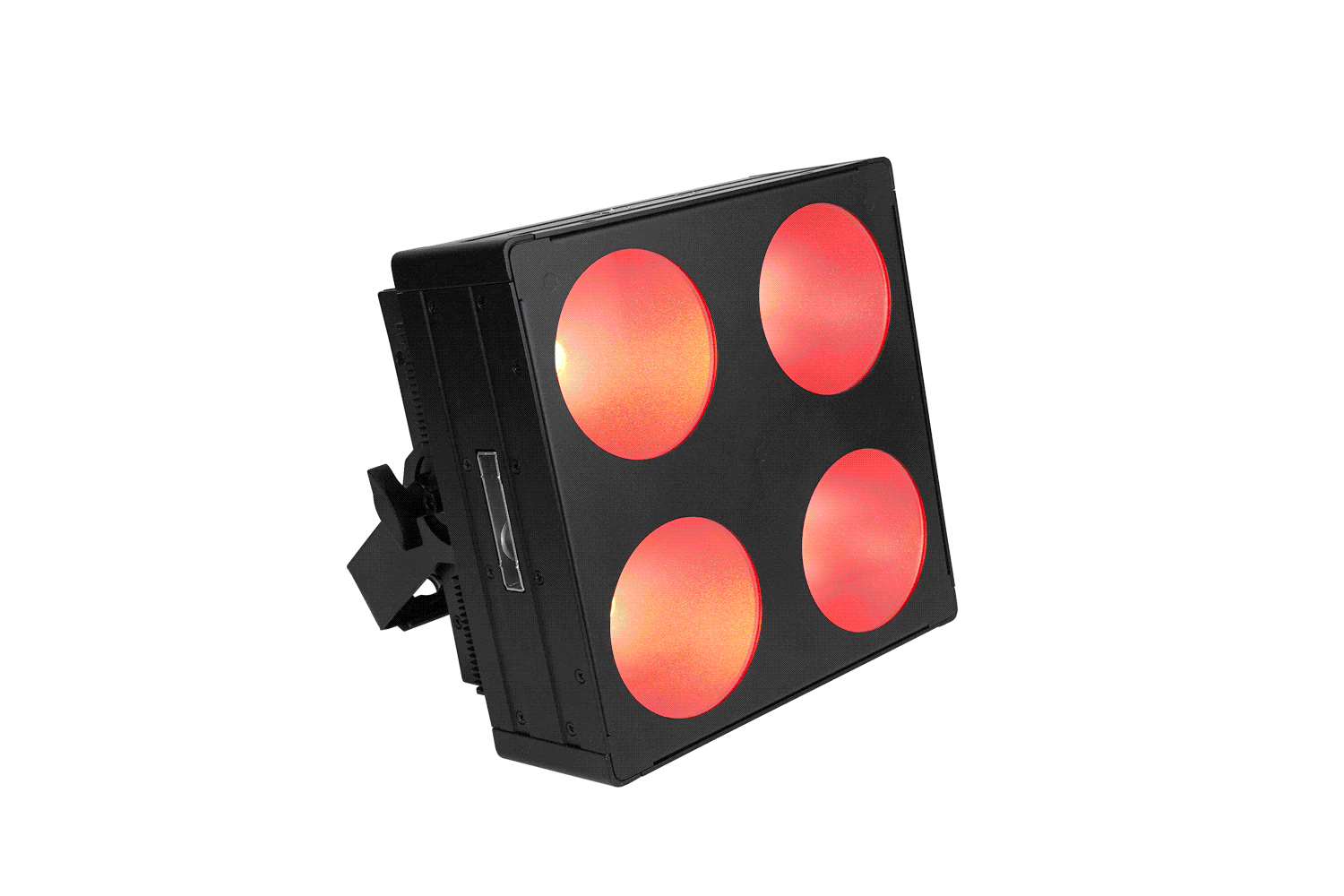

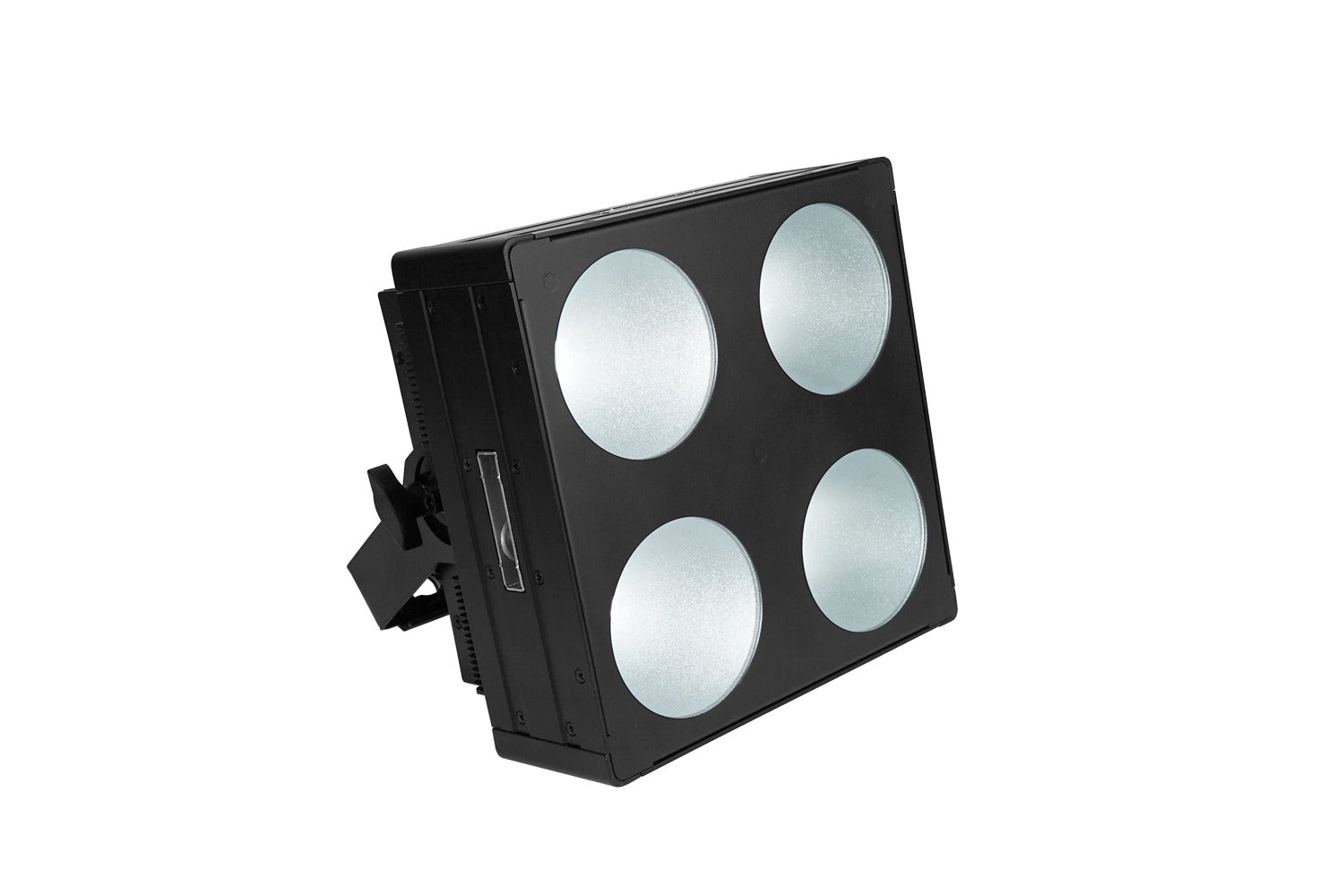

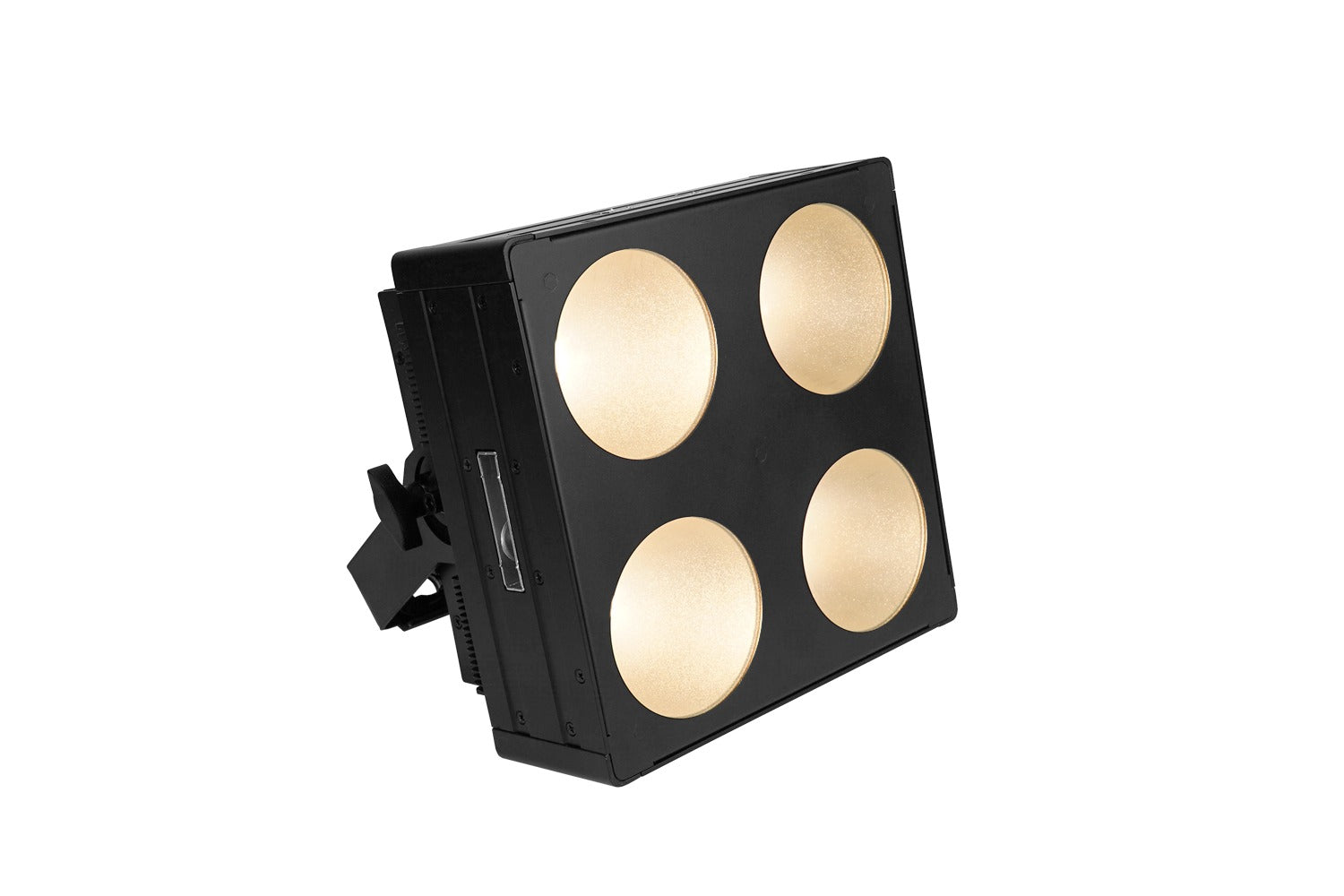

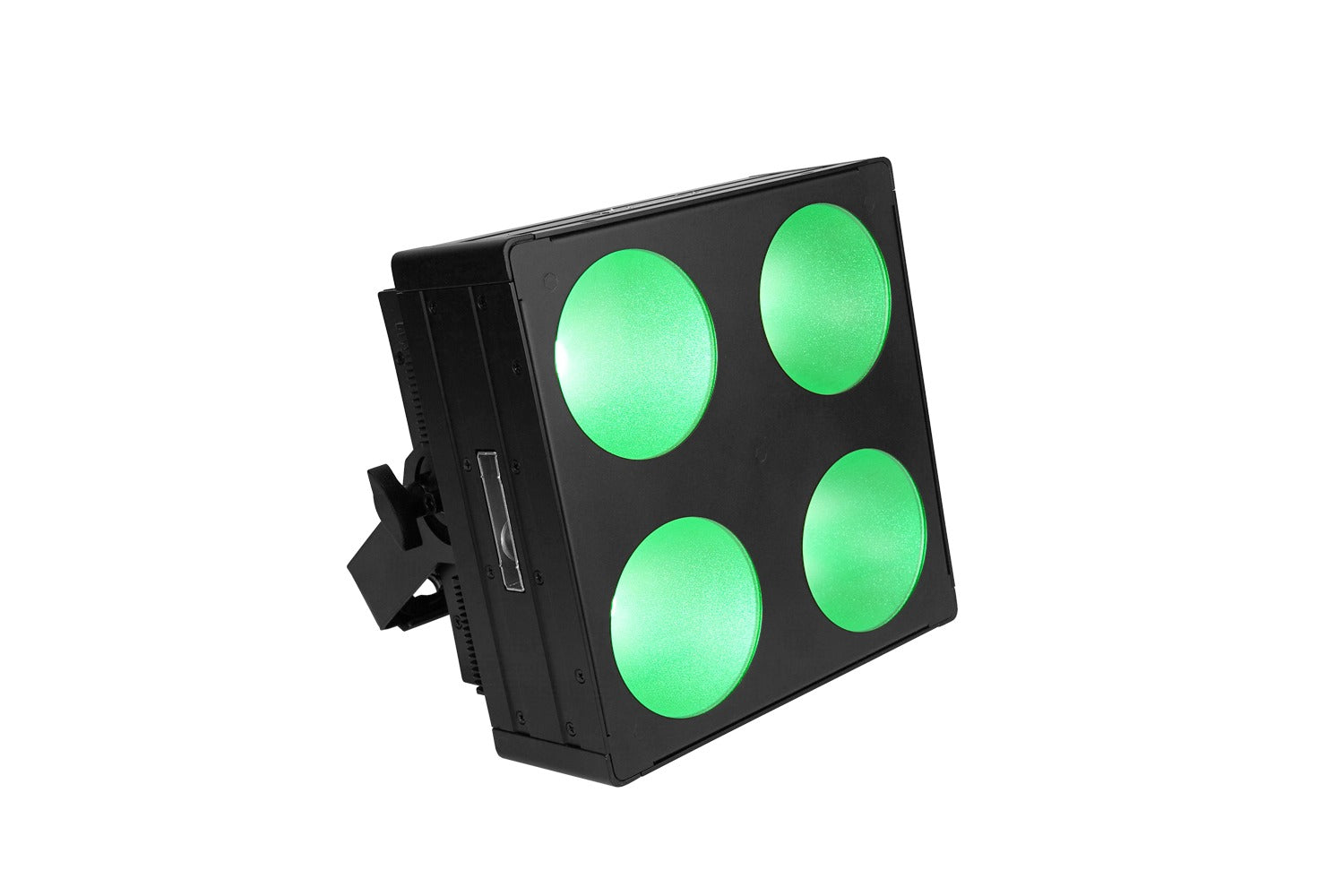

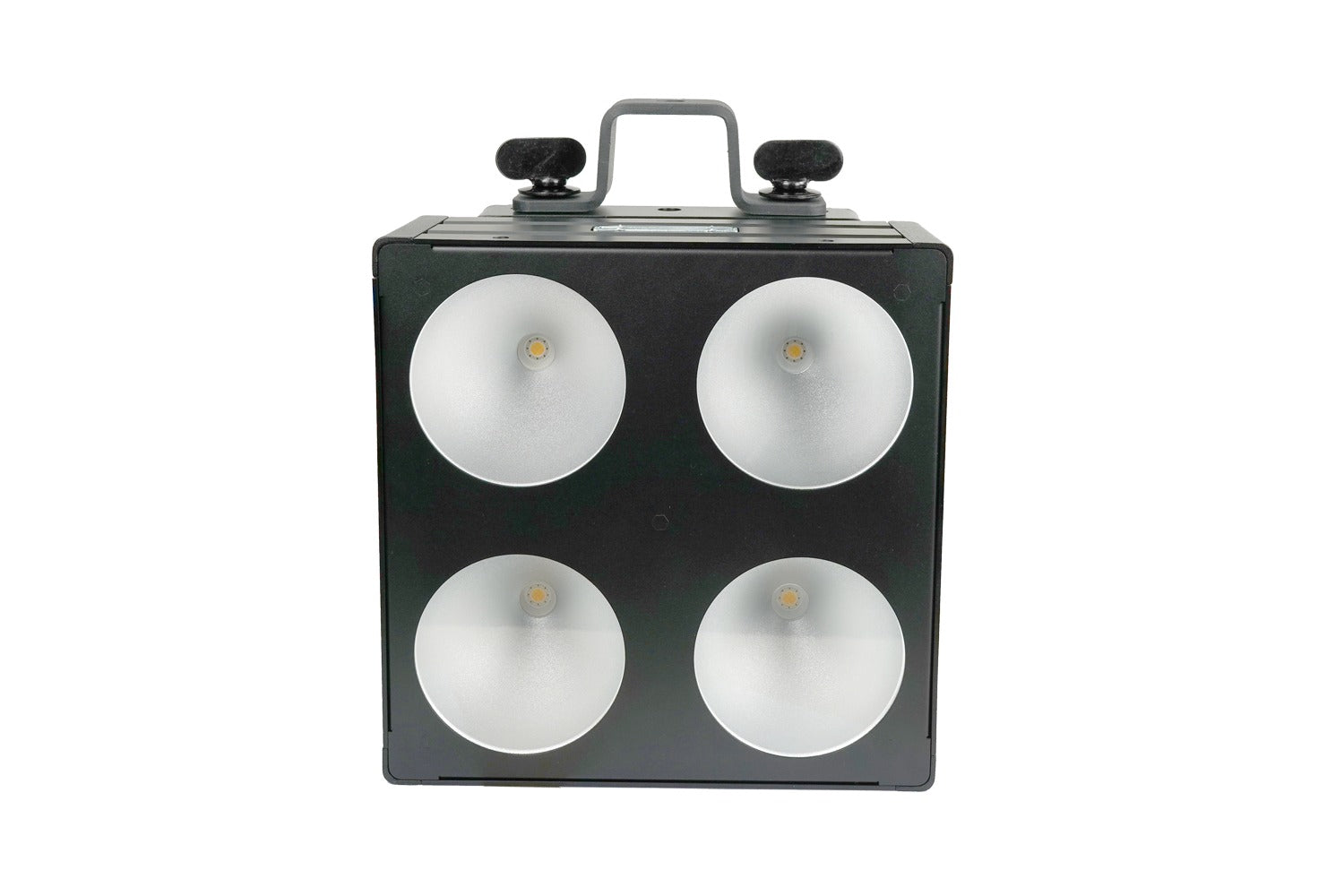

    The PANX22 features 2 x 2 bright 40W RGB+CW+WW COB LEDs with a 40° beam angle, making them ideal for wash and cyclorama duties. The aluminium housing is fanless, making it silent and virtually maintenance-free.

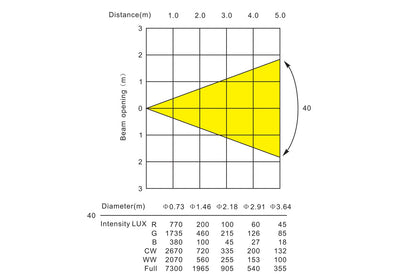

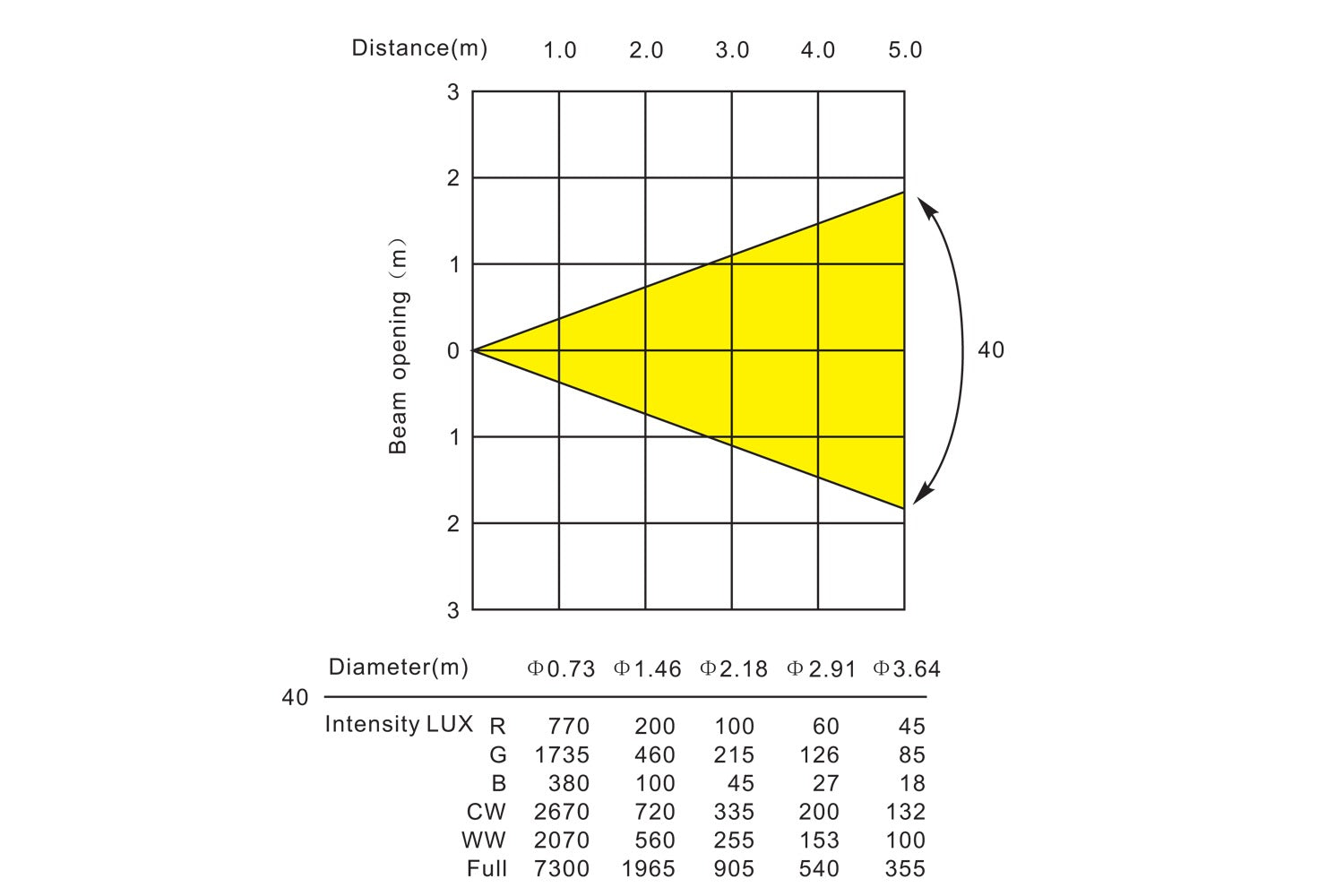

    Photometrics

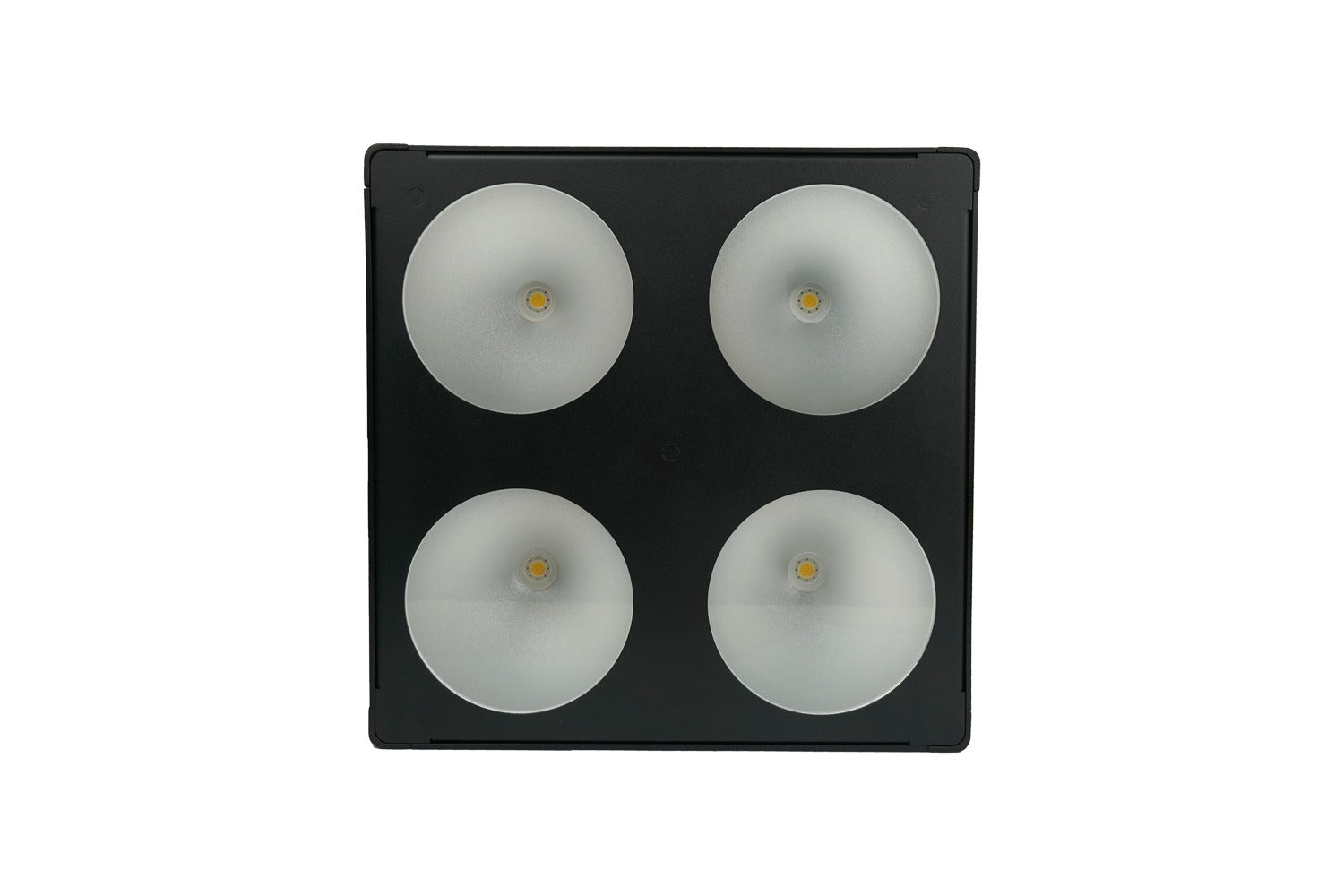

    • Light Source: 2 x 2 40W RGB+CW+WW COB LEDs
    • Beam Angle: 40°
    • Field Angle: 60°
    • Output: 1965 lux @ 2m Full on
    • PWM: 1,200Hz
    • LED Lifespan: 50,000 hours

    Effects

    • Dimming: 5 x 16-bit Dimming Curves
    • Strobe: 1~25Hz

    Power

    • Input Voltages: 100~240V AC, 50/60Hz, 120W
    • Power Connection: True1 in /out

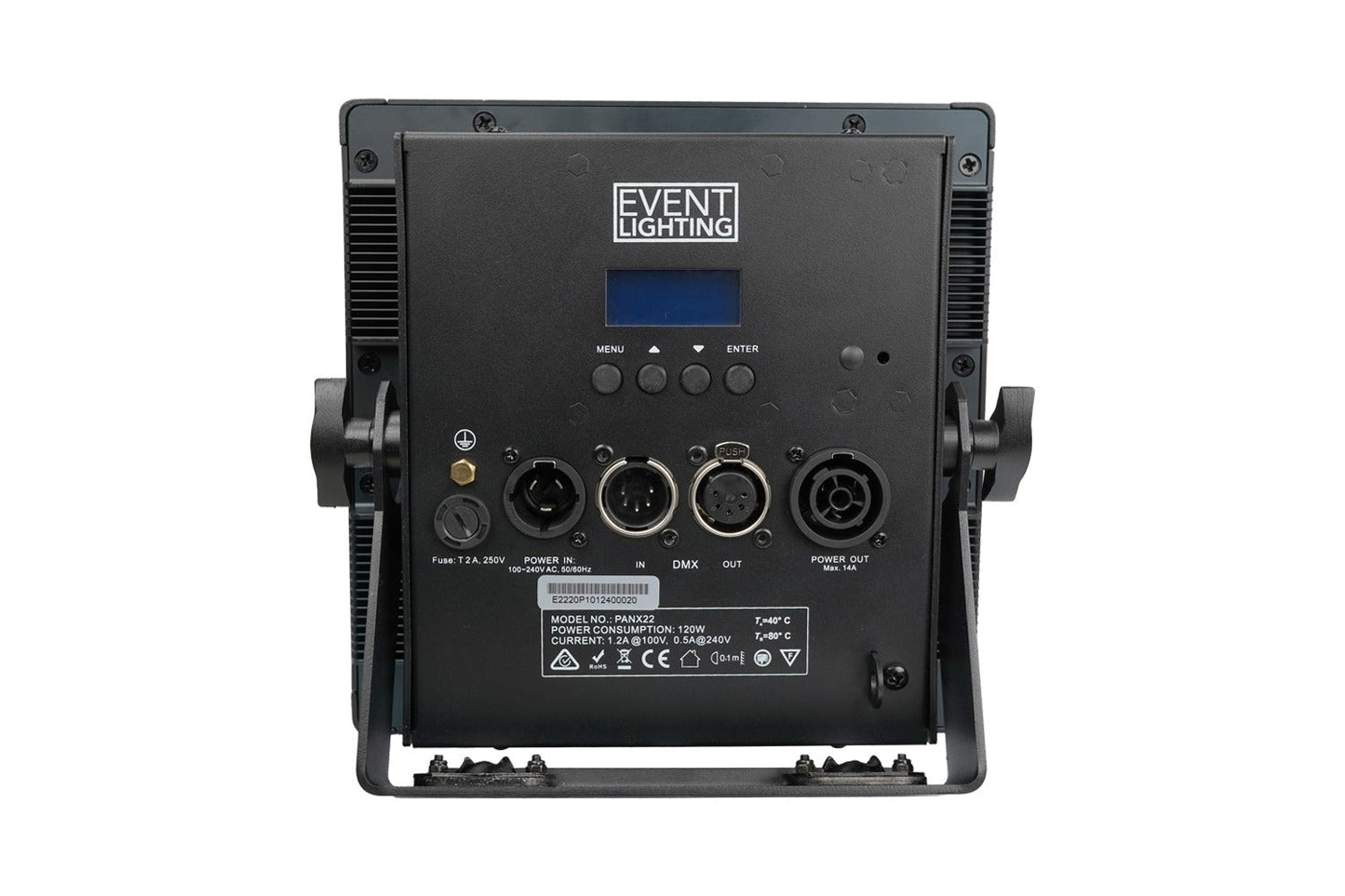

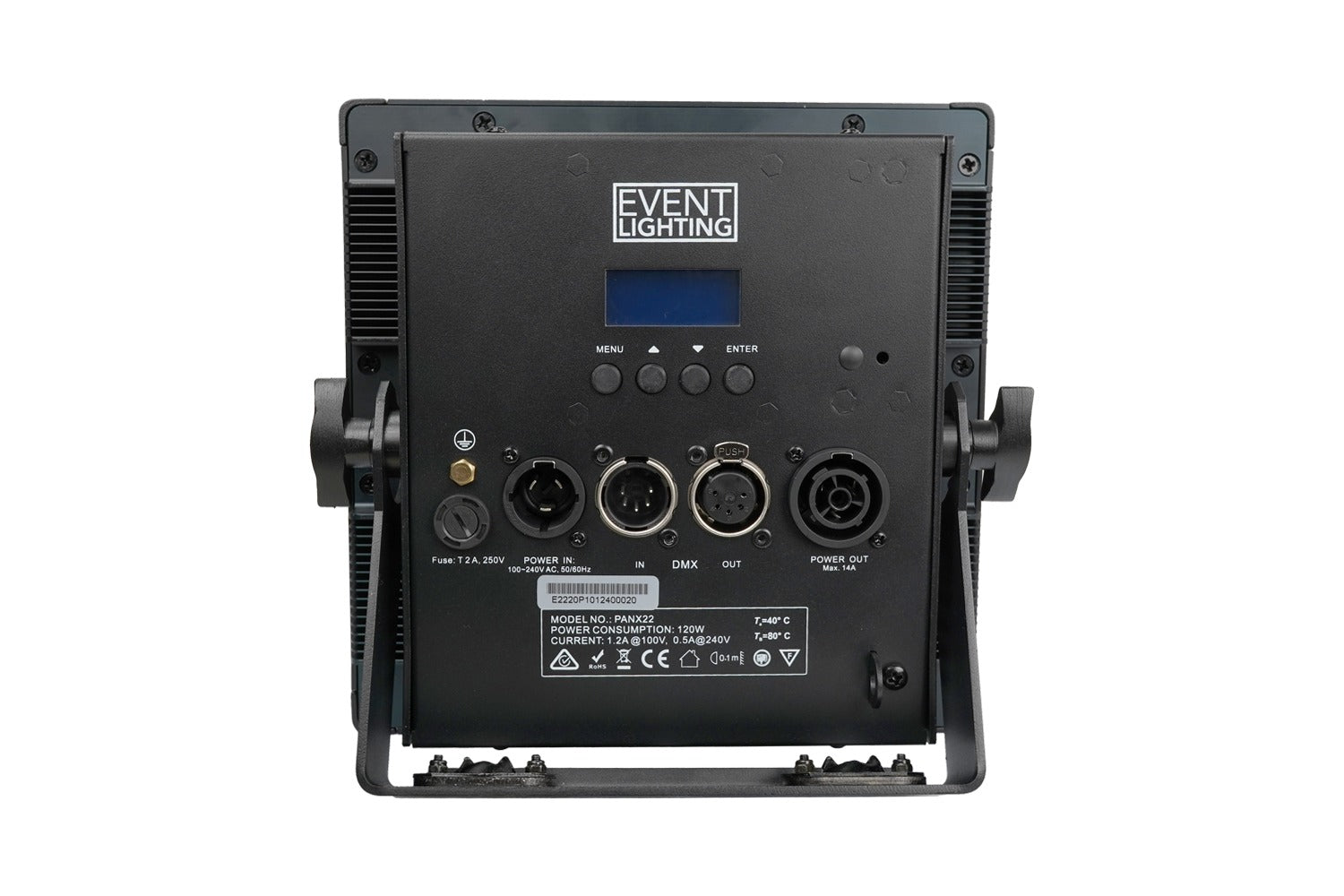

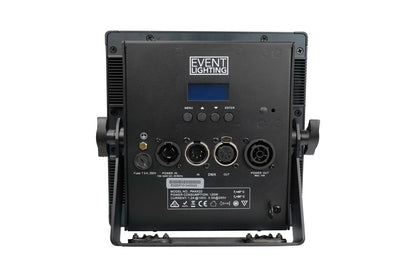

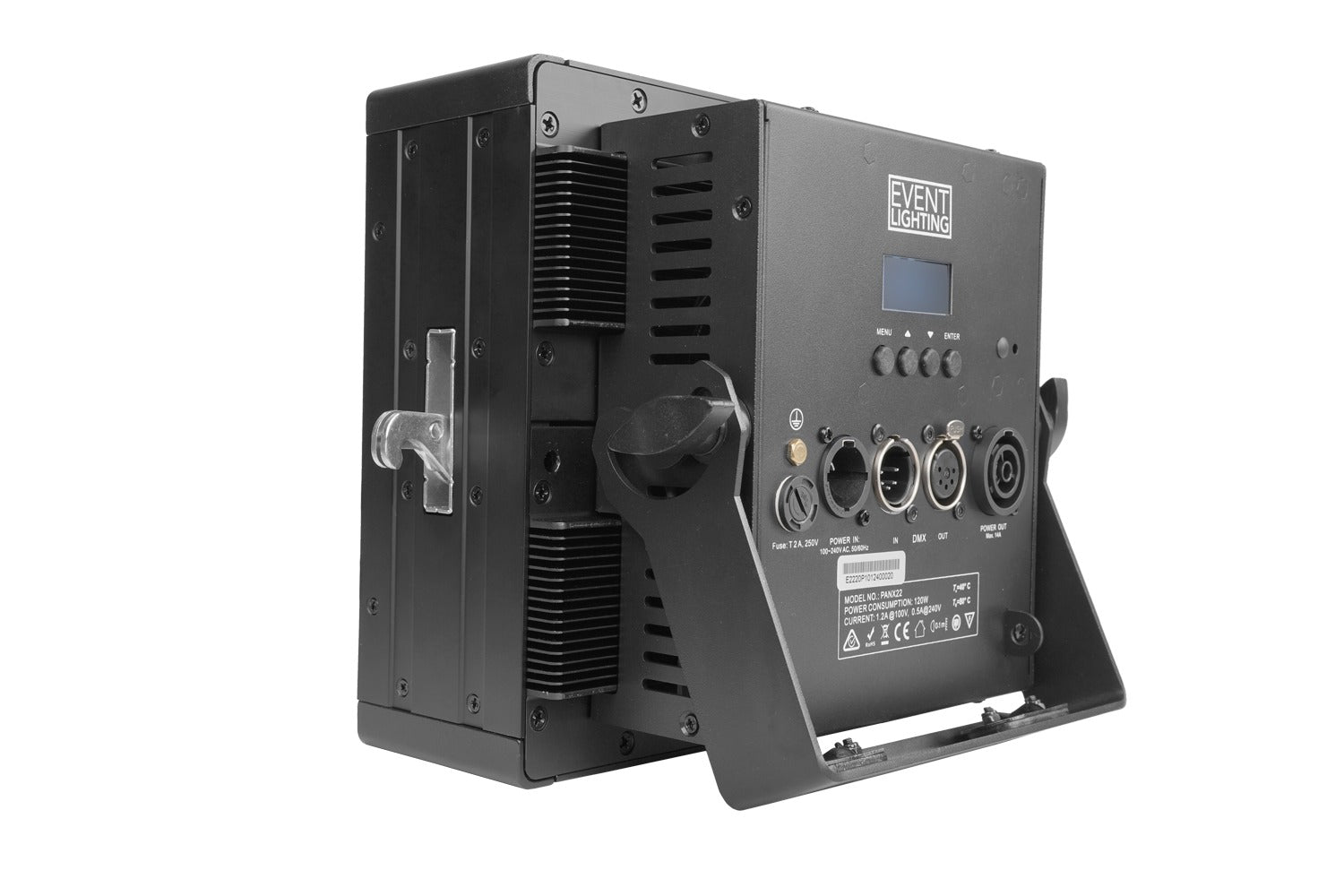

    Control

    • Operational Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase, WDMX (optional)

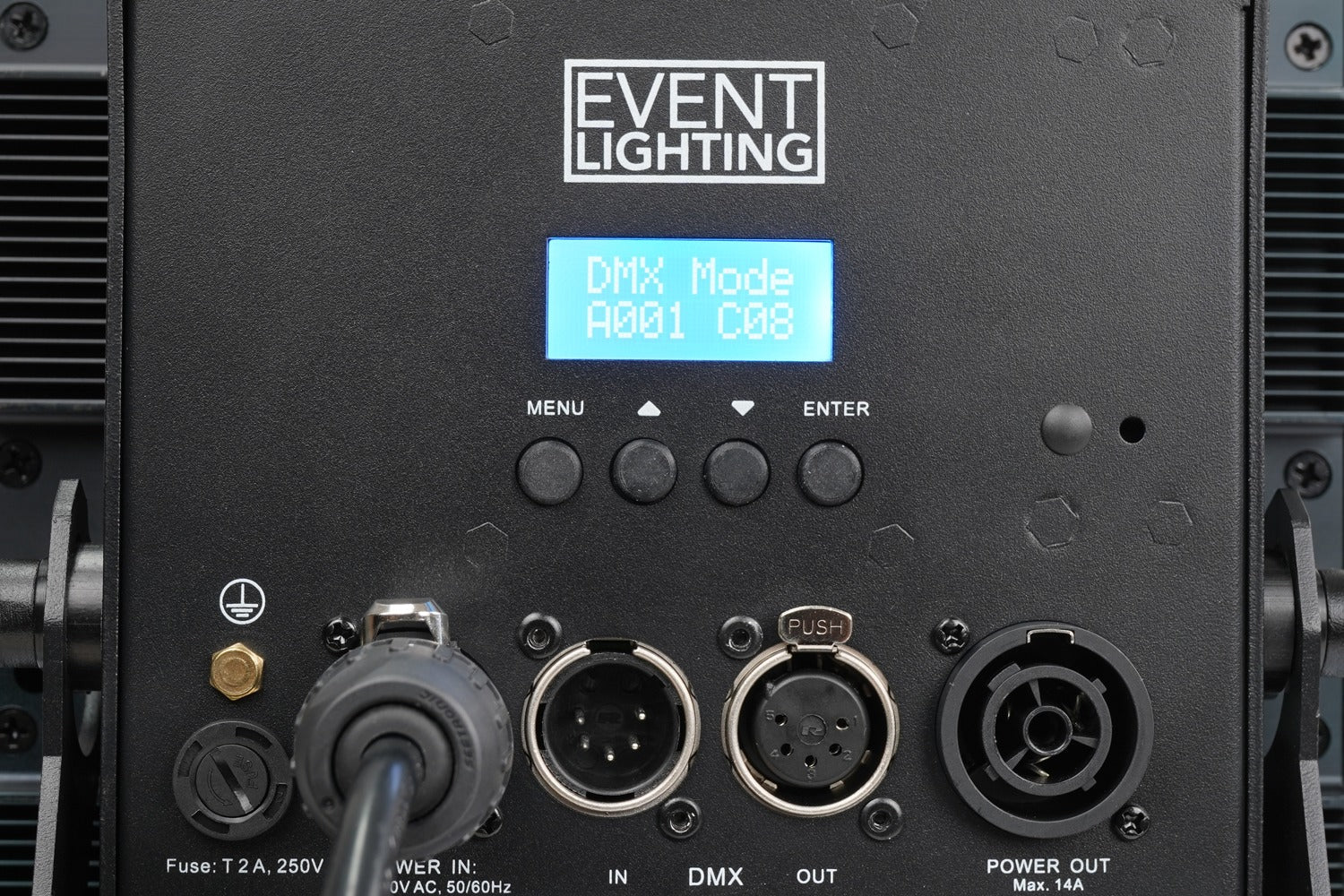

    • Display: 4-button LCD control panel
    • Control Protocol: DMX512
    • DMX Channels: 1 / 2 / 3 / 4CW / 4WW / 8 / 11 /22
    • Control Interface: 5-pin XLR in / out
    • Software Upgrade via DMX: Yes

    Housing

    • Housing Materials: Aluminium Housing, matte black
    • Cooling: Fanless Cooling

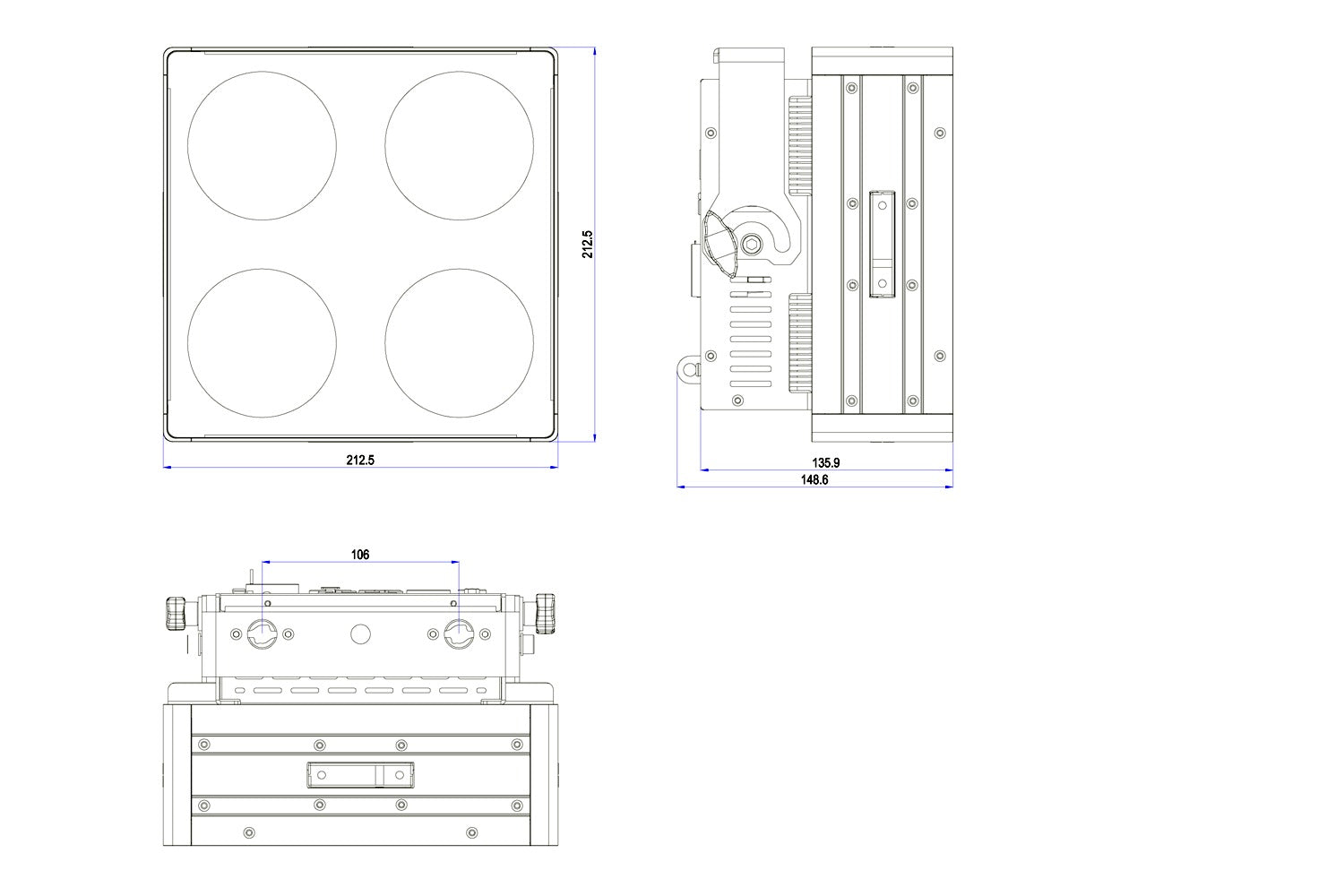

    • Dimension: 213 x 213 x 136mm / 8.4" x 8.4" x 5.4"
    • Net Weight: 3.85 kg / 8.5 lbs

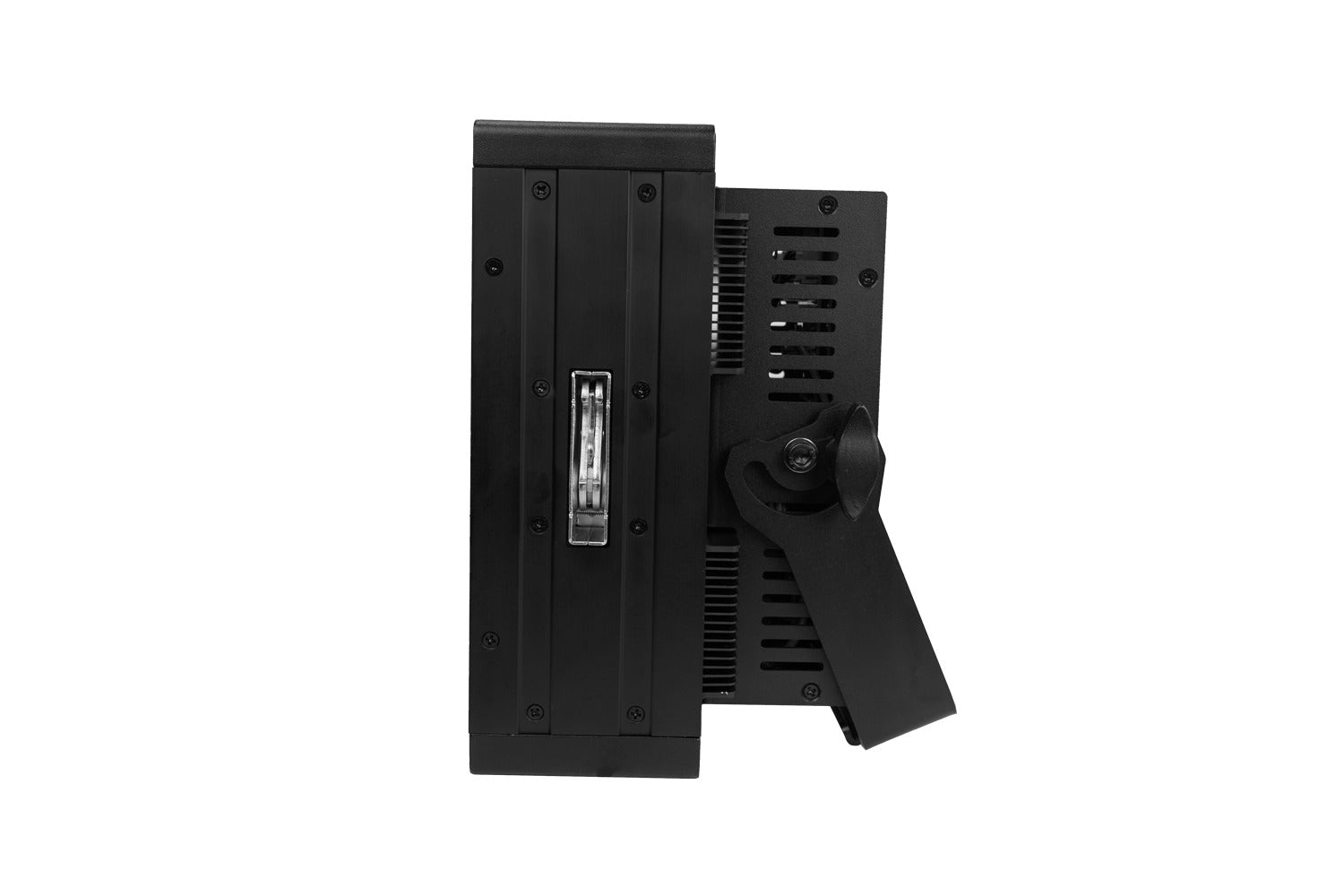

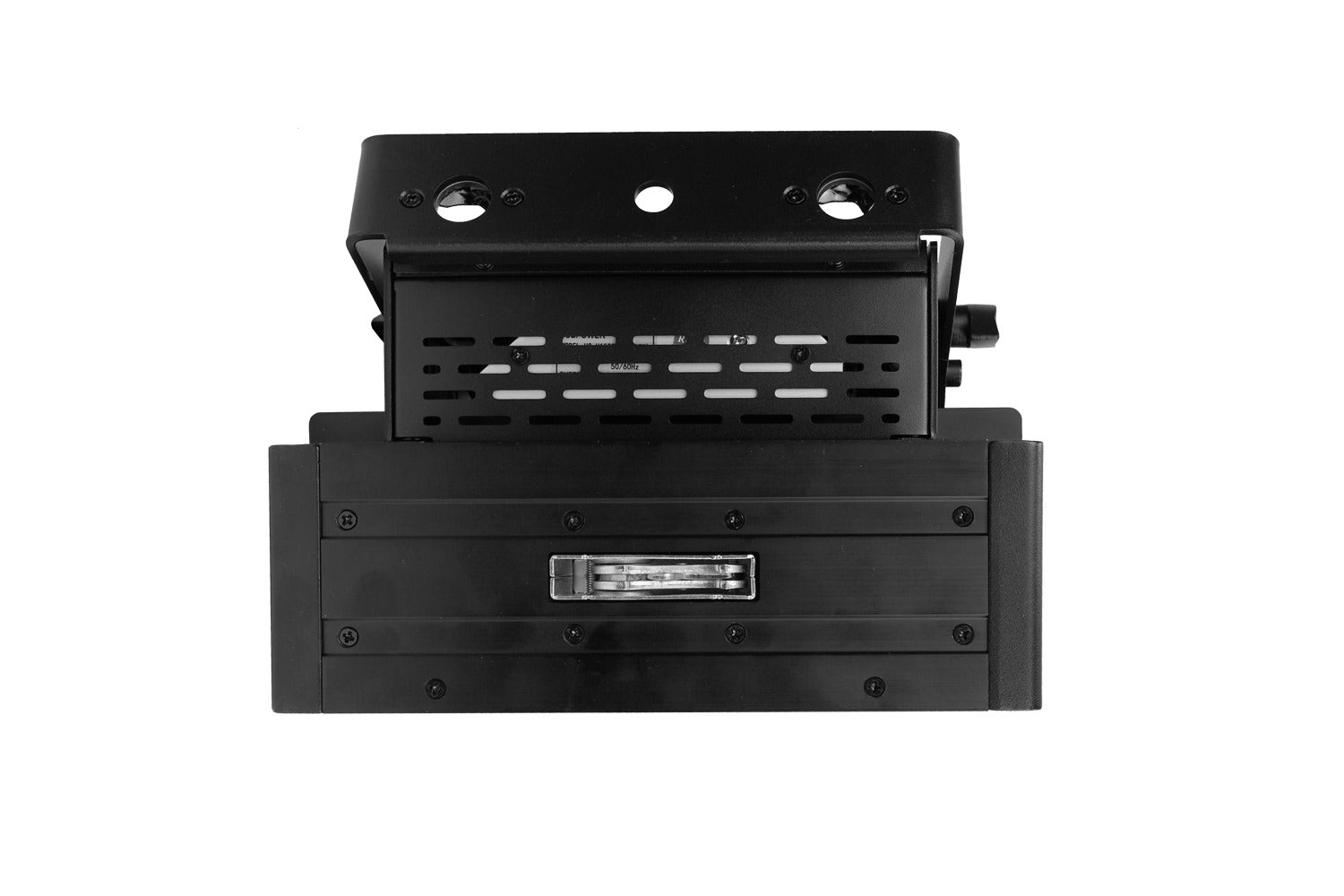

    Rigging

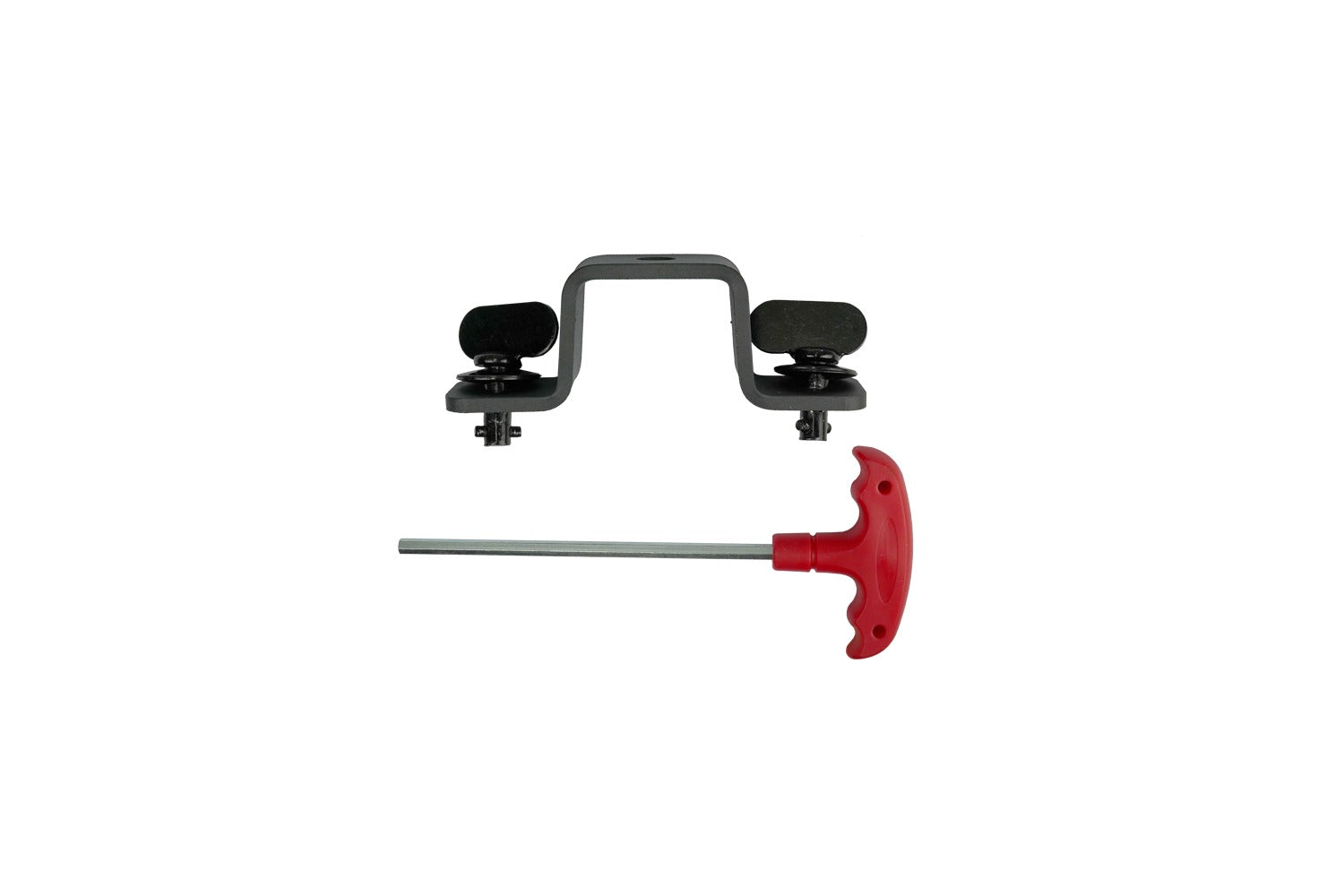

    • Coffin Latch - All Sides with Hex key (included)
    • Omega bracket (included)





    Download Product Datasheet

    Download User Manual

     Warranty: 3 years
