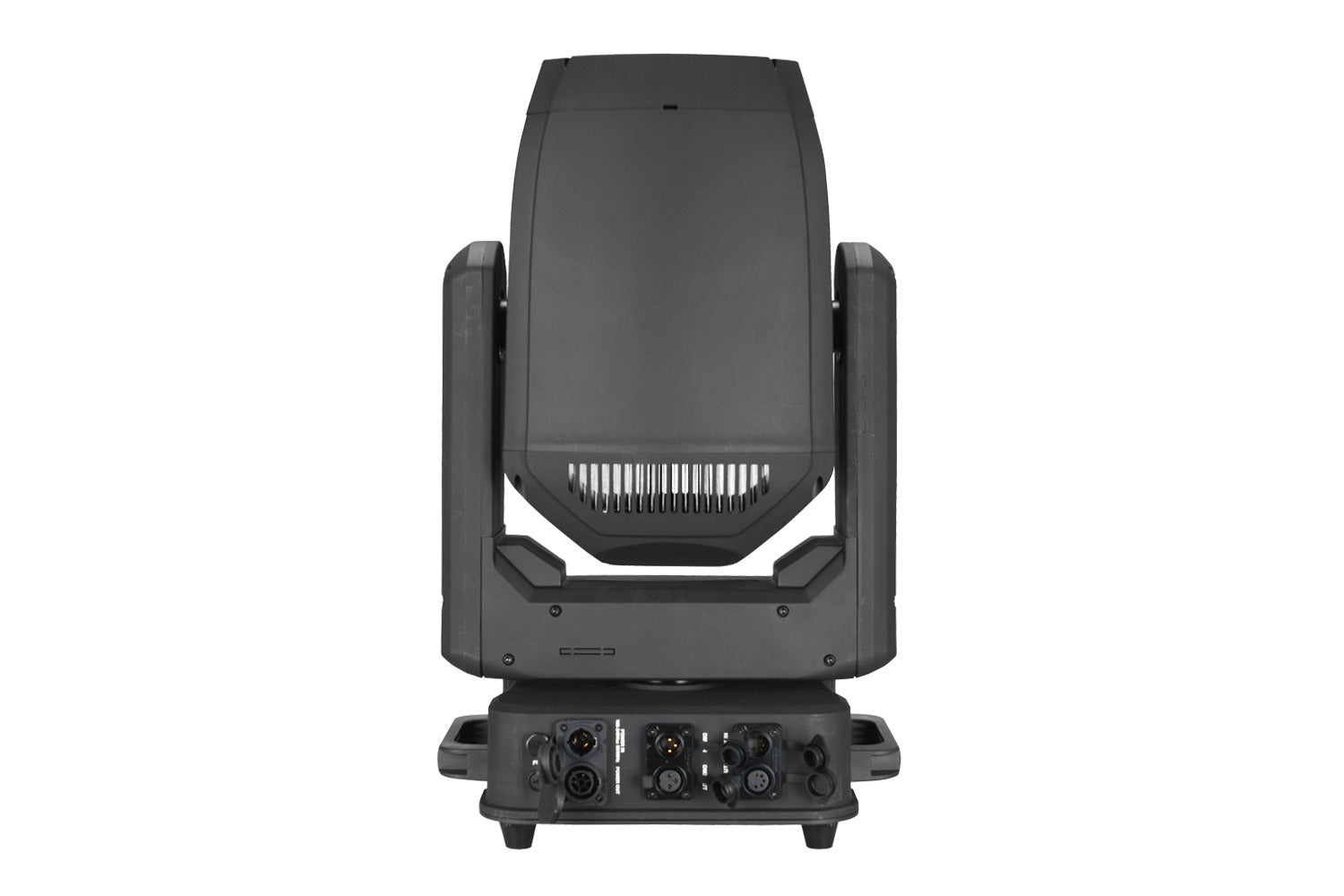

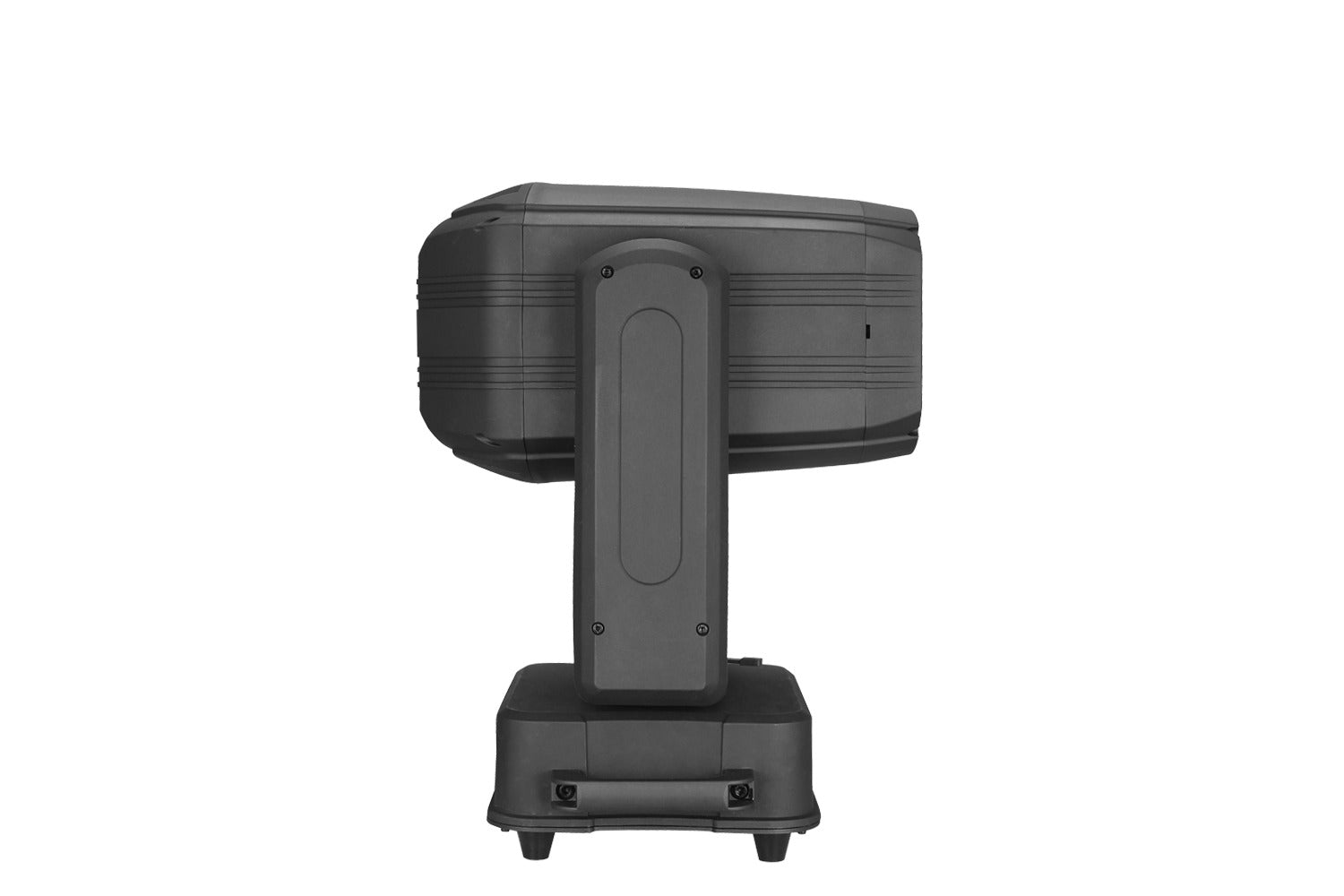

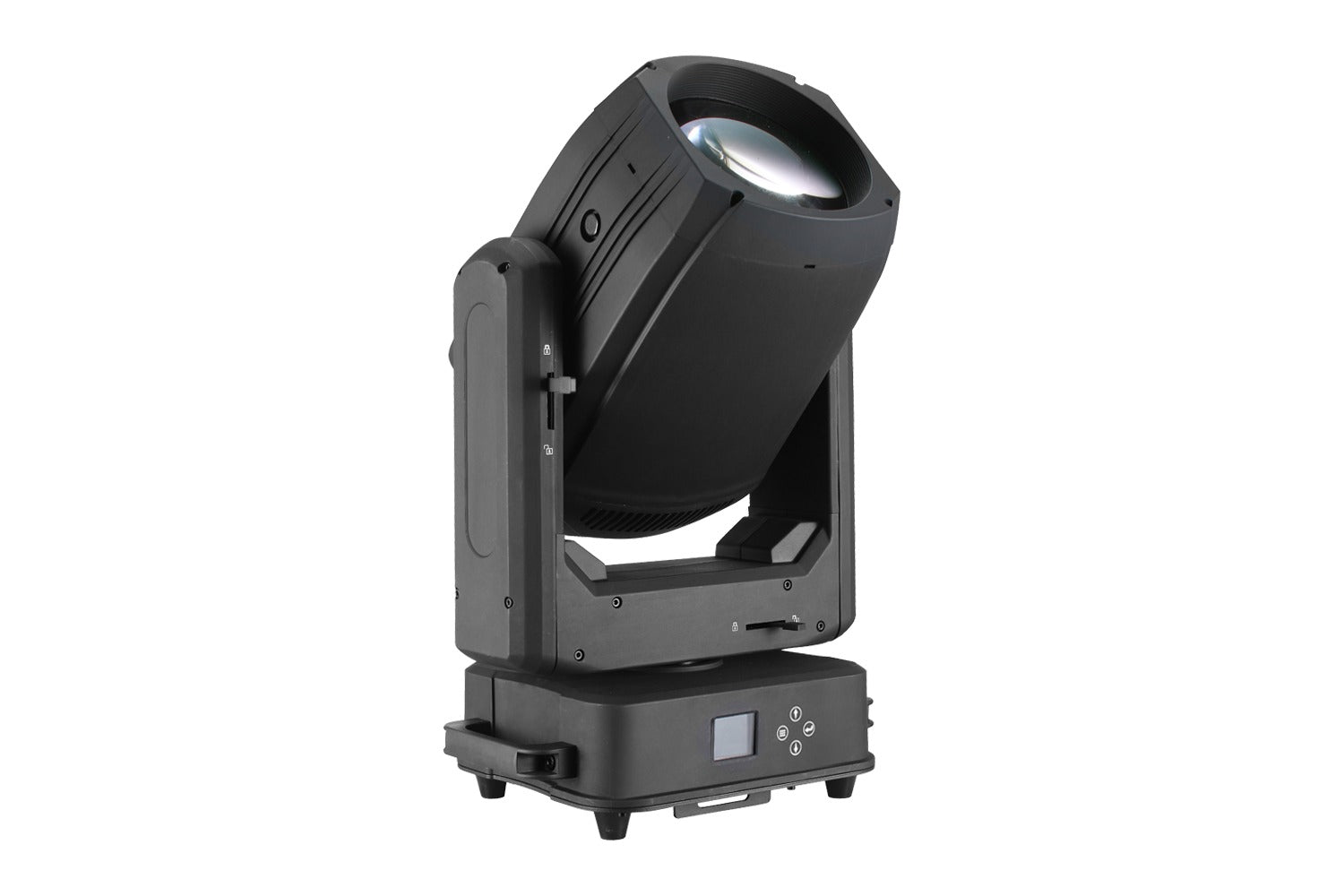

OUTBACK180B - Outdoor 180W LED Moving Head Beam

OUTBACK180B - Outdoor 180W LED Moving Head Beam

Regular price $2,990.00
Regular price Sale price $2,990.00
Sale Contact for Availability

Introducing the OUTBACK180B from Event Lighting's OUTBACK Range - Built specifically to withstand outdoor conditions.

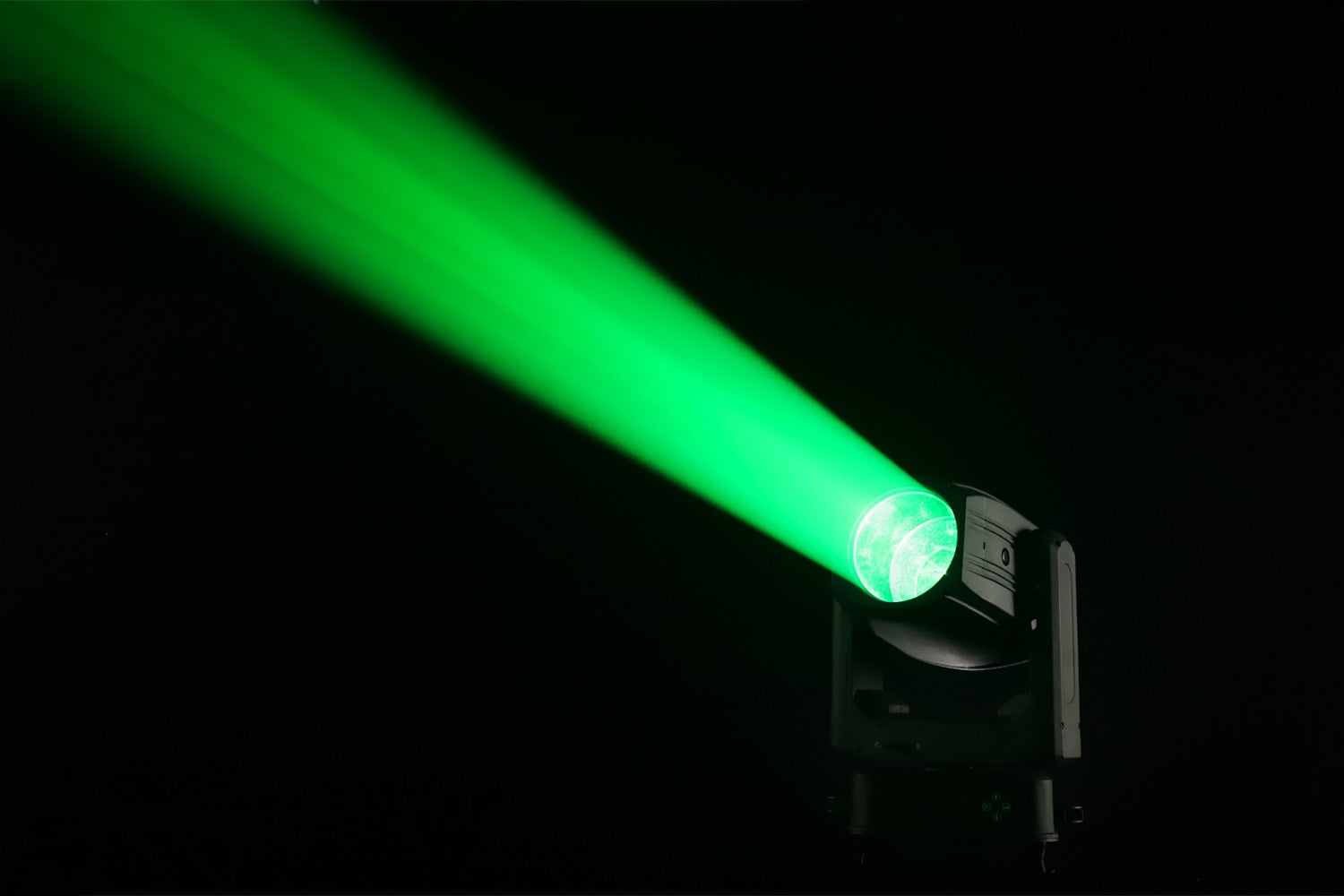

The OUTBACK180B features a powerful 180W white LED source with an impressive 191,301 lux output at 5m (1.8° beam angle) delivering exceptional brightness with a crisp 7,000K colour temperature. Versatile colour capabilities include dual colour wheels offering a wide spectrum with 14 colours plus open on the first wheel and 8 colours plus open on the second wheel. The dual gobo wheels (one fixed, one rotating) offer extensive pattern options with indexing and shaking functions for dynamic effects. Further effects include motorised focus, two prisms (24-facet circular and 5-facet linear) with overlap and indexing, and a frost filter. Control options include 3 and 5 pin DMX as well as optional wireless DMX capabilities, all housed in an IP65 rated enclosure.

Specifications:

Photometrics

  • Light Source: 180W LED White
  • Beam Angle: 1.8°

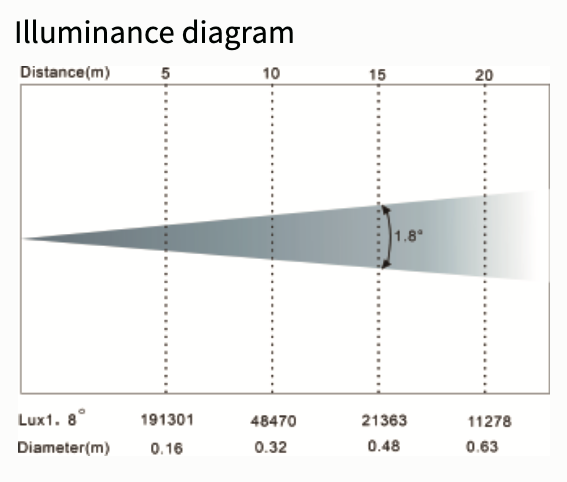

  • Output: 191,301 lux @ 5m at 1.8°
  • CCT: 7,000K
  • CRI: >70
  • Led lifespan: > 20,000 hours

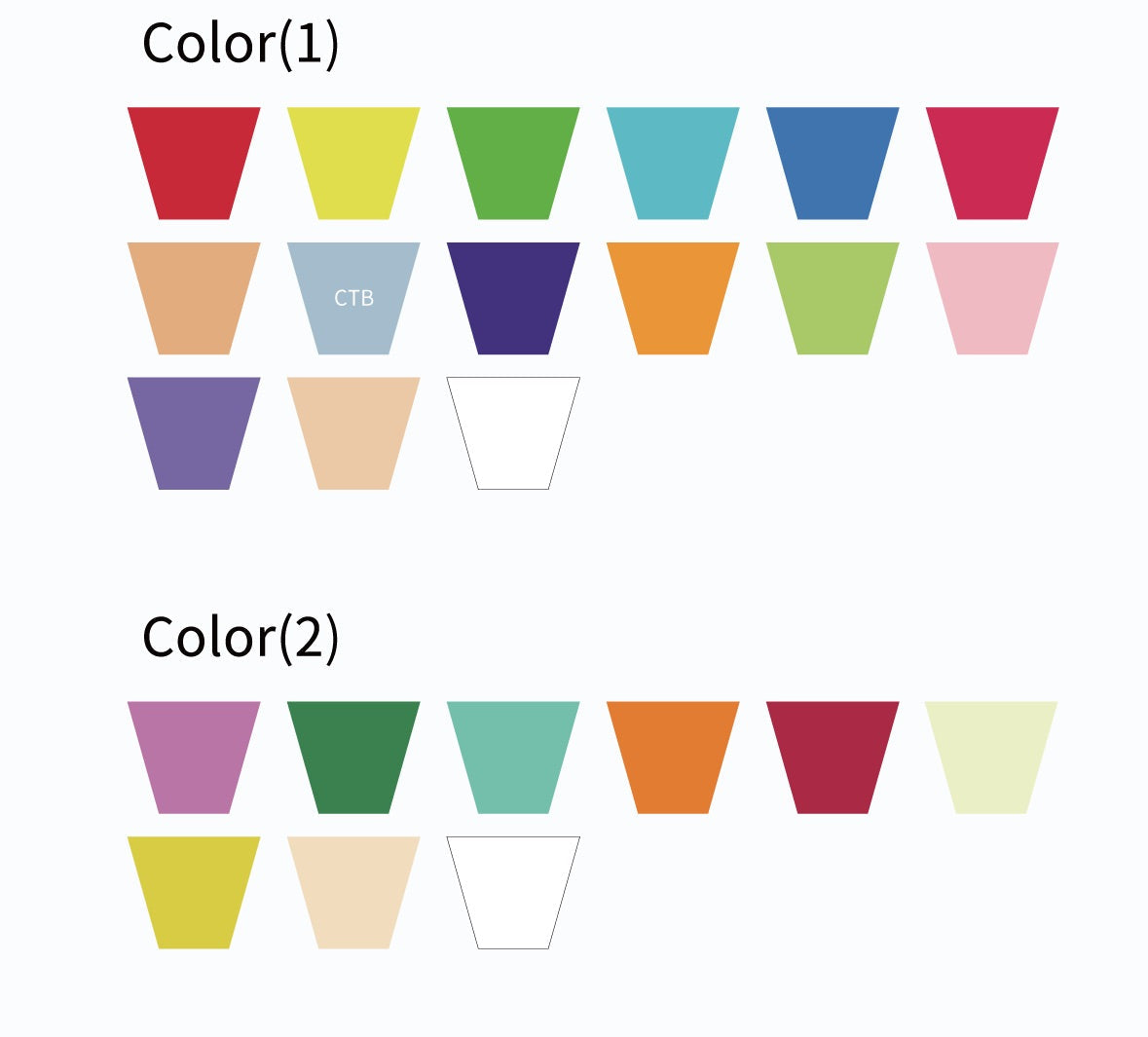

Colour

  • 14 Colour + Open (first wheel)
  • 8 Colour + Open (second wheel)

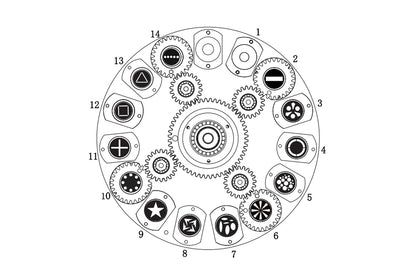

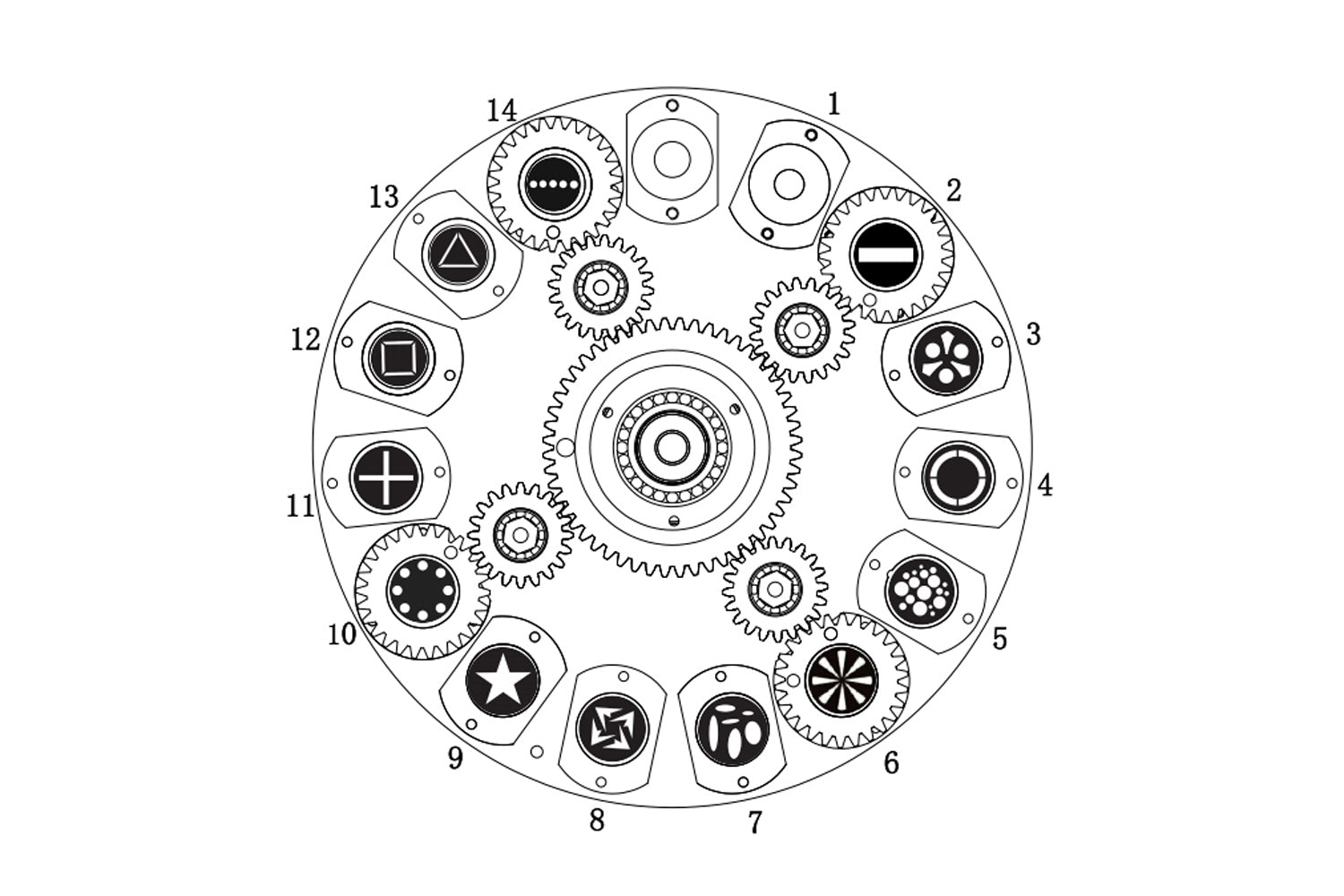

Gobos

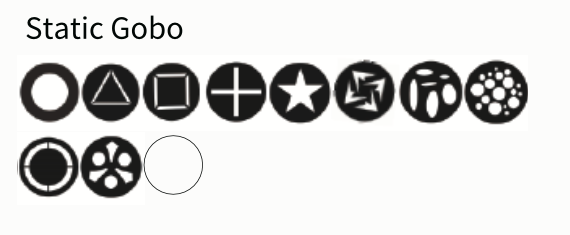

  • Fixed: 10 + Open

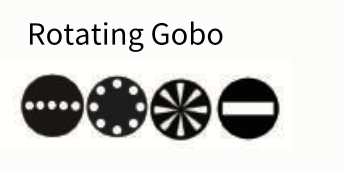

  • Rotating: 4 + Open
  • Gobo Shaking: Yes
  • Gobo Indexing: Yes

Effects

  • Dimming: 0~100%
  • Strobe: 1 - 25 Hz
  • Focus: Motorised

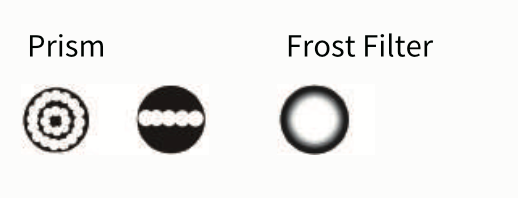

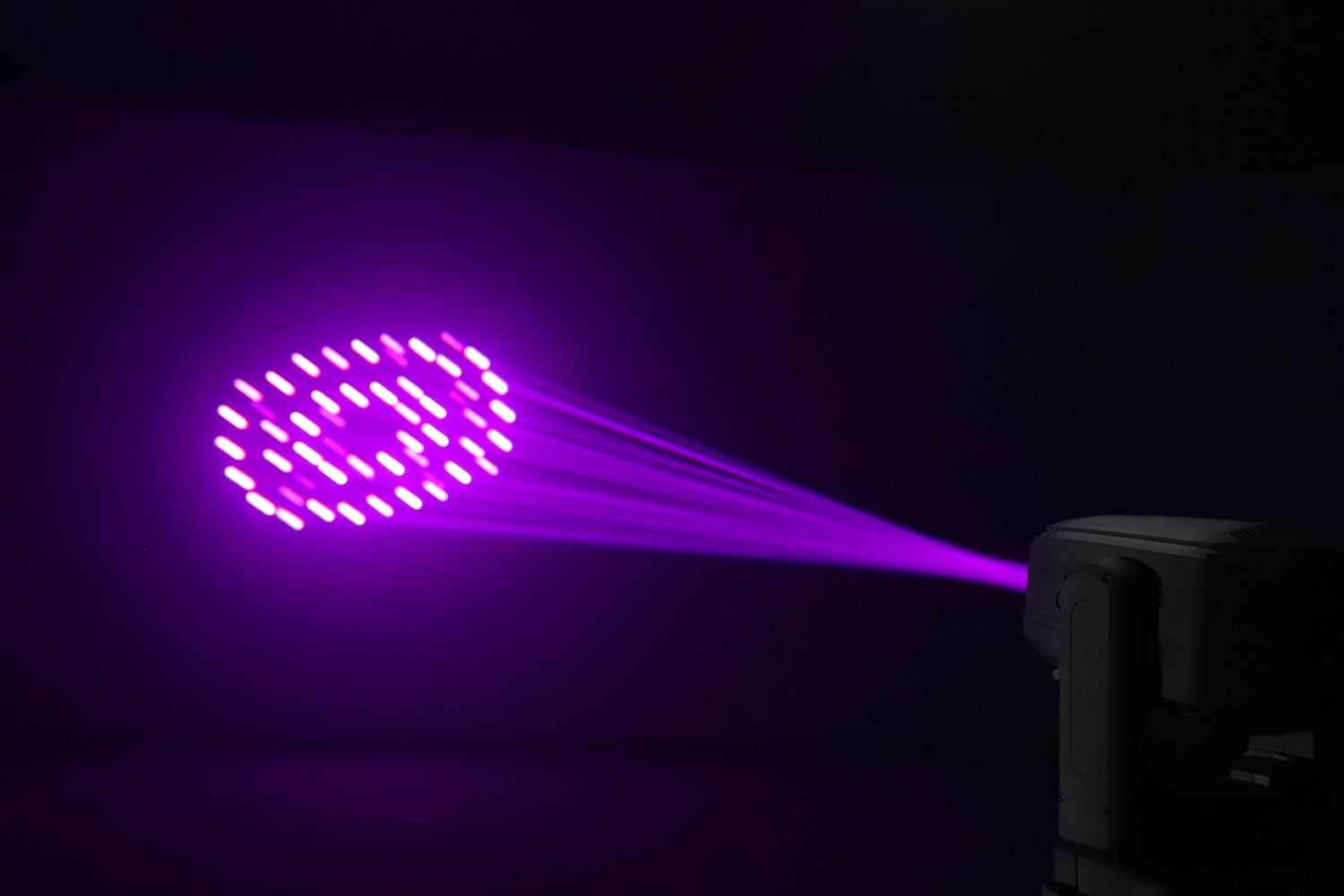

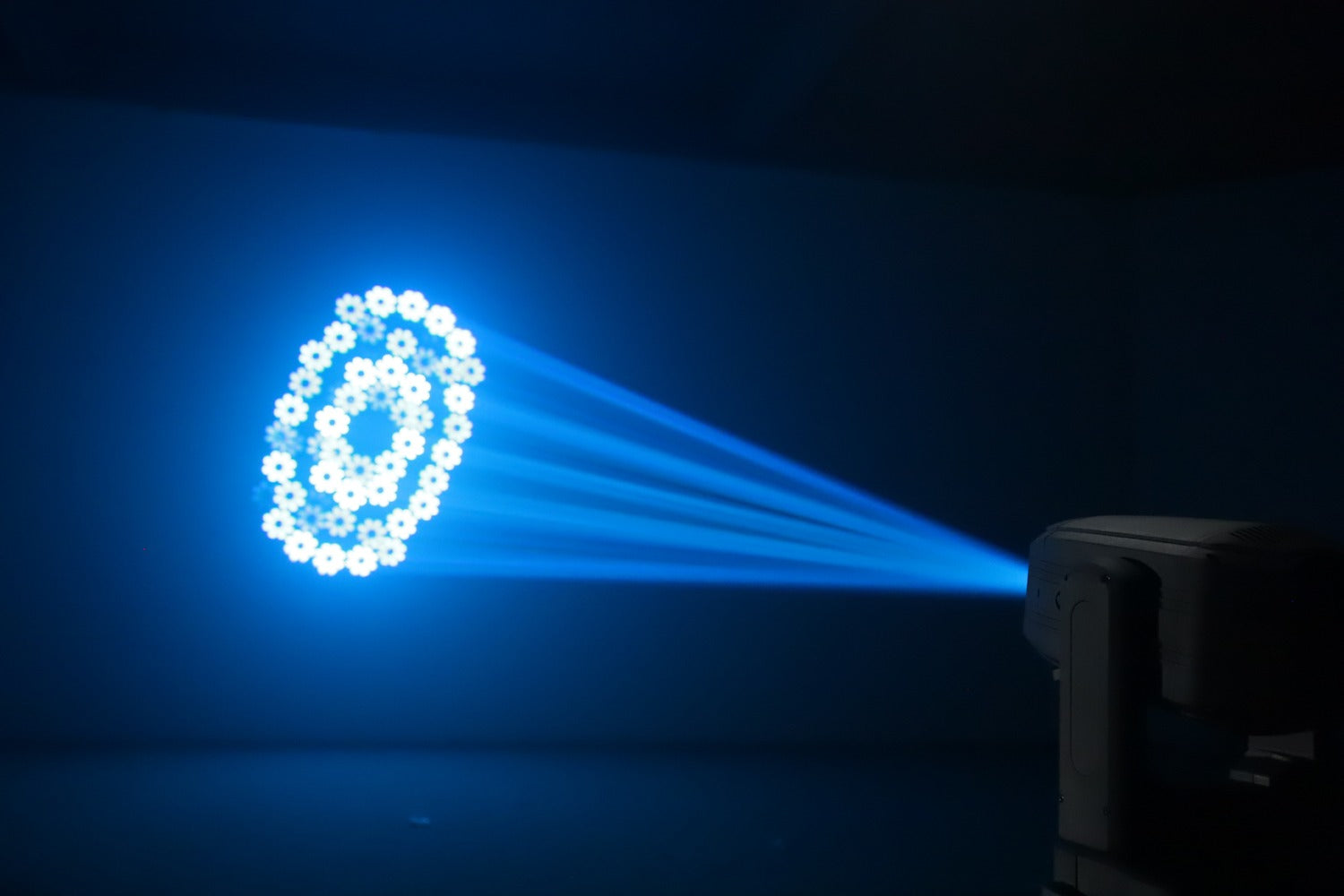

  • Prism (1): 24-Facet circular prism, (Optional Rainbow Effect)
  • Prism (2): 5-Facet linear prism, indexing
  • Prism Overlap: Yes
  • Frost: Yes

Movement

  • 16-bit resolution
  • Auto repositioning
  • Pan: 540°
  • Tilt: 270°

Power

  • Max power consumption: 260W
  • Input Voltage: 100~240V AC, 50/60Hz
  • Connection: True1 in/out

Control

  • Control Protocol: DMX512, RDM
  • Optional Wireless
  • DMX Channels: 20 / 23

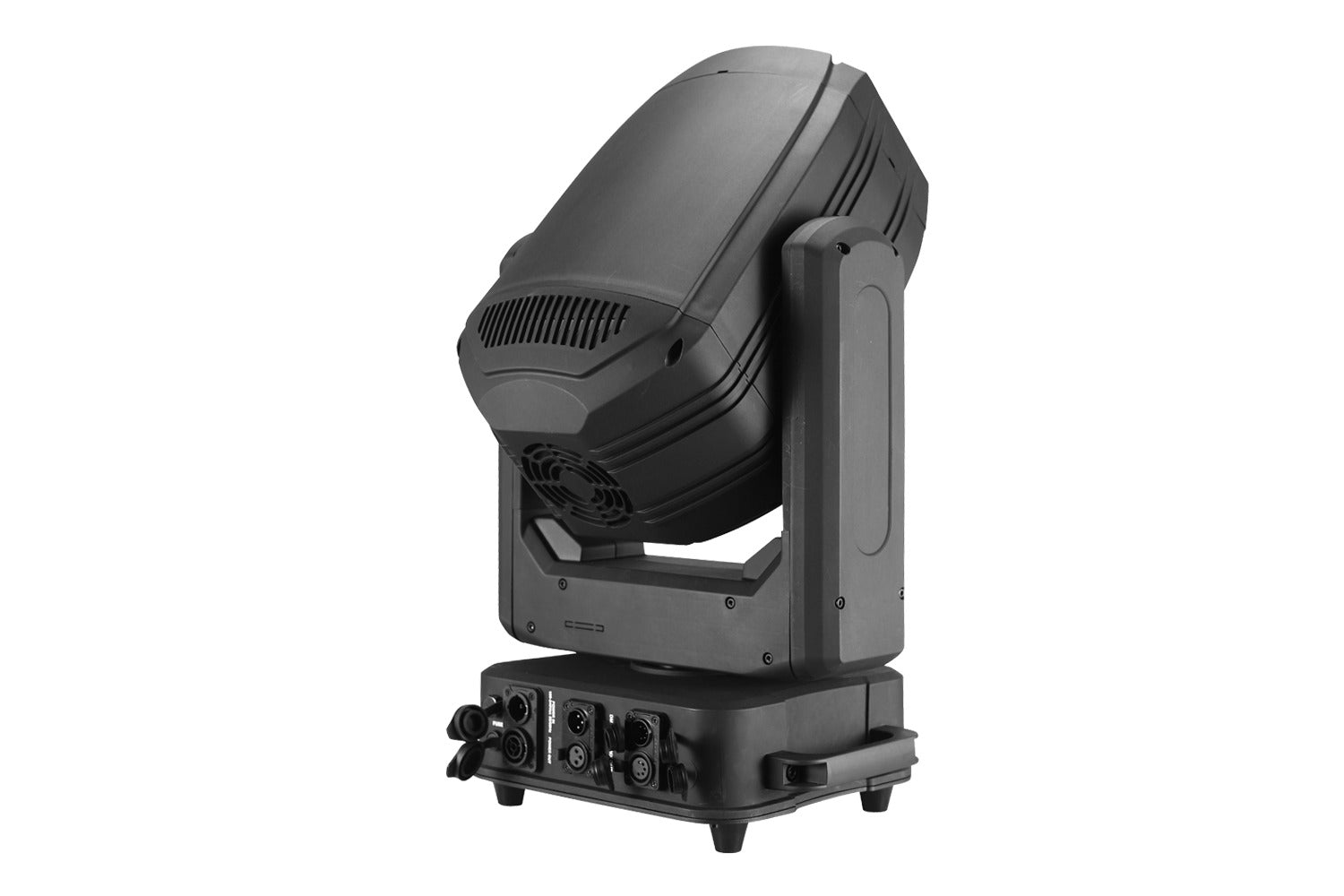

  • Interface: 3-pin/5-pin XLR in/out
  • Display: TFT control panel

Housing

  • Materials: ABS & Steel, matte black finish
  • Protection: High temperature automatic protection
  • IP rating: IP65

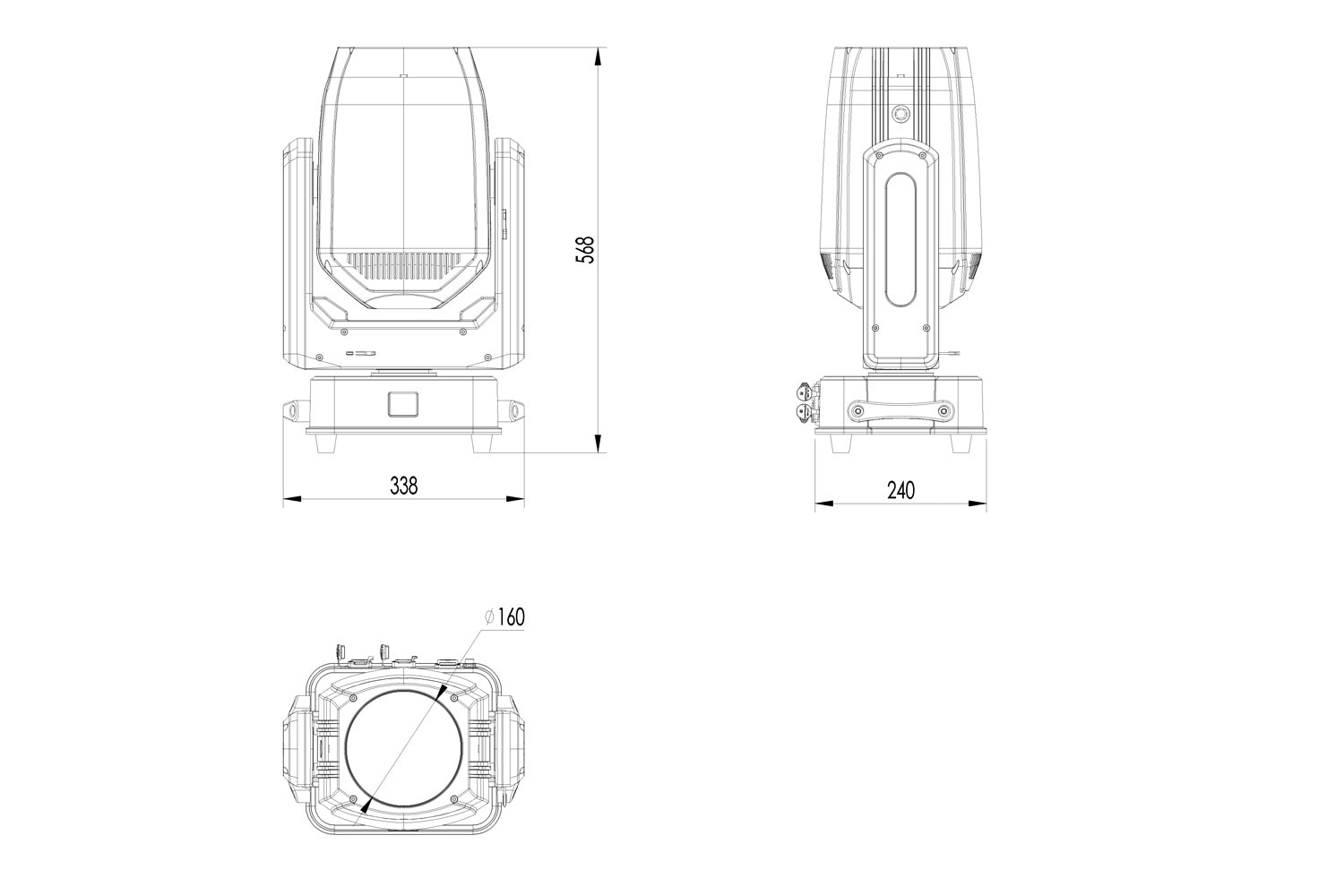

  • Dimensions: 338 x 240 x 555mm / 13.3” x 9.4” x 21.9”
  • Net Weight: 16.5 kg / 36.4 lbs
