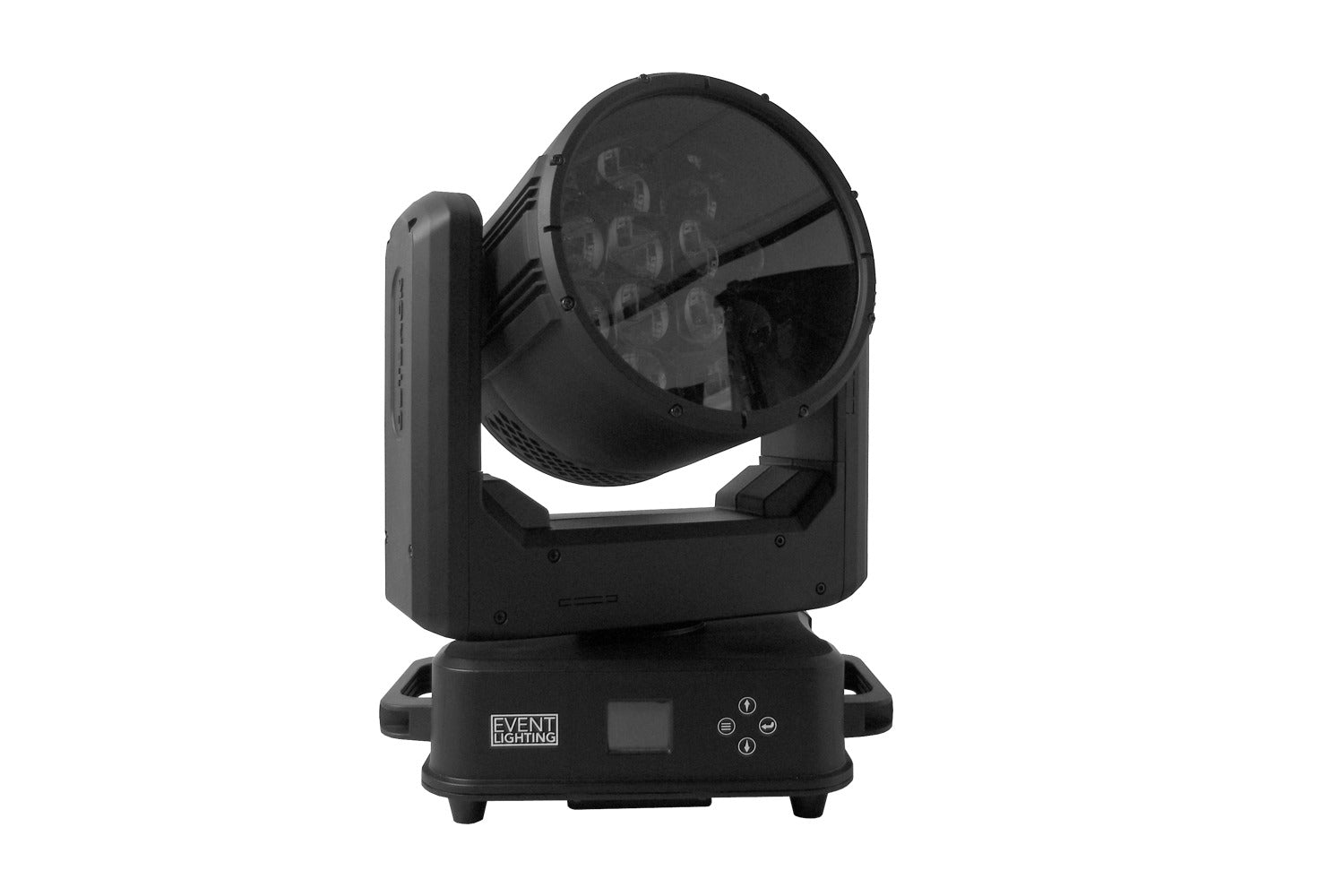

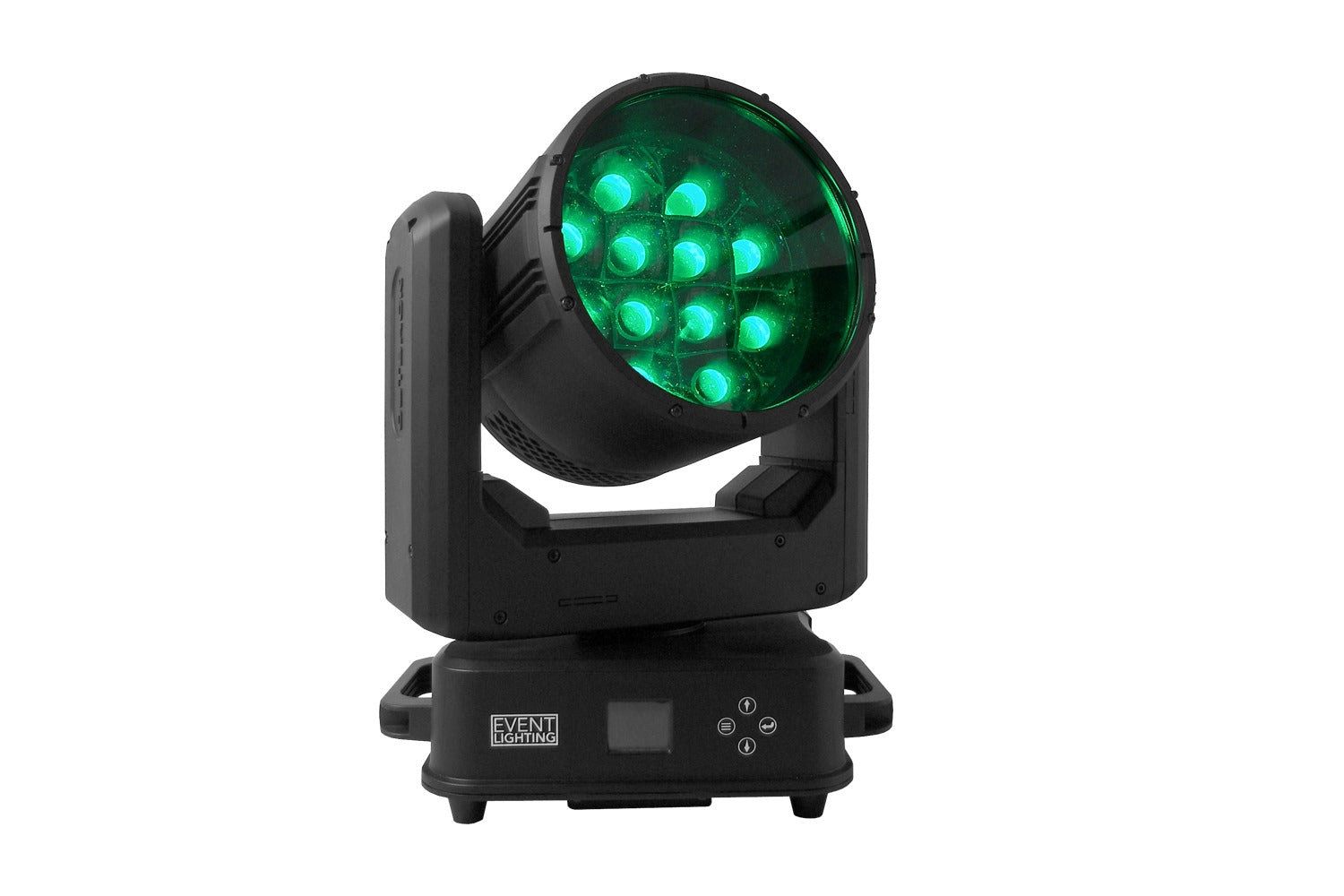

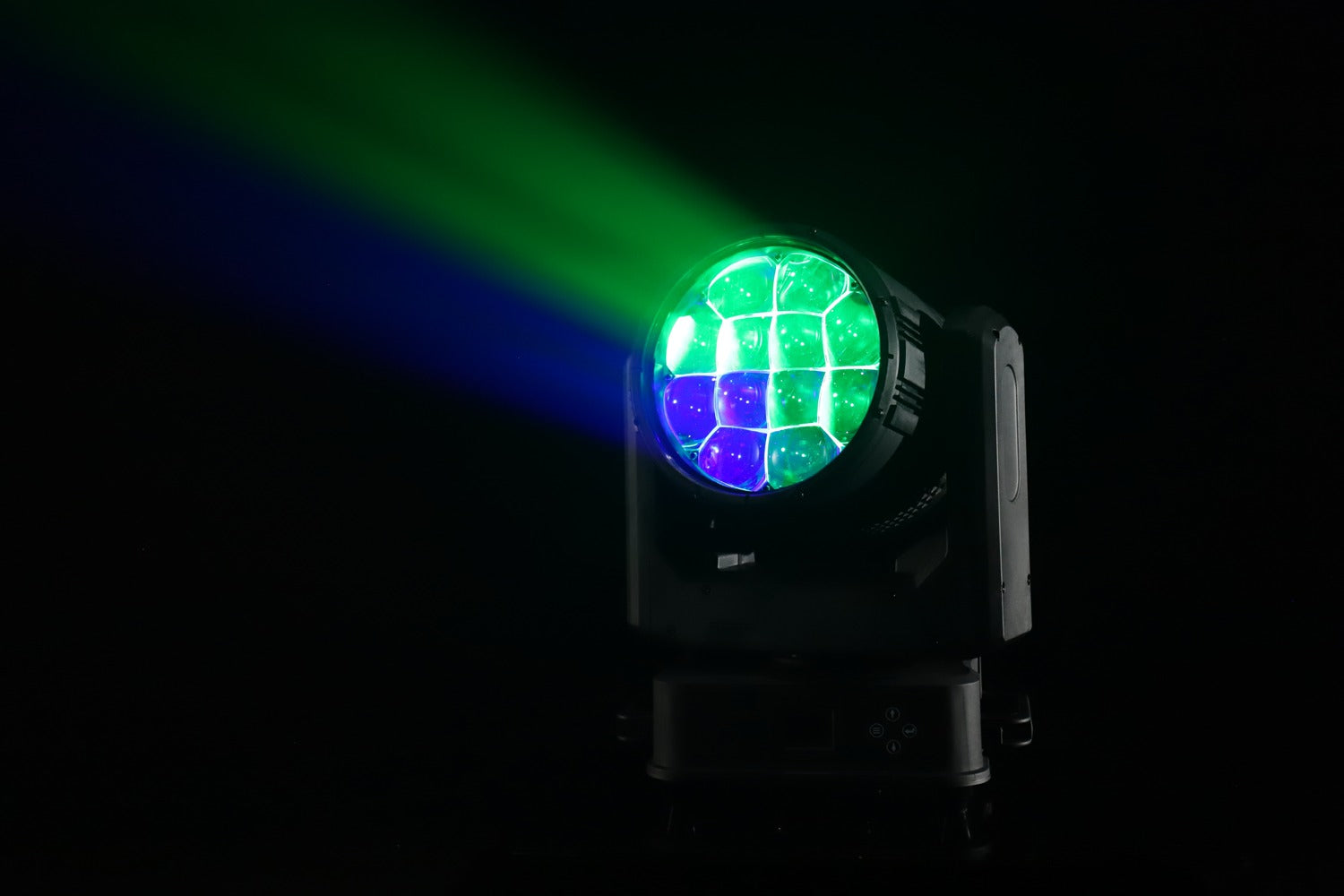

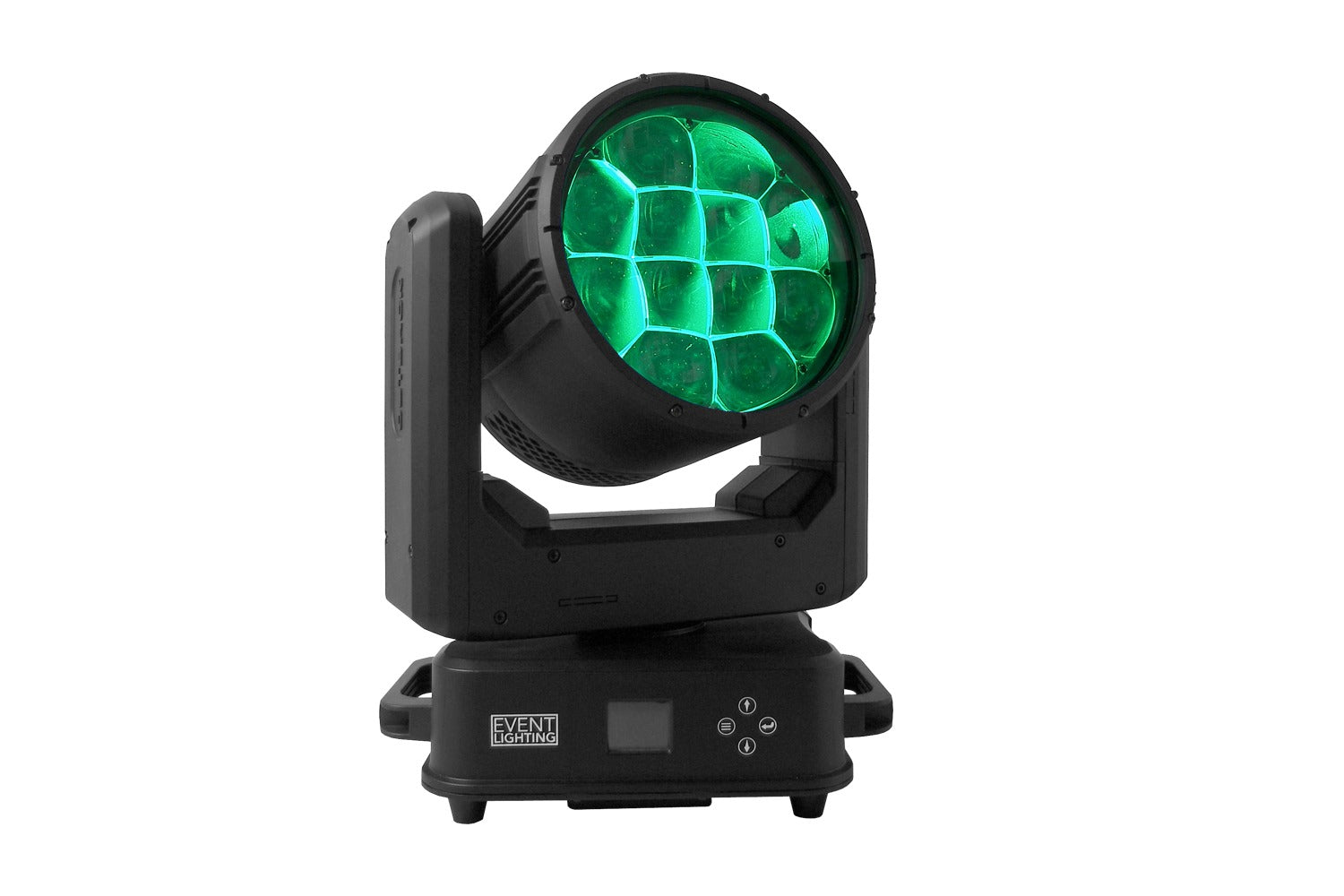

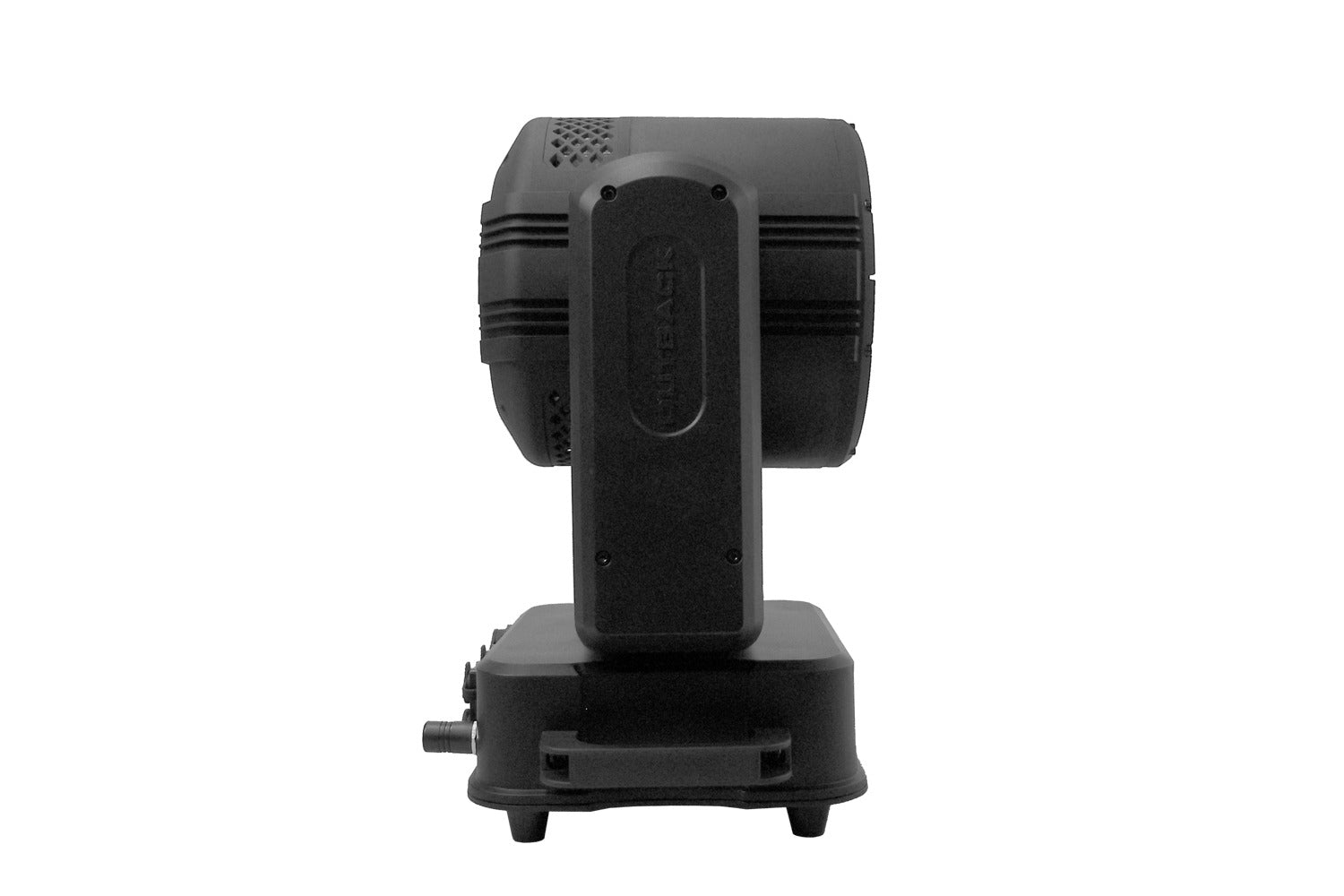

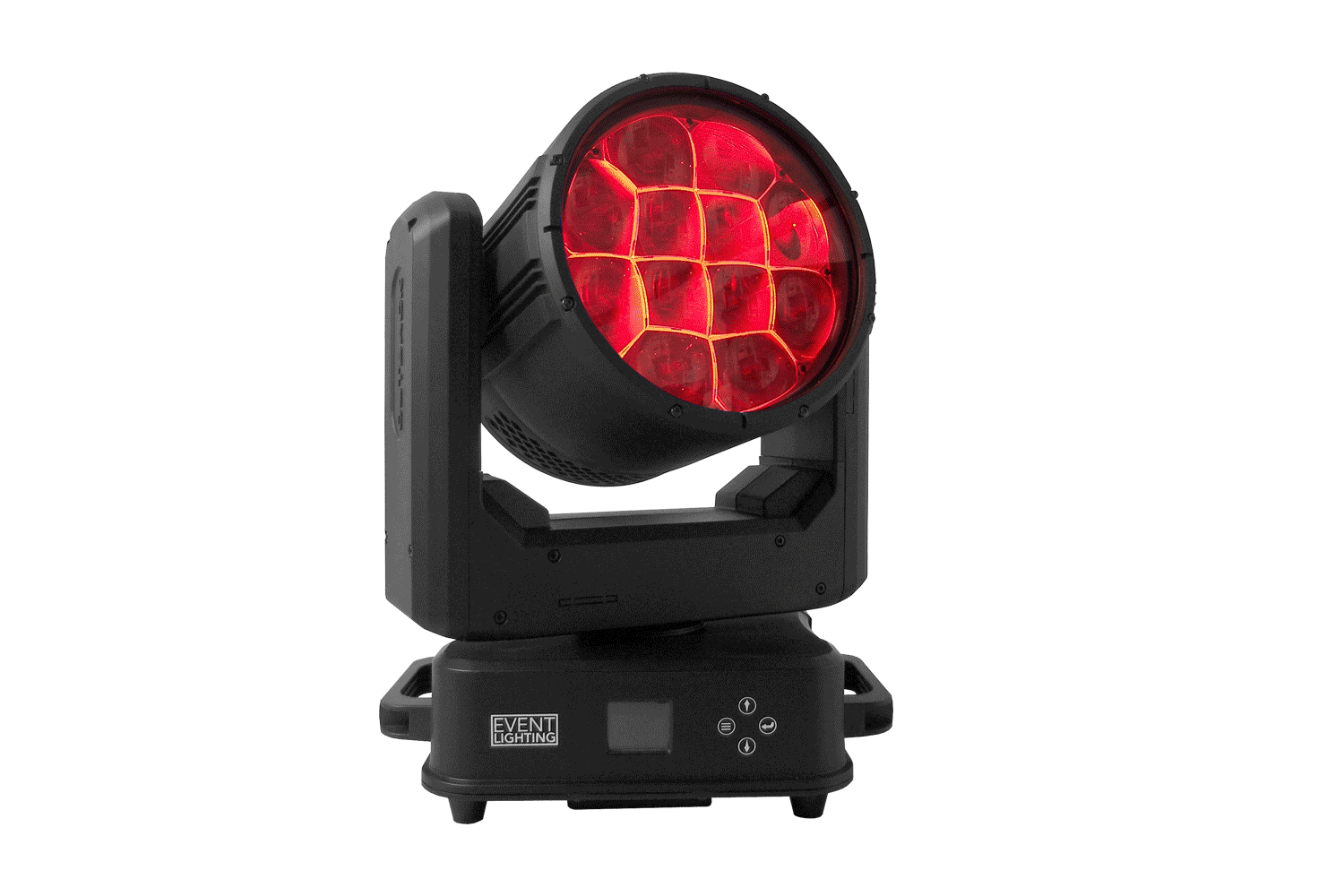

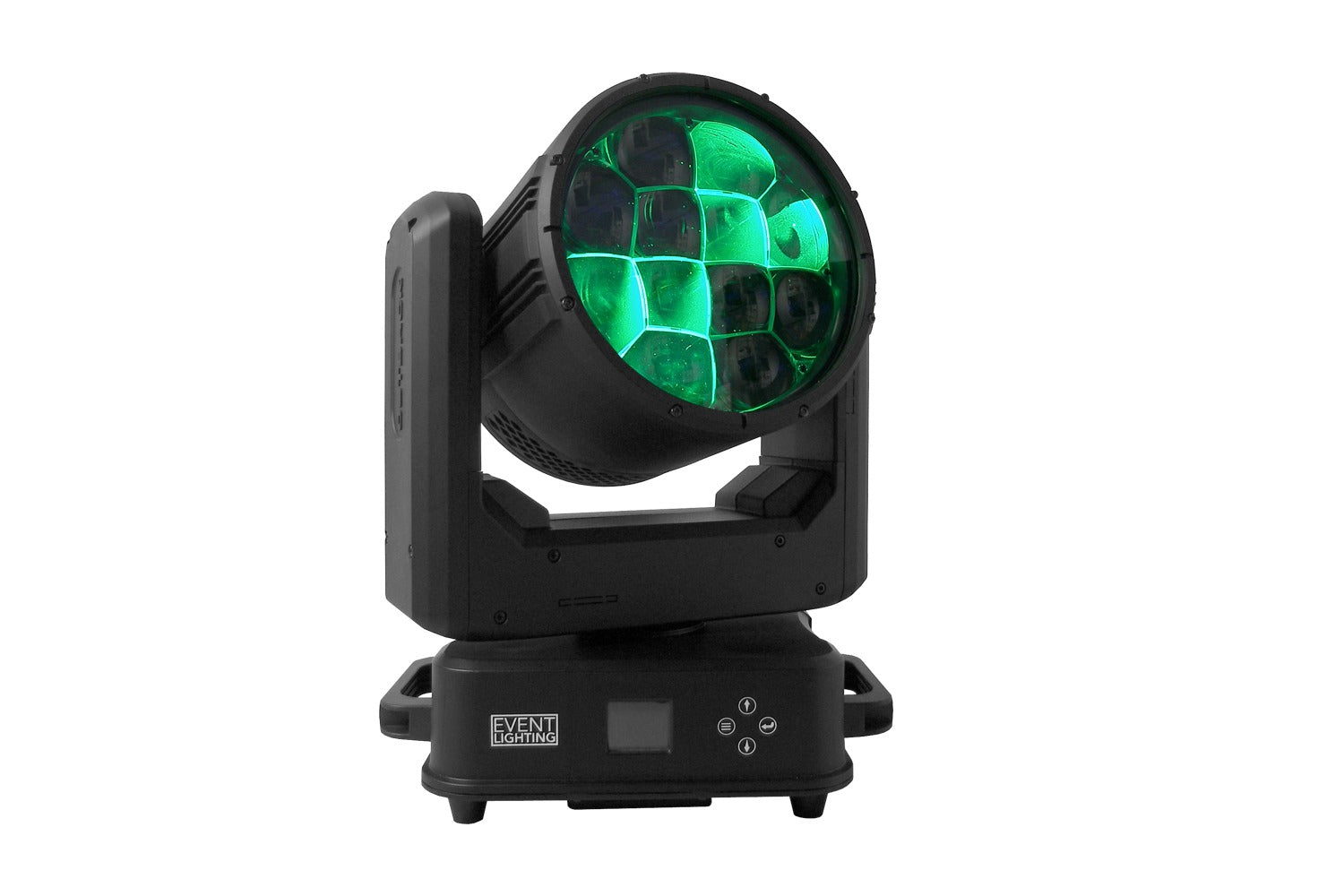

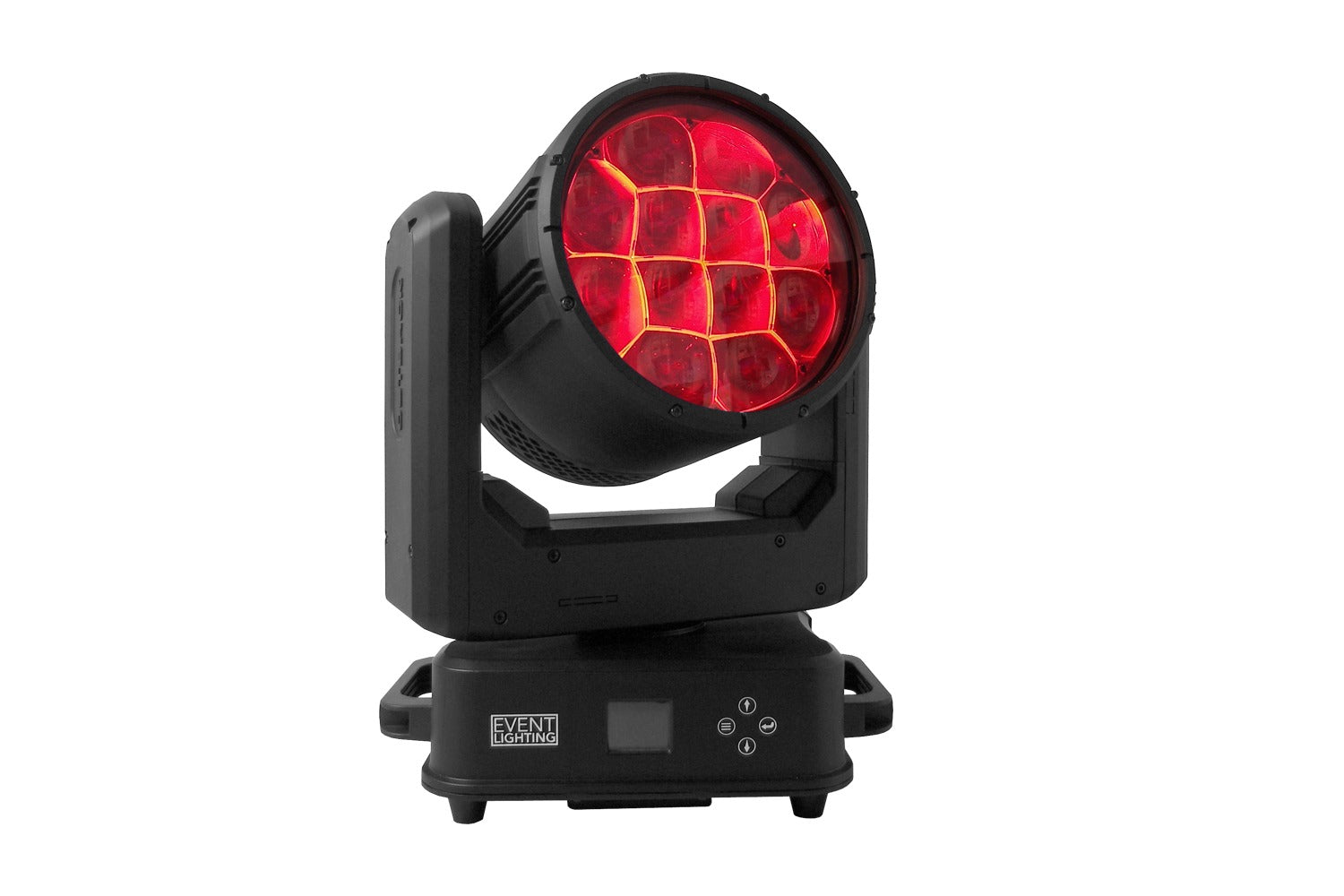

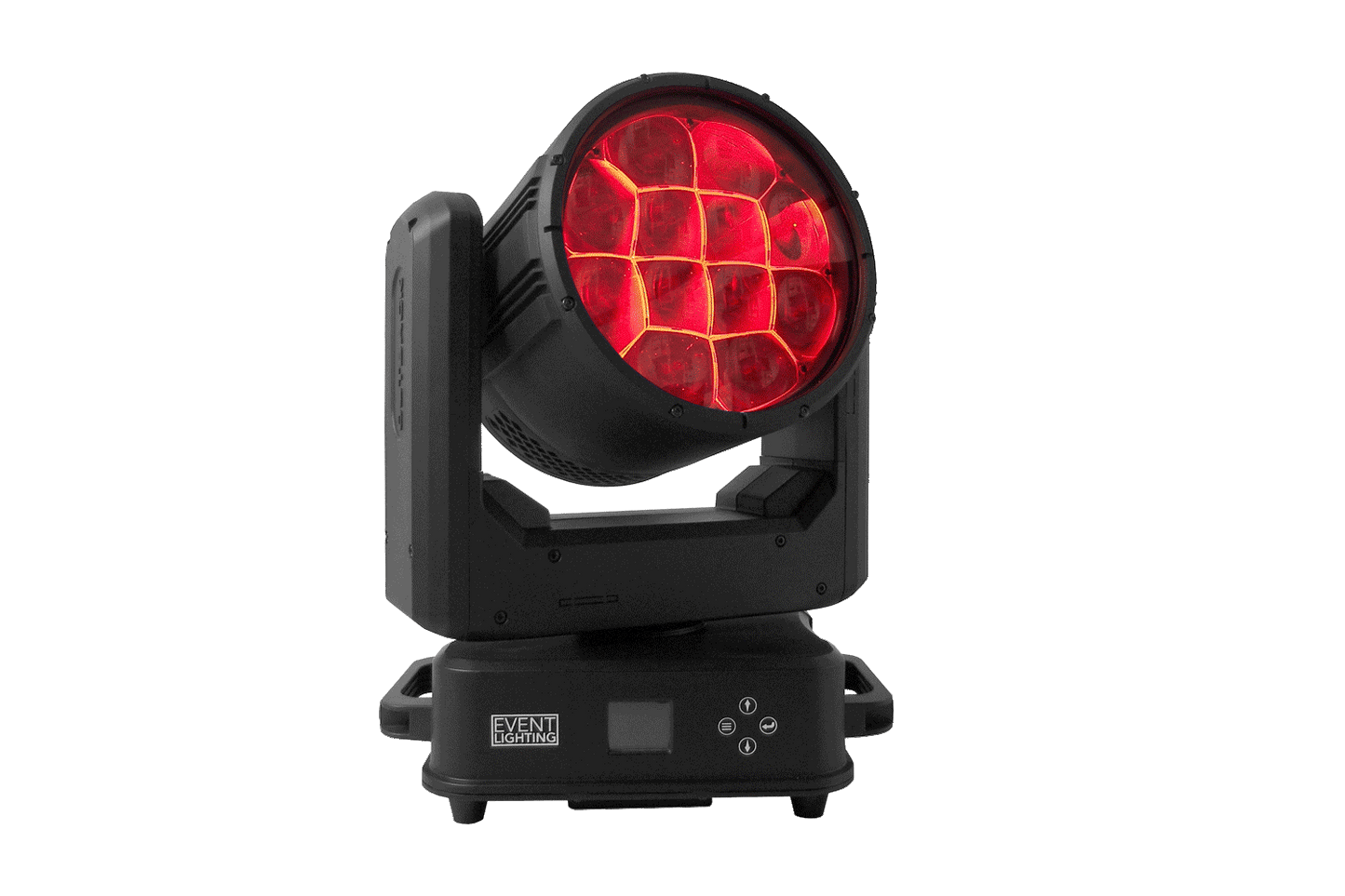

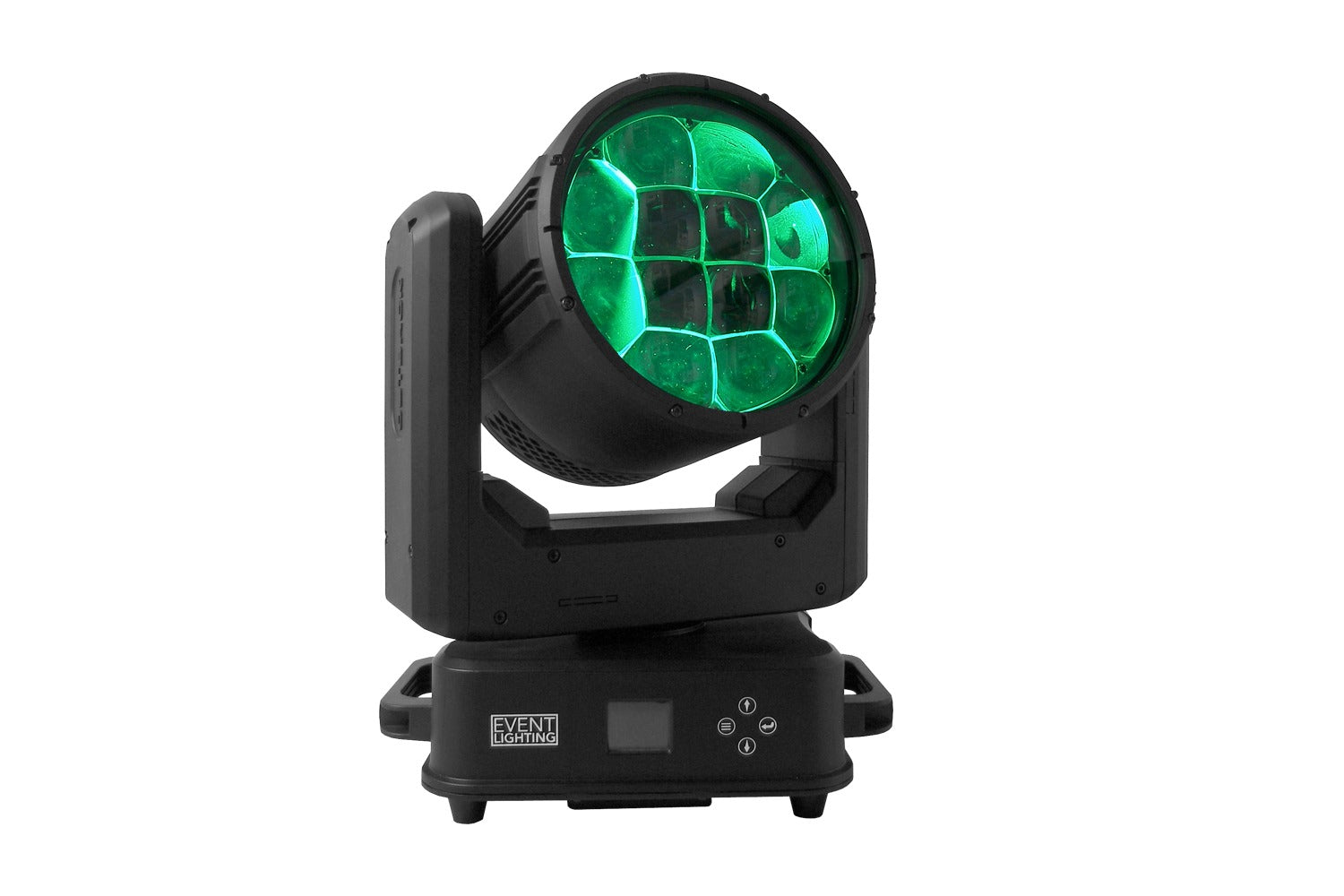

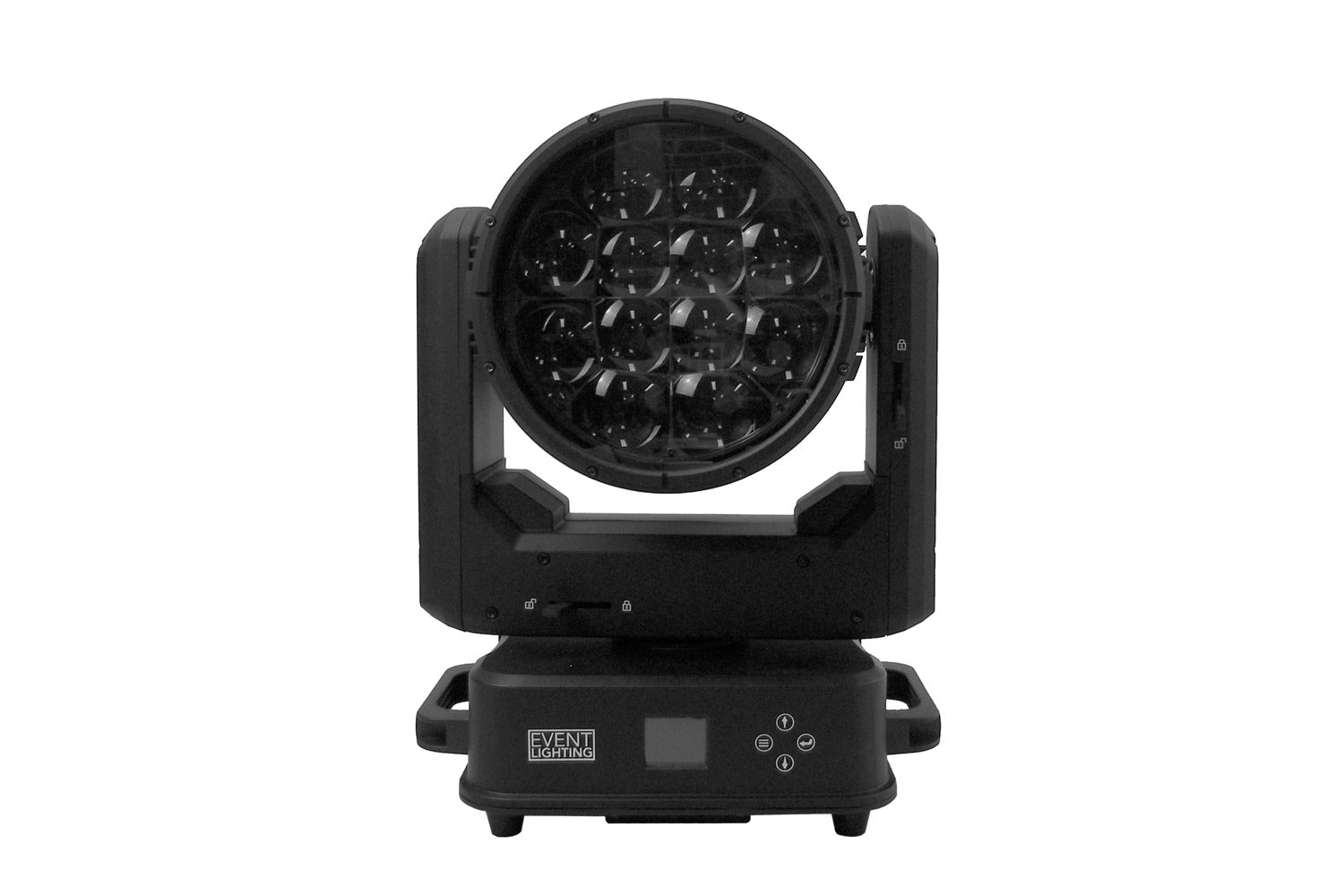

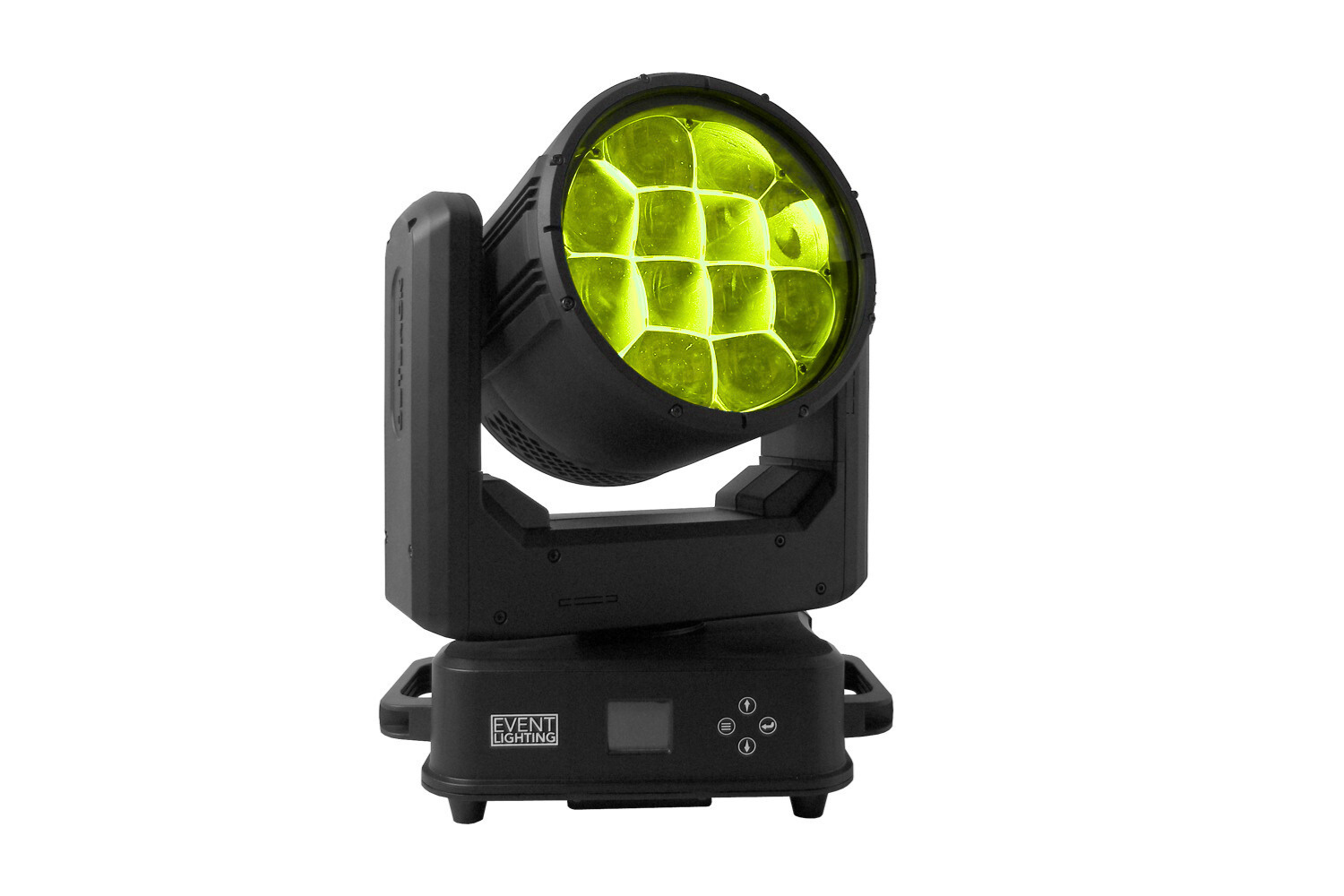

Introducing the OUTBACK12X60W from Event Lighting's OUTBACK Range - Built specifically to withstand outdoor conditions.

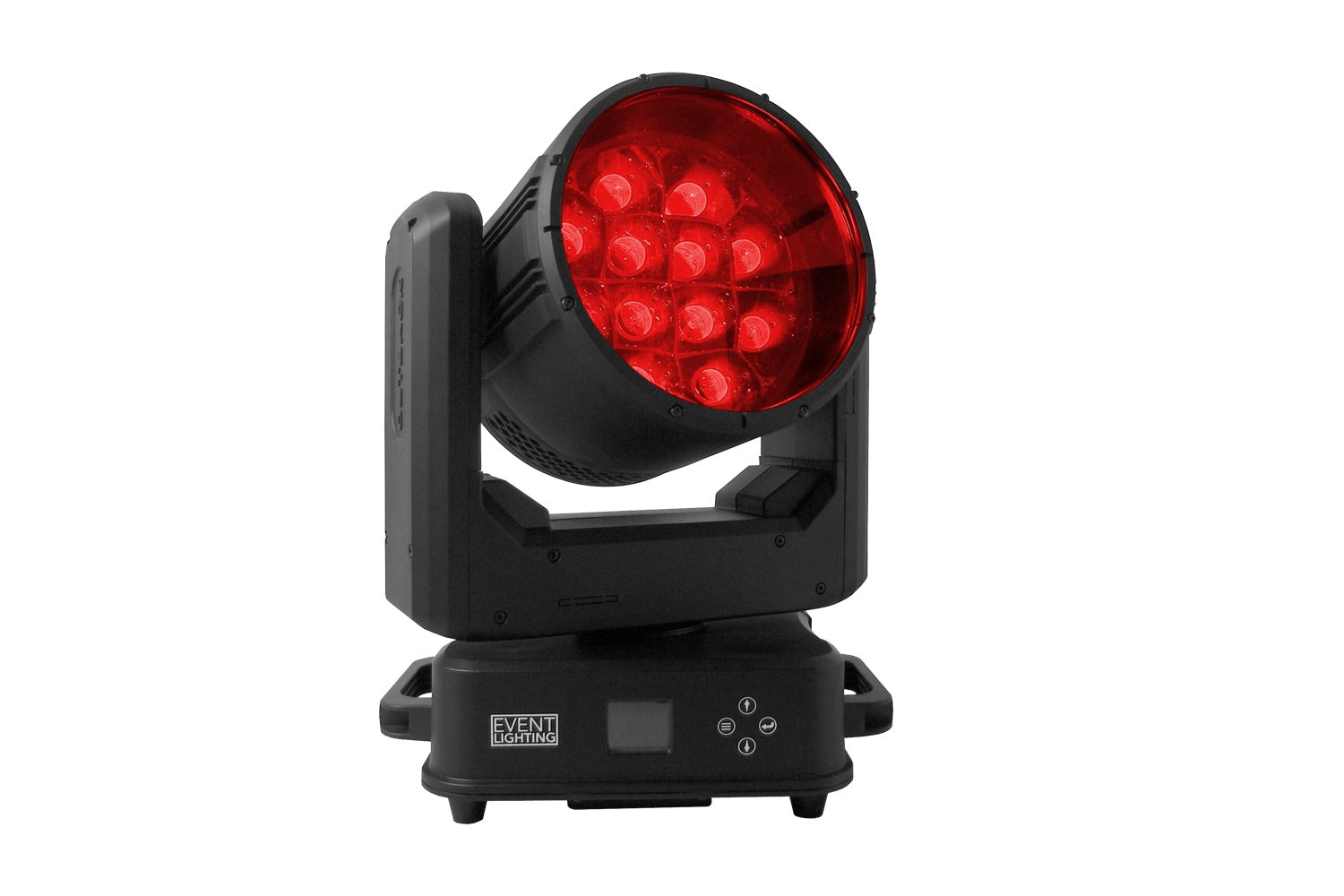

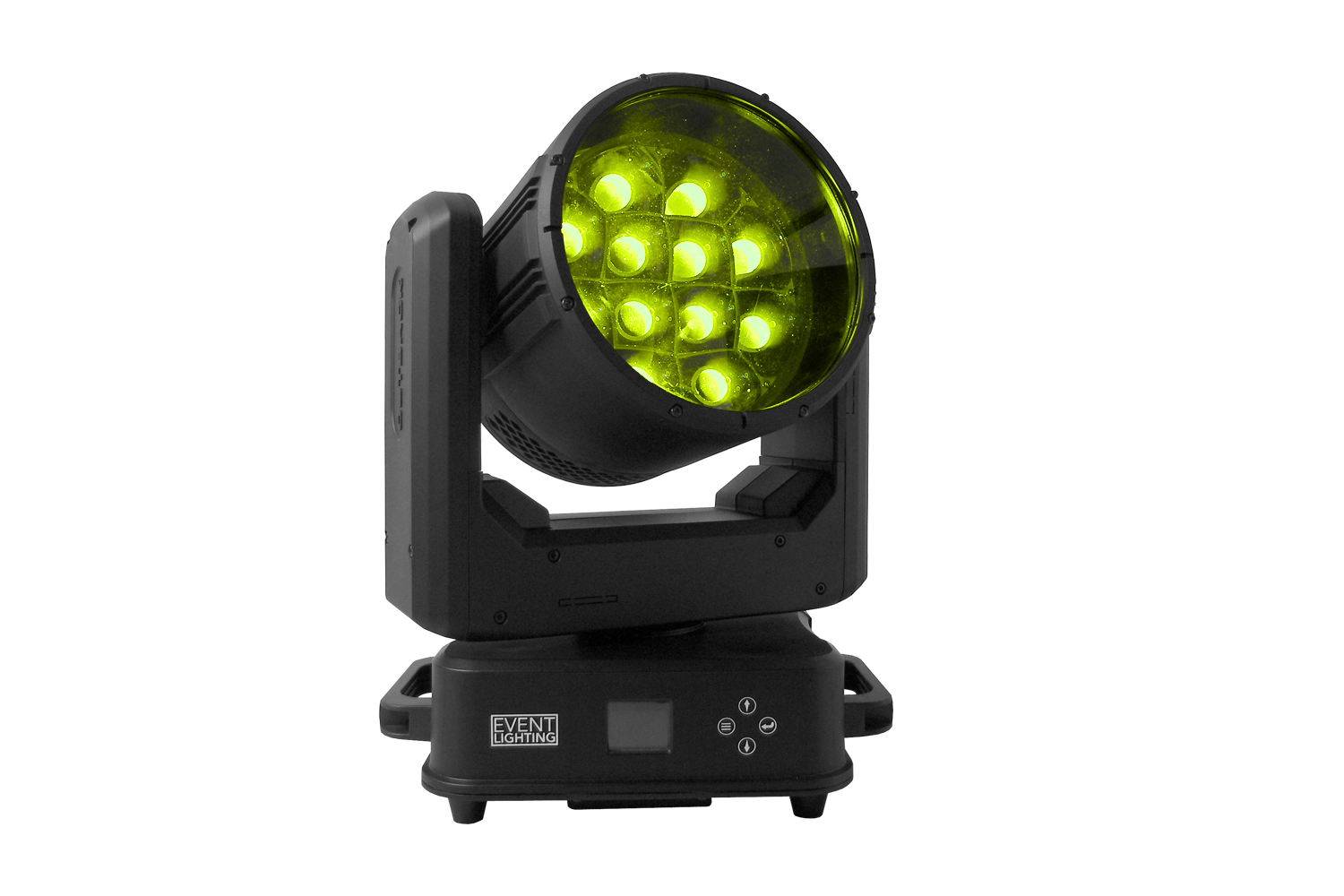

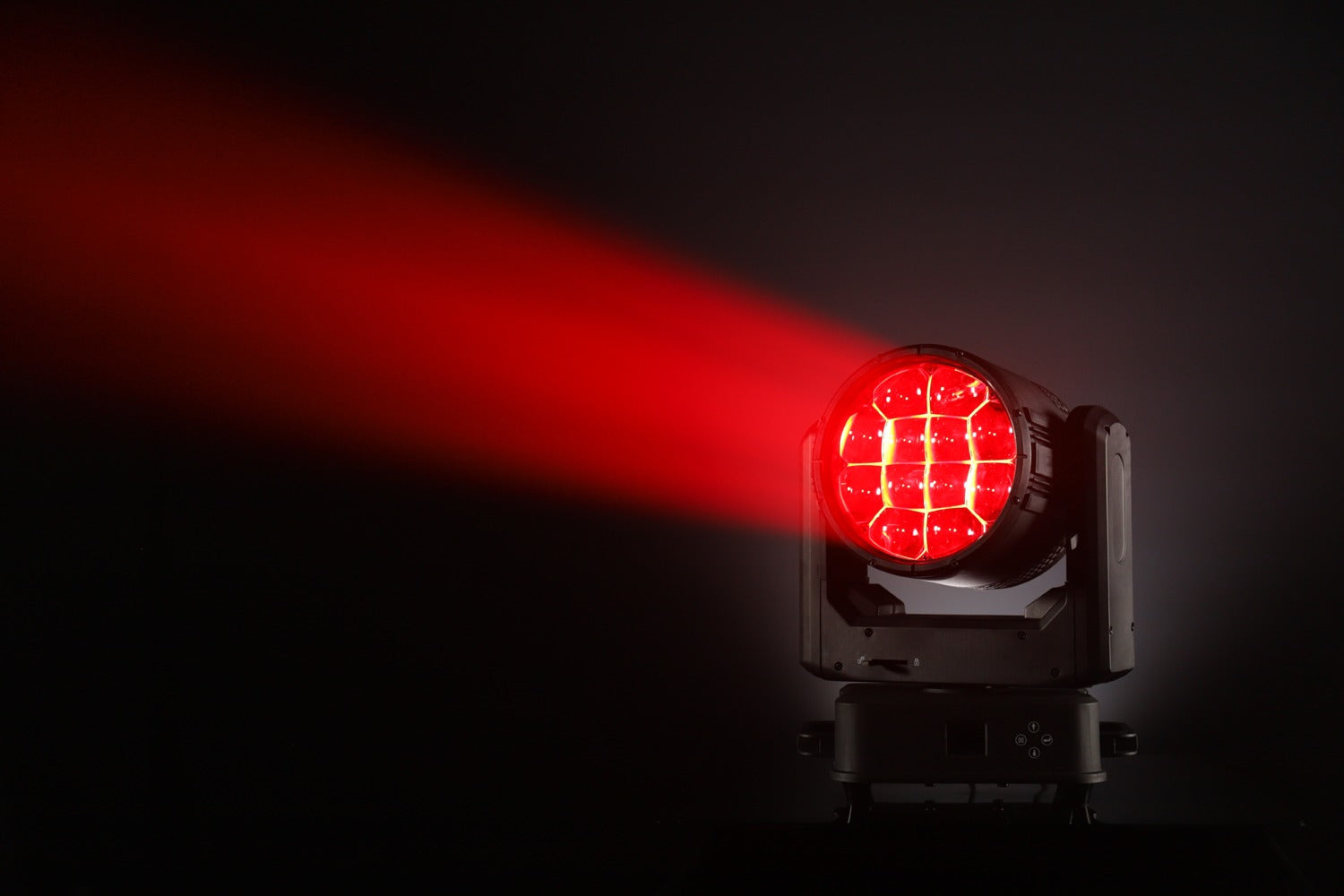

The OUTBACK12X60W features a powerful 12 x 60W RGBL 4-in-1 LED source with an impressive 24,547 lux output at 5m (3° beam angle) delivering exceptional brightness and rich, unparalleled colour mixing. Versatile colour capabilities are driven by the RGBW LEDs providing seamless colour control with an adjustable colour temperature range of 2,000K - 10,000K. Dynamic effects include motorised zoom with a wide range of 3° to 45°, and individual pixel control for stunning visual mapping and effects. Control options include 3 and 5 pin DMX as well as RDM capabilities, all housed in an IP65 rated enclosure.
Specifications:
Photometrics
Light Source: 12 x 60W RGBL 4-in-1 LEDs
Beam Angle: 3°- 26°
Zoom Angle: 3°- 45°

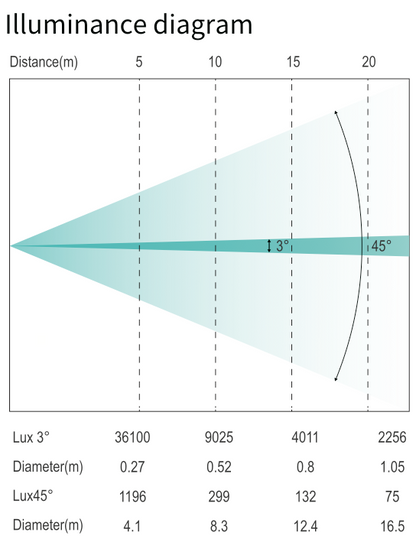

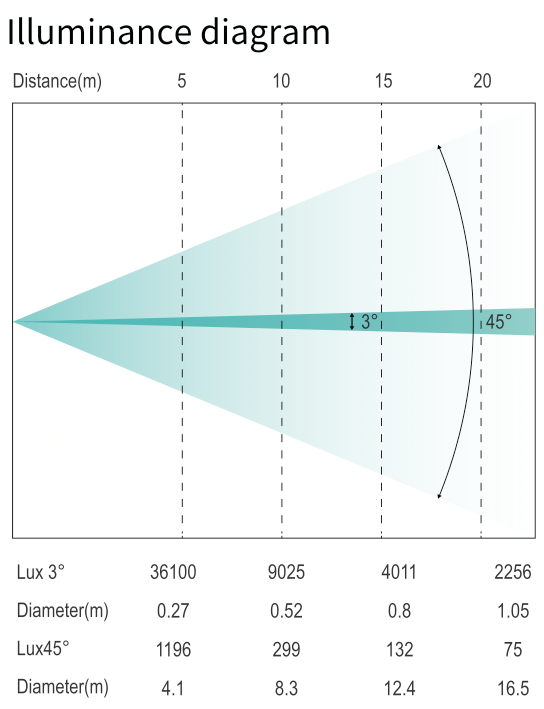

Output: 24,547 lux @ 3°, 5m
CCT: 2,000 - 10,000K
CRI: >80
Led lifespan: >20,000 hours
Effects
Dimming: 0-100%
Pixel Control: Yes
Strobe: 1 - 25 Hz
Zoom: Motorised, 3°-45°
Movement
16 bit resolution
Auto repositioning
Pan: 540°
Tilt: 270°
Power
Input Voltage: 100-240V AC, 50/60Hz
Max power consumption: 570W
Connection: True1 in/out
Control
Control Protocol: DMX512, RDM
DMX Channels: 15 / 29 / 61

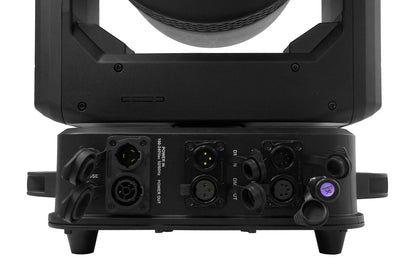

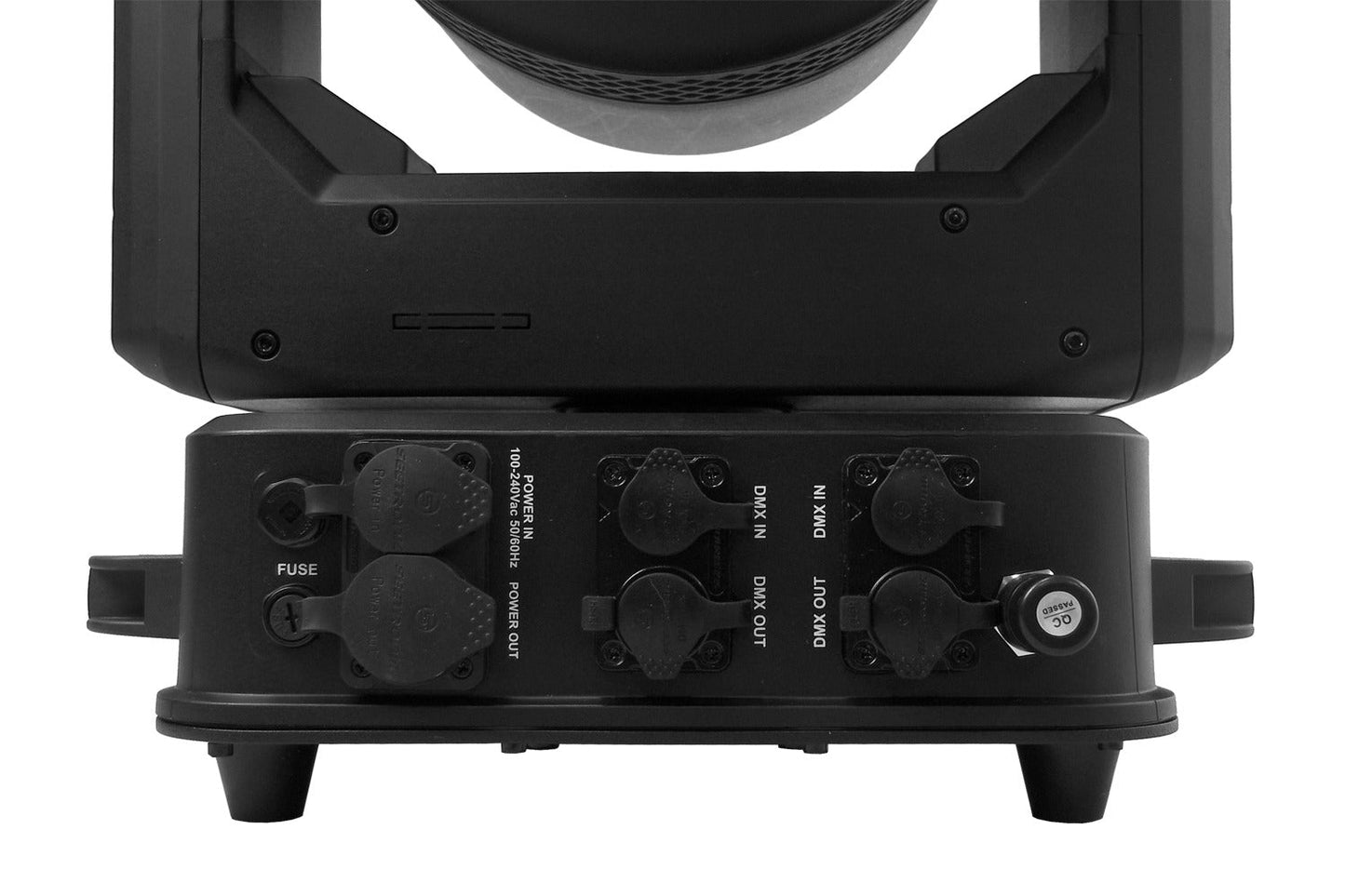

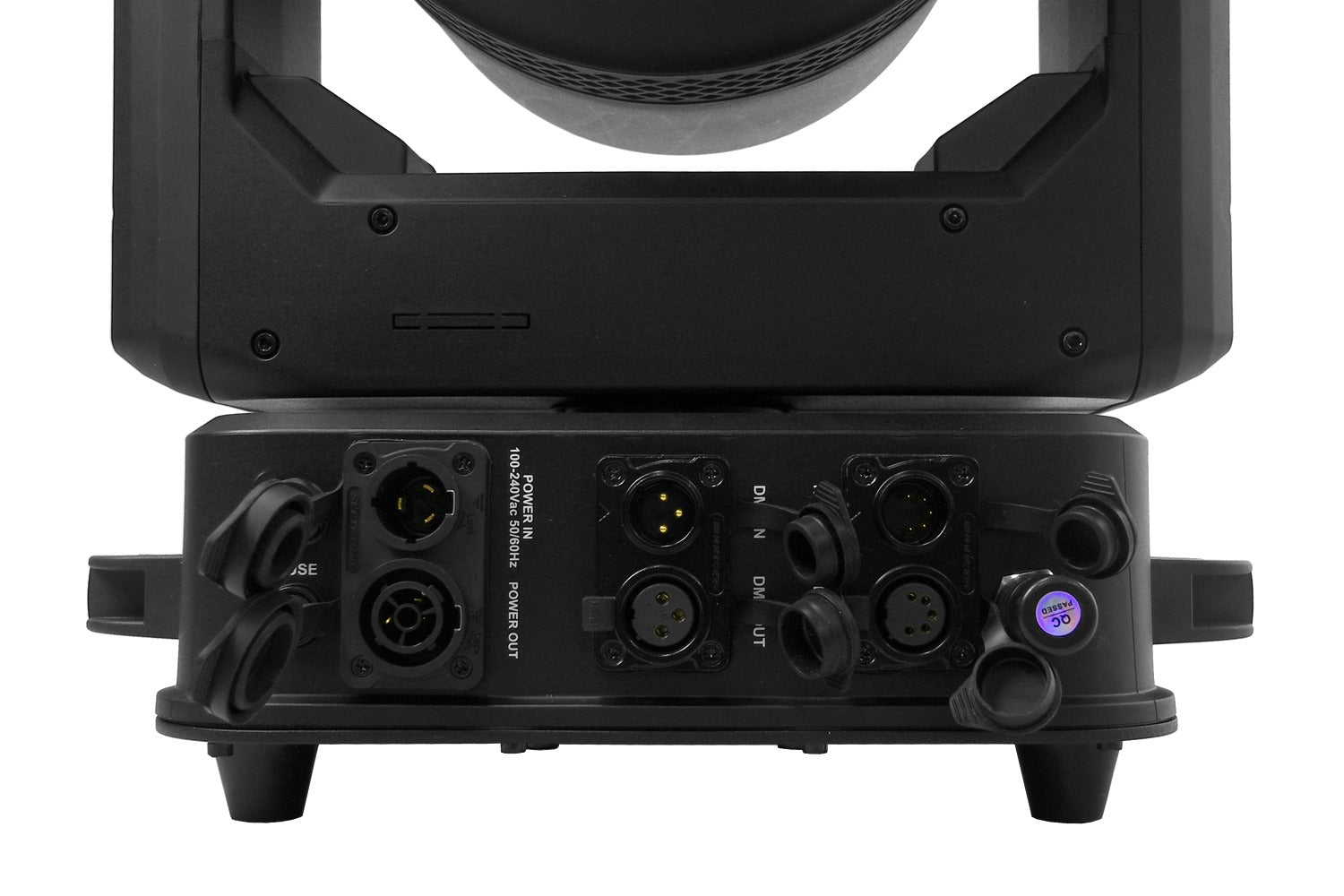

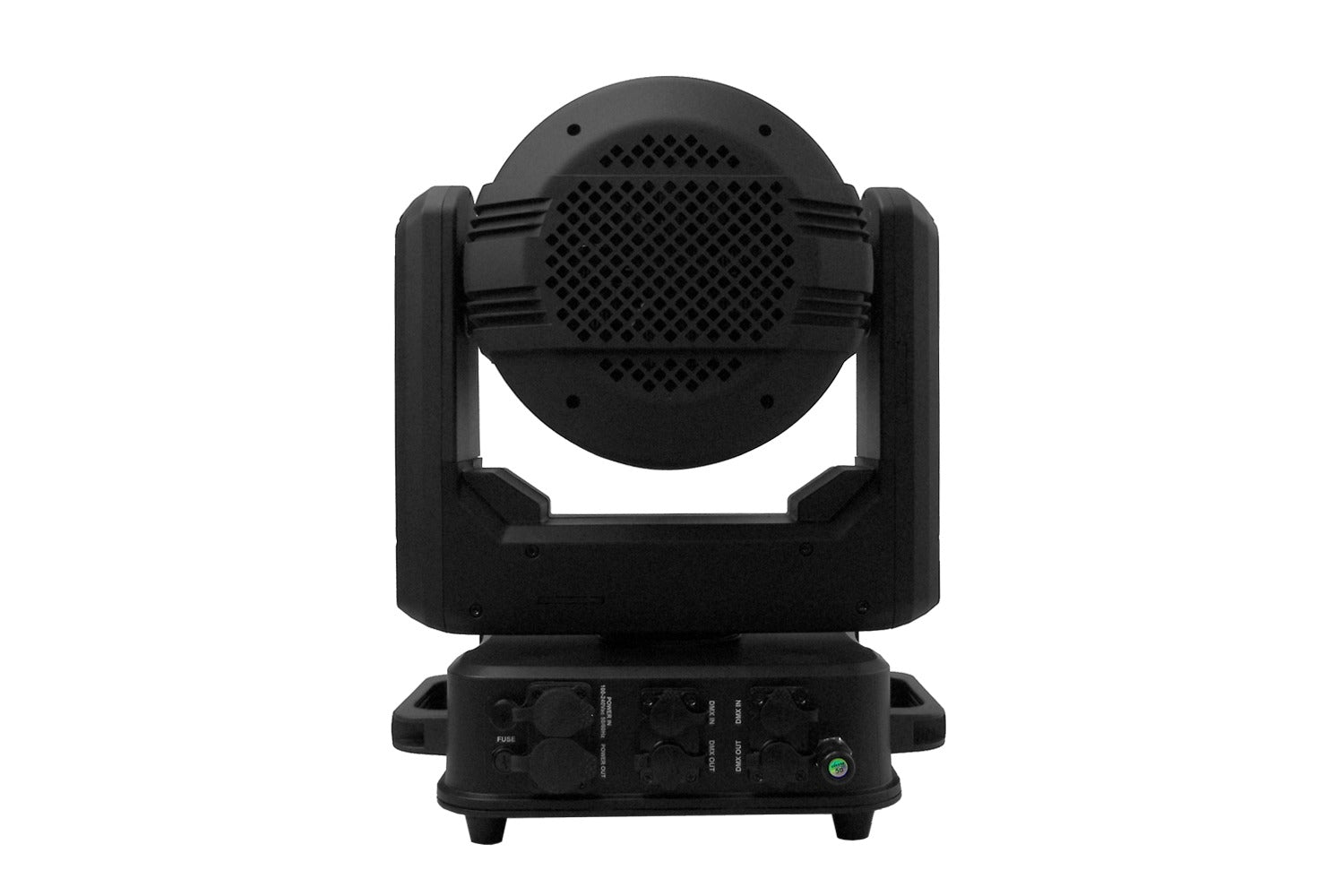

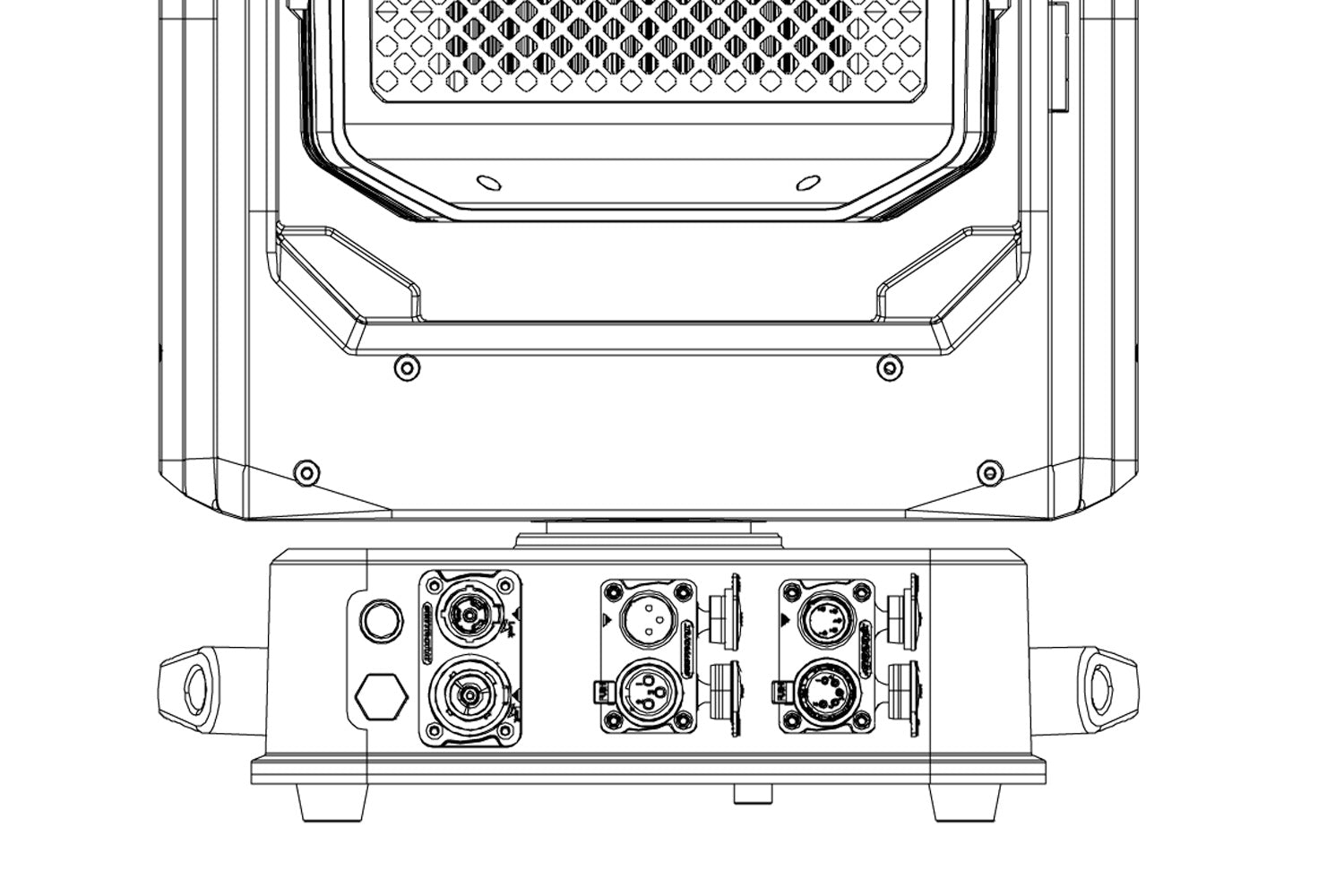

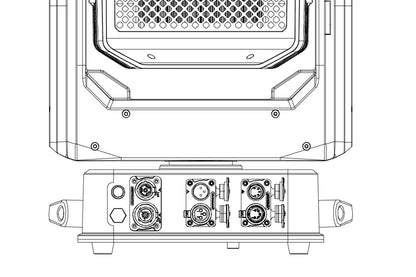

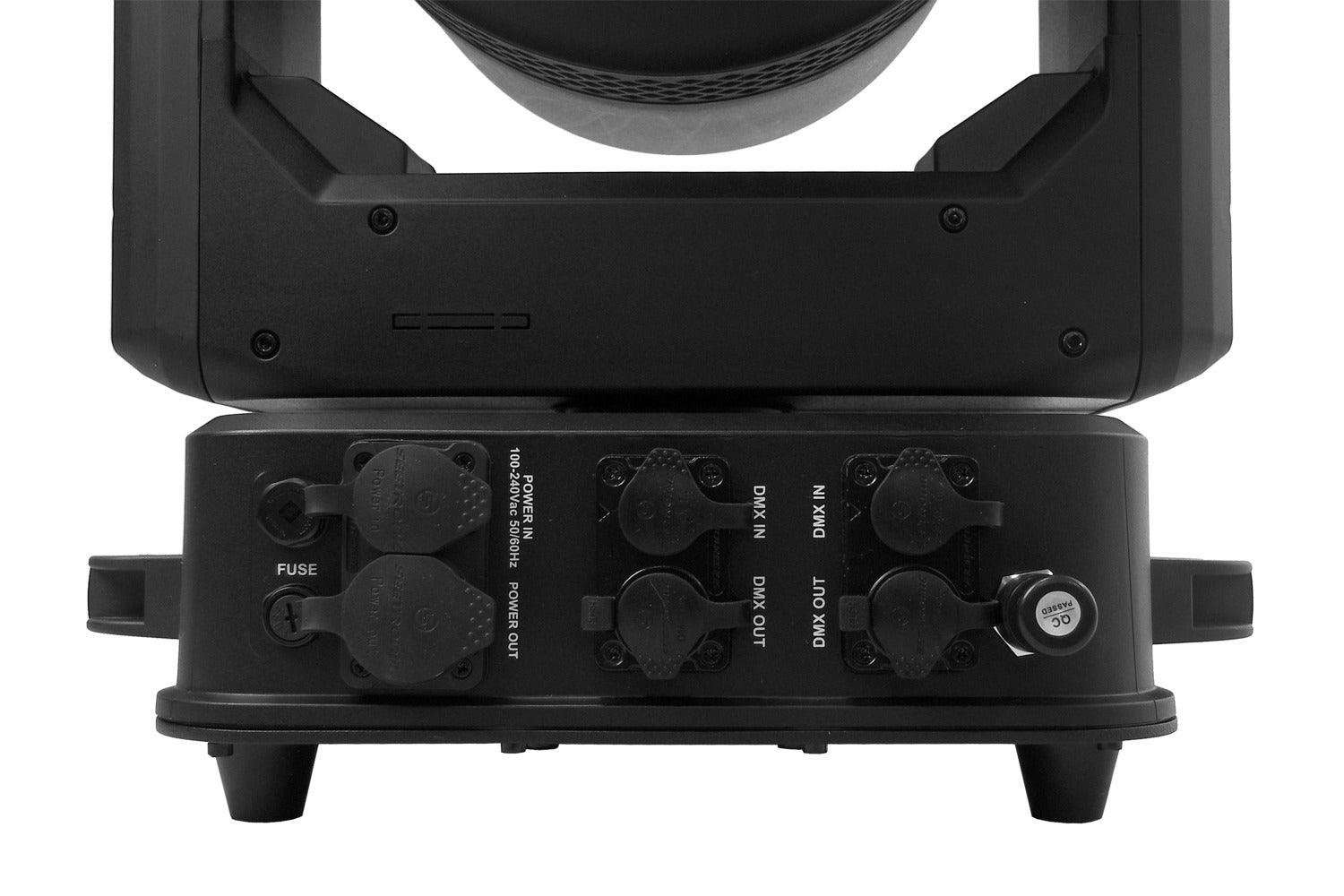

Interface: 3-pin/5-pin XLR (in/out)

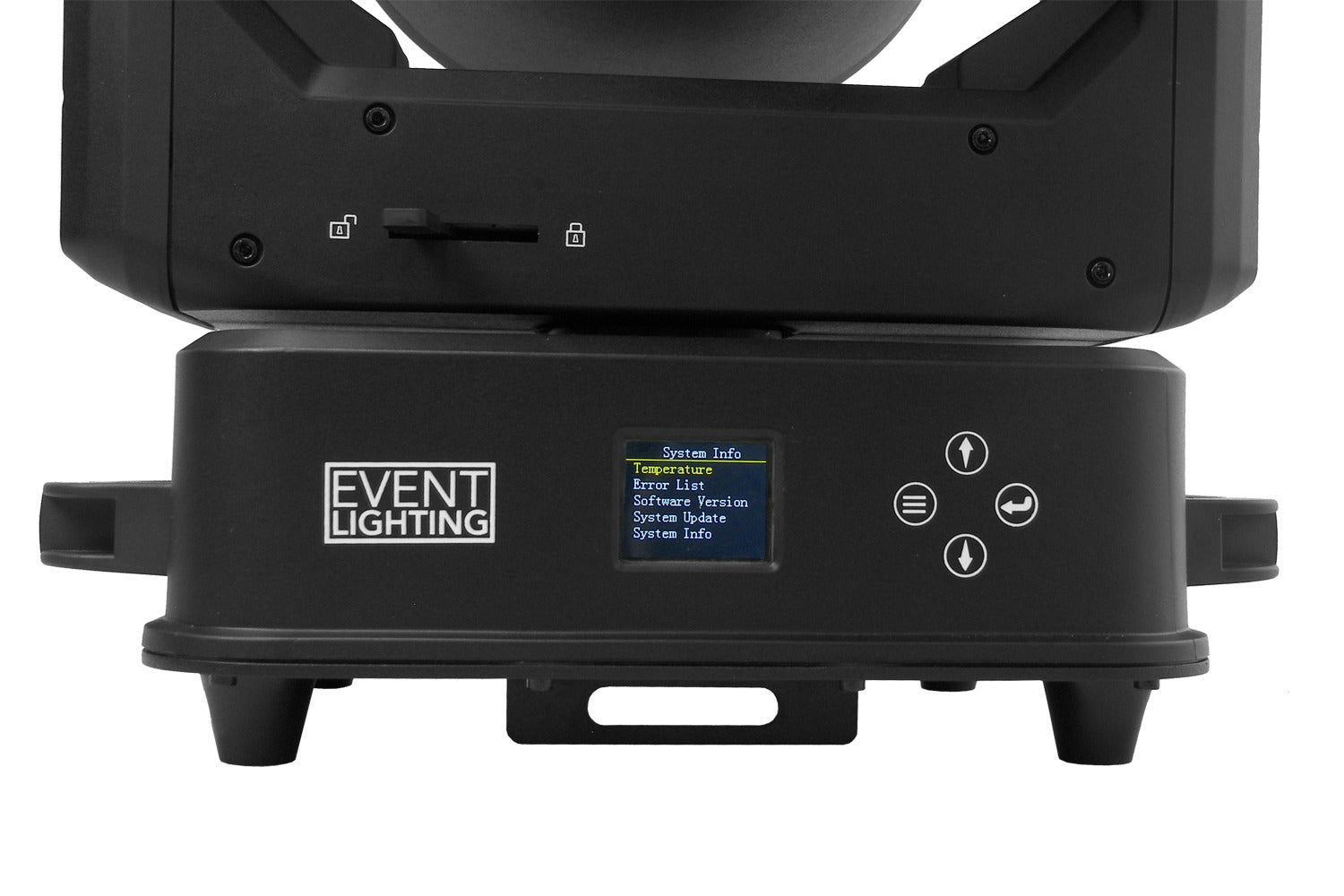

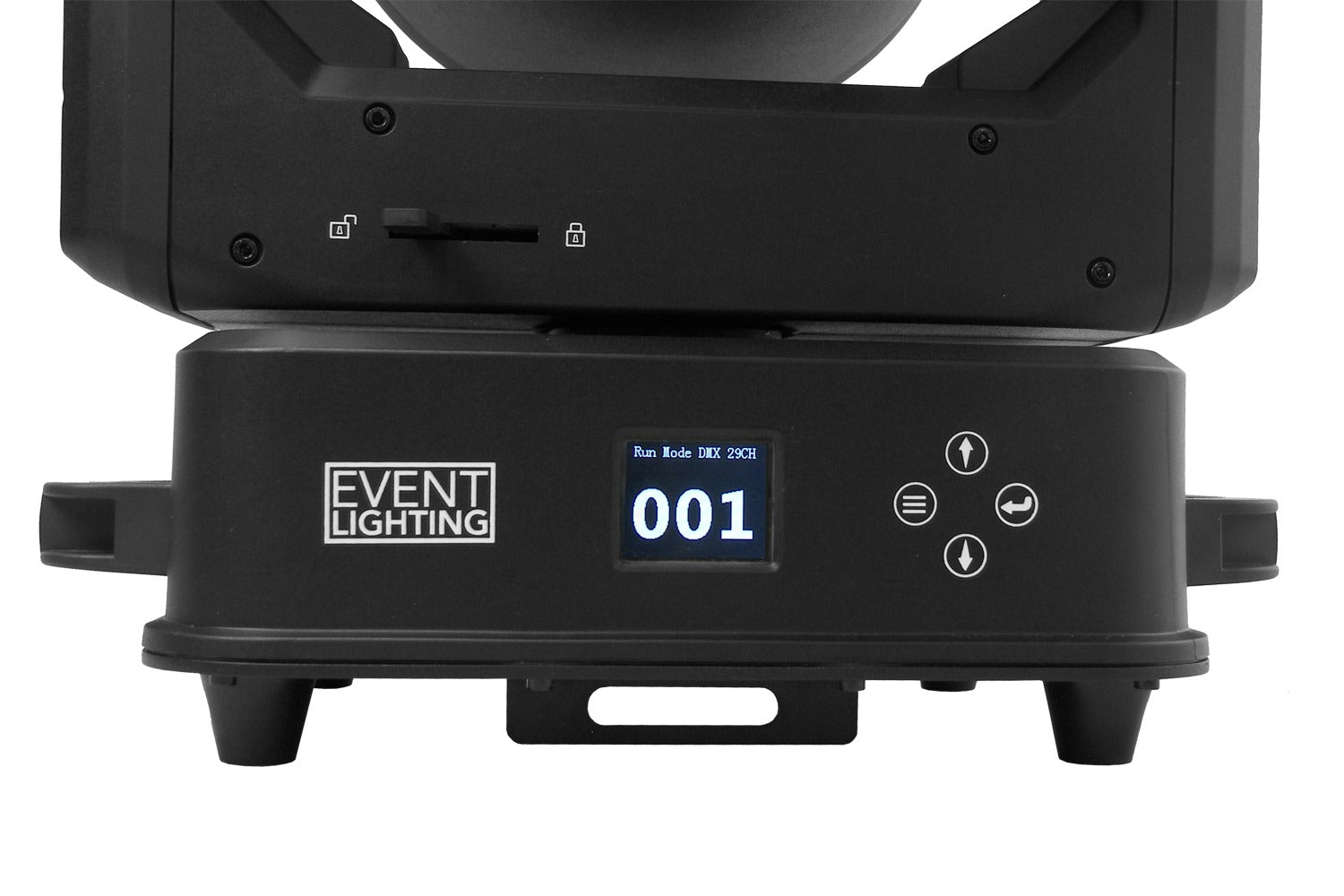

Display: TFT control panel
Housing
Materials: ABS & Steel, matte black finish
Protection: High temperature automatic protection
IP rating: IP65

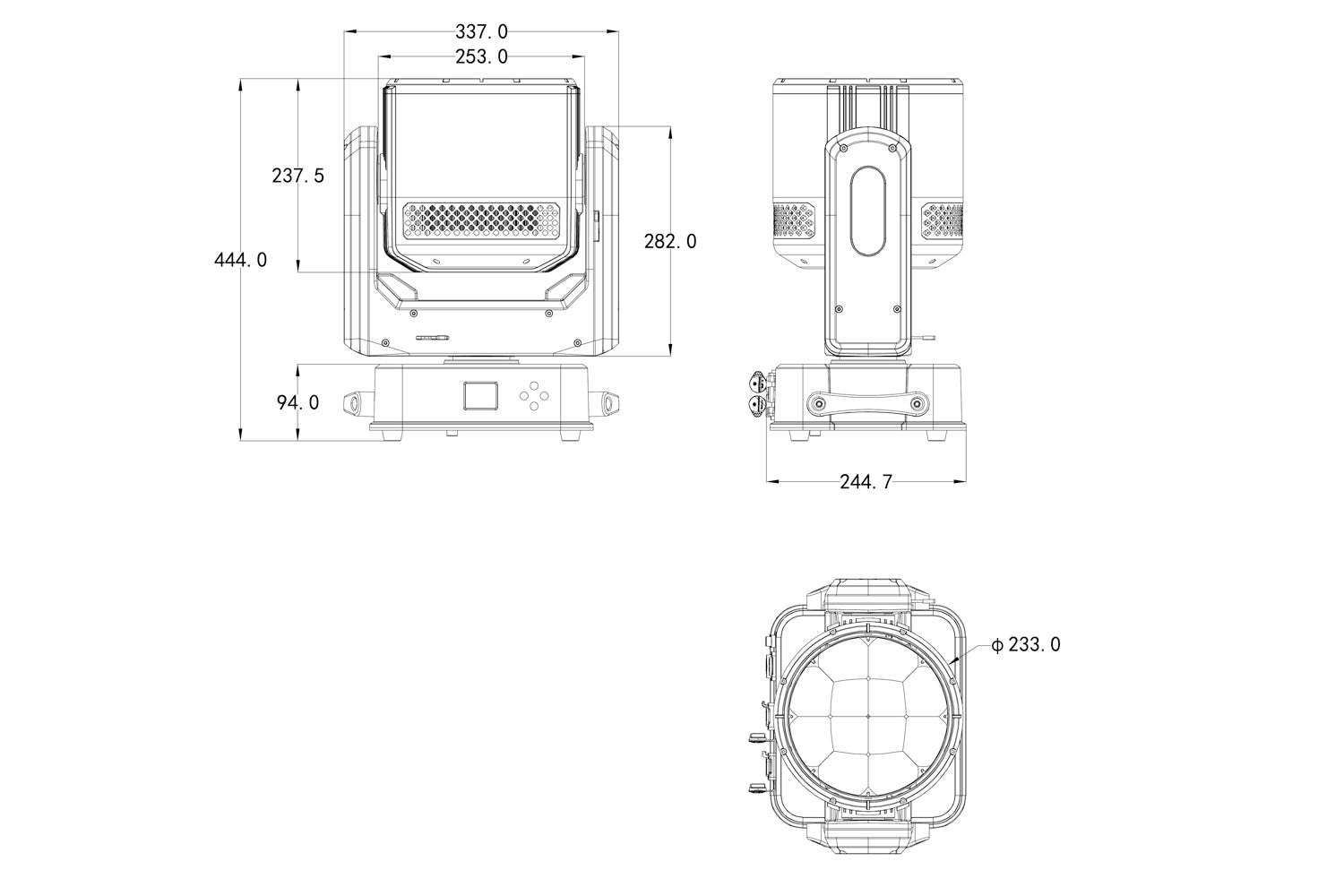

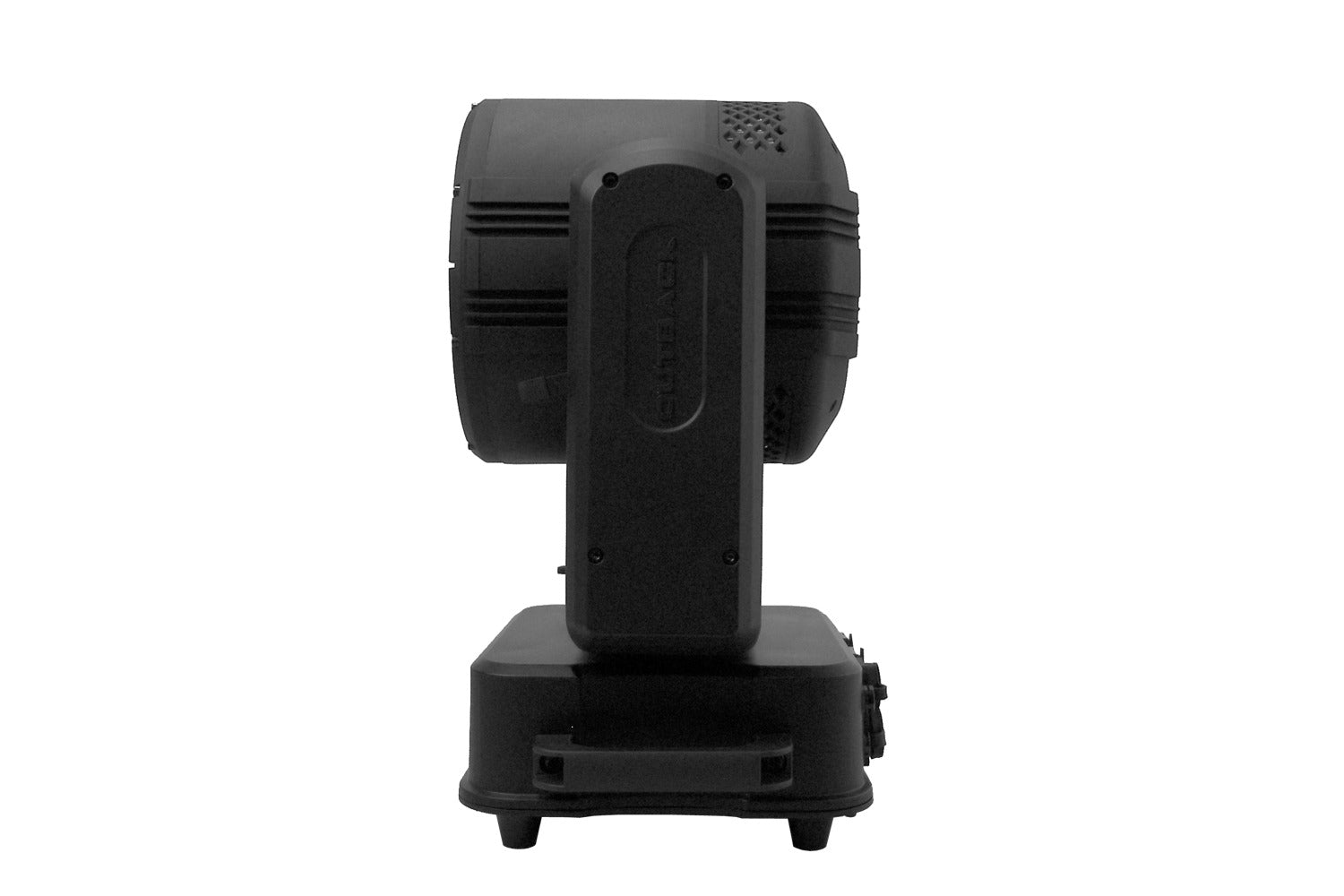

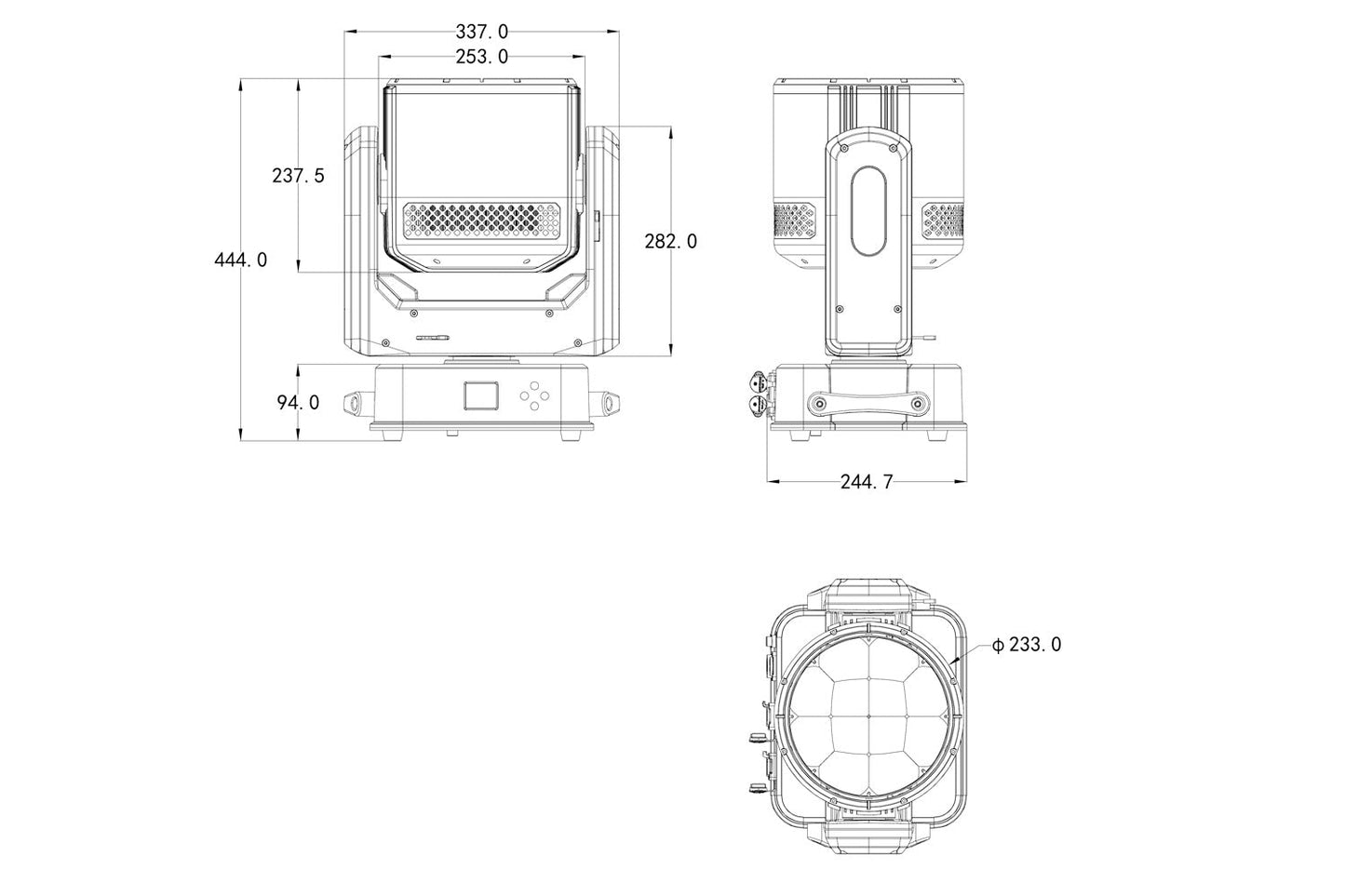

Dimensions: 337 x 240 x 457mm / 13.3" x 9.4" x 18.0"
