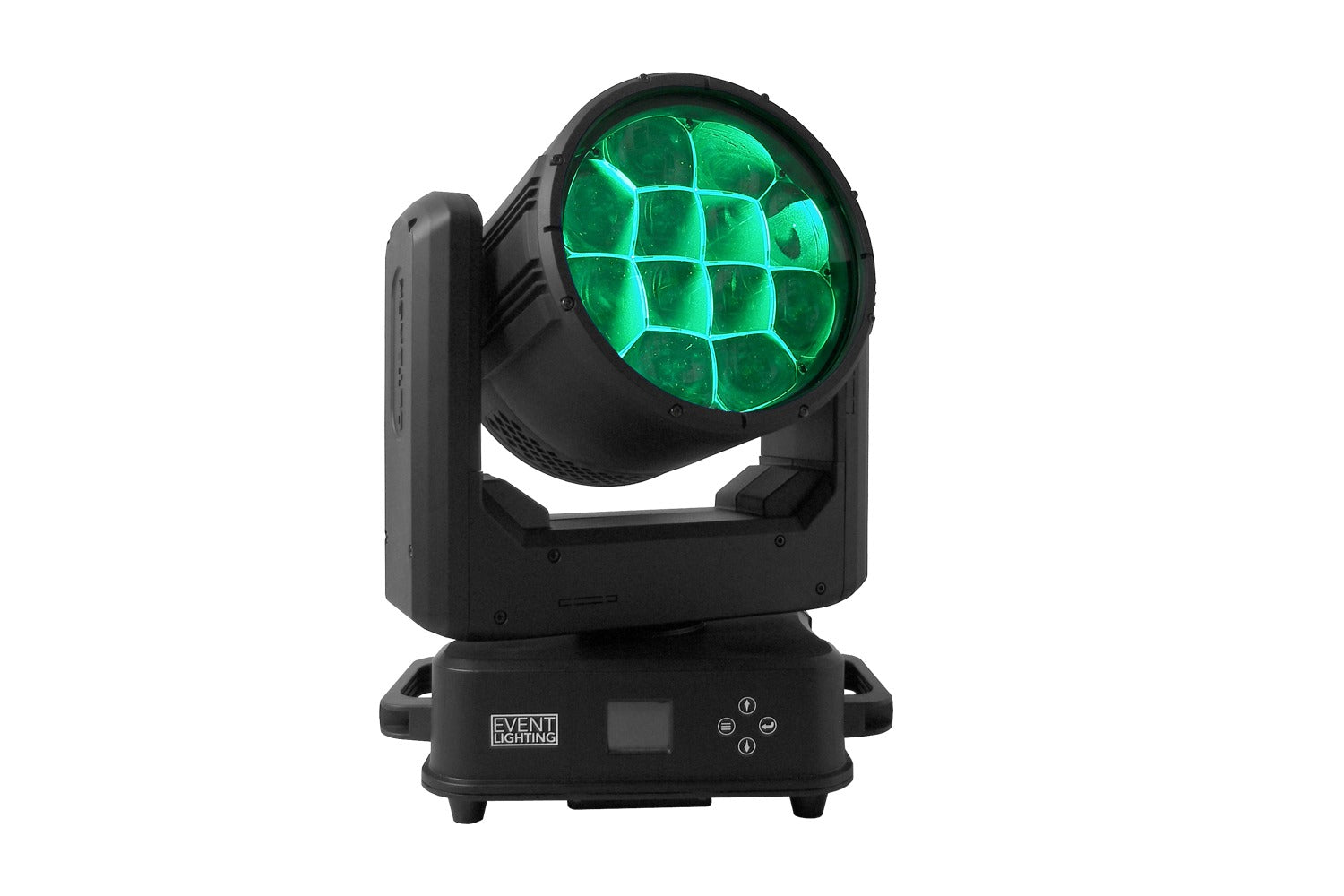

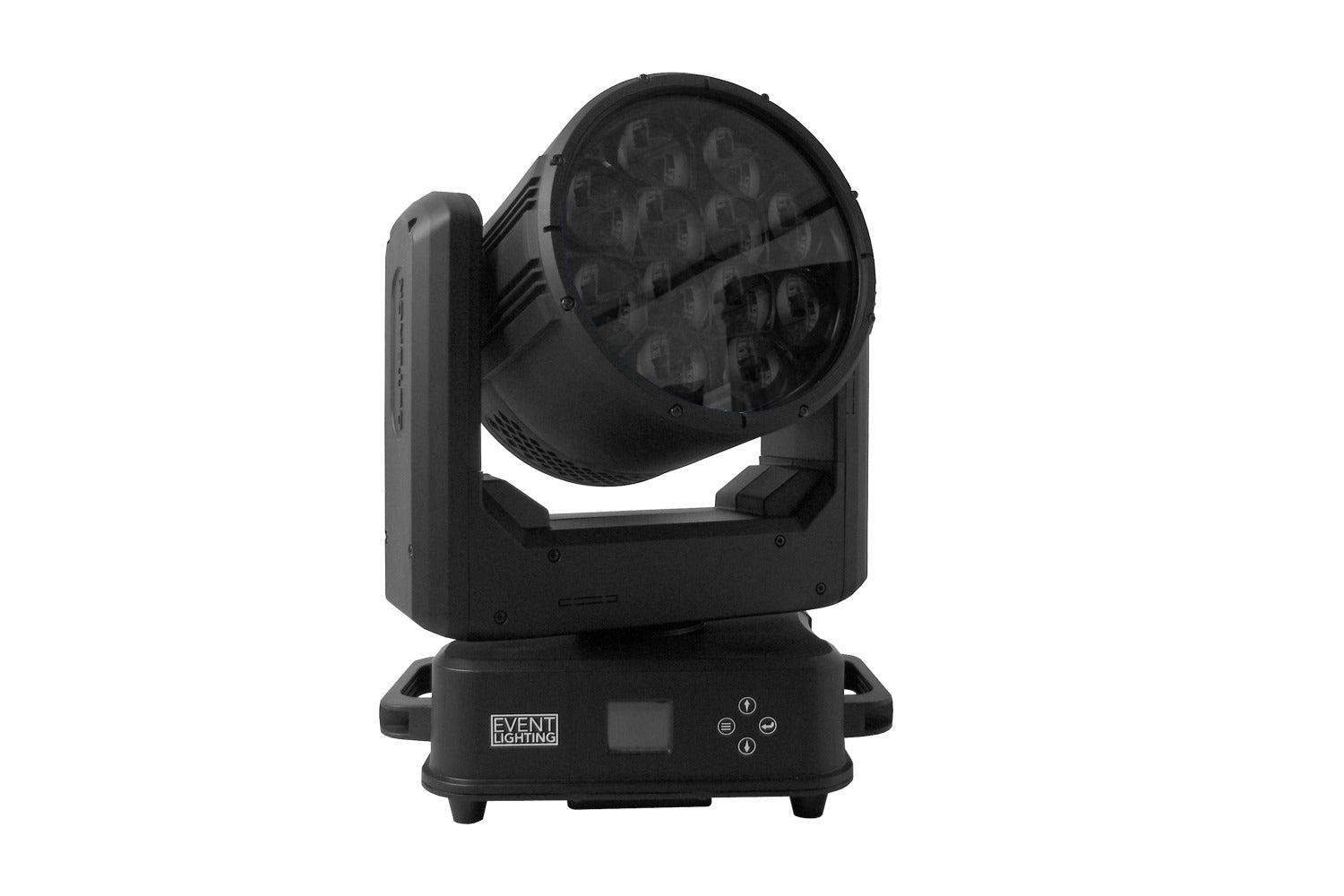

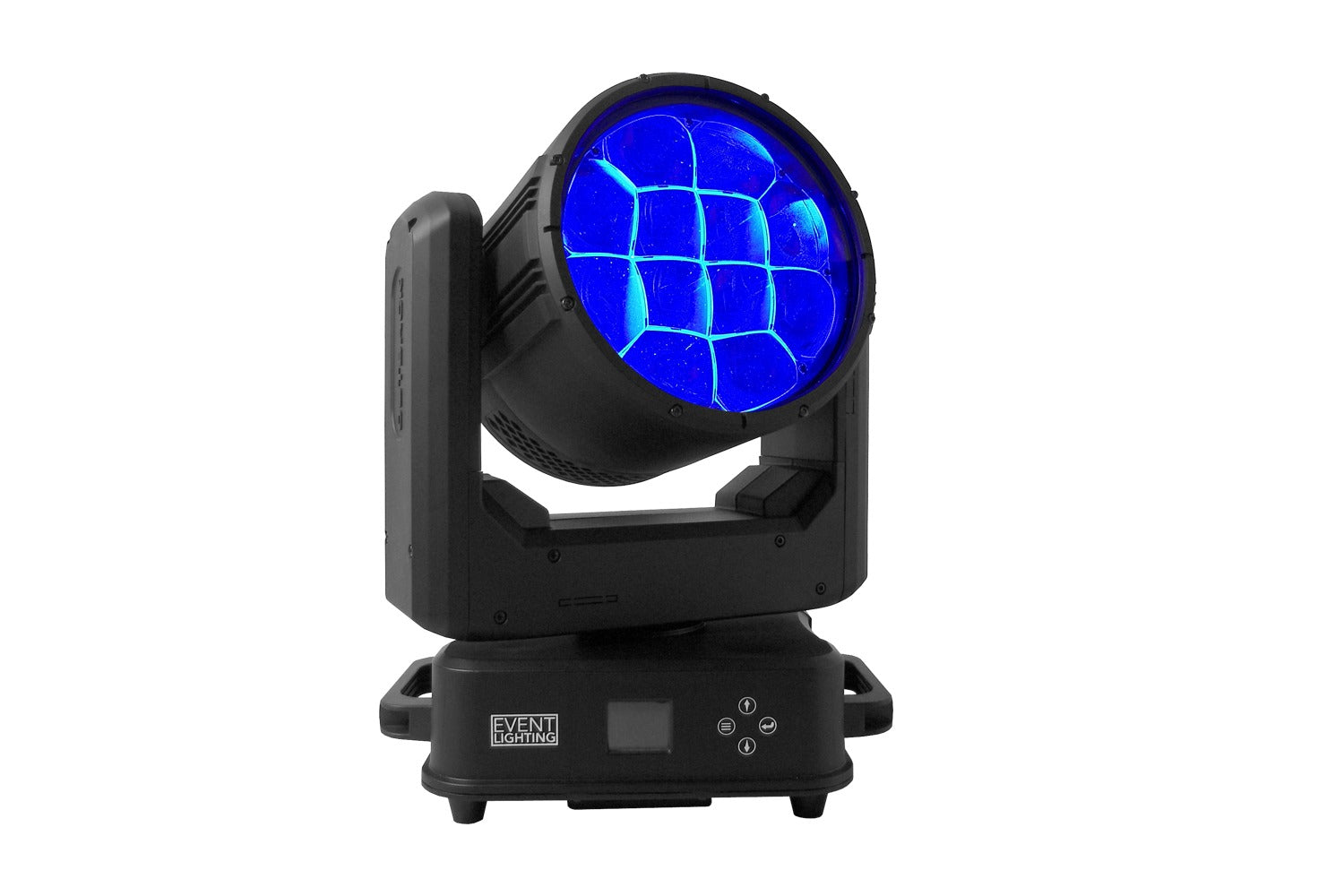

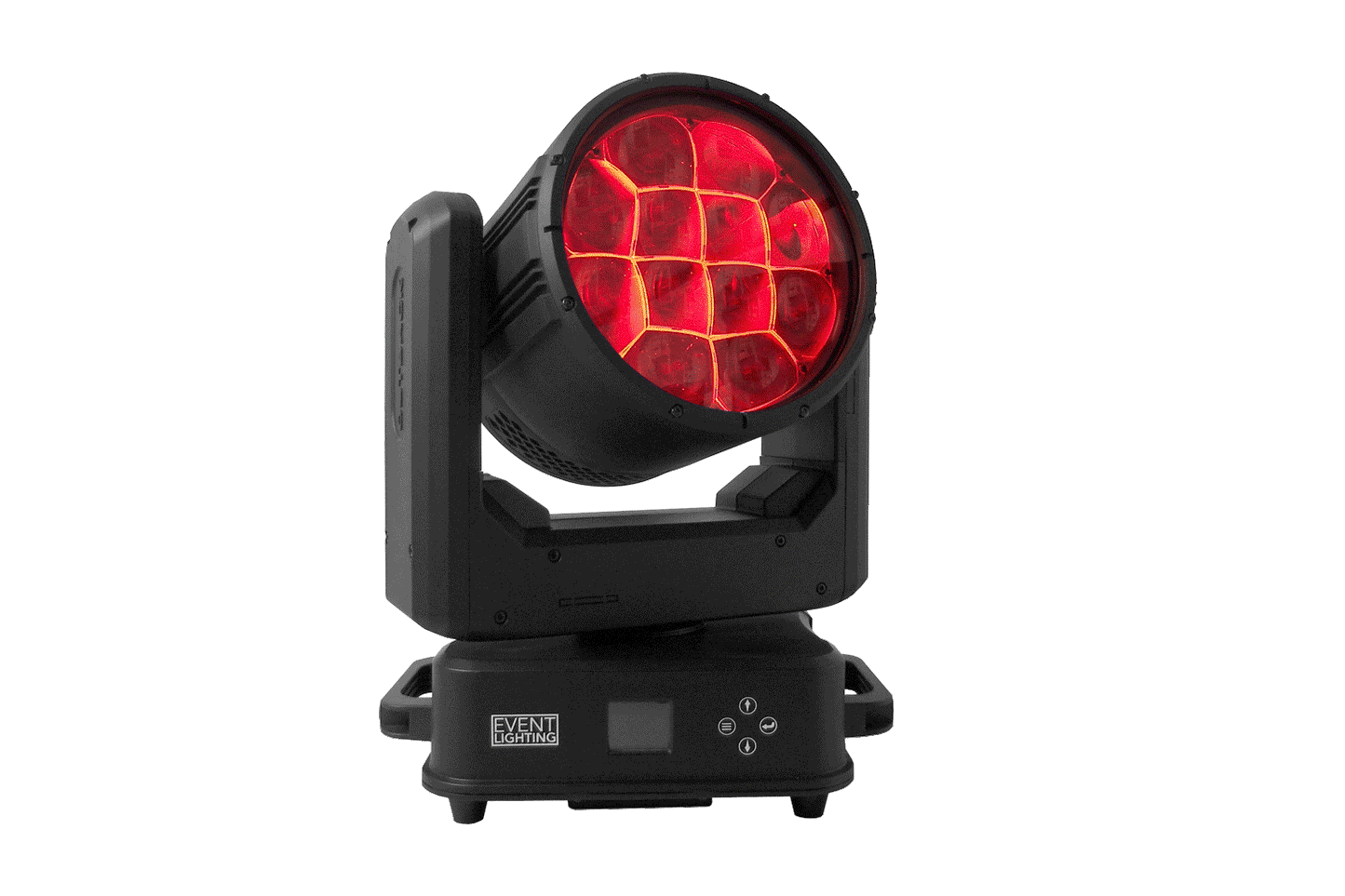

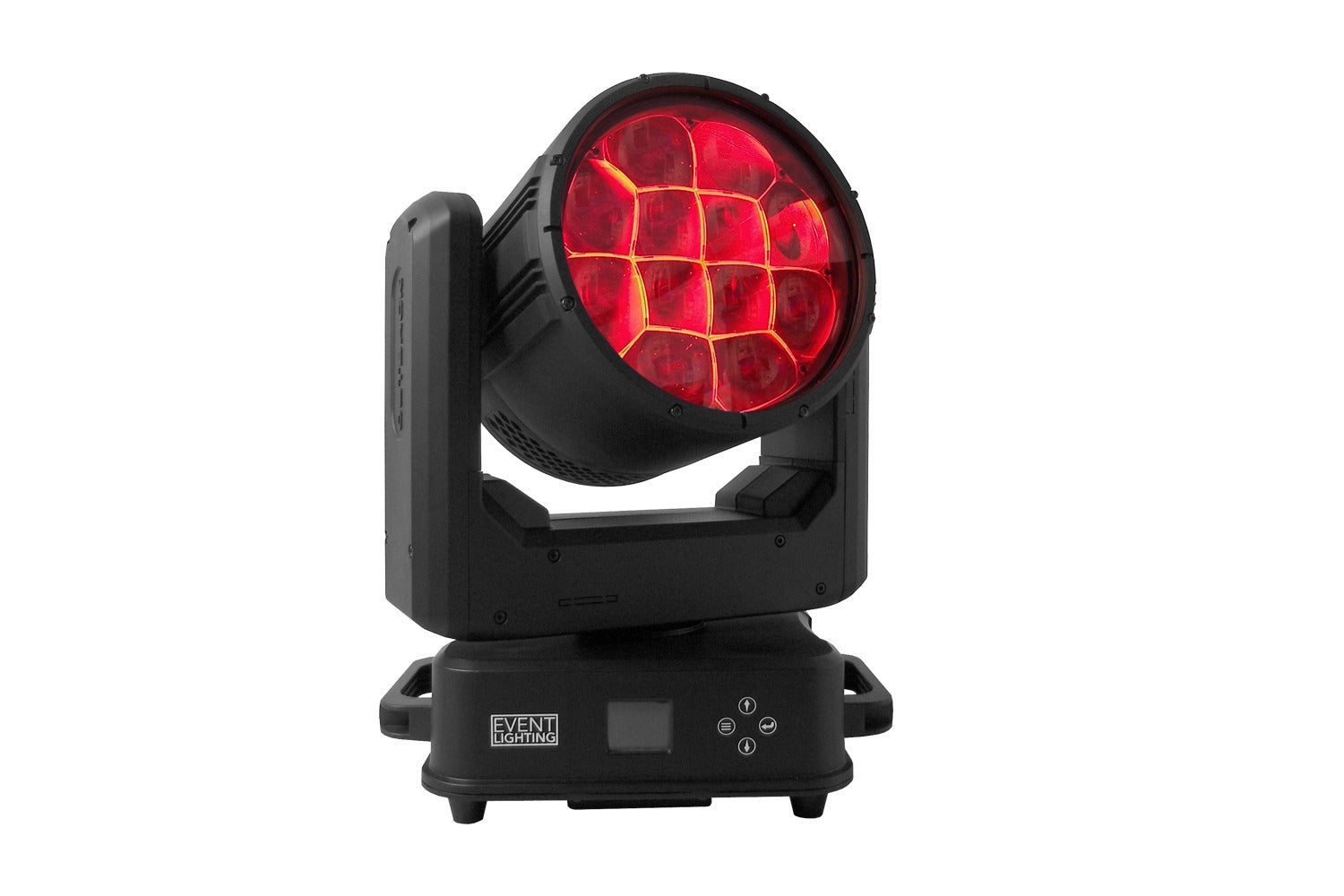

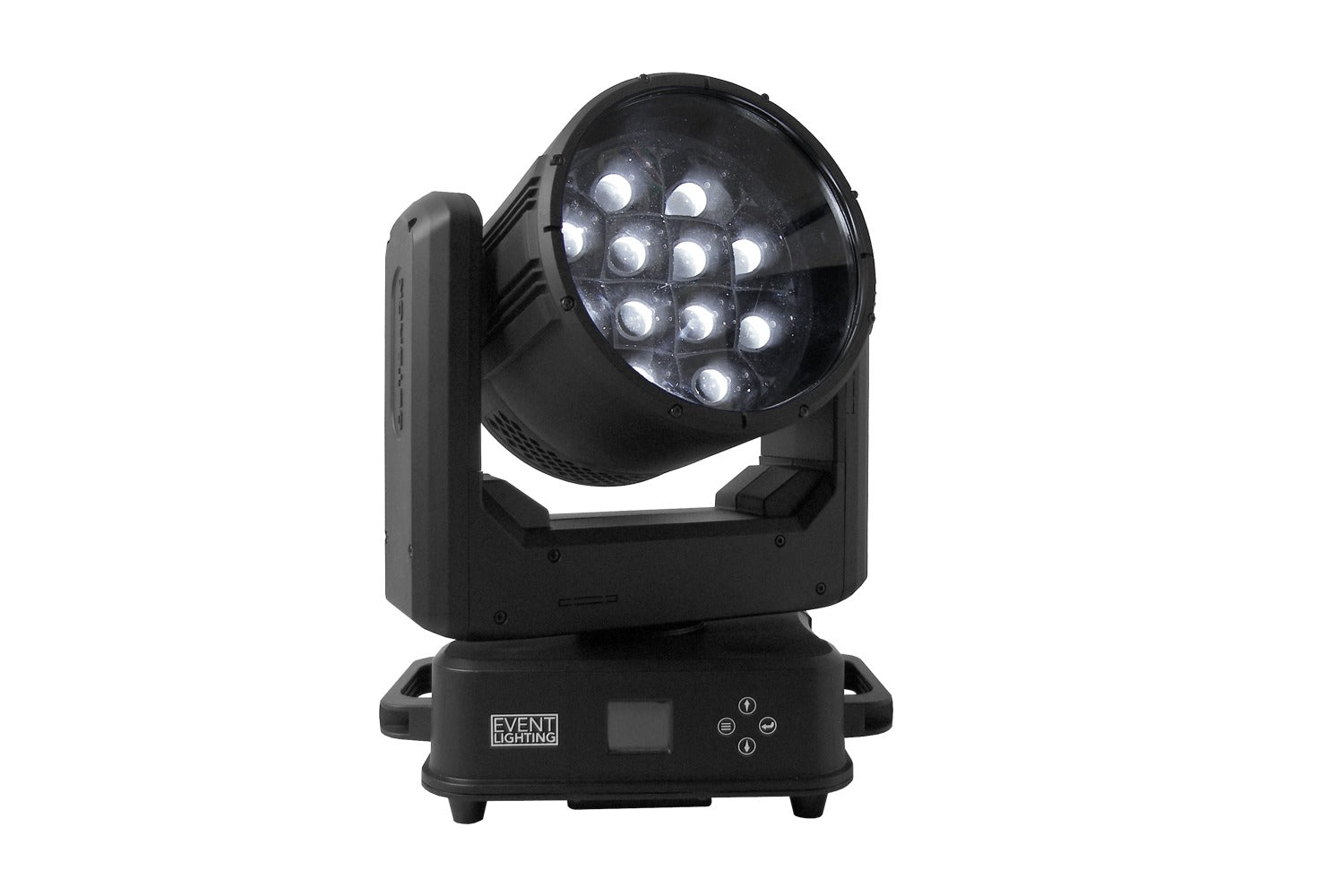

OUTBACK12X40W - 12 x 40W Zoom Wash Outdoor Moving Head

OUTBACK12X40W - 12 x 40W Zoom Wash Outdoor Moving Head

Regular price $2,849.00
Regular price Sale price $2,849.00
Sale Contact for Availability

Introducing the OUTBACK12X40W from Event Lighting's OUTBACK Range - Built specifically to withstand outdoor conditions.

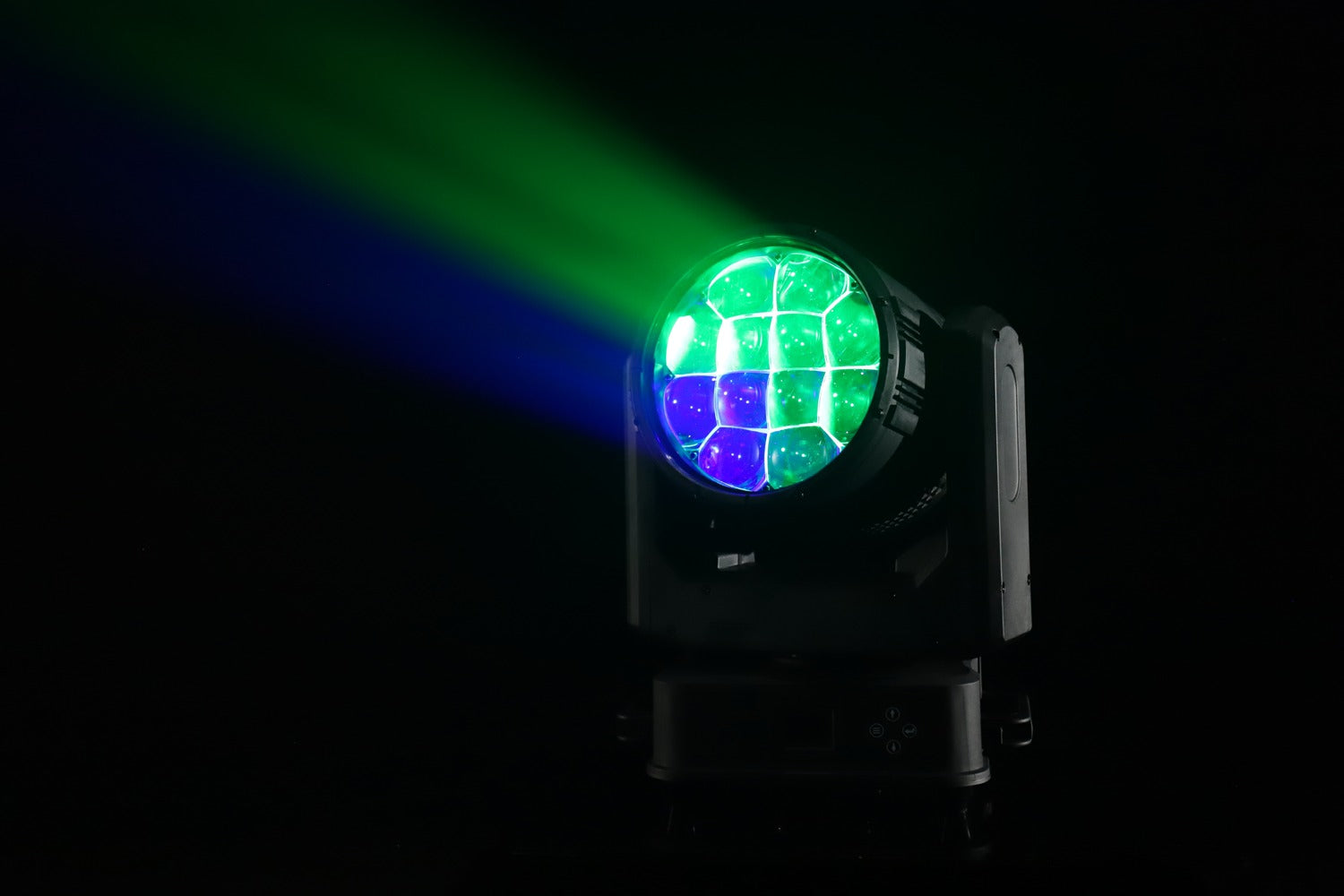

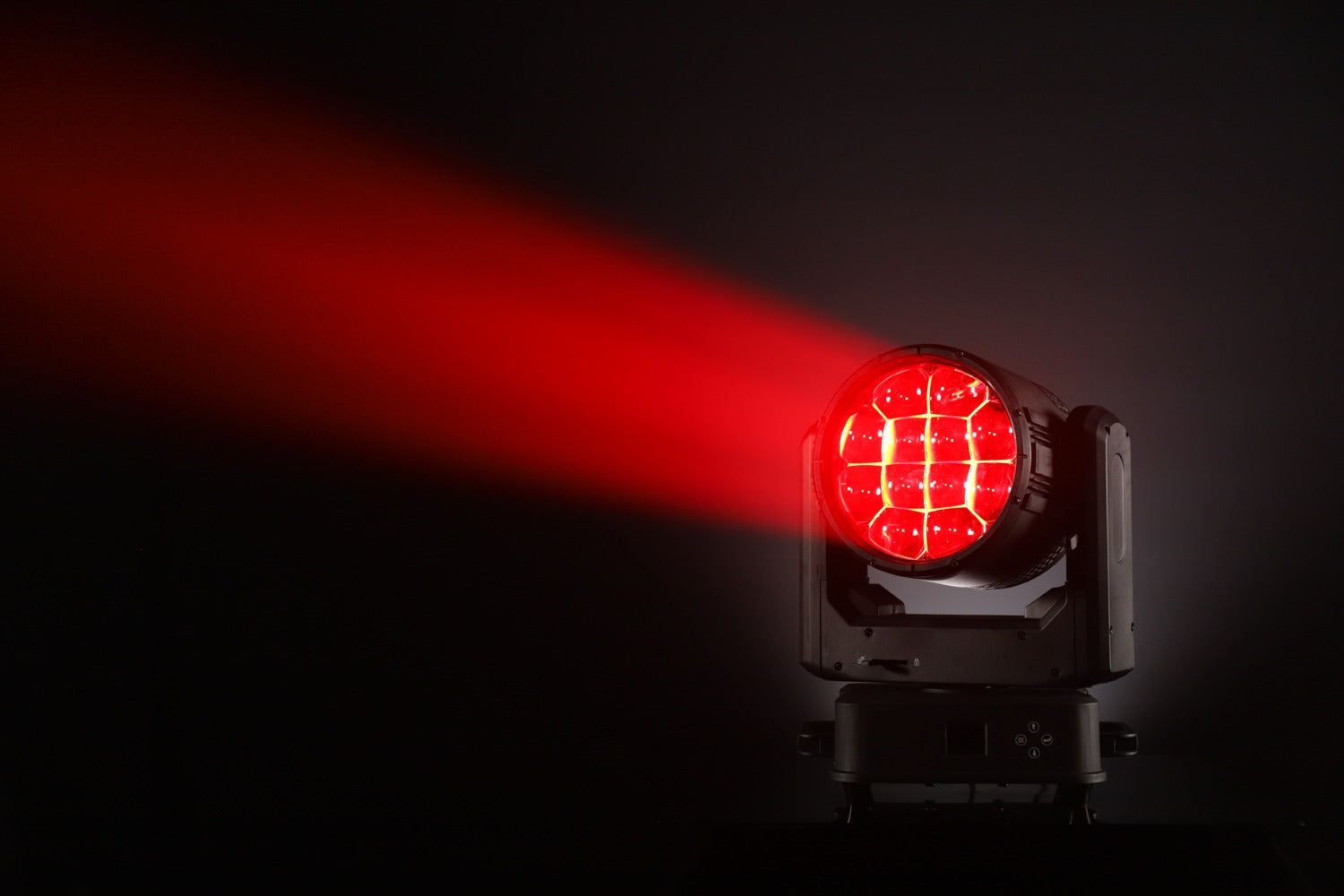

The OUTBACK12X40W features a powerful 12 x 40W RGBW 4-in-1 LED source with an impressive 34,250 lux output at 5m (3° beam angle) delivering exceptional brightness and rich colour mixing. Versatile colour capabilities are driven by the RGBW LEDs providing seamless colour control with an adjustable colour temperature range of 2,500K - 10,000K. Dynamic effects include motorised zoom with a wide range of 3° to 45°, and individual pixel control for stunning visual mapping and effects. Control options include 3 and 5 pin DMX as well as RDM capabilities, all housed in an IP65 rated enclosure.

Specifications:

Photometrics

  • Light Source: 12 x 40W RGBW 4-in-1 LEDs

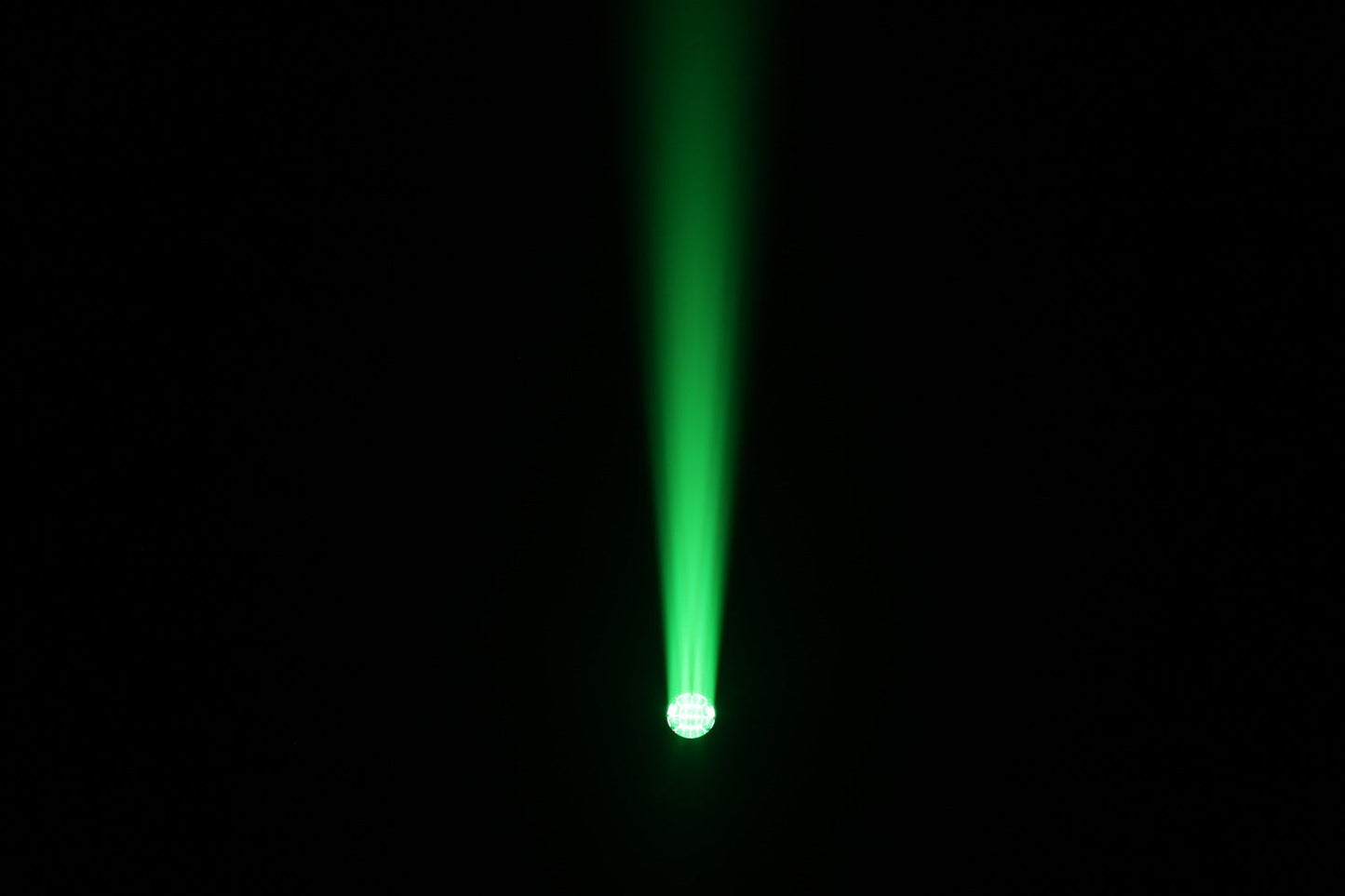

  • Beam Angle: 3°- 25°
  • Zoom Angle: 3°- 45°

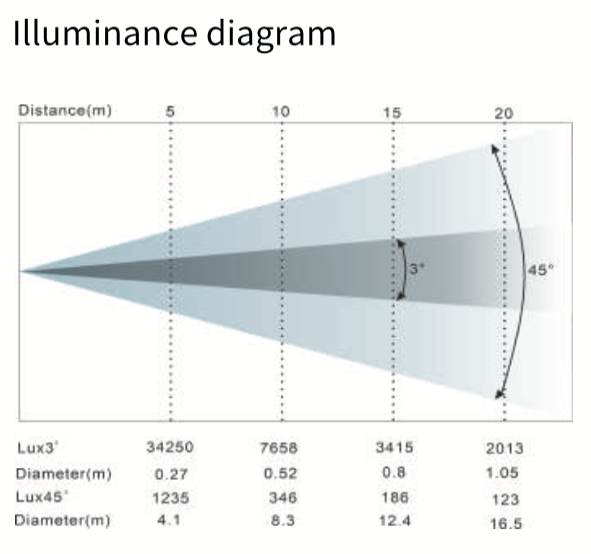

  • Output: 34,250 lux @ 3°, 5m
  • CCT: 2,500 - 10,000K
  • CRI: >70
  • Led lifespan: > 20,000 hours

Effects

  • Dimming: 0-100%
  • Pixel Control: Yes
  • Strobe: 1 - 25 Hz
  • Zoom: Motorised, 3°-45°

Movement

  • 16 bit resolution
  • Auto repositioning
  • Pan: 540°
  • Tilt: 270°

Power

  • Input Voltage: 100-240V AC, 50/60Hz
  • Max power consumption: 560W

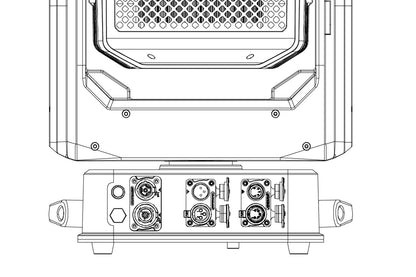

  • Connection: True1 in/out

Control

  • Control Protocol: DMX512, RDM
  • DMX Channels: 17 /  29 / 61

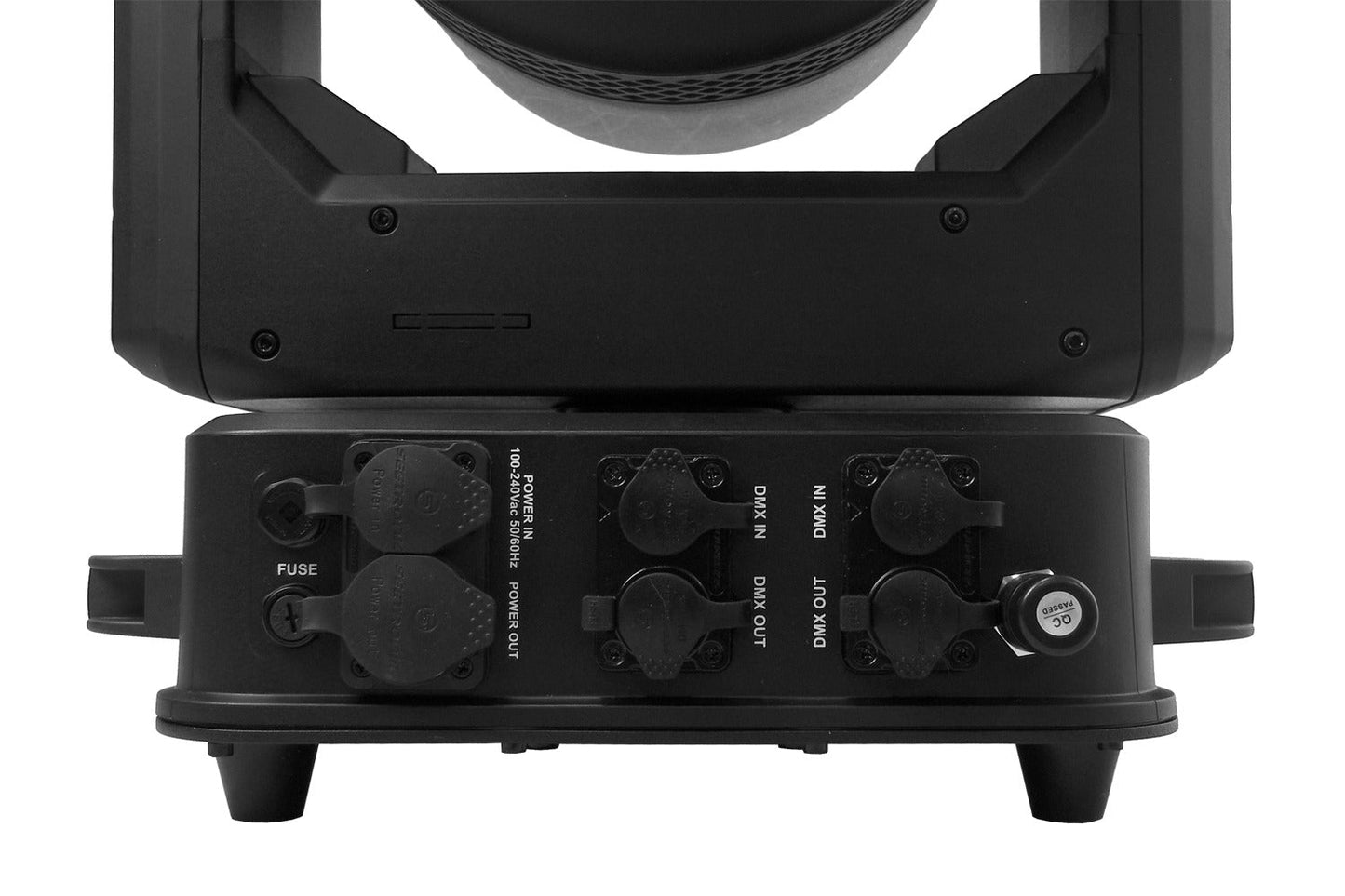

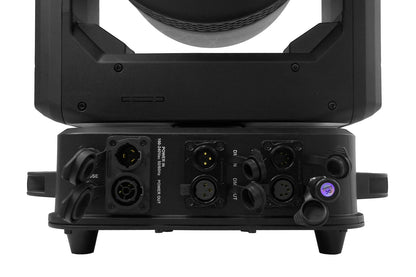

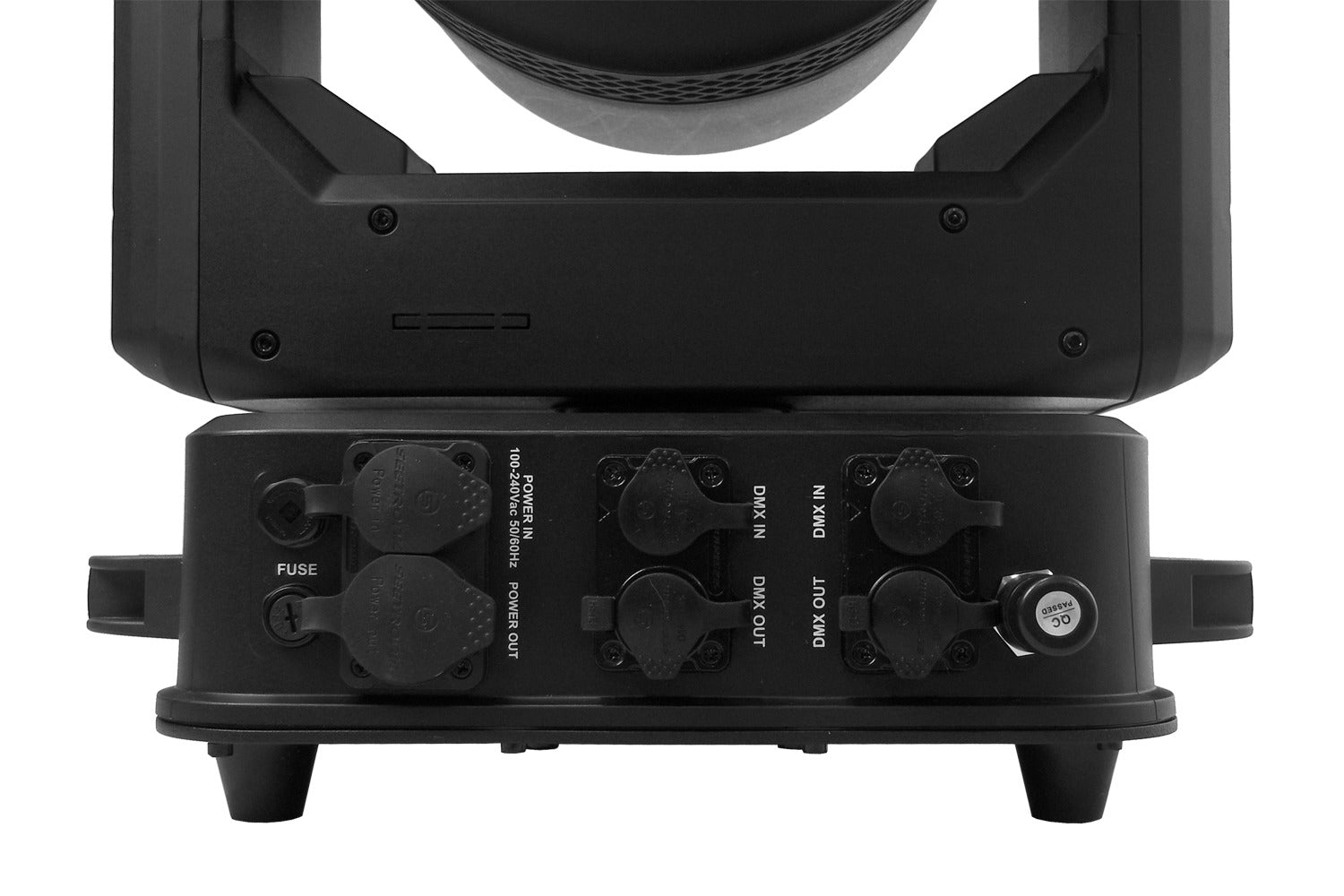

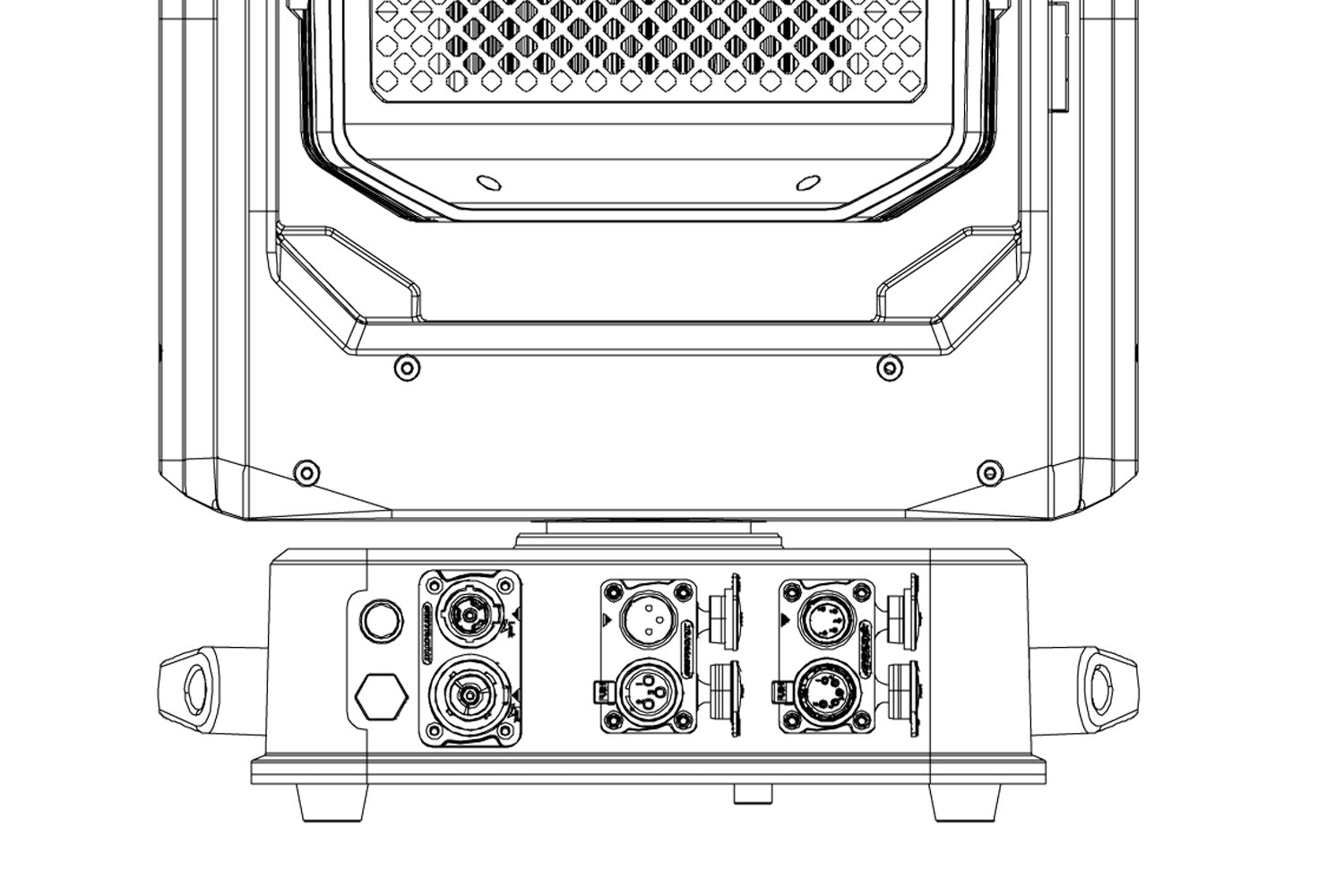

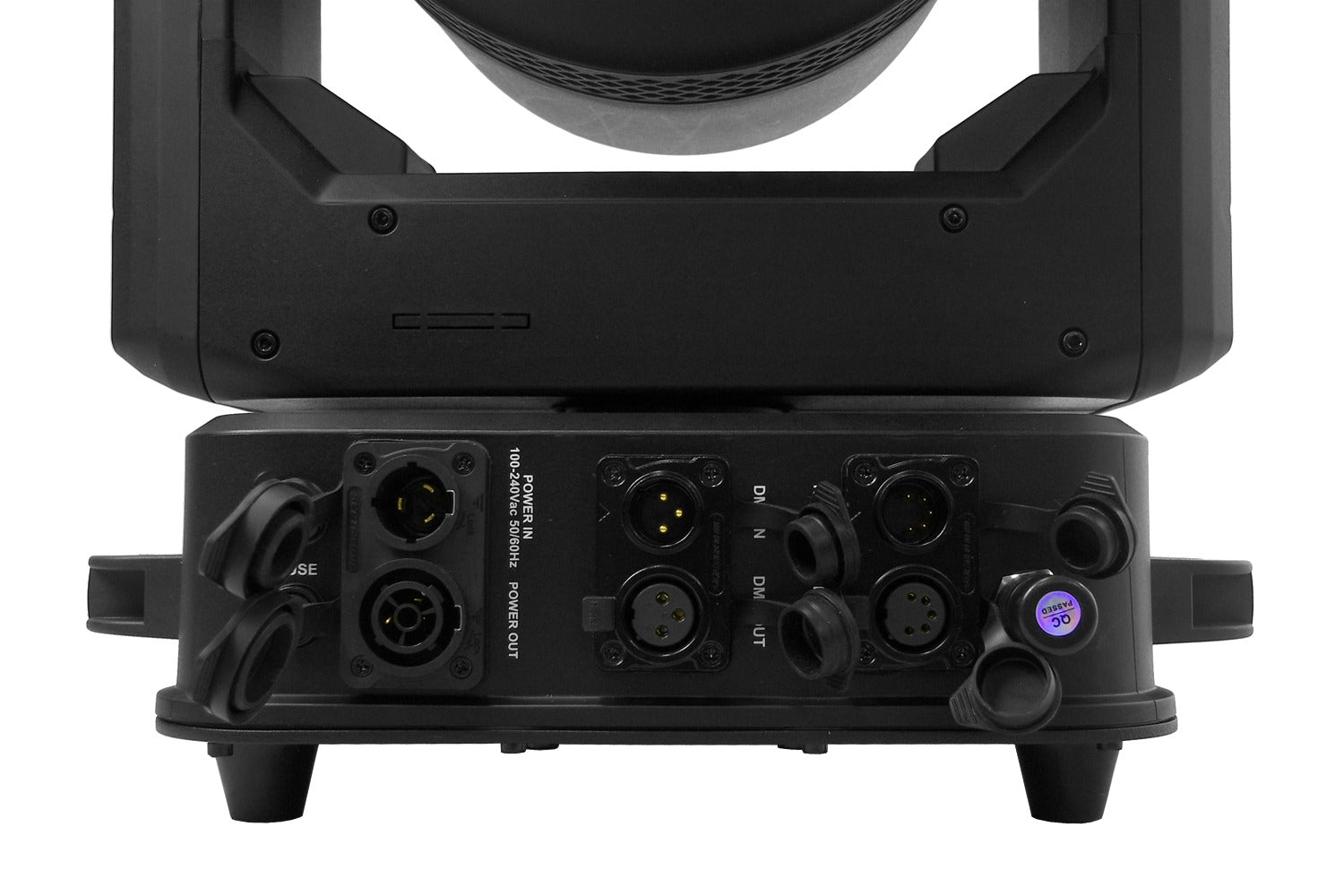

  • Interface: 3-pin/5-pin XLR (in/out)

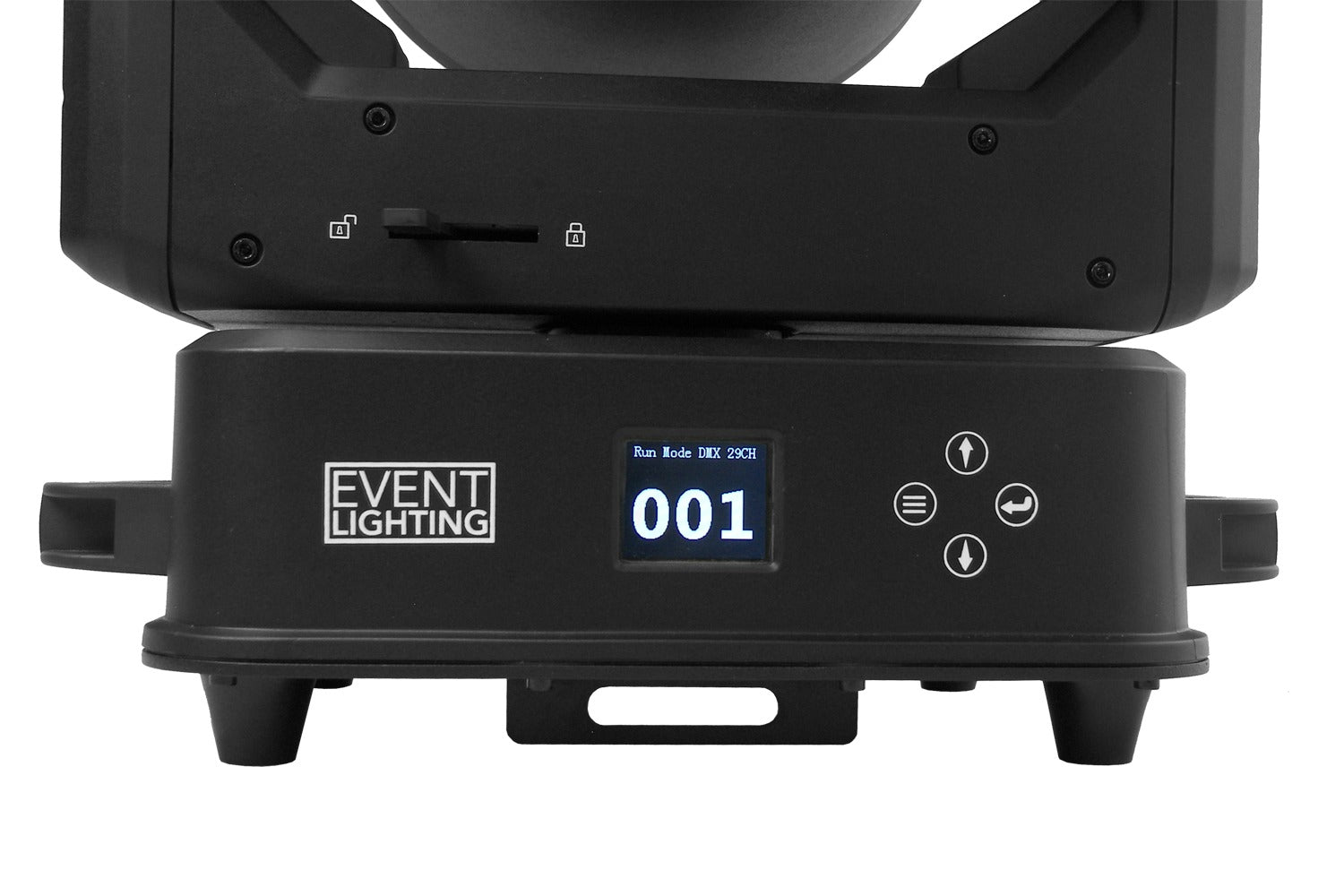

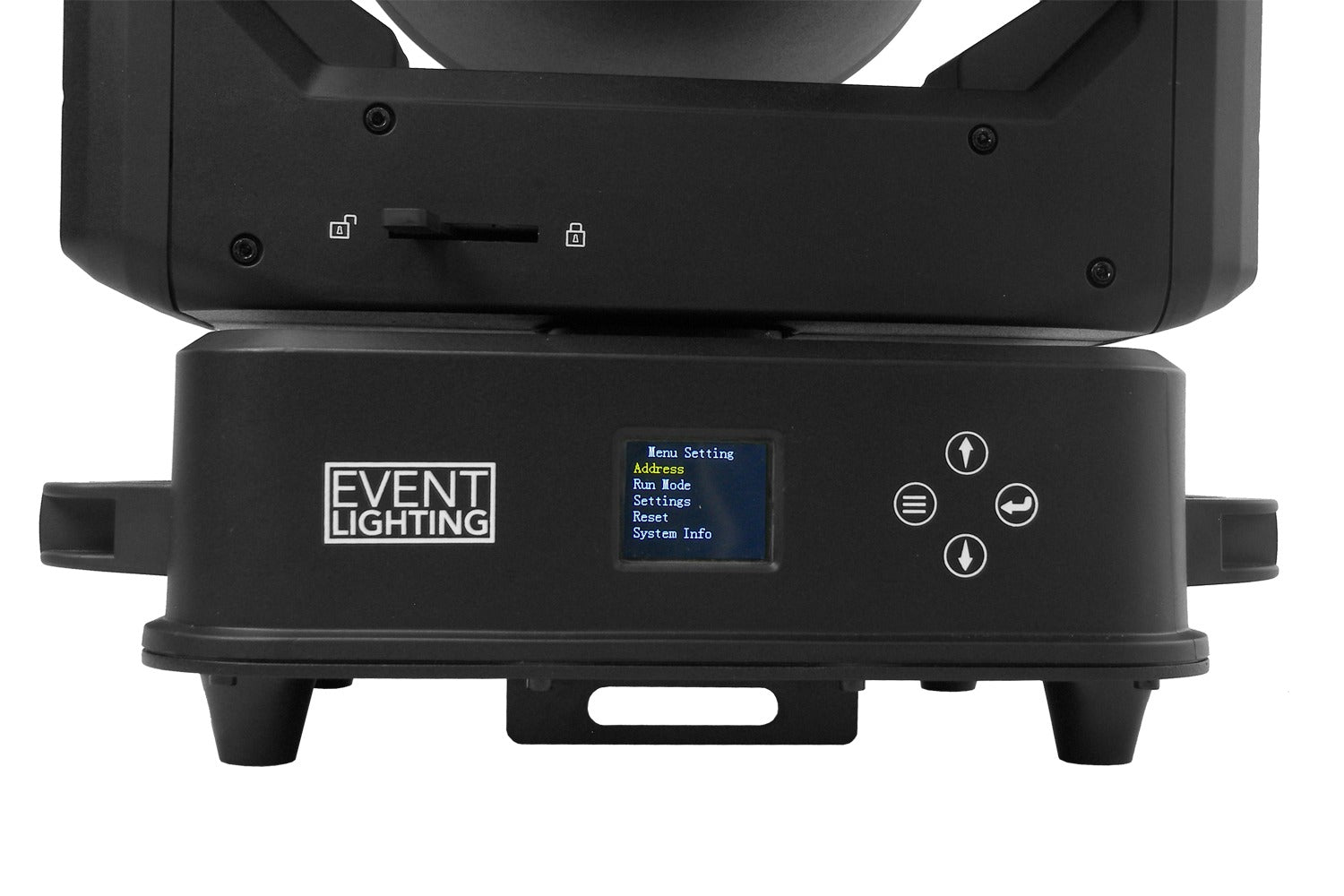

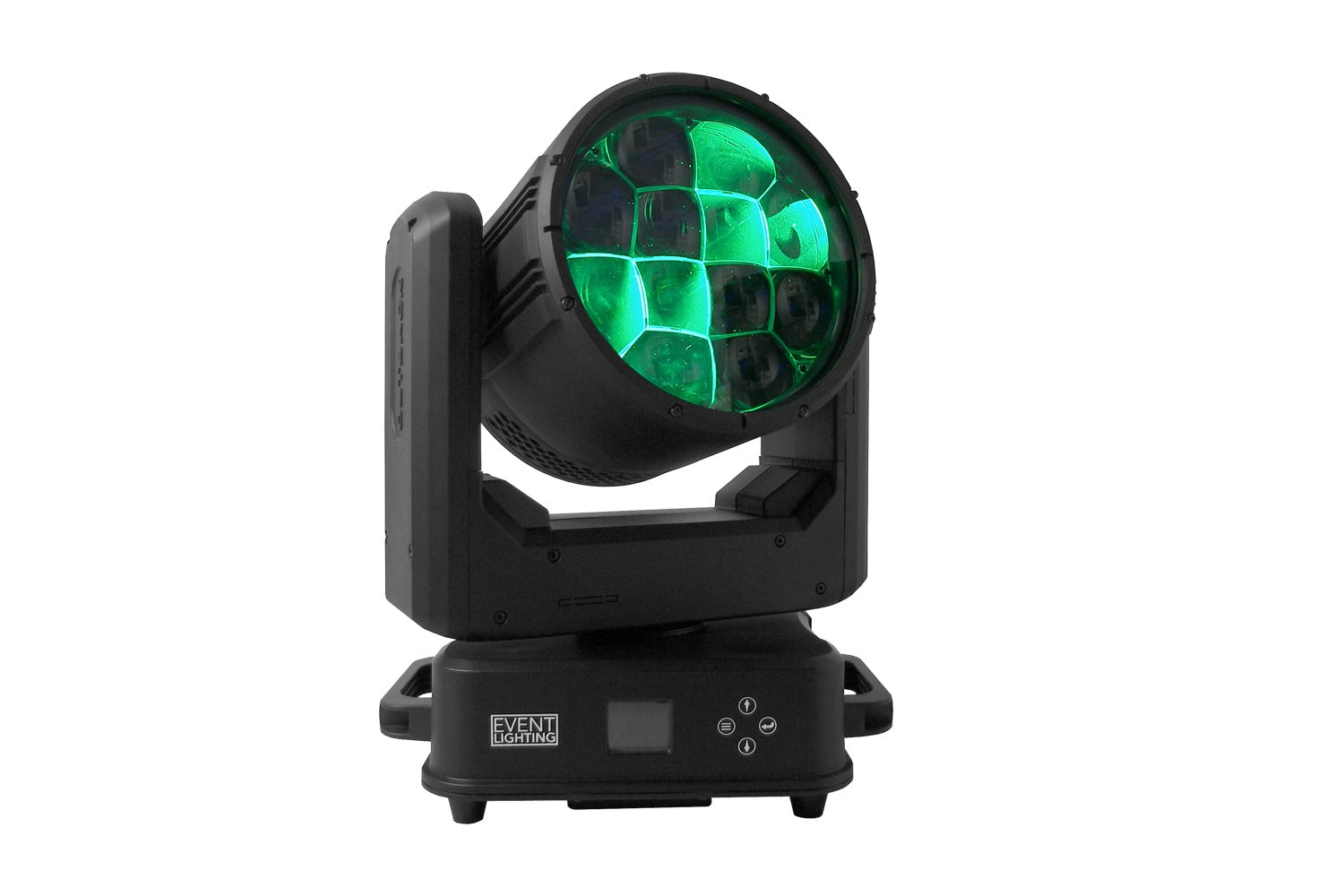

  • Display: TFT control panel

Housing

  • Materials: ABS & Steel, matte black finish
  • Protection: High temperature automatic protection
  • IP rating: IP65

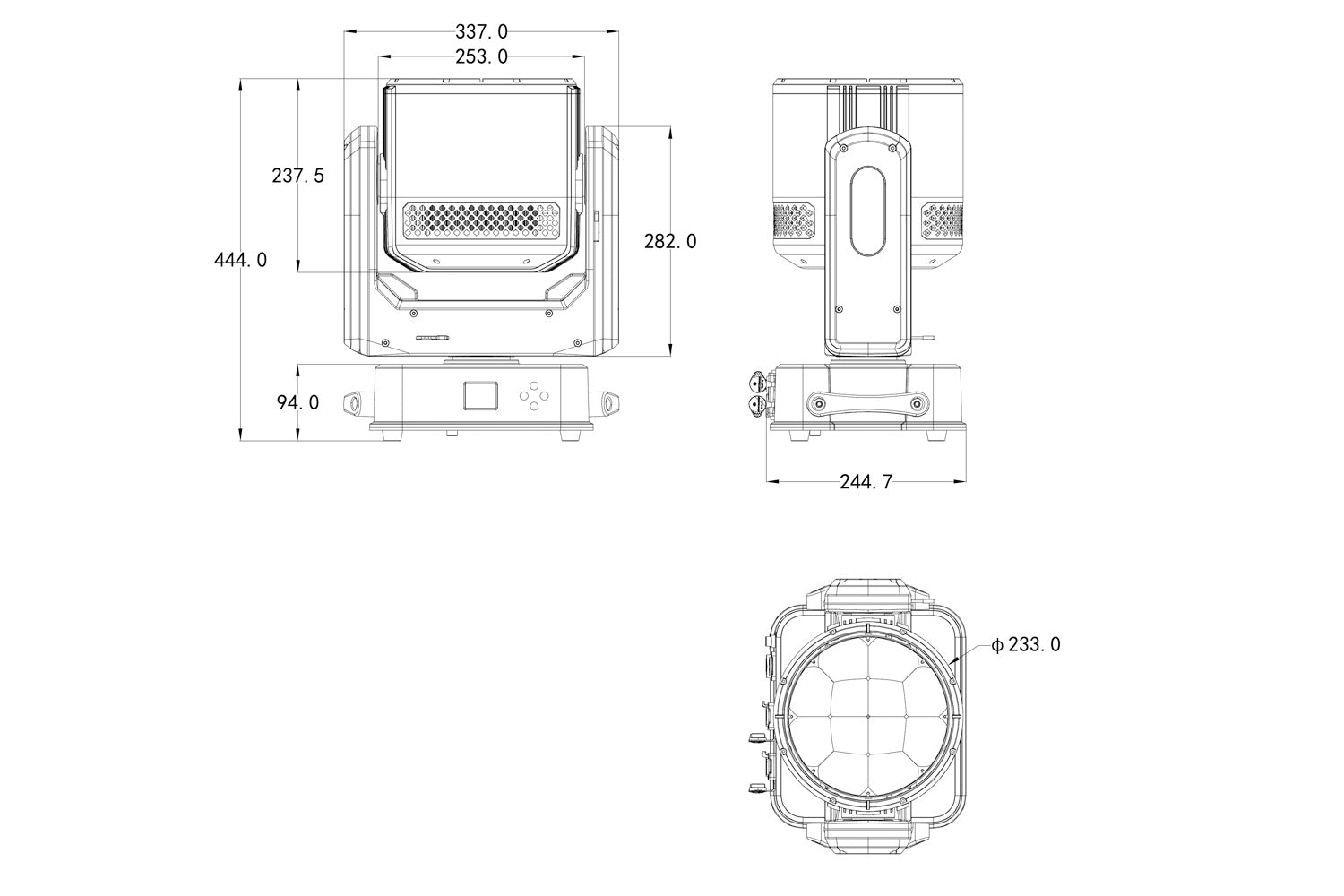

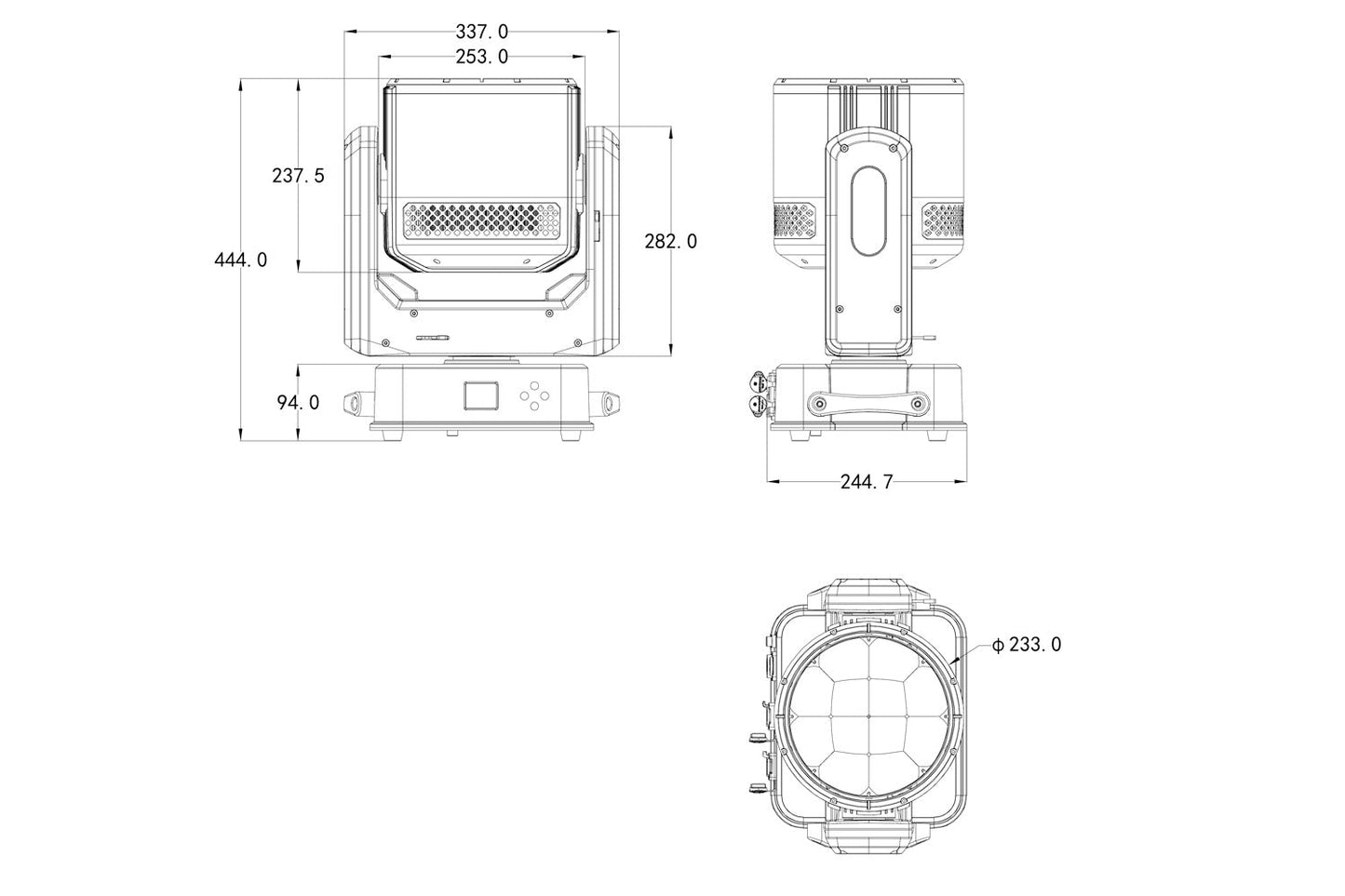

  • Dimensions: 337 x 240 x 474mm
  • Net Weight: 11 kg




Download Product Datasheet

Download user manual

Warranty: 3 years
