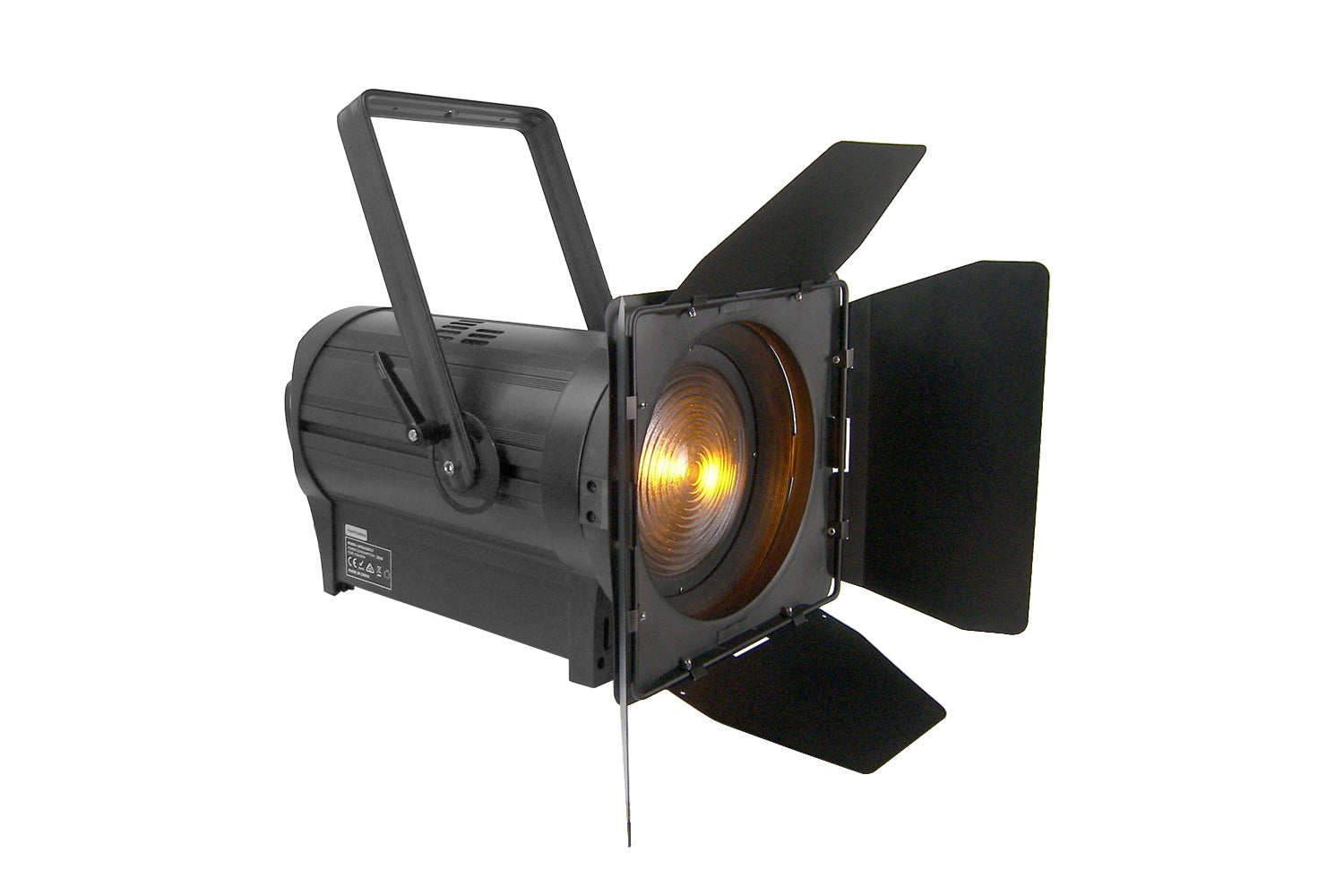

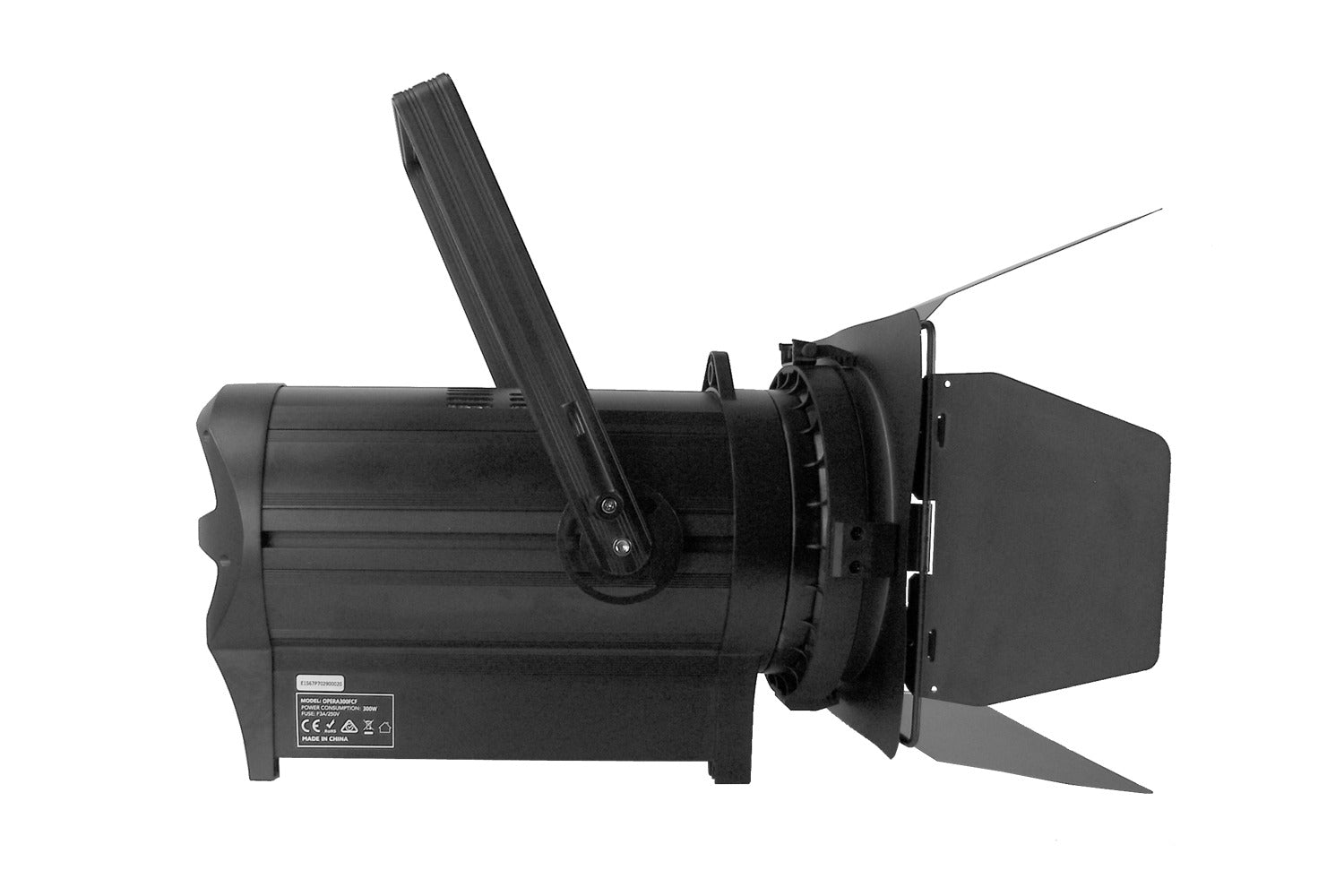

OPERA300VWF - Fresnel LED Engine with 300W Variable White with Motorised Zoom

This product has been discontinued.

See updated model - OPERAZ400VWF

Opera Series Fresnel LED Engine with 300W Variable White, True1 In/Out, 3 & 5 pin DMX In/Out

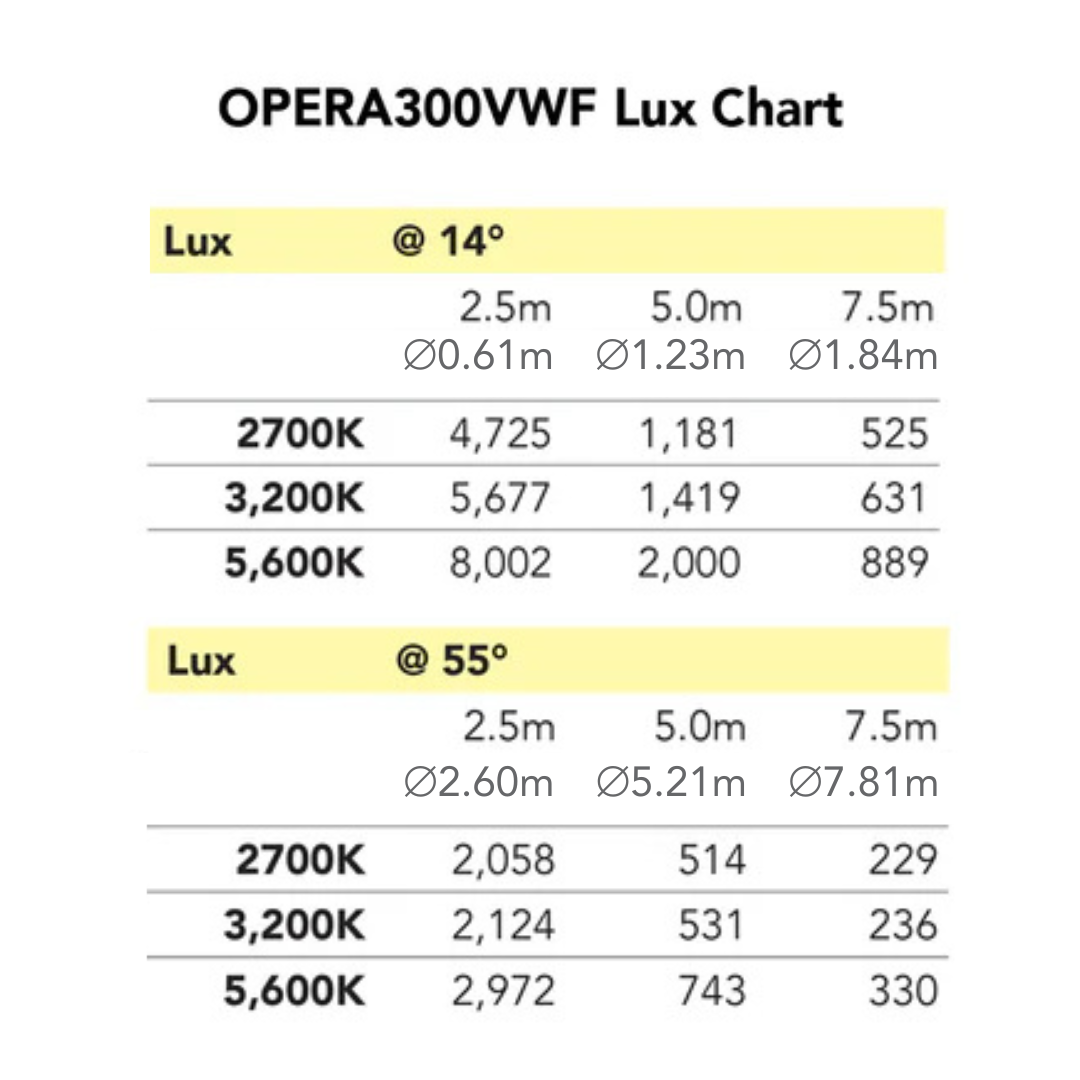

Photometrics

• Light Source: 300W COB LED
• CRI: Up to 95
• Beam Angle: 14°~55°
• Colour temperature: 3200K-5600K adjustable
• Output: 300W
• PWM: 600Hz - 8,000Hz optional
• LED Lifespan: 50,000 hours

Effects

• Dimming: 0~100%, 16-bit
• Zoom: Motorised, 14°~55°
• Optical system: Glass lens set + 175mm Fresnel lens

Power

• Power Supply: 100~240V AC, 50/60Hz, 300W
• Power Connection: True1 in/out

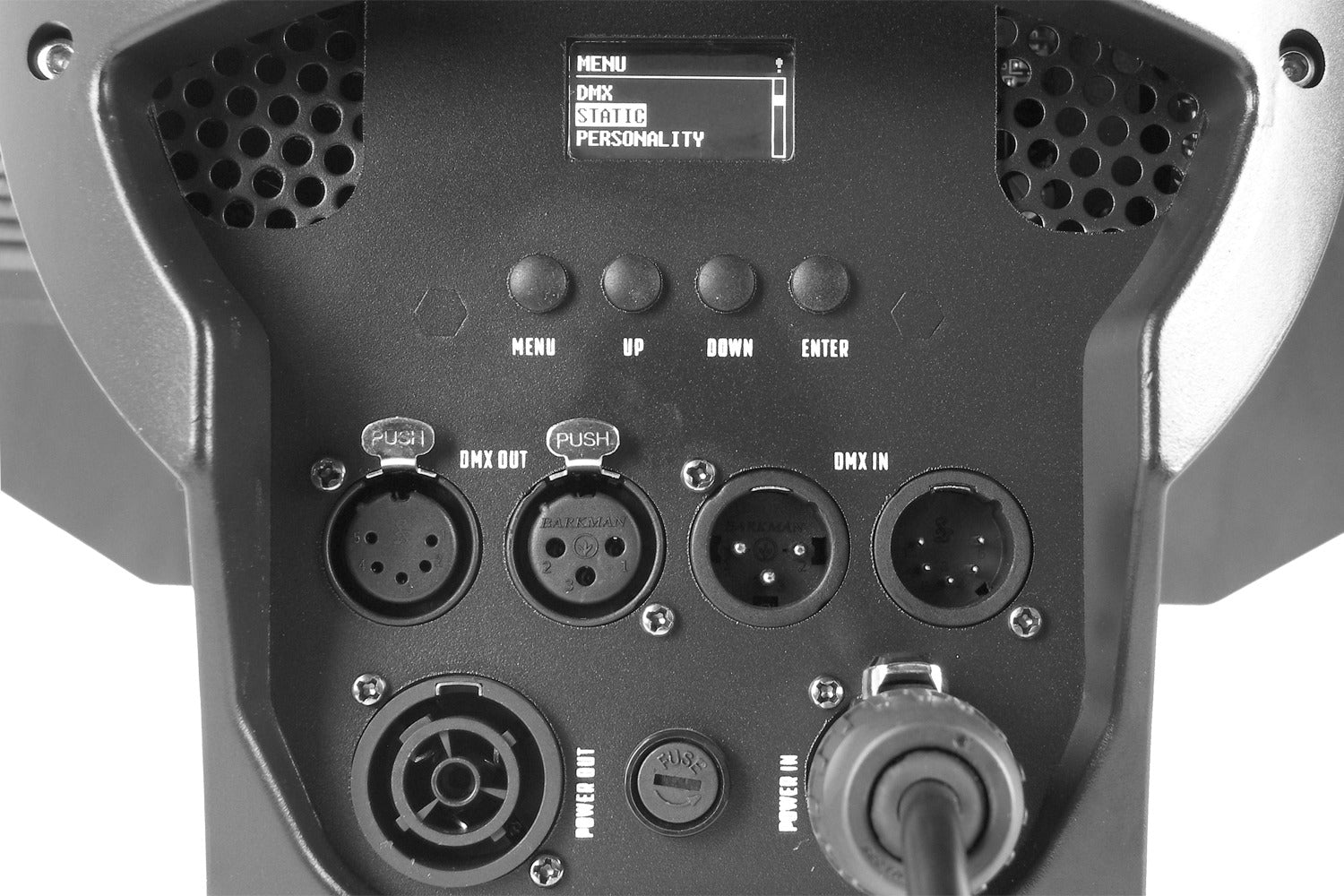

Control

• Operational Modes: DMX, RDM, Manual
• Display: 4-button OLED control panel
• Control Protocol: DMX512
• Control Interface: 3 pin & 5 pin XLR - in/out
• DMX Channels: 1CH / 3CH / 7CH / 10CH optional

Housing

• Housing Materials: Die-cast aluminum, matte black finish
• Tilt angle: ±90°
• Cooling: Silent fan, intelligent automatic temperature regulation system
• Net Weight: 10 kg / 22 lbs

• IP rate: IP23

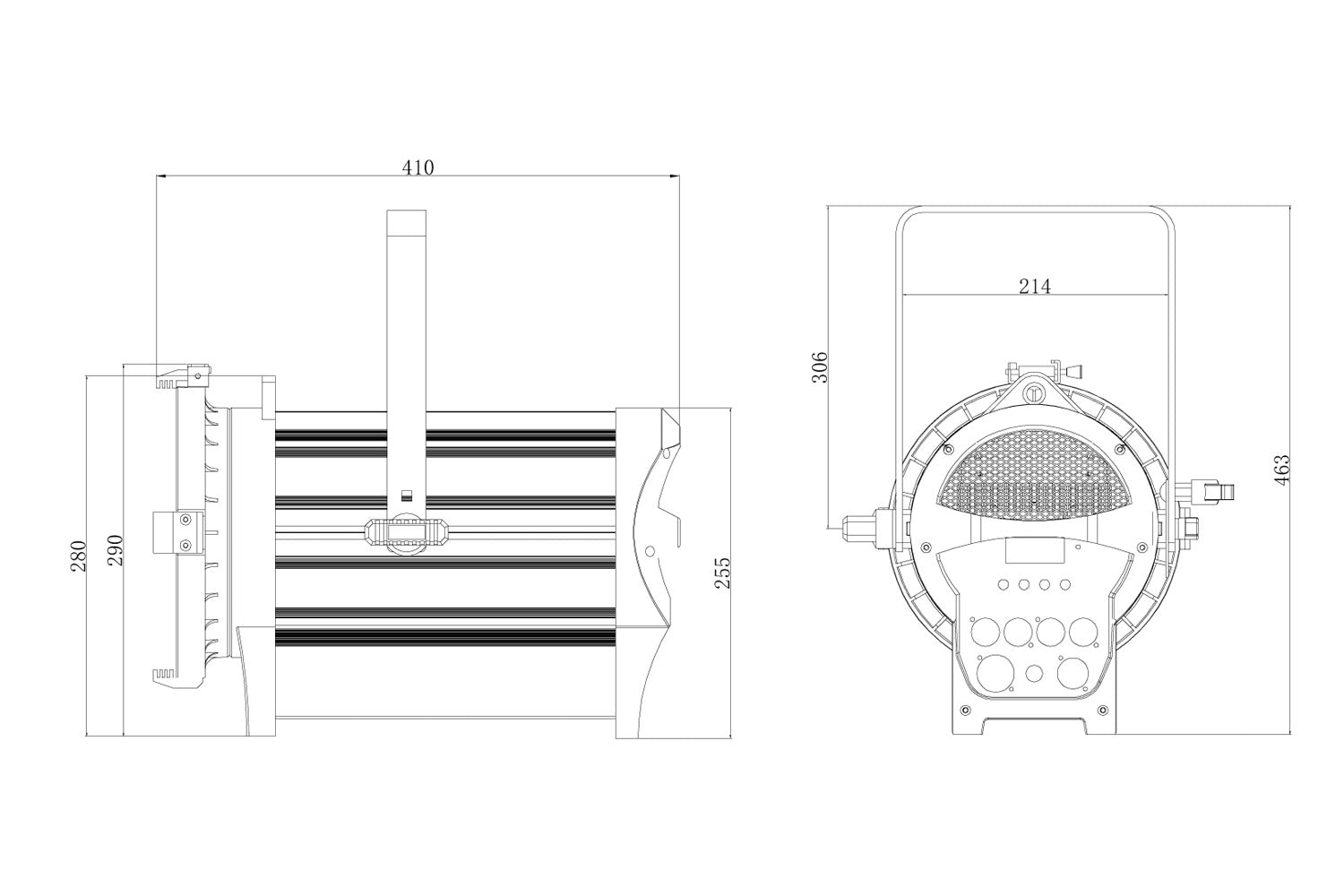

• Overall Size: 410 x 319 x 290mm / 16.1" x 12.5" x 11.4"

Accessories

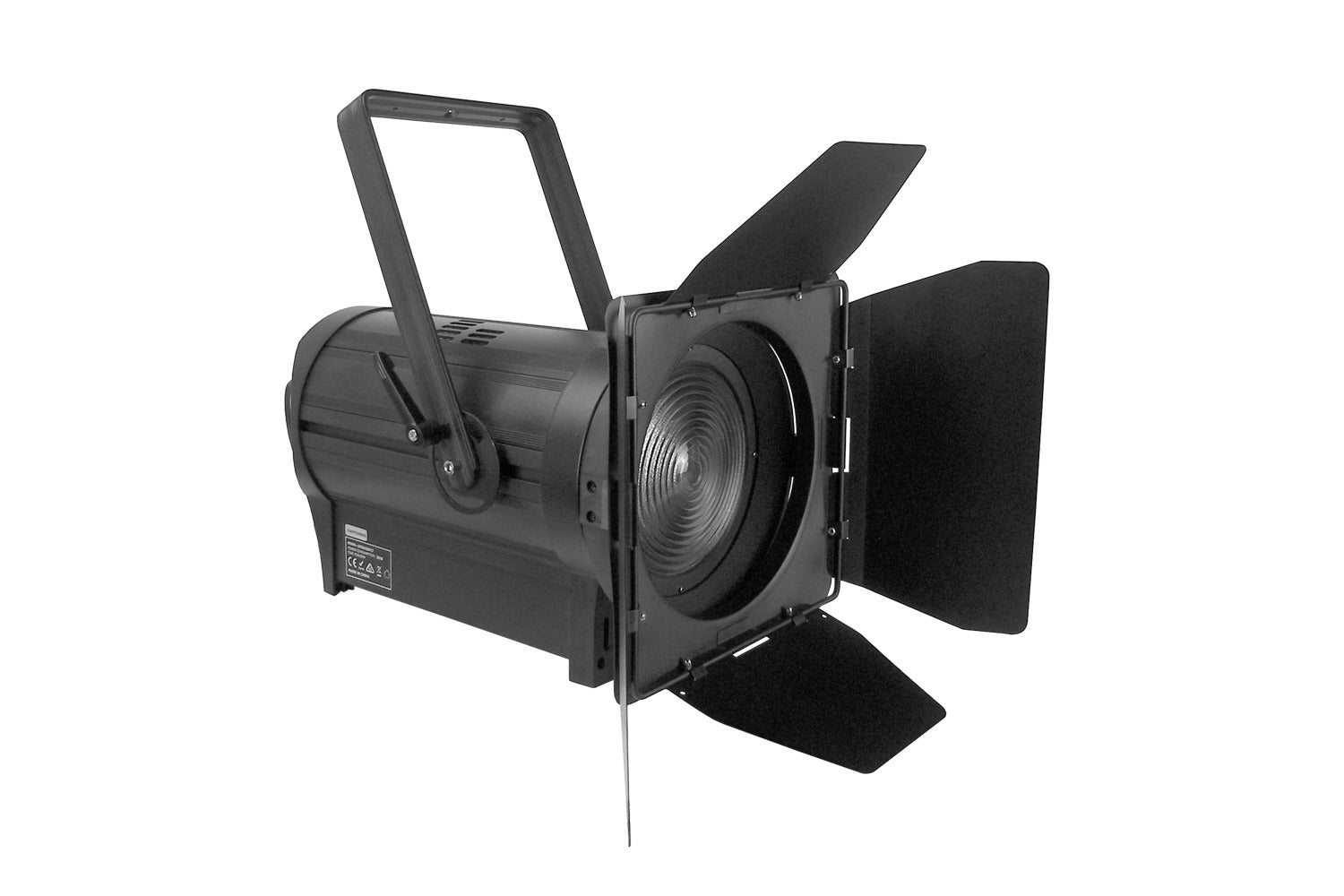

• 4-Leaf Barn Door Included
• Gel Frame Included

Download user manual

Download Specification Sheet

Warranty: 3 years
