NATOUCH-4 Mini Wall Mounted Touch Screen
NATOUCH-4 Mini Wall Mounted Touch Screen
The new Nicolaudie NATOUCH-4 integrates with DINA, STICK and SLESA controllers to offer a powerful and easy to use lighting scene activation.
When connected to the standalone lighting controller, the NATOUCH-4 loads the scenes stored into the memory. It also gives the possibility to manually adjust the DIMMER, COLOR and SPEED of the running scenes.

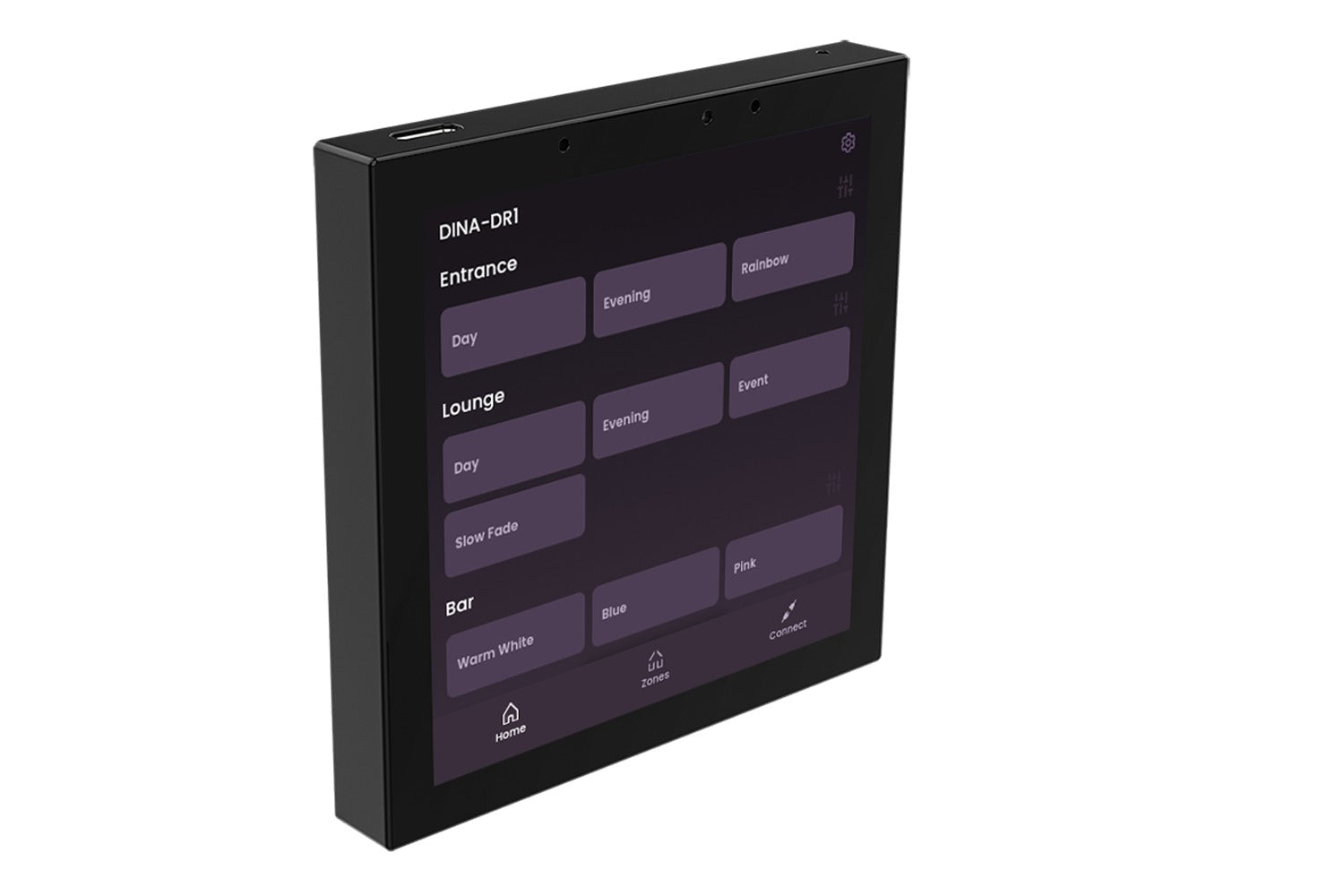

The NATOUCH-4 features a 4 in. (85 mm) capacitive touch screen display, Wi‑Fi and RJ45 network connections and comes pre-loaded with the Arcolis Remote appplication.

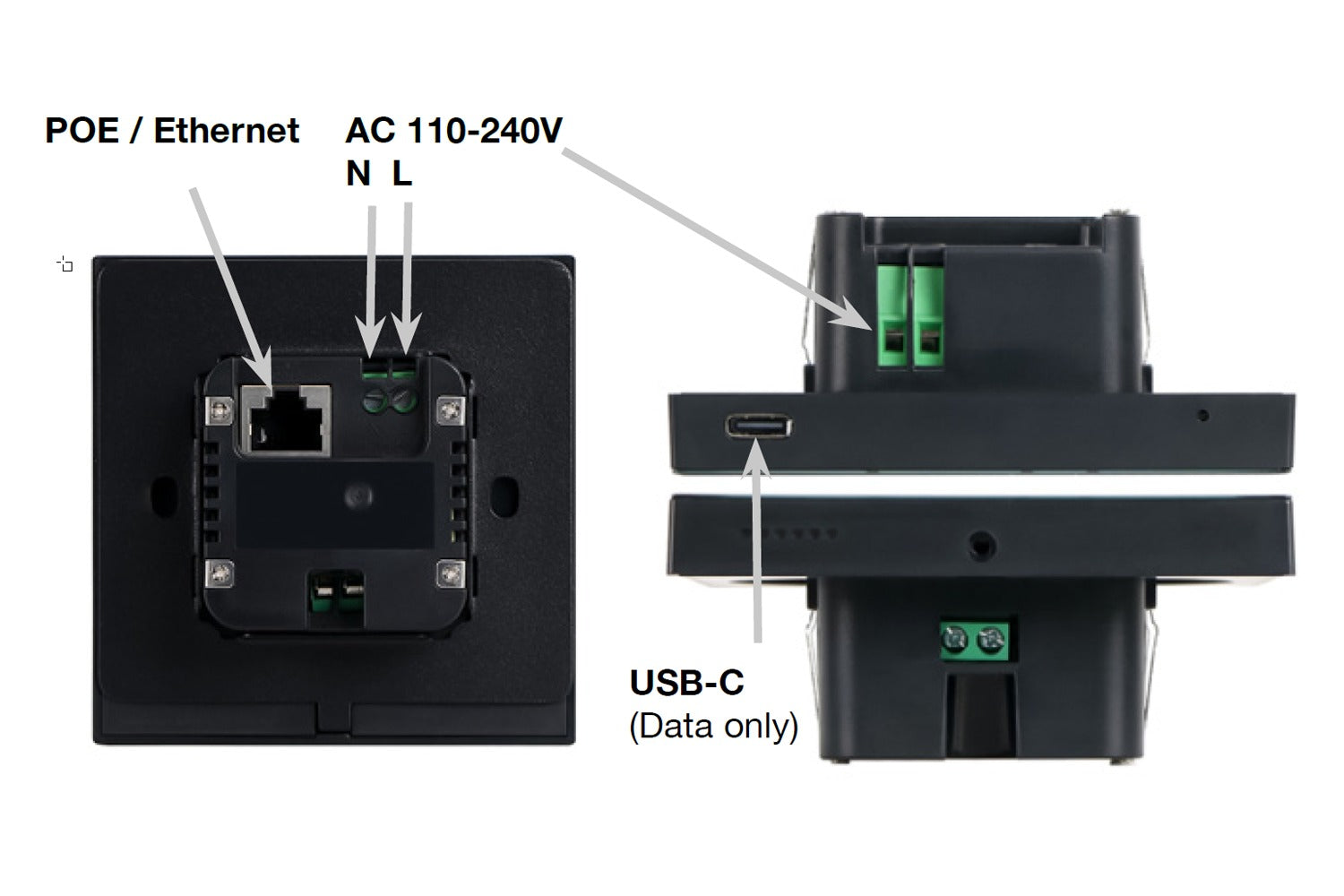

An Ethernet LAN connection (RJ45) is all that is required to connect the NATOUCH-4 to your lighting controller. The device is PoE-powered allowing to easily connect it to the lighting installation with a simple cable. For installations without access to Ethernet, the touch screen can also be connected over Wi‑Fi via a local wireless network.
Specifications
| Input Power | POE, IEEE802.3af 100-200V 50/60Hz |
| OS | Android |
| Programmability | PC, Mac |
| Connections | USB-C Ethernet/PoE Wifi 802.11b/g/n |
| Screen | 4 inches (85 mm), 480x480px IPS |
| Environment | -10C to 60C |
| Dimensions | 86x86x36mm |
| Weight | 131g |
