M37W20RGBW - 37 x 20 W RGBW Wash Zoom Moving Head with Pixel Control

The M37W20RGBW is a powerful wash moving head, utilising 37 x 20W RGBW 4-in-1 LEDs with a beam angle that varies from 6~60° as well as pixel control to generate unique effects.

Photometrics

• Light Source: 37 x Osram® 20W RGBW LED
• Beam Angle: 6°~60°

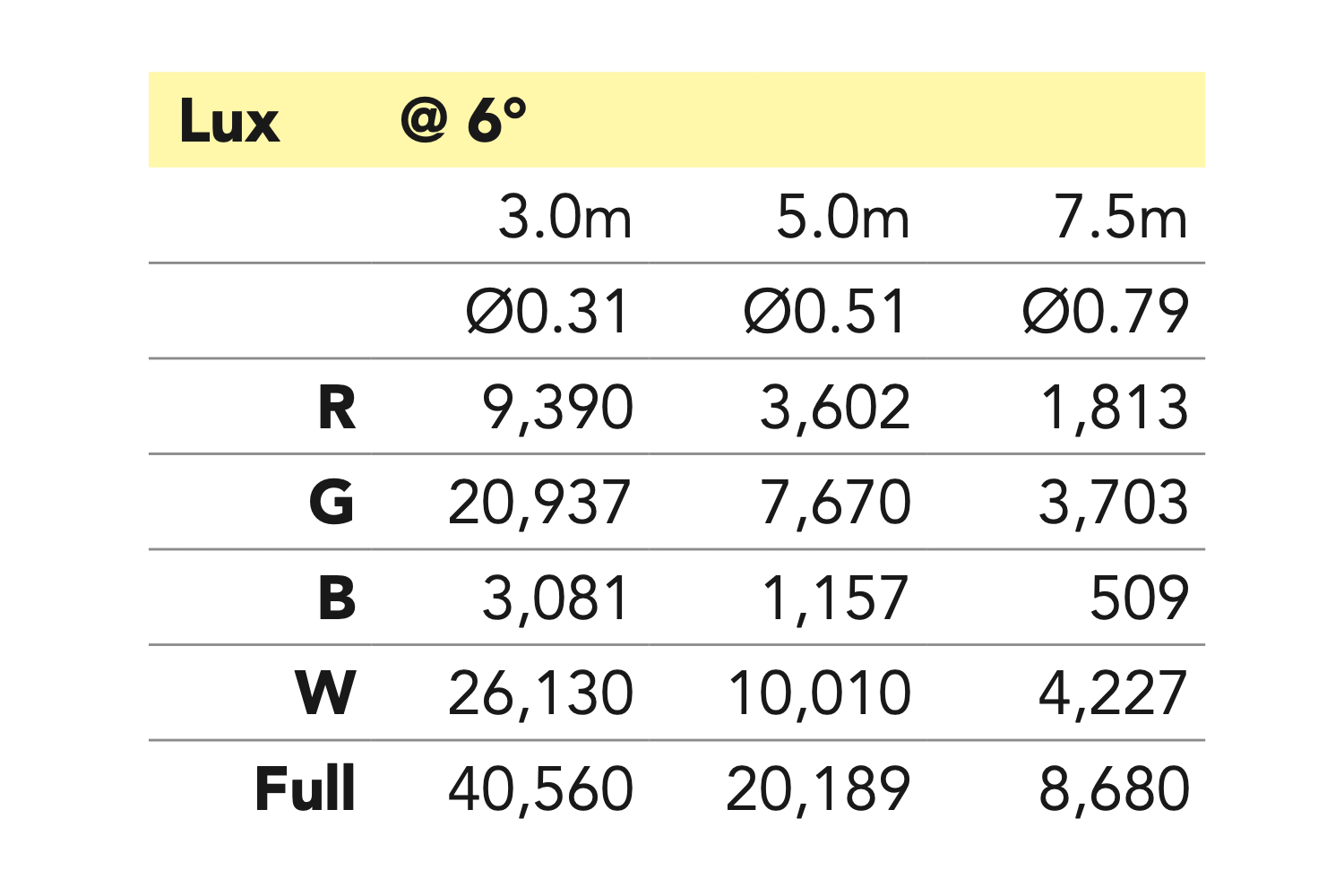

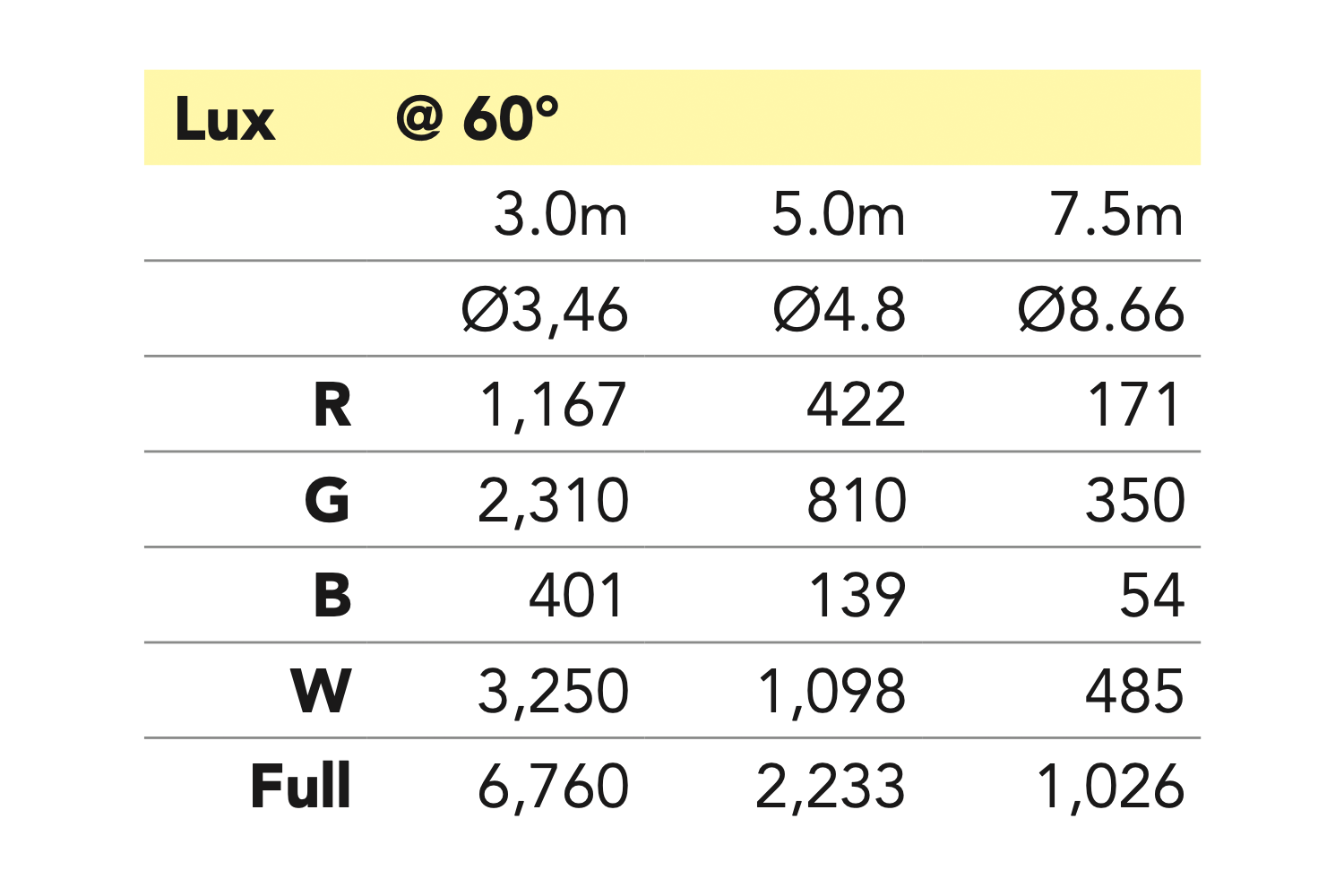

• Output: 6,320 lumens, 40,560 lux @ 3m @ 6°, 6,760 lux @ 3m @ 60°
• PWM:  1,200 Hz
• LED Lifespan:  50,000 hours

Effects

• Dimming: 0~100%
• Pixel Control: Yes
• Strobe: Various
• Zoom: Motorised, 6 - 60°

Movement 16 bit Auto Reposition

• Pan: 630° (2.2 sec) or 540° (2.0 sec)
• Tilt: 265° (0.85 sec)

 Power

• Input Voltage: 100~240 V AC, 50/60 Hz, 520 W
• Connection: Neutrik® PowerCON in/out

Control

• Operation Modes: DMX, auto, sound active, master/slave
• Control Protocol: DMX512, RDM, Art-Net (optional: W-DMX™)
• DMX Channels: 19 / 41 / 170 / 18 / 20
• Control Interface: 3-pin and 5-pin XLR, Ethernet
• Display: 2.4″ colour LCD control panel with battery power.
• Software Upgrade via DMX: Yes

Housing

• Materials: ABS and steel, matte black finish
• Cooling: Multi-sensor thermostat controlled variable speed fan
• IP rating: IP20
• Net Weight: 17 kg
• Rigging: 2 x omega brackets with 1/4-turn quick locks

MISC

• Road case: MCASE2W37
