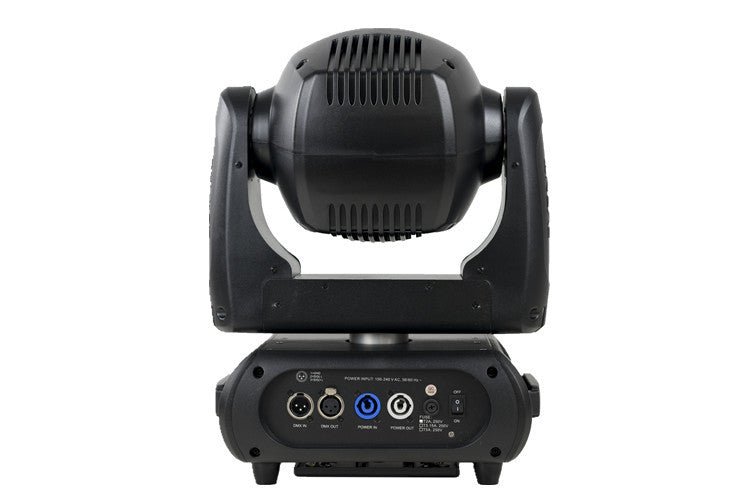

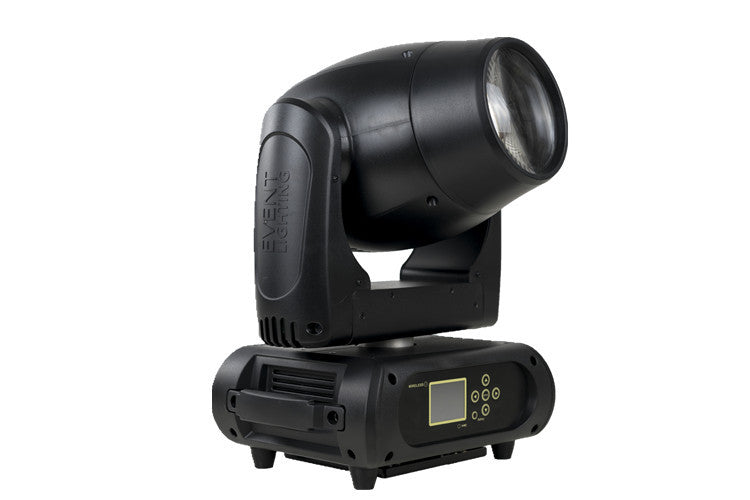

M1B60W - Affordable and Punchy Beam Mover with Professional Features

Moving head beam fixtures are renowned for their firepower and punchy performance. They have become the go-to fixture when it comes to providing intensity to a lighting show with the narrow beam allowing for huge output, bright enough to cover huge distances. This 60Watt LED light source has a life of 60,000 hours making ongoing lamp replacement costs a thing of the past. Multiple control options are available in this mover with 11 gobos on hand for a host of dynamic effects, that will be sure to leave audiences delighted, with its fast movement and wide pan and tilt range. Professional features include a rotating gobo wheel, multiple prisms, frost and strobe for colourful and dramatic fast beam effects.  In addition to DMX, the M1B60W offers RDM (Remote Device Management) and can be operated manually in Stand-Alone, Sound Active and Master-Slave Modes. Other standard features include a large flippable LCD battery-powered menu when hanging from truss, an automatic temperature-controlled fan and an upgradable DMX with a wireless option. It is equipped with 11 gobos, 8 colours and a tight 5° degree beam angle offering an impressive 11,540 lux @5M. The unit is controllable in 4DMX modes and includes 3-pin (optional 5) DMX In/Out and genuine Neutrik PowerCON connectors. Designed to provide maximum innovation and creativity for lighting designers, with high output, accurate precision and crisp clear projection. Ideal for installation into medium-sized venues, stage productions, touring and DJ gigs. Road cases are also readily available.

Specifications:

• Input Voltages: 100V~240V AC，50/60Hz
• Power Consumption: 145W
• Light source: Luminus CBT-90 60W white LED module
• Power Connection: Neutrik® Powercon input and output connection
• LED life: 60,000 hours
• Lux: 6500 lumen, 11540 lux @5M
• Beam angle: 5°
• PWM: 1,200Hz
• Colors: 1 colour wheel with 8 colors + open
• Gobos: 1pc 11 + open fixed gobo wheel
• Effect: 3 facets, 8 facets prism, frost
• Dimmer: 0-100% dimmer
• Strobe: 0.5 - 26 Hz
• Head movement: Pan: 630°(4.0 sec)or 540°(3.58 sec), Tilt 265°(2.8 sec).16-bit resolution, auto repositioning
• Control: DMX512, 3-pin XLR interfaces, 13/16/10/12 channel mode
• Other function: wireless DMX is available
• 2.4 inch colour LCD display with back-up power.
• Thermostat Controlled, variable speed fan
• RDM and software upgrade via DMX.
• Net weight: 11.5Kg
• Overall Size: 343x319x513mm
• Rigging: 2 omega brackets with 1/4 – turn quick locks
• Road case: MCASE2LS

Product Specification Sheet Download
