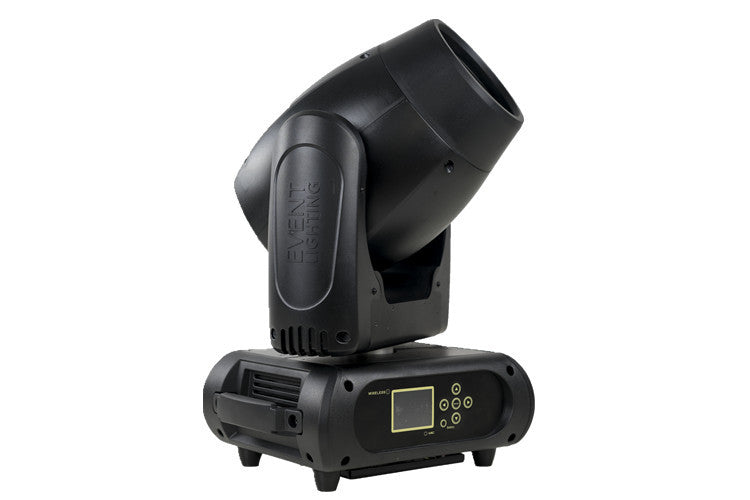

M1B150W - Superior Beam Fixture with Advanced Features and Incredible Firepower

Moving head beam fixtures are renowned for their firepower and punchy performance. They have become the ‘go to’ fixture when it comes to providing intensity to a lighting show, with the narrow beam allowing for huge output, bright enough to cover the distance of a stadium. This advanced LED beam unit from Event Lighting is superior in both brightness and performance to others in the market rated at the same power. With its incredible brightness and lux this 150Watt moving beam light has output comparable to a 575Watt discharge fixture. With a ‘lamp’ life of 60,000 hours. Multiple control options are available in this mover with 17 gobos on hand for a host of dynamic effects that will be sure to leave audiences delighted, with its fast movement and wide pan and tilt range. Professional features include a rotating gobo wheel, multiple prisms, frost and strobe, with electronically controlled focus for colourful and dramatic fast beam effects.

In addition to DMX, the M1B150W offers RDM (Remote Device Management) and can be operated manually in Stand-Alone, Sound Active and Master-Slave Modes. Other standard features include a large flippable LCD battery powered menu when hanging from truss, an automatic temperature controlled fan and upgradable DMX with wireless option. It is equipped with 17 gobos, 14 colours and a tight 3.5° degree beam angle offering a staggering 35,690lux output at @5M. The unit is controllable in 4DMX modes and includes 3 pin and 5pin DMX In/Out and genuine Neutrik PowerCON connectors. Designed to provide maximum innovation and creativity for lighting designers, with high output, accurate precision and crisp clear projection. Suitable for installation into large entertainment spaces, productions and touring duties, anywhere that real punch is needed. Road cases are readily available.

 Specifications:

• Input Voltages: 100V~240V AC，50/60Hz
• Power Consumption: 220W
• Light source: 150W white LED module
• Power Connection: Neutrik® Powercon input and output connection
• LED life: 60,000 hours
• Lux: 10500 lumen, 35690lux @5M
• Beam angle: 3.5°
• PWM: 1,200Hz
• Colors: 1 colour wheel with 14 colors + open
• Gobos: 1pc 17 + open fixed gobo wheel, inside image Ø13mm
• Effect: 3 facets, 8 facets prism, frost
• Dimmer: 0-100% dimmer
• Strobe: 0.5 - 26 Hz
• Focus: linearly focusing controlled by DMX
• Head movement: Pan: 630°(4.0 sec)or 540°(3.58 sec), Tilt 265°(2.8 sec).16-bit resolution, auto repositioning
• Control: DMX512, 3-pin XLR interfaces, 14/17/11/13 channel mode
• Other function: wireless DMX is available
• 2.4 inch colour LCD display with back-up power.
• Thermostat Controlled, variable speed fan
• RDM and software upgrade via DMX.
• Net weight: 11.5Kg
• Overall Size: 343x302x487mm
• Rigging: 2pcs omega brackets with 1/4 – turn quick locks
• Road case: MCASE2LS
