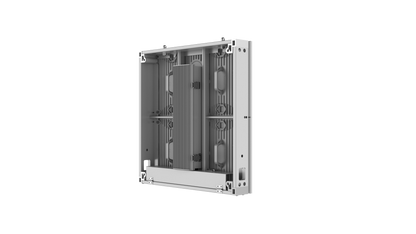

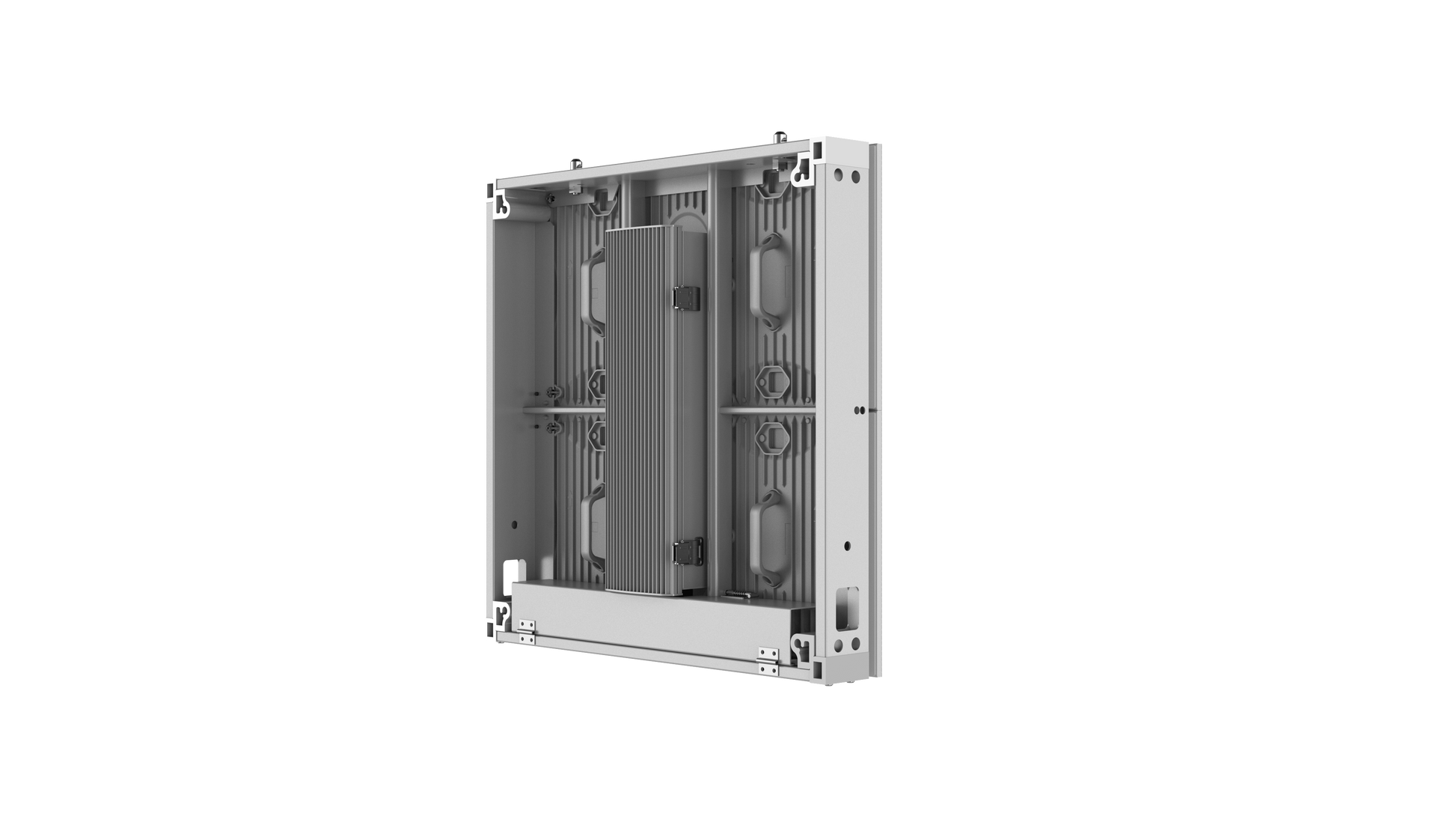

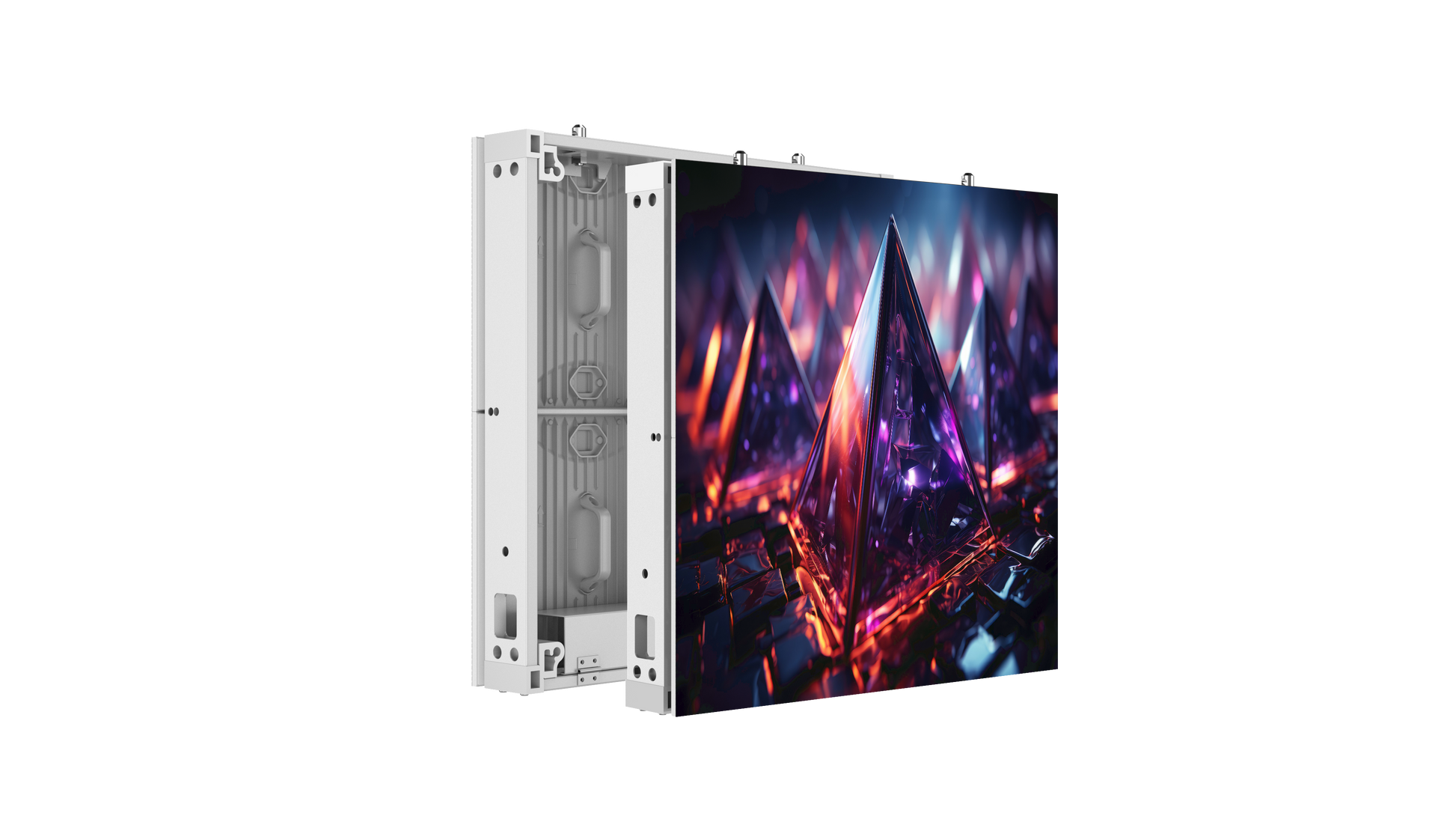

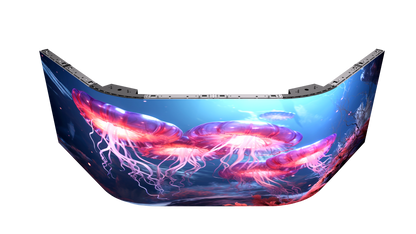

LXII Pro Series - Perfect Fit, Built to Last
The LXII Pro Series is engineered for premium outdoor signage, combining fine pixel pitches with a robust, weather-resistant design. Featuring multi-size cabinet options and a hidden cable system, it provides a clean, professional finish for high-end commercial and retail applications.
Features:

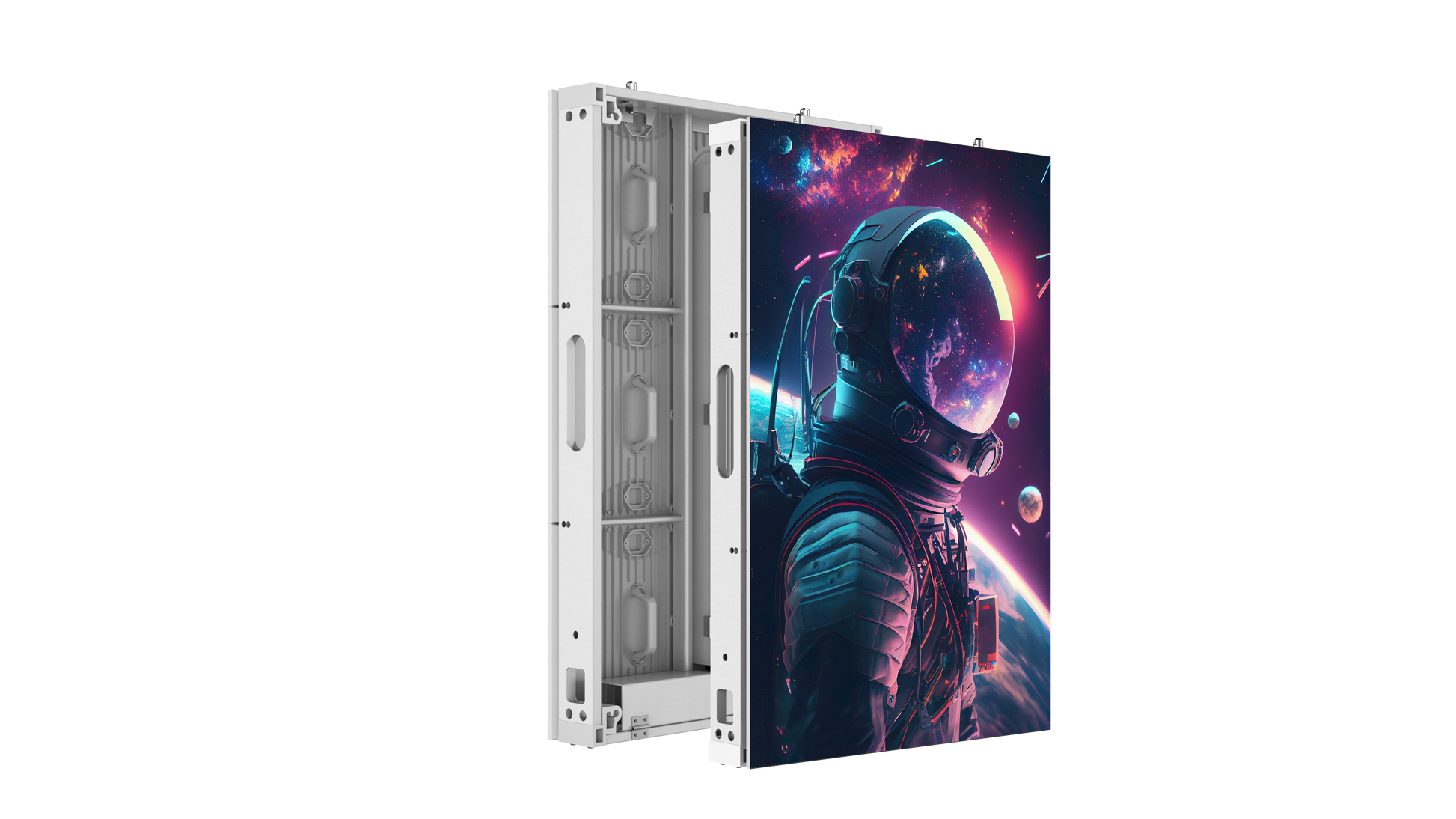

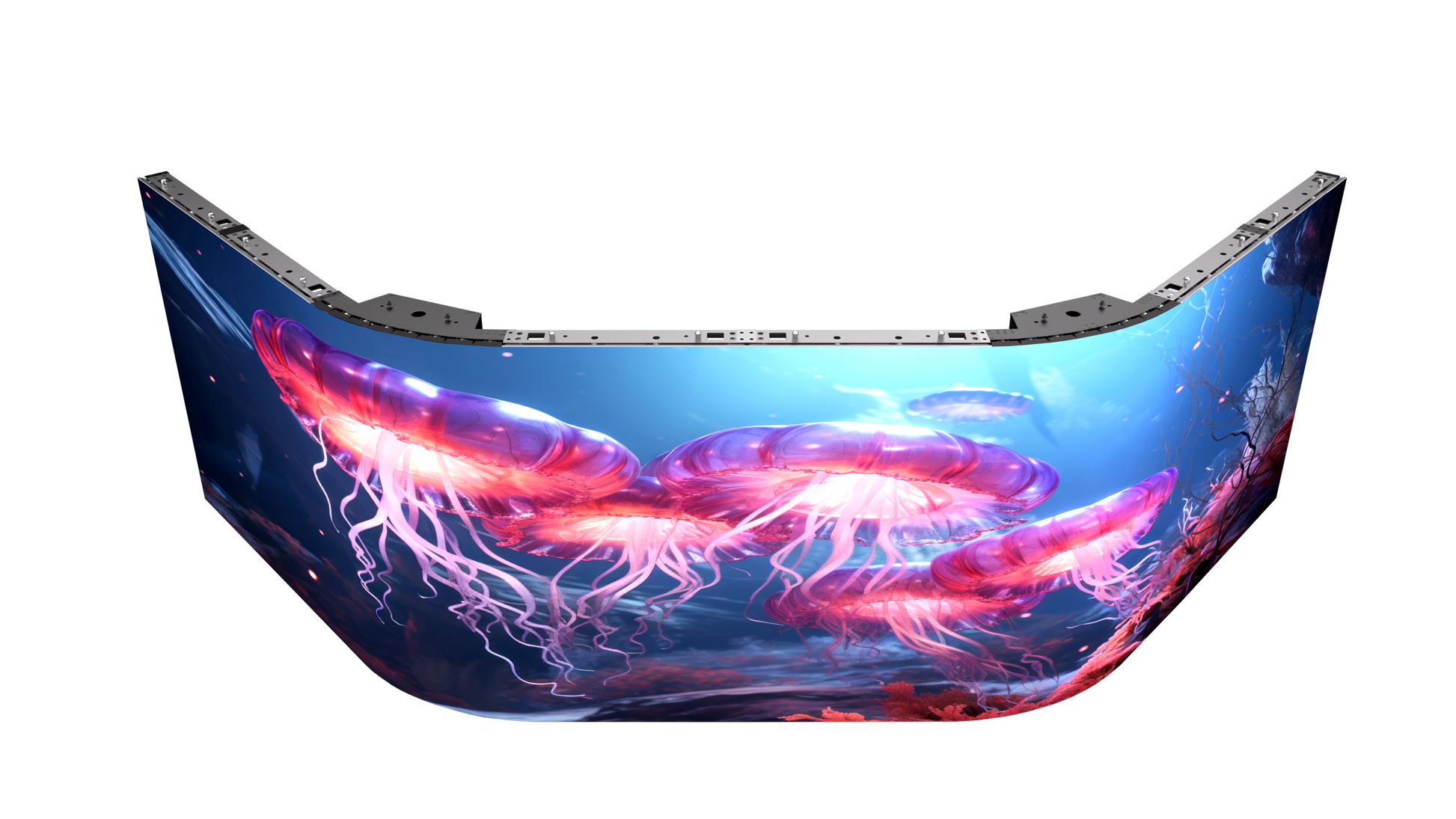

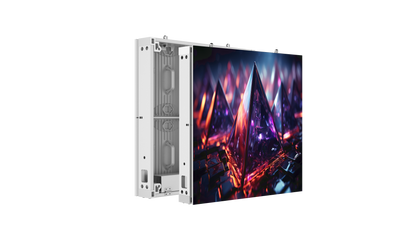

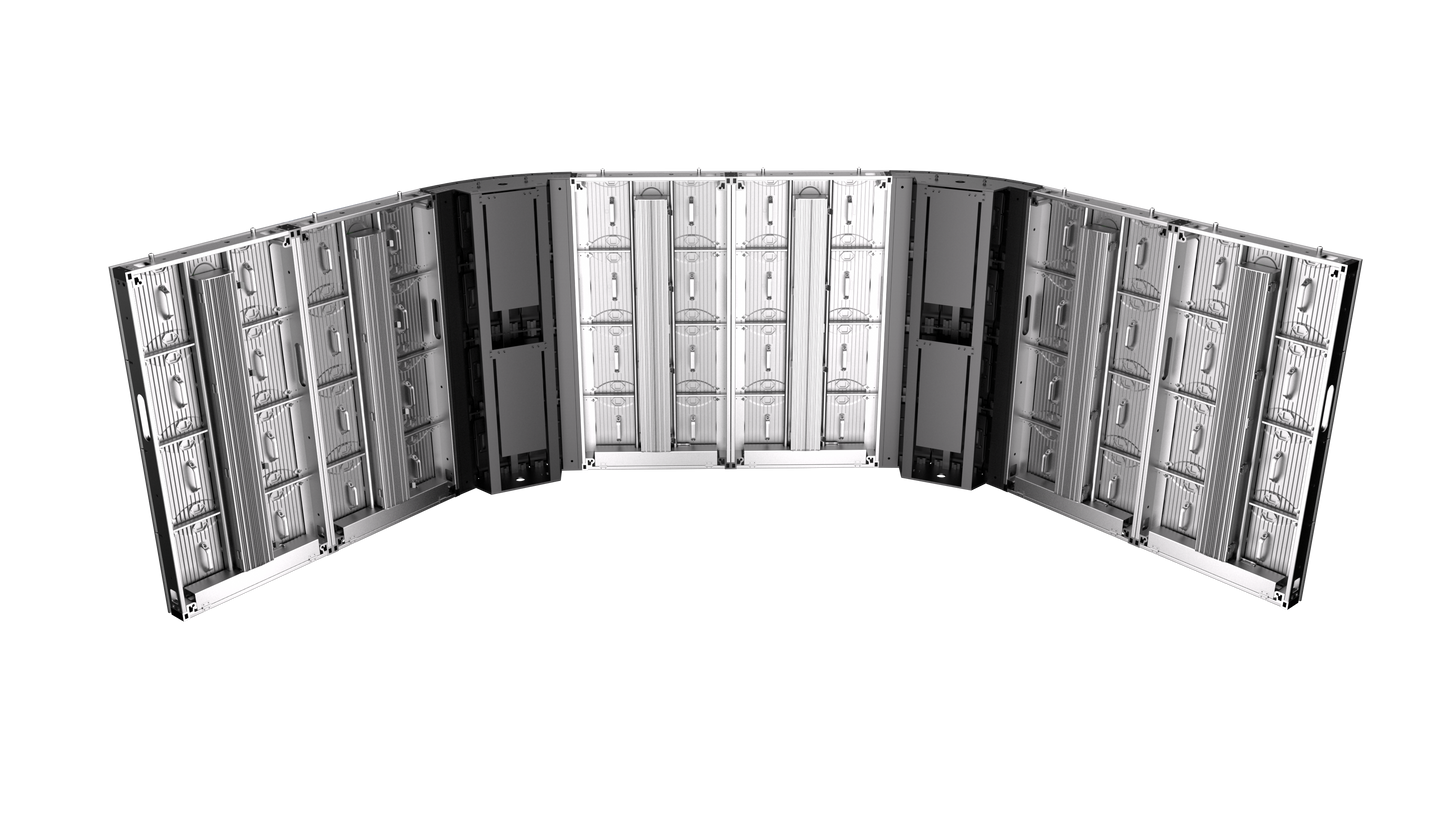

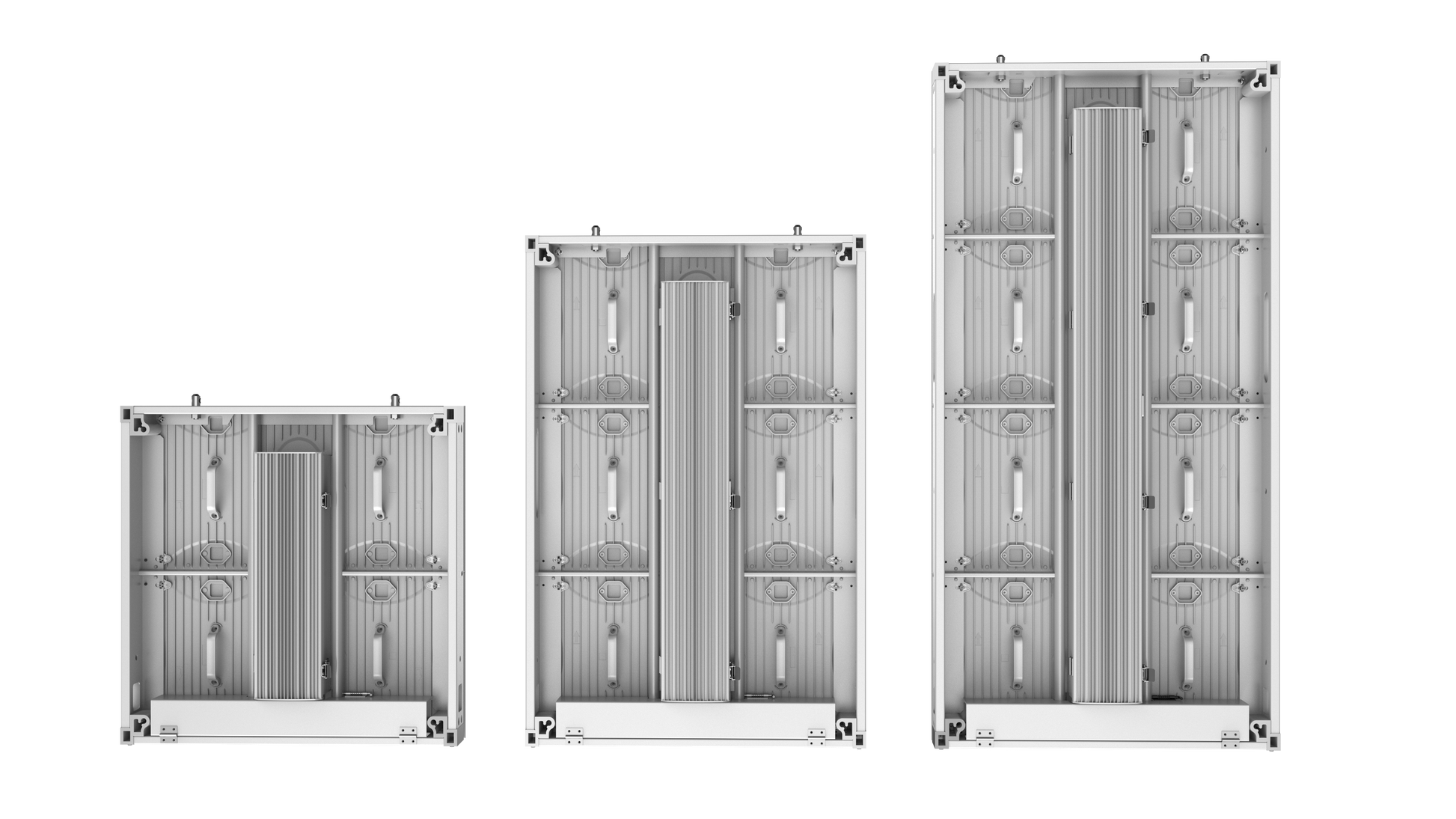

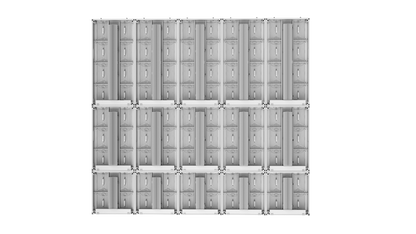

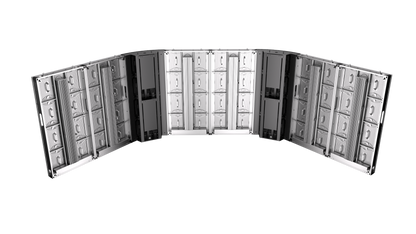

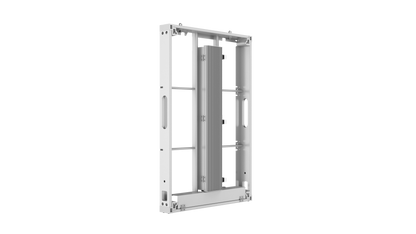

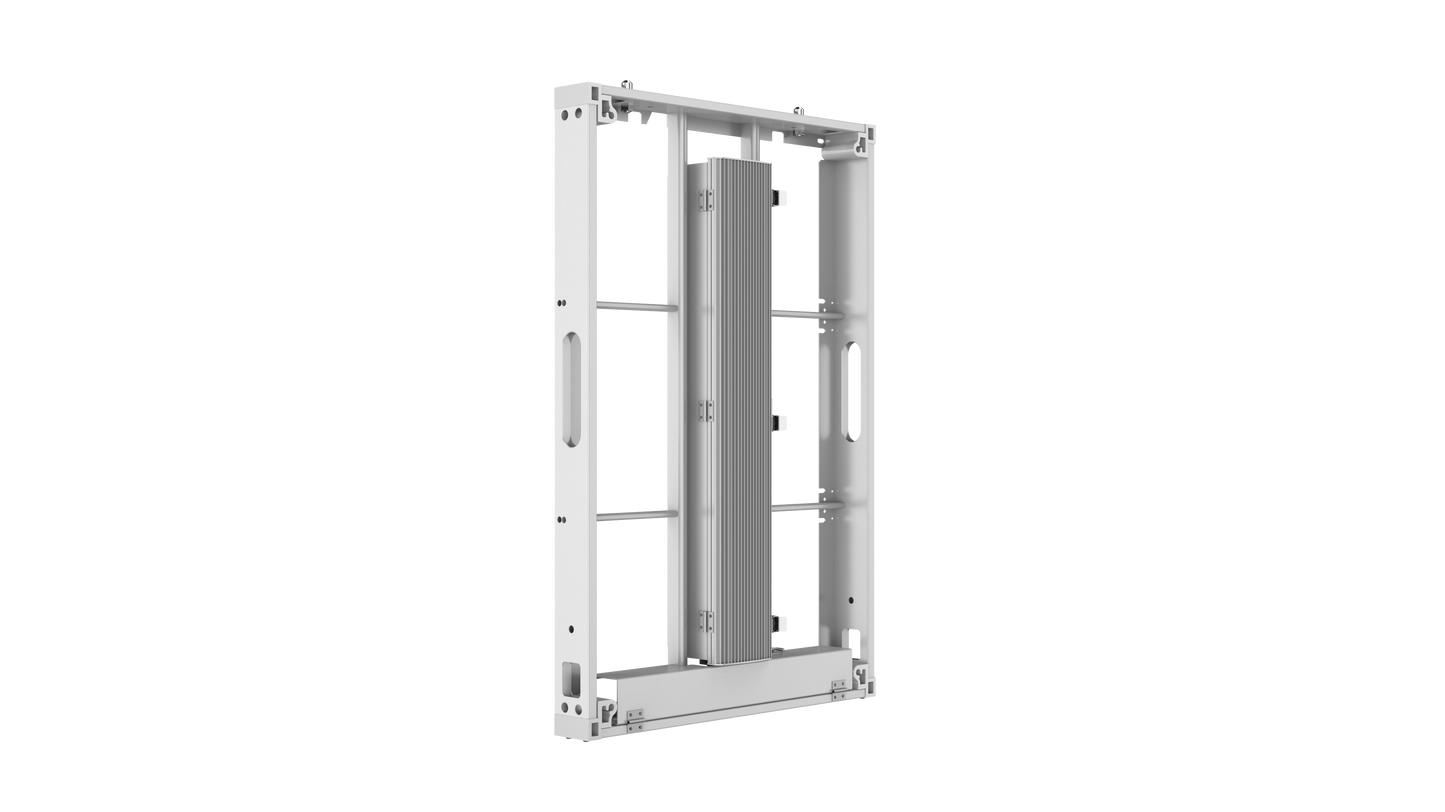

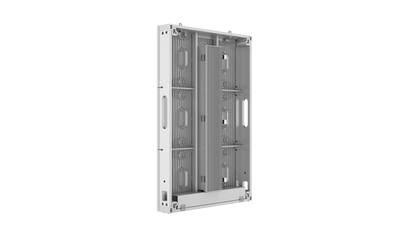

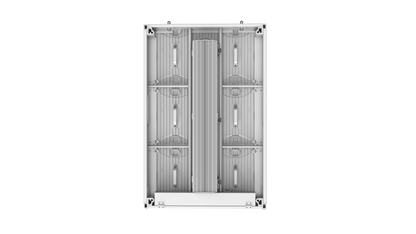

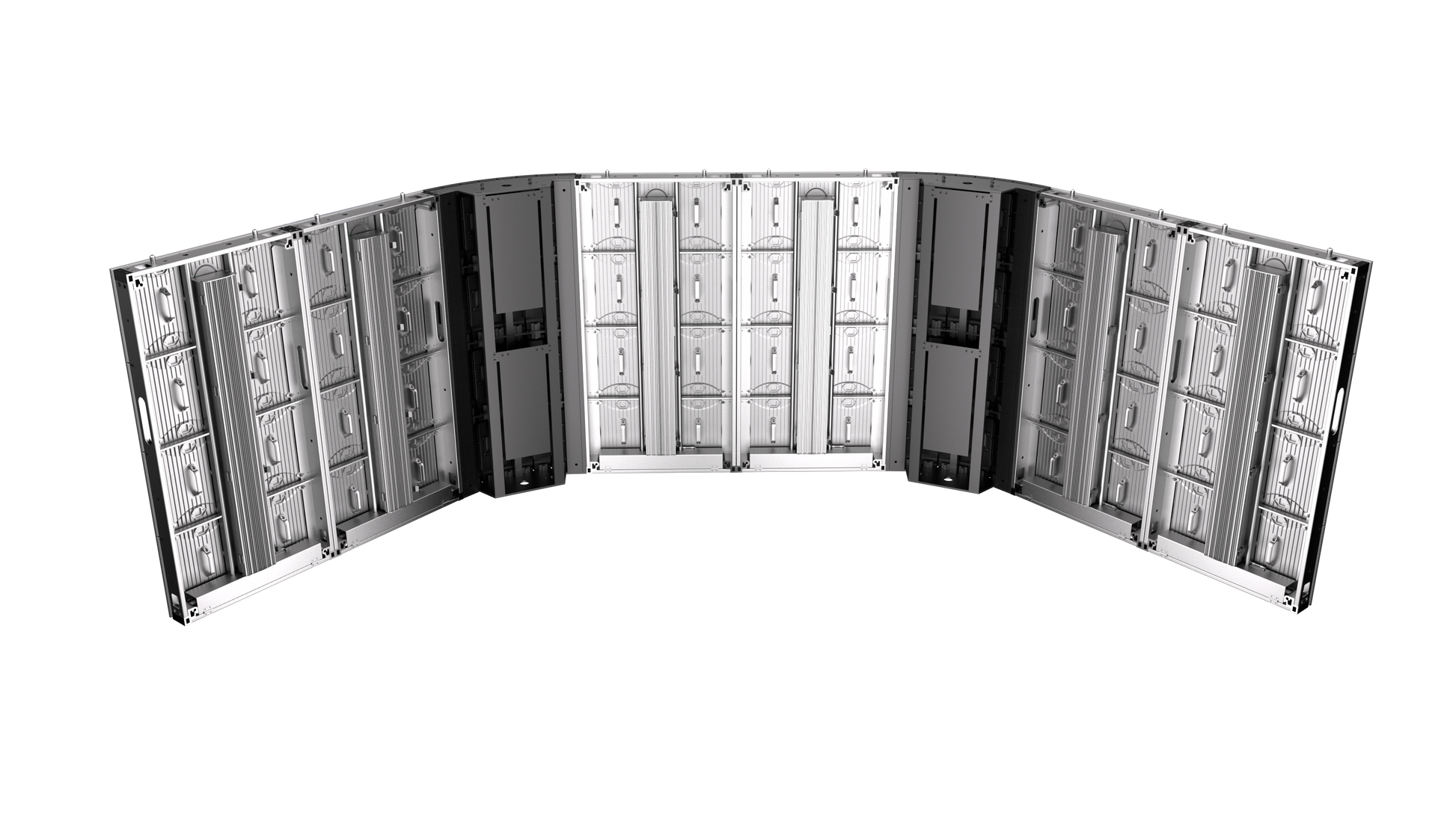

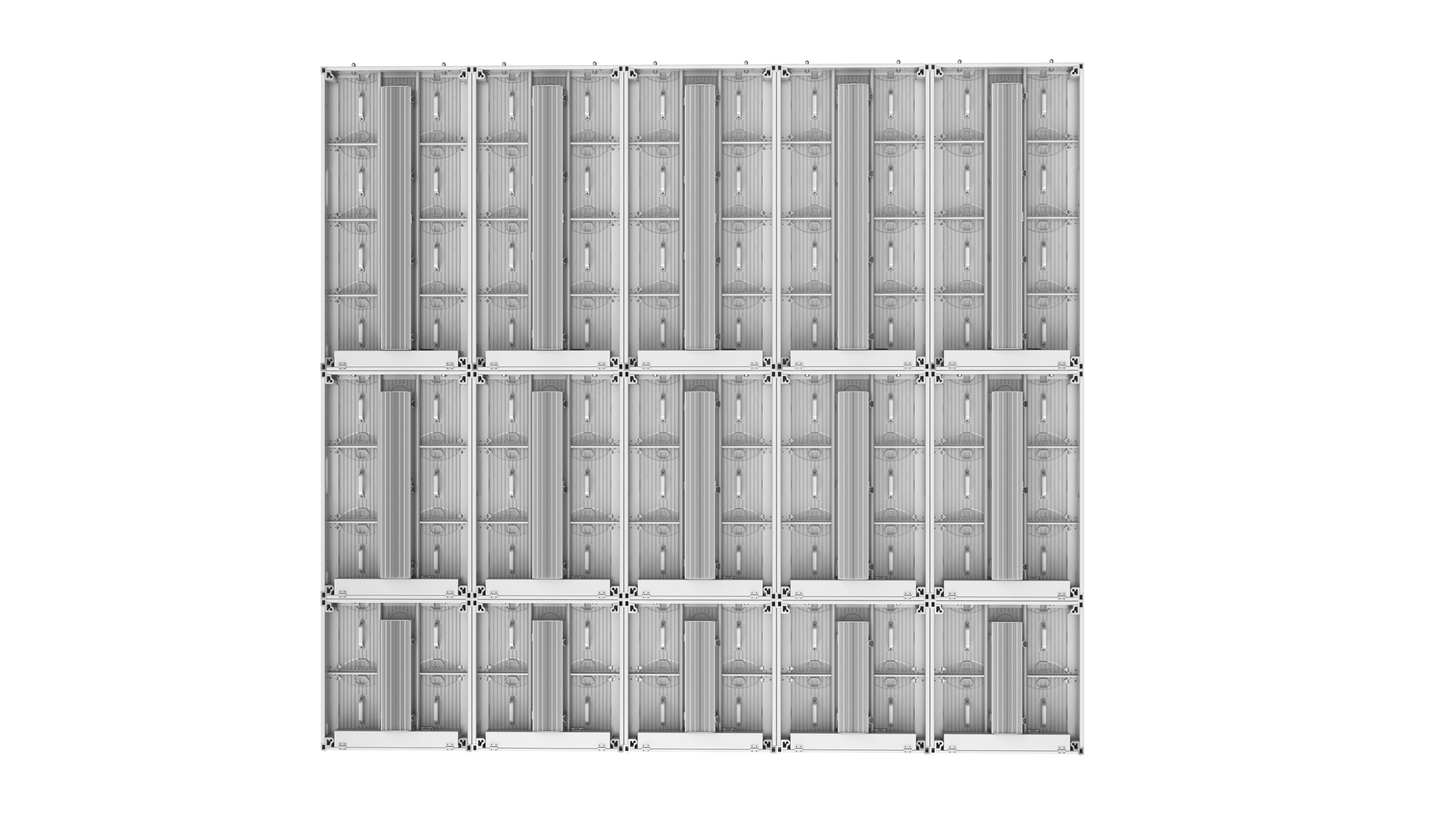

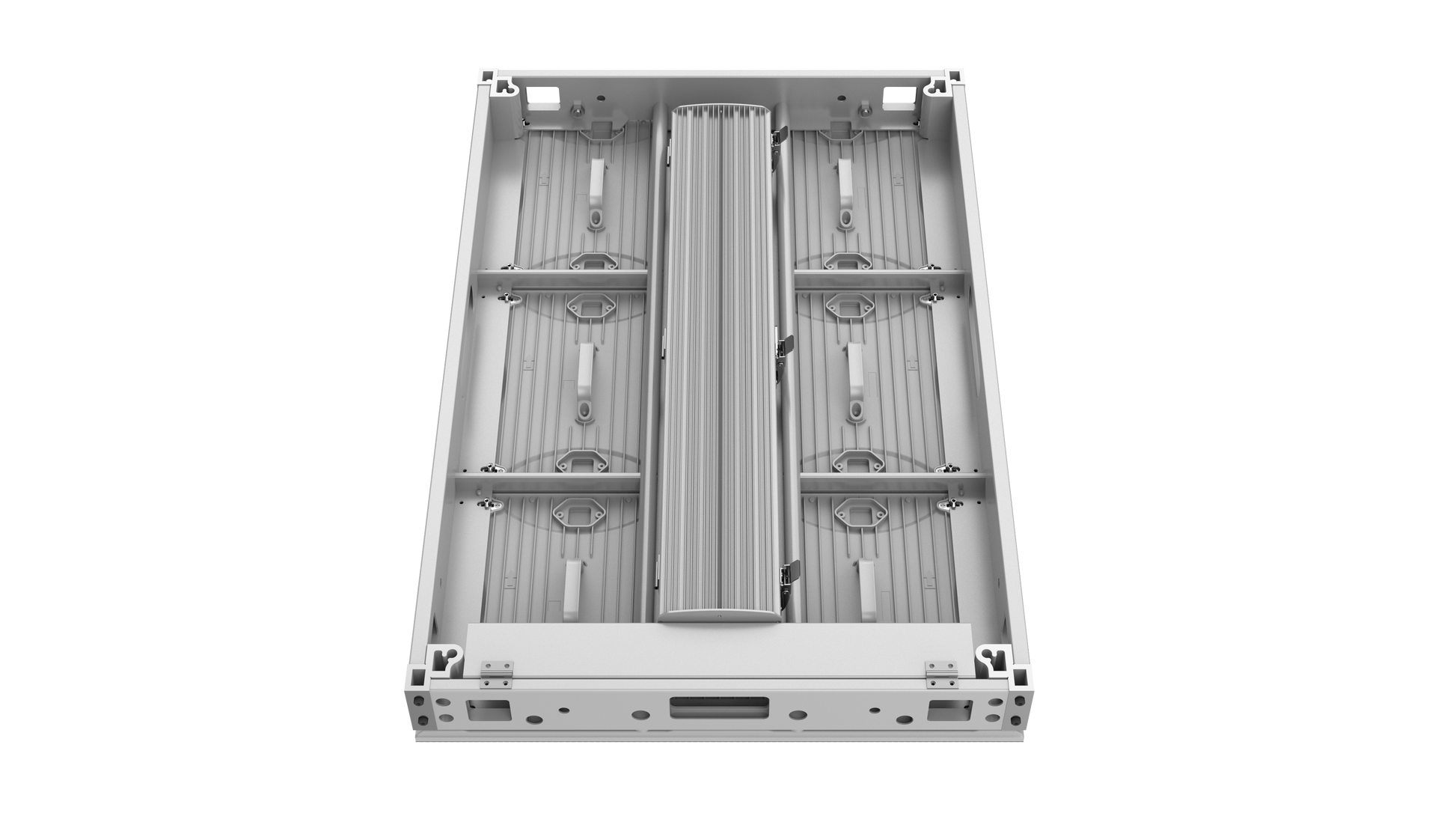

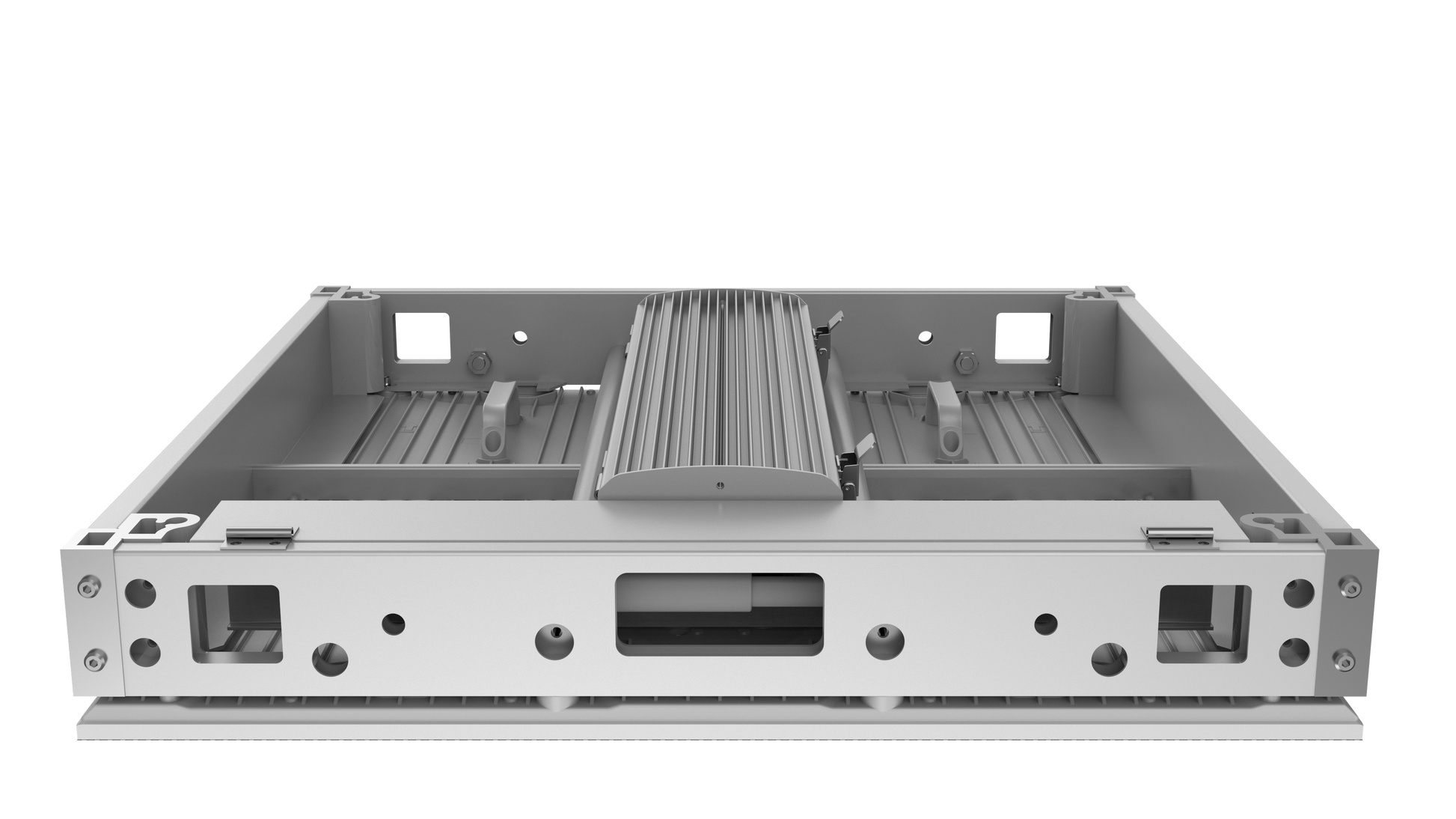

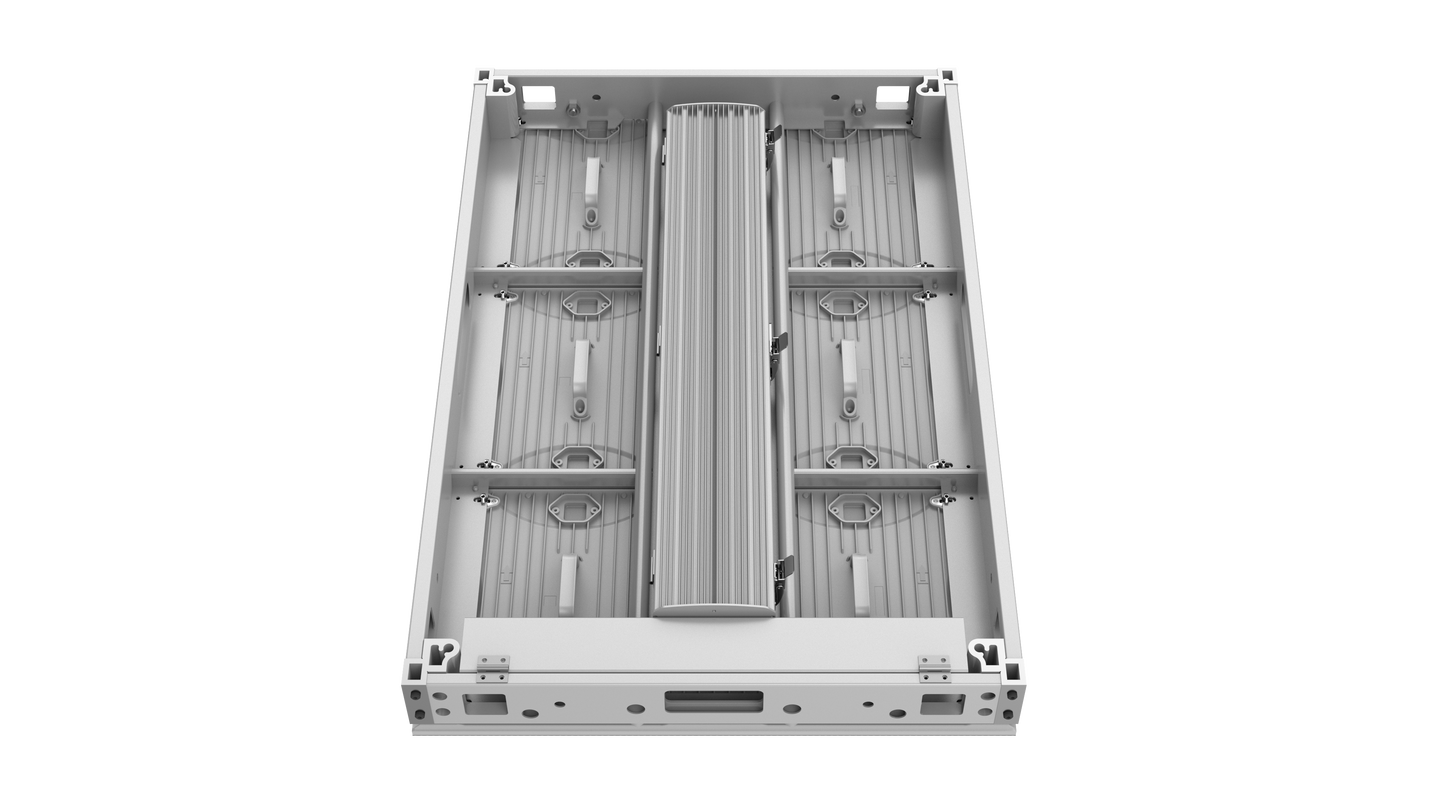

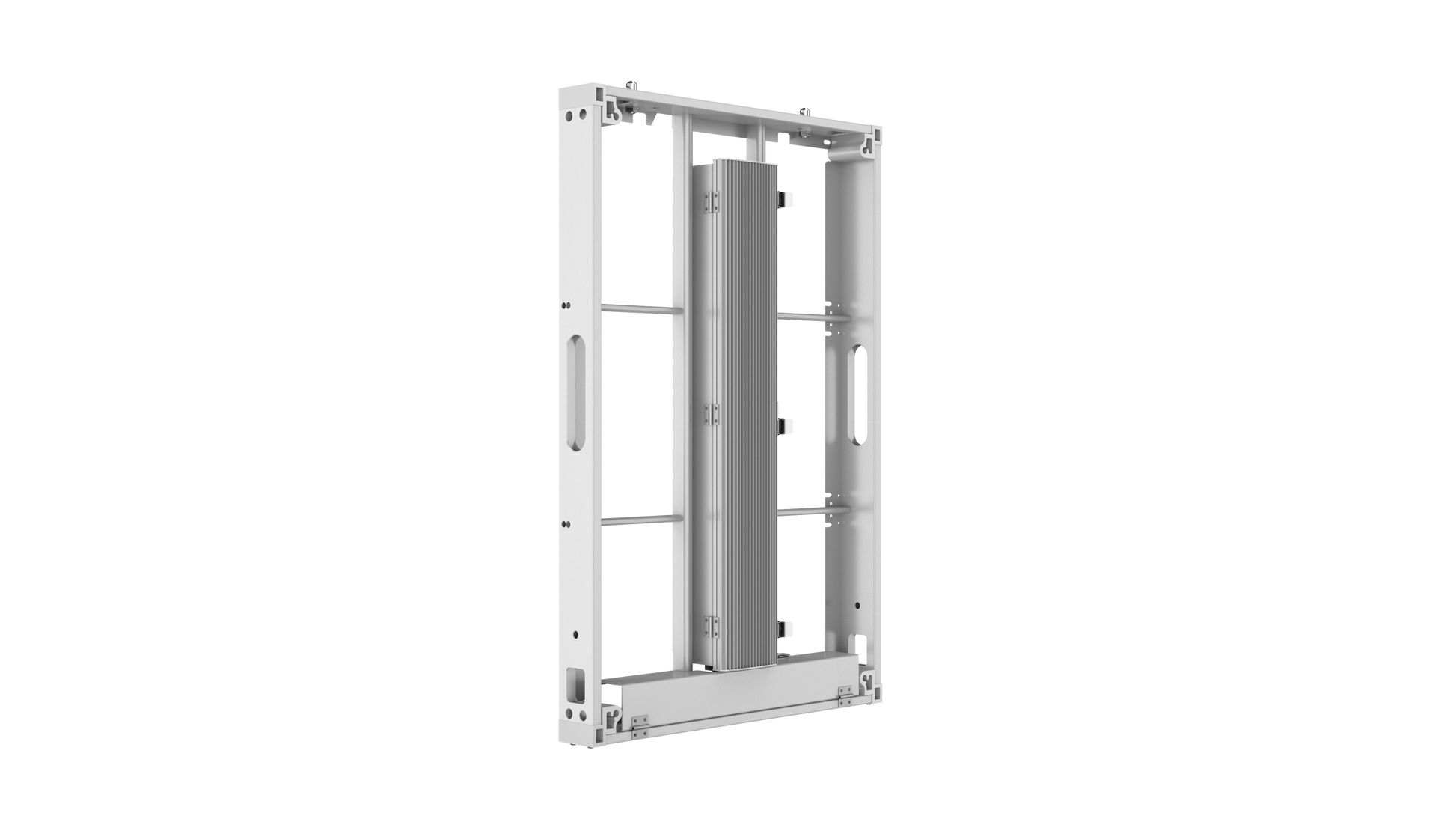

- Multi-size Cabinet & Mixed Splicing: Four different cabinet sizes enable flexible installation, adapting to any space effortlessly.

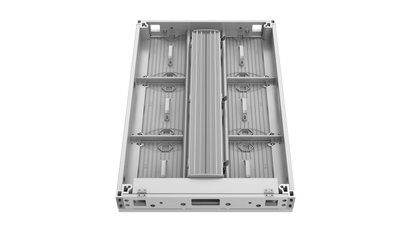

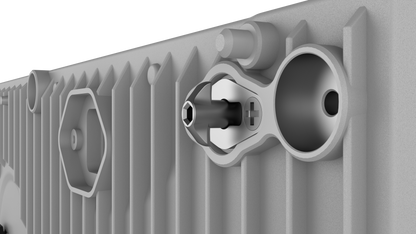

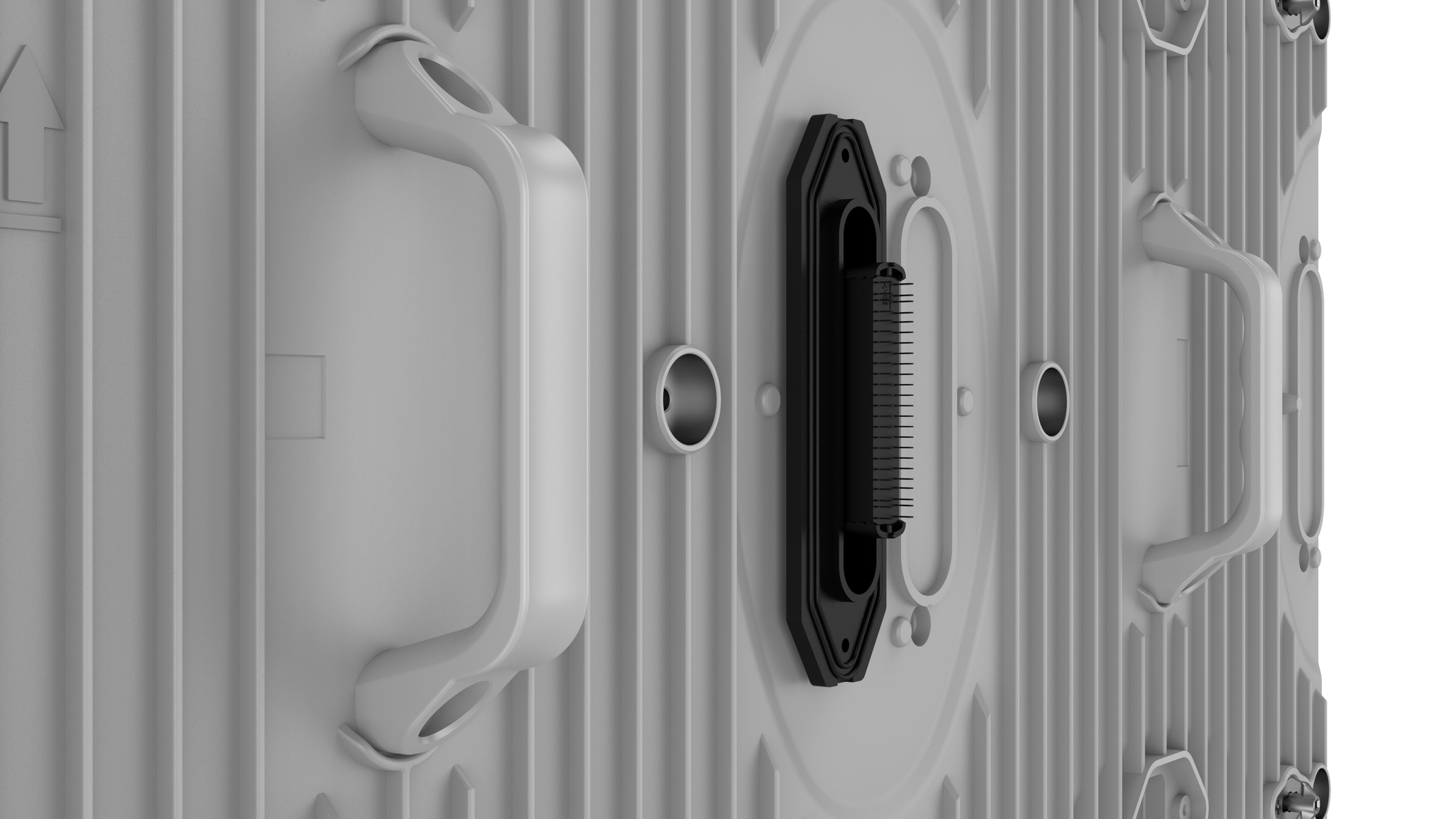

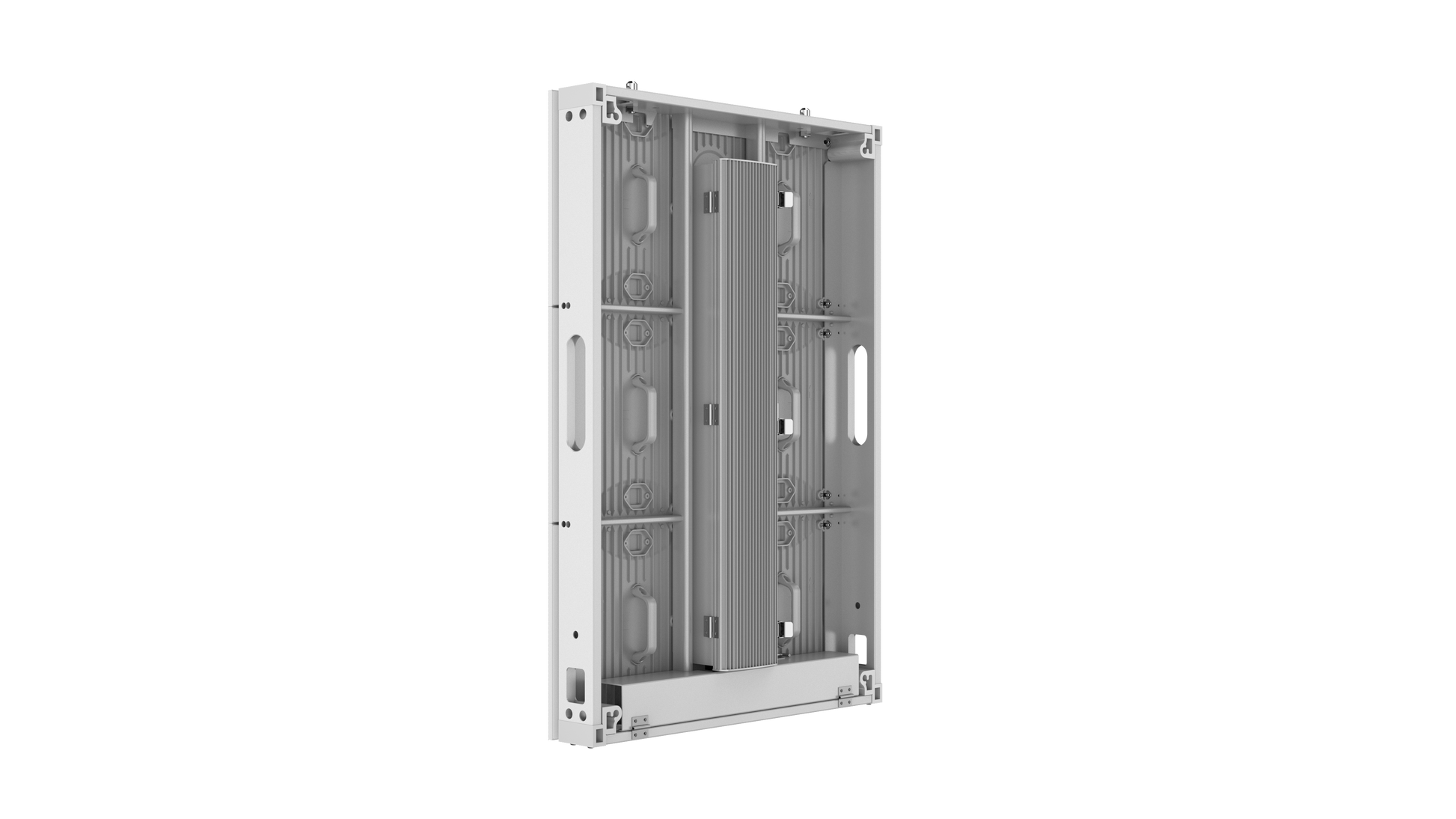

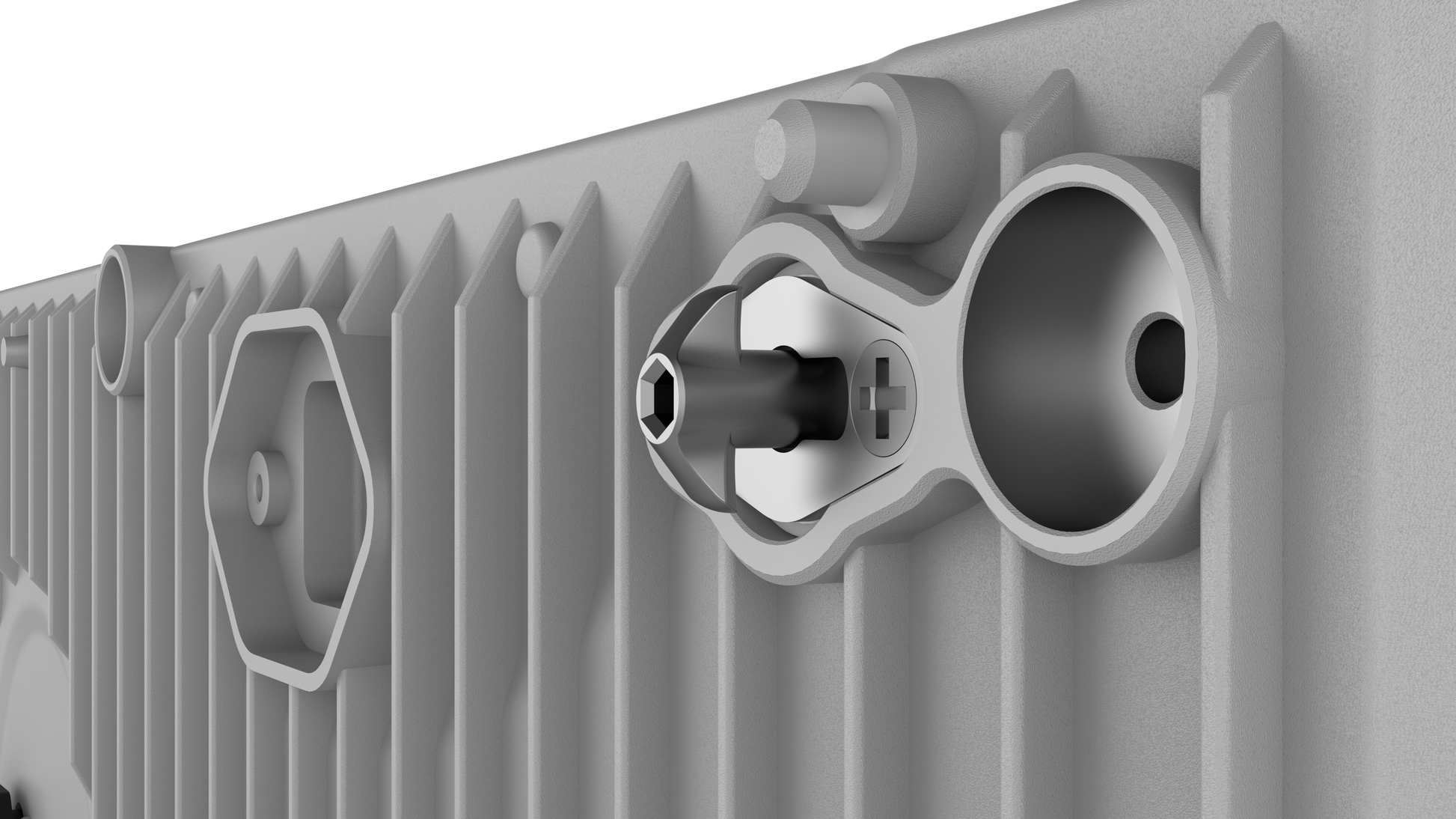

- Die-cast Aluminium Module: Robust design engineered for the toughest environments, ensuring long-term stable operation.

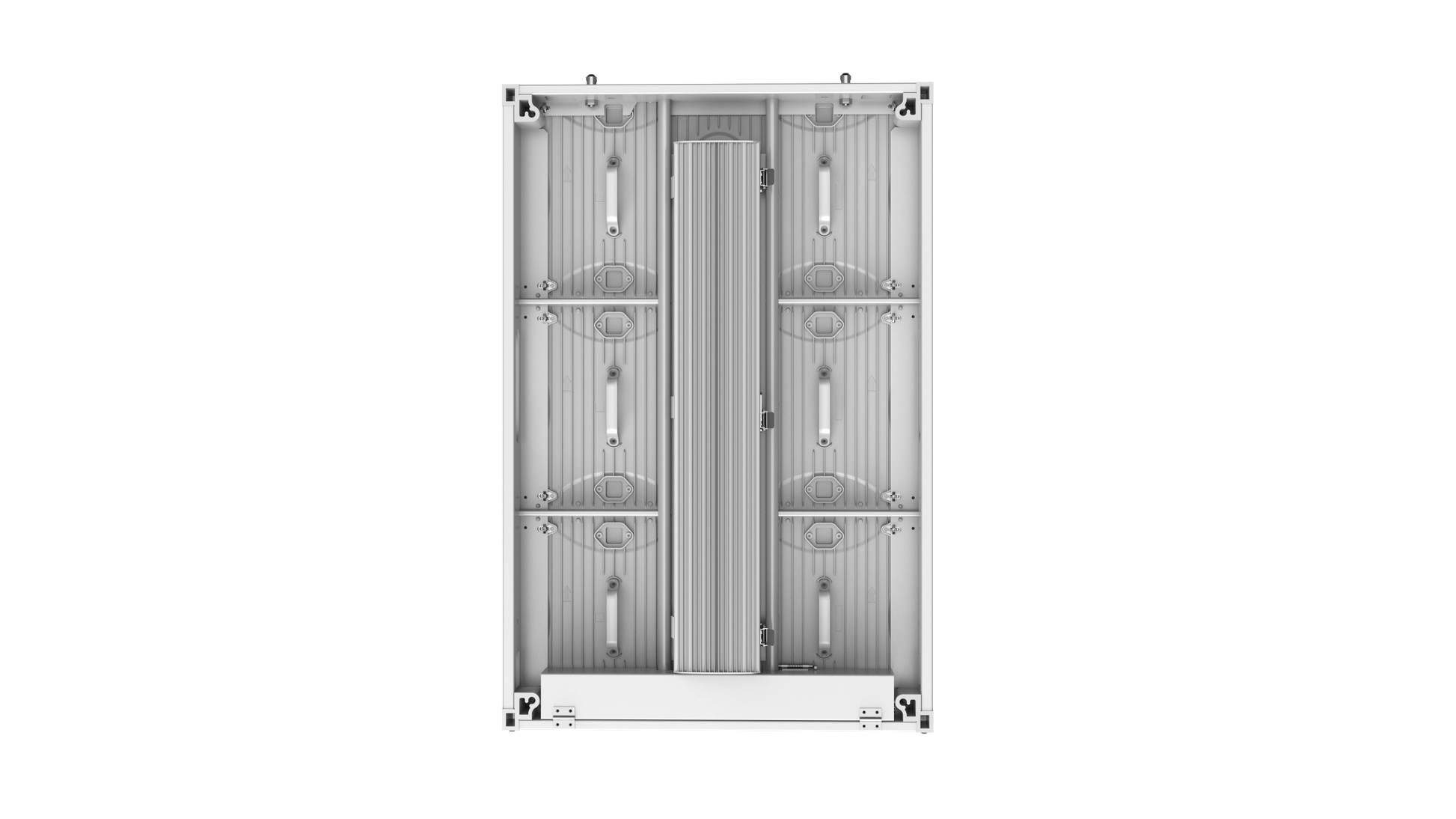

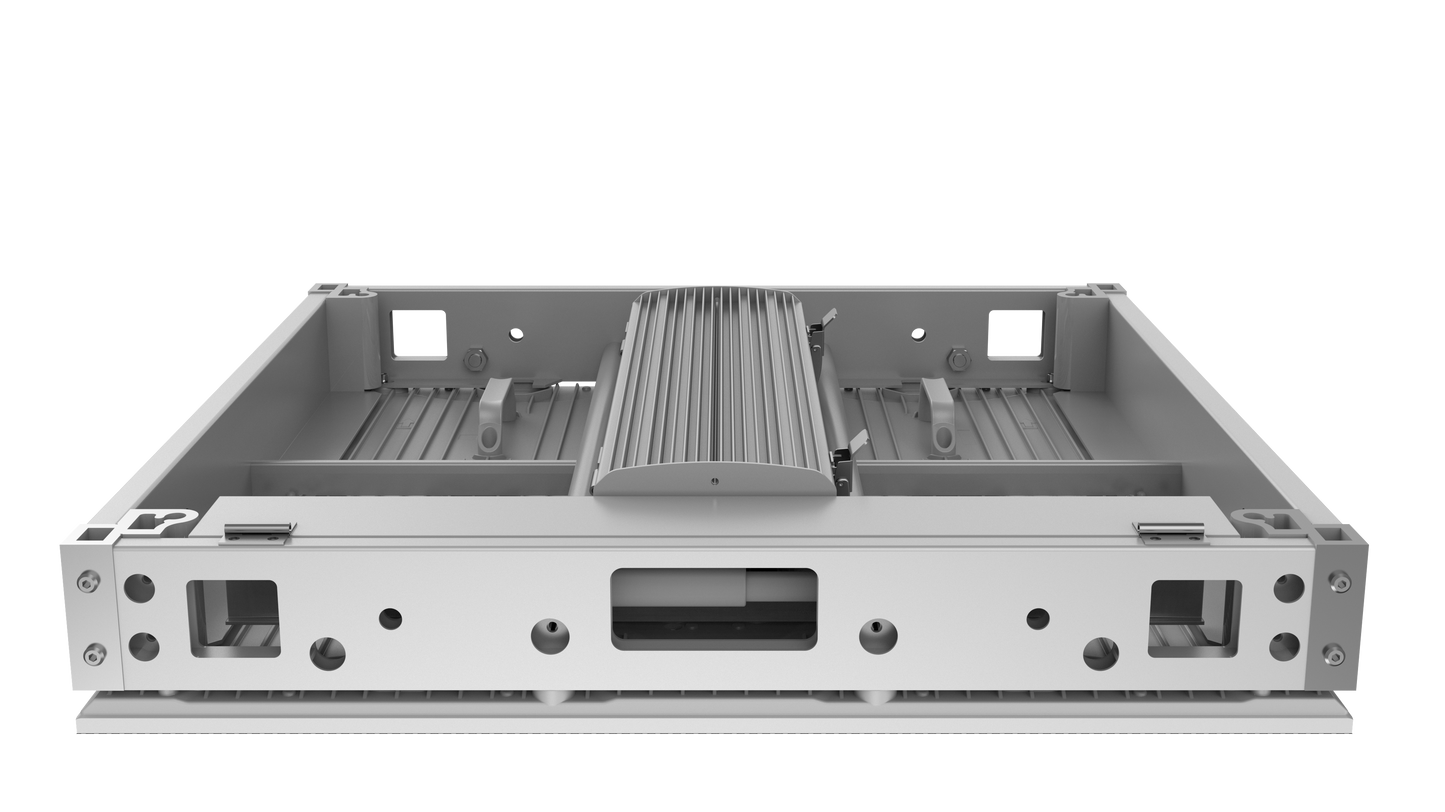

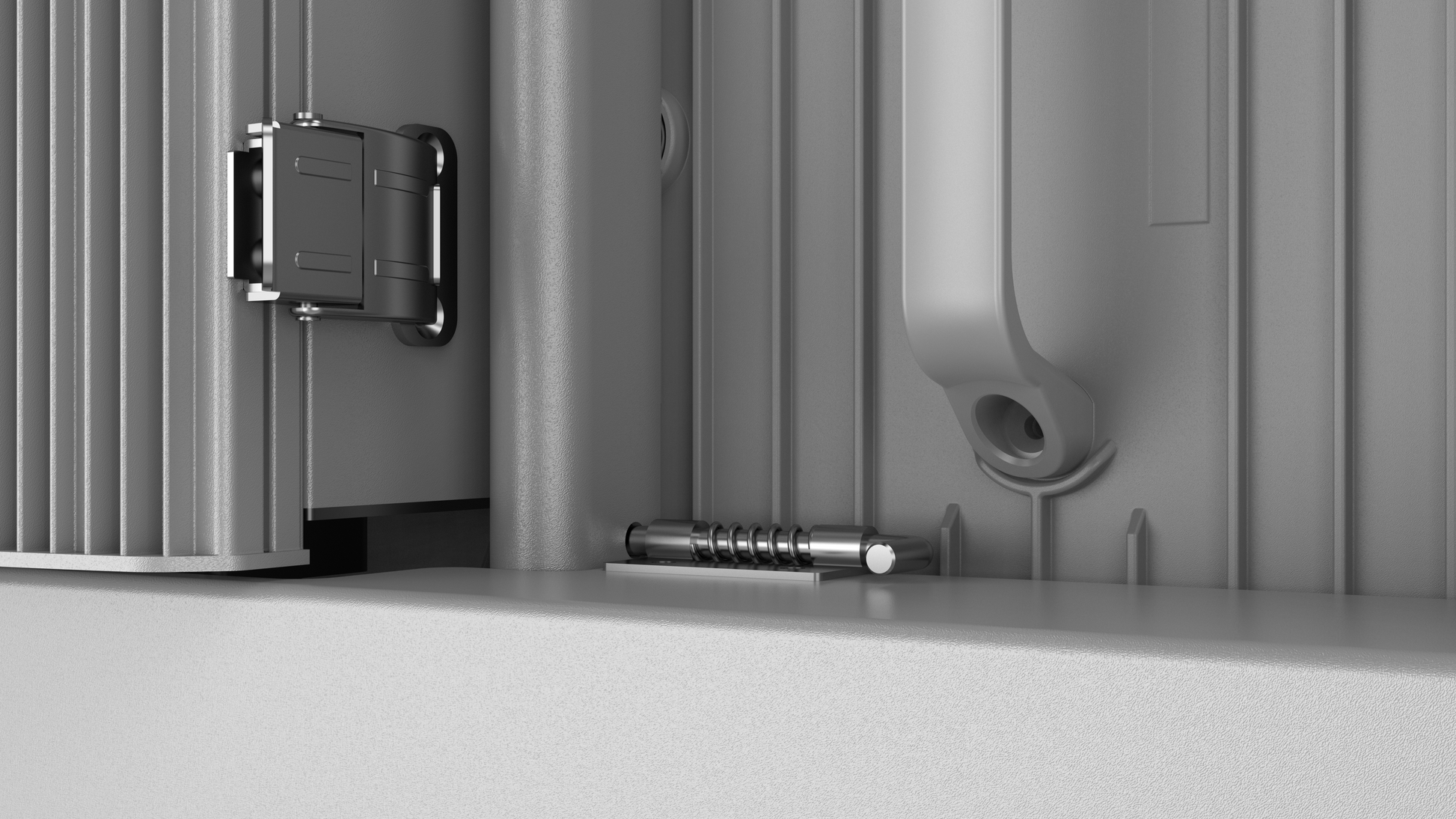

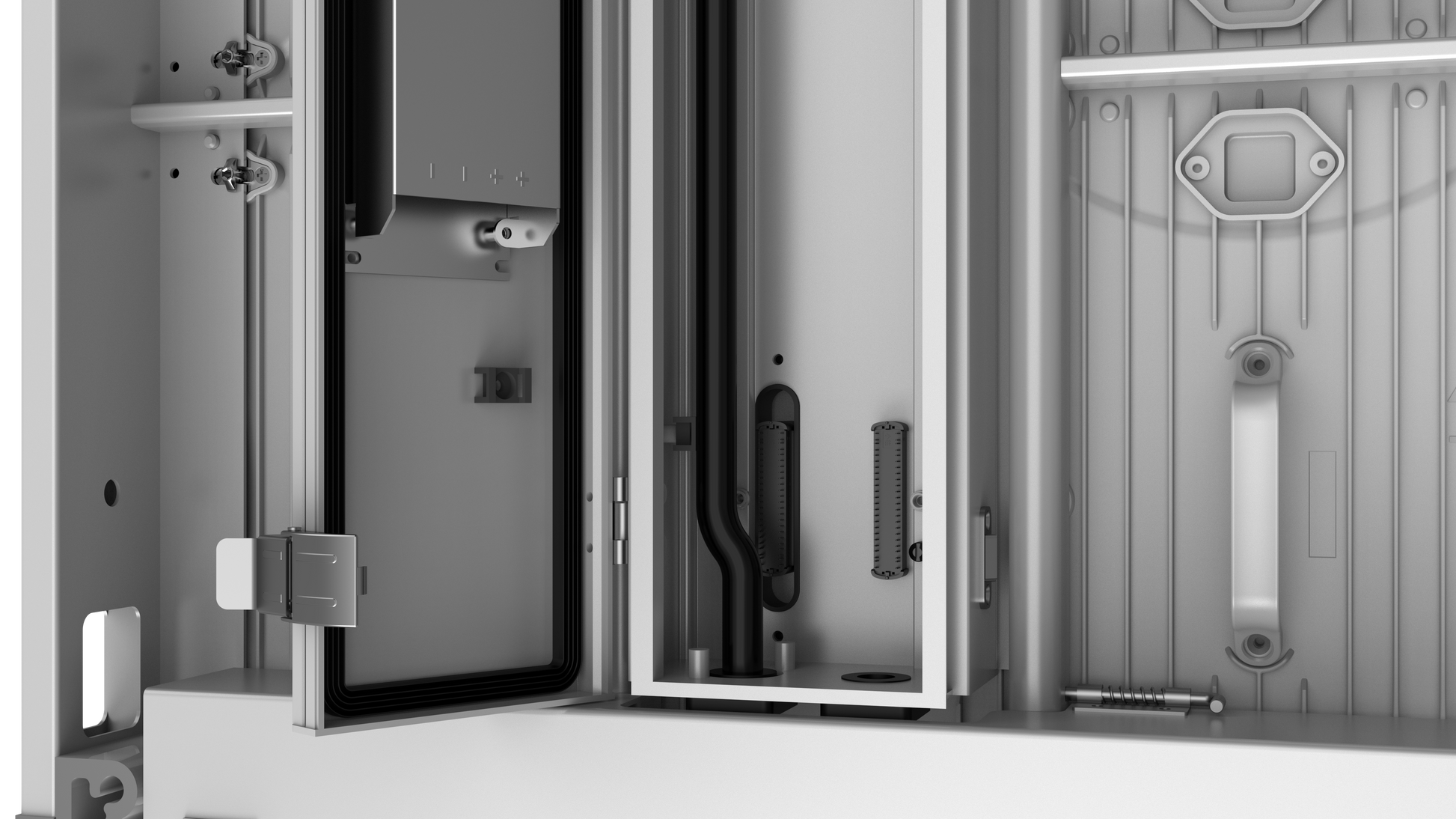

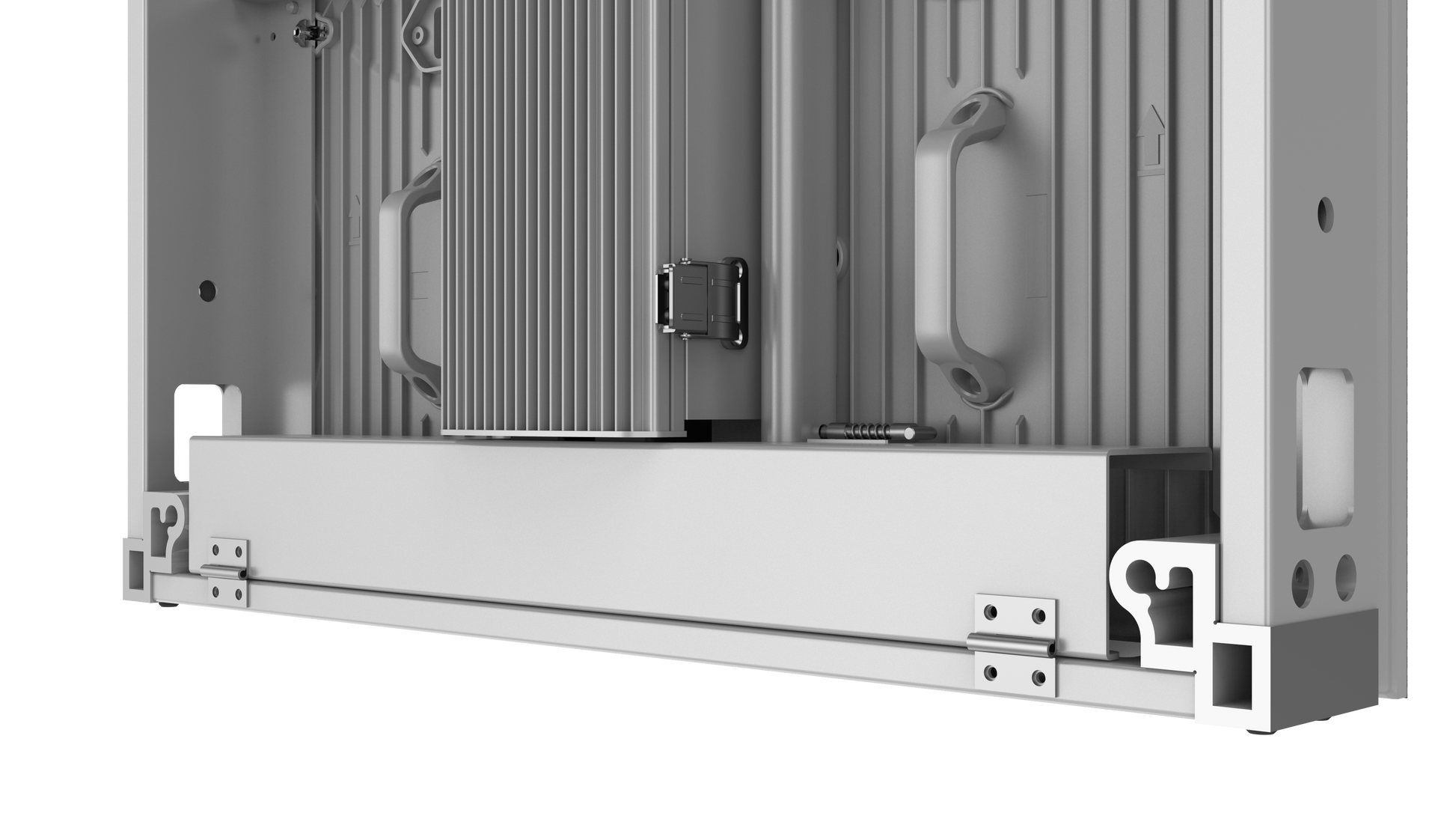

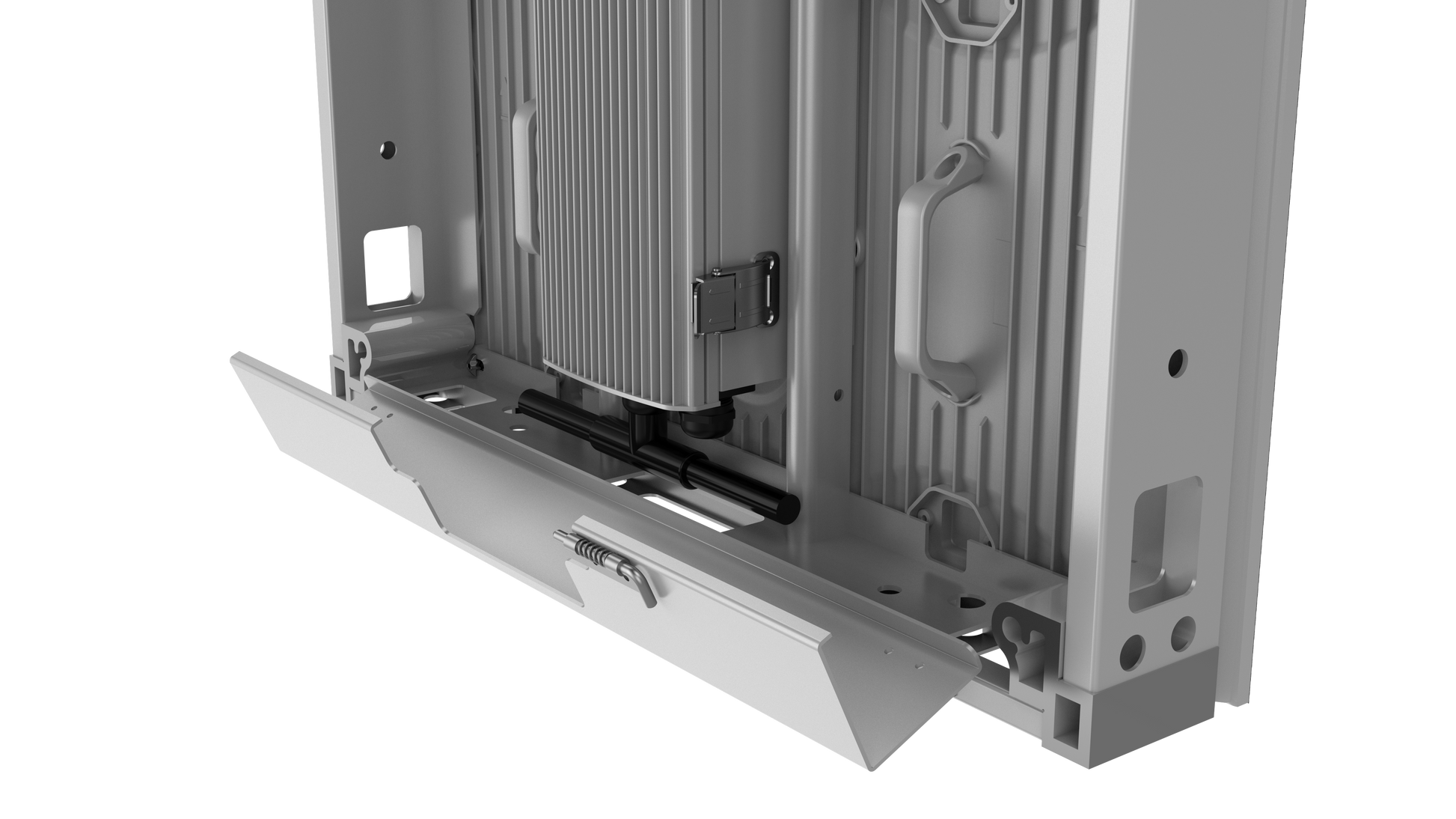

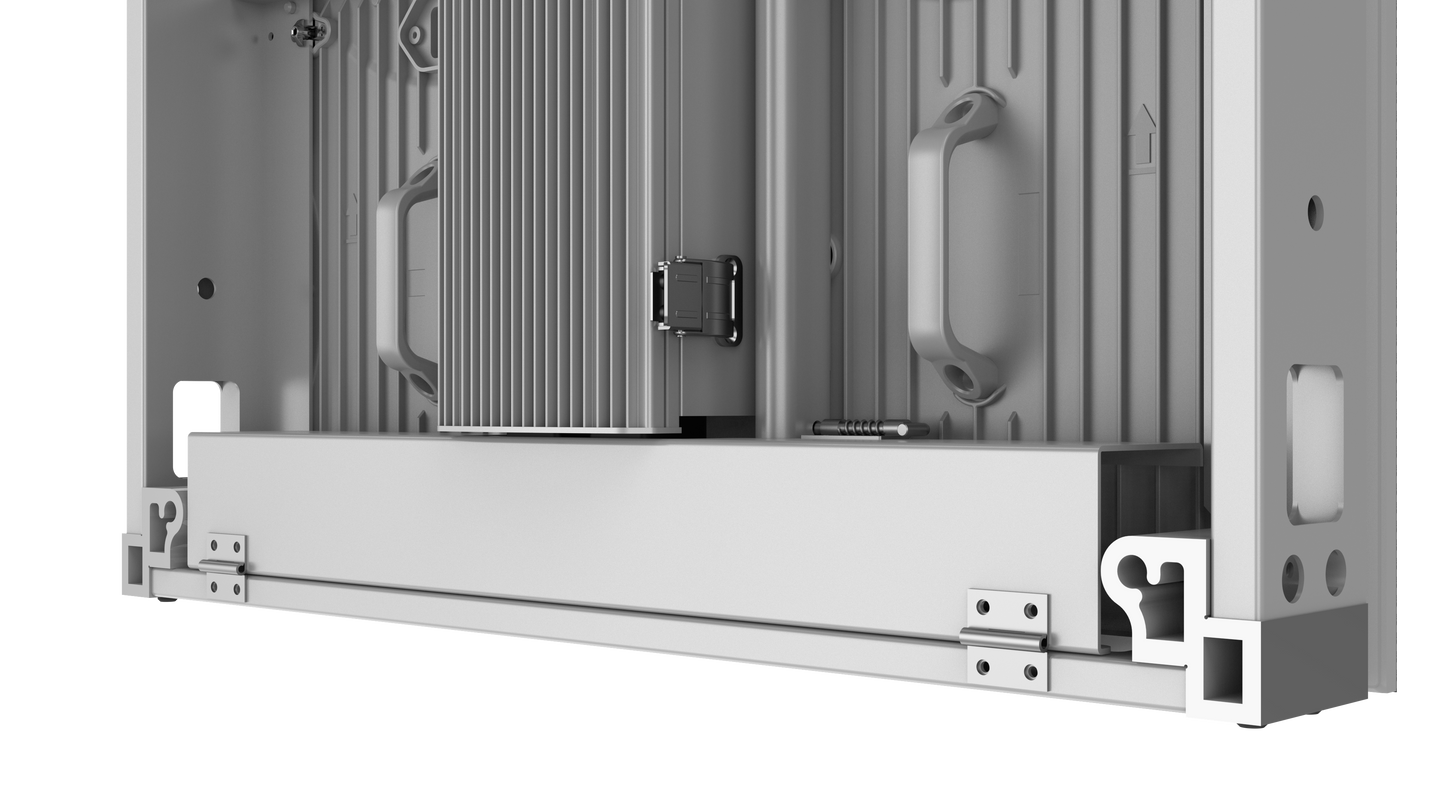

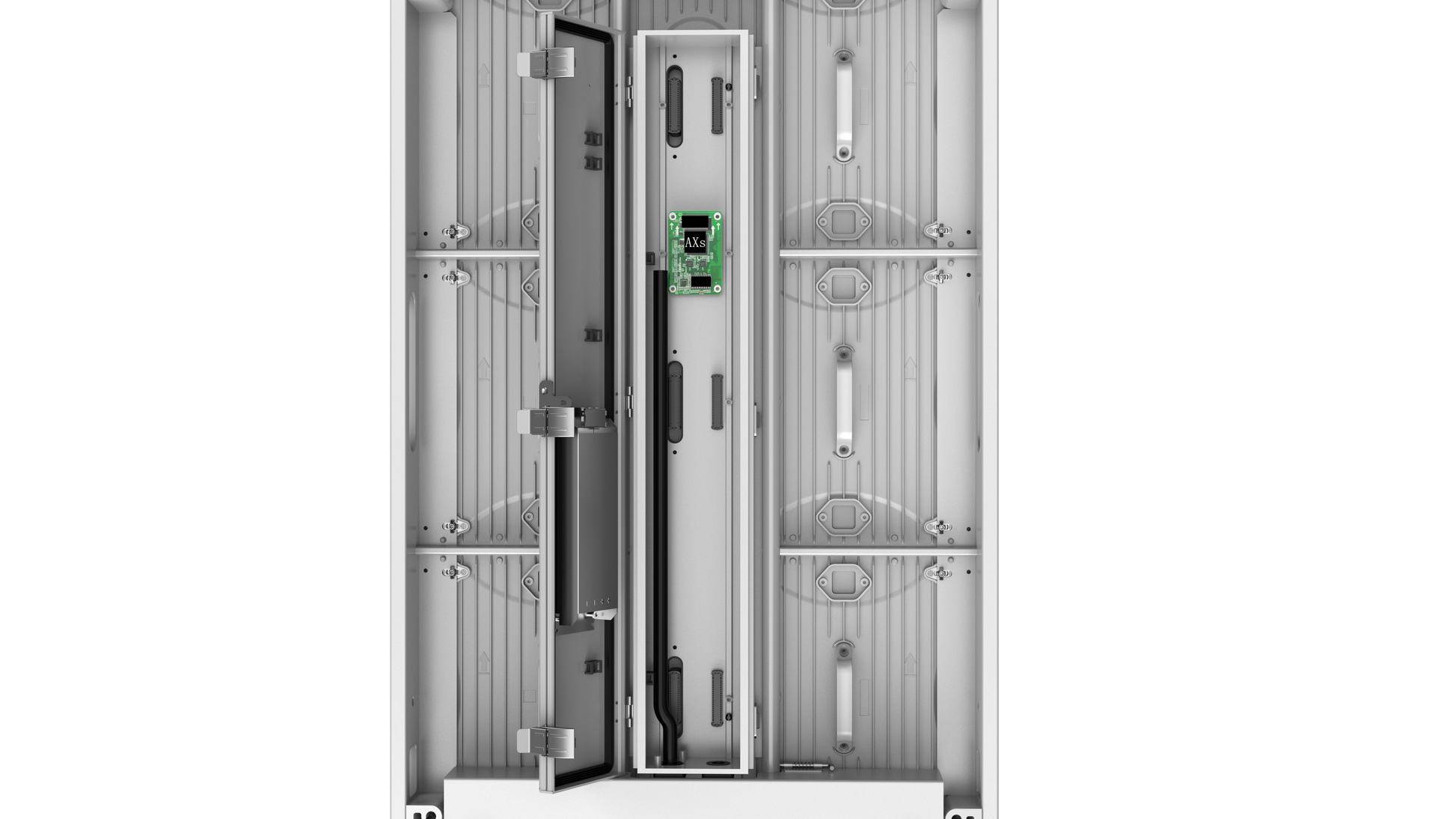

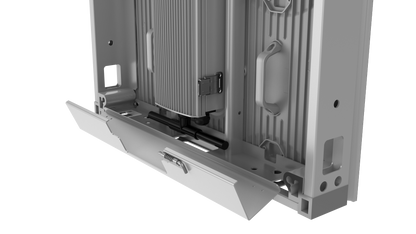

- Hidden Cabling: Innovative cable box protects cables from UV, ageing, and environmental damage for a neat appearance.
- IP66 Waterproofing: High-class fire rating and IP66 protection guarantee safety and stability in public spaces.

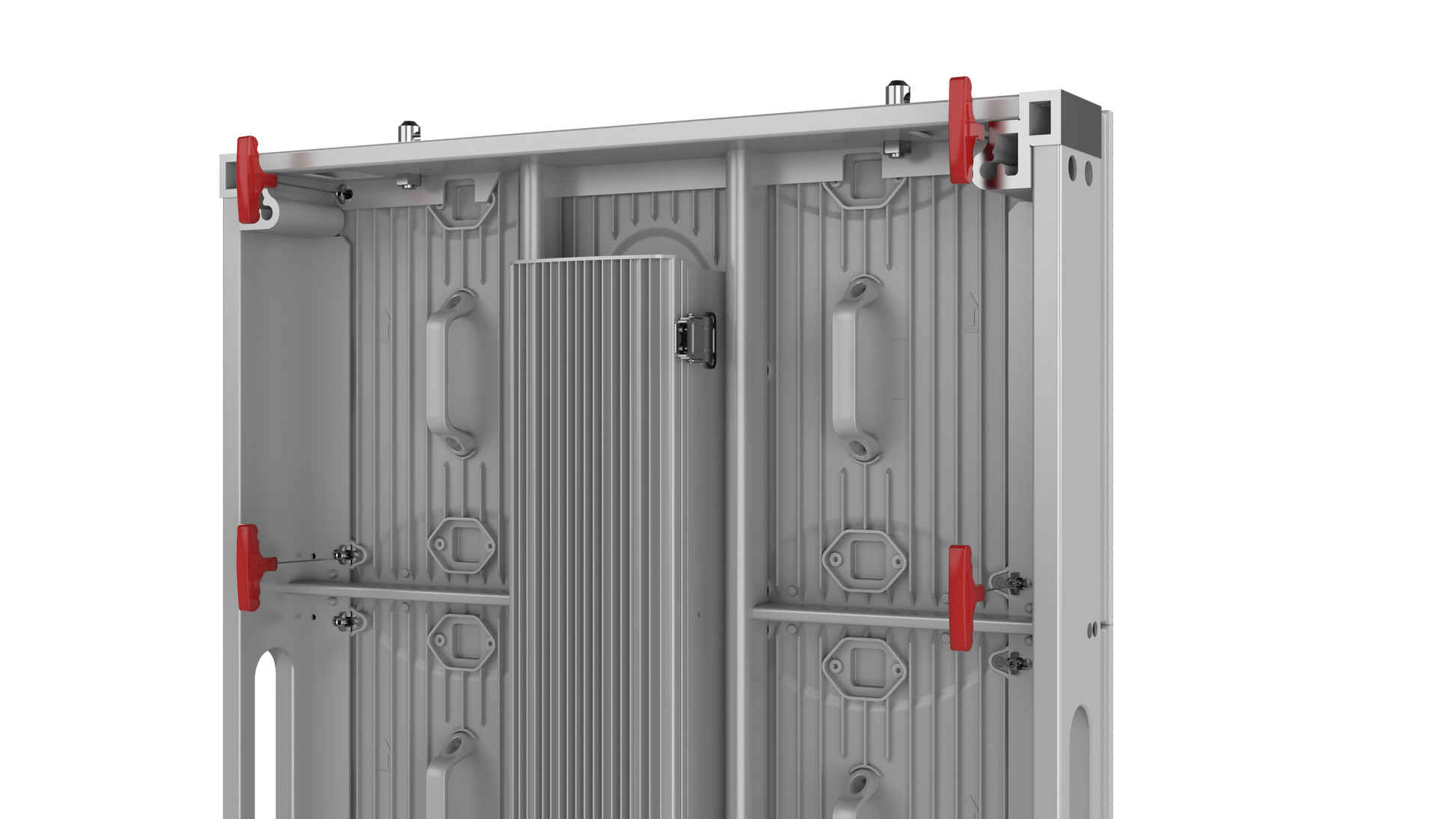

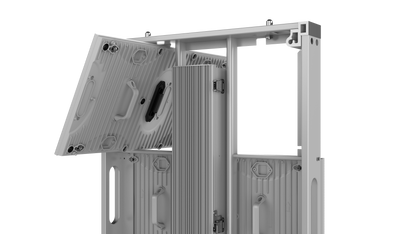

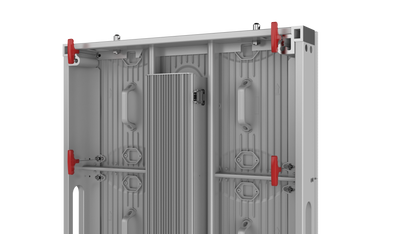

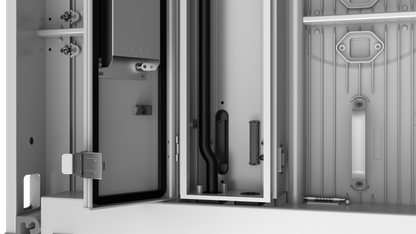

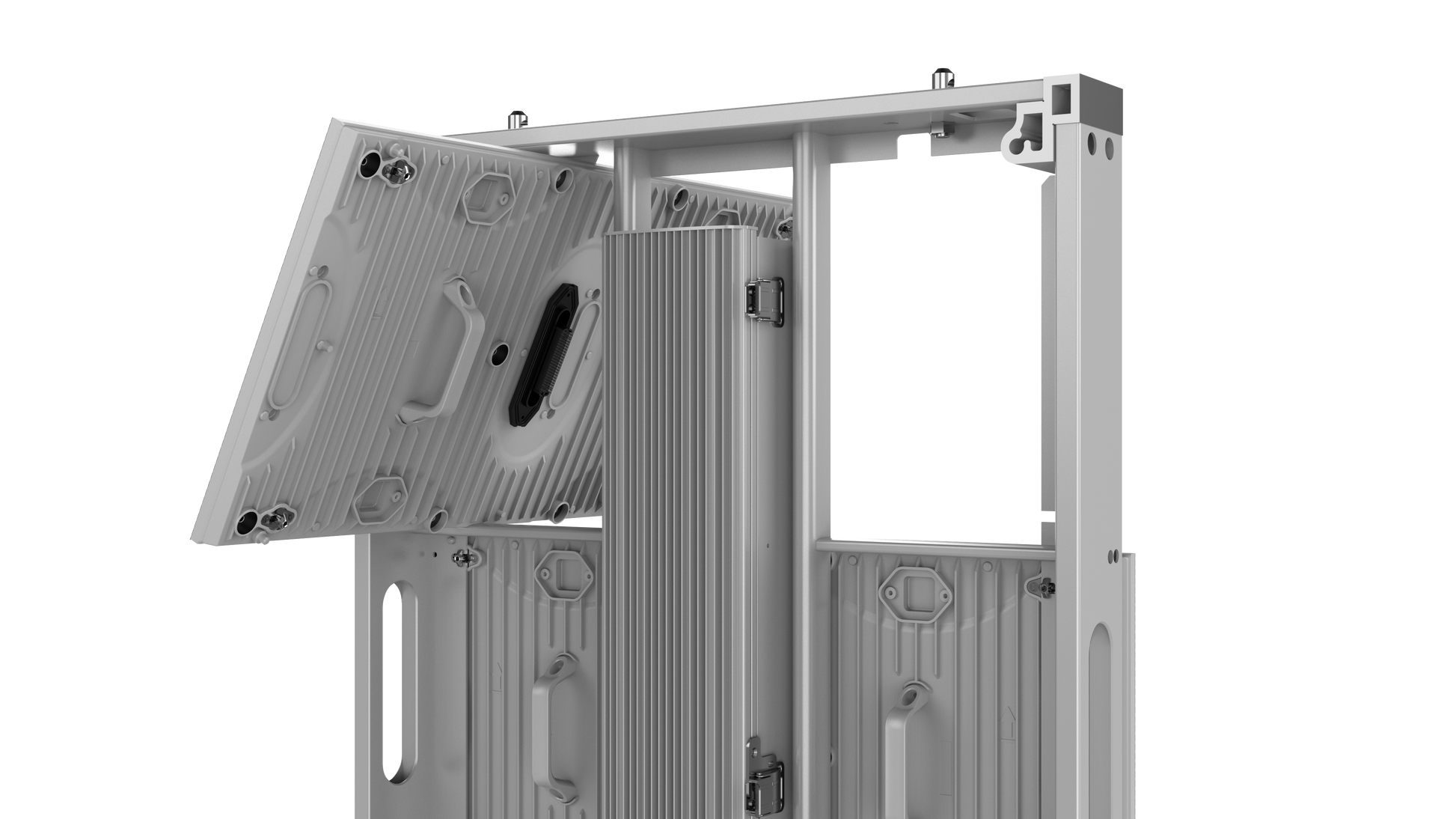

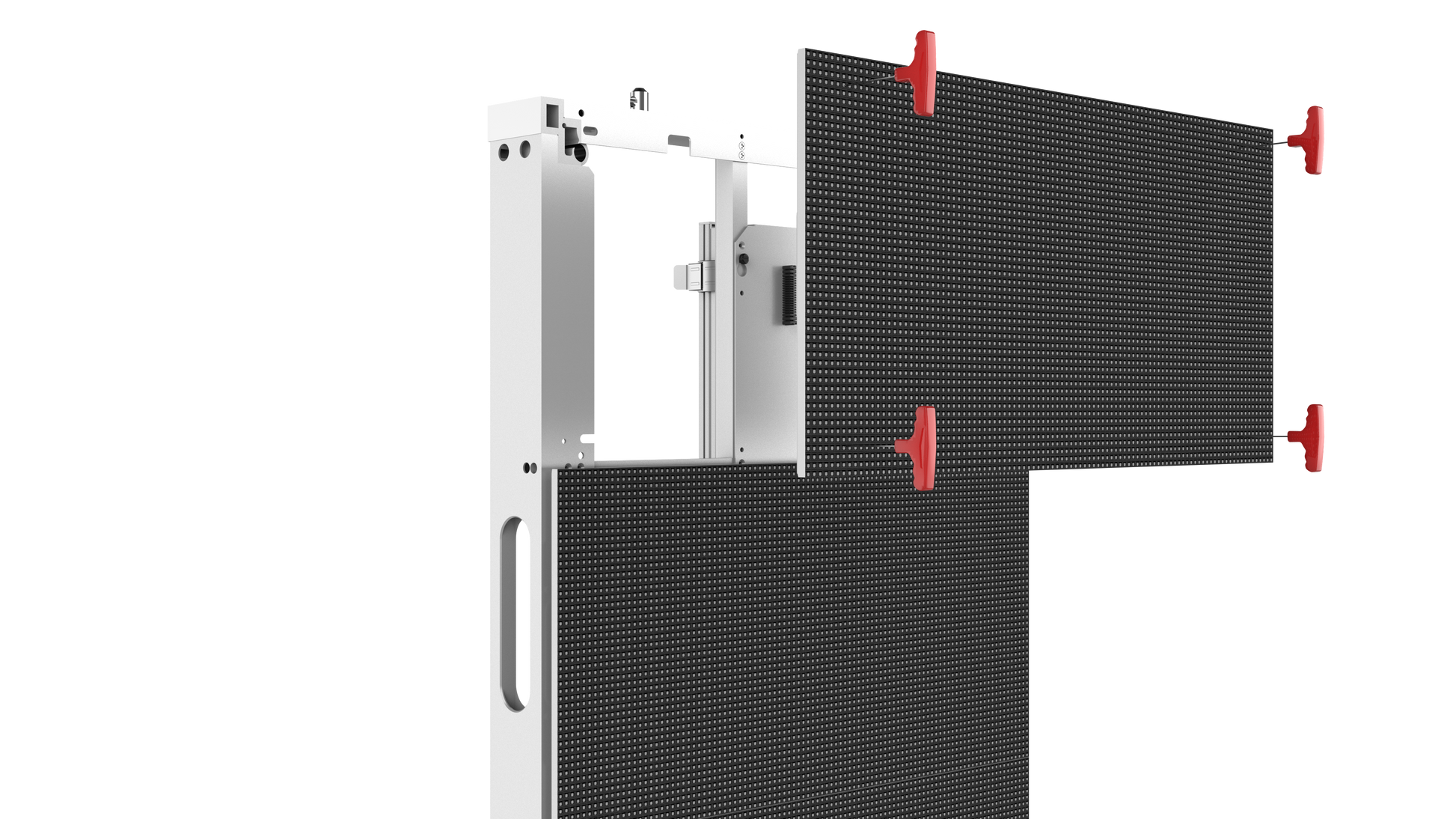

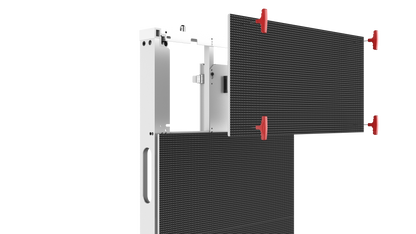

- Flexible Maintenance: Supports both front and rear maintenance to minimise downtime.
-
Brilliant Visuals: Up to 7500 nits brightness and high refresh rates for clear visibility even in direct sunlight.
Specifications:
| Model |
LXIIPRO2.5
|
LXIIPRO2.97
|
LXIIPRO3.91
|
|---|---|---|---|
| Pixel Configuration |
SMD1515
|
SMD1515
|
SMD1919
|
| Pixel Pitch (mm) |
2.5
|
2.97
|
3.91
|
| Pixel matrix per panel |
200x200
|
168x168
|
128x128
|
| Pixel density (pixels/sq.m.) |
160,000
|
112,896
|
65,536
|

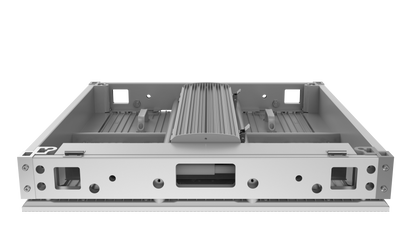

| Cabinet Dimensions (WxHxD)/(mm) |
500x500x82
|
||
| Module Dimensions (WxH)/(mm) |
250X250
|
||
| Cabinet / module material |
Die-casting Aluminium
|
||
| Cabinet weight (kg/panel) |
7.5
|
||
| Color Grayscale (Bit) |
14bit
|
||
| Gray Scale per Color (level) |
16384
|
||
| Refresh Rate (Hz) |
3840
|
||
| Signal Transmission Distance (m) |
CAT5 cable:<100m; Single mode fiber:<10km
|
||
| Brightness (nits) |
4000-4500
|
5000-5500
|
7000-7500
|
| Optimal Horizontal Viewing Angle (°) |
160
|
160
|
160
|
| Optimal Vertical Viewing Angle (°) |
140
|
140
|
140
|
| Contrast ratio |
5000:1
|
5000:1
|
5000:1
|
| AC Input Voltage (V) |
AC:100V~240V
|
||
| AC Input Power Maximum Value (W/㎡) |
760
|
720
|
800
|
| AC Input Power Typical Value (W/㎡) |
255
|
240
|
265
|
| Storage Temperature (℃) |
-40-60
|
||
| Working Temperature (℃) |
-20-50
|
||
| IP rating (Front/Rear) |
IP66 / IP66
|
||
| Storage Humidity (RH) |
10%~90% non-condensing
|
||
| Working Humidity (RH) |
10%~90% non-condensing
|
||
| Lifetime Typical Value (hrs) |
100,000
|
||
| Cabinet installation |
fixed
|
||
Warranty: 2 Years
