LAMPRO
LSK Series
LSK Series
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
/
per
With ultra-thin and light design, LSK is easy to install and integrate with the surrounding environment, and reduce labor and transportation costs
Features
- IP69K high protection
- Outdoor HD small pixel display
- High-strength die-casting aluminum cabinet
- High grayscale & High refresh rate
- Module Fast locks
- Support creative corners and arcs
- Handles & Lifting handle, easy to carry
- Front/Rear easy maintenance & Installation.
Specifications:
| Parameter |
LSK2.6
|
LSK2.9
|
LSK3.9
|
|---|---|---|---|
| Pixel Configuration |
SMD1415
|
SMD1415
|
SMD1921
|
| Pixel Pitch (mm) |
2.6
|
2.9
|
3.9
|
| Pixel matrix per module |
96x96
|
86x86
|
64x64
|
| Pixel density(pixels/sq.m.) |
147456
|
112896
|
65536
|

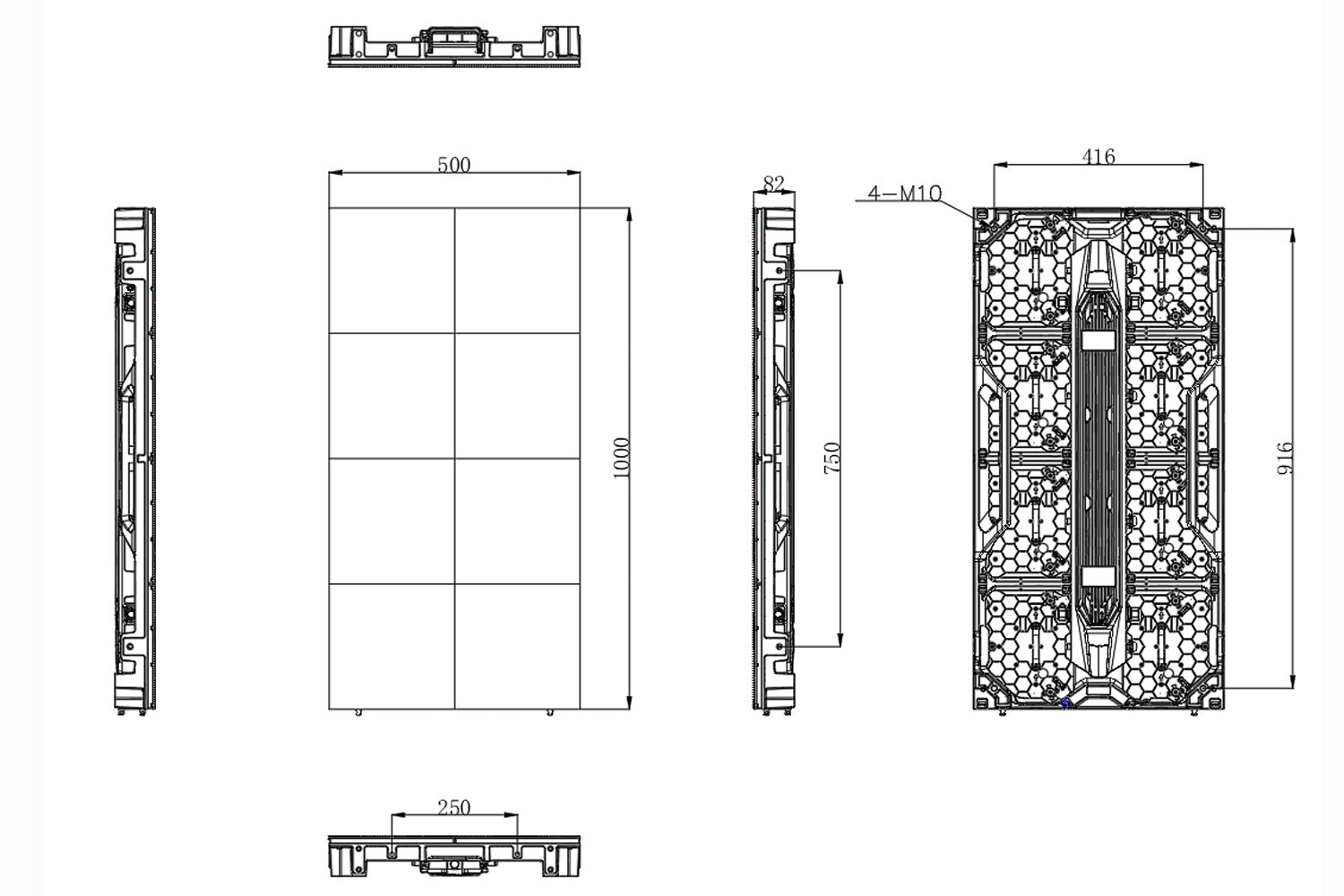

| Cabinet Dimensions (WxHxD)/ (mm) |
500x1000x82/500x750x82
|
||
| Module Dimensions (WxH)/ (mm) |
250x250
|
|
250*250
|
| Panel material |
Die-Casting Aluminum
|
||
| Cabinet weight (kg/m²) |
28.6
|
||
| Color Grayscale ( Bit) |
14bit
|
||
| Refresh Rate( Hz) |
3840
|
||
| Brightness( nits) |
5000
|
5000
|
5500
|
| Optimal Horizontal Viewing Angle(° ) |
160
|
160
|
165
|
| Optimal Vertical Viewing Angle(° ) |
Up80/down80
|
Up80/down80
|
Up70/down75
|
| Contrast ratio |
3000:1
|
3100:1
|
3800:1
|
| AC Input Voltage(V) |
AC:100V~240V
|
||
| AC Input Power Maximum Value(W/m²) |
820±15%
|
800±15%
|
700±15%
|
| AC Input Power Typical Value(W/m²) |
273±15%
|
267±15%
|
234±15%
|
| Storage / Working Temperature(℃) |
-40-60℃ / -20-50℃
|
||
| IP rating ( Front/Rear) |
IP69K
|
||
| Storage / Working Humidity ( RH) |
10%~90%non-condensing
|
||
| Certificate |
CE/CB/ETL/FCC/ROHS
|
||
Warranty: 2 Years
