LAMPRO

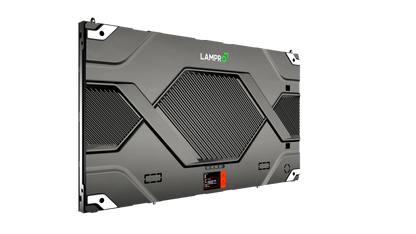

LMini Series
LMini Series
|
Parameter |
Value |
|||
|
Model |
LMini0.9 |
LMini1.2 |
LMini1.5 |
LMini1.8 |
|
Pixel Pitch |
0.9mm |
1.2mm |
1.5mm |
1.8mm |
|
LED Type |
Fully Flip Chip COB |
|||
|
Panel Size |
600x337.5x29.8mm |
|||
|
Panel Weight |
4.3kg/panel ±10% |
|||
|
Module Size (mm) |
150x168.75mm |
|||
|
Pixel Density (pixels/m²) |
1,137,778 |
640,000 |
409,600 |
284,444 |
|
Pixels Per Panel |
640x360 |
480x270 |
384x216 |
320x180 |
|
Maintenance |
Front |
|||
|
Ingress Protection (IP Rating) |
Front IP65 (Module) |
|||
|
Environment |
Indoor |
|||
|
Material |
Die-cast Aluminium |
|||
|
Horizontal / Vertical Viewing Angle (˚) |
170˚/160˚ |
|||
|
LMini0.9 |
||||
|
Brightness |
600 |
800 |
||
|
Contrast Ratio |
10000:1 |
12000:1 |
||
|
AC Input Power Max/Avg (W/Panel) |
60W/42W |
72W/45W |
||
|
LMini1.2 |
||||
|
Brightness |
600 |
800 |
||
|
Contrast Ratio |
10000:1 |
12000:1 |
||
|
AC Input Power Max/Avg (W/Panel) |
52W/29W |
64W/33W |
||
|
LMini1.5 |
||||
|
Brightness |
600 |
800 |
||
|
Contrast Ratio |
10000:1 |
12000:1 |
||
|
AC Input Power Max/Avg (W/Panel) |
48W/25W |
62W/30W |
||
|
LMini1.8 |
||||
|
Brightness |
600 |
800 |
||
|
Contrast Ratio |
10000:1 |
12000:1 |
||
|
AC Input Power Max/Avg (W/Panel) |
48W/27W |
61W/31W |
||
|
Refresh Rate |
3840 Hz |
|||
|
Video Frame Rate |
50 & 60 Hz |
|||
|
LED Life Time |
100,000 Hours |
|||
|
Operating Temperature/Humidity |
-10˚C ~ +45˚C / 10~80% RH |
|||
|
Storage Temperate/Humidity |
-40˚C~ +60˚C / 10~90% RH |
|||
|
Certification |
CE/CB/FCC/ETL/ROHS?RoHS2.0 |
|||
Warranty: 2 Years
