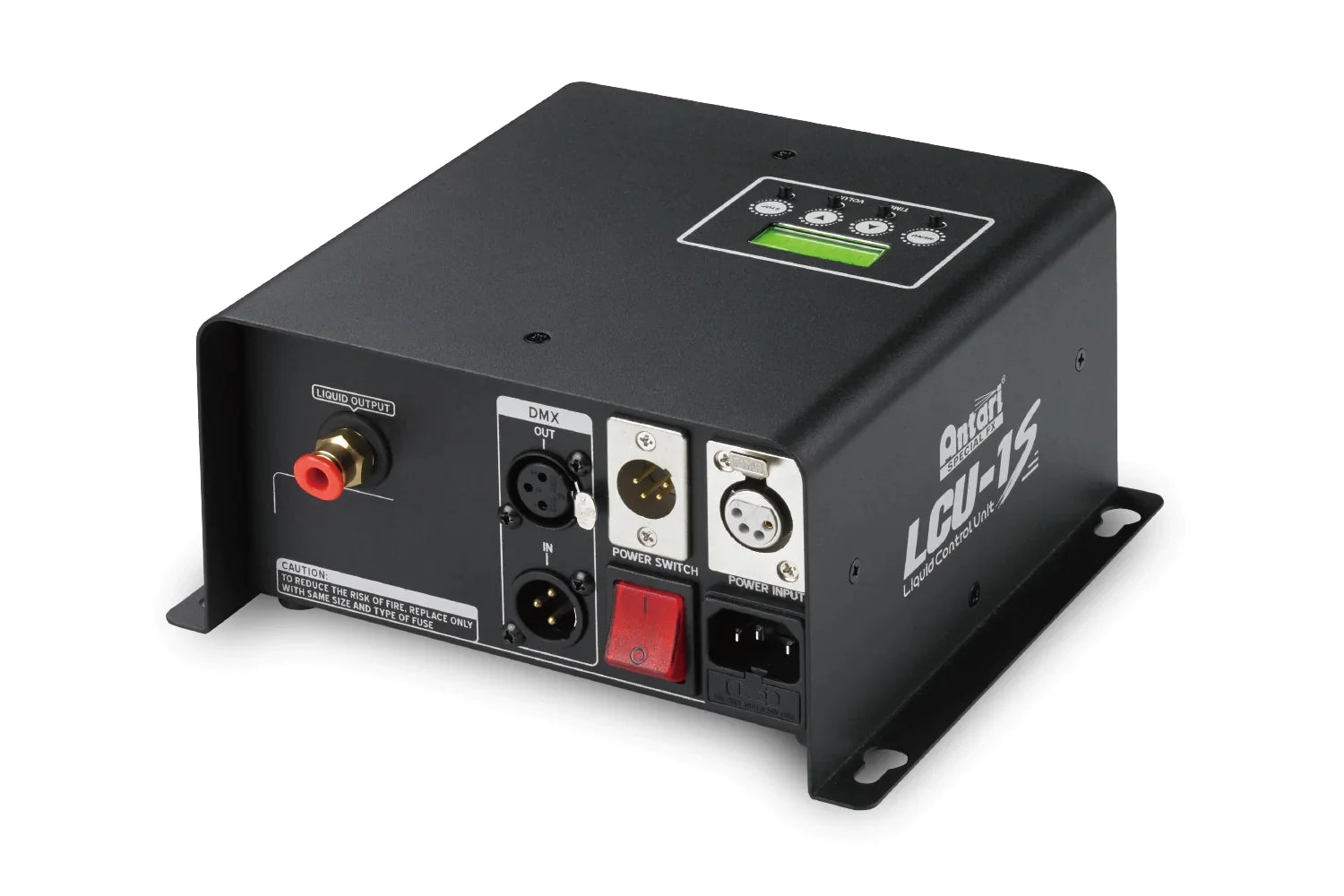

LCU1S - Smart Liquid Control Unit

LCU1S - Smart Liquid Control Unit

Regular price $589.00
Regular price Sale price $589.00
Sale Contact Us for Availability

The latest LCU-1S comes with an LCD panel that allows users to read and select settings with ease.

LCU-1S is preprogrammed for use with Z-1200II, S-100X, S-200X and SW-250, flow rate are adjusted to supply one unit at a time. An optional “Null” mode offers versatility for use with any model, running the pump at 100% output; enabling it to supply up to a maximum of 4 units at a time.

LCU-1S can supply fluid to 35 metres long or 25 metres high at maximum, designed to meet most remote fluid supply applications.


Input voltage AC 220-240V, 50/60Hz 0.18A
Rated power 40W
Fluid consumption 400 ml/min
Compatible fluid Antari Fluid
Ambient temp.range 5°C – 40°C (41°F – 104°F)
Control Manual, Timer, DMX 512
DMX channels 1 channel
Connection IEC (Power)
XLR 3-pin (DMX)
Optional accessories Z-8 Timer Remote Control
SC-2 Remote Control
Dimension L 203 W 179 H 96 mm
(L7.99 W 7.05 H 3.78 inch)
Weight 3.3 kg (7.28 lbs )
