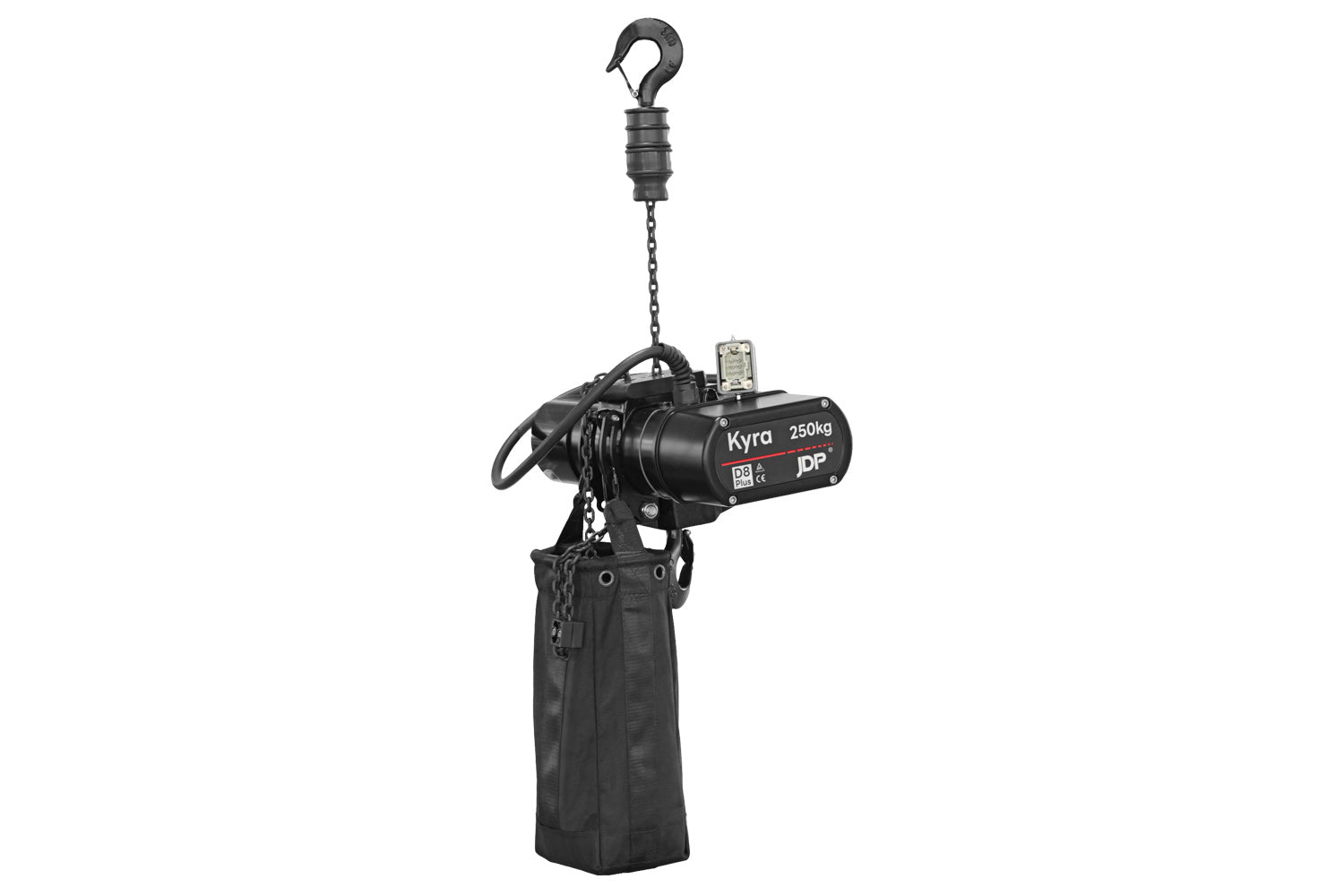

JDP-K250WP - Kyra-D8 PLUS 250kg Stage Hoist

The JDP Kyra-D8 PLUS 250kg is a compact, lightweight stage hoist for lighting bars, LED banners, speaker clusters and other lighter loads. Built to the D8 Plus standard with dual brakes as standard, it combines a small, matte-black aluminium body with serious safety features. It's TÜV Rheinland and CE certified for peace of mind on every show.

Key Features

• D8 Plus safety: dual DC brakes that engage automatically on power-off
• Sliding clutch between the motor and brake, so the load is always held by the brake, even if the clutch wears
• G100 load chain to EN 818-7 with an 8:1 safety factor
• IP66 rated for outdoor shows in rain or dust
• Quiet operation: grade 6 helical gears in high-strength alloy steel, ≤60 dB fully loaded
• Compact matte-black aluminium alloy shell that's easy to handle and won't reflect stage light
• Pure copper motor coil for strong, consistent lifting power
• Modular 360° suspension for quick, easy changeover between hook and suspension setups

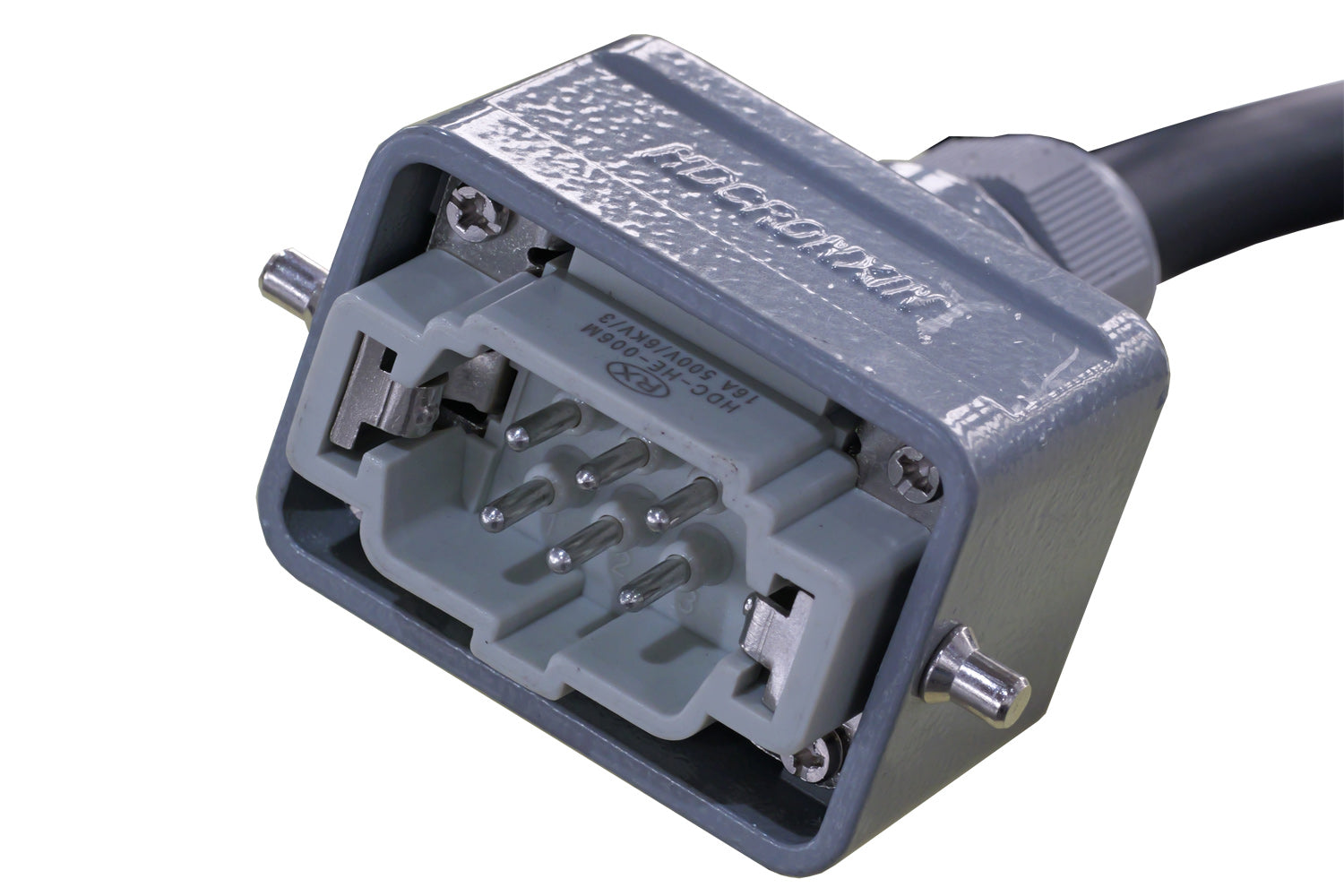

• 6-pole Wieland connector, ready to run on JDP 4 channel and JDP 8 channel group controllers

Specifications

• Rated load: 250kg
• Standard: D8 Plus (dual brakes)
• Motor power: 0.22 kW
• Lifting speed: 4 m/min
• Chain falls: 1
• Chain: G100, 4mm diameter
• Chain lengths: 12m, 20m, 24m and 30m
• Protection rating: IP66
• Noise: ≤60 dB (fully loaded)
• Connector: 6-pole Wieland
• Dimensions: A 102mm, B 295mm, C 195mm, D 100mm, E 200mm (see drawing below)
• Net weight: 12 kg (without chain, hook and suspension)
• Certification: TÜV Rheinland, CE

Need a different chain length or a full motor package with controllers and cables? Contact our sales team or call (02) 9897 3077.
