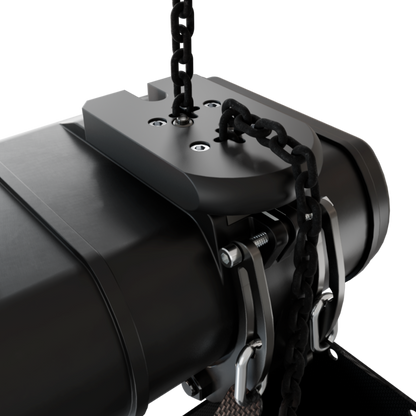

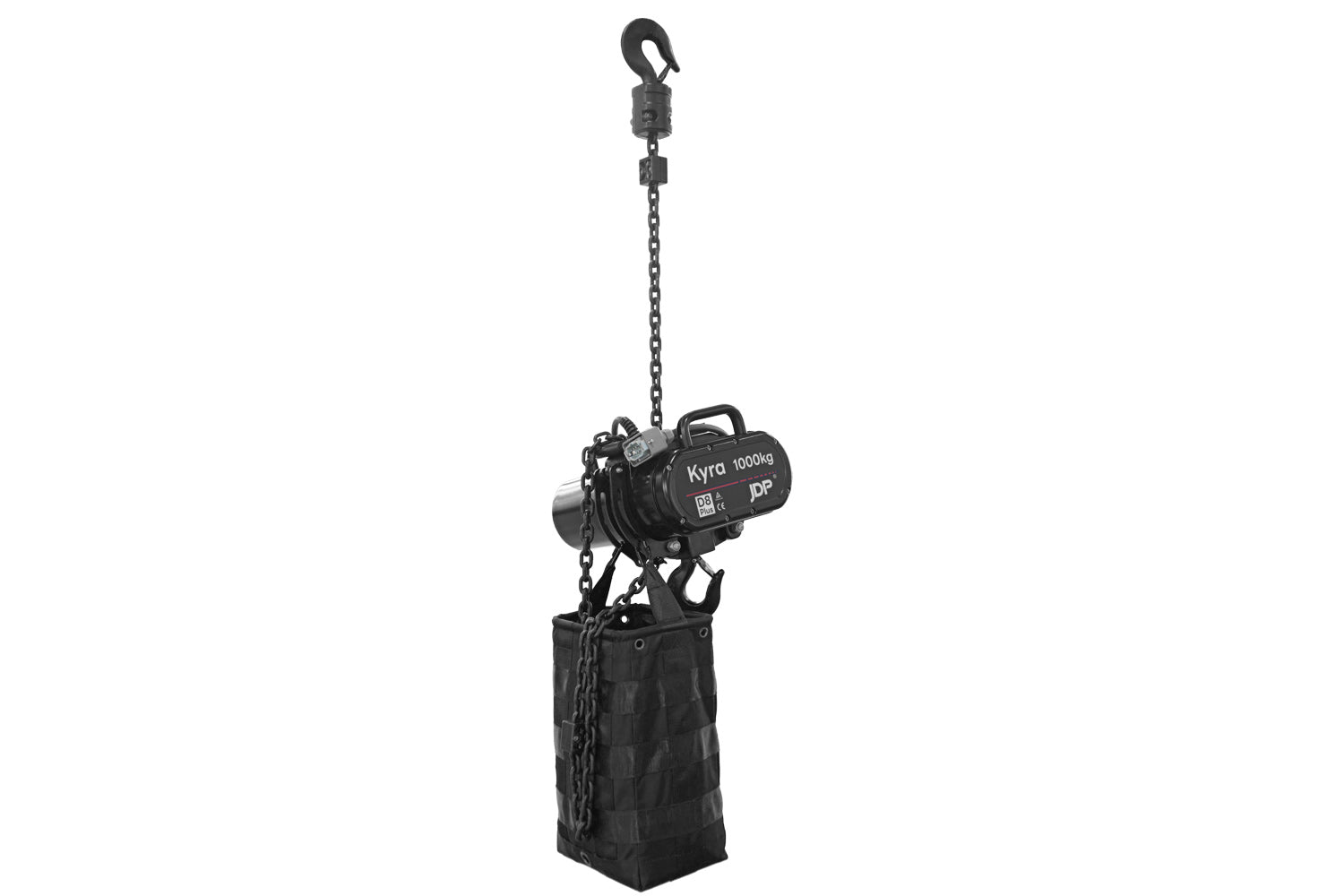

JDP-K1000WP - Kyra-D8 PLUS 1000kg Stage Hoist

The JDP Kyra-D8 PLUS 1000kg is the workhorse of the range, built for main truss grids, large LED screens and heavy flown production rigs. Built to the D8 Plus standard with dual brakes as standard, it combines a small, matte-black aluminium body with serious safety features. It's TÜV Rheinland and CE certified for peace of mind on every show.

Key Features

• D8 Plus safety: dual DC brakes that engage automatically on power-off
• Sliding clutch between the motor and brake, so the load is always held by the brake, even if the clutch wears
• G100 load chain to EN 818-7 with an 8:1 safety factor
• IP66 rated for outdoor shows in rain or dust
• Quiet operation: grade 6 helical gears in high-strength alloy steel, ≤60 dB fully loaded
• Compact matte-black aluminium alloy shell that's easy to handle and won't reflect stage light
• Pure copper motor coil for strong, consistent lifting power

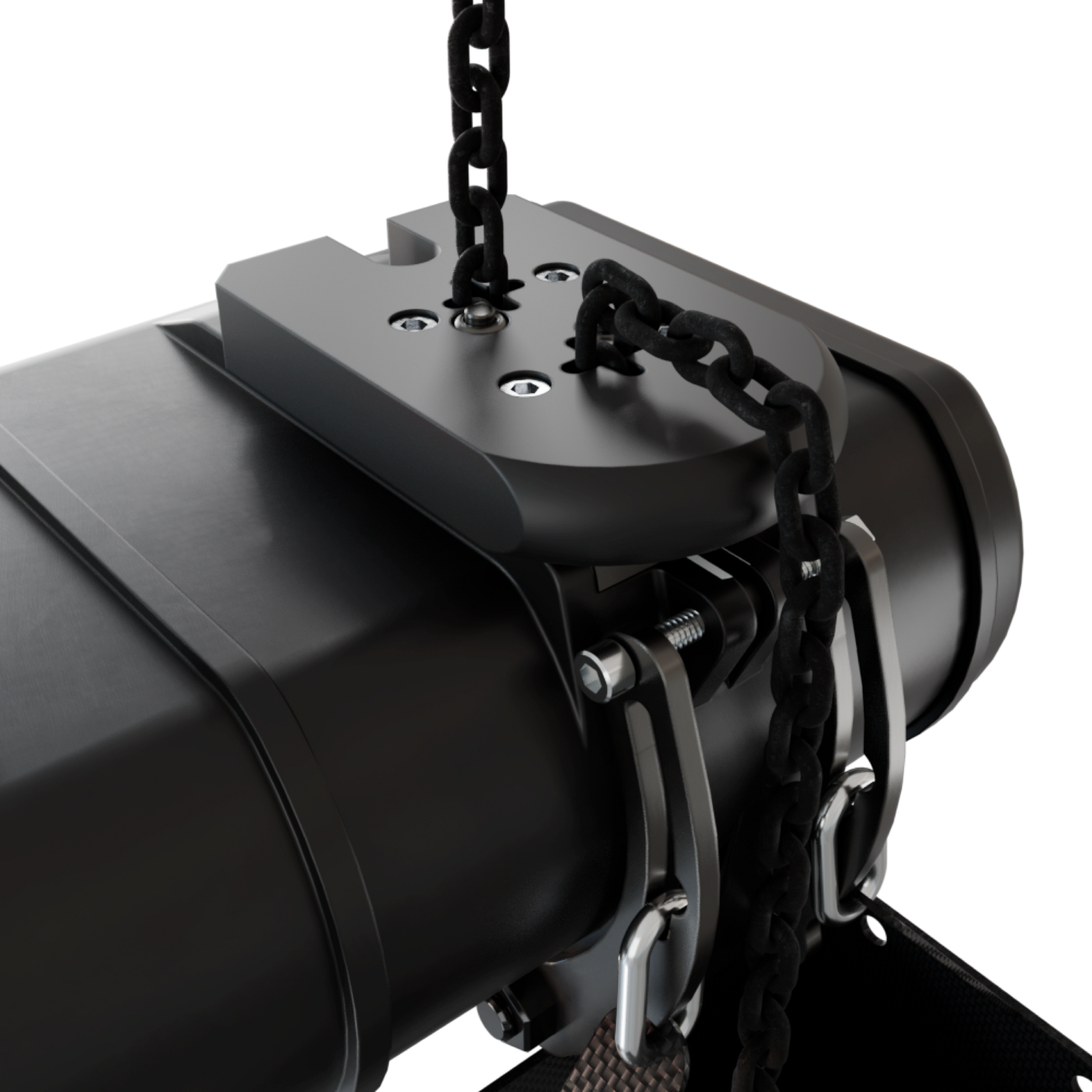

• Modular 360° suspension for quick, easy changeover between hook and suspension setups

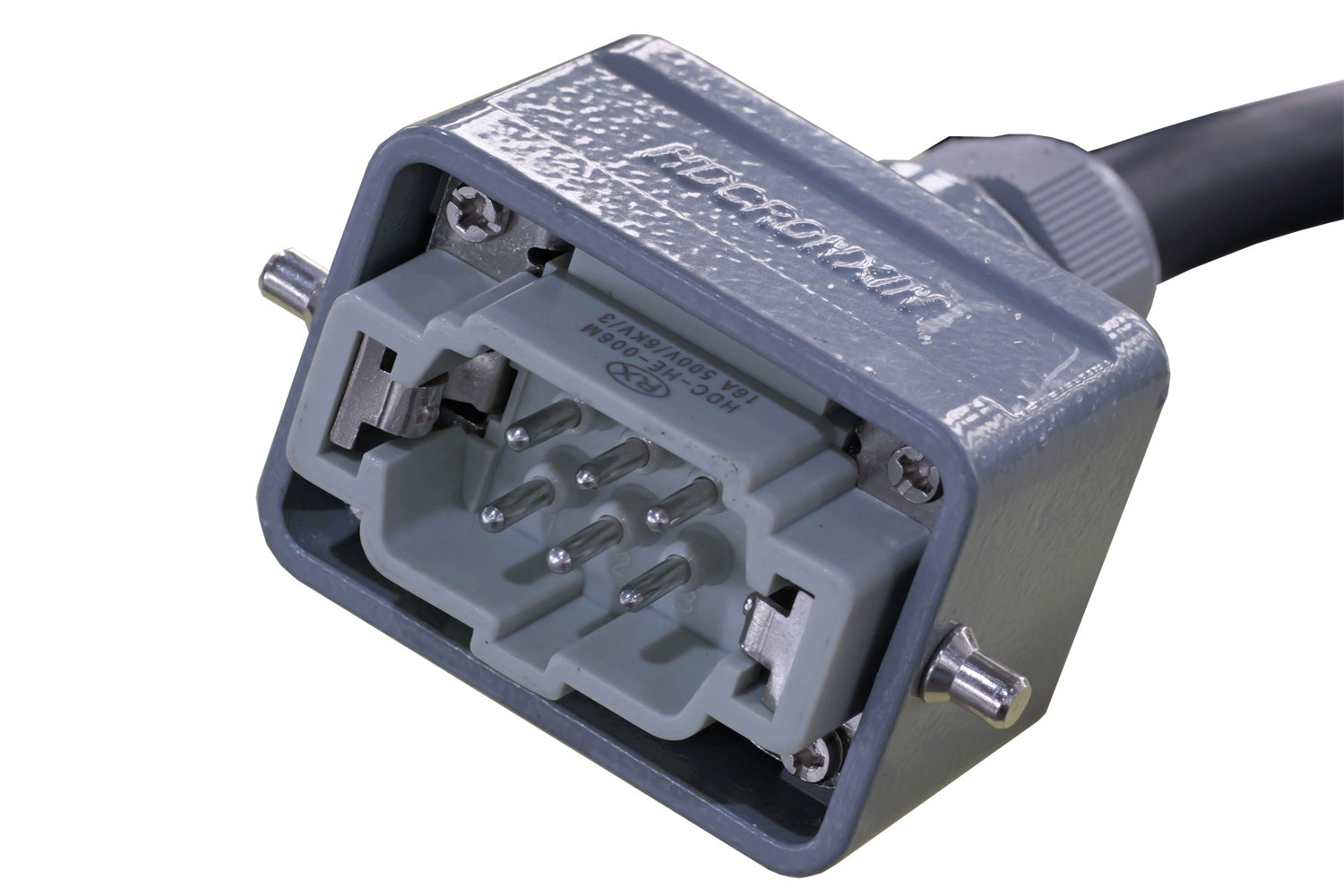

• 6-pole Wieland connector, ready to run on JDP 4 channel and JDP 8 channel group controllers

Specifications

• Rated load: 1000kg
• Standard: D8 Plus (dual brakes)
• Motor power: 1.1 kW
• Lifting speed: 4 m/min
• Chain falls: 1
• Chain: G100, 7.4mm diameter
• Chain lengths: 12m, 20m and 30m
• Protection rating: IP66
• Noise: ≤60 dB (fully loaded)
• Connector: 6-pole Wieland
• Dimensions: A 135mm, B 410mm, C 260mm, D 150mm, E 260mm (see drawing below)
• Net weight: 27.9 kg (without chain, hook and suspension)
• Certification: TÜV Rheinland, CE

Need a different chain length or a full motor package with controllers and cables? Contact our sales team or call (02) 9897 3077.
