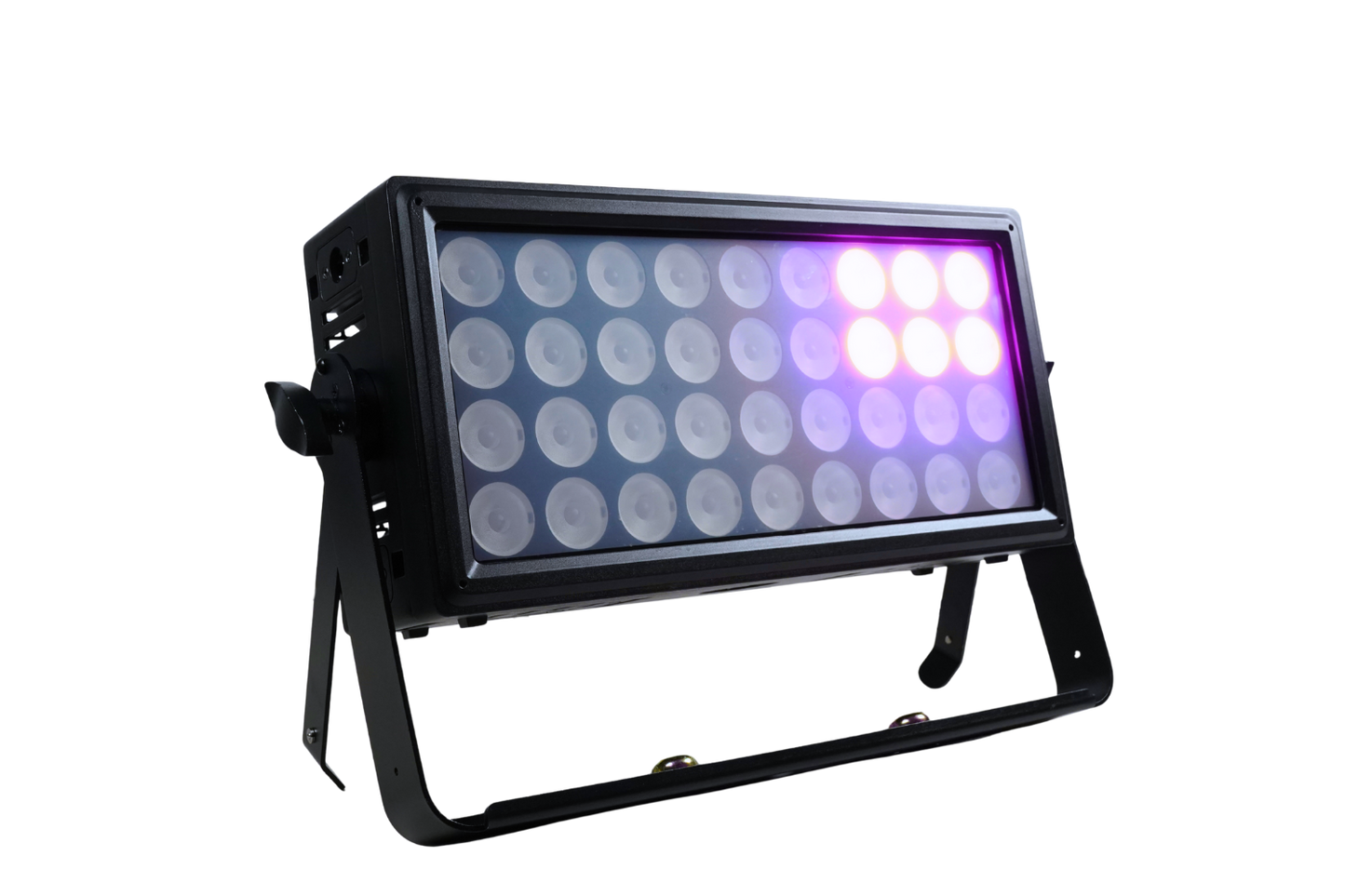

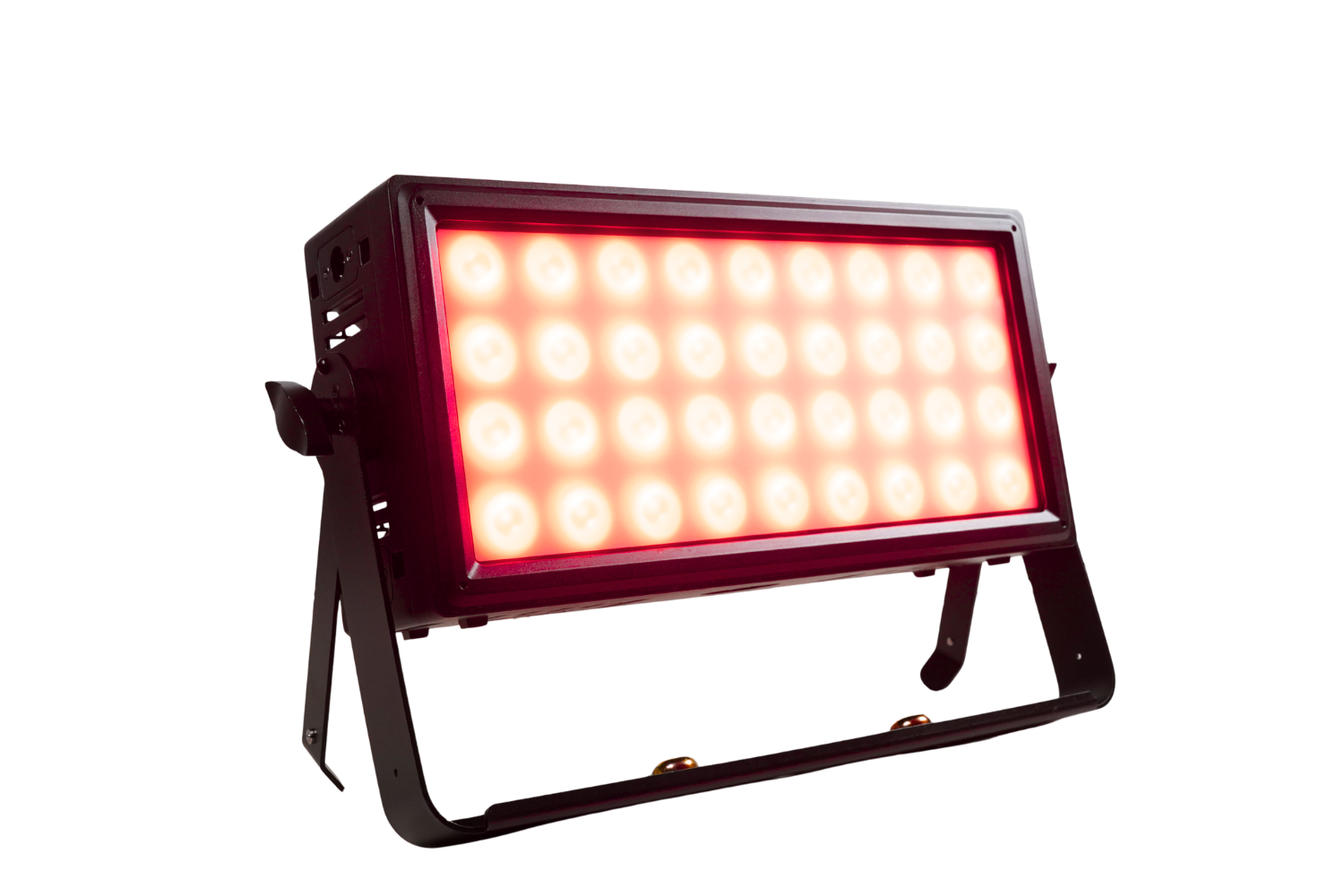

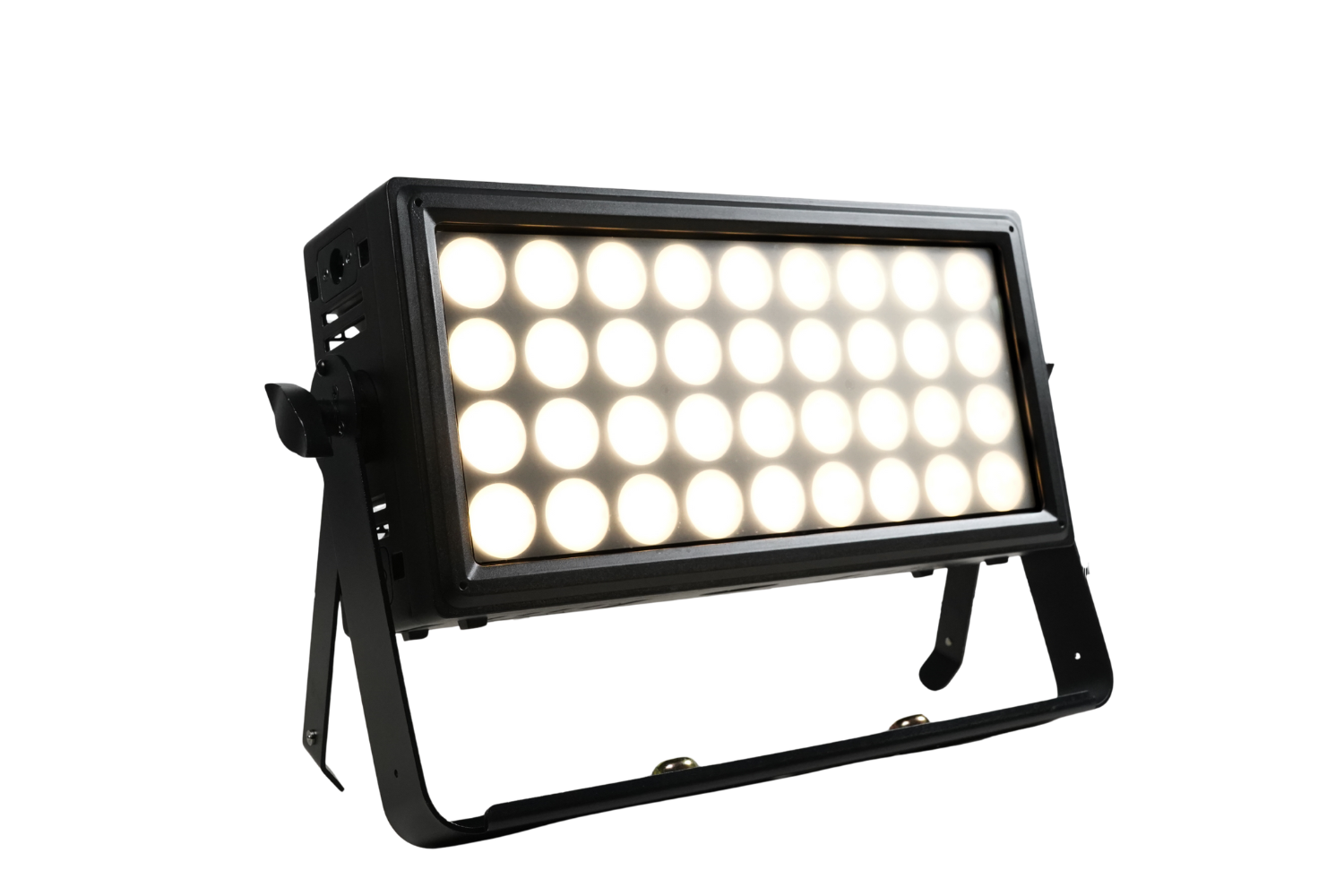

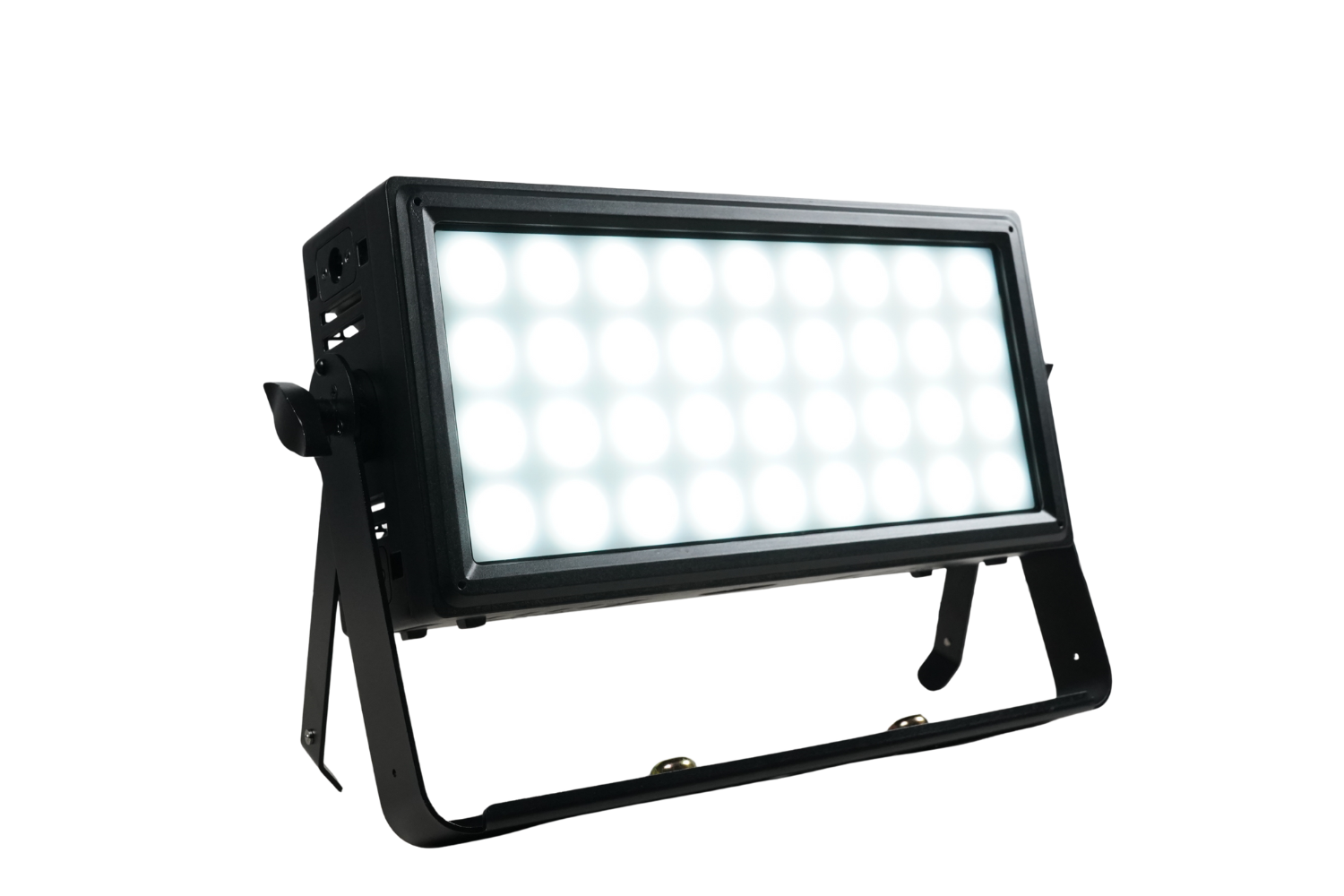

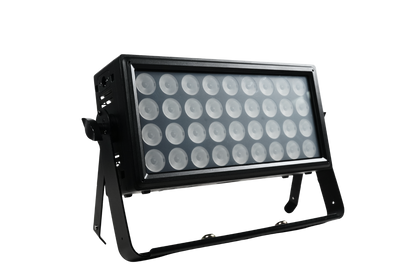

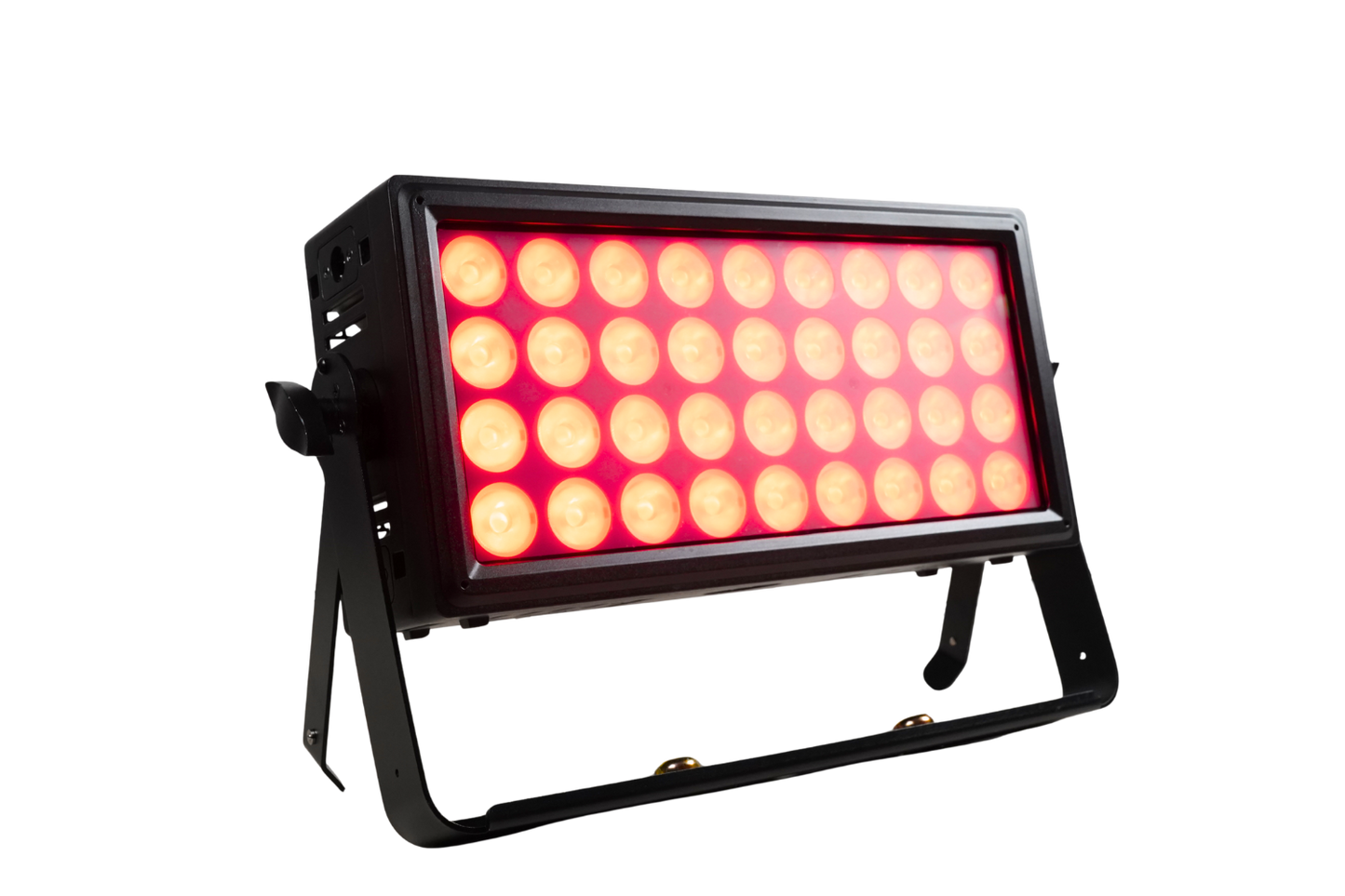

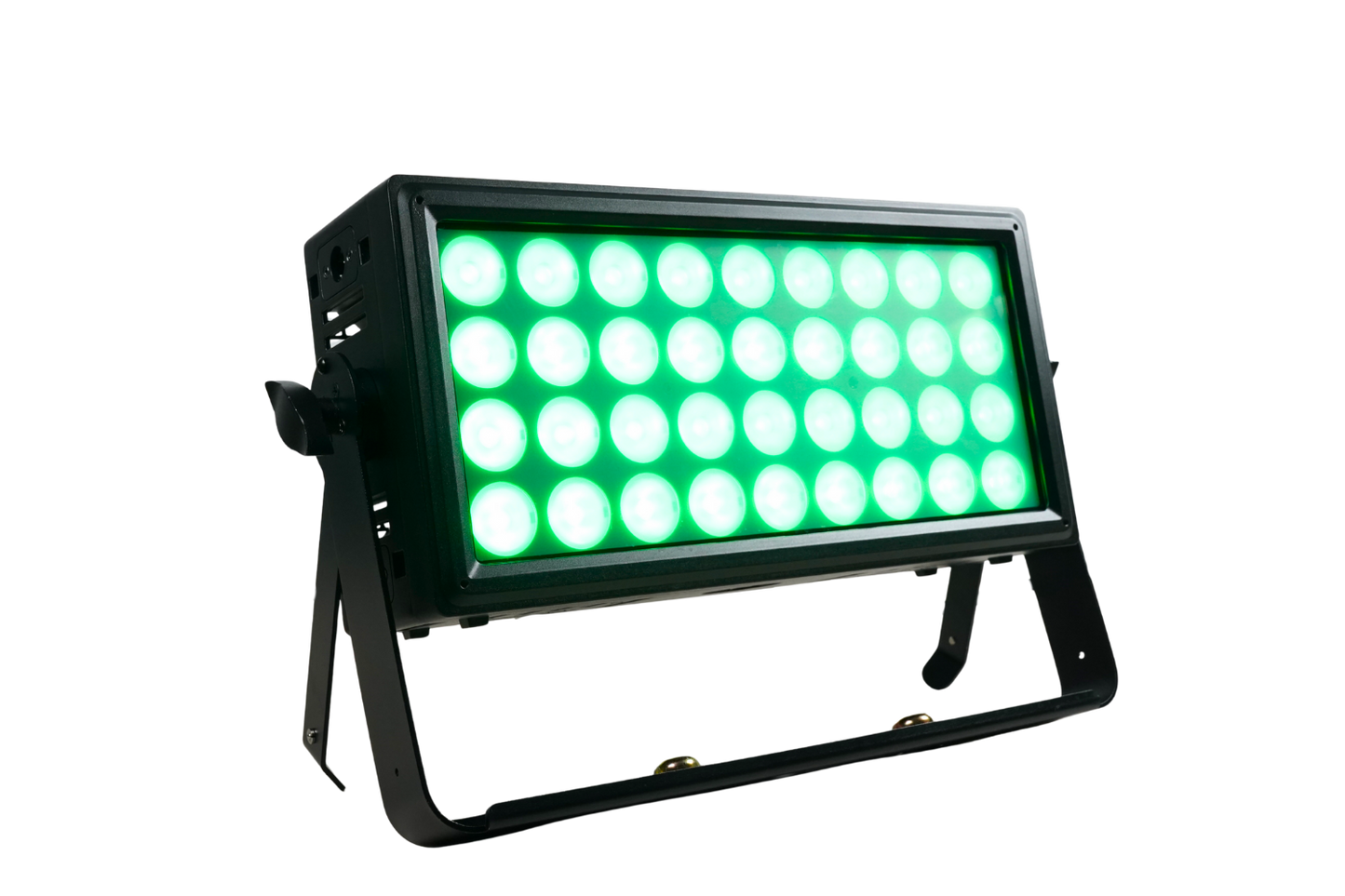

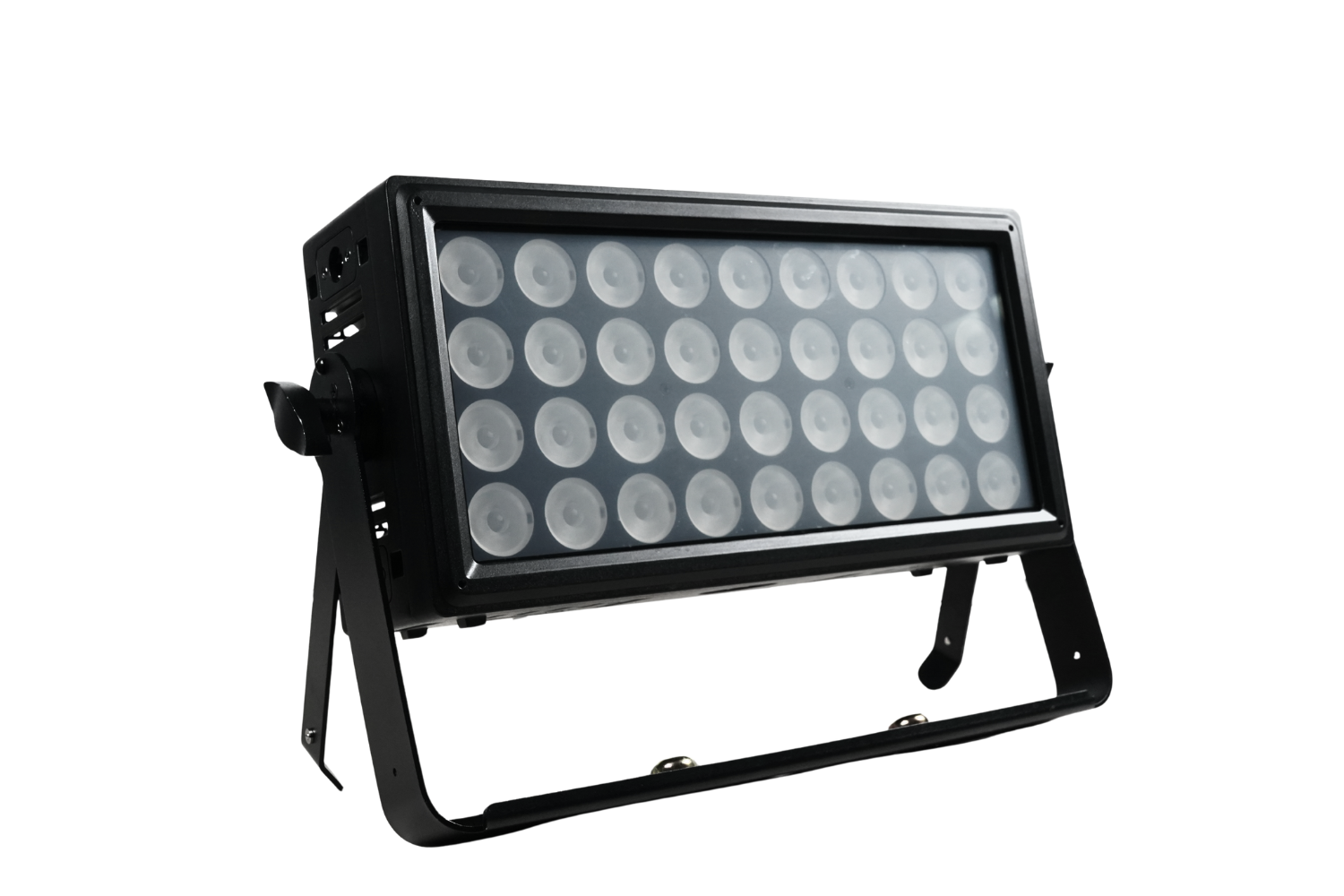

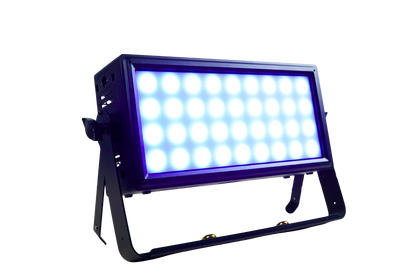

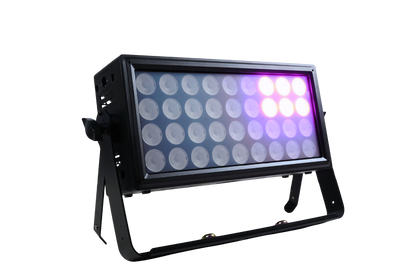

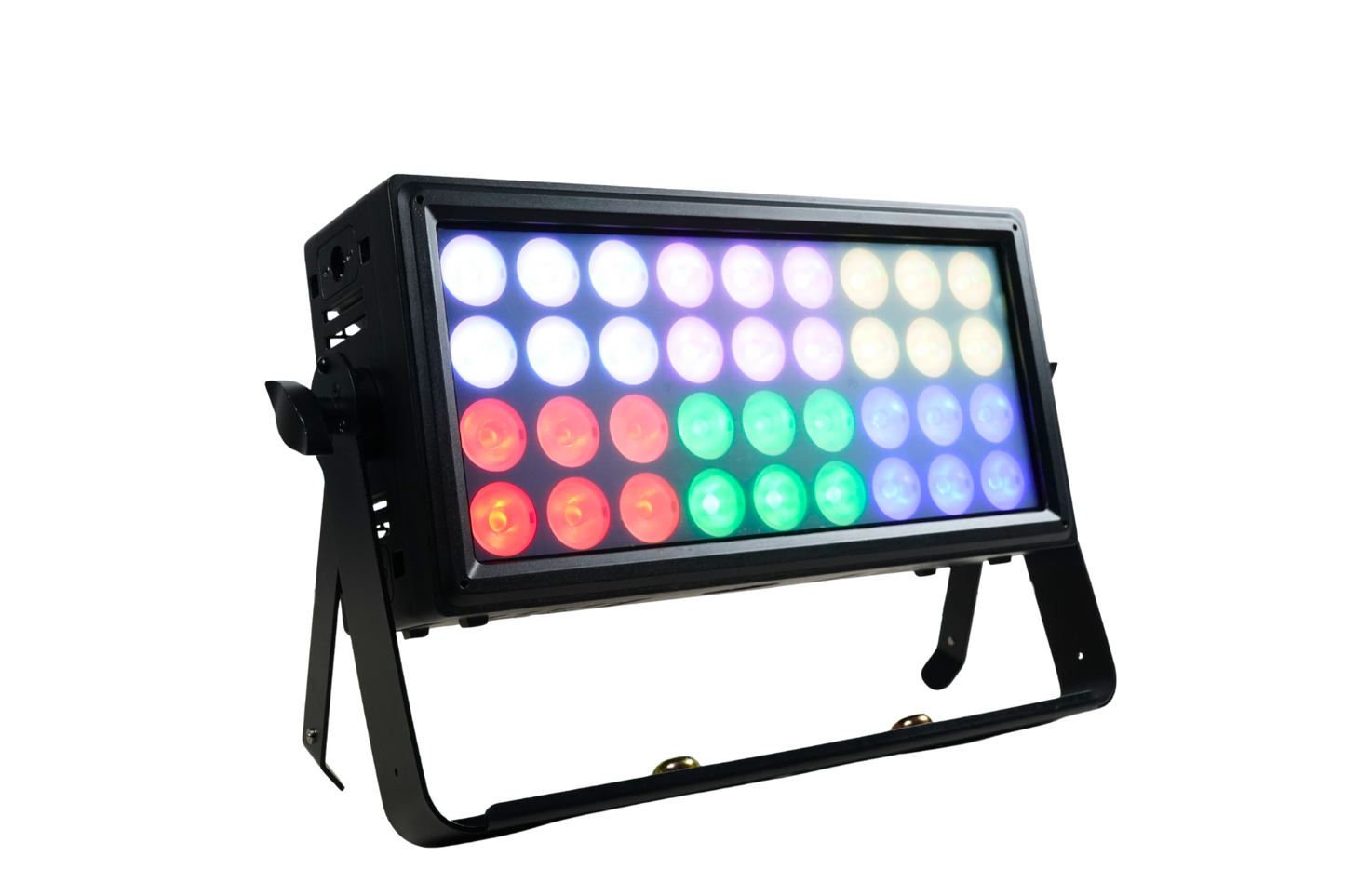

HYBRICK-WASH - IP65 Wash Fixture with Electronic Frost and Interlocking Housing

Photometrics

• Light Source: 36 pcs of 10W RGBW+WW LEDs, W:6000K, S:2500K,
• Colour Temperature: CW; 6,000L, WW; 2,500K
• CRI: 95+
• LENS: 35mm, 20° (12°, 40° Optional)

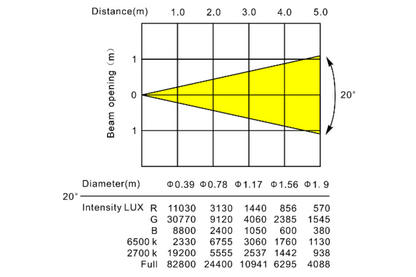

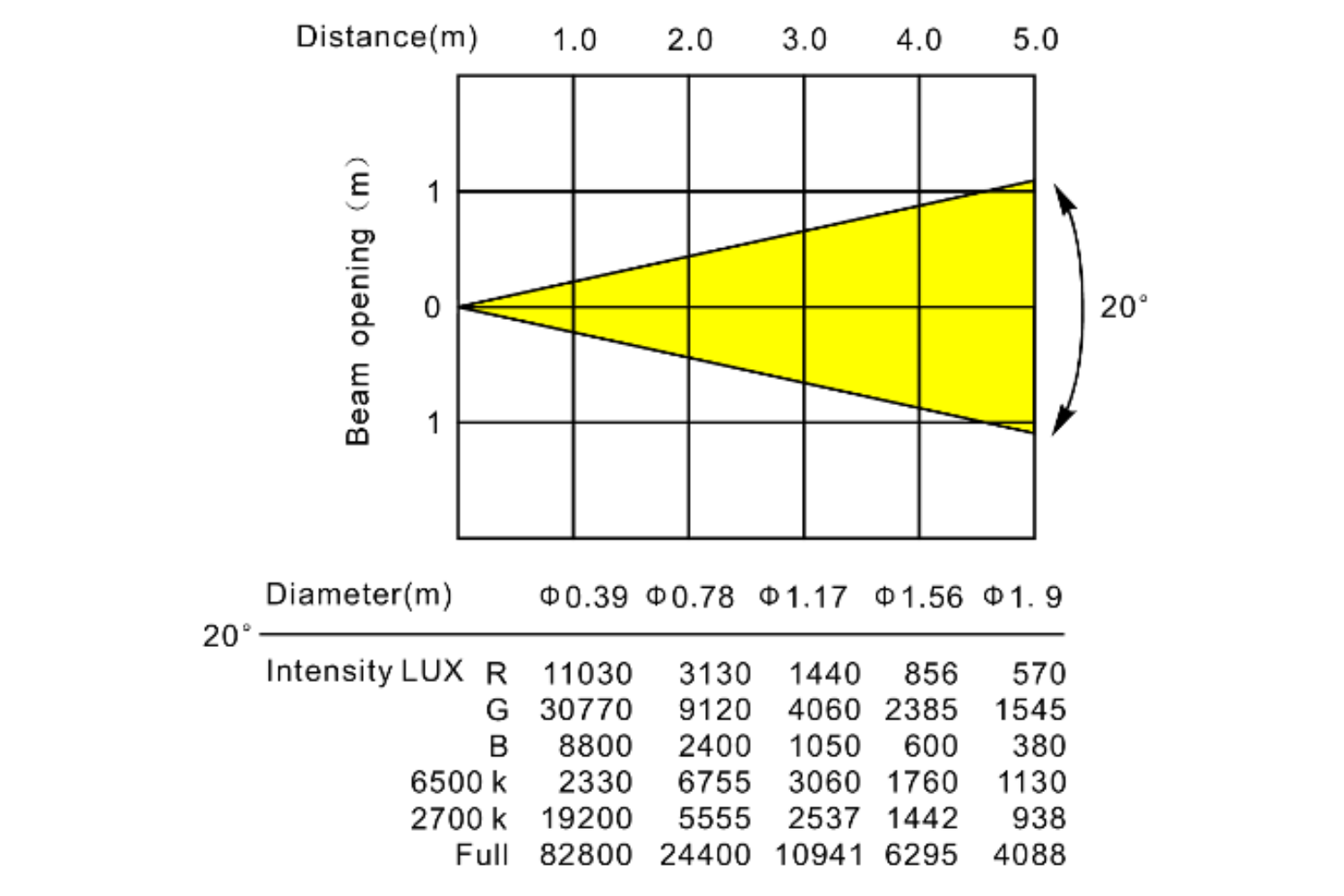

• Output: 82,800 @ 1m, 24,400 @ 2m
• PWM: 1200 Hz
• LED Life: 50,000 hours

Effects

• Dimming: 5 x 16bit digital Dimming Curves
• Strobe: 1 - 25 Hz

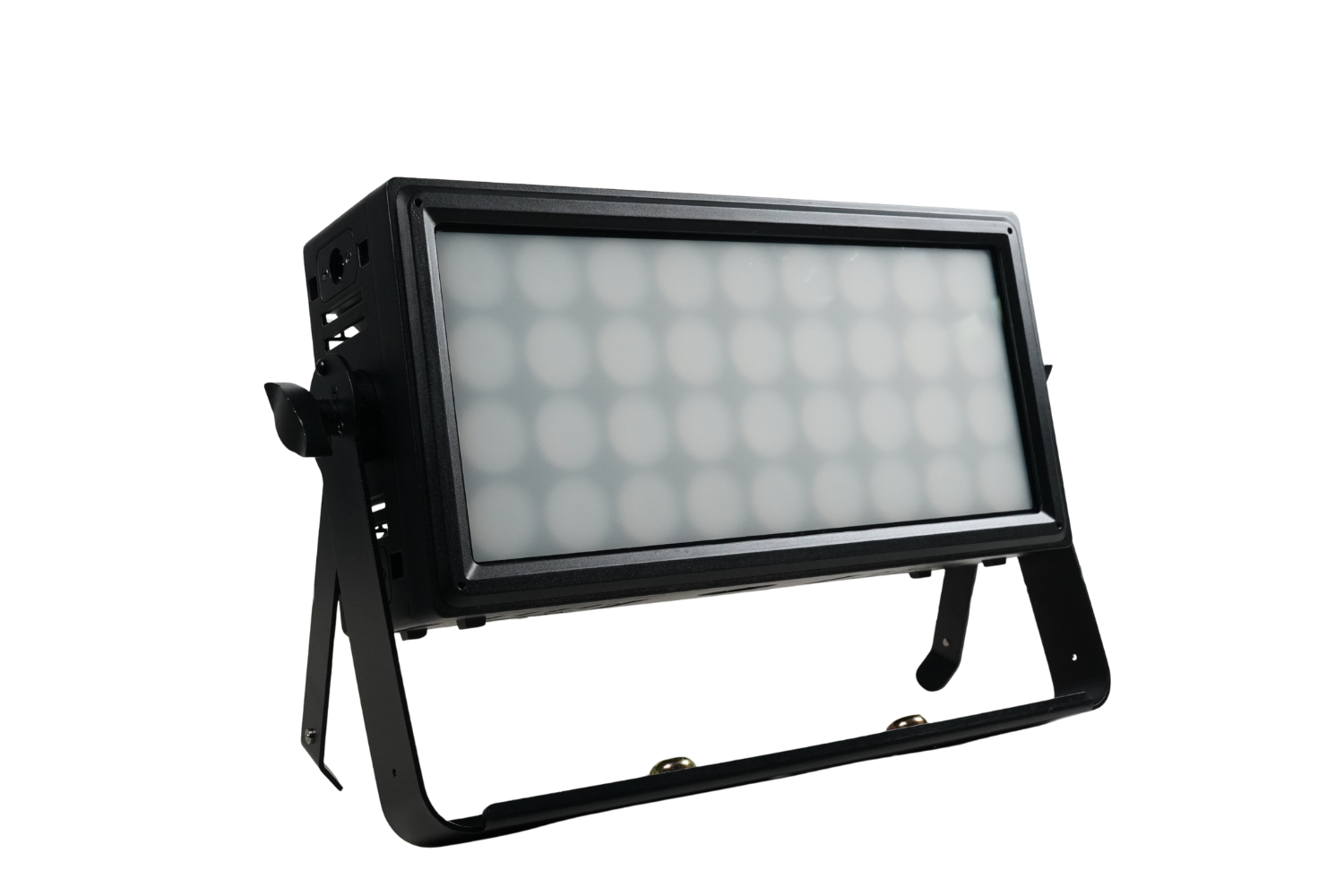

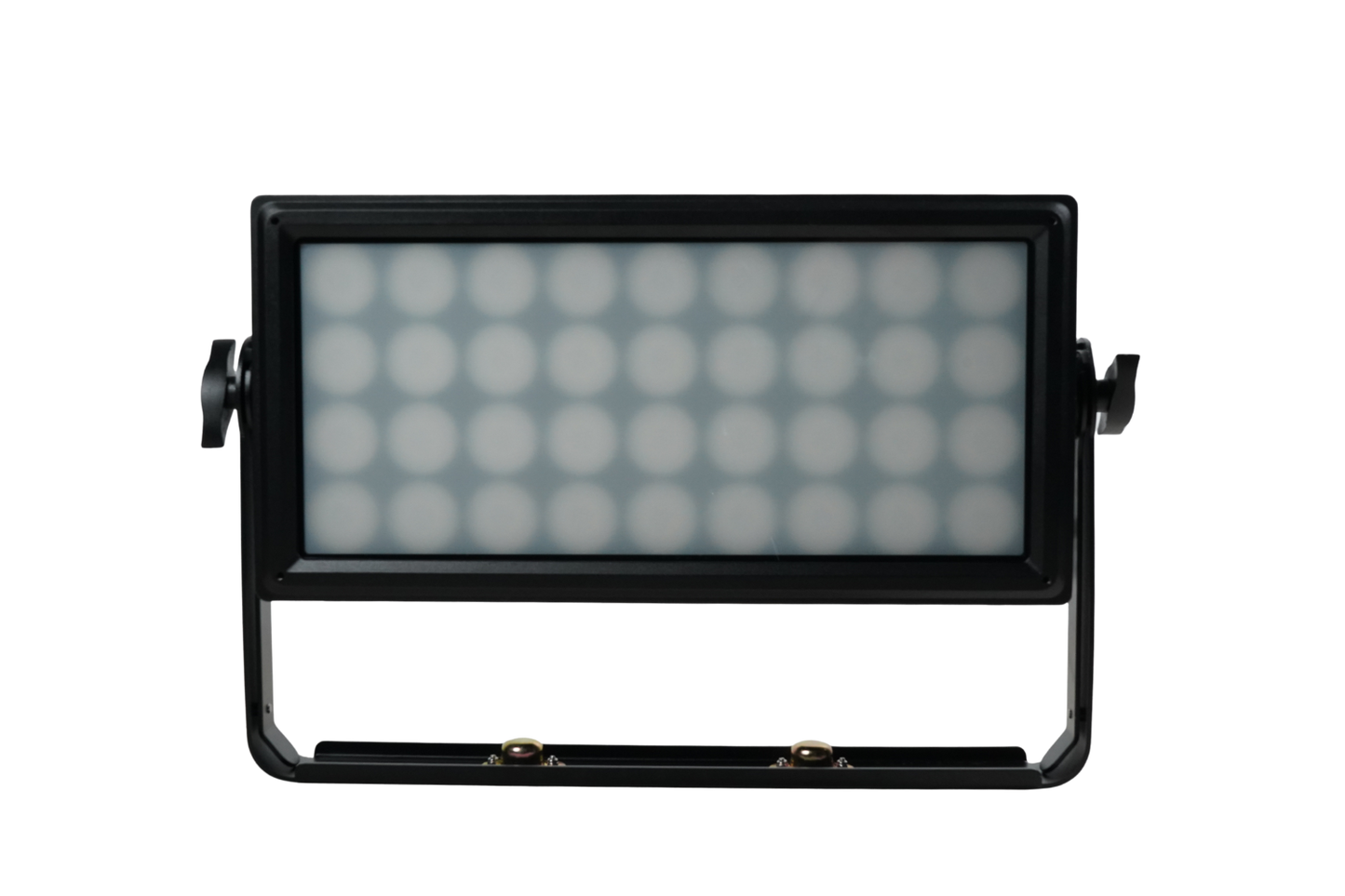

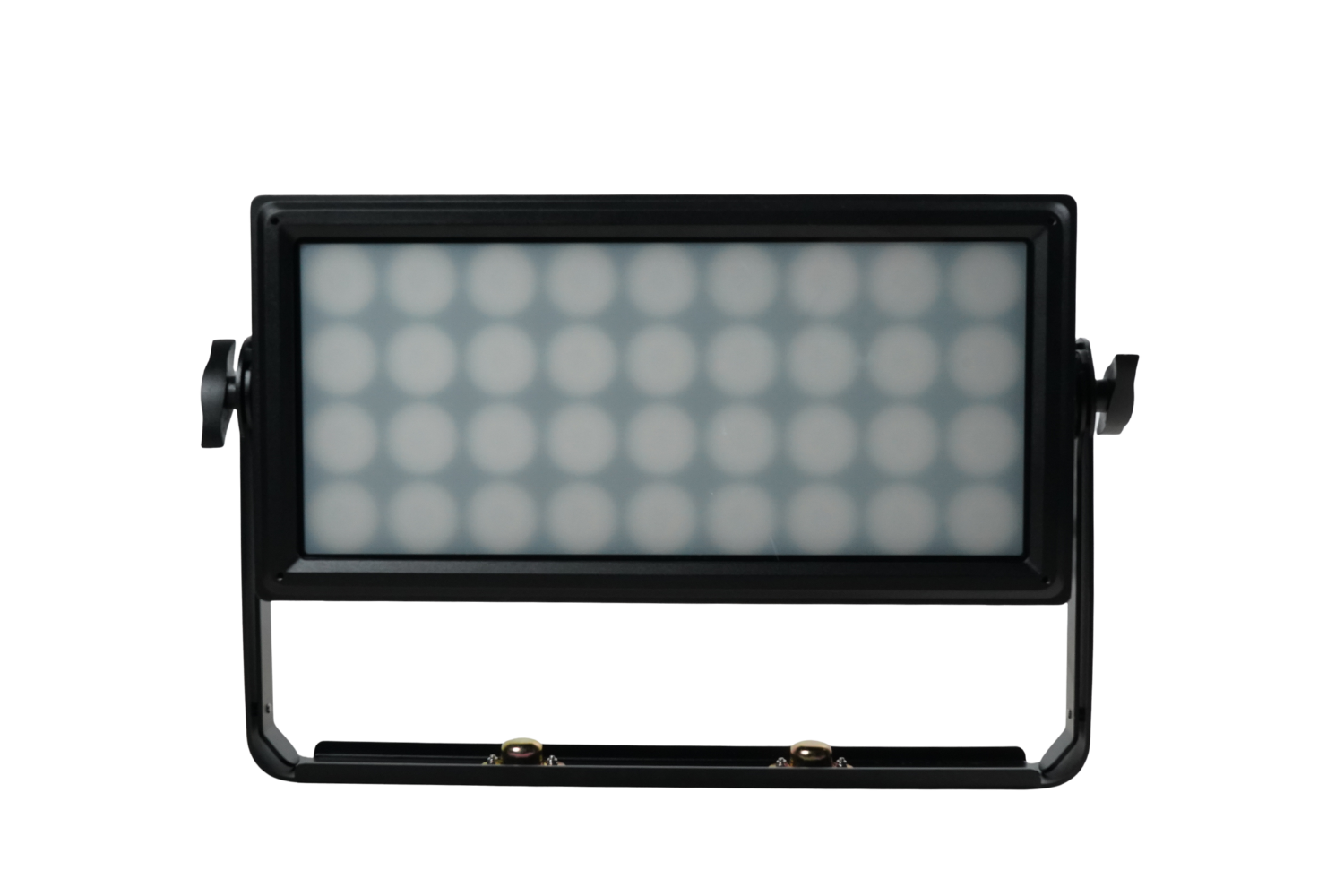

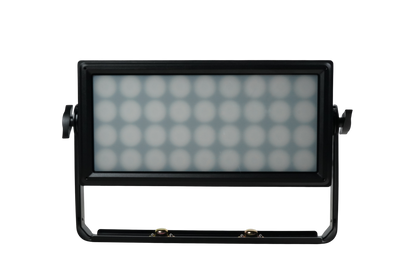

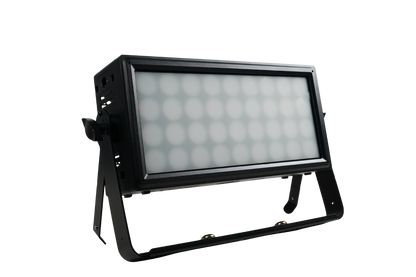

• Electronic Frost transparency level 0%~100%

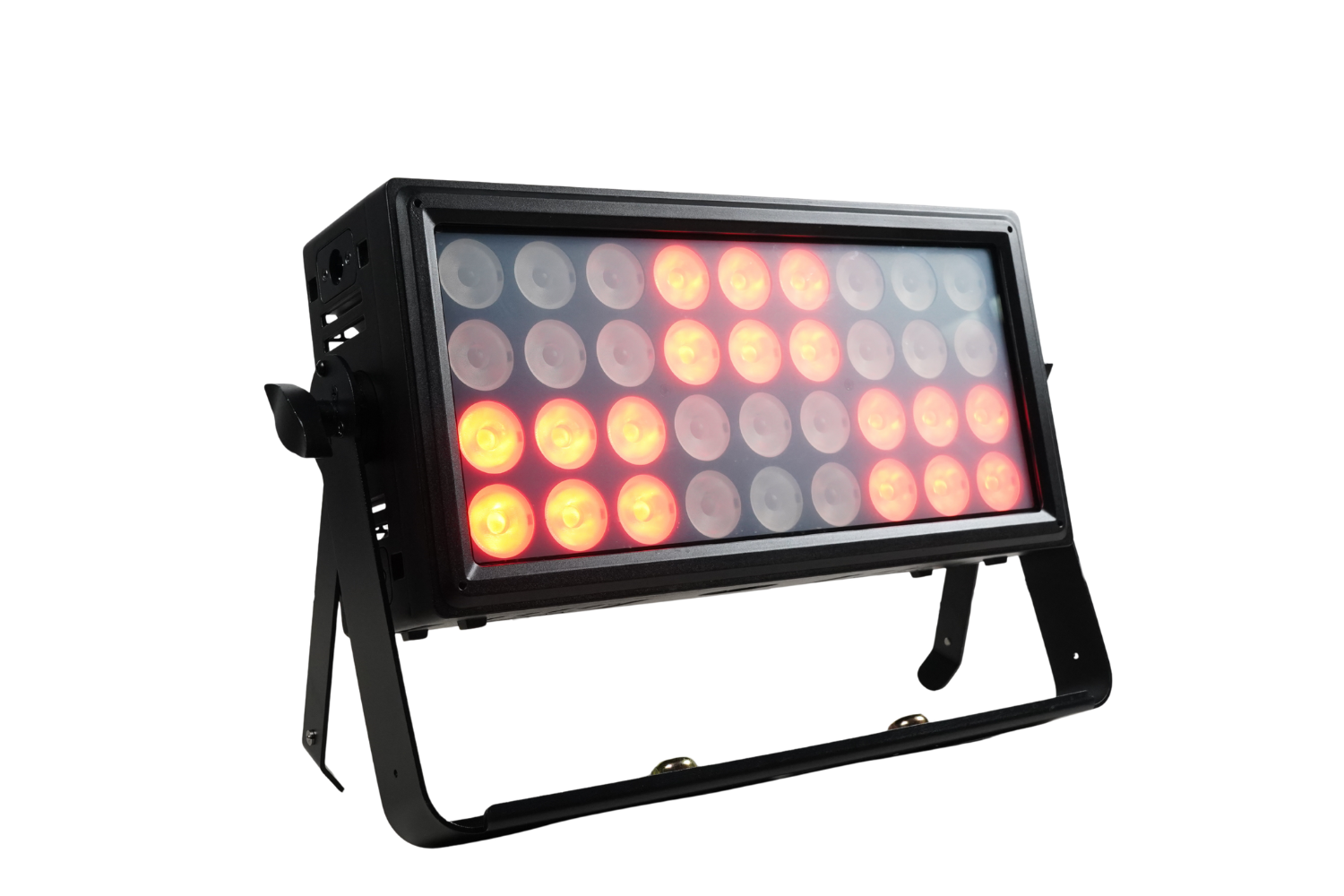

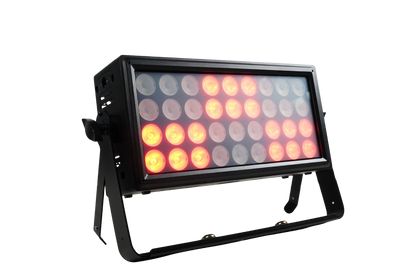

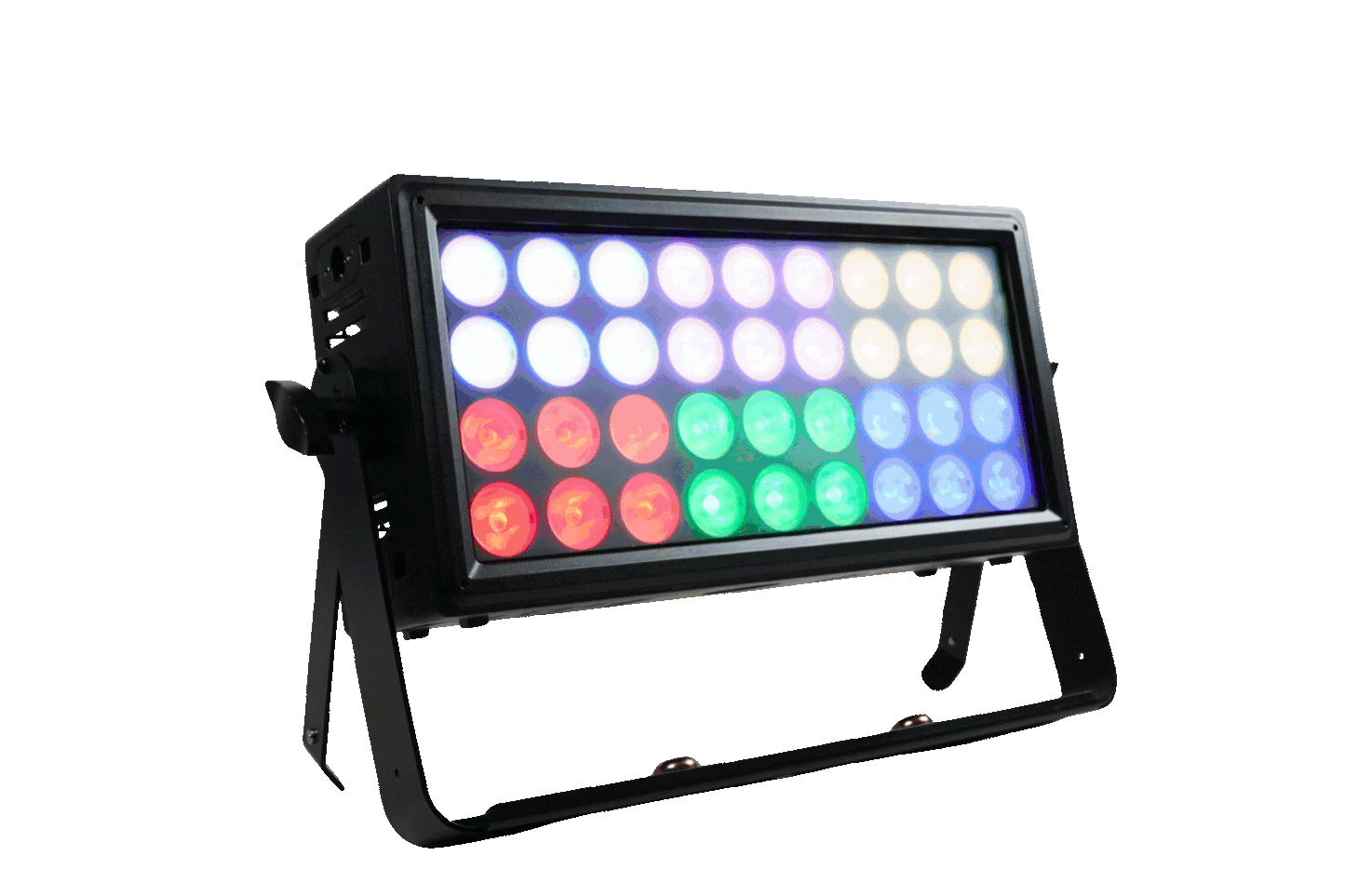

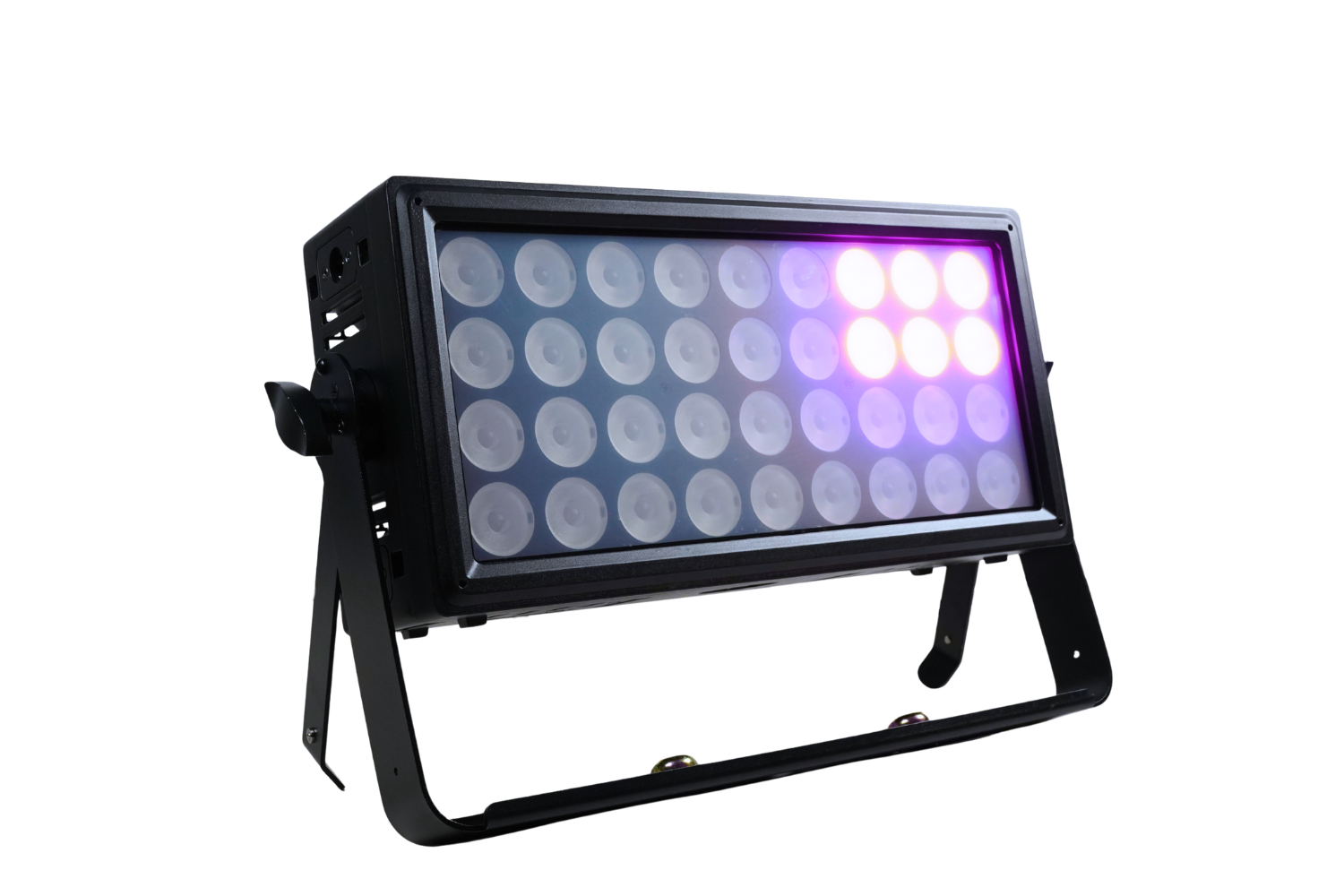

• Pixel Control: Segmented – 6 segments, 6 LEDs per segment

Control

• Operational Modes: Static, Color Fade, Auto Program, Sound Active, Master / Slave & DMX Modes, RDM, WDMX

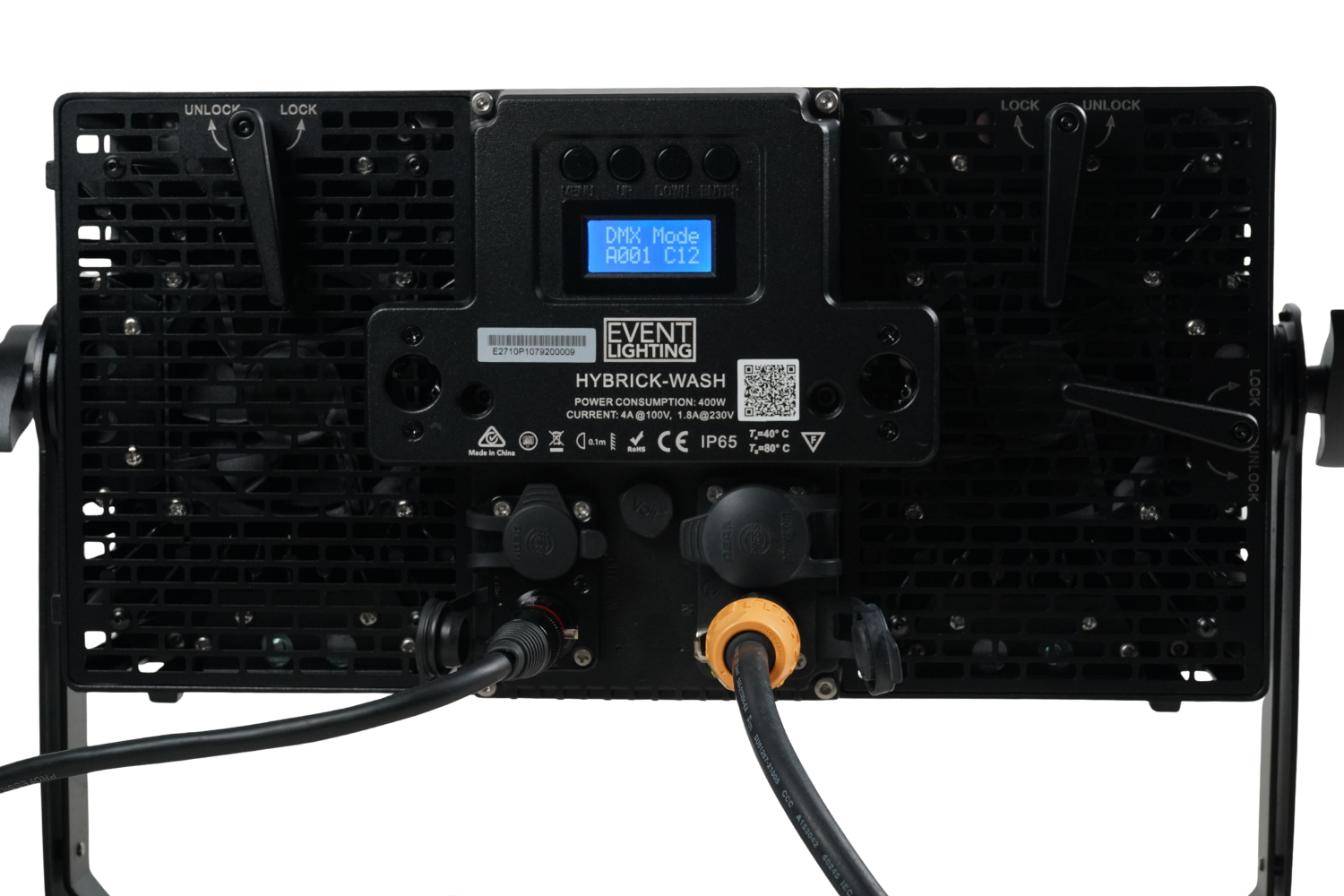

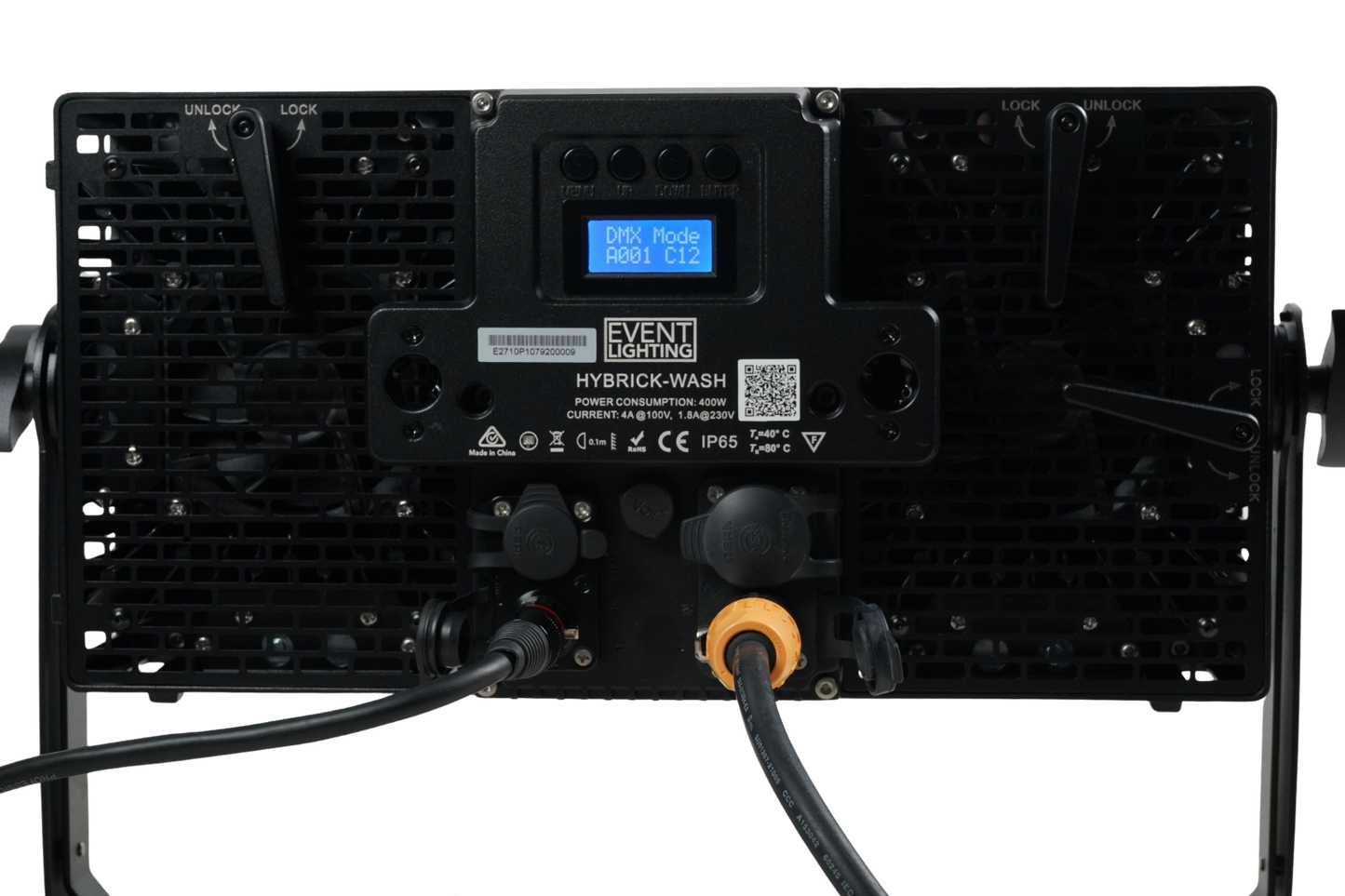

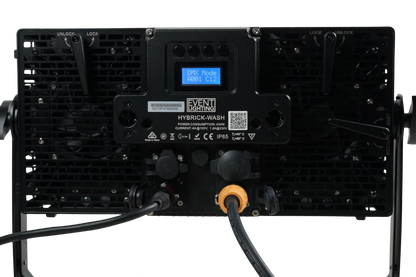

• Display: 4-button LCD Display Control Panel
• DMX Protocol: DMX512
• DMX Channel Mode: 1 / 3 / 4 / 5W / 5S / 6 / 8 / 12 / 14 / 33
• DMX Interface: 5-Pin XLR
• Software Upgrade via DMX: Yes

Power

• Input Voltages: 100V~240V AC,50/60Hz
• Power Consumption: 400W
• Power Connection: True 1 Power Input and Output

Housing

• Housing Materials: Aluminium Housing
• Housing finish: Matte Black
• Cooling: 2 Fans

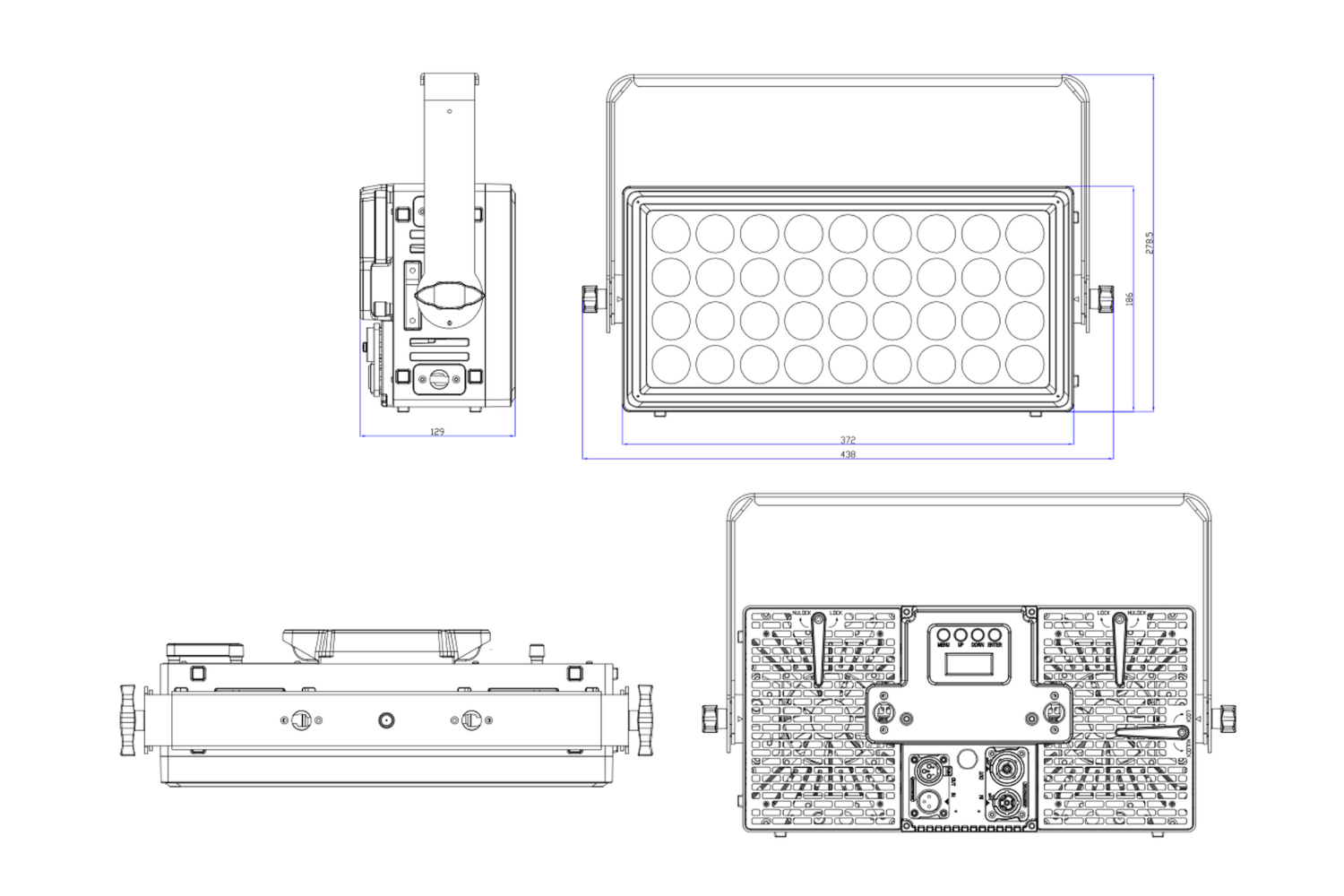

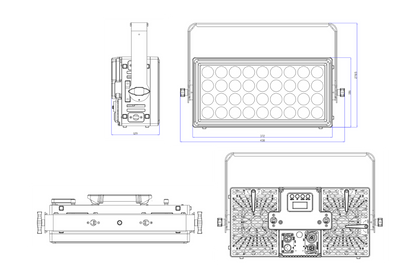

• Dimension: 372 x 186 x 146.2mm / 14.7" x 7.3" x 5.8"
• Net Weight: 8.1 kg / 17.9 lbs

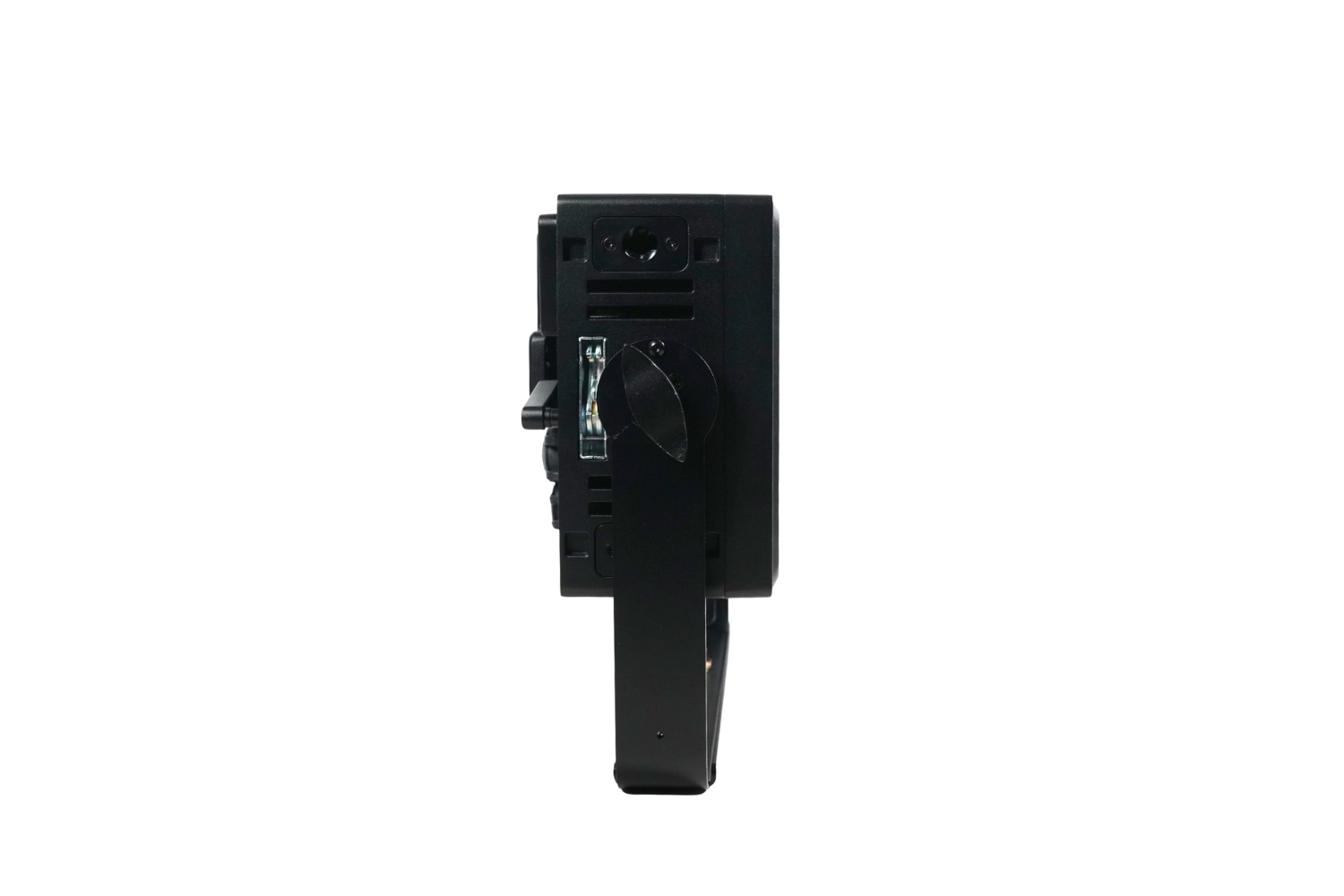

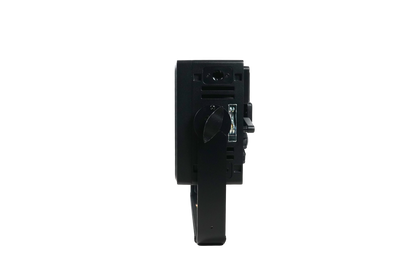

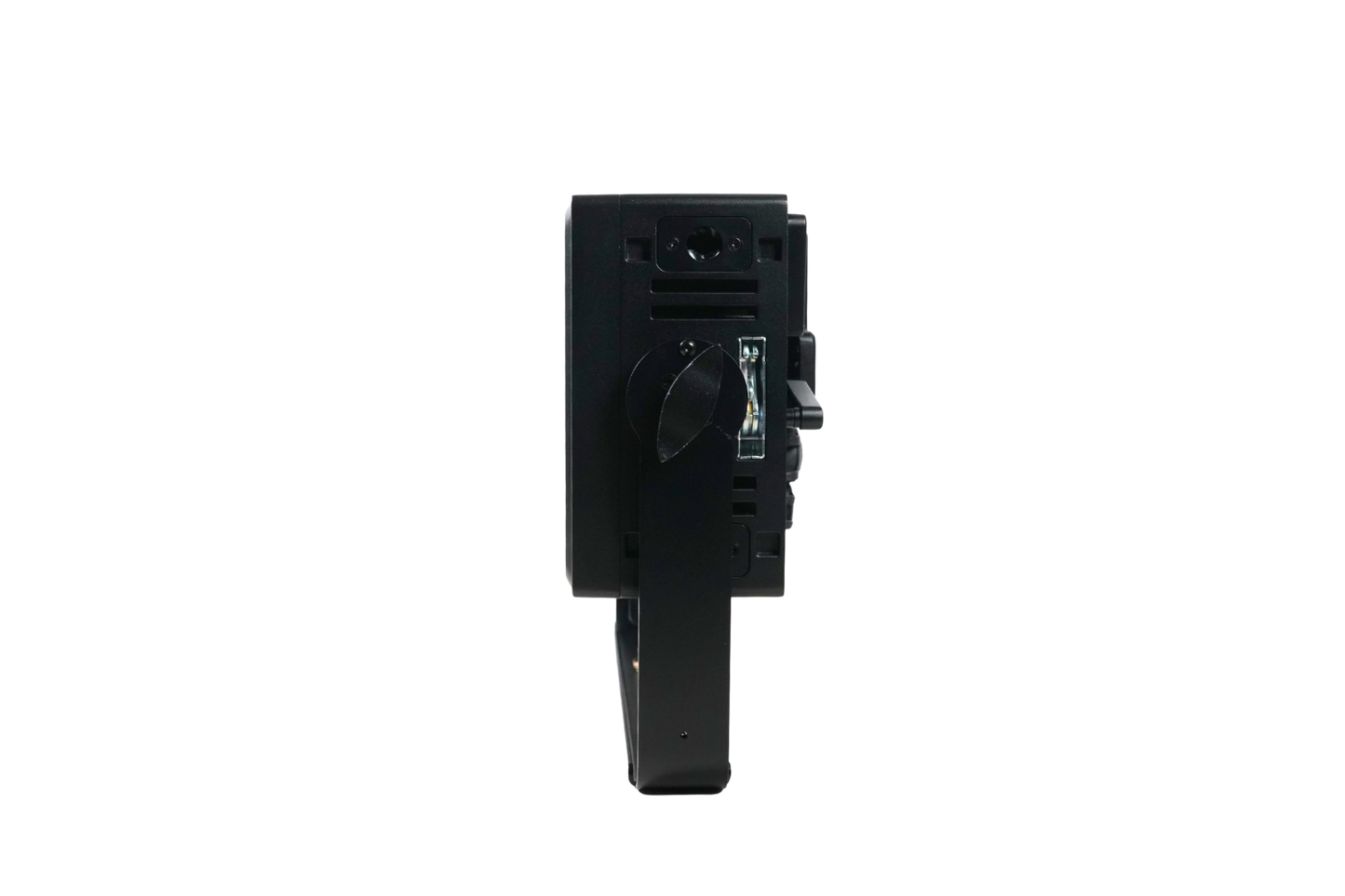

Rigging

• Double yokes (can stand on the floor alone or hang up horizontally)
• Mounting point on the top and bottom for bracket to be hung vertically

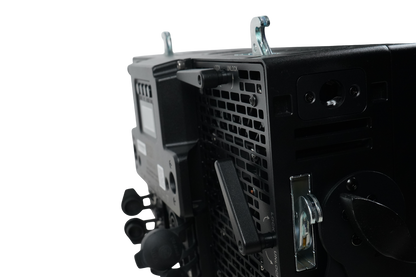

• Cam locks for 1/4 turn Omega Bracket on the side and back

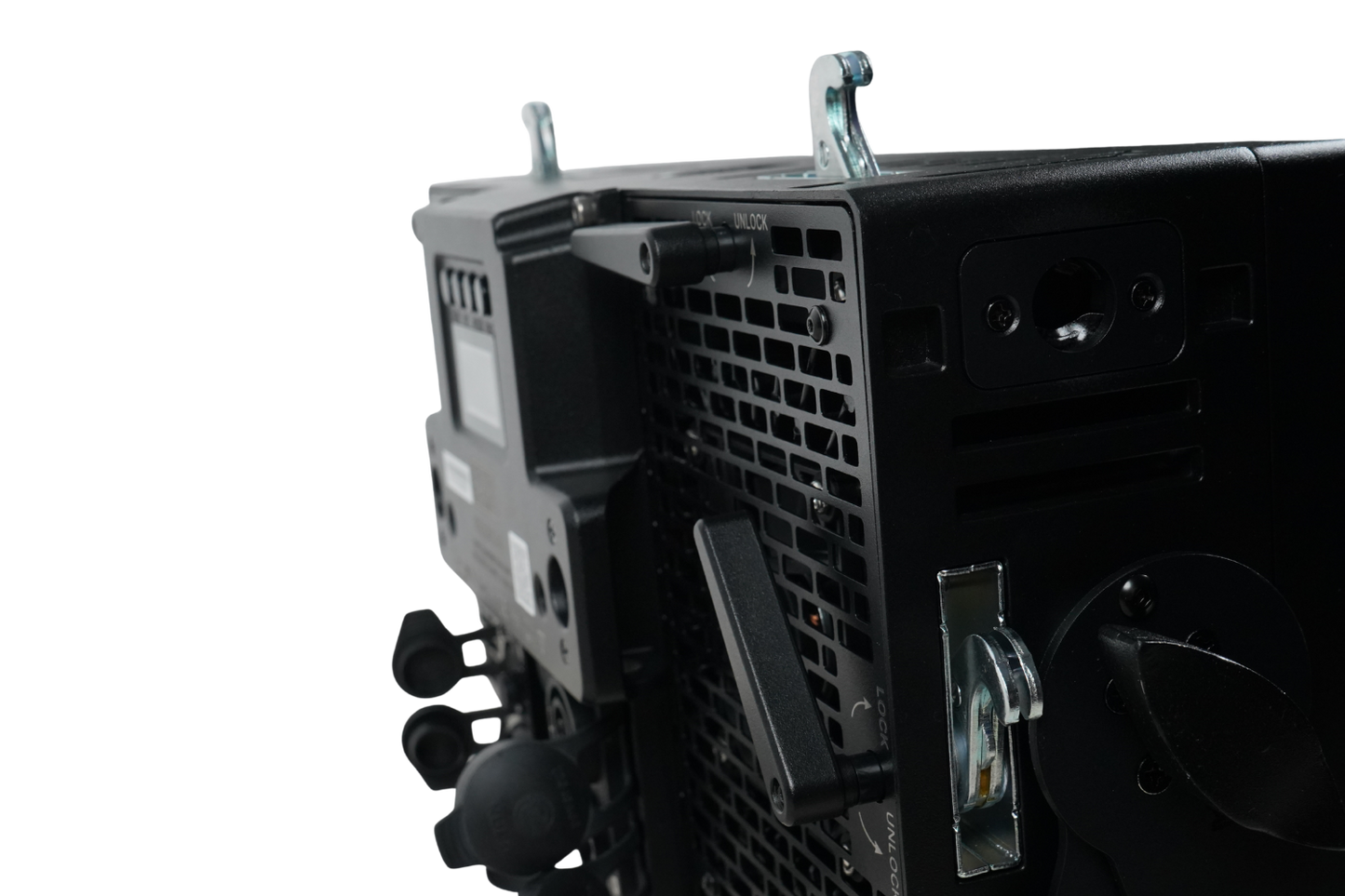

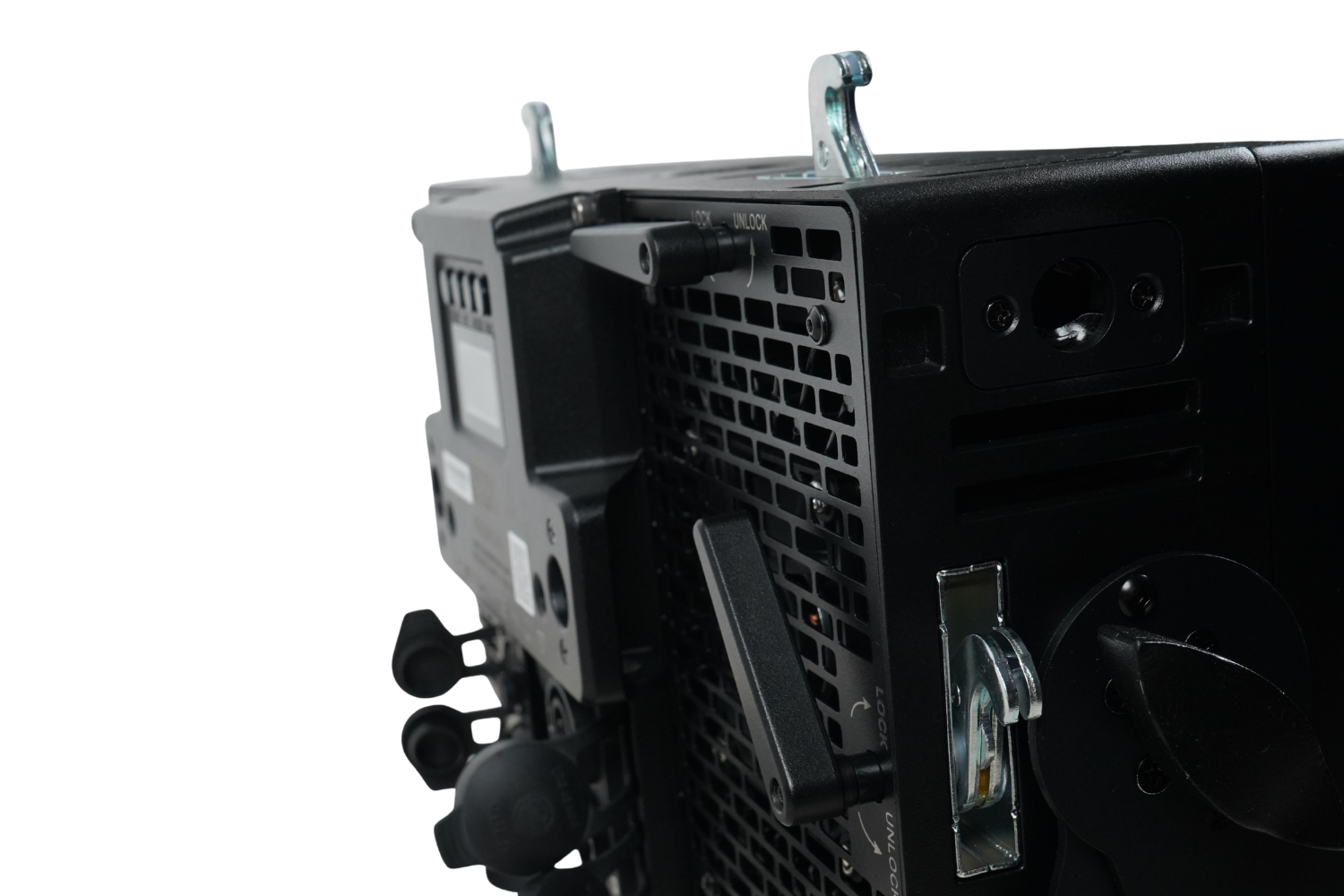

• 6 coffin locks + 3 tool-free lock handles for multi-fixtures linking and hanging horizontally and vertically
• 1 x Omega bracket included
• Max. hanging load with Coffin Latches: 8 Units (Approx. 65 kg / 143 lbs)

Warranty: 3 Years

Download User Manual
