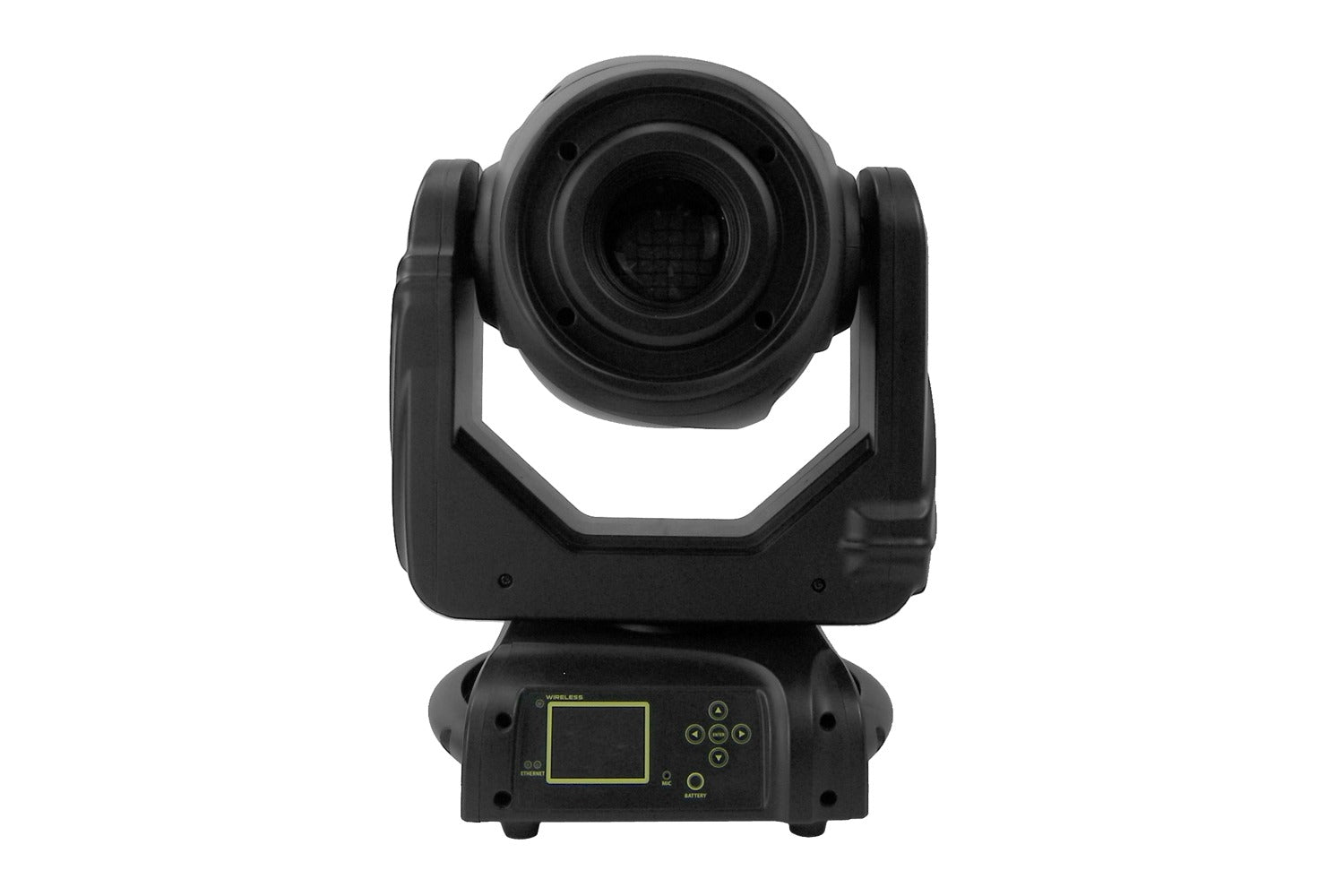

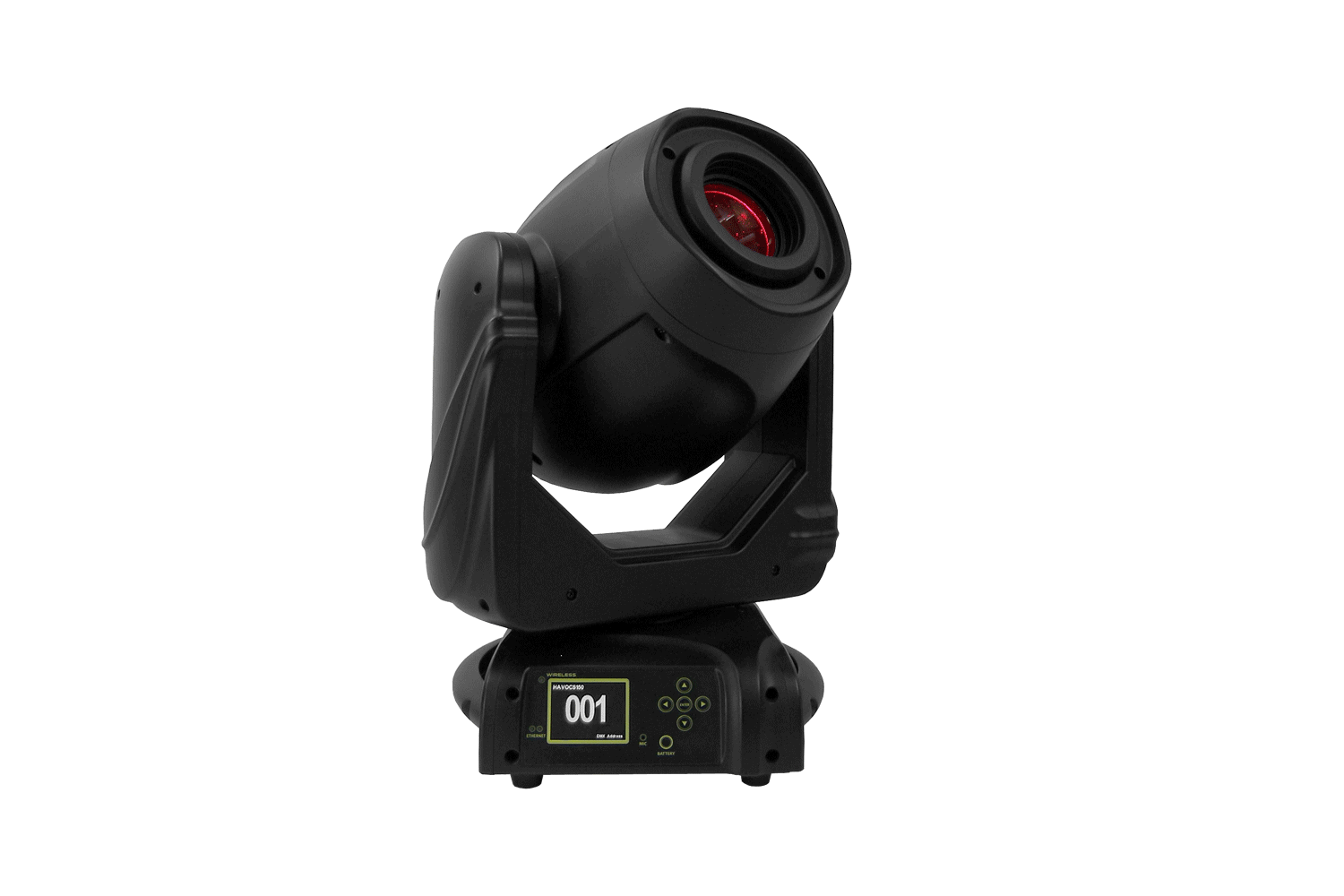

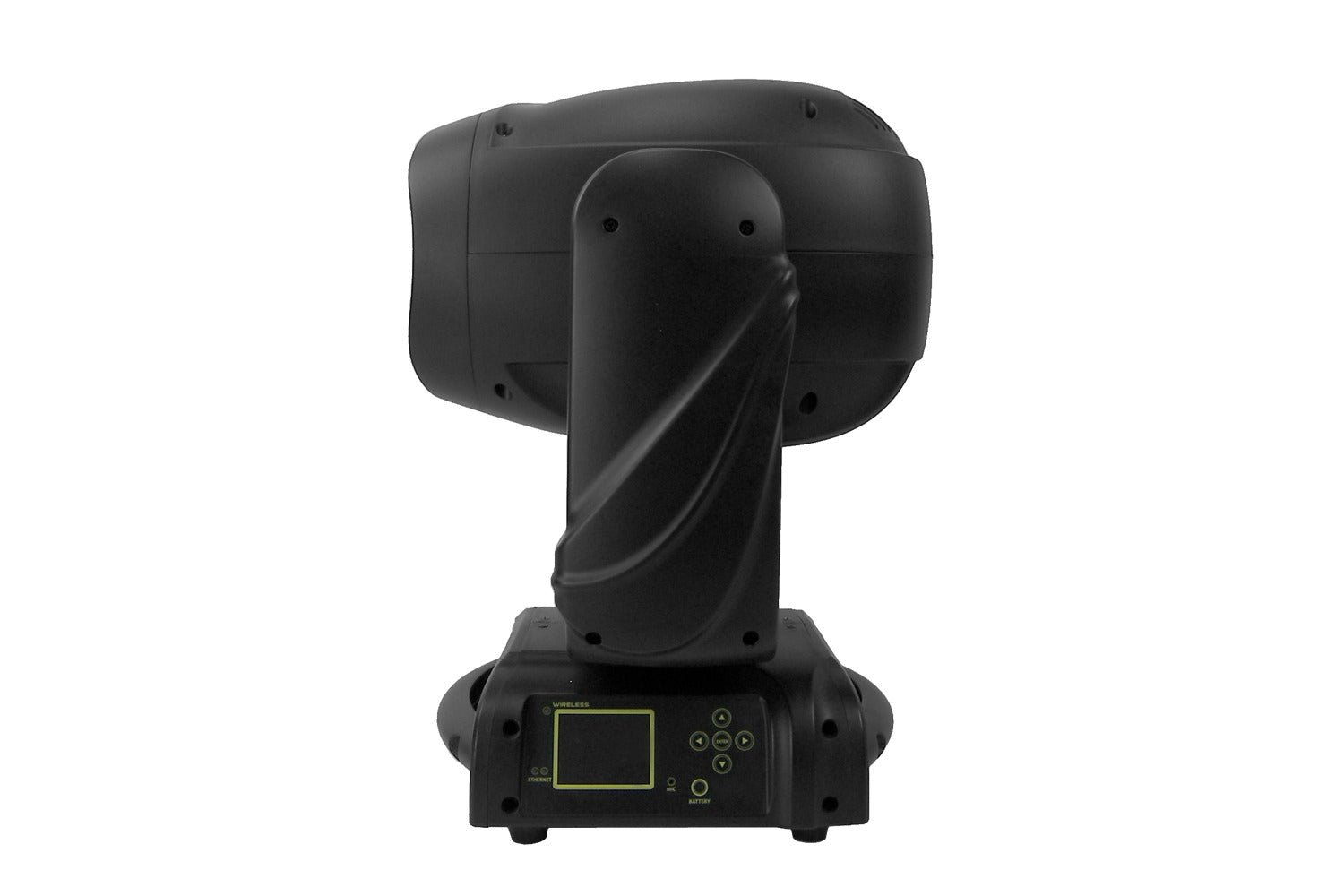

HAVOCS150 - 150W LED Spot Moving Head

Specifications:

Photometrics

• Light Source: 150W LED White
• Beam Angle: 10.2°-48.4°

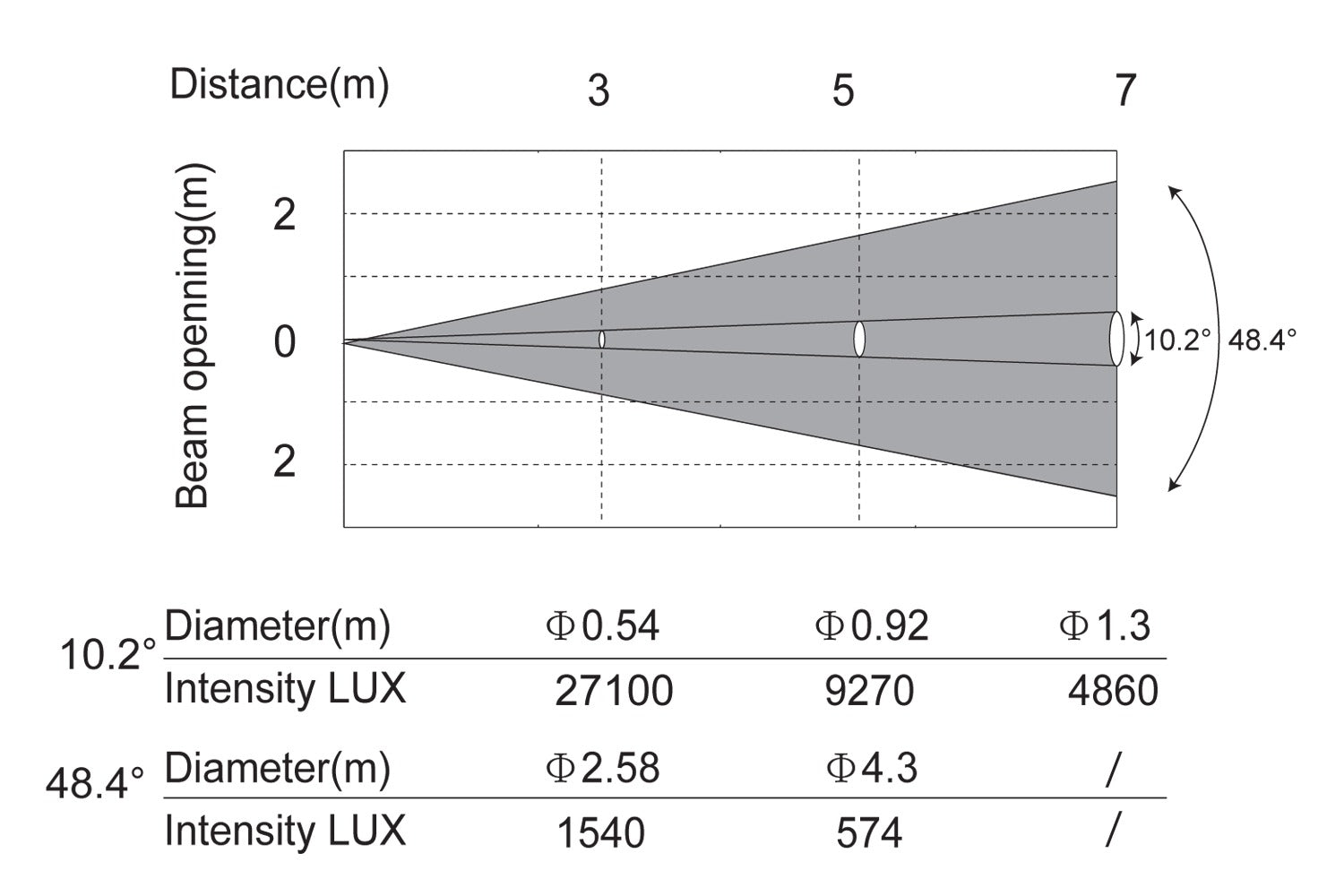

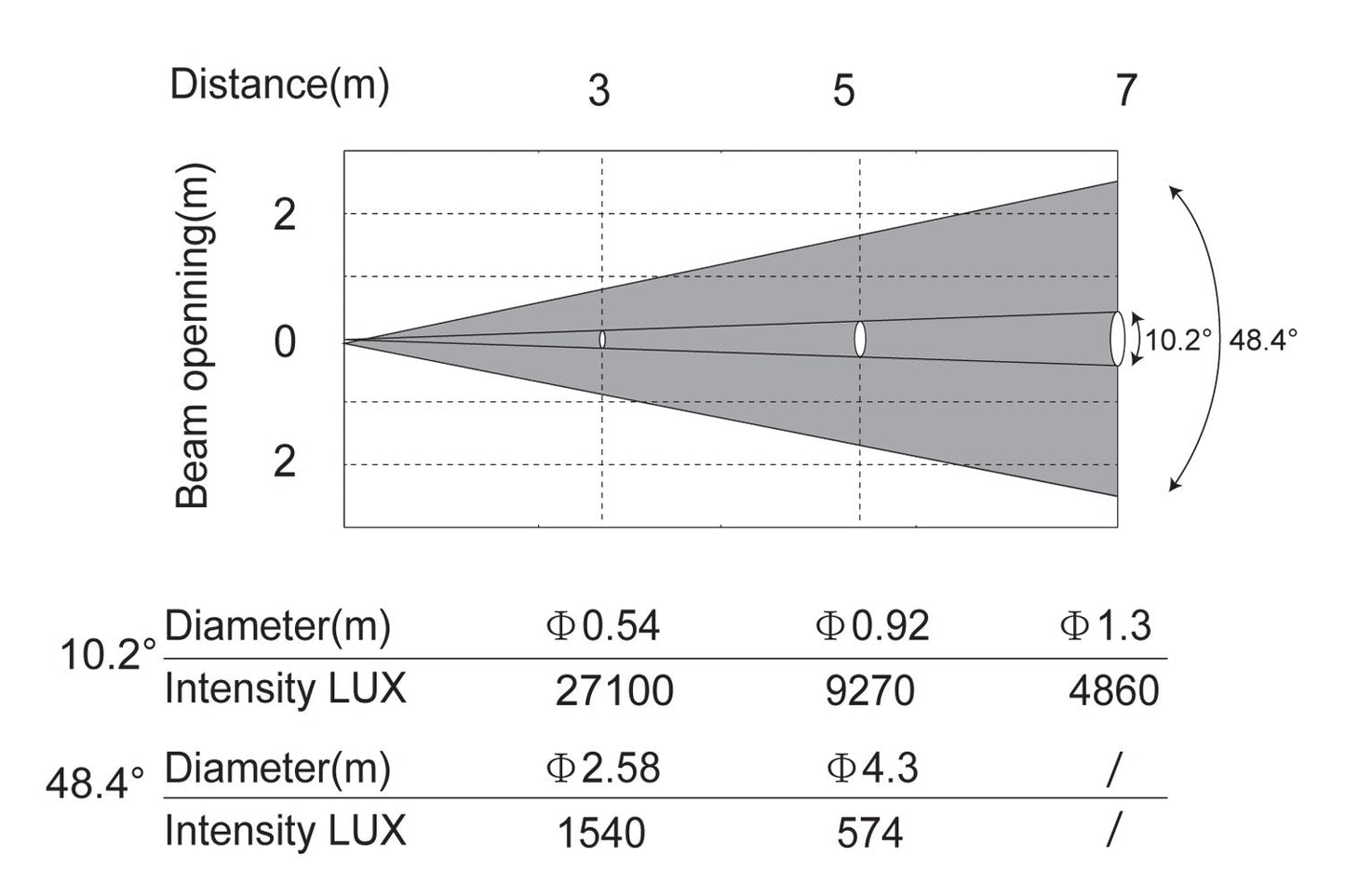

• Output: 9,270 lux @ 5m  / 8.2ft at 10.2°
• Led lifespan: 50,000 hours

Colour

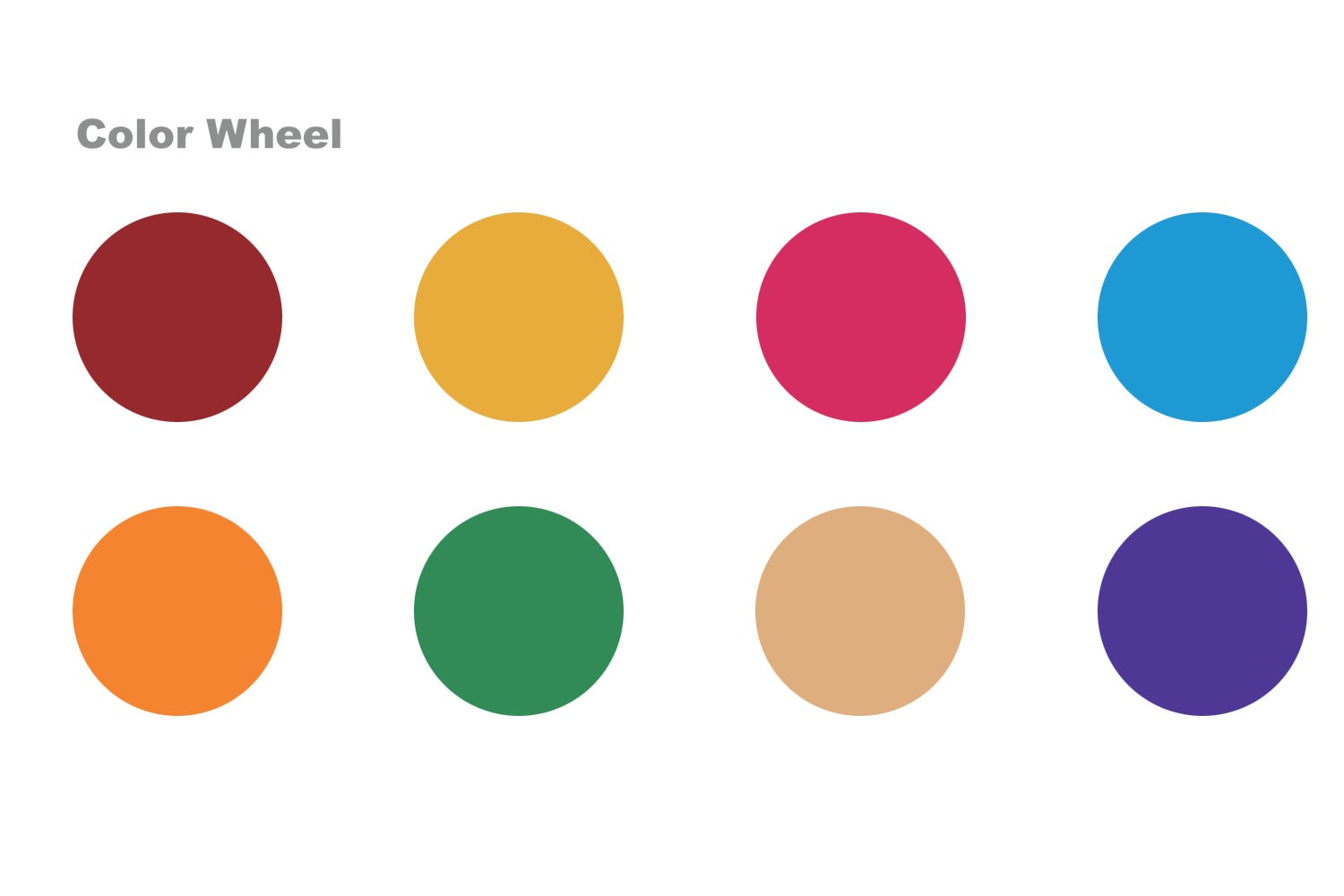

• Colour Wheel: 8 colour + open

Movement

• Pan: 540° (2.4 sec)
• Tilt: 263° (1.3 sec )
• 16-bit resolution
• Auto repositioning

Gobos

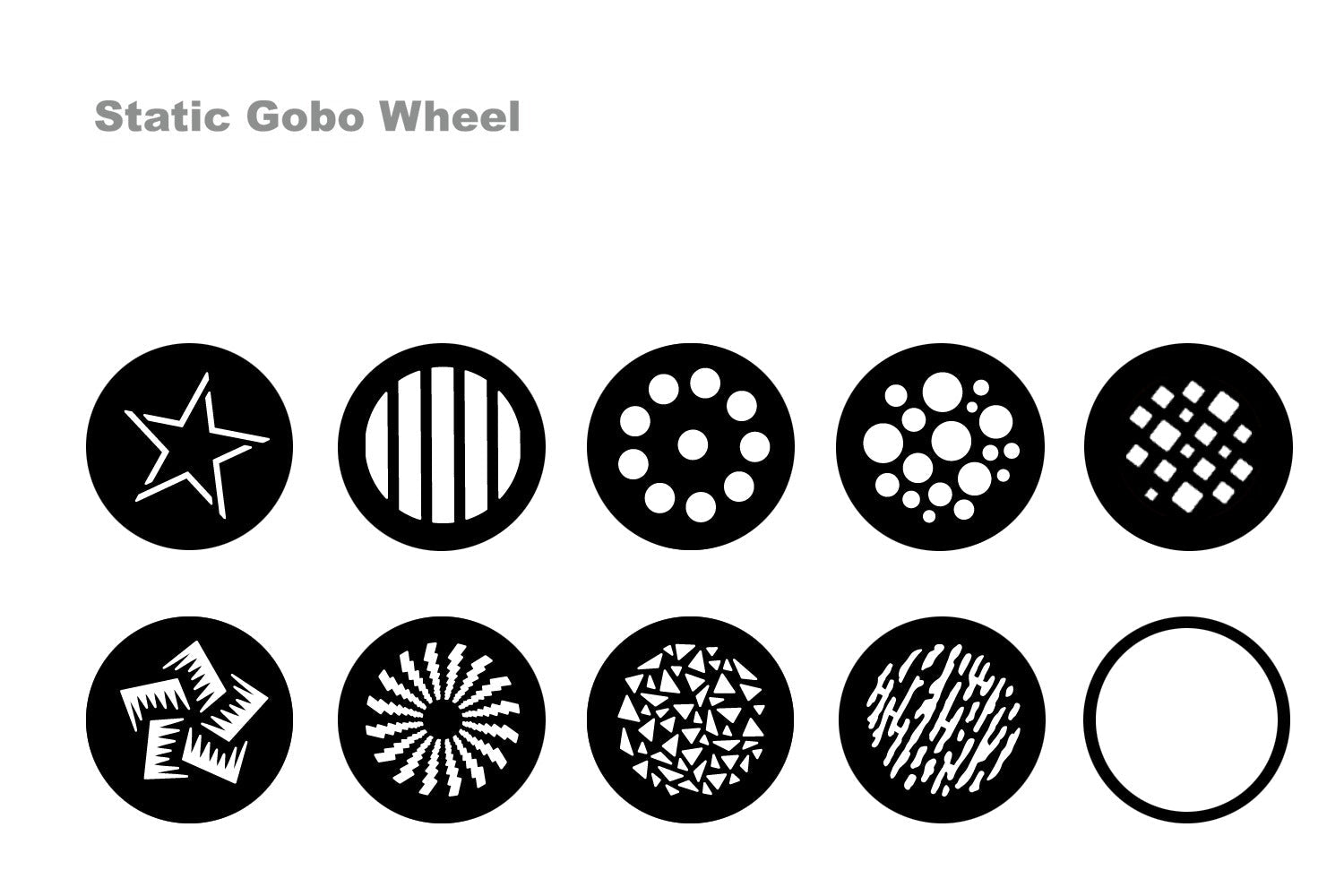

• Fixed: 10 + Open

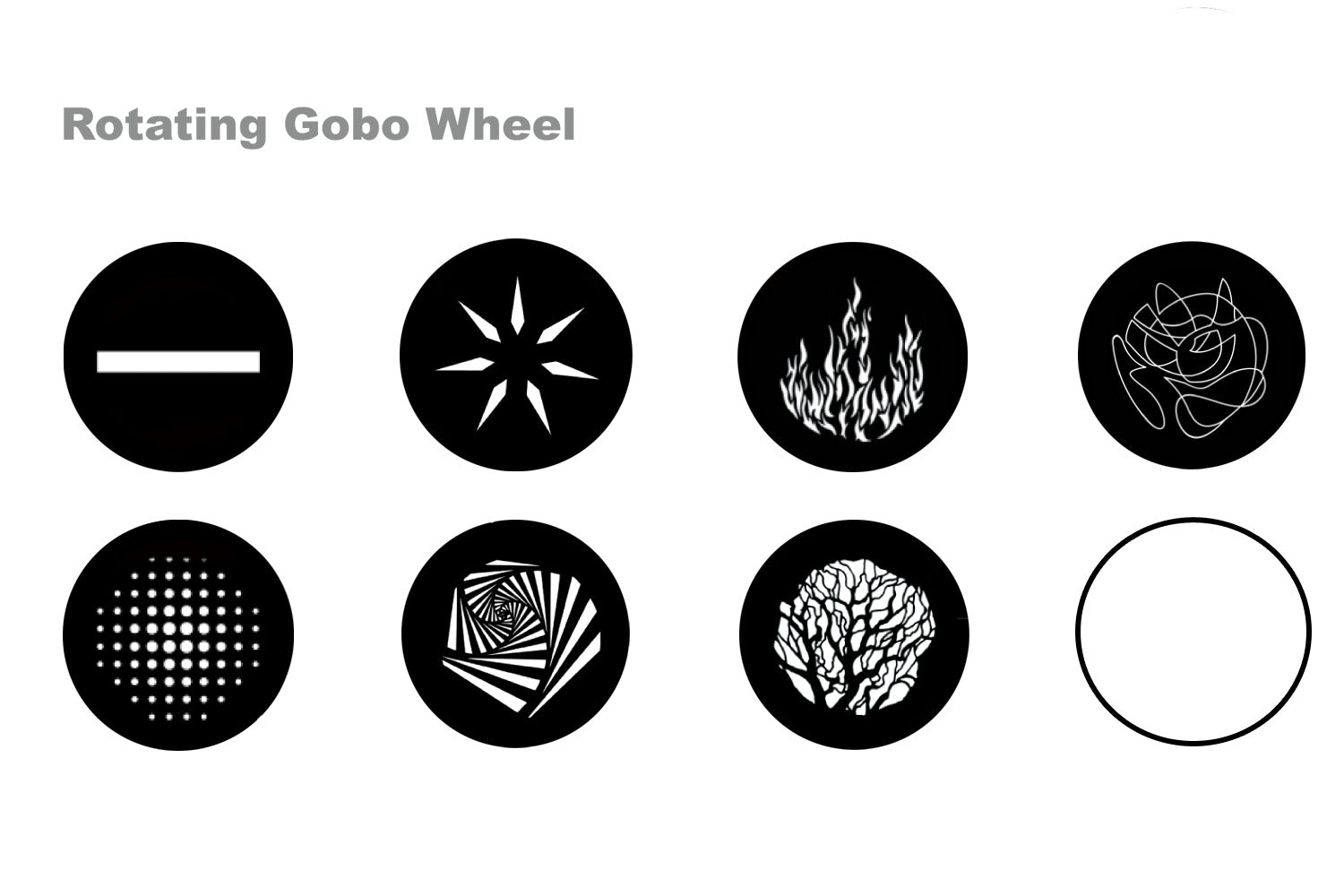

• Rotating: 7 + Open

Effects

• Dimming: 0~100%
• Prism: 3 facets
• Shaking: Yes
• Strobe: Yes
• Focus: Motorised
• Frost: Yes
• Zoom: Yes (10.2°-48.4°)

Power

• Max power consumption: 206W
• Input Voltage: 100~240V AC, 50/60 Hz
• Connection: True1 in/out

Control

• Control Protocol: DMX512, RDM
• Optional Wireless
• DMX Channels: 17 / 21

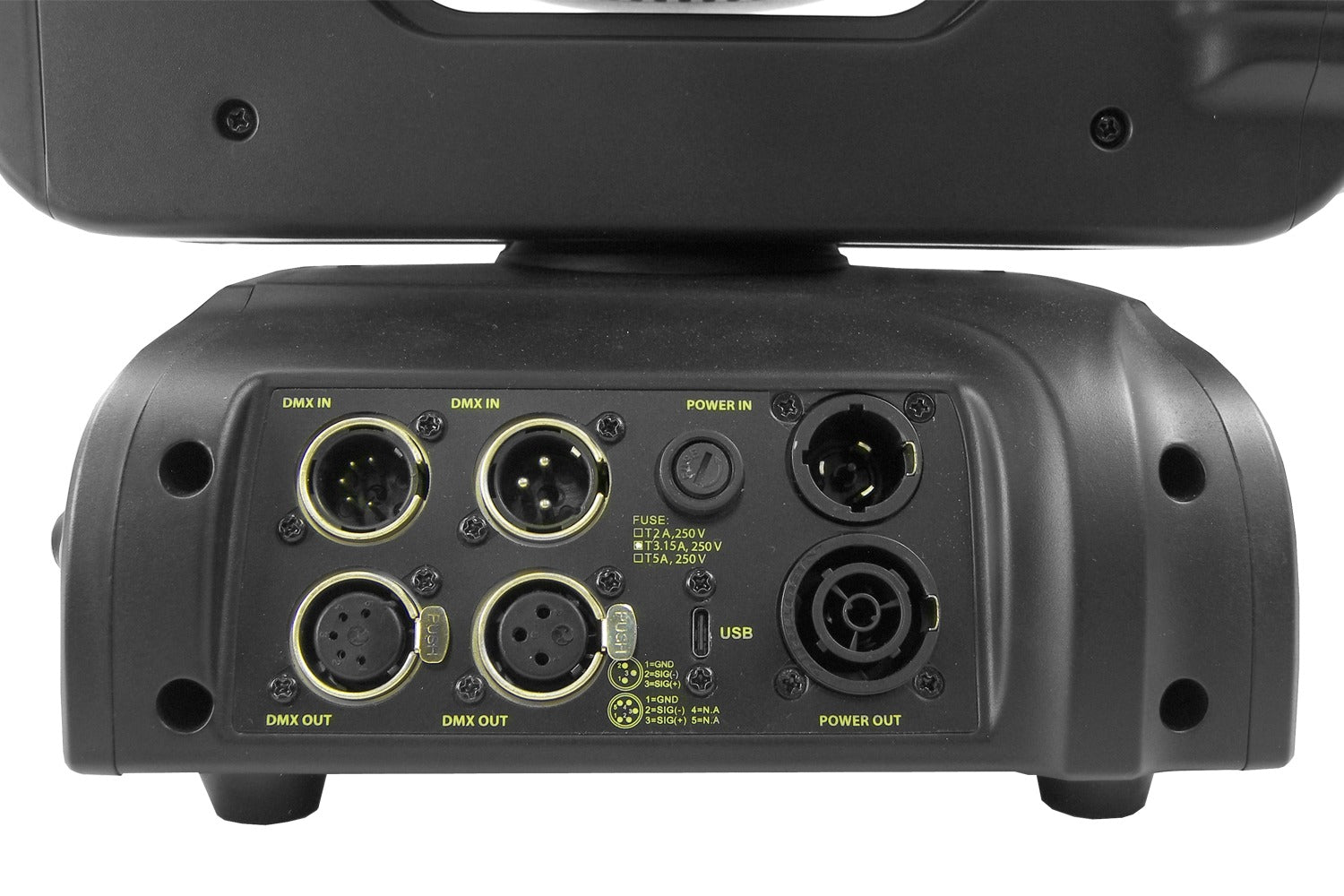

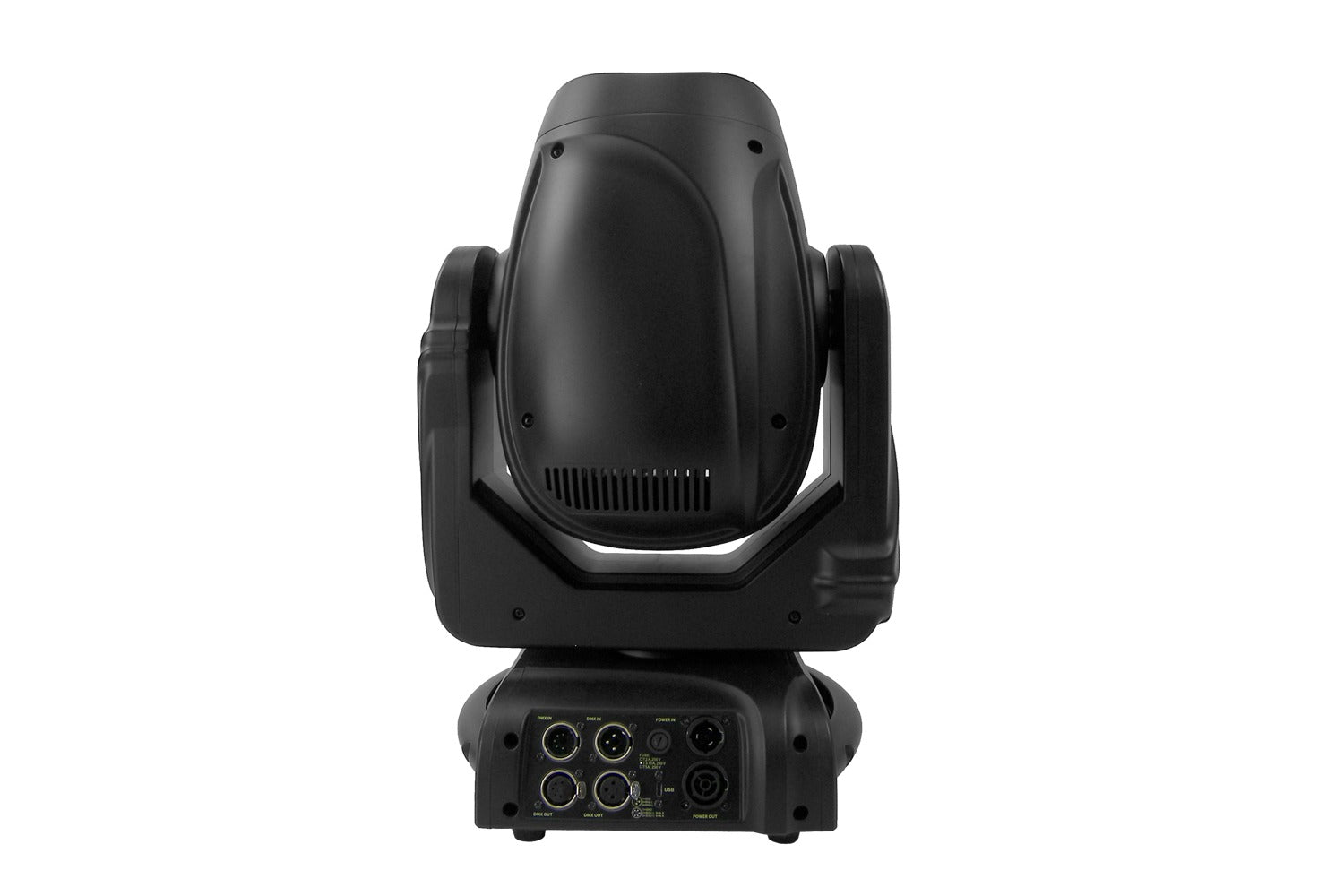

• Interface: 3-pin/5-pin XLR in/out
• RDM function to change DMX address

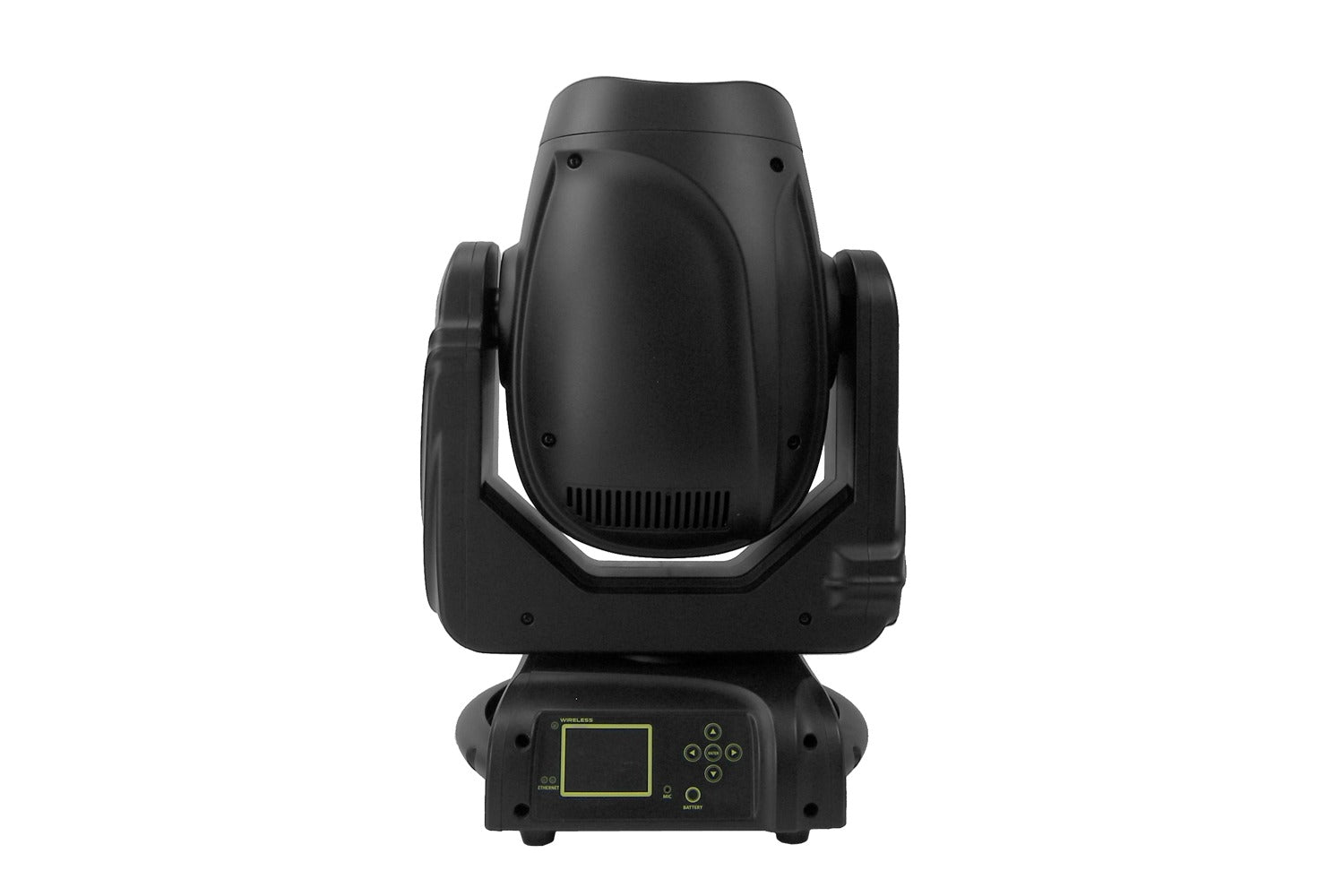

• Display: 2.4″ colour LCD control panel
• Software Upgrade via DMX or USB: Yes

Housing

• Materials: ABS & Steel, matte black finish

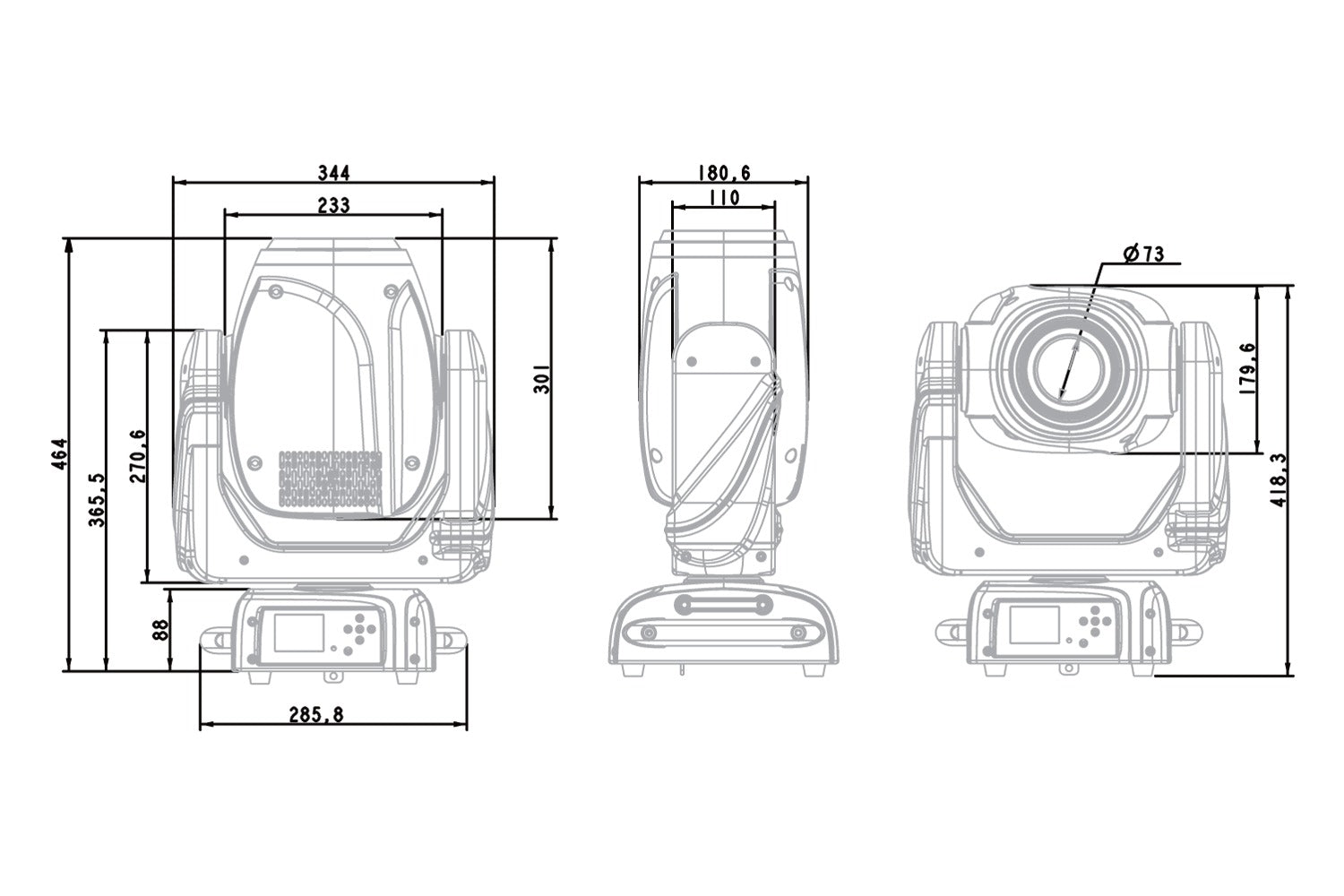

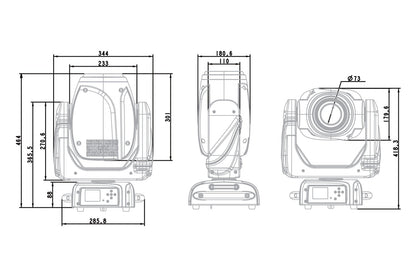

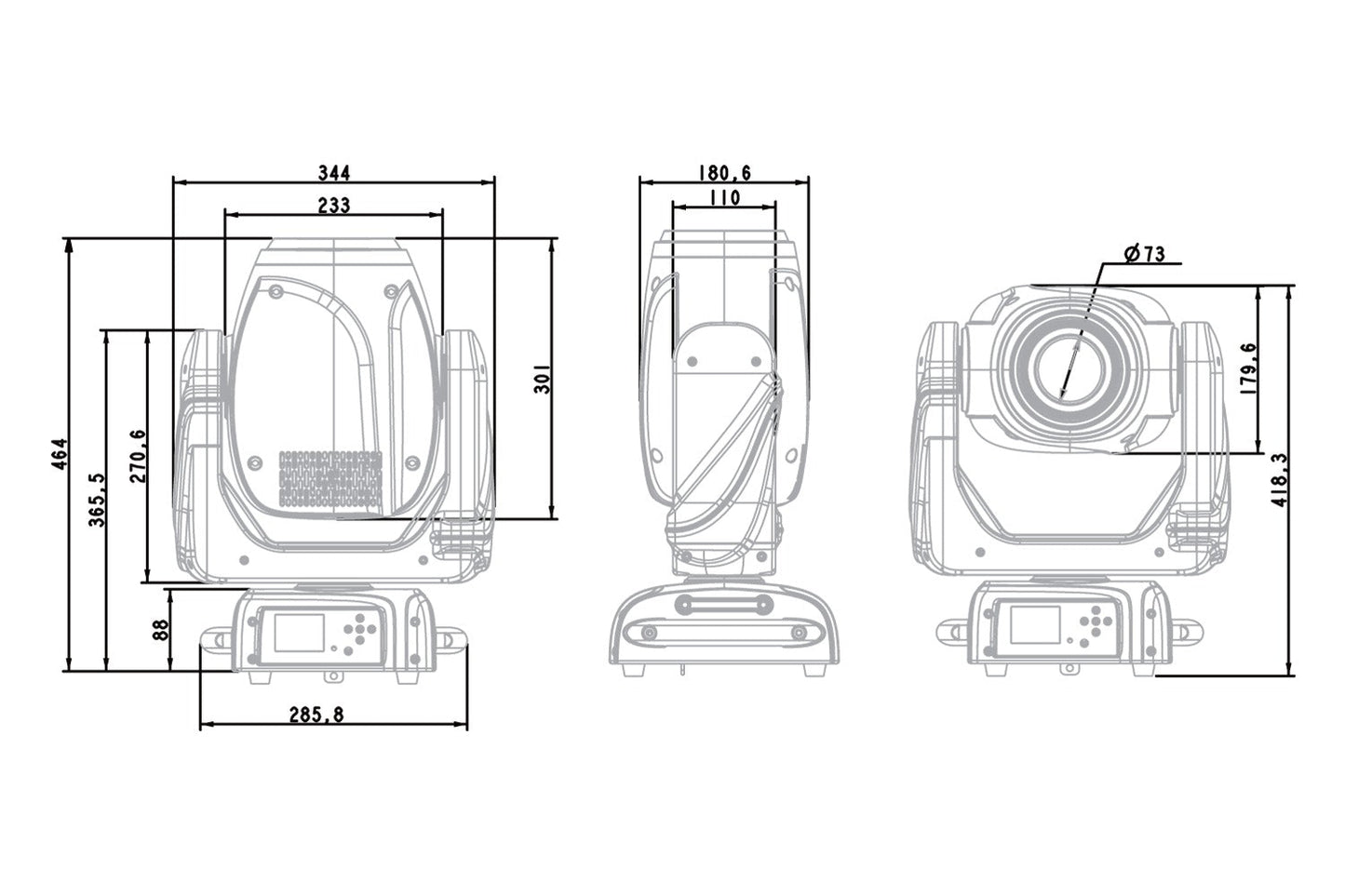

• Dimensions: 464 x 334 x 181mm / 18.3" x 13.2" x 7.1"
• Cooling: Fan speed auto change according to temperature
• IP rating: IP20
• Net Weight: 14 kg / 30.9 lbs
