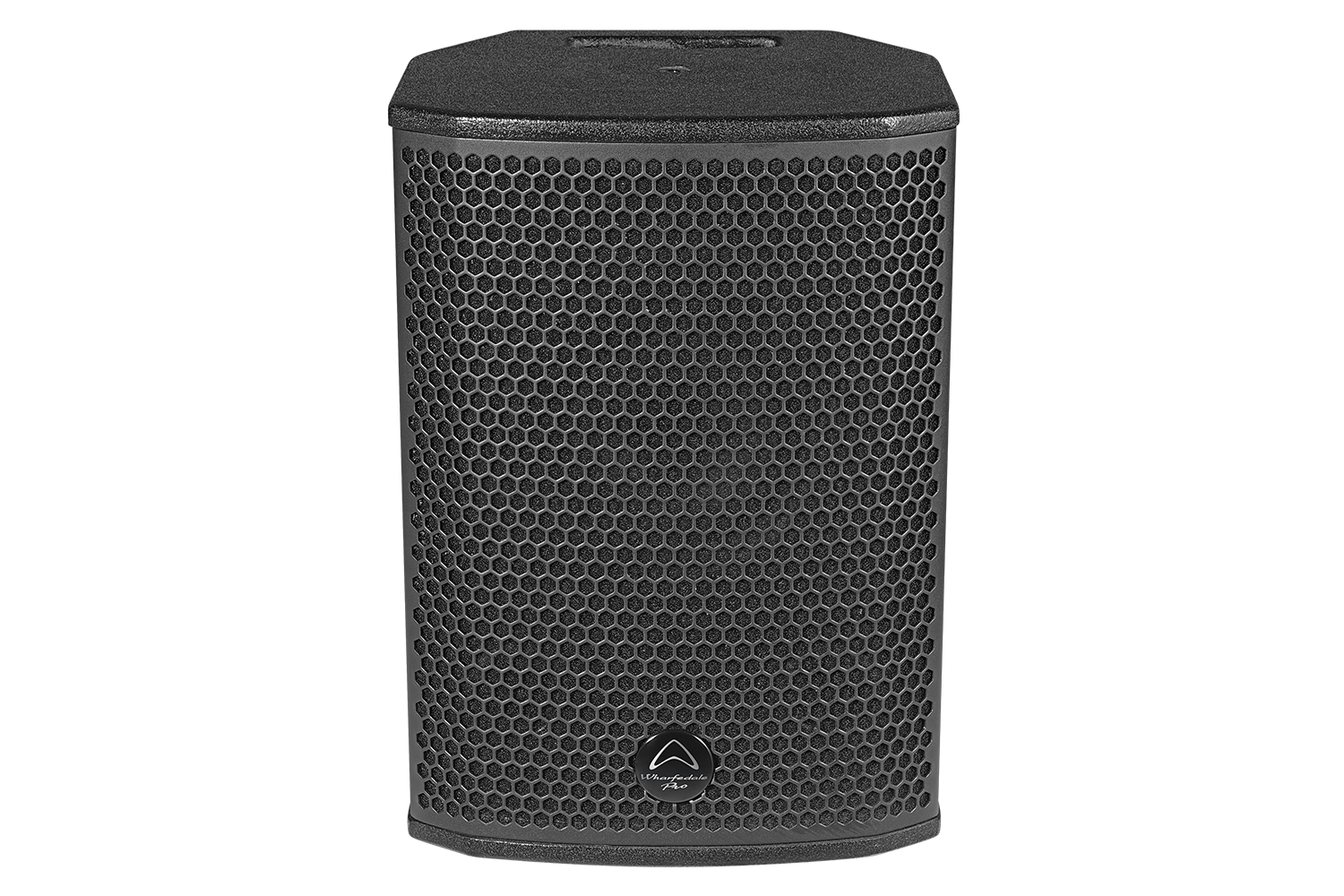

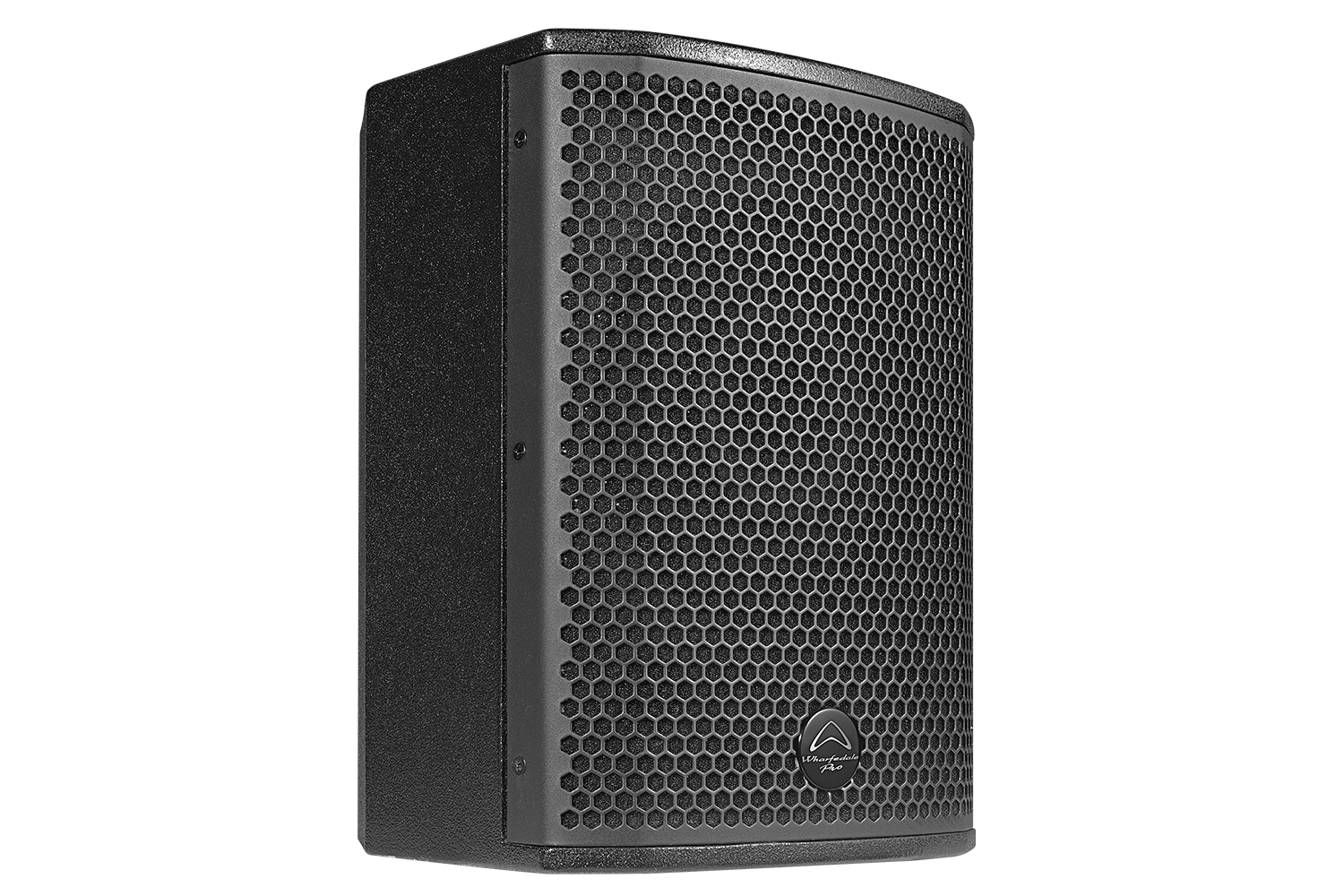

Wharfedale Pro GPL-8T Installation Speaker

Regular price

GPL SERIES - GENERAL PURPOSE LOUDSPEAKERS

  • Compact birch plywood construction
  • Beyma Coaxial design drivers
  • Multiple mounting options (Yoke brackets included)
  • Conical or 80° x 40° (HQ models) dispersion options
  • Band-pass or Bass Relex subwoofers
  • speakON compatible and barrier strip connections
  • FIR Preset libraries and EASE .gll files available for download

GPL-8T

  • 70° conical coverage
  • 350 W AES (Continuous)
  • 700 W Programme
  • 1400 W Peak
  • 2.5” LF Voice coil
  • 128 dB Max SPL @ 1 m
  • 70 V / 100 V

BIRCH PLYWOOD

All GPL models use premium Baltic birch plywood construction.

Not only does this create a solid and durable cabinet, but it also contributes to the overall sound and character.

GPL is also covered in our most durable and hard wearing Rhino Rock paint finish. This ensures that a GPL loudspeaker will always look as good as the day you installed it.

INSTALLATION HARDWARE

Installations can be complicated enough, so Wharfedale Pro have made GPL series as easy as possible.

GPL-5 and GPL-8 are quickly fixed to a wall using the WPB-3 wall bracket or the included steel yoke.  GPL-12, GPL-12HQ, GPL-15 and GPL-15HQ are quickly fixed to a wall using the WPB-1 wall bracket or the included steel yoke.


These models are also compatible with Powerdrive Series 100 or Omnimount Series 60 installation brackets.

SUPPORT WITH EASE

All full range models in the GPL series are supported with EASE FOCUS 3 .gll files.



SPECIFICATIONS

Model Name GPL-8 / 8T
System Type 8″ coaxial passive
Configuration two-way
Frequency Response (+/-3 dB)
(DP-N preset) 65 Hz – 20 KHz
Frequency Range (- 10 dB)
(DP-N preset) 53 Hz – 25 KHz
Sensitivity 2.83 V/1 m 97
Sensitivity 2.83 V/1 m half space /
Calculated Maximum SPL @1 m 128 dB
System Peak SPL* 134 dB
*level at 1 m using pink noise with crest factor 4, with dedicated preset.
System Rated Impedance 8 Ω
Low Frequency Transducer
Size 211.5 mm / 8"
Voice coil size 63.5 mm / 2.5″
LF Frame Material Aluminium
High Frequency Transducer
HF Driver Type Compression Driver
Coil Size (mm / inches) 44.4 mm / 1.75″
Exit Size (mm / inches) 25.4 / 1″
Diaphragm Material PM4
Waveguide Type Spherical
Nominal Coverage (H x V) 70° conical
Special Features Shorting cap for extended response
Waterproof LF cone Waterproof LF cone
FEA optimized, Shared High performing Ferrite magnet system design FEA optimized, Shared High performing Ferrite magnet system design
Driver brand Beyma
POWER
T Model
100 V : 120 / 60 / 30 W
100 V : 200 / 100 / 50 W
System Continuous Power (W) 350
System Programme Power (W) 700
System Peak Power (W) 1400
Crossover Frequency 1.6 KHz
Recommended HPF = BW18dB/oct. 48 Hz

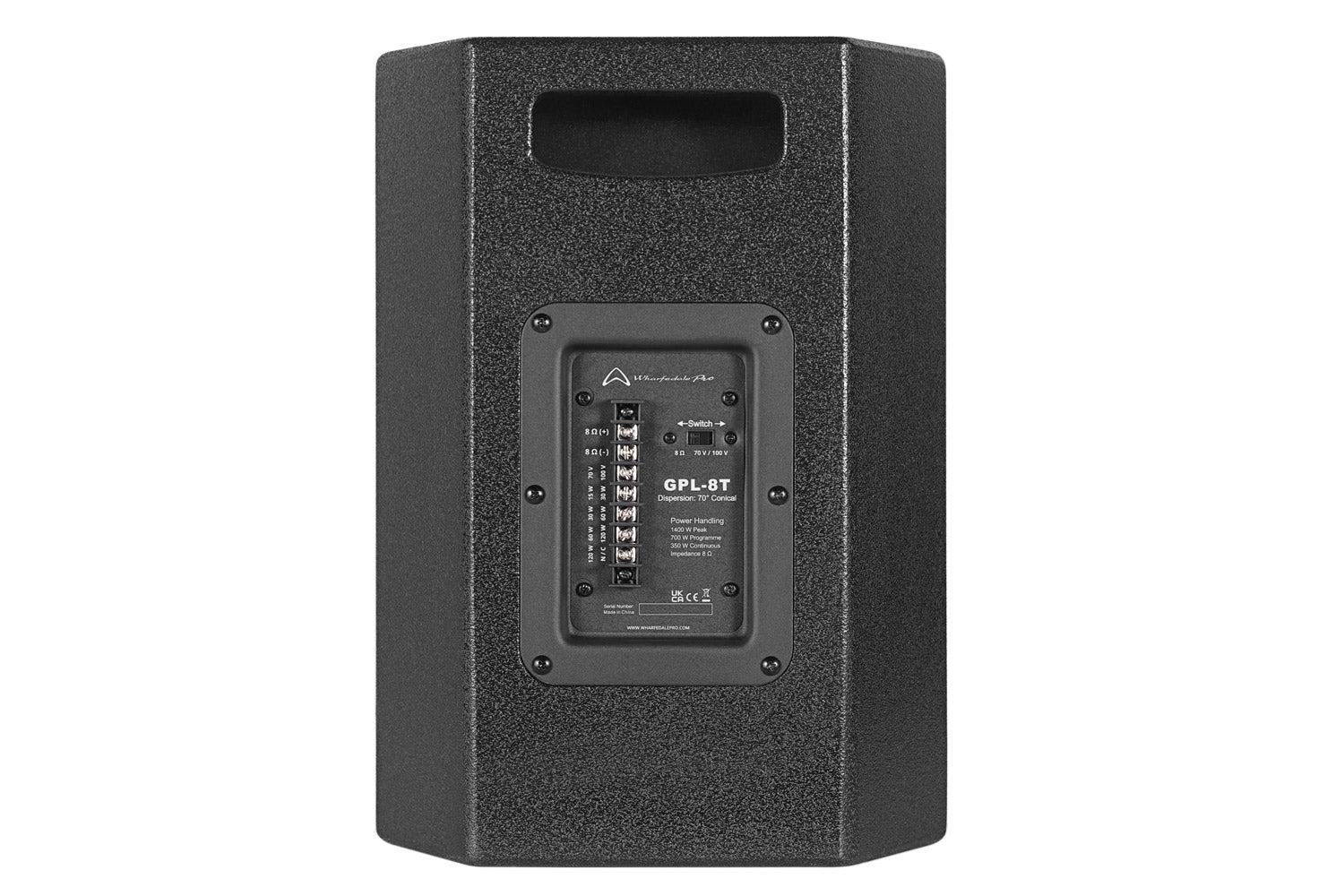

Input Connector 2 x speakON compatible / 1 x Barrier Strip T Model barrier strip only
Rigging & Hardware: 2 x M10 threaded rigging points. 4 x M8 threaded points for WPB-3
Included Accessories GPL-8 horizontal flying yoke
Handle 1 on back
Enclosure
Cabinet Type Trapezoid
Enclosure Material and finish 12 mm plywood / Rhino Rock
Colour Options Black paint, White on request
Grille Material & Finish Powder coated steel
Dimensions – Unpacked (mm / inches):
Height 388 mm / 15.3″
Width Front 280 mm / 11.0″
Width Rear 180 mm / 7.1″.
Depth 275 mm / 10.8″
Dimensions – Packed (mm / inches):
Height 448 mm / 17.6″
Width Front 335 mm / 13.2″
Width Rear 335 mm / 13.2″
Depth 340 mm / 13.4″
Weight
Net Weight 9.78 kg / 21.52 lbs
Gross Weight 10.82 kg / 23.80 lbs



Download quick start guide
