Wharfedale Pro

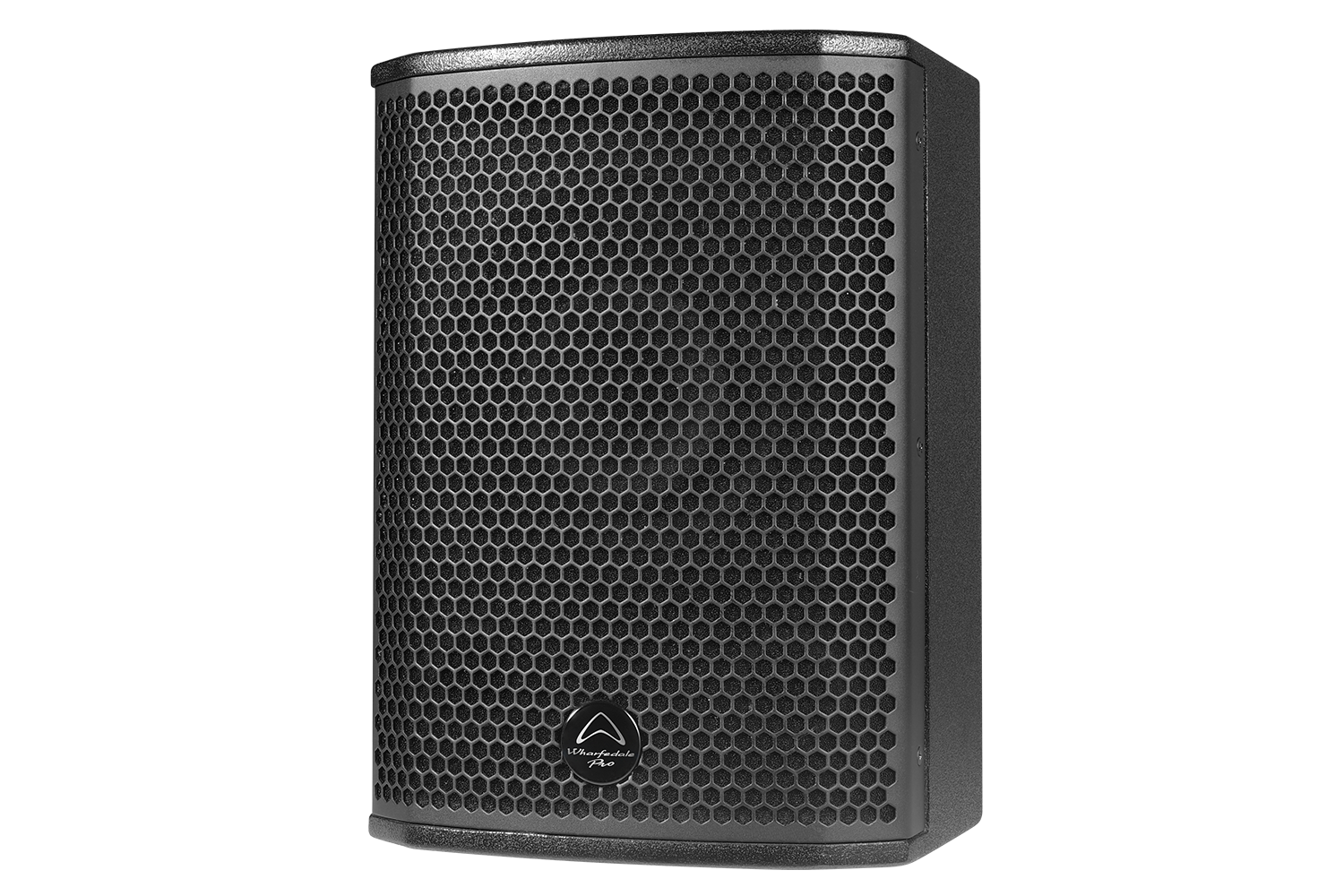

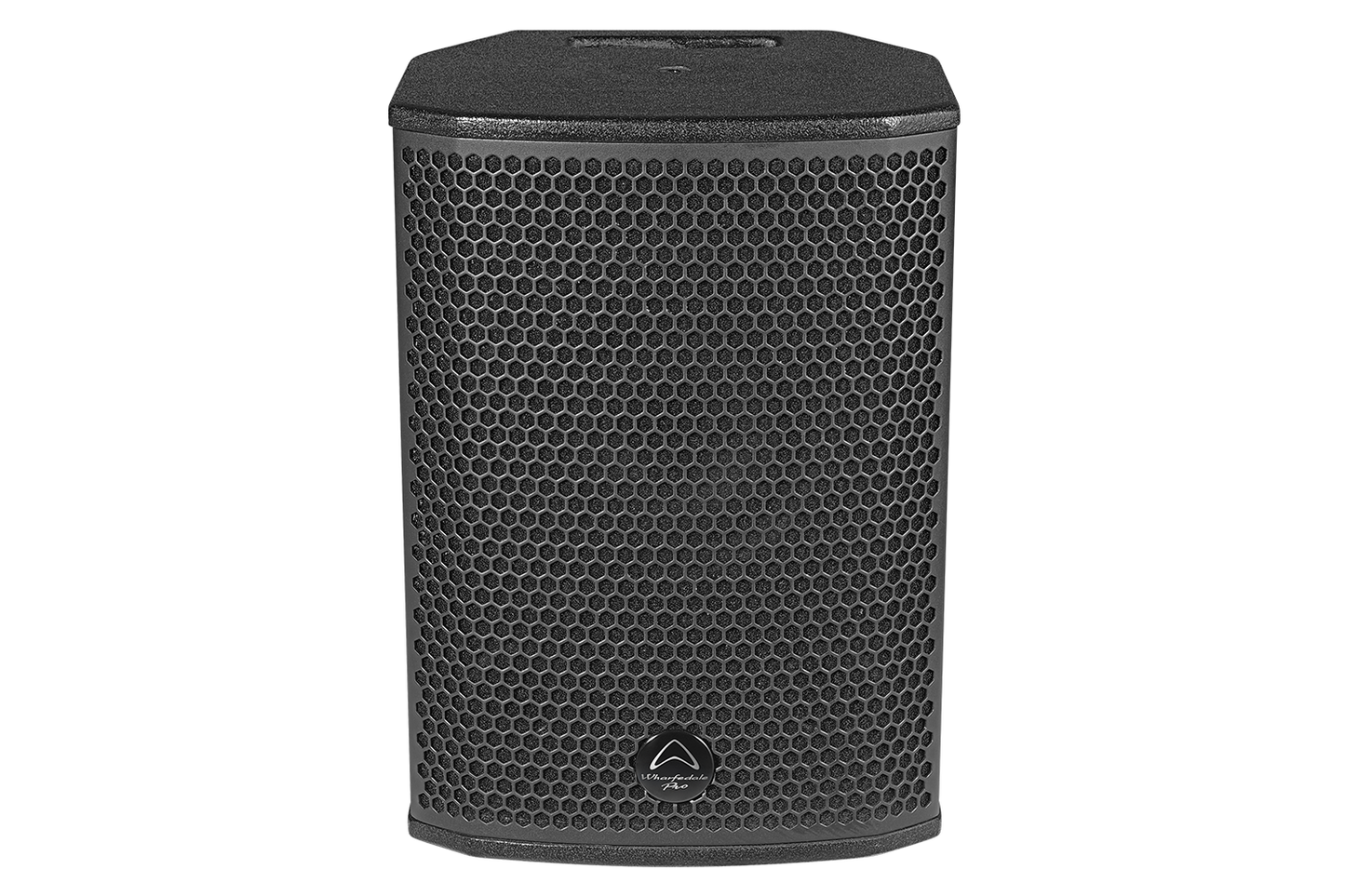

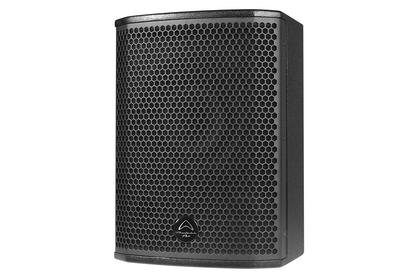

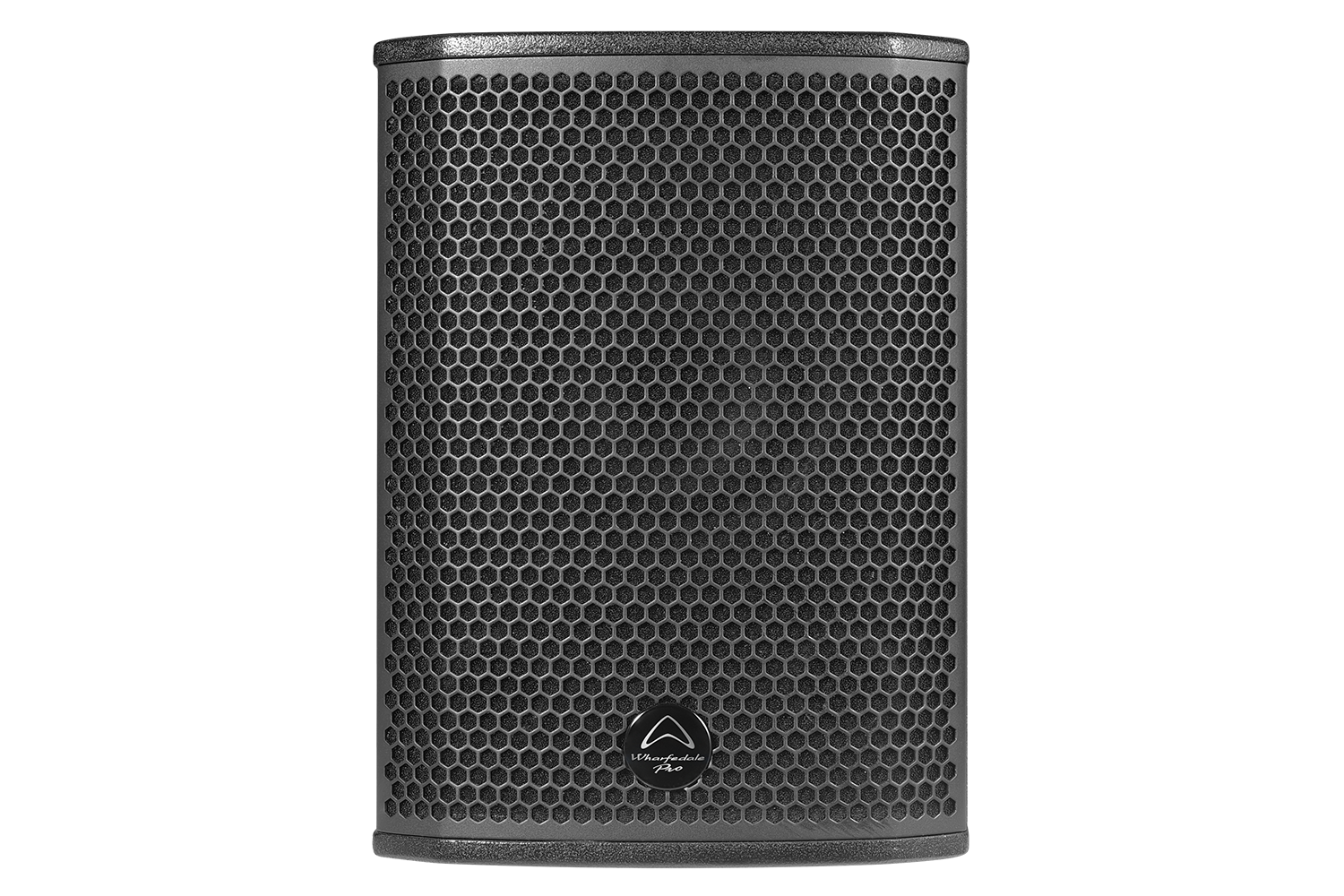

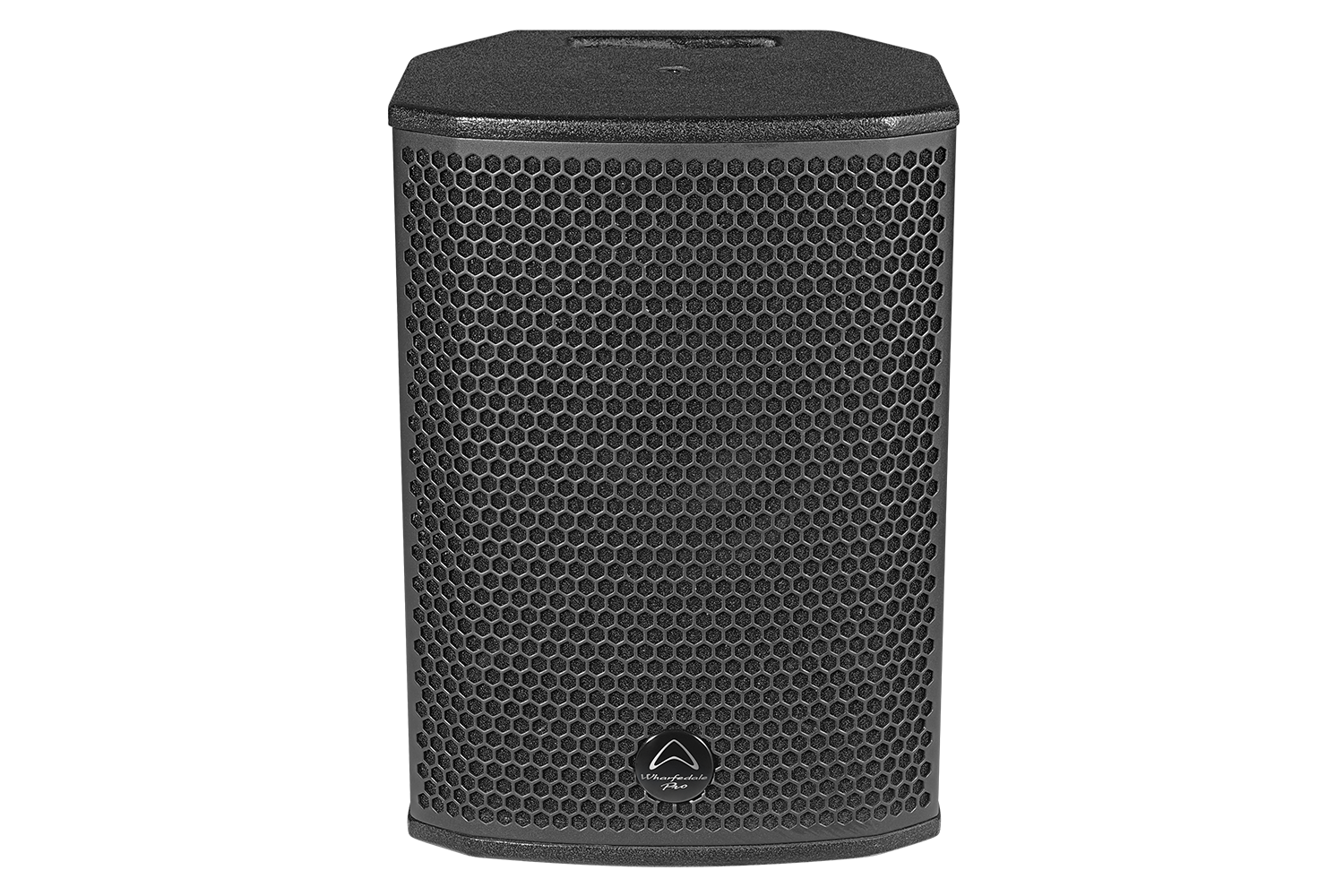

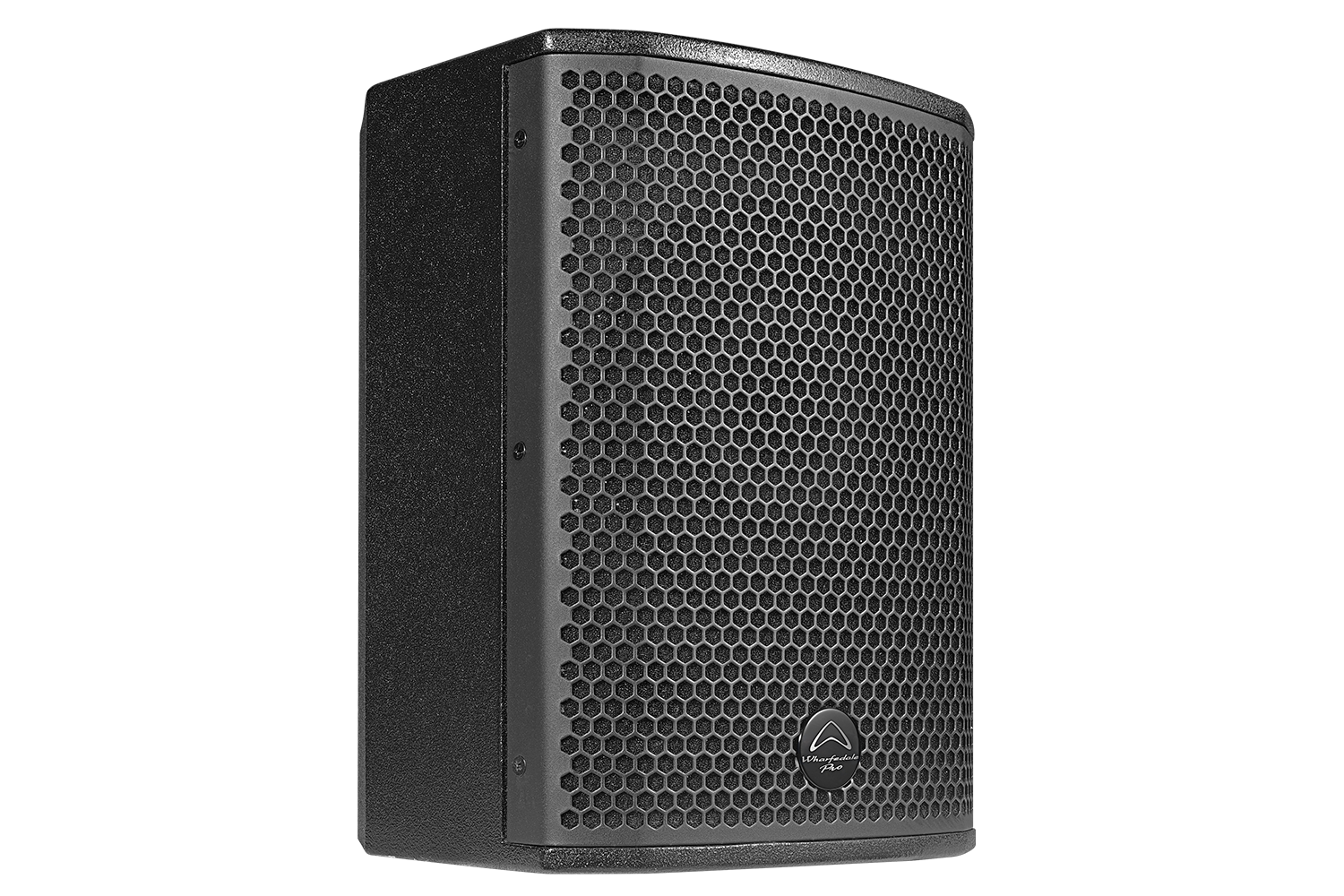

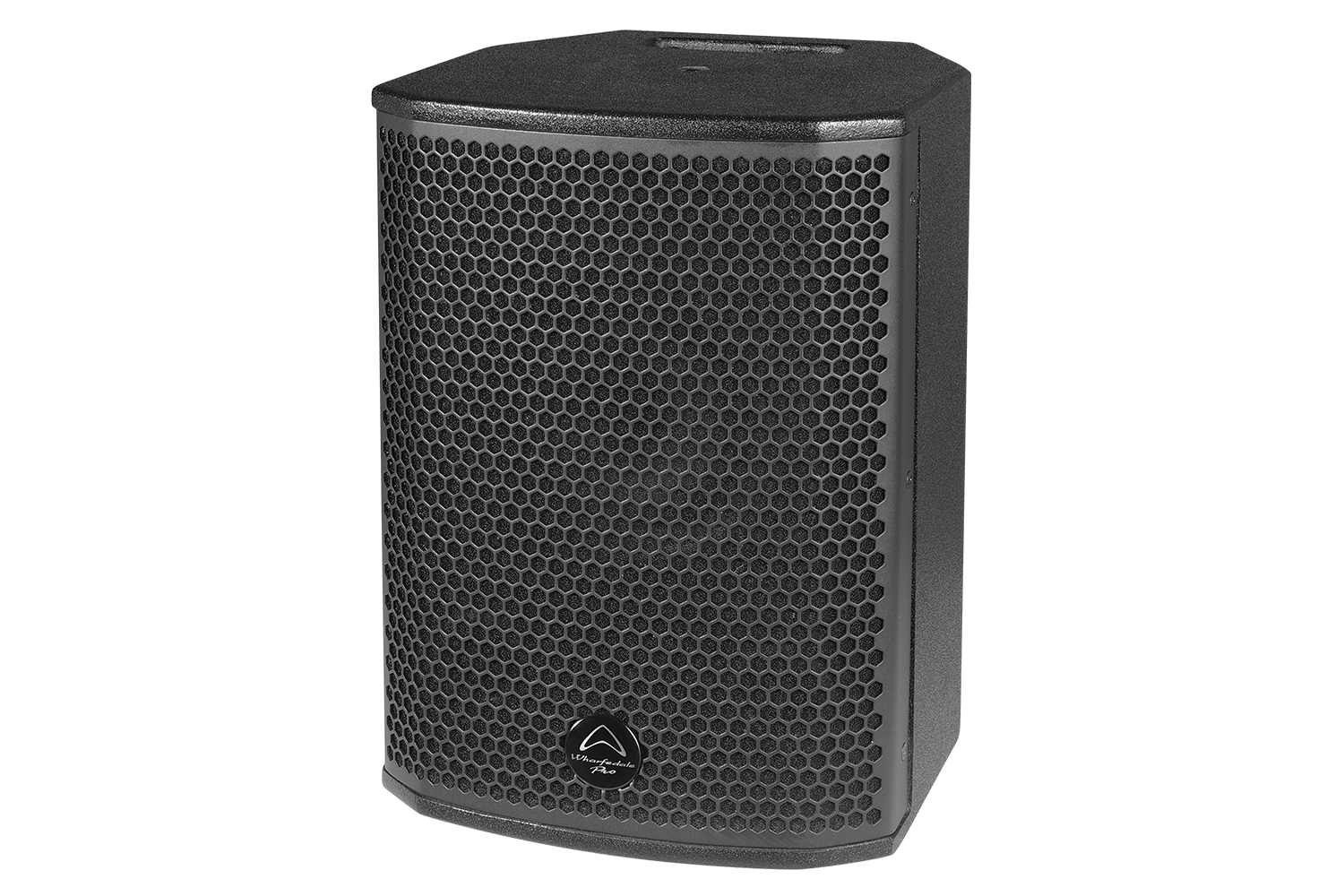

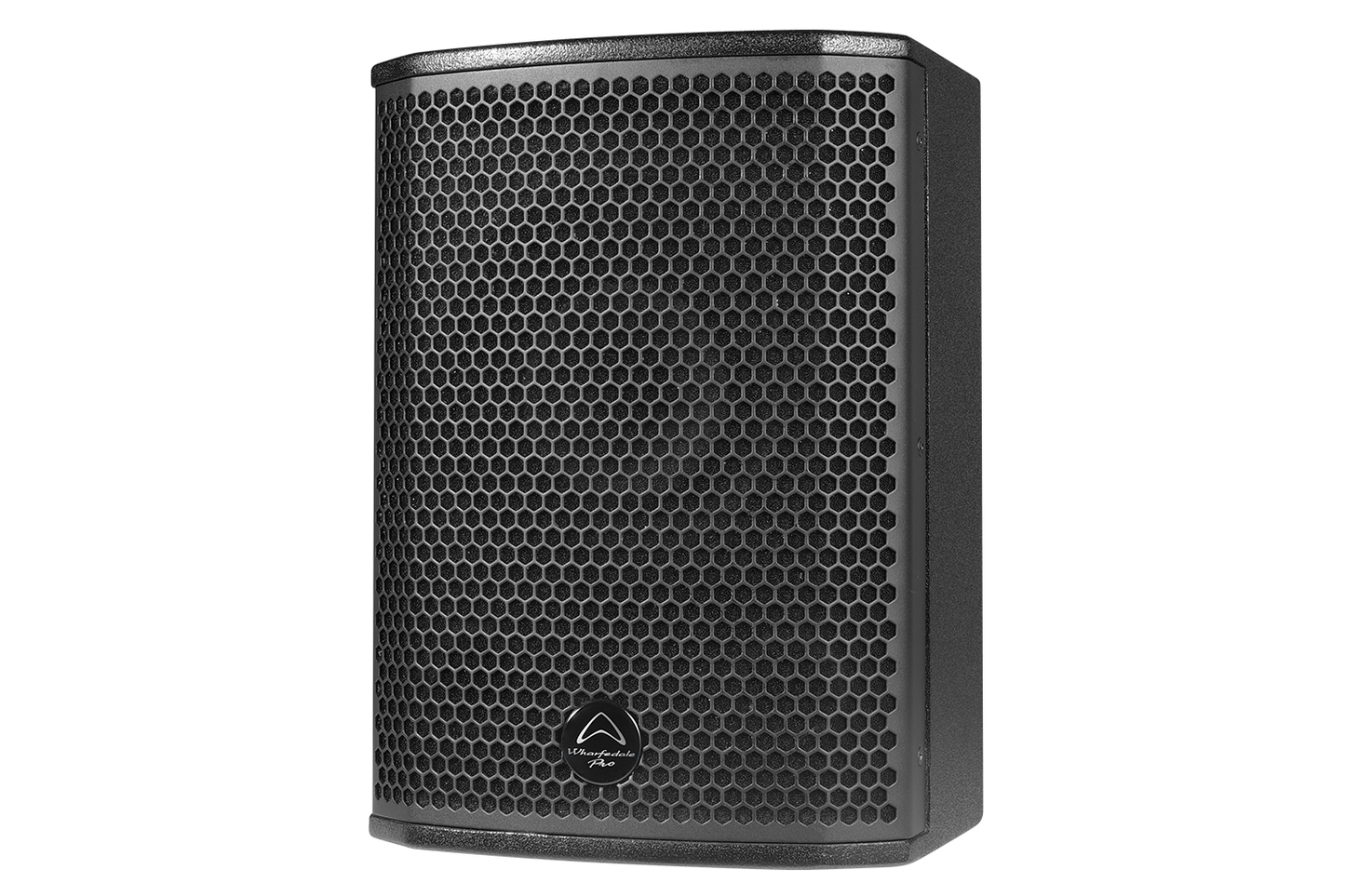

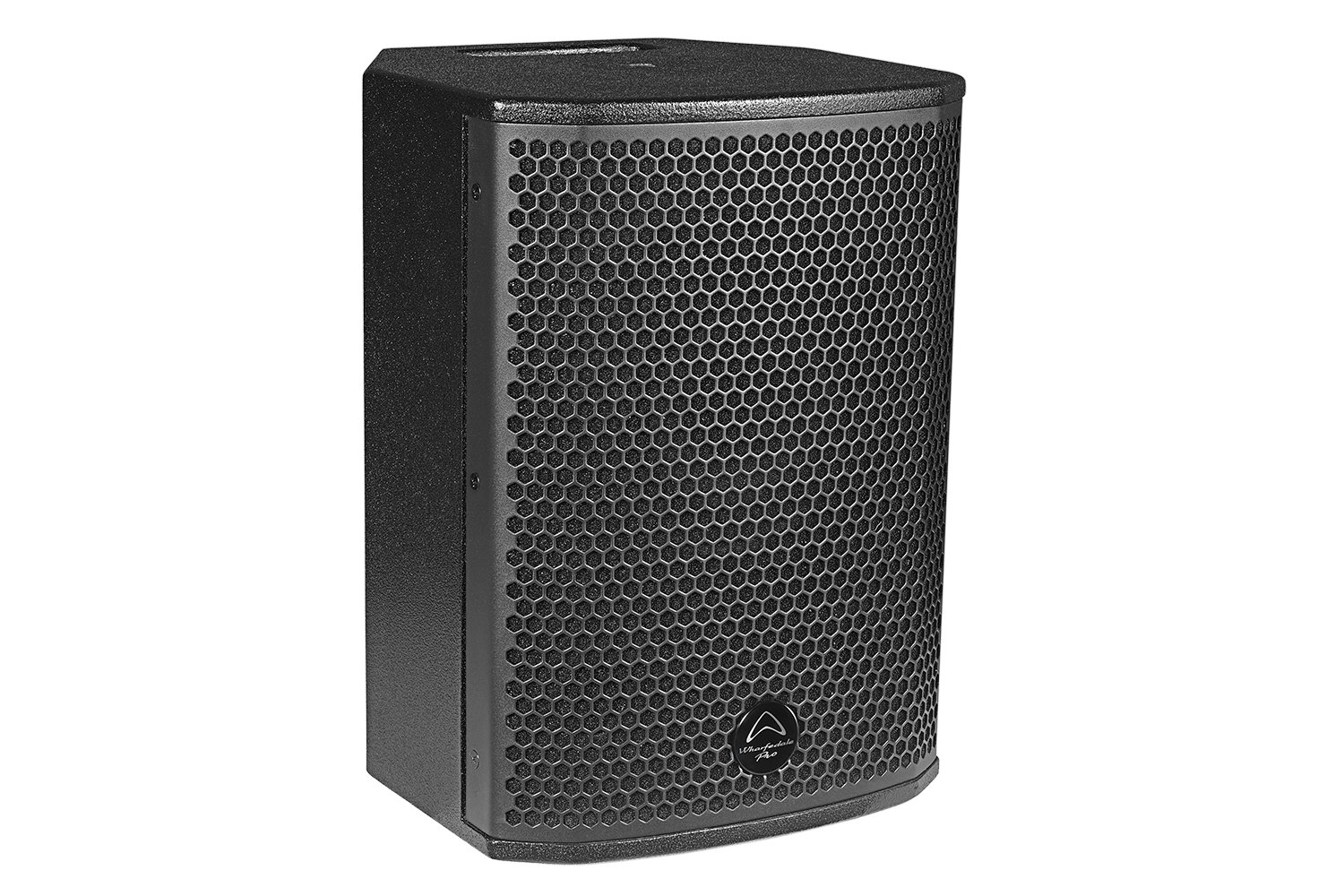

Wharfedale Pro GPL-8 Installation Speaker

Wharfedale Pro GPL-8 Installation Speaker

Regular price $759.00
Regular price Sale price $759.00
Sale Contact Us for Availability

GPL SERIES - GENERAL PURPOSE LOUDSPEAKERS

  • Compact birch plywood construction
  • Beyma Coaxial design drivers
  • Multiple mounting options (Yoke brackets included)
  • Conical or 80° x 40° (HQ models) dispersion options
  • Band-pass or Bass Relex subwoofers
  • speakON compatible and barrier strip connections
  • FIR Preset libraries and EASE .gll files available for download

GPL-8

  • 70° conical coverage
  • 350 W AES (Continuous)
  • 700 W Programme
  • 1400 W Peak
  • 2.5” LF Voice coil
  • 128 dB Max SPL @ 1 m
  • 70 V / 100 V ’T’ model also available

BIRCH PLYWOOD

All GPL models use premium Baltic birch plywood construction.

Not only does this create a solid and durable cabinet, but it also contributes to the overall sound and character.

GPL is also covered in our most durable and hard wearing Rhino Rock paint finish. This ensures that a GPL loudspeaker will always look as good as the day you installed it.

INSTALLATION HARDWARE

Installations can be complicated enough, so Wharfedale Pro have made GPL series as easy as possible.

GPL-5 and GPL-8 are quickly fixed to a wall using the WPB-3 wall bracket or the included steel yoke.  GPL-12, GPL-12HQ, GPL-15 and GPL-15HQ are quickly fixed to a wall using the WPB-1 wall bracket or the included steel yoke.


These models are also compatible with Powerdrive Series 100 or Omnimount Series 60 installation brackets.

SUPPORT WITH EASE

All full range models in the GPL series are supported with EASE FOCUS 3 .gll files.



Model Name

GPL-8 / 8T

System Type

8″ coaxial passive

Configuration

two-way

Frequency Response (+/-3 dB)


(DP-N preset)

65 Hz – 20 KHz

Frequency Range (- 10 dB)


(DP-N preset)

53 Hz – 25 KHz

Sensitivity 2.83 V/1 m

97

Sensitivity 2.83 V/1 m half space

/

Calculated Maximum SPL @1 m

128 dB

System Peak SPL*

134 dB

*level at 1 m using pink noise with crest factor 4, with dedicated preset.


System Rated Impedance

8 Ω

Low Frequency Transducer


Size

211.5 mm / 8”

Voice coil size

63.5 mm / 2.5″

LF Frame Material

Aluminium

High Frequency Transducer


HF Driver Type

Compression Driver

Coil Size (mm / inches)

44.4 mm / 1.75″

Exit Size (mm / inches)

25.4 / 1″

Diaphragm Material

PM4

Waveguide Type

Spherical

Nominal Coverage (H x V)

70° conical

Special Features

Shorting cap for extended response

Waterproof LF cone

Waterproof LF cone

FEA optimized, Shared High performing Ferrite magnet system design

FEA optimized, Shared High performing Ferrite magnet system design

Driver brand

Beyma

POWER


T Model


100 V : 120 / 60 / 30 W


100 V : 200 / 100 / 50 W

System Continuous Power (W)

350

System Programme Power (W)

700

System Peak Power (W)

1400

Crossover Frequency

1.6 KHz

Recommended HPF = BW18dB/oct.

48 Hz

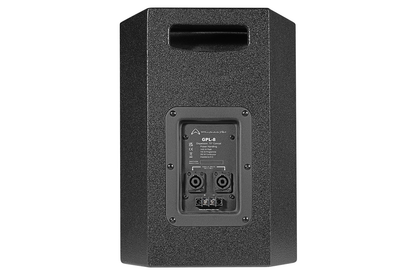

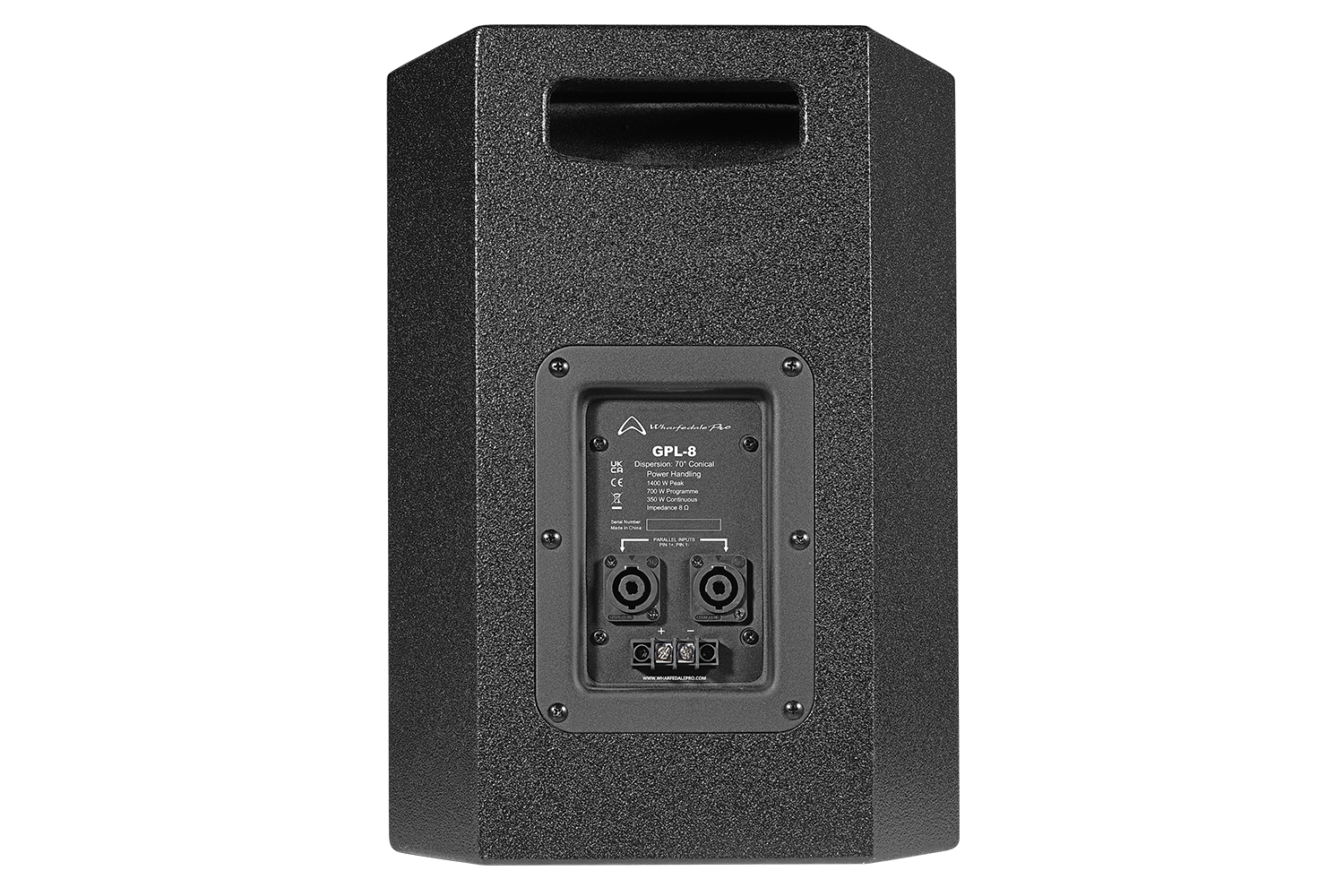

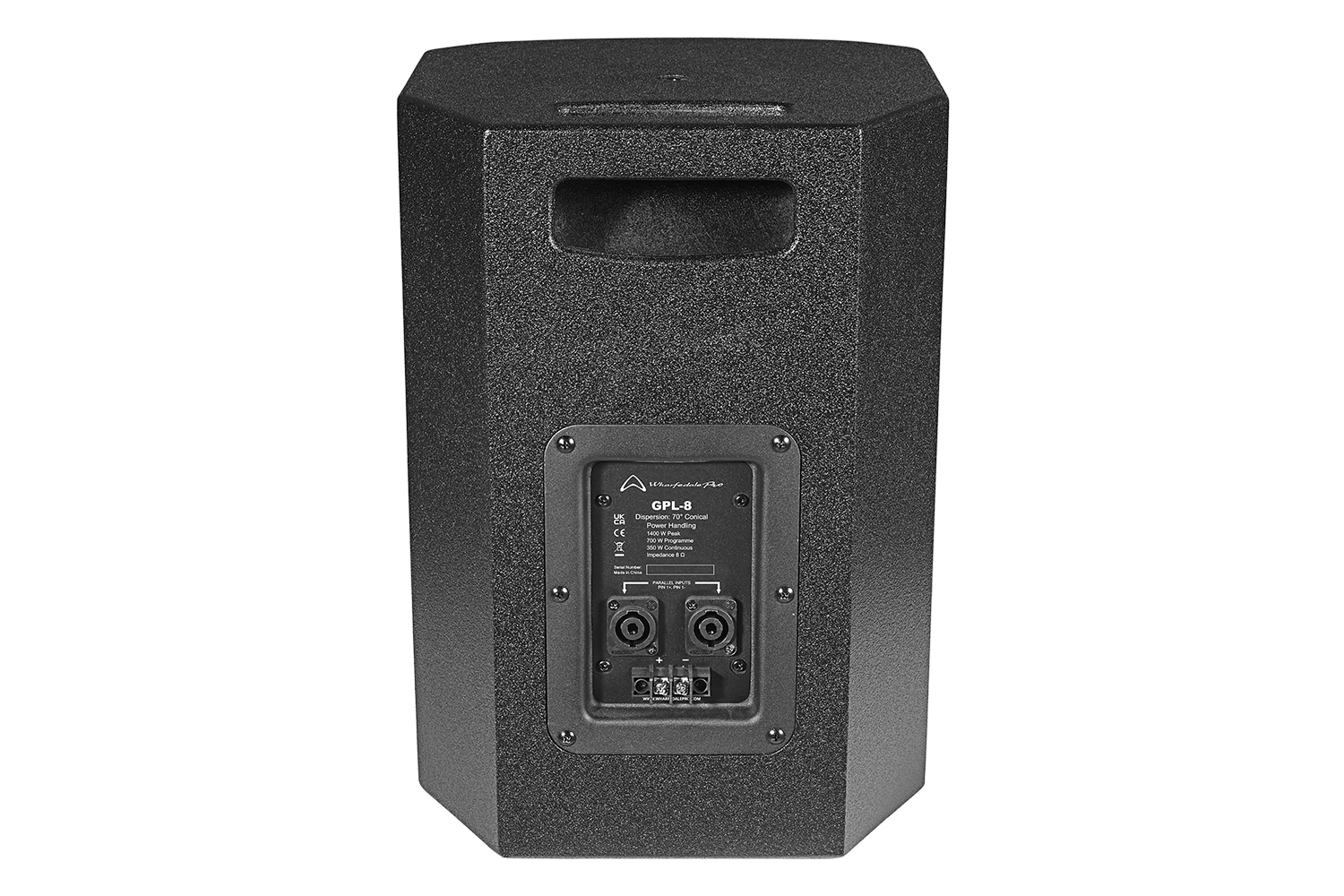

Input Connector

2 x speakON compatible / 1 x Barrier Strip

T Model barrier strip only

Rigging & Hardware:

2 x M10 threaded rigging points.

4 x M8 threaded points for WPB-3

Included Accessories

GPL-8 horizontal flying yoke

Handle

1 on back

Enclosure


Cabinet Type

Trapezoid

Enclosure Material and finish

12 mm plywood / Rhino Rock

Colour Options

Black paint, White on request

Grille Material & Finish

Powder coated steel

Dimensions – Unpacked (mm / inches):


Height

388 mm / 15.3″

Width Front

280 mm / 11.0″

Width Rear

180 mm / 7.1″.

Depth

275 mm / 10.8″

Dimensions – Packed (mm / inches):


Height

448 mm / 17.6″

Width Front

335 mm / 13.2″

Width Rear

335 mm / 13.2″

Depth

340 mm / 13.4″

Weight


Net Weight

9.78 kg / 21.52 lbs

Gross Weight

10.82 kg / 23.80 lbs
