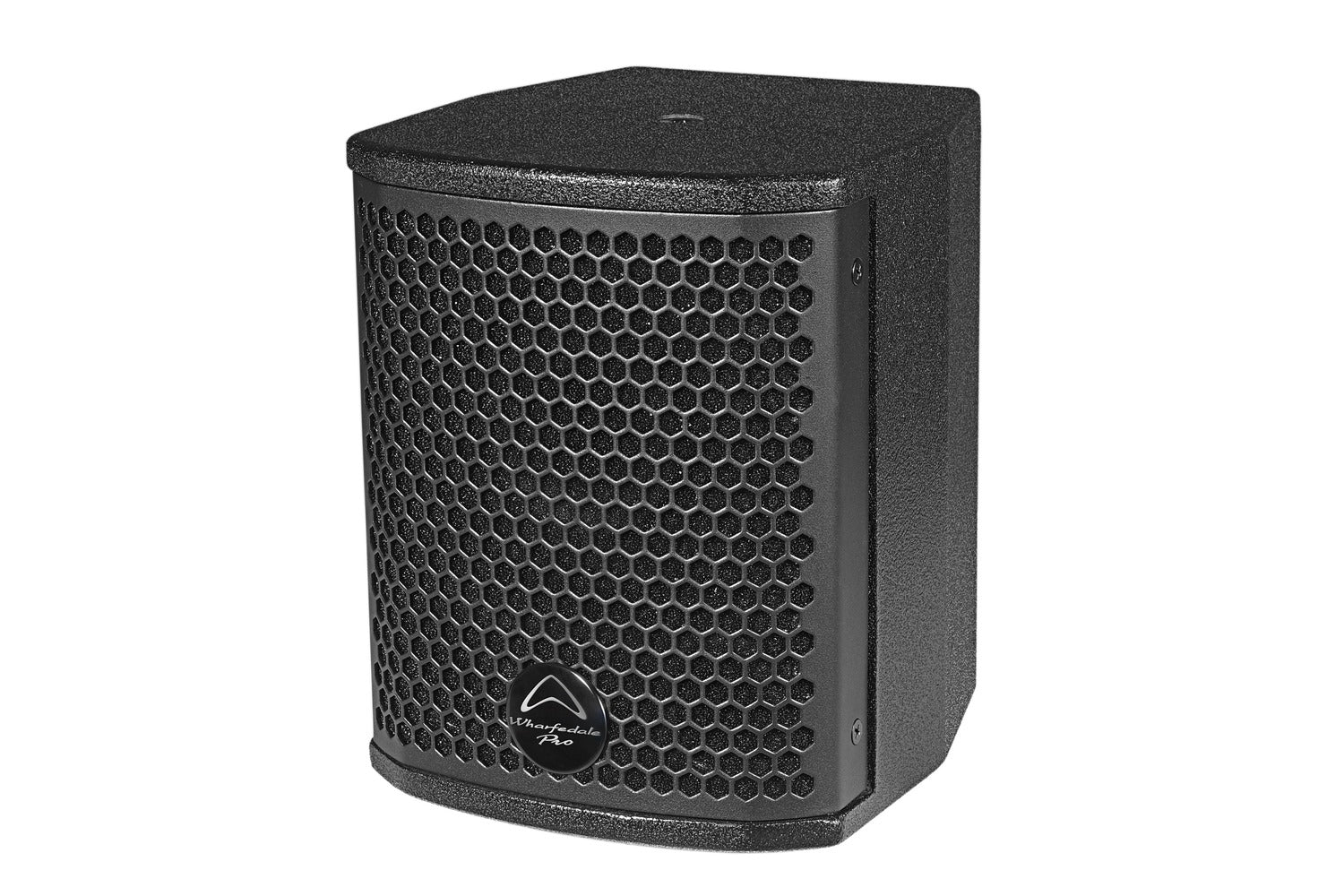

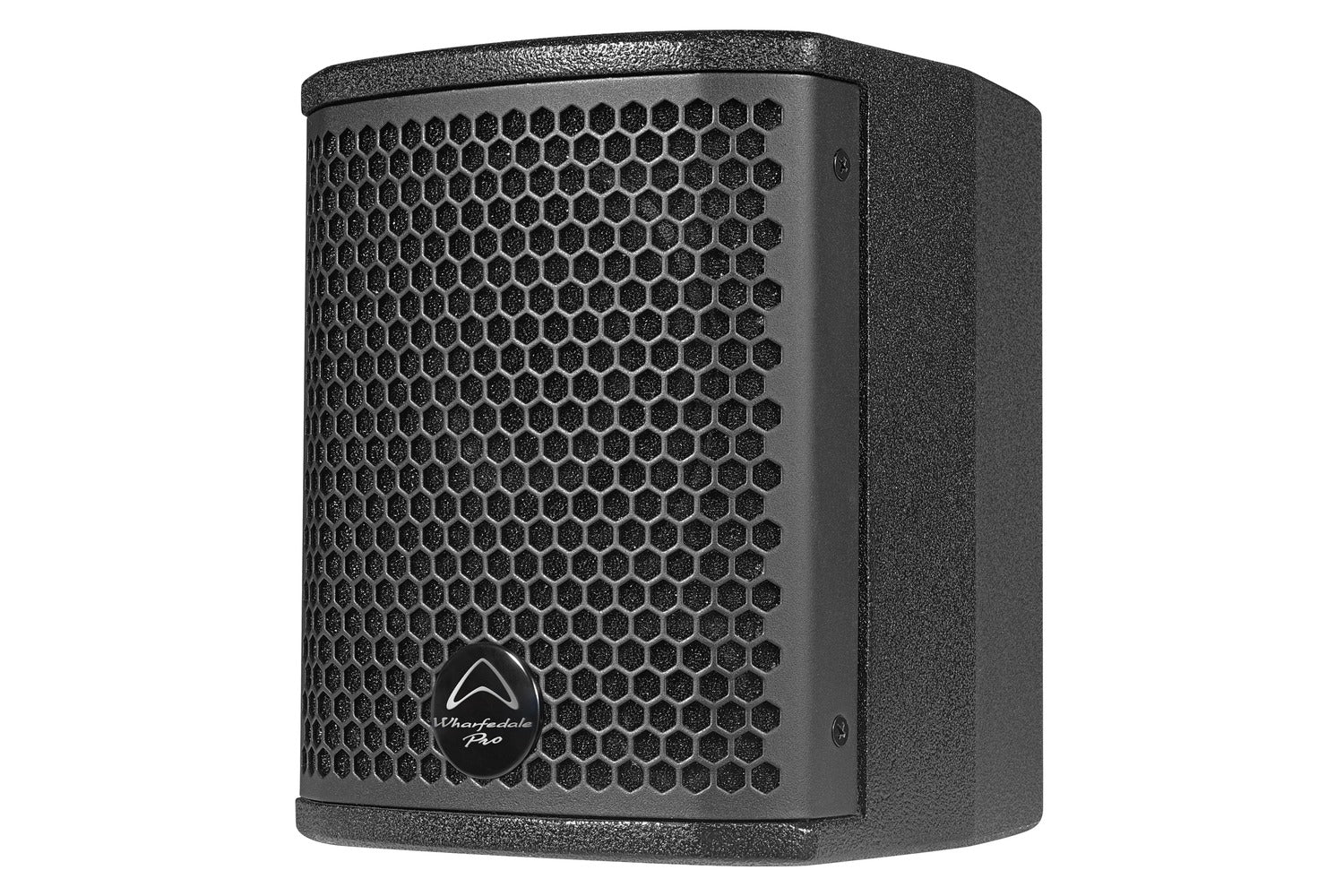

Wharfedale Pro GPL-5T Installation Speaker

Regular price

GPL SERIES

GENERAL PURPOSE LOUDSPEAKERS

  • Compact birch plywood construction
  • Beyma Coaxial design drivers
  • Multiple mounting options (Yoke brackets included)
  • Conical or 80° x 40° (HQ models) dispersion options
  • Band-pass or Bass Reflex subwoofers
  • speakON compatible and barrier strip connections
  • FIR Preset libraries and EASE .gll files available for download

    GPL-5T

    • 200 watts AES (RMS)
    • 70° conical coverage
    • 200 W AES (Continuous)
    • 400 W Programme
    • 800 W Peak
    • 1.5” LF Voice coil
    • 125 dB Max SPL @ 1 m
    • 70 V / 100 V

    BIRCH PLYWOOD

    All GPL models use premium Baltic birch plywood construction.

    Not only does this create a solid and durable cabinet, but it also contributes to the overall sound and character.

    GPL is also covered in our most durable and hard wearing Rhino Rock paint finish. This ensures that a GPL loudspeaker will always look as good as the day you installed it.

    INSTALLATION HARDWARE

    Installations can be complicated enough, so Wharfedale Pro have made GPL series as easy as possible.

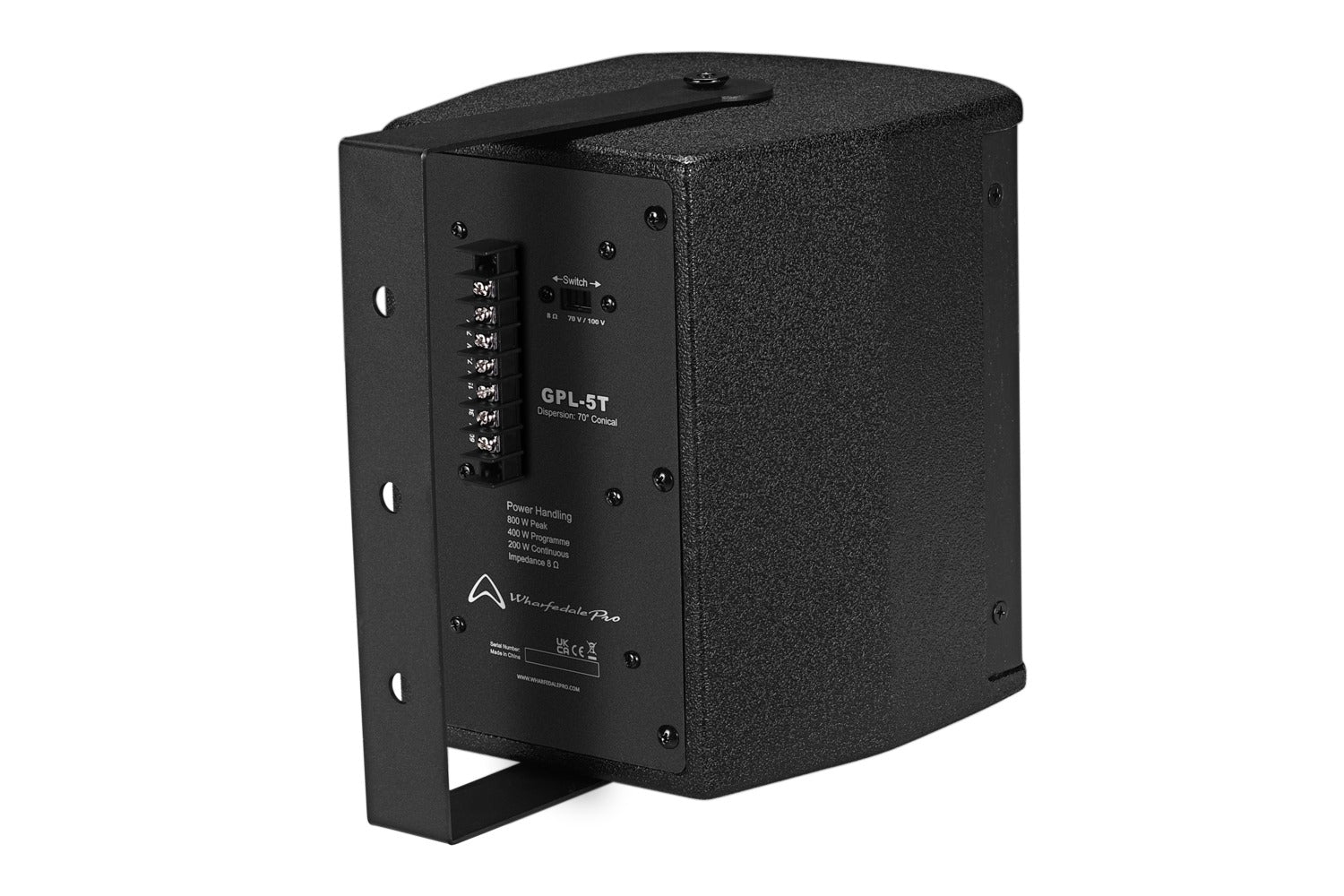

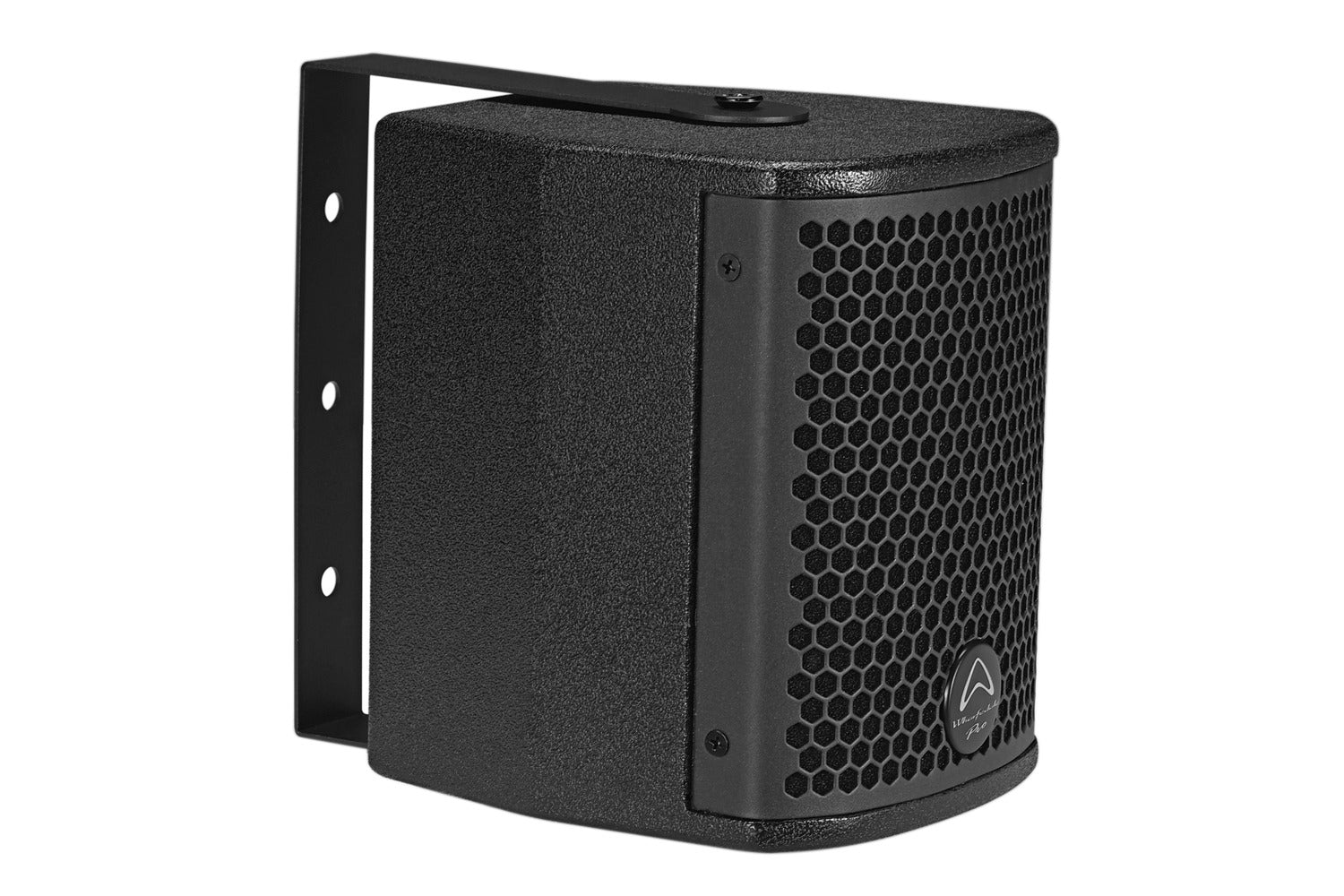

    GPL-5 and GPL-8 are quickly fixed to a wall using the WPB-3 wall bracket or the included steel yoke.  GPL-12, GPL-12HQ, GPL-15 and GPL-15HQ are quickly fixed to a wall using the WPB-1 wall bracket or the included steel yoke.


These models are also compatible with Powerdrive Series 100 or Omnimount Series 60 installation brackets.



    SYSTEM SOLUTIONS

    Building a system ?  How about this one for inspiration?

    GPL is engineered for any scale of system.  Live or install, there is a GPL solution.

    The system in the diagram uses our Wharfedale Pro DP series amplifiers with downloadable presets for DP-N and DP-F models.



    SPECIFICATIONS

    Model Name GPL-5 / 5T
    System Type 5″ coaxial passive
    Configuration two-way
    Frequency Response (+/-3 dB)
    (DP-N preset)
    80 Hz – 20 KHz
    Frequency Range (- 10 dB)
    (DP-N preset)
    68 Hz – 25 KHz
    Sensitivity 2.83 V/1 m 96 dB
    Sensitivity 2.83 V/1 m half space /
    Calculated Maximum SPL @1 m 125 dB
    System Peak SPL* 131 dB
    *level at 1 m using pink noise with crest factor 4, with dedicated preset.
    System Rated Impedance 8 Ω
    Low Frequency Transducer
    Size 155 mm / 5"
    Voice coil size 38.1 mm / 1.5"
    LF Frame Material Aluminium
    High Frequency Transducer
    HF Driver Type Compression Driver
    Coil Size (mm / inches) 38.1 mm / 1.5″
    Exit Size (mm / inches) 25.4 / 1″
    Diaphragm Material PM4
    Waveguide Type Spherical
    Nominal Coverage (H x V) 70° conical
    Special Features Shorting cap for extended response
    Waterproof LF cone
    Driver brand Beyma
    POWER
    T Model 70 V : 120 / 60 / 30 / 15 W
    100 V : 120 / 60 / 30 W
    System Continuous Power (W) 200
    System Programme Power (W) 400
    System Peak Power (W) 800
    Crossover Frequency 2.5 KHz
    Recommended HPF = BW18dB/oct. 63 Hz

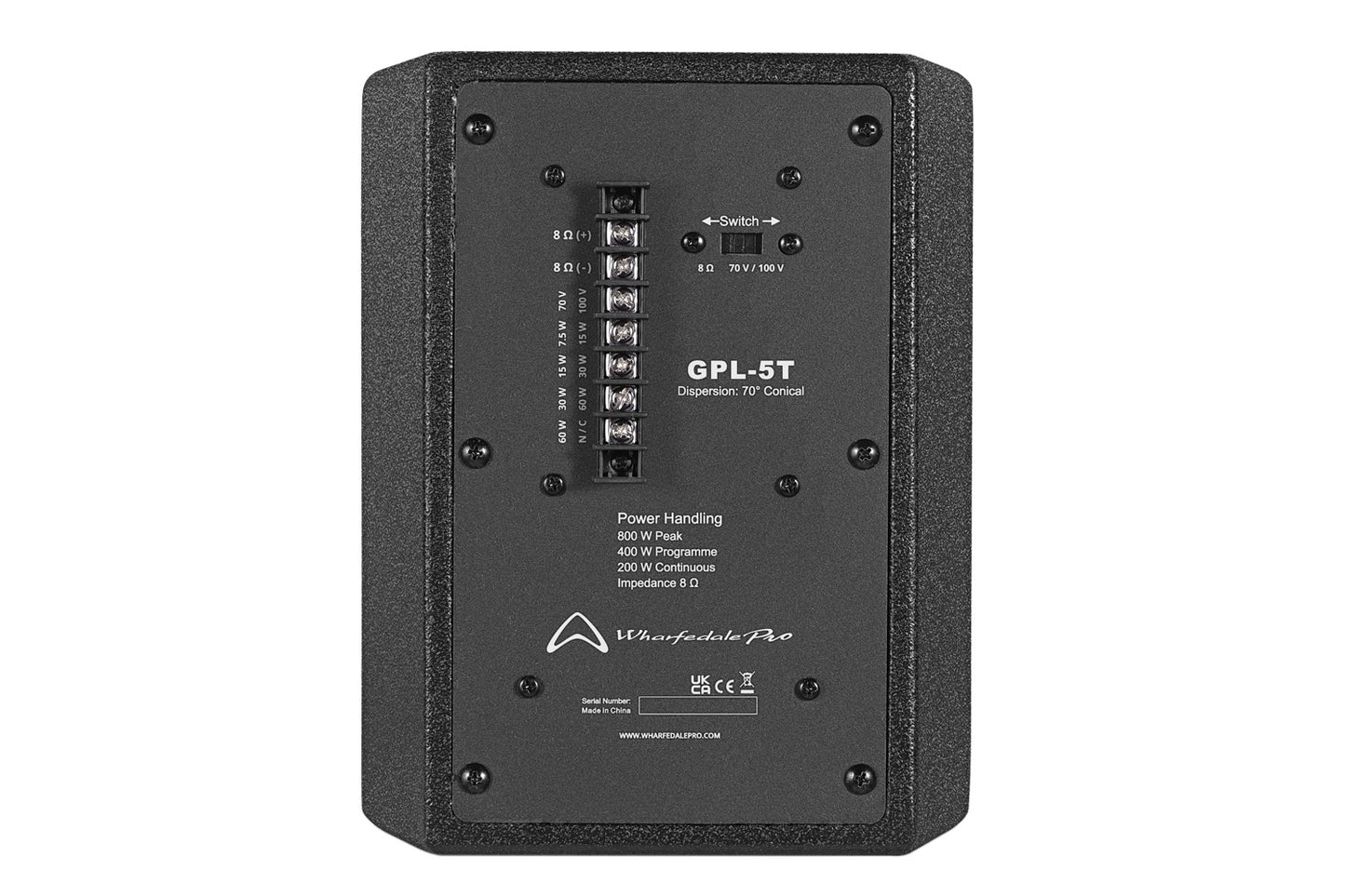

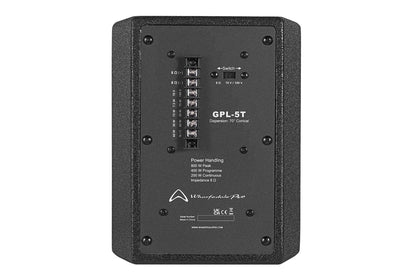

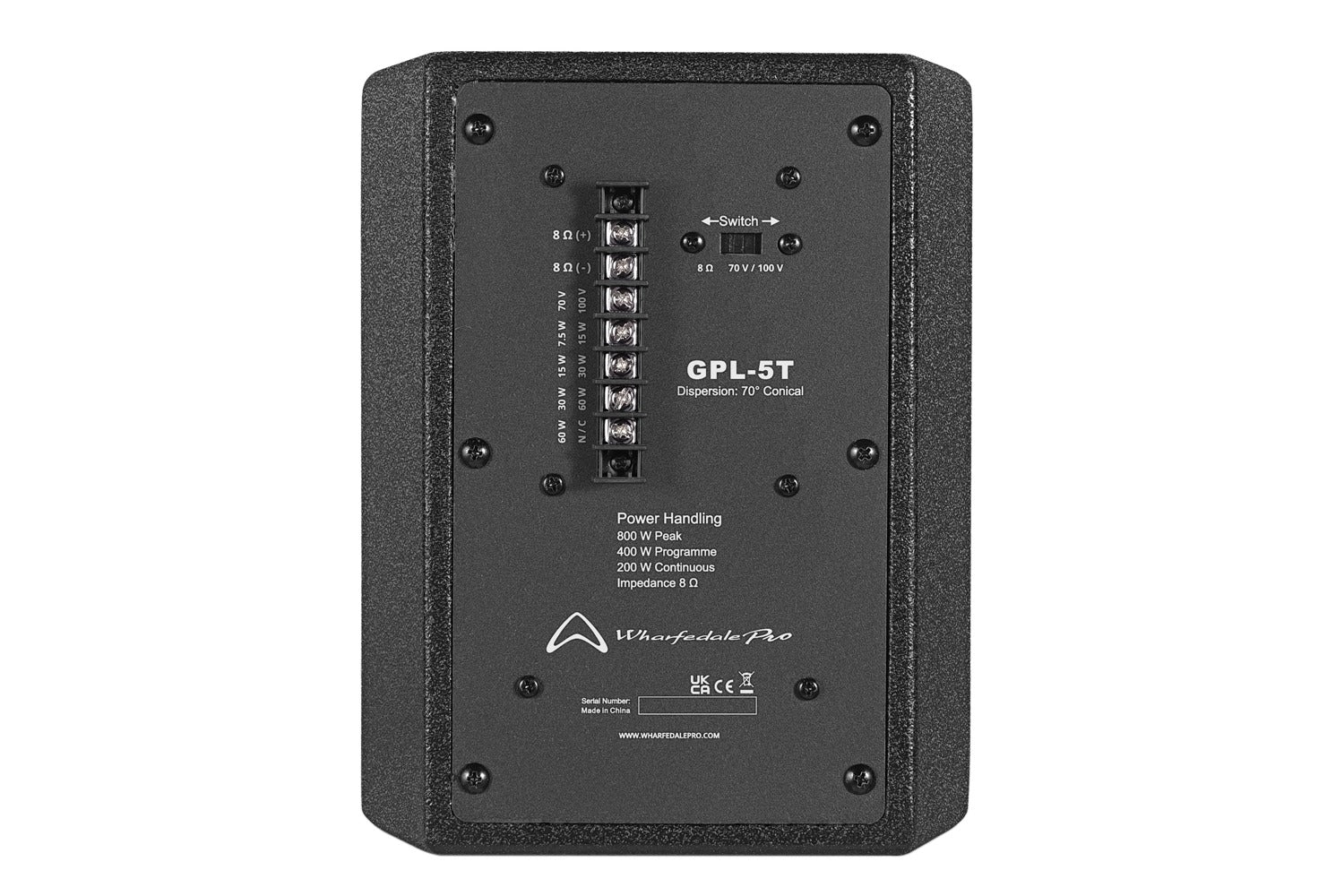

    Input Connector 2 x speakON compatible / 1 x Barrier Strip
    T Model barrier strip only
    Rigging & Hardware: 2 x M10 threaded rigging points.
    4 x M8 threaded points for WPB-3

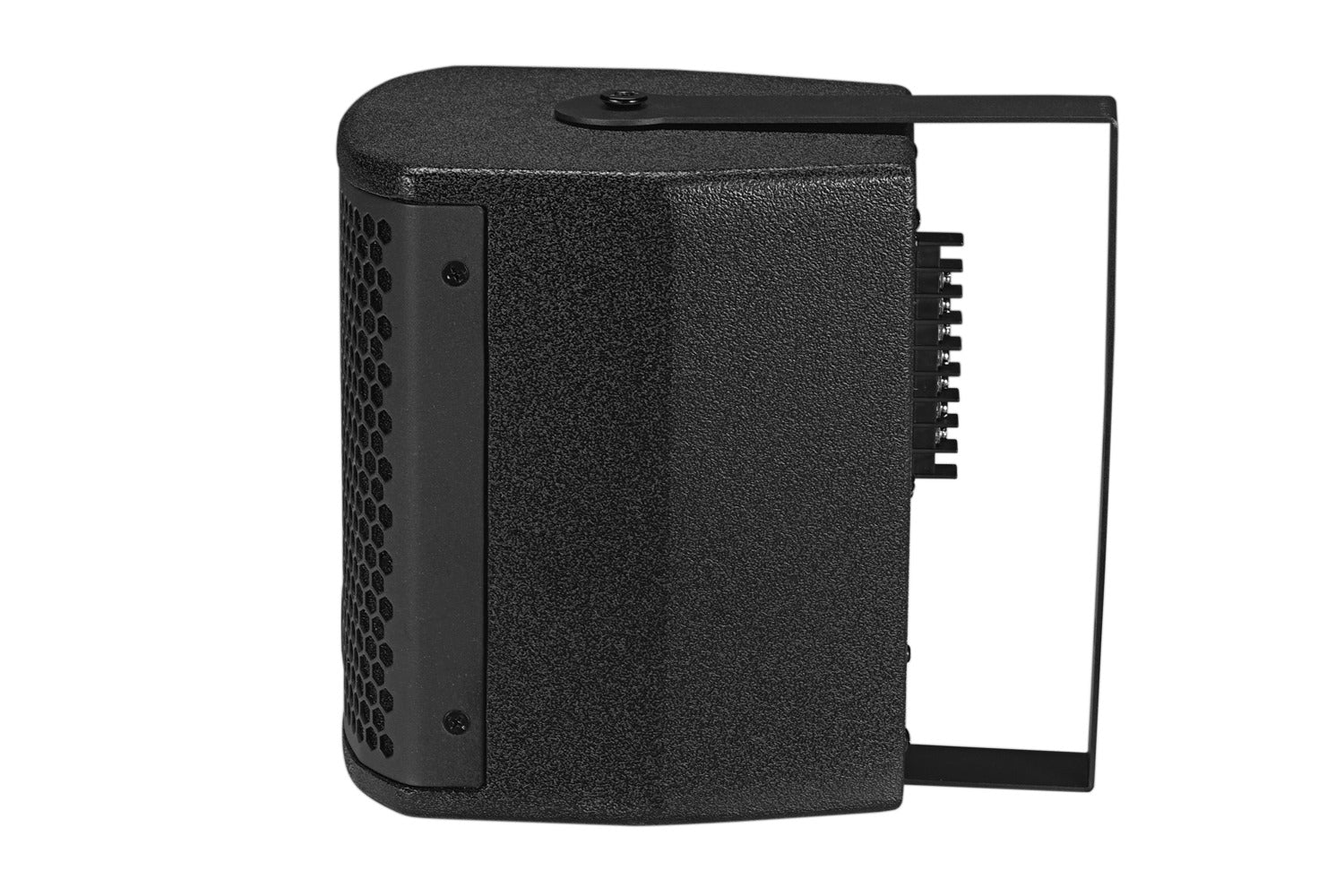

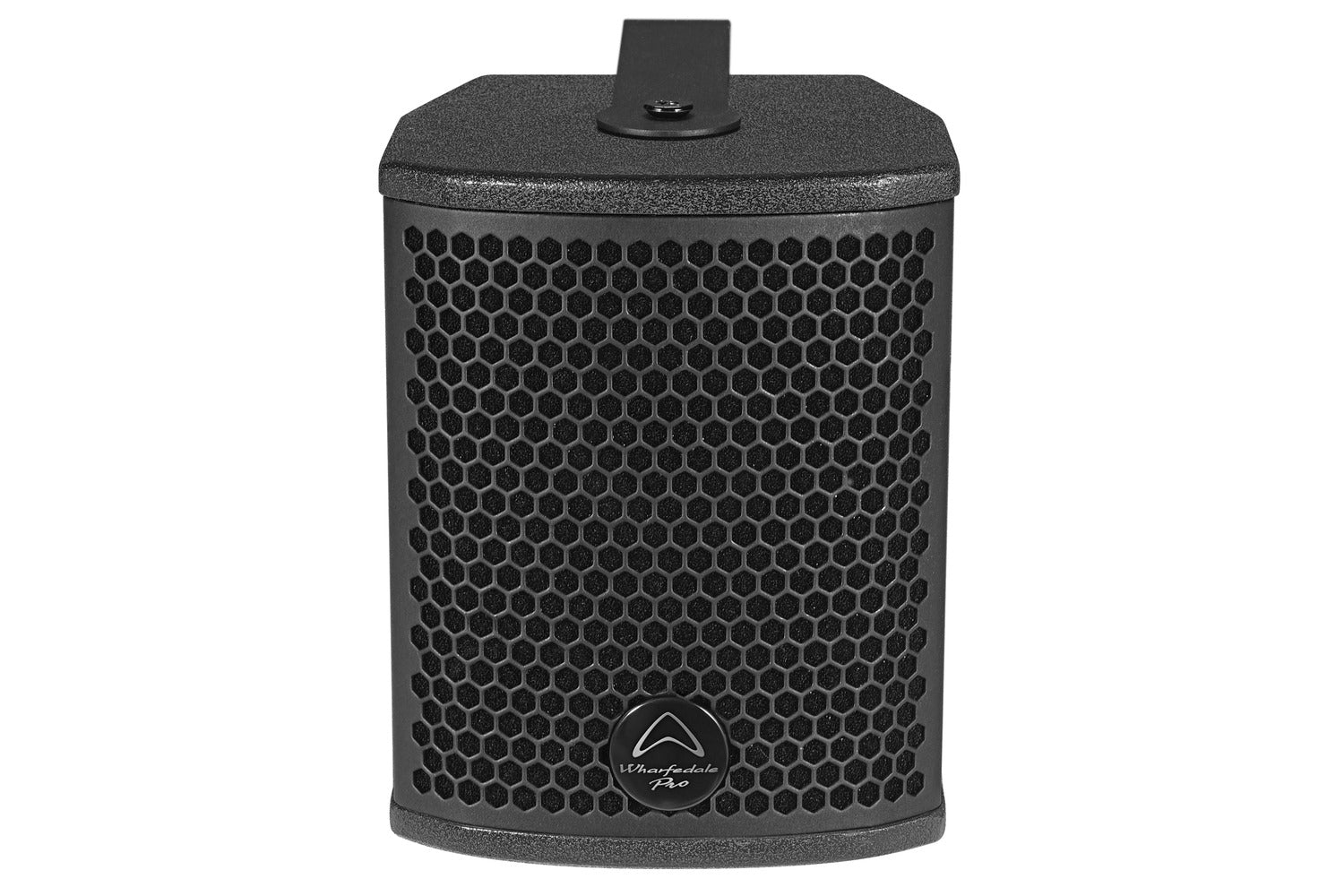

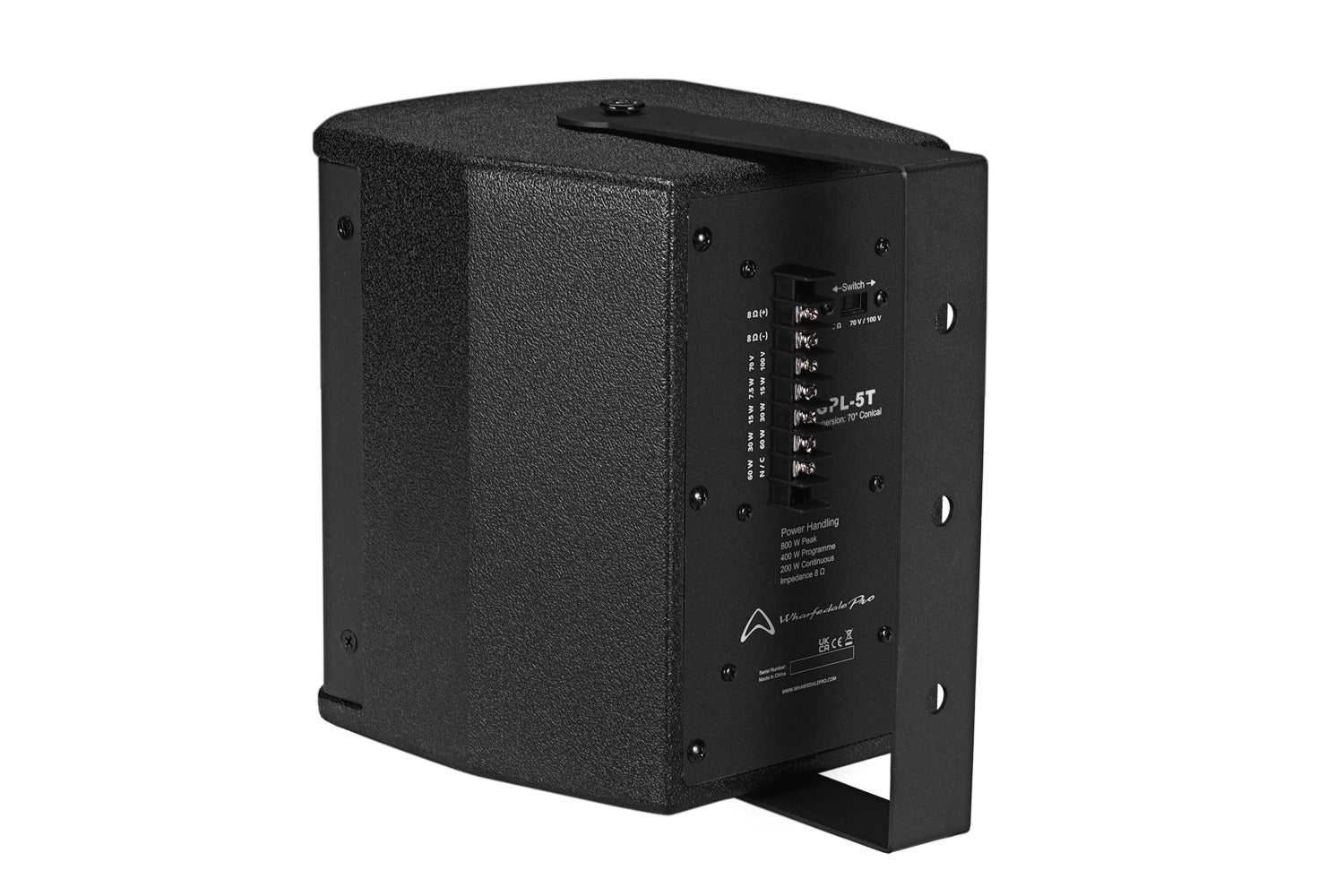

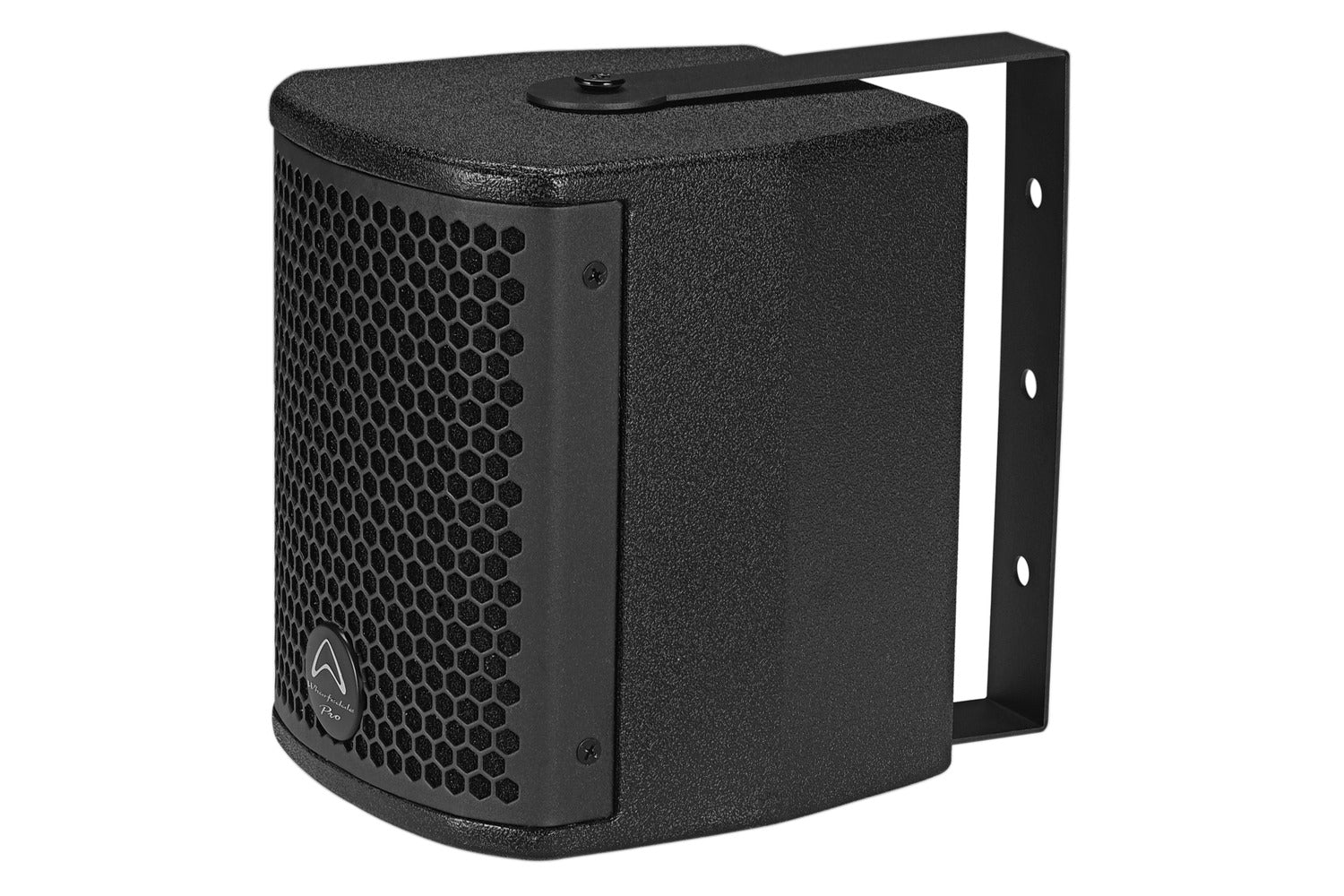

    Included Accessories GPL-5 horizontal flying yoke
    Handle NO
    Enclosure
    Cabinet Type Trapezoid
    Enclosure Material and finish 12 mm plywood
    / Rhino Rock
    Colour Options Black paint, White on request
    Grille Material & Finish Powder coated steel
    Dimensions – Unpacked (mm / inches):
    Height 235 mm / 9.25″
    Width Front 190 mm / 7.5″
    Width Rear 145 mm / 5.7″.
    Depth 205 mm / 8.1″
    Dimensions – Packed (mm / inches):
    Height 275 mm / 10.8″
    Width Front 250 mm / 9.8″
    Width Rear 250 mm / 9.8″
    Depth 265 mm / 10.4″
    Weight
    Net Weight 5.12 kg / 11.30 lbs
    Gross Weight 5.70 kg / 12.5 lbs



    Download quick start guide
