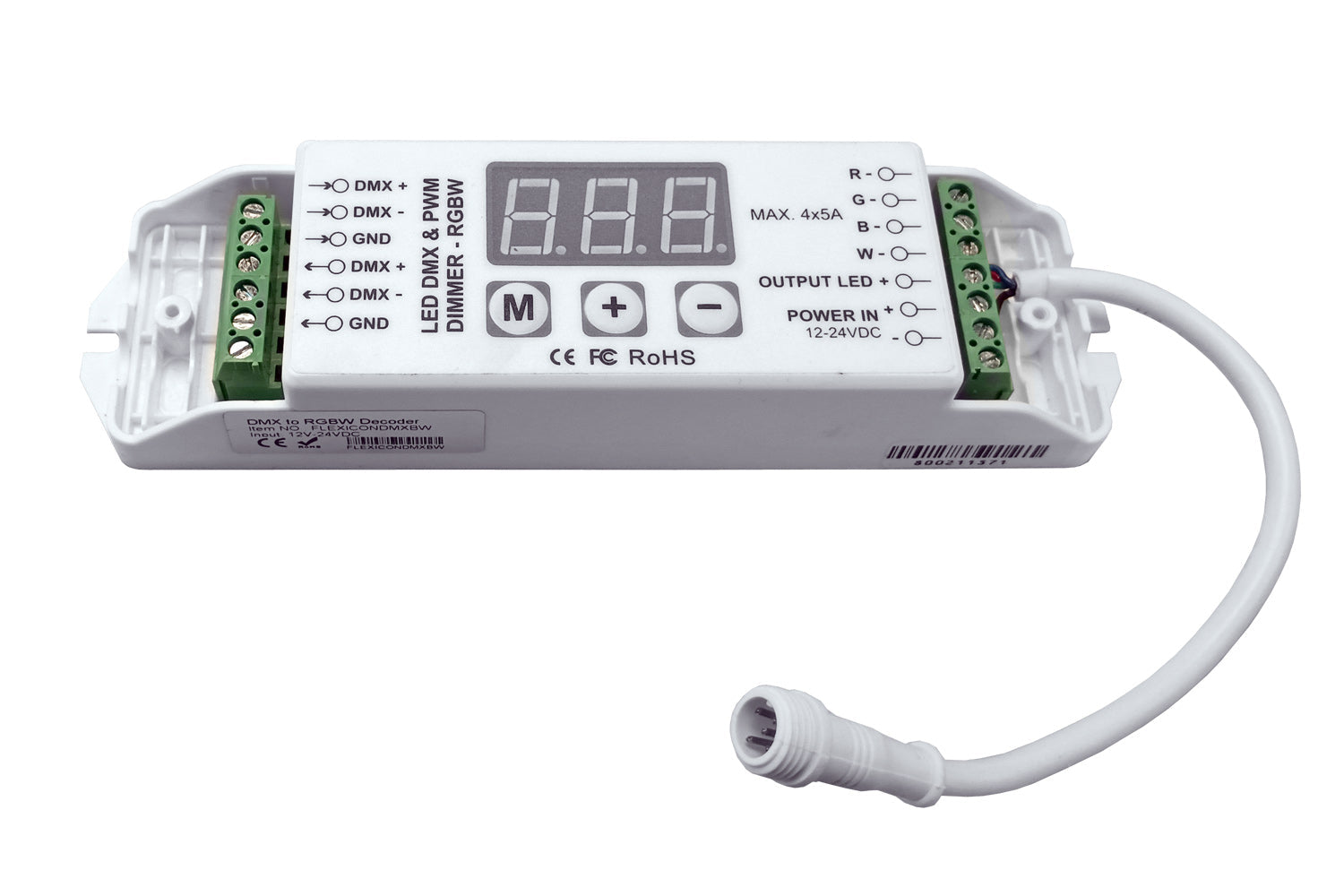

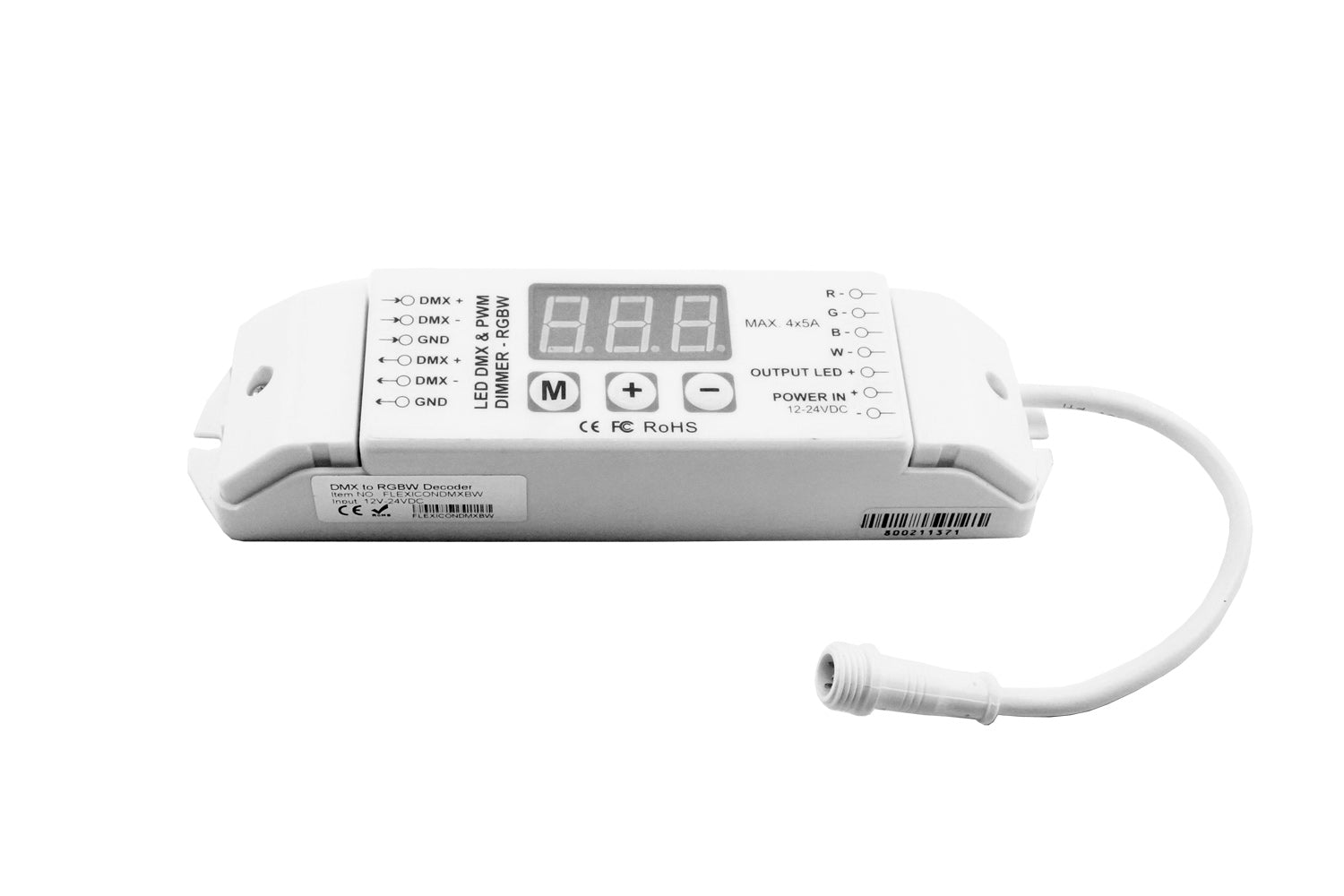

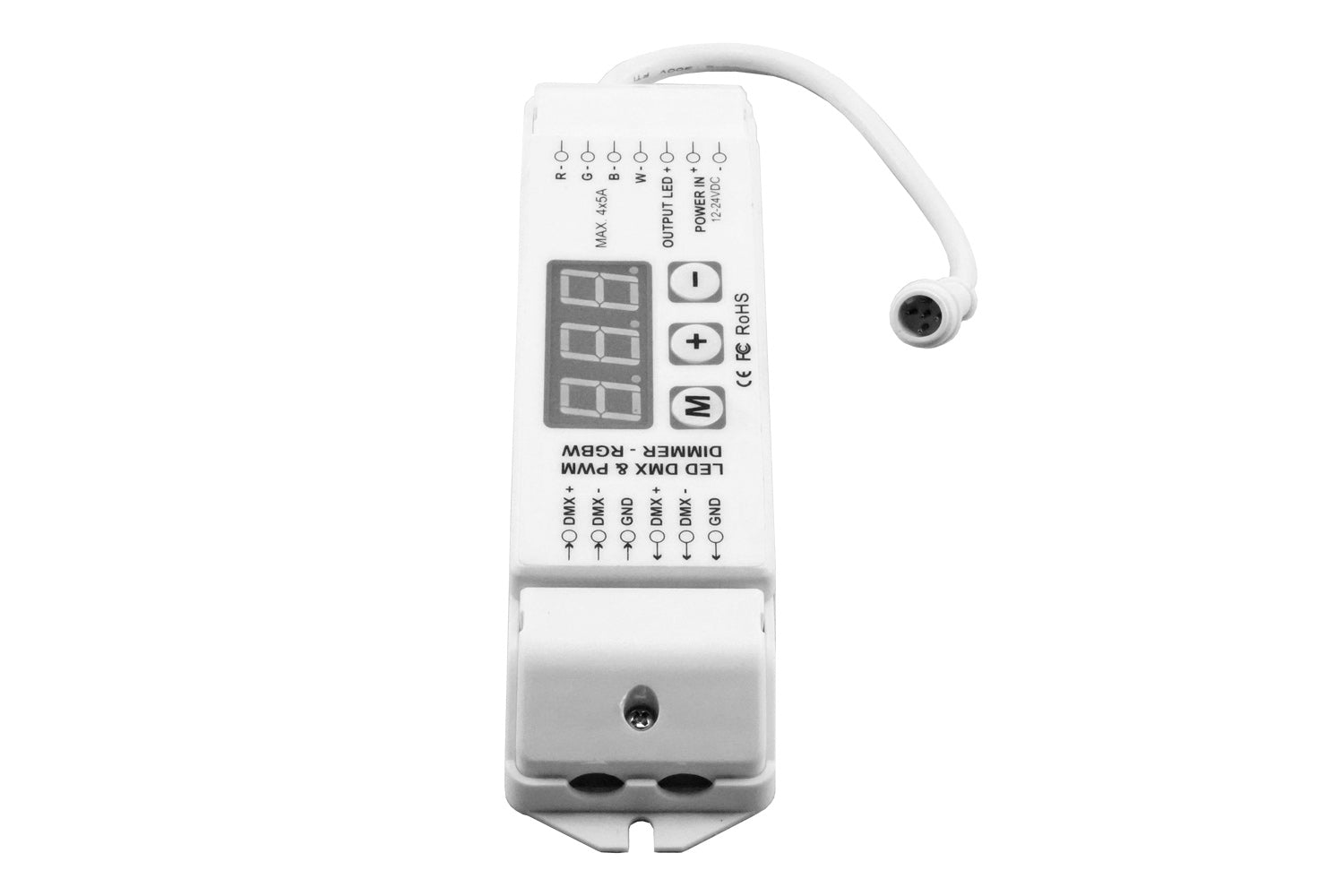

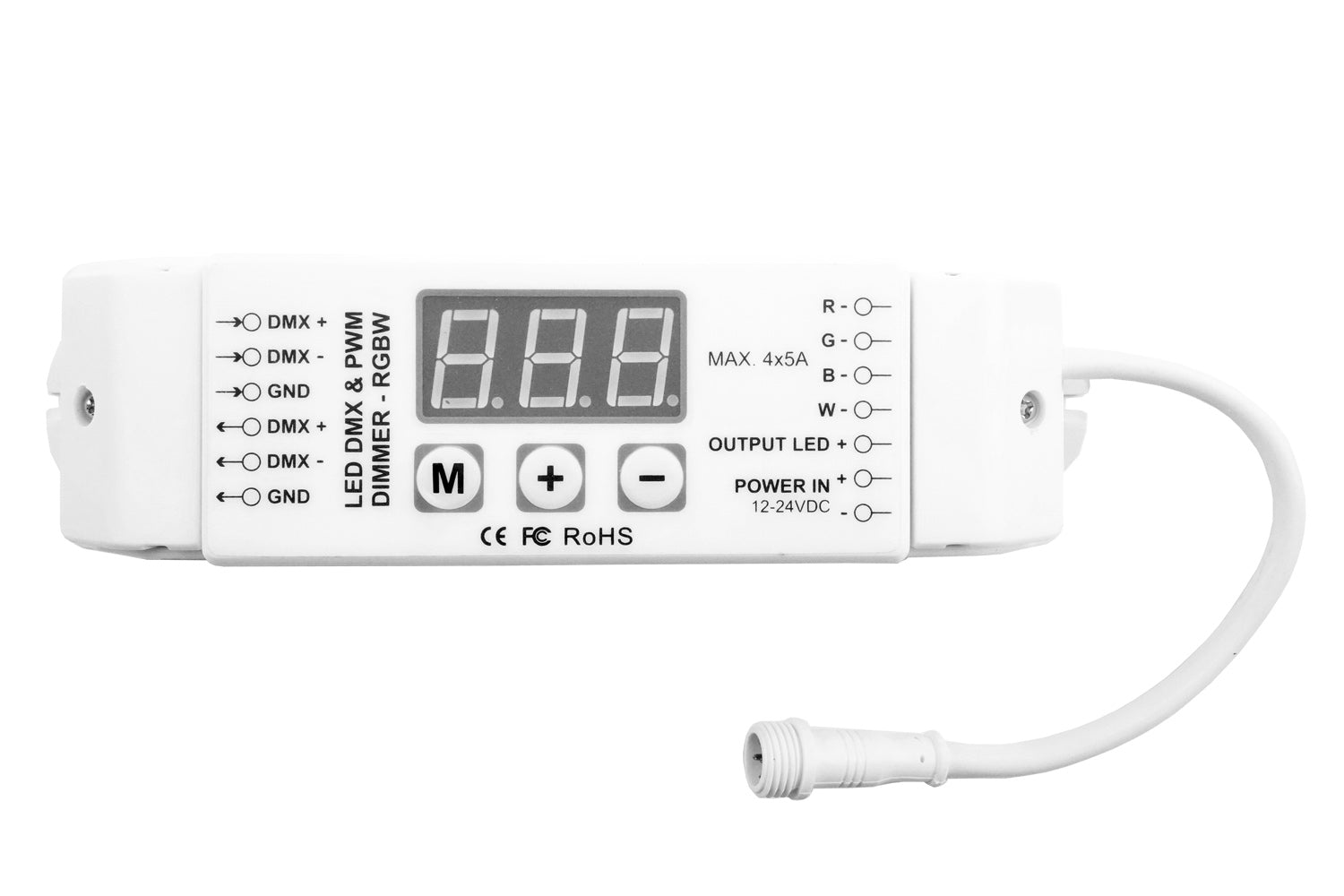

FLEXICONDMXBW - 4 Channel (RGBW) DMX Controller for LED Tape

Name: FLEXICONDMXBW - 4 Channel (RGBW) DMX Controller for LED Tape
Brand: Event Lighting
SKU: EP8165
Price: 149.0 AUD
Availability: InStock

$149.00

Sale Contact for Availability

Features:

Automatically adapt input voltage DC12V-24V
Input standard DMX512 signal, 3-digital-display shows DMX address code.
4 channels output: 4096 greyscales each: logarithmic dimming, lamplight soft and stable without strobe flash.
DMX Master mode, Slave mode available
8 colour changing modes and 10-speed scales in master mode.
Indicator of the DMX512 signal receiving status.
Wrong wiring protection at DMX port. Over-current protection and short circuit protection.
Power loss memory function.

Specifications:

Input Voltage: DC12V - DC24V
Max Load Current:
- RGB: 3Ax3CH
- W: 9Ax1CH
- RGBW: 5Ax4CH
Max Output Power:
12V -> RGB 36Wx3CH; W 108W; RGBW 240W
24V -> RGB 72Wx3CH; W 216W; RGBW 480W
Grey Scale: 4096 levels x4
Input Signal: DMX512/1990

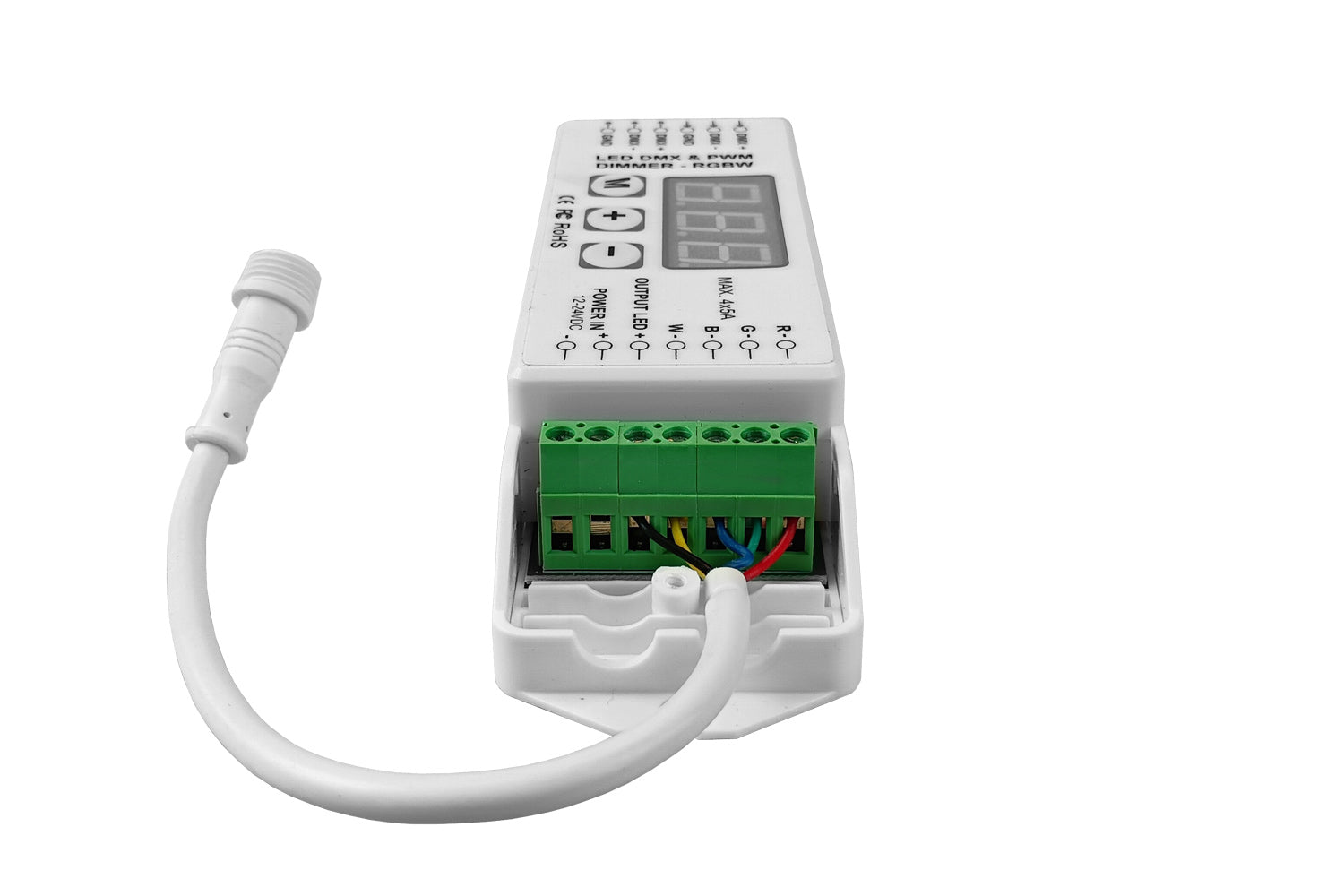

Output Signal: Constant Voltage PWM x4
Decode Channel: 4CH

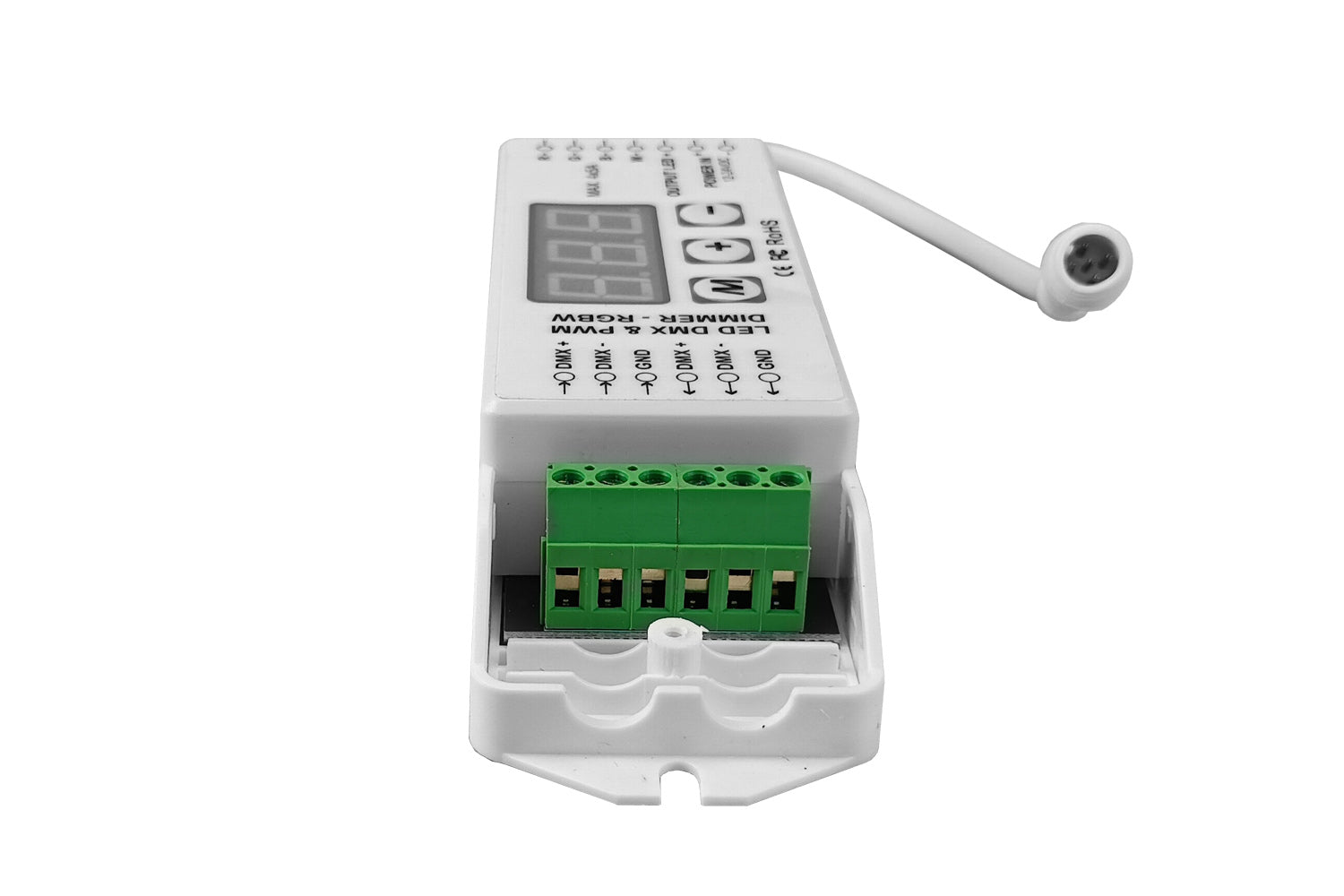

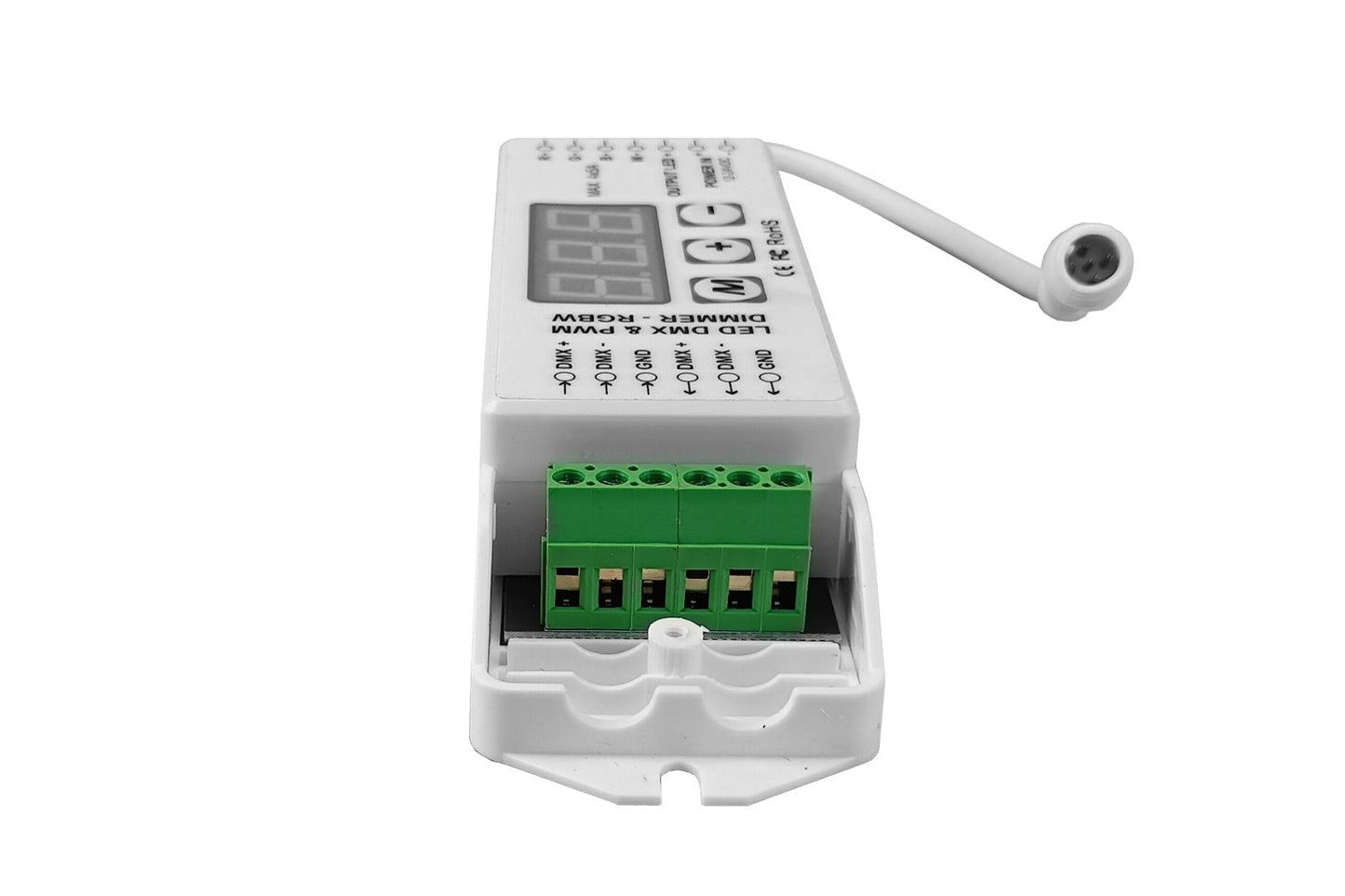

DMX512 Socket: Terminal Block

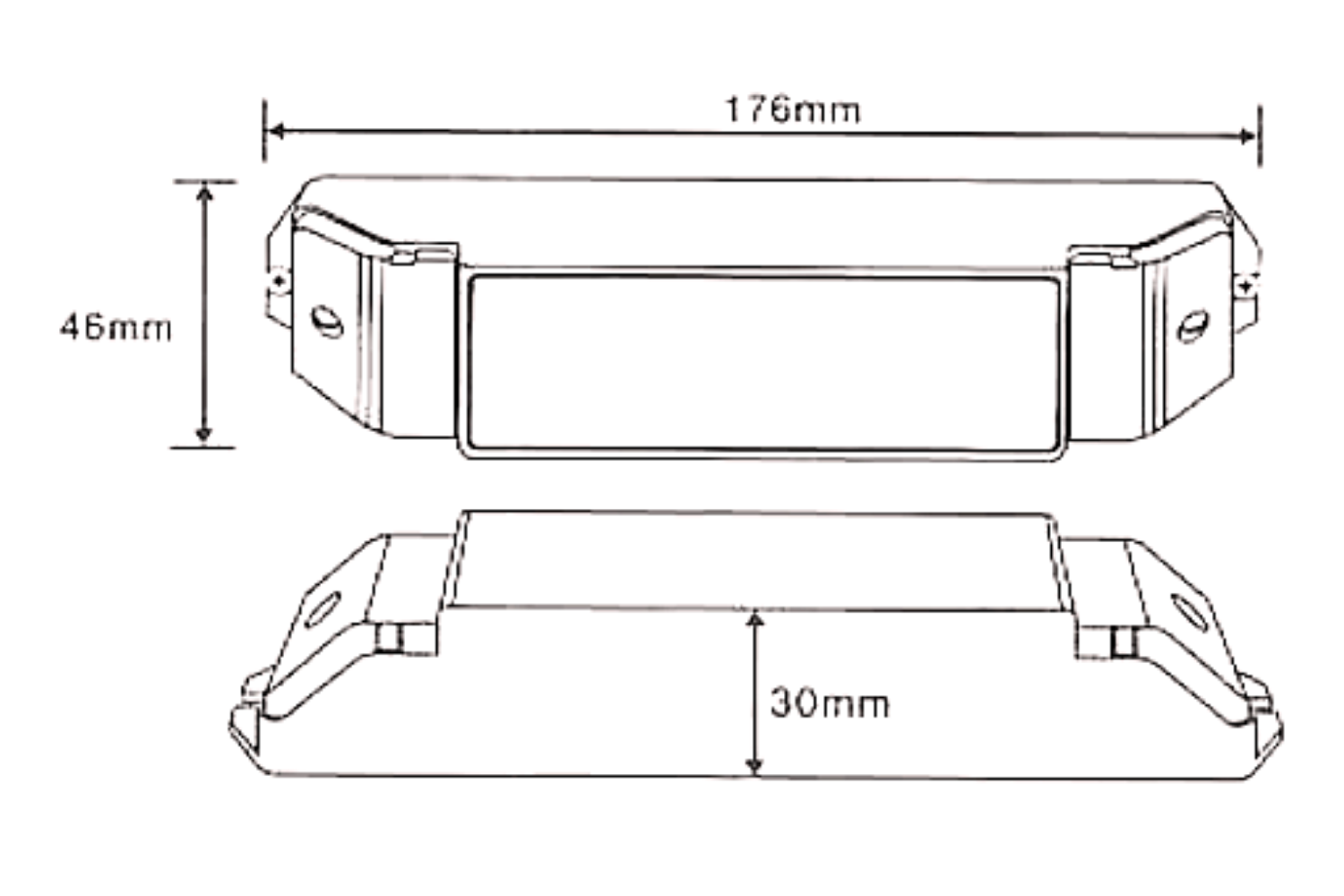

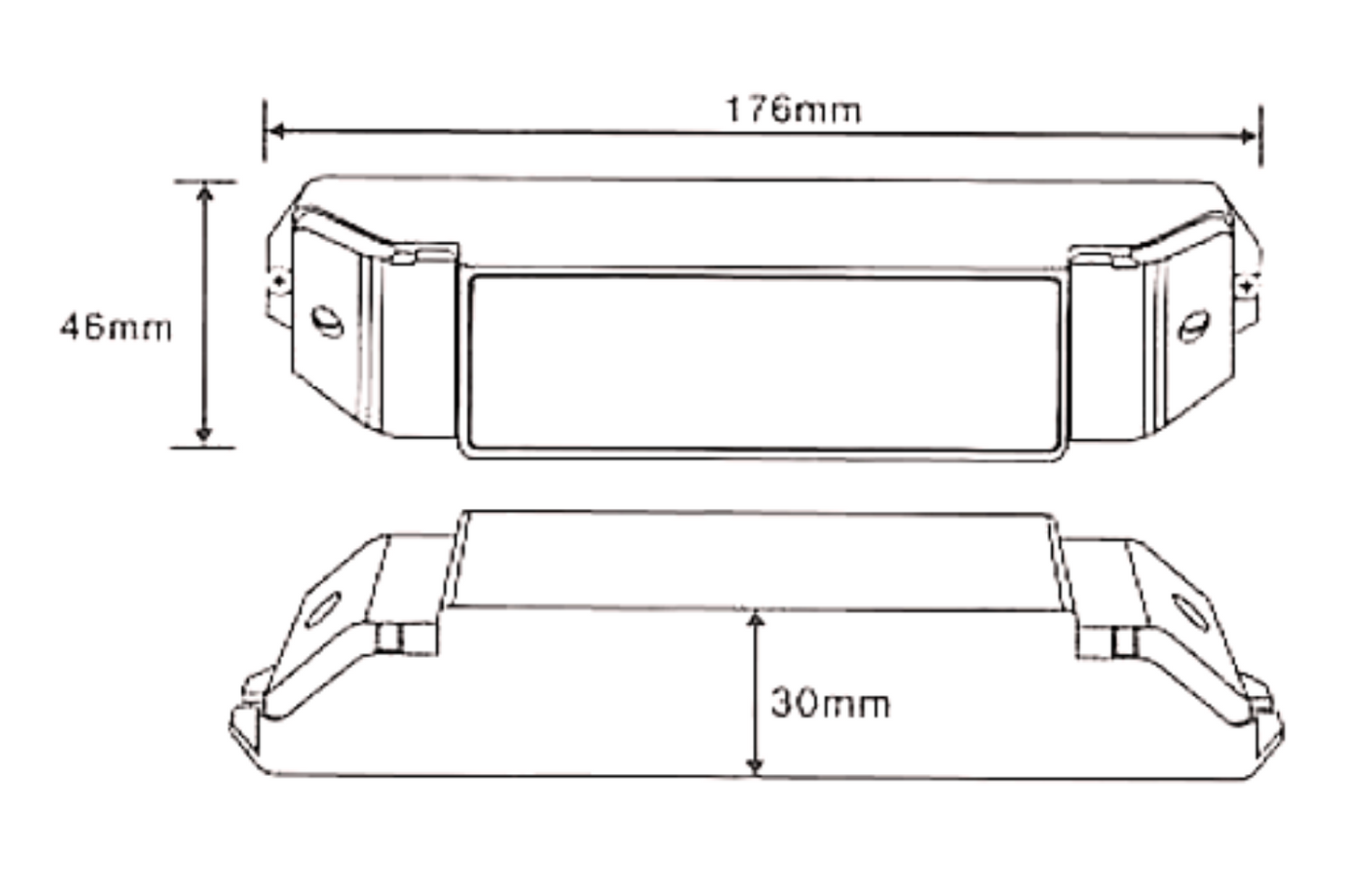

Dimension: L176 x W46 x H30mm
Weight: 175g
