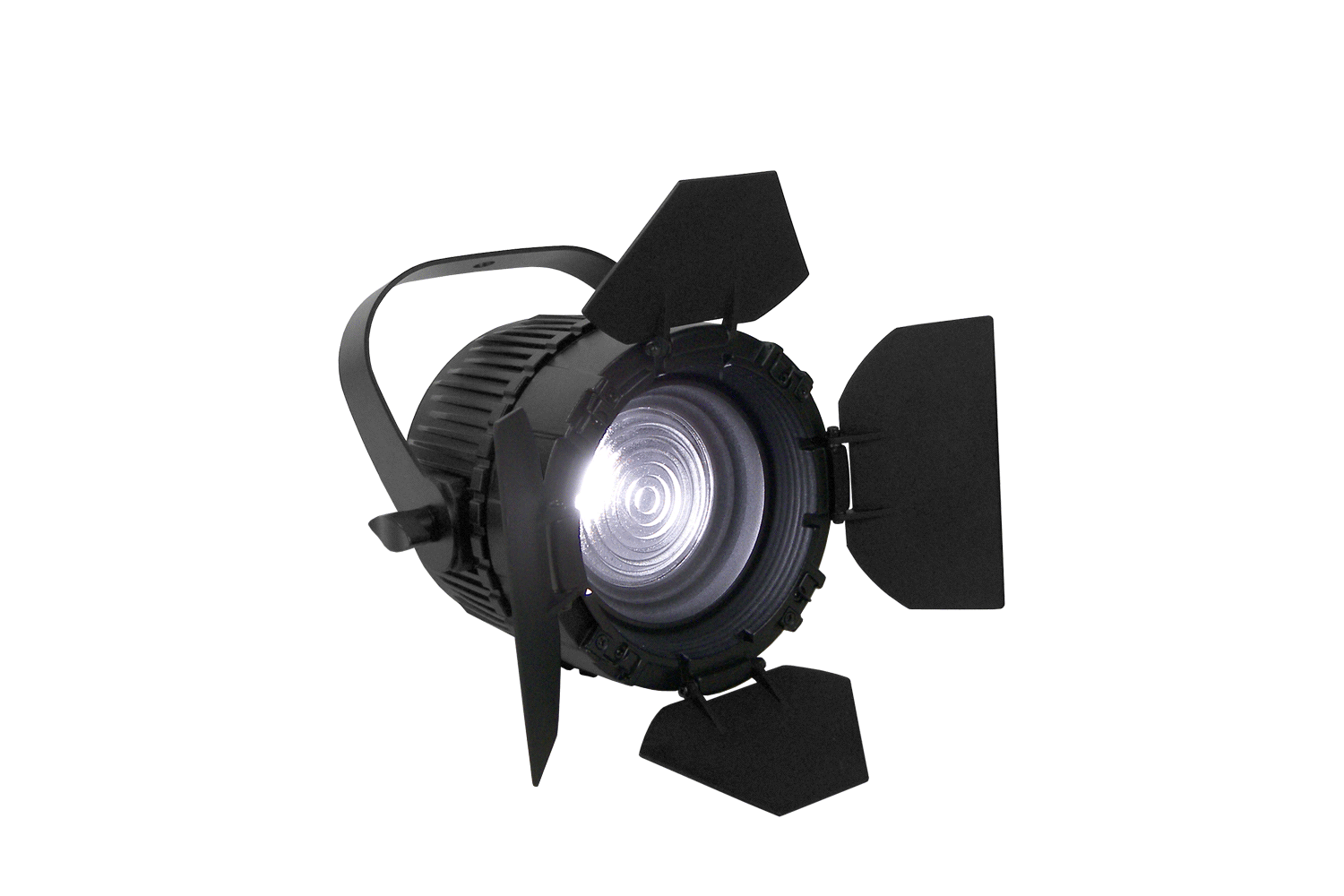

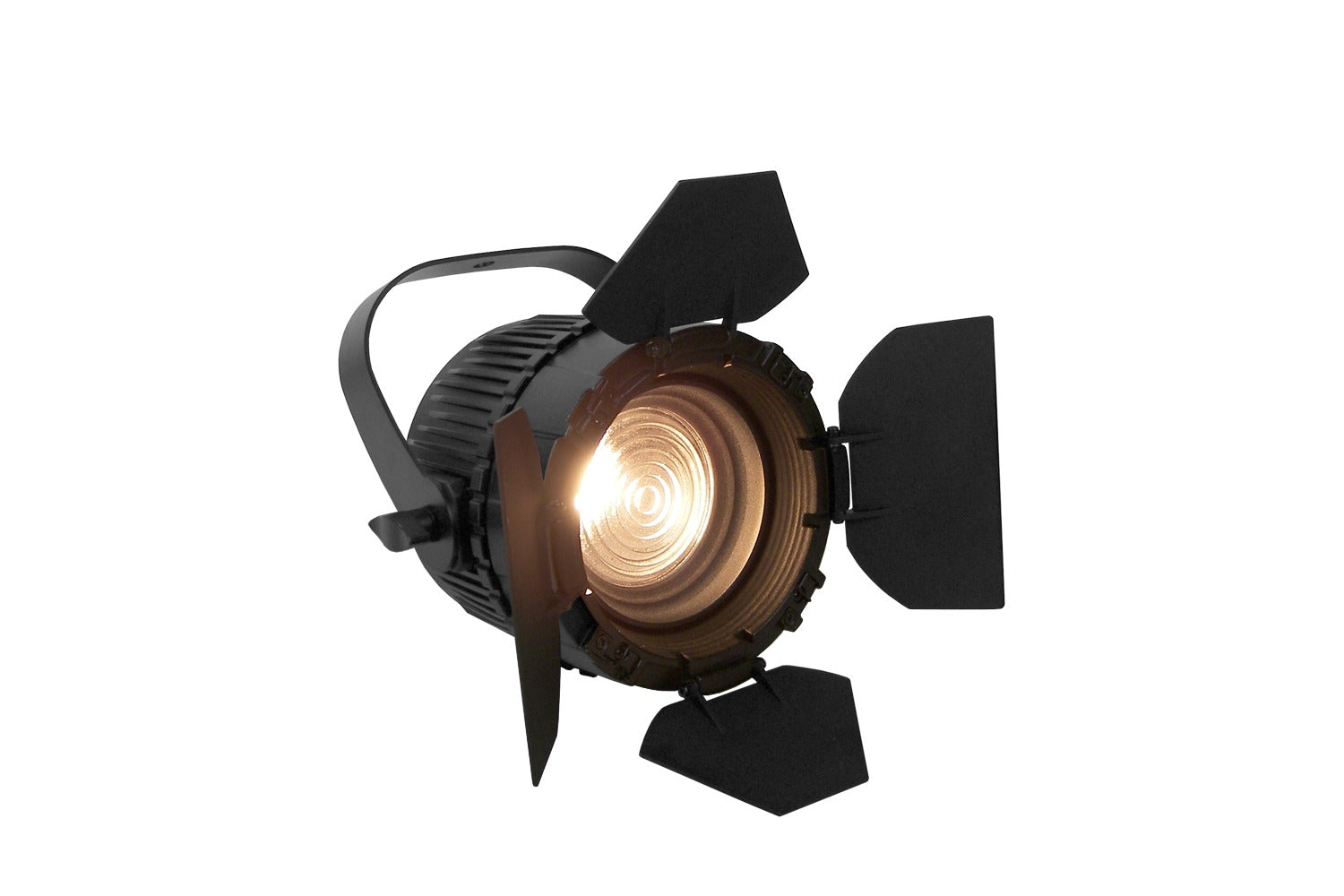

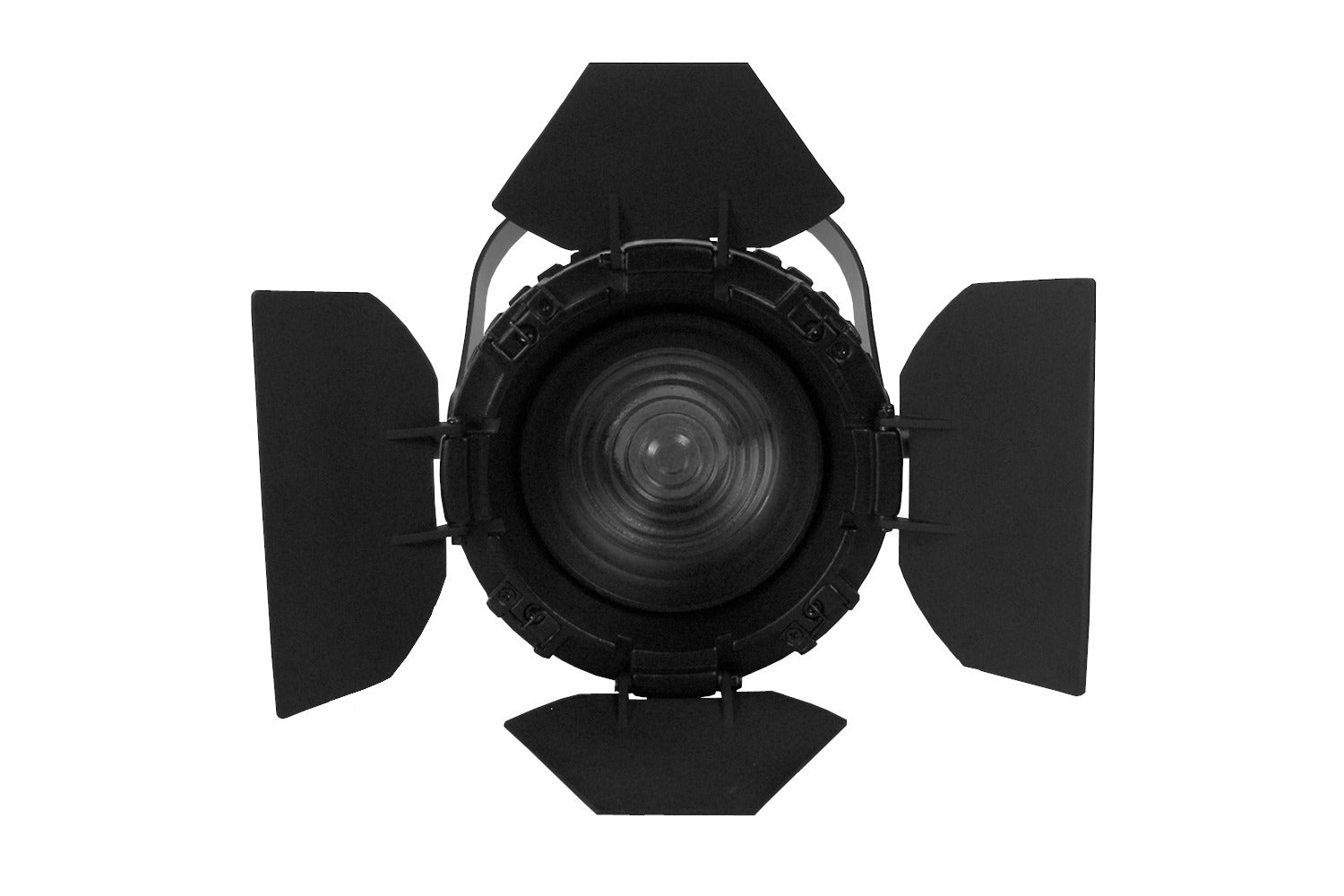

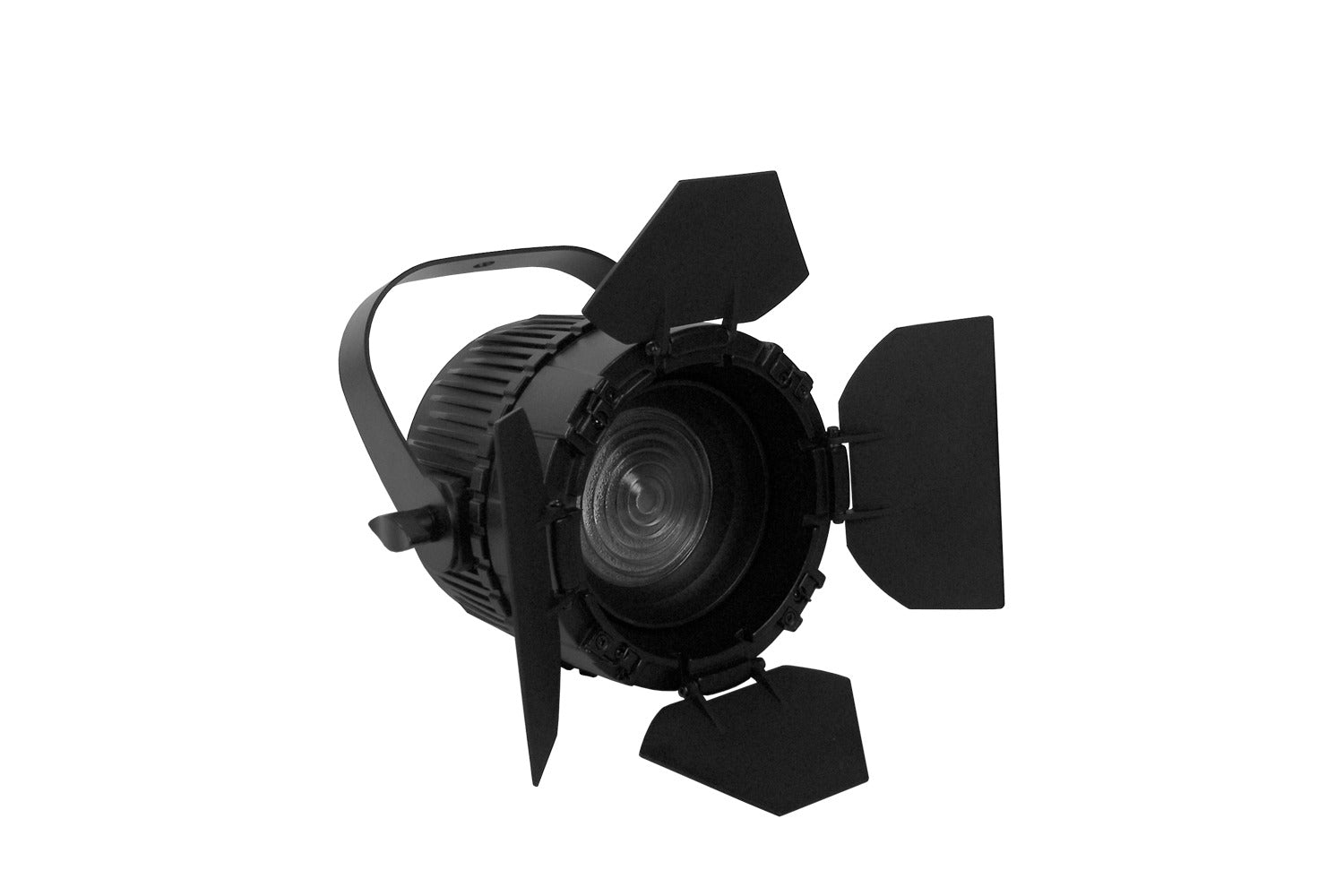

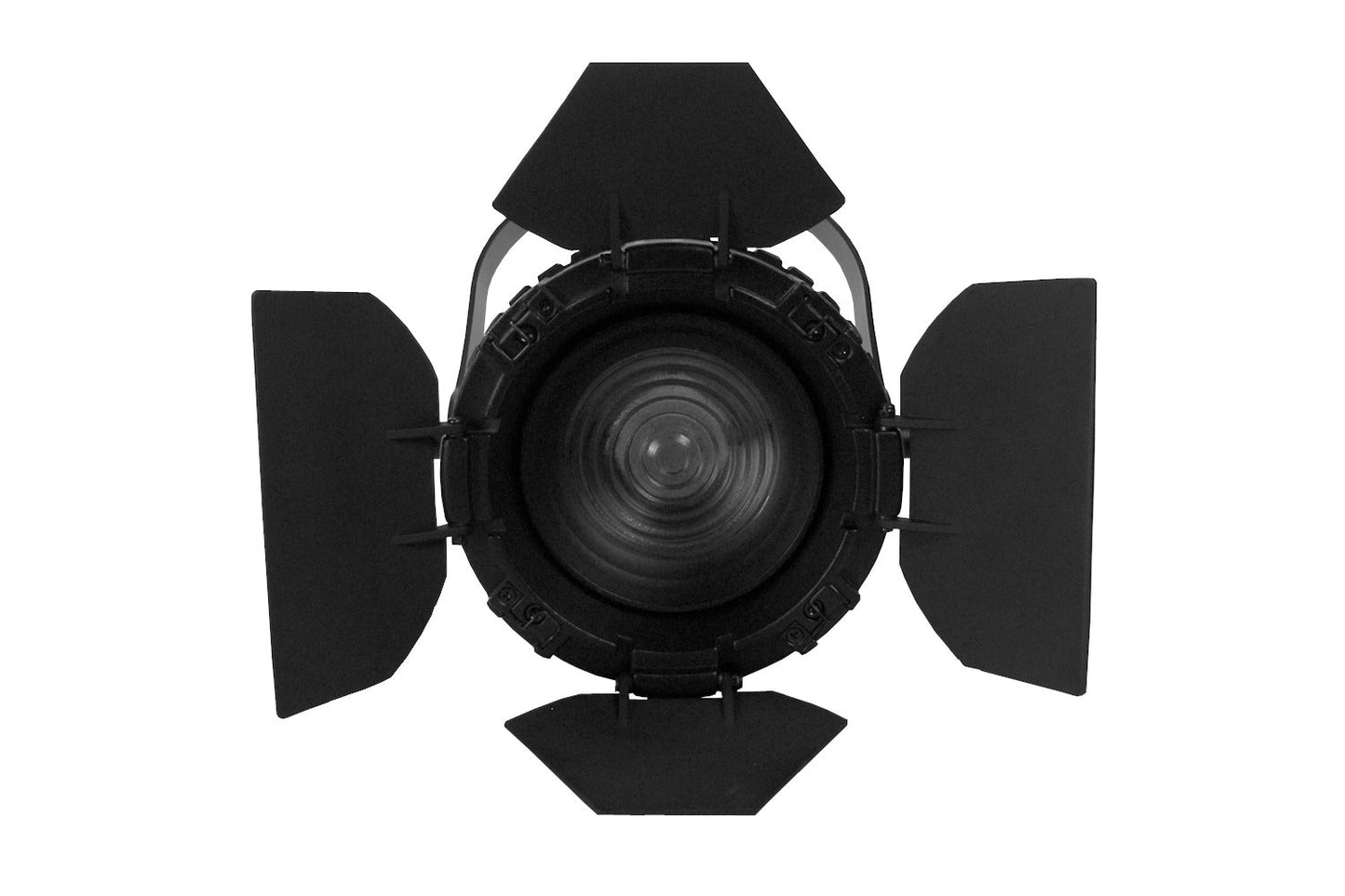

F96VW - Variable White Fresnel with Manual Zoom

Photometrics

• Light Source: 2 x 48W cool white 5,700K and warm white 2,700K COB LED
• CRI: 95+
• Beam Angle: 20°~50°
• Field Angle: 50°~67°

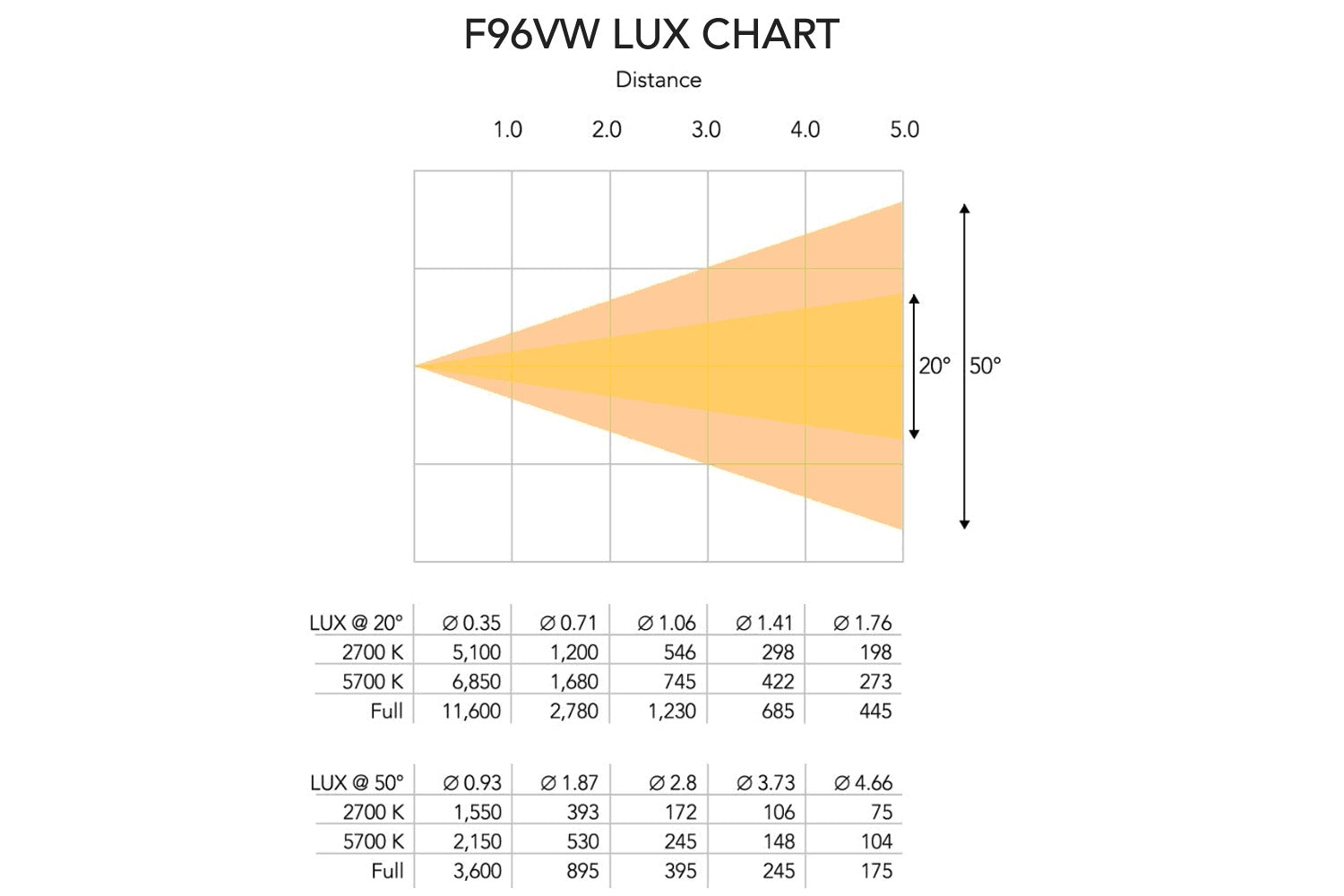

• Output: 1,230 lux @ 3m / 9.8ft at 20°, 395 lux @ 3m / 9.8ft at 50°
• Lens: 80mm Fresnel
• PWM: 1,200Hz
• LED Lifespan: 50,000 hours

Effects

• Dimming: 0~100%, 16-bit
• Strobe: 1~25Hz
• Zoom: Manual, 20°~50°
• Barn Door: Included
• Gel Clip: Included

Power

• Power Supply: 100~240V AC, 50/60Hz, 75W
• Power Connection: True1 in/out

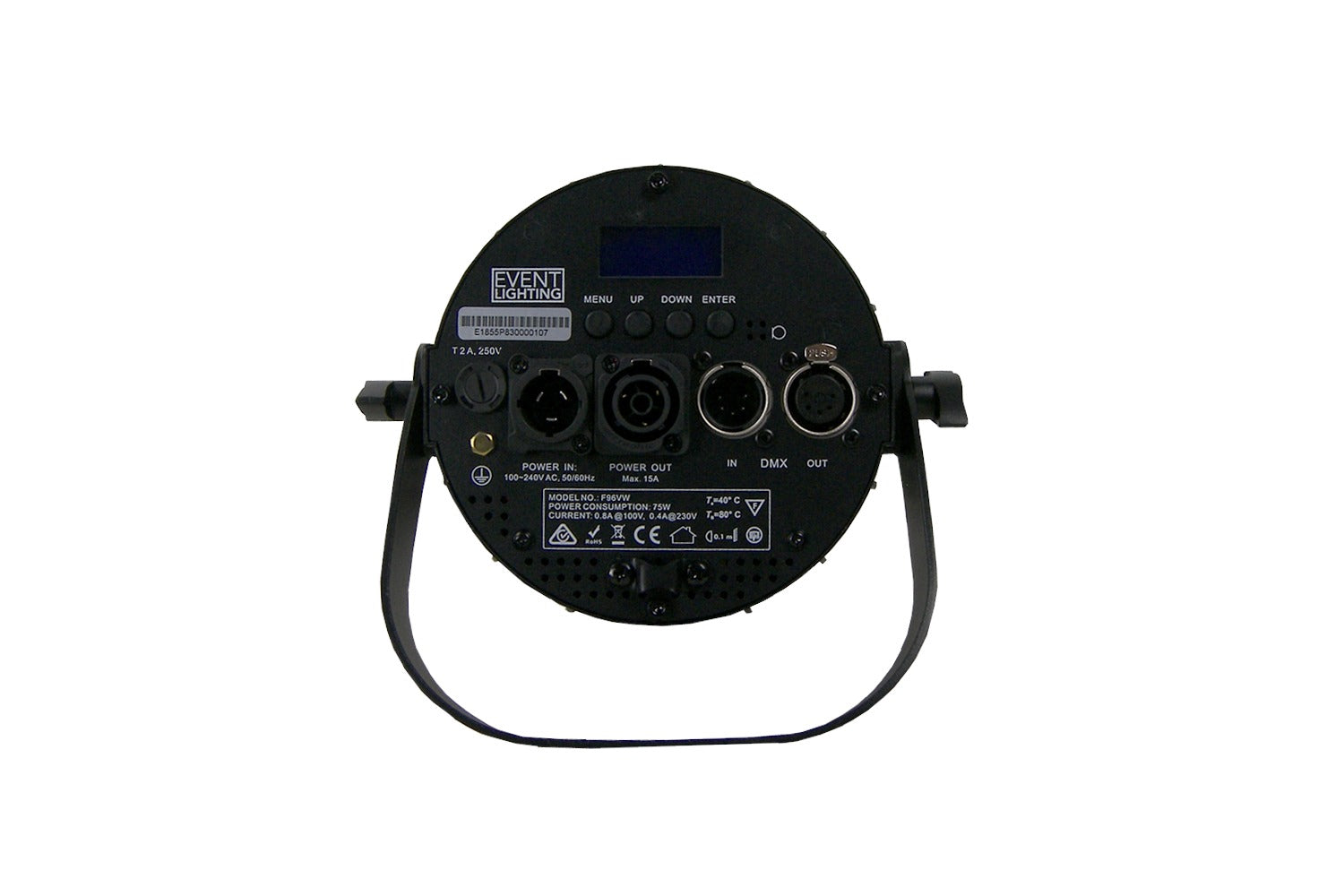

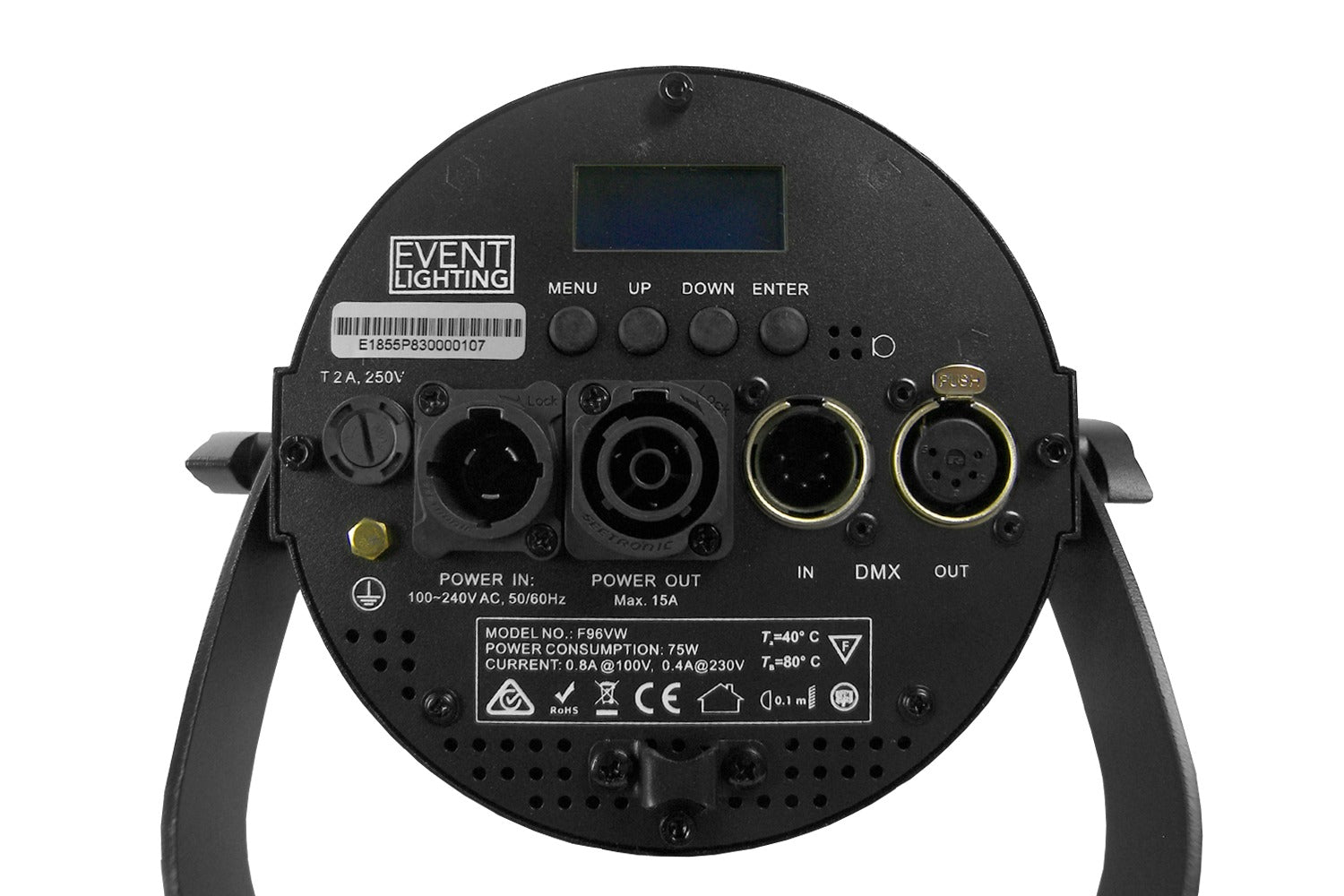

Control

• Operational Modes: Manual, Master / Slave & DMX, WDMX (optional)
• Display: 4-button LCD control panel
• Control Protocol: DMX512
• DMX Channel Mode: 1 / 2 / 7
• Control Interface: 5-pin XLR in/out

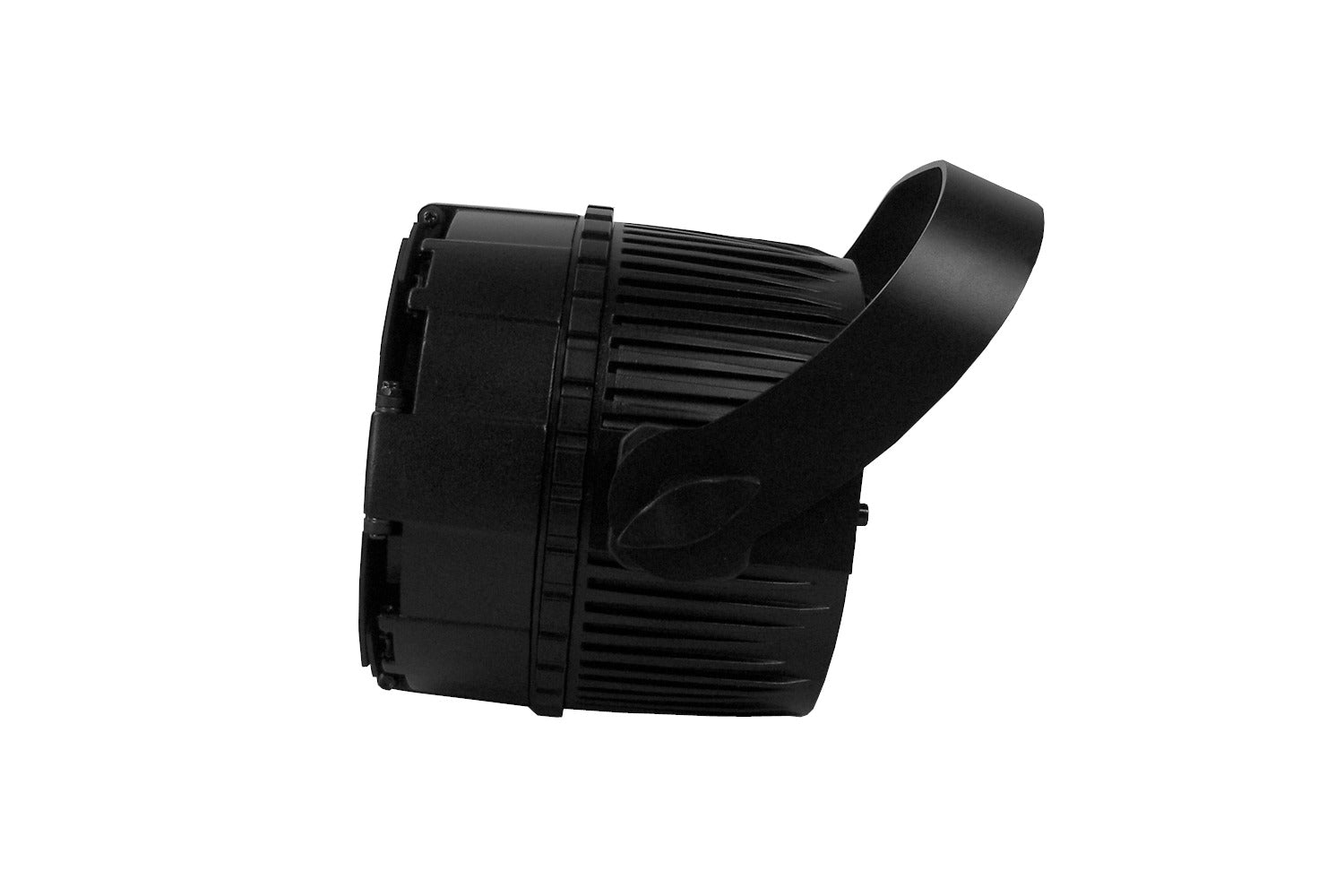

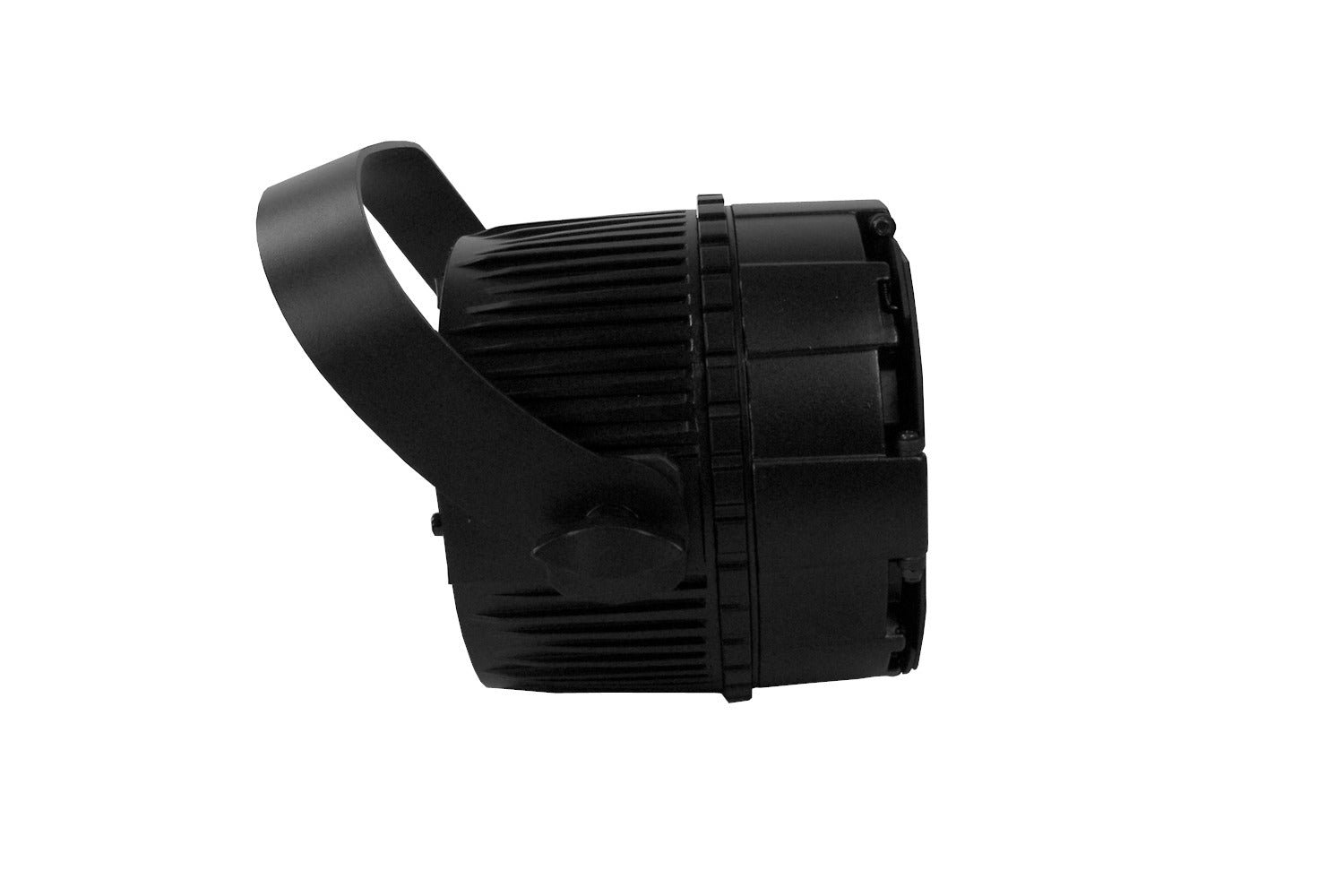

Housing

• Housing Materials: Die- cast Aluminum Housing
• Housing Finishing: Matte Black
• Cooling: Fanless Cooling with Temperature Protection

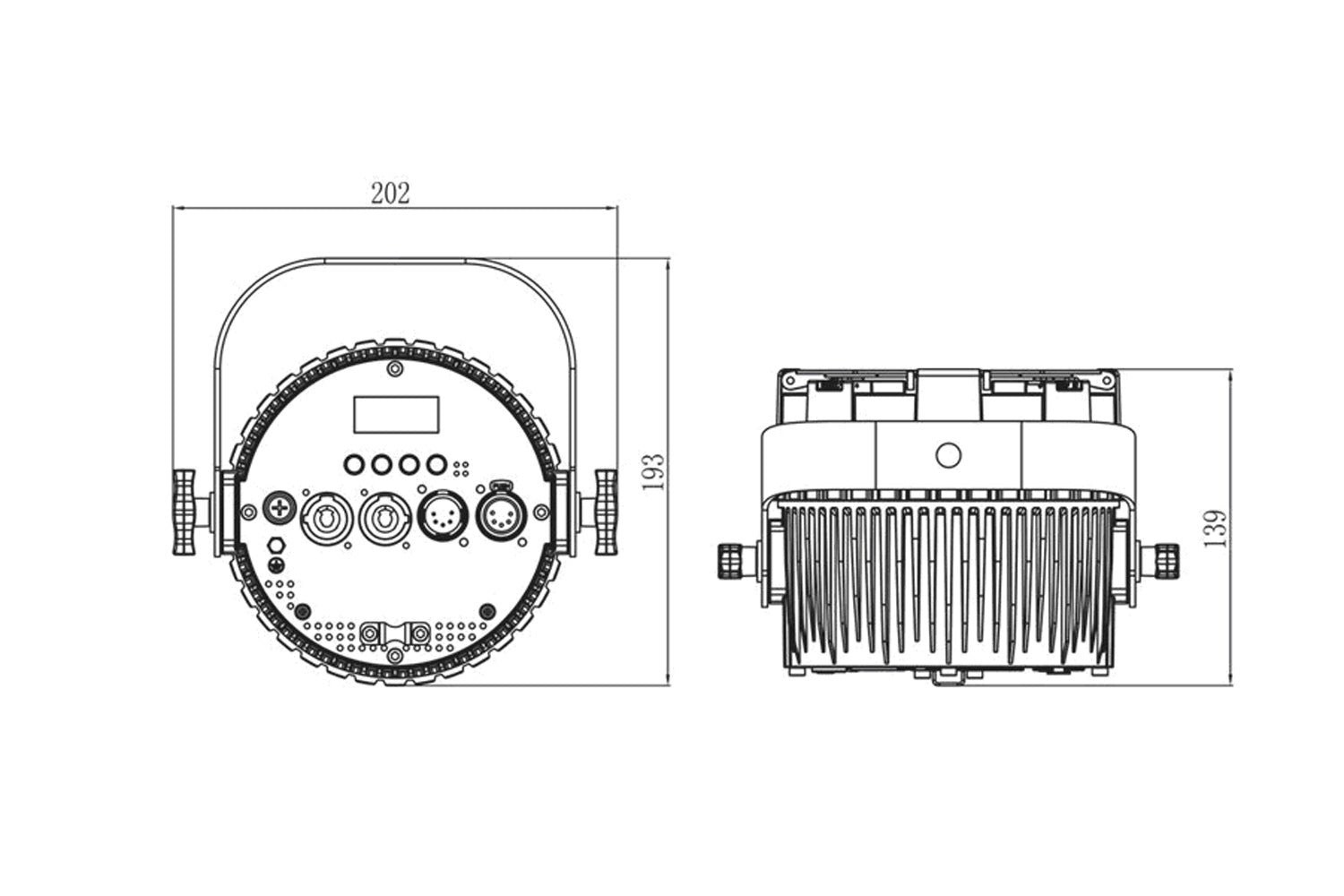

• Dimensions: 202 x 139 x 193mm / 7.95" x 5.47" x 7.6"
• Net Weight: 2.3 kg 5 lbs / 1.13 oz

Download Product Datasheet

User Manual Download

Warranty: 3 years
