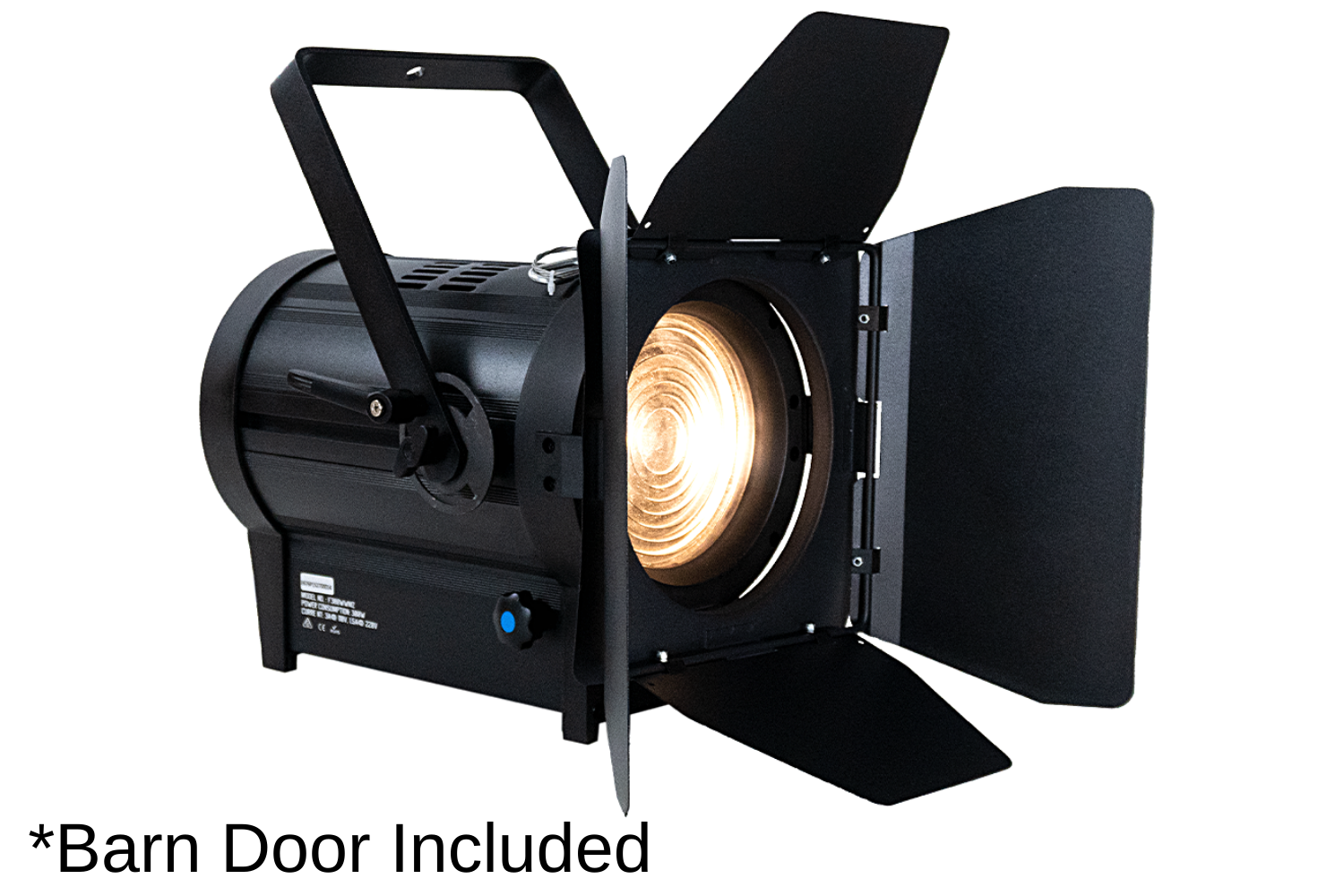

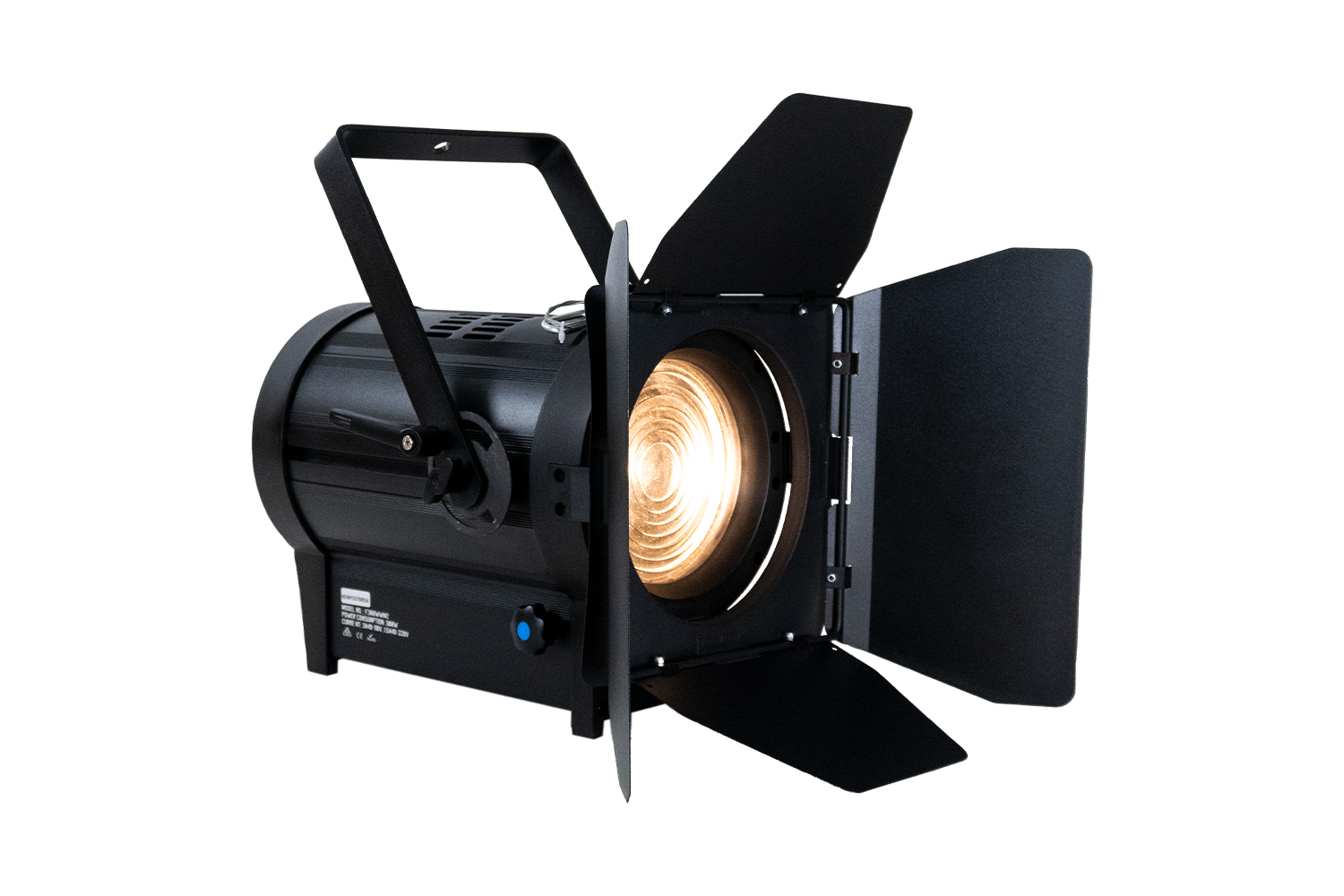

F200WWMZ - 200W Warm White Fresnel with Manual Zoom

This Product has been discontinued.

See similar model F200VMZ

Photometrics

• Light Source: 200W 3,200K COB LED
• CRI: 90
• Beam Angle: 16°~25°
• Field Angle: 30°~65°

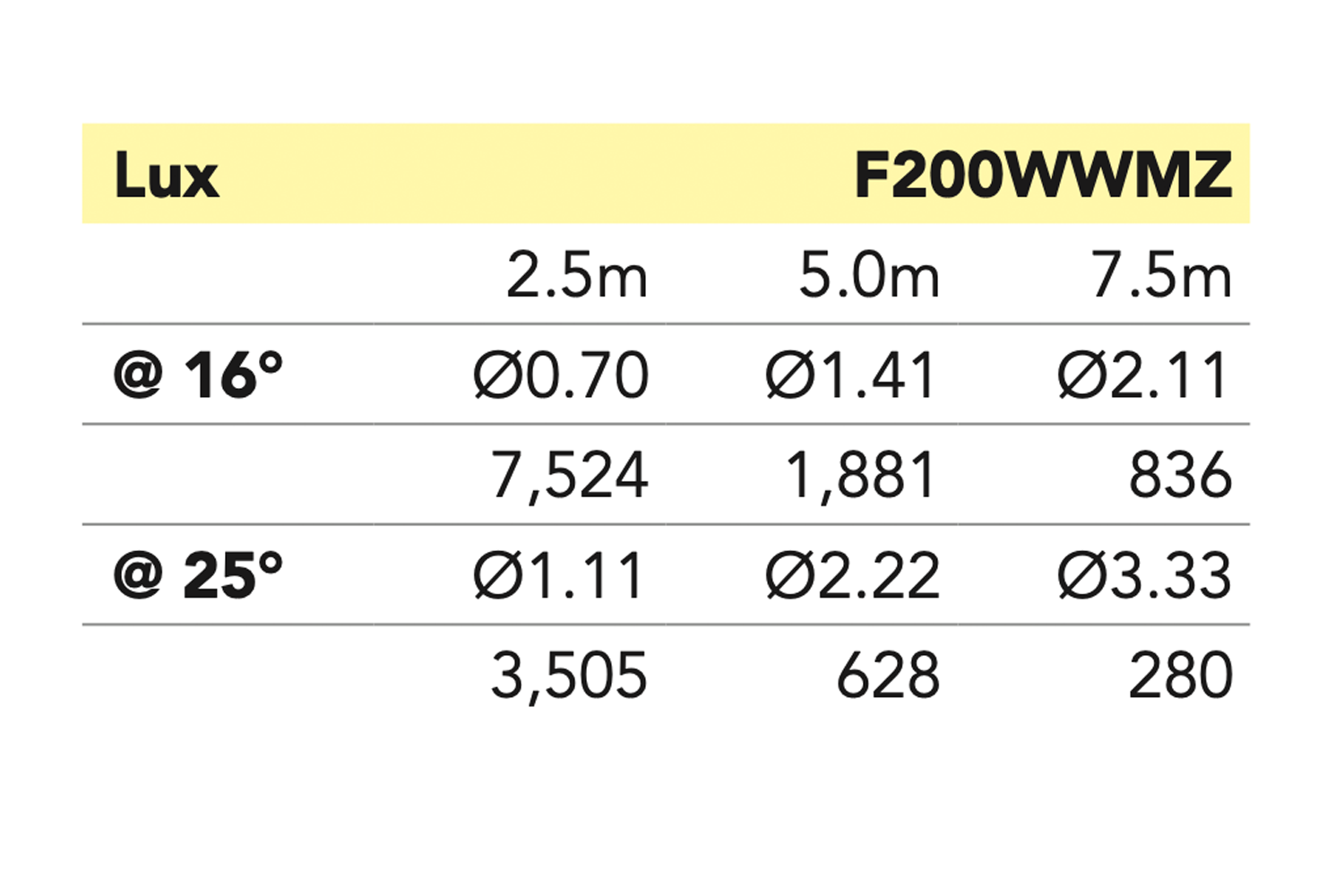

• Output: 7524 lux @ 2.5 m at 12°, 3505 lux @ 2.5m at 25°
• Lens: 150mm Fresnel
• PWM: 8,000Hz
• LED Lifespan: 50,000 hours

Effects

• Dimming: 0~100% 8 / 16-bit
• Dimming Curves: 3
• Strobe: 1~25Hz
• Zoom: Manual 12°~25°

Power

• Power Supply: 100~240V AC, 50/60Hz, 200W
• Power Connection: Neutrik® PowerCON in/out

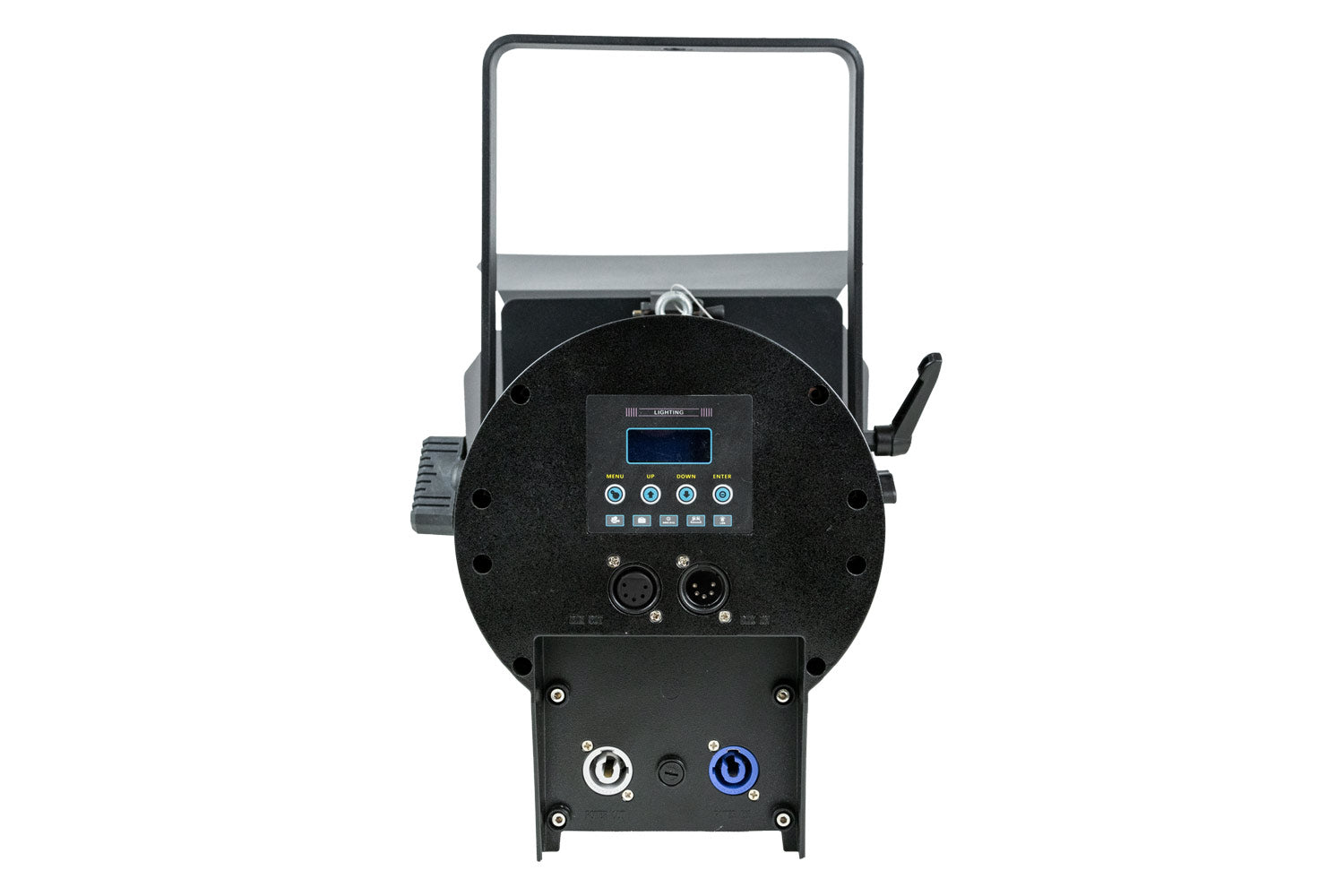

Control

• Operational Modes: DMX, Manual, Master / Slave
• Display: 4-button LCD control panel
• Control Protocol: DMX512
• DMX Channels: 1 / 2 / 3
• Control Interface: 5-pin XLR

Housing

• Housing Materials: Aluminium and ABS, matte black finish
• Housing Finishing: Matte Black
• Cooling: Sensor Thermostat Controlled Variable Speed Fan
• Net Weight: 5kg

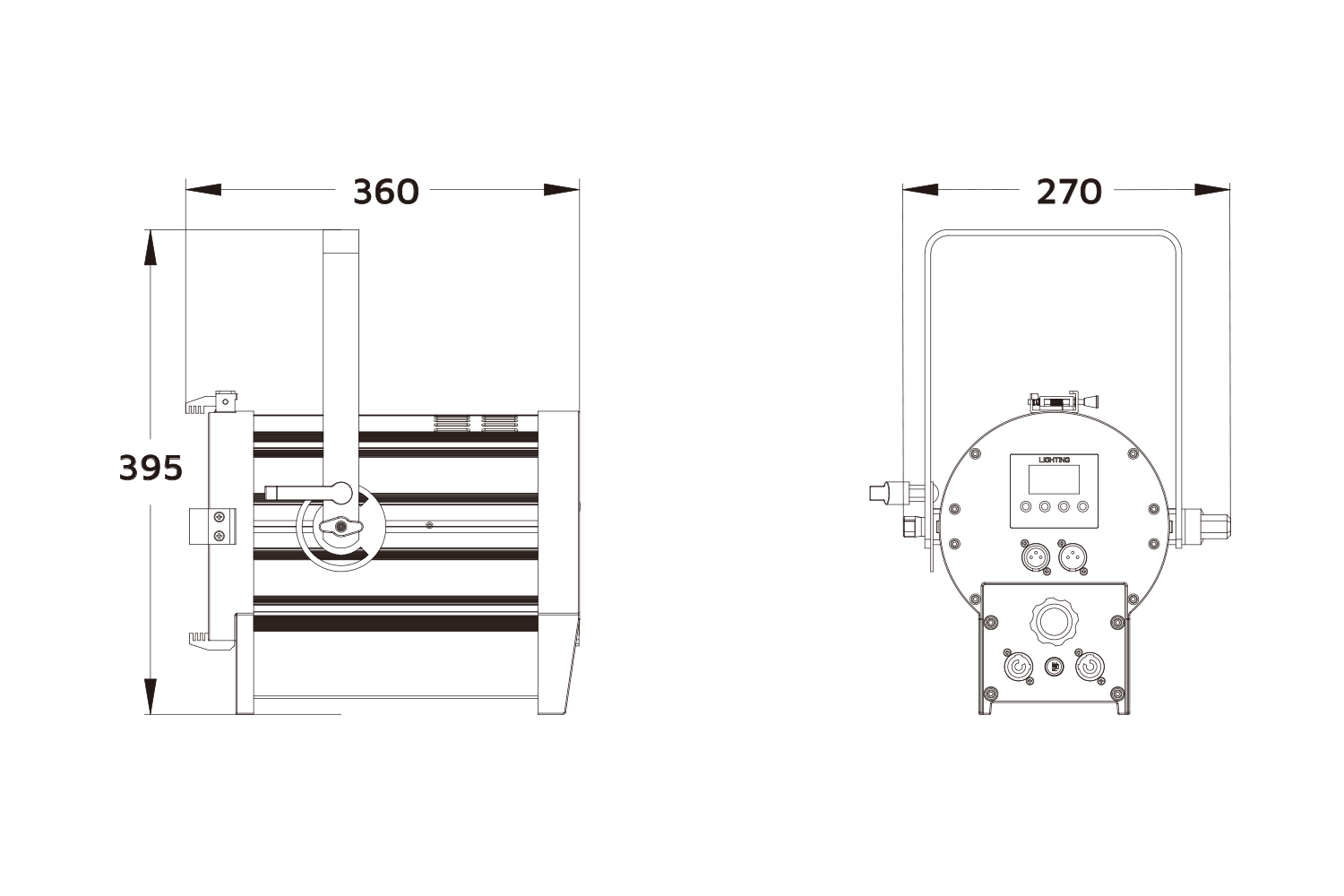

• Overall Size: 395 x 270 x 360mm

Accessories

• Barn Door: Included

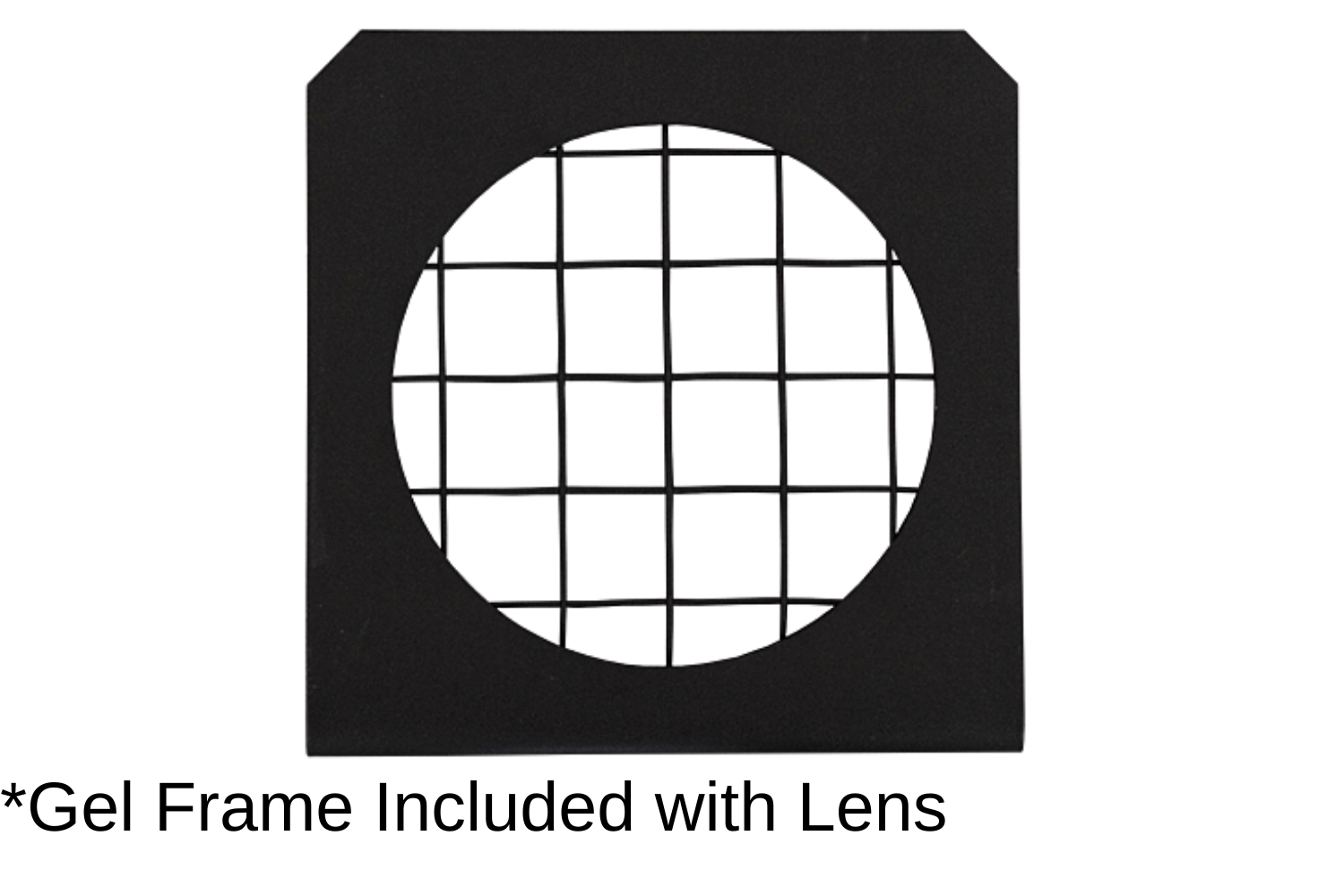

• Gel Frame: Included

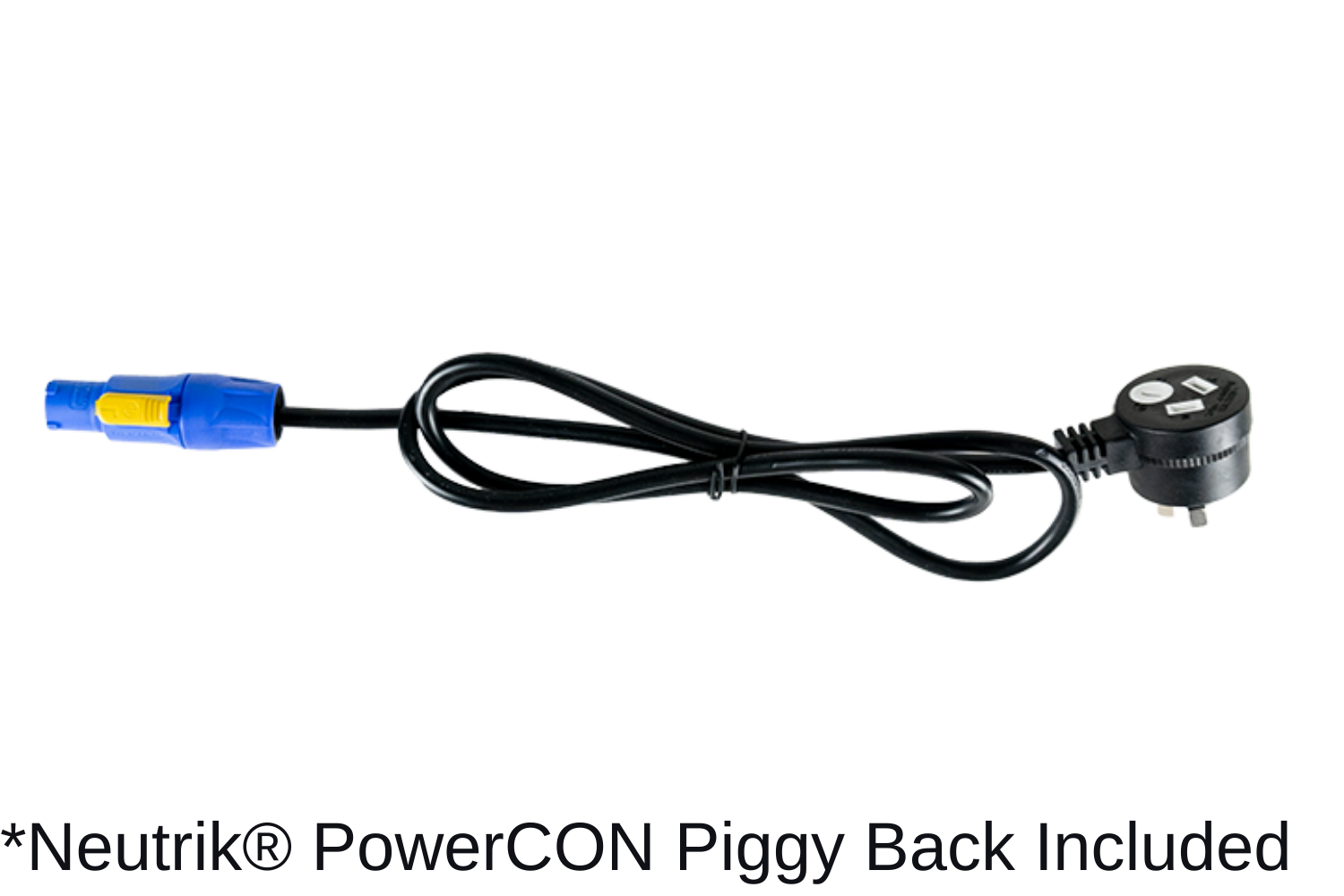

• Neutrik® PowerCON Piggy Back: Included

Product Specification Sheet Download

User Manual Download



User Manual v1.8.0 Download

User Manual v A109.1 Download

Spare Parts

Warranty: 3 years
