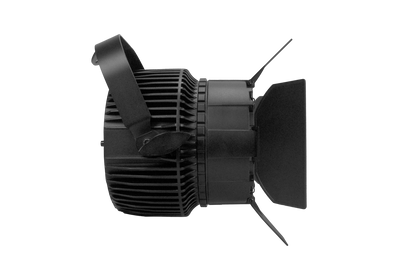

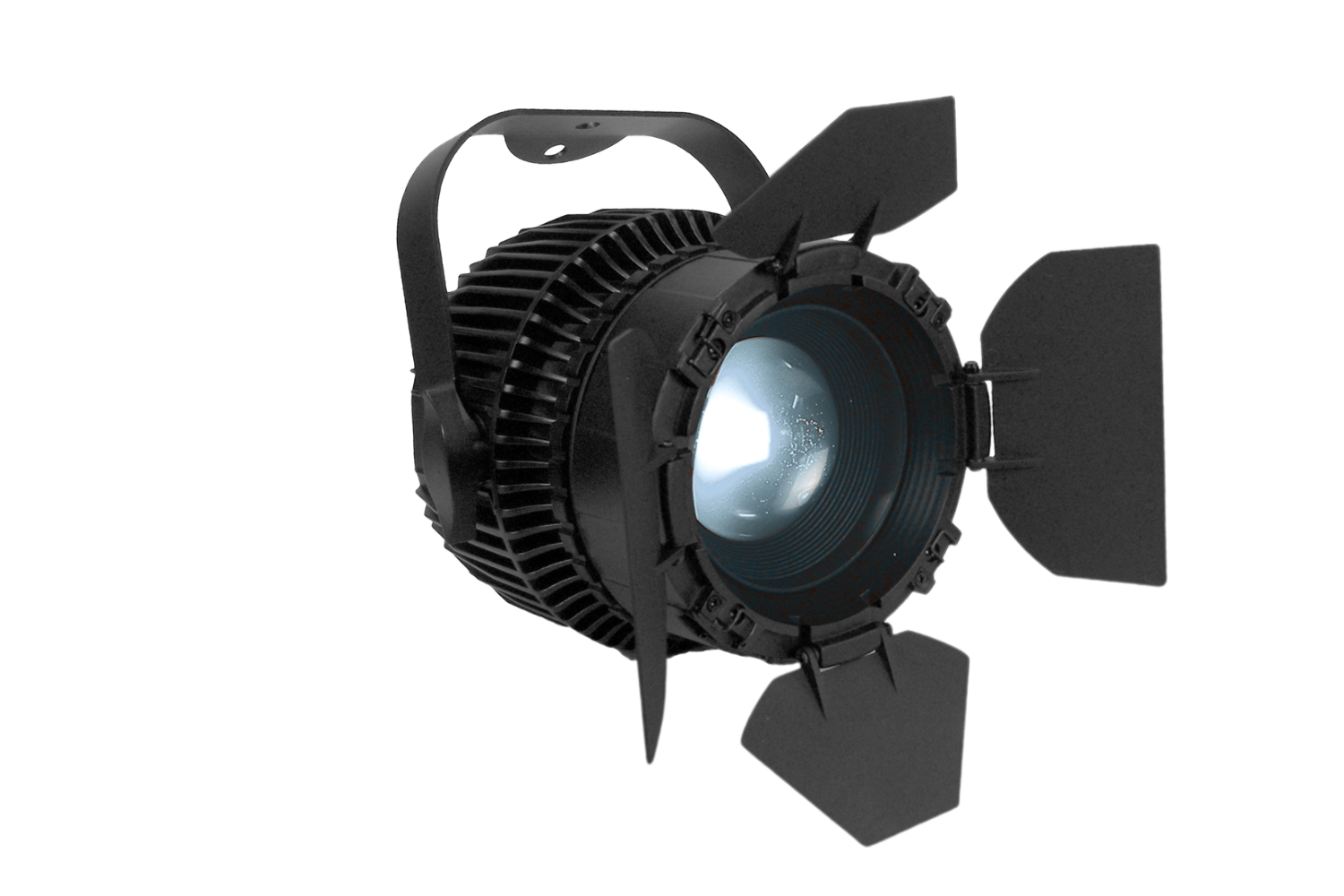

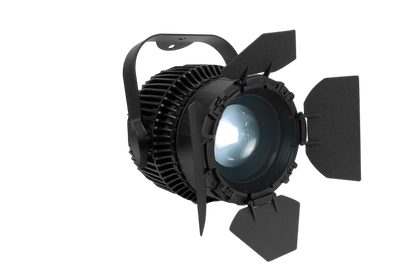

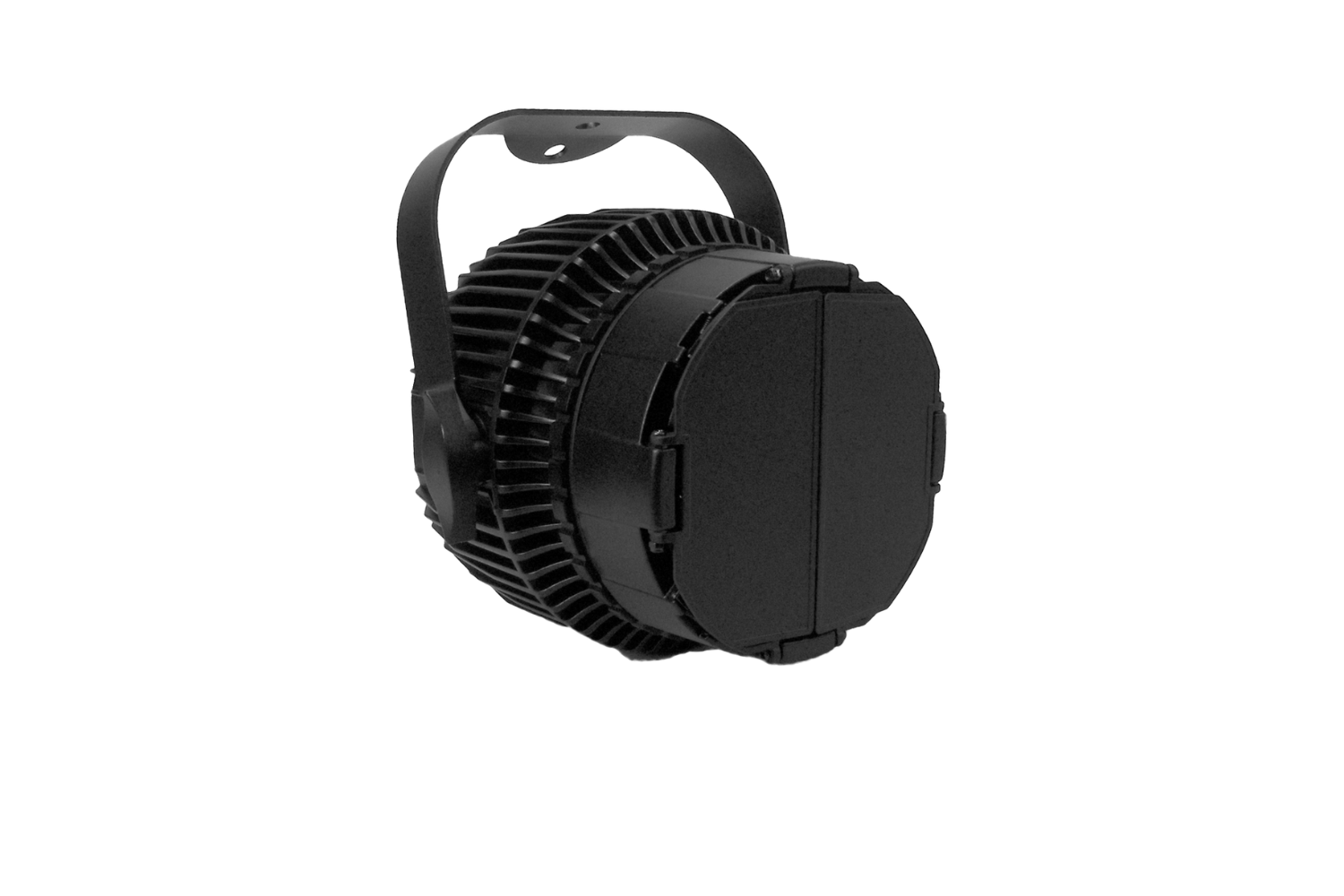

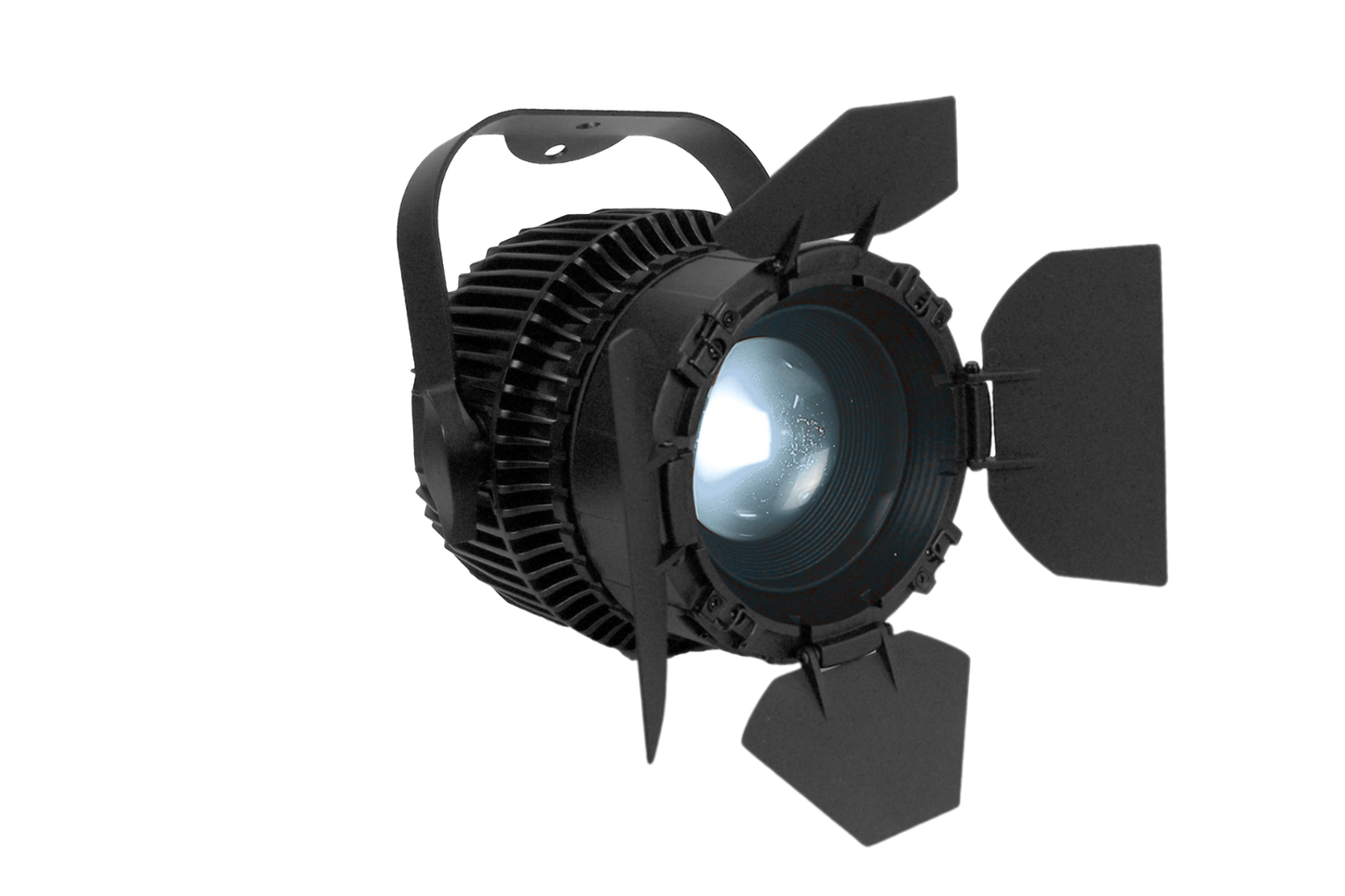

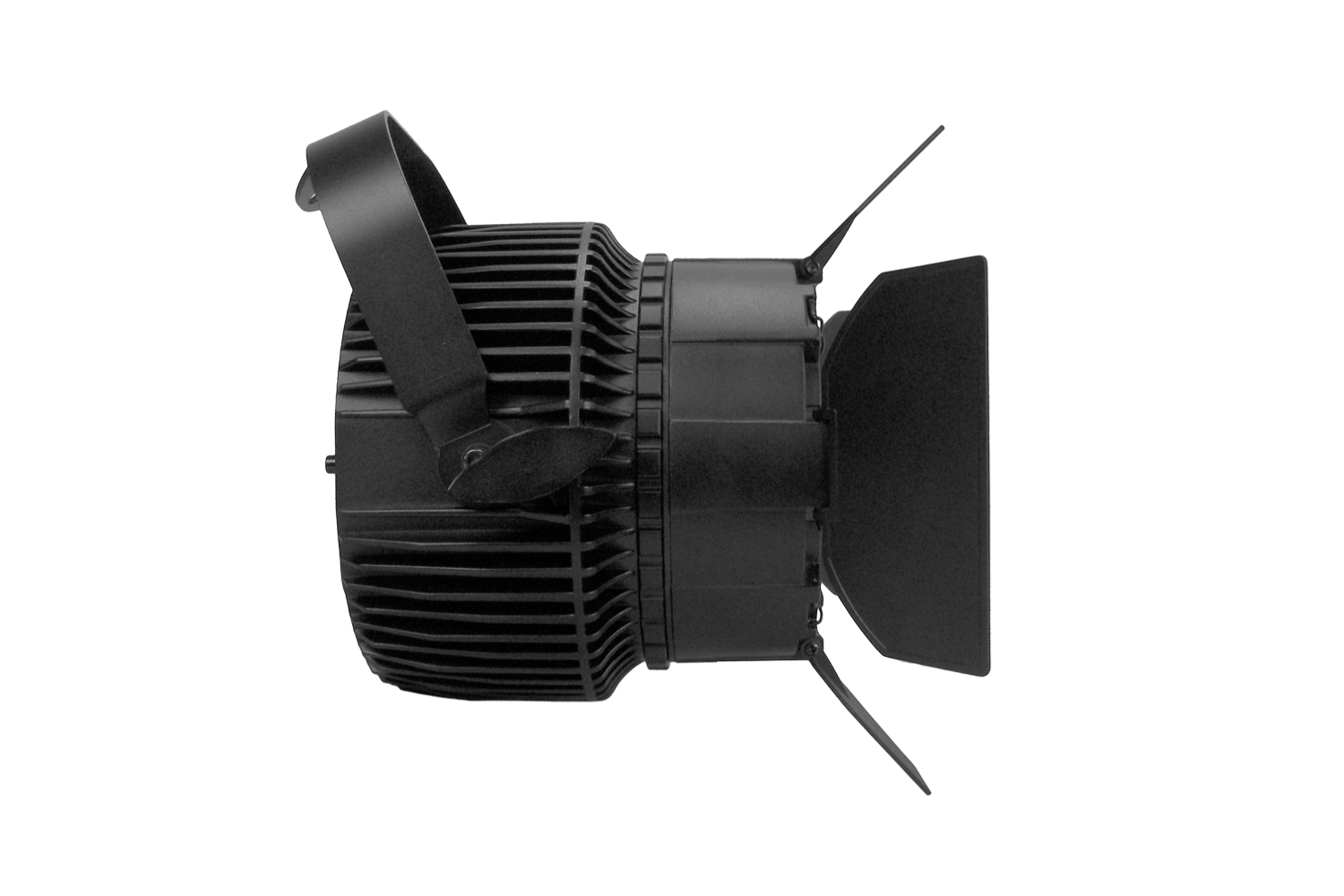

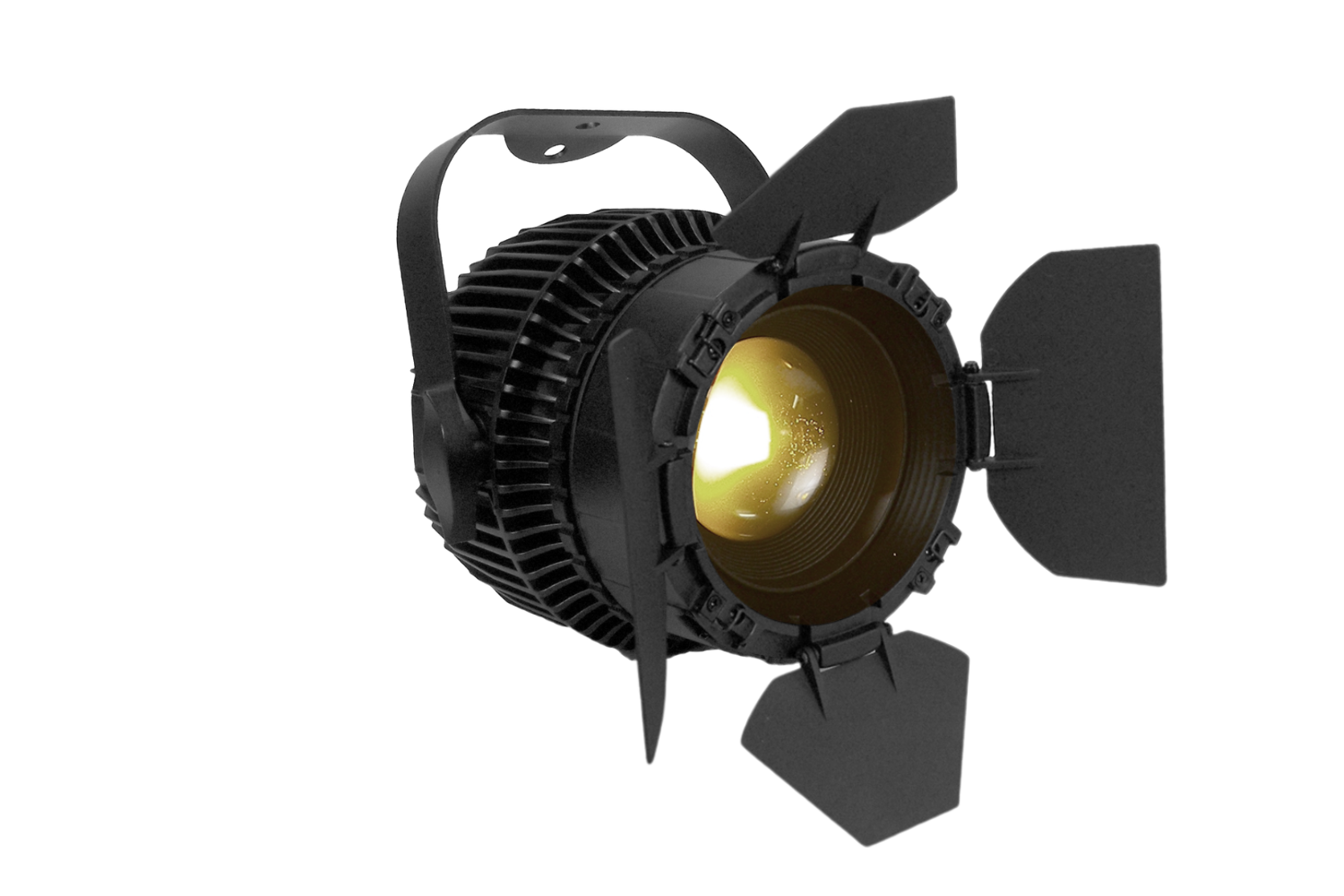

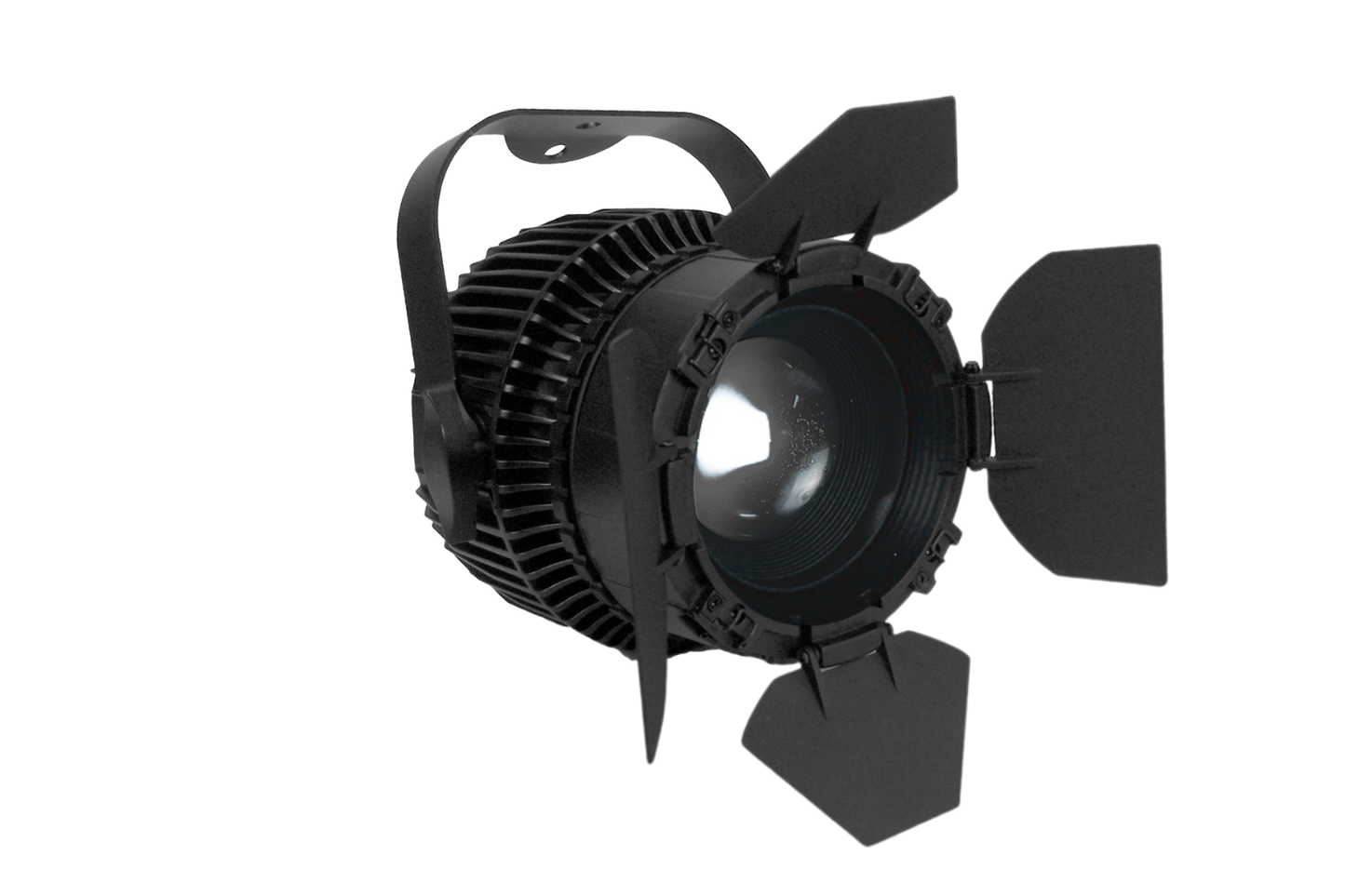

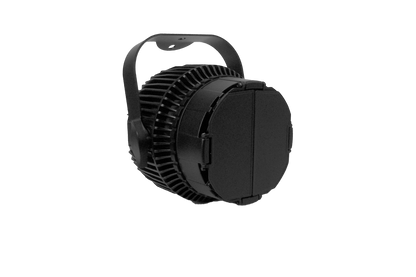

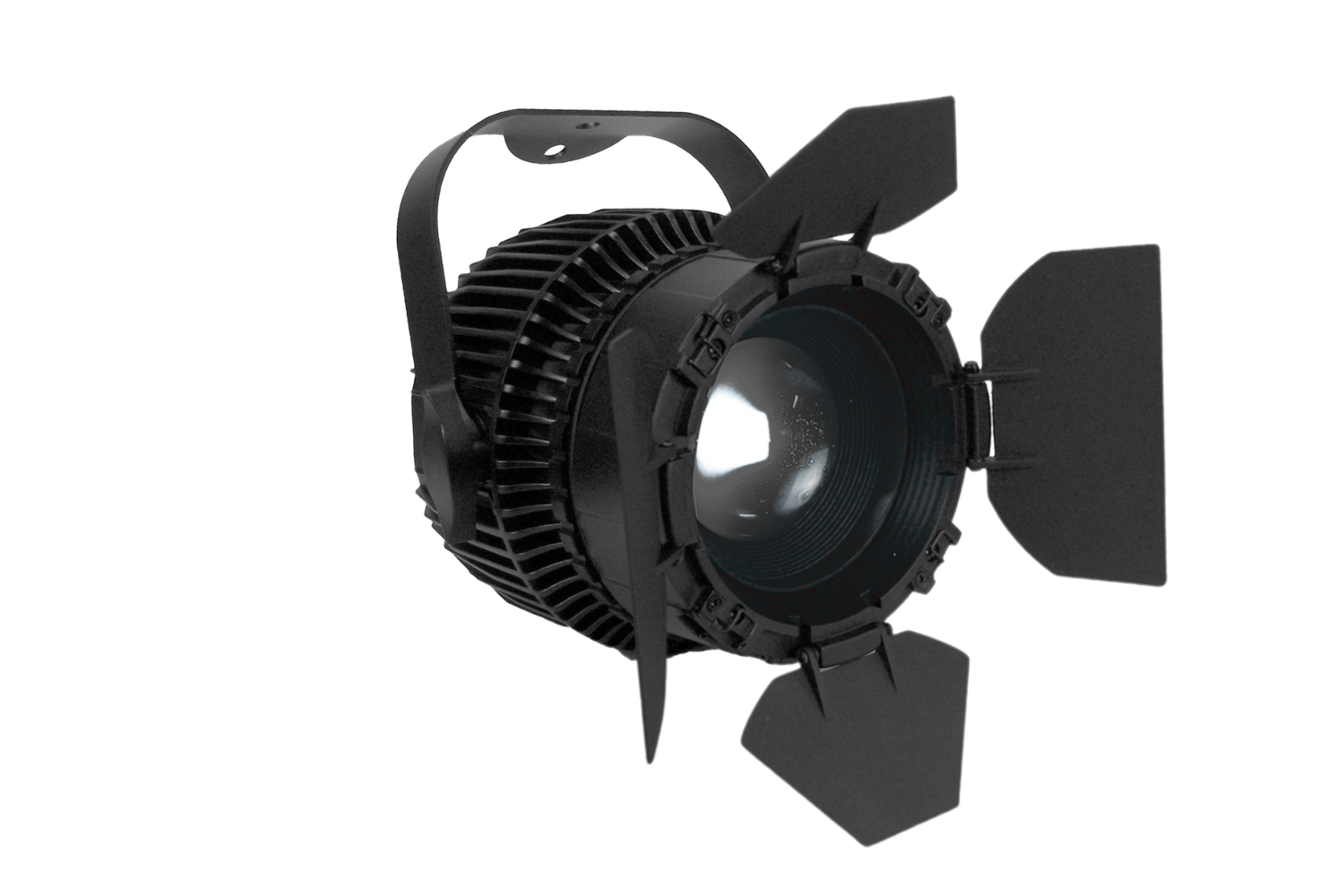

F200VW - Variable White Fresnel with Manual Zoom

Photometrics

• Light Source: 2 x 100W cool white 6,500K and warm white 2,700K COB LED
• CRI: 95+
• Beam Angle: 20°~53°
• Field Angle: 34°~70°

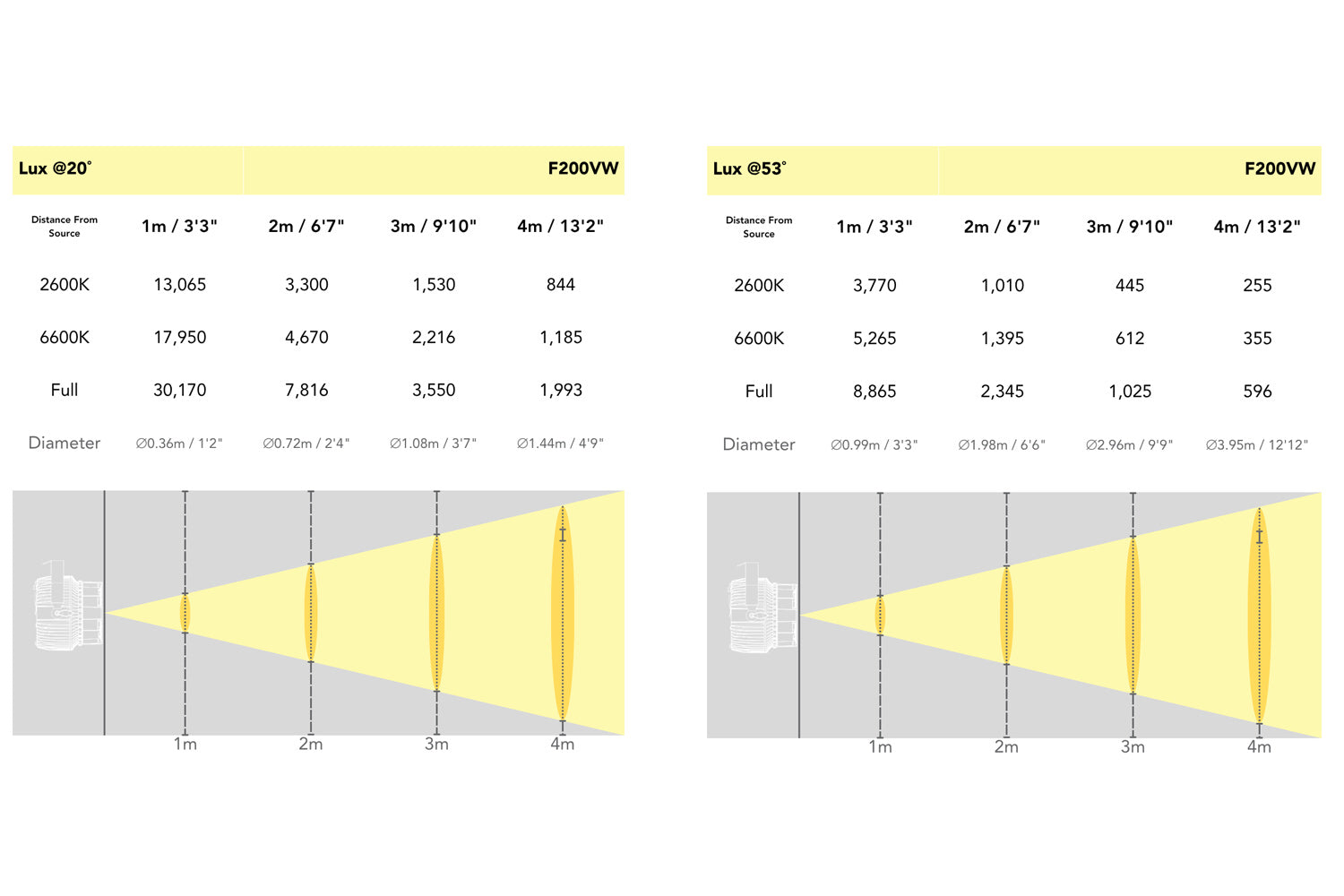

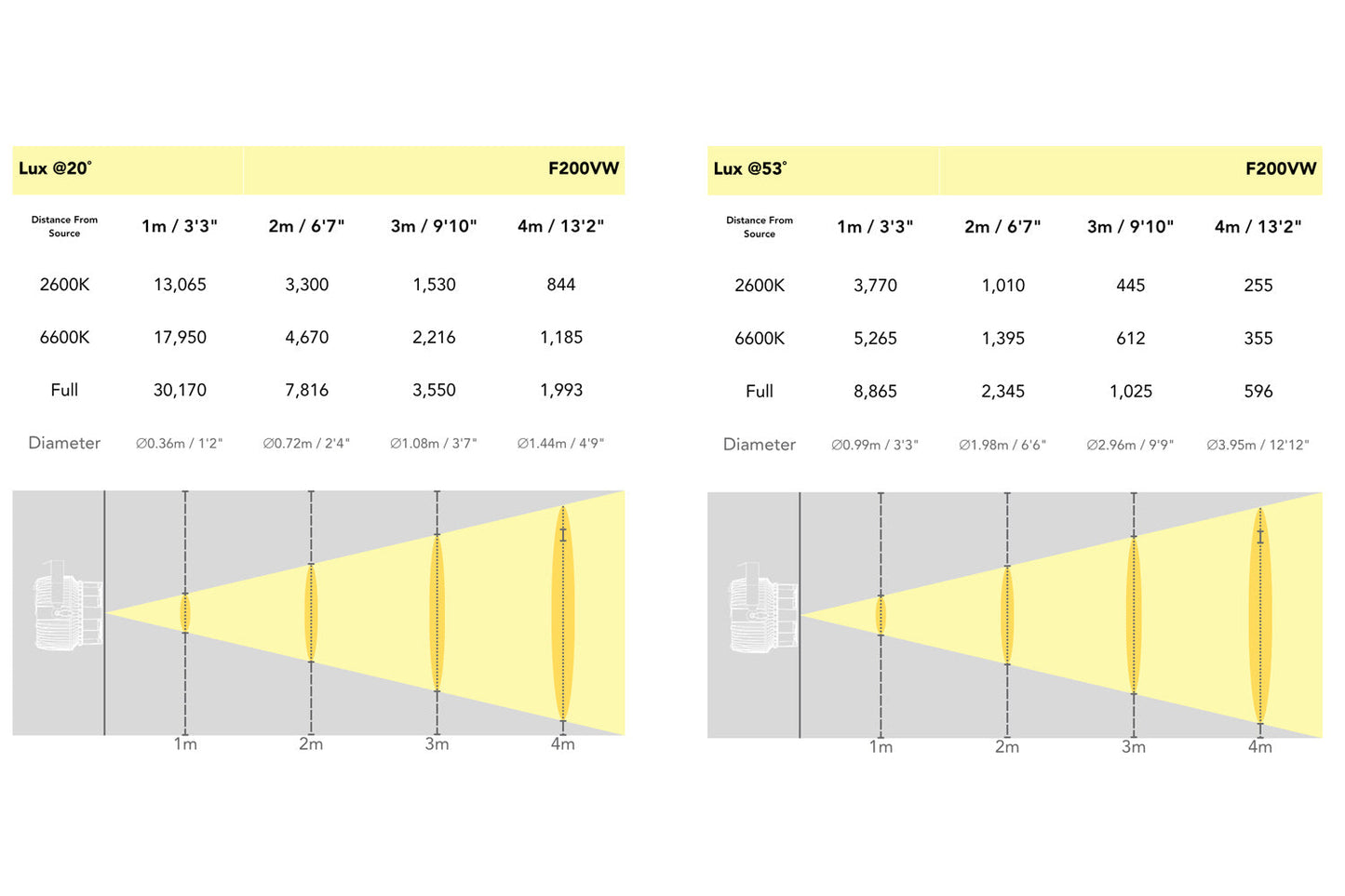

• Output: 3,550 lux @ 3m @ 20°, 1,025 lux @ 3m @ 53°
• Lens: 80mm Planconvex lens
• PWM: 1,200Hz
• LED Lifespan: 50,000 hours

Effects

• Dimming: 0~100%, 16-bit
• Strobe: 1~25Hz
• Zoom: Manual, 20°~53°

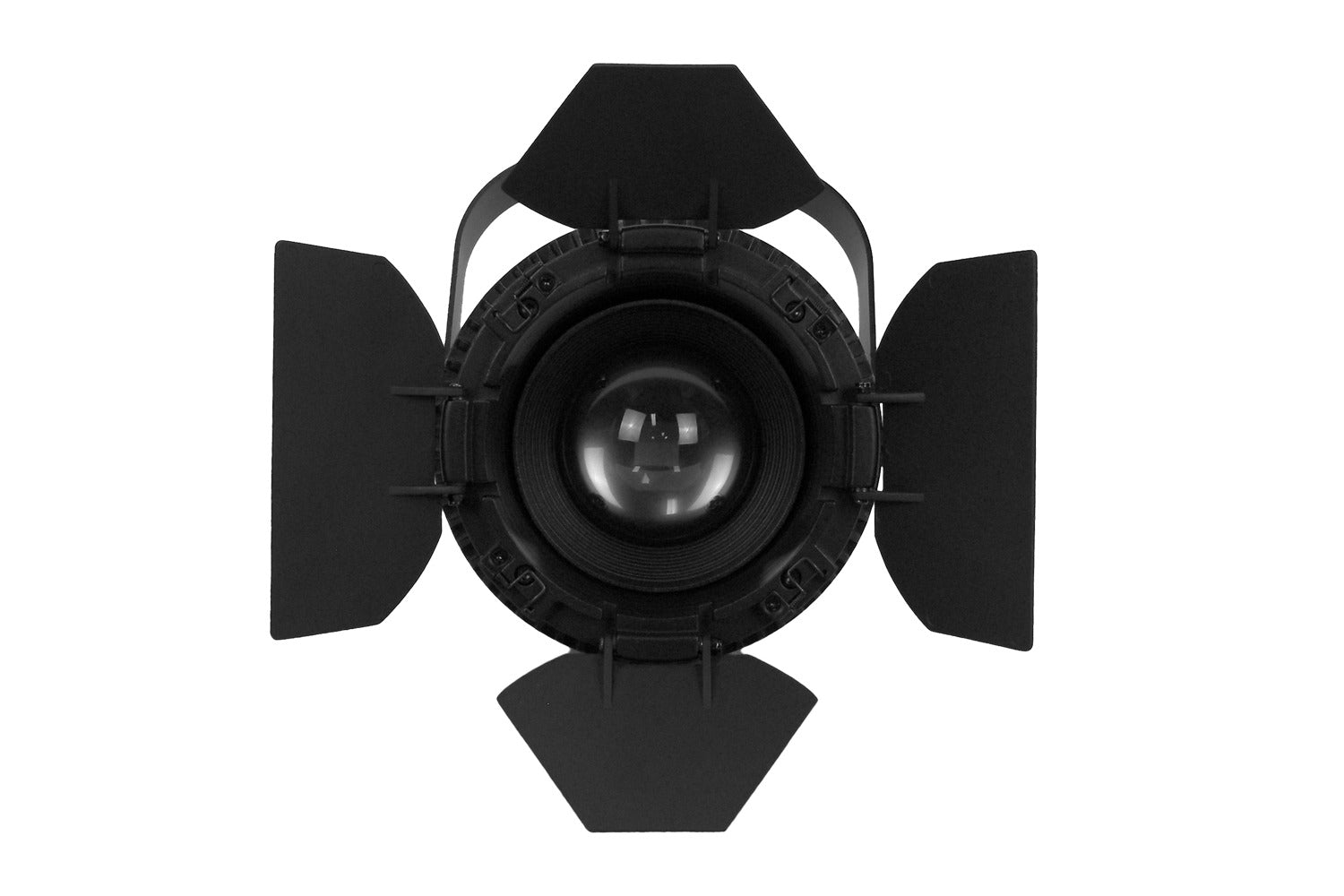

• Barn Door: Included
• Gel Clip: Included

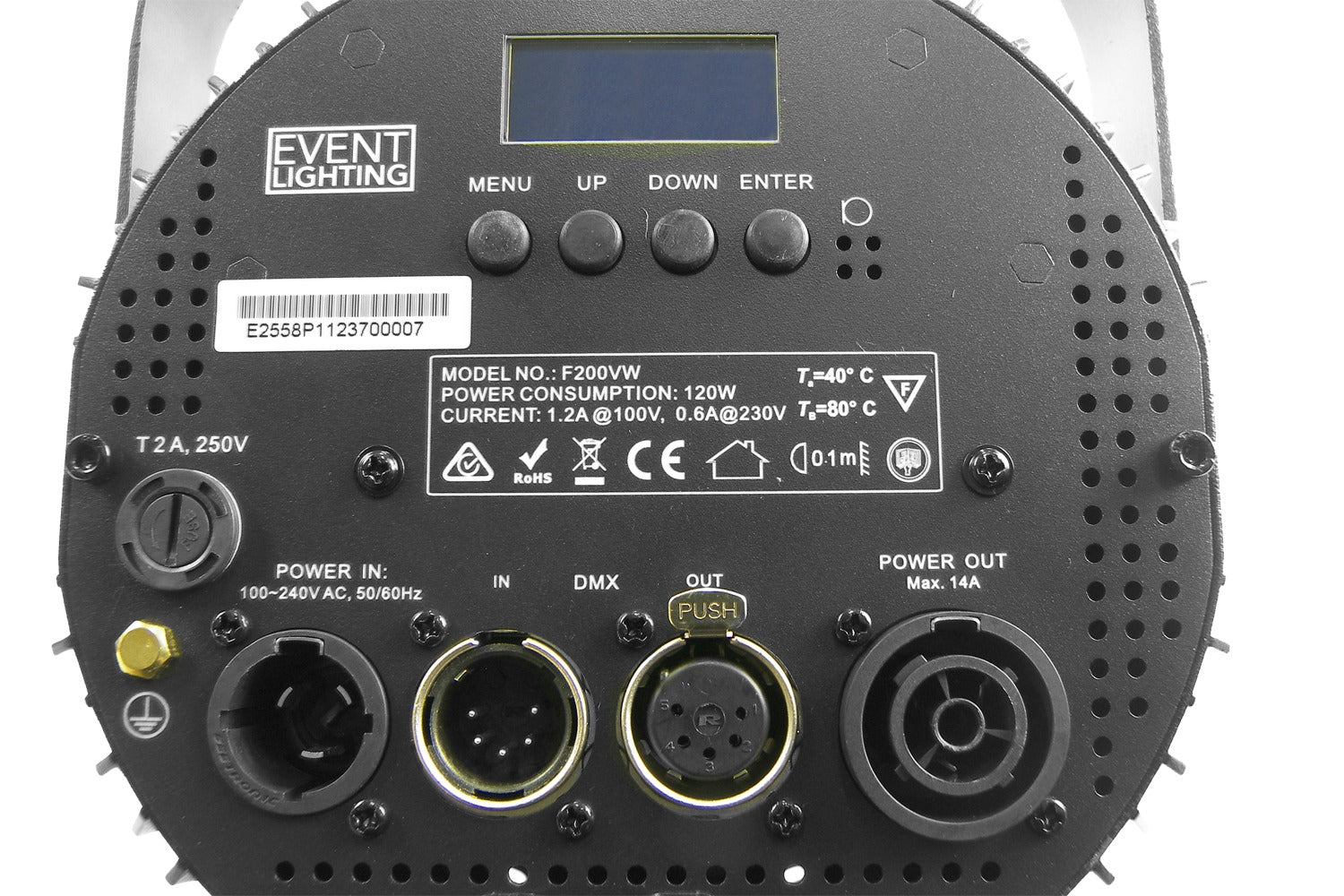

Power

• Power Supply: 100~240V AC, 50/60Hz, 200W
• Power Connection: True1 in/out

Control

• Operational Modes: Manual, Master / Slave & DMX, WDMX (optional), RDM

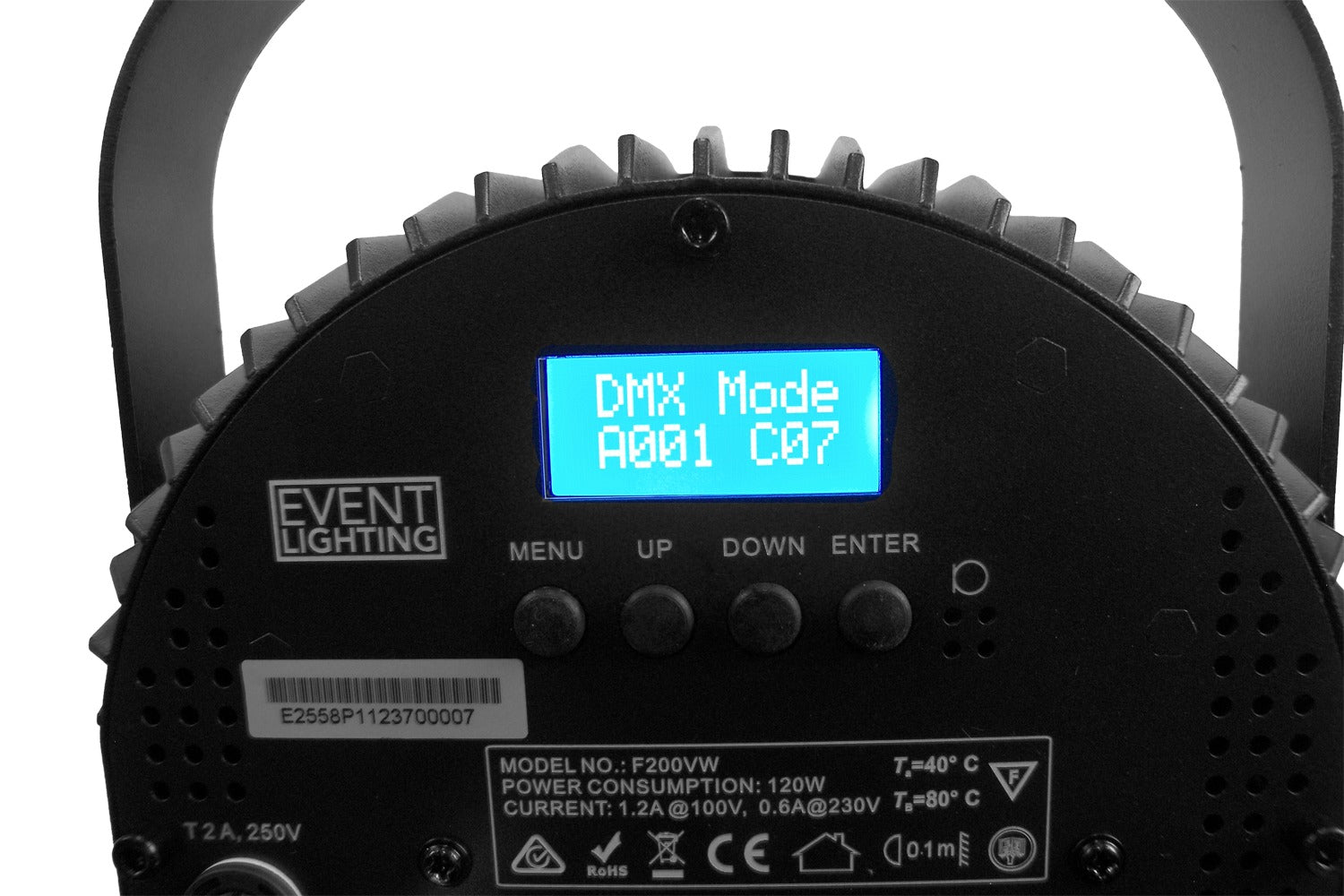

• Display: 4-button LCD control panel
• Control Protocol: DMX512
• DMX Channel Mode: 1 / 1U / 2 / 5 / 7 / User

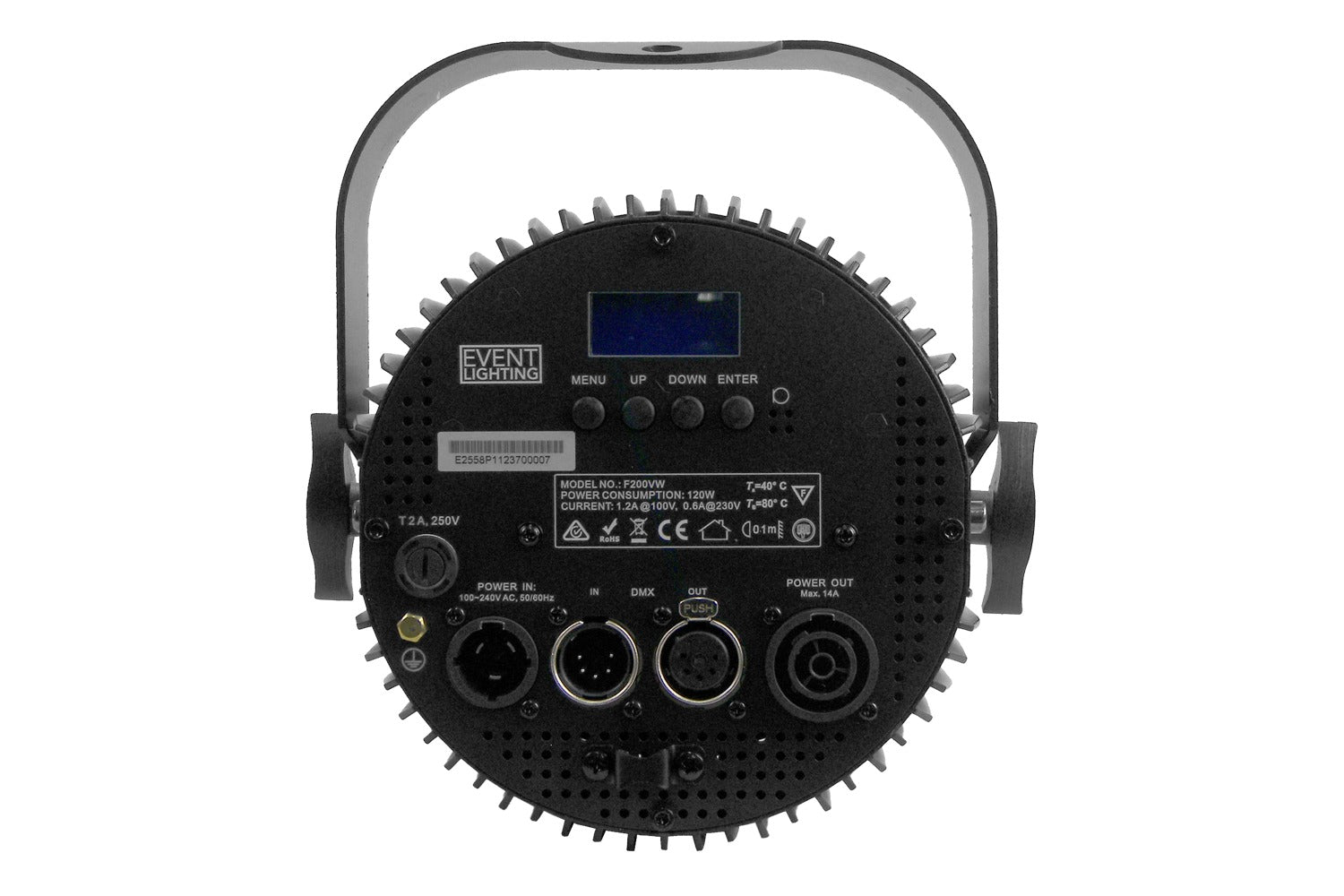

• Control Interface: 5-pin XLR in/out

Housing

• Housing Materials: Die- cast Aluminium Housing
• Housing Finishing: Matte Black
• Cooling: Fanless Cooling with Temperature Protection

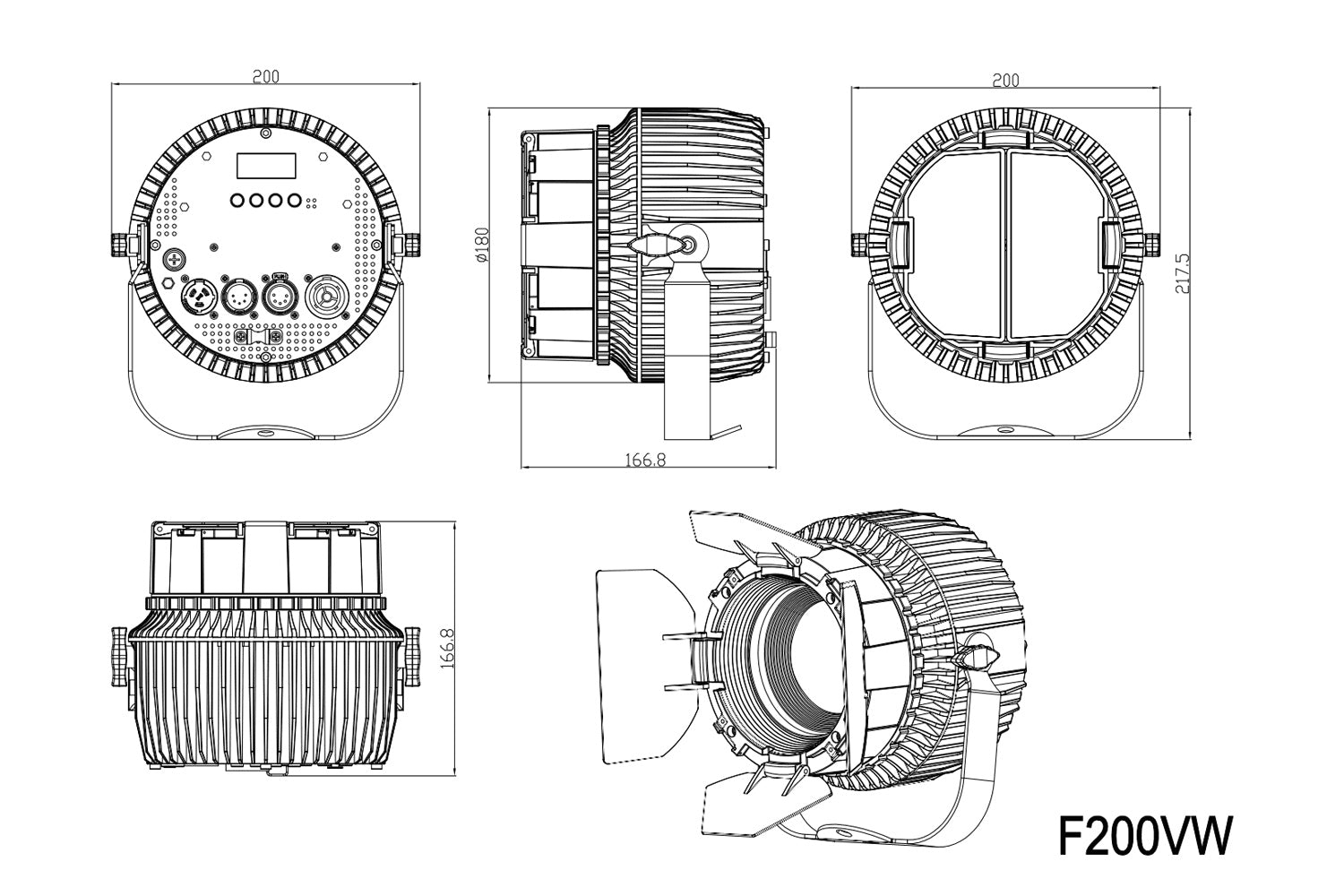

• Dimensions: 217.5 x 167 x 200mm / 8.6" x 6.6" x 7.9"
• Net Weight: 3.2 kg / 7 lbs

Download User Manual

Download Specification Sheet

Warranty: 3 years
