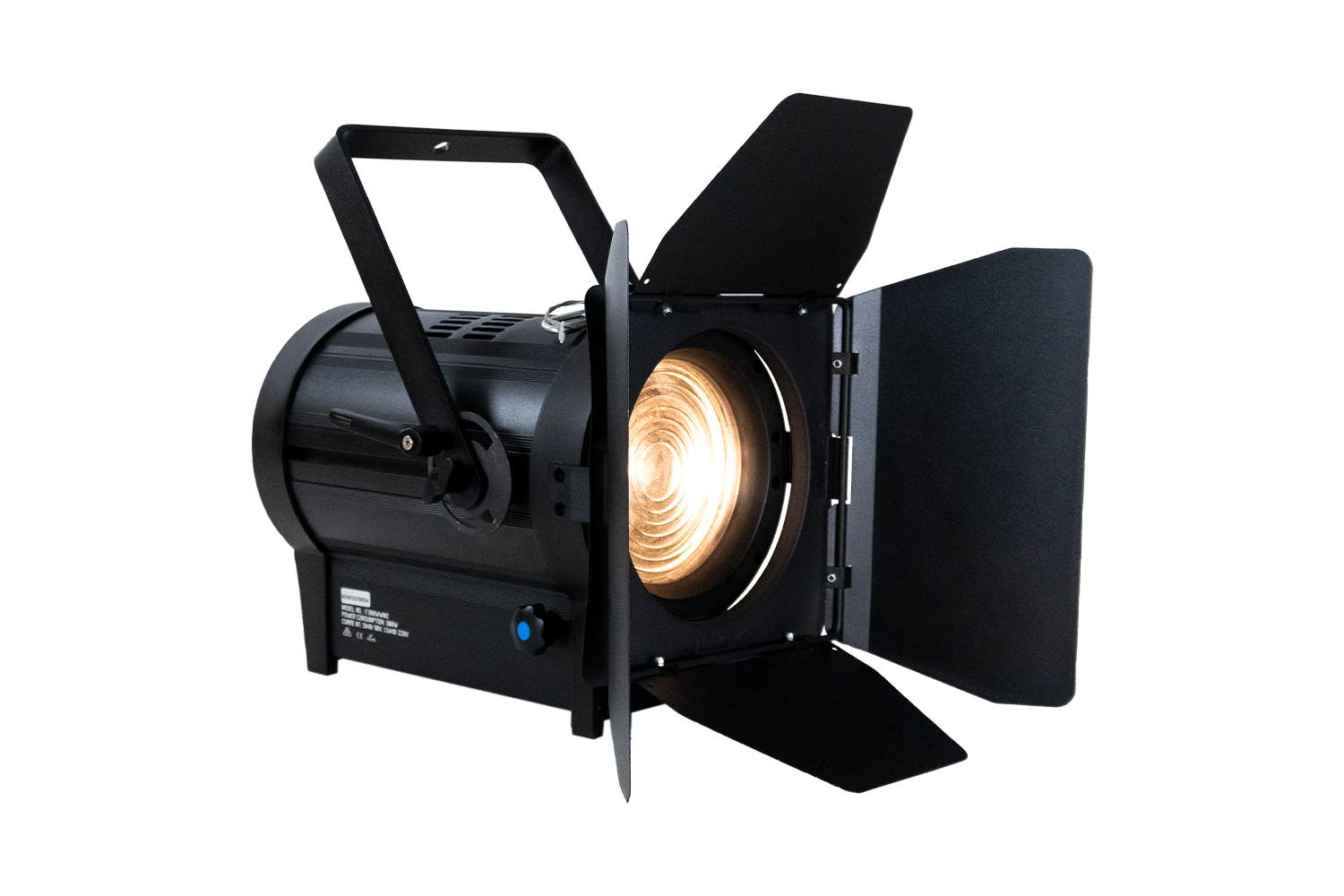

F200VMZ - 200W Variable Colour Temperature Fresnel with Manual Zoom

This product is discontinued.

See superseding model: OPERAC200VWF

Photometrics

• Light Source: 1 x 500W 3,200K and 1 x 500W 5,600K COB LED
• CRI: 95+
• Beam Angle: 16°~25°
• Field Angle: 30°~65°

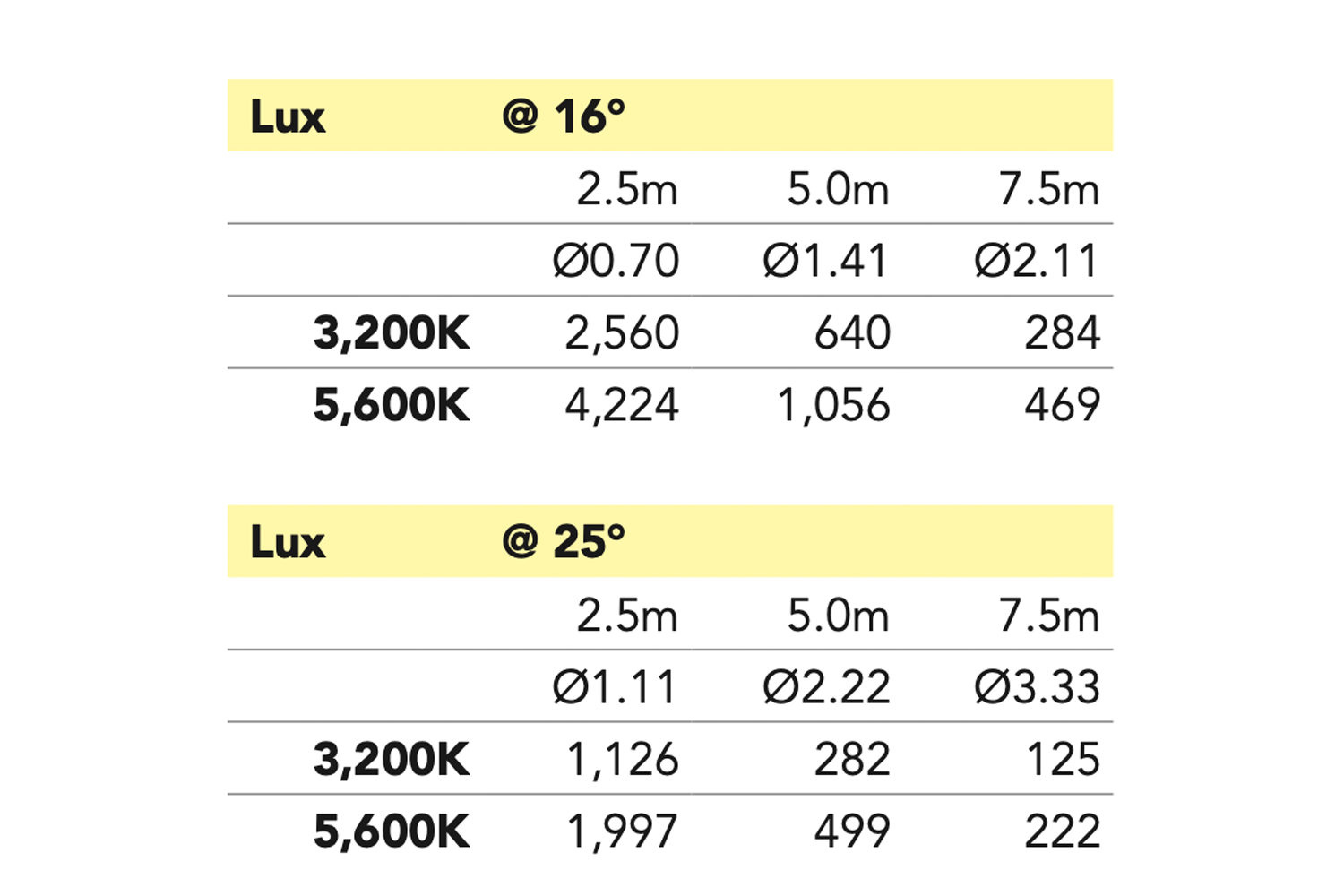

• Output: 3,200K: 2,560 lux @ 2.5m @ 12°, 5,600K: 4,224 lux @ 2.5 m @ 12°
• Lens: 150mm Fresnel
• PWM: 8,000Hz
• LED Lifespan: 50,000 hours

Effects

• Dimming: 0~100%, 16-bit
• Dimming Curves: 3
• Strobe: 1~25Hz
• Zoom: Manual, 16°~25°

Power

• Power Supply: 100~240V AC, 50/60Hz, 200W
• Power Connection: Neutrik® PowerCON in/out

Control

• Operational Modes: DMX, Manual & Master / Slave
• Display: 4-button LCD control panel
• Control Protocol: DMX512
• DMX Channels: 2 / 3

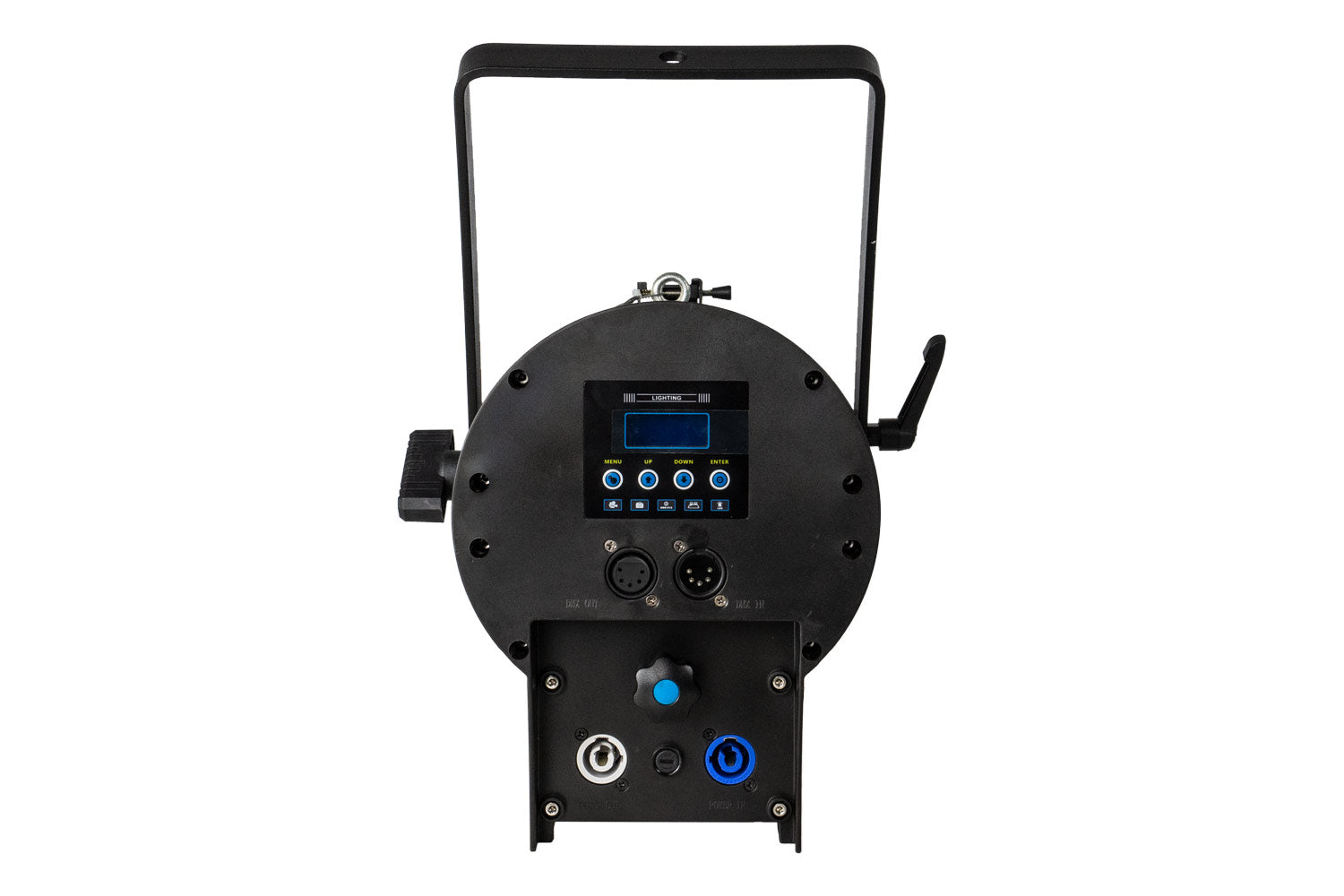

• Control Interface: 5-pin XLR

Housing

• Housing Materials: Aluminium and ABS, matte black finish
• Cooling: Sensor Thermostat Controlled Variable Speed Fan
• Net Weight: 5kg
• IP Rating: IP20


Accessories

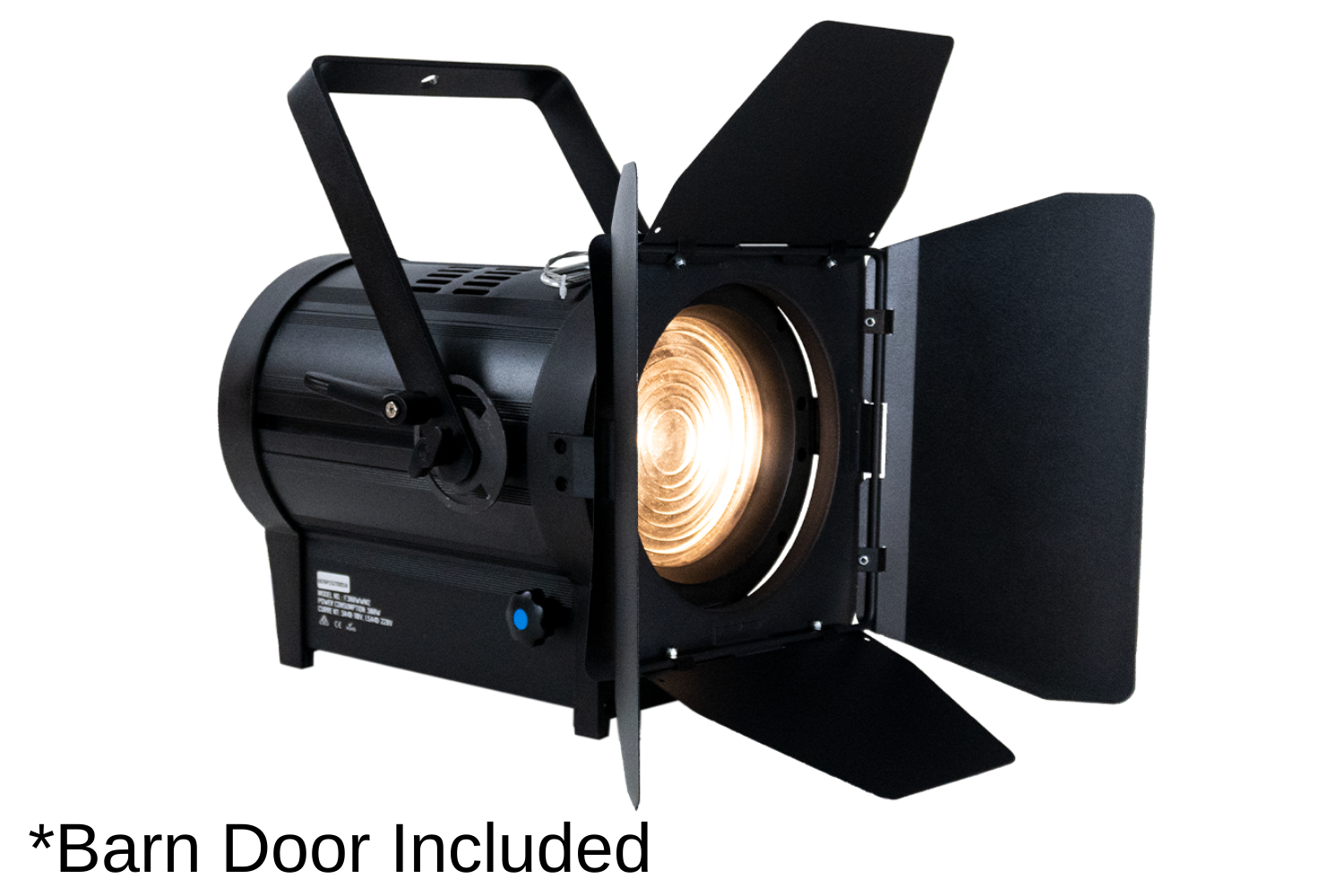

• Barn Door: Included

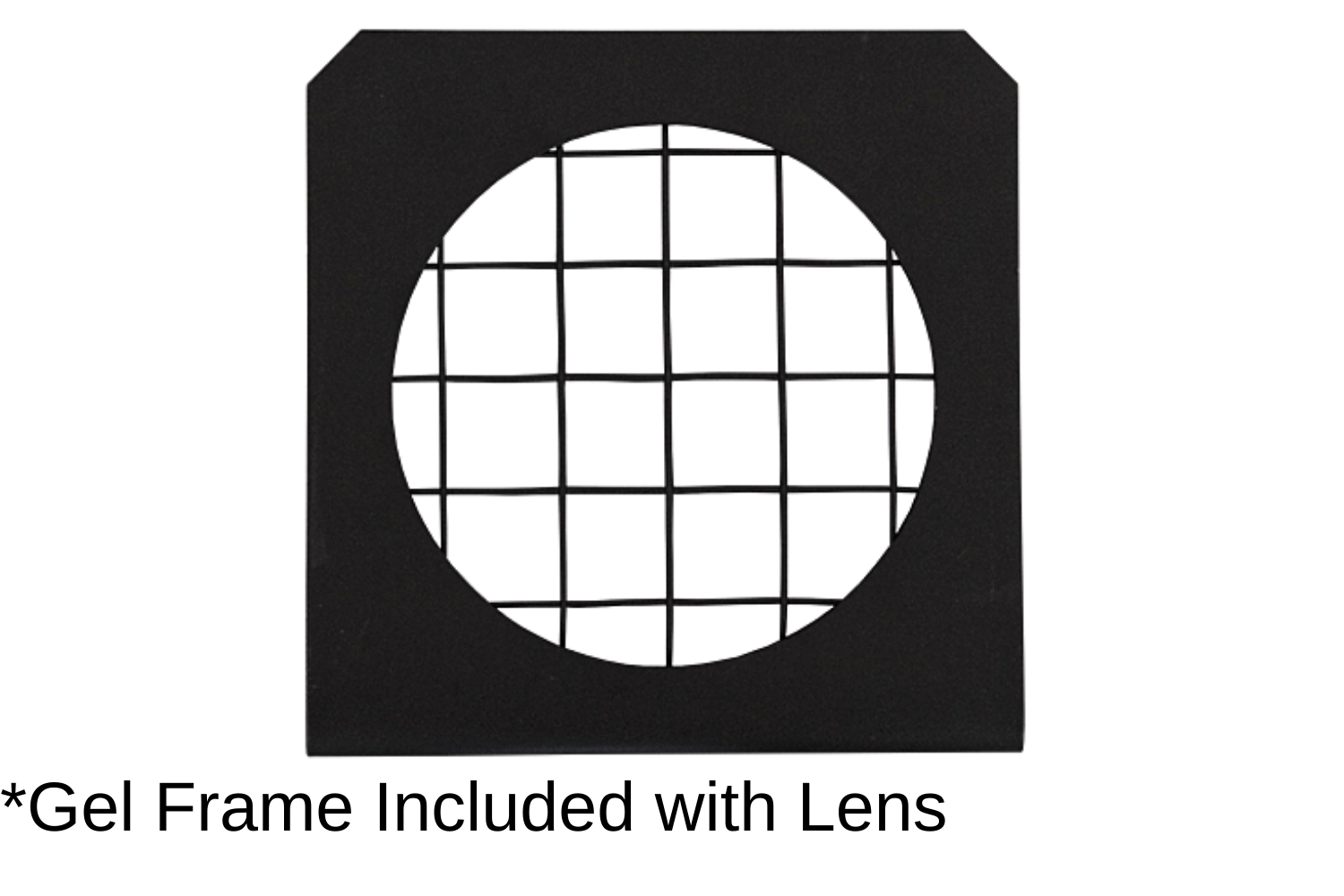

• Gel Frame: Included

Product Specification Sheet Download

Download User Manual



Warranty: 3 years
