The EZ-PZ portable PA system expands our EZ Series of battery-powered sound solutions, delivering bigger output, deeper bass and greater control for mobile performers, presenters and events.

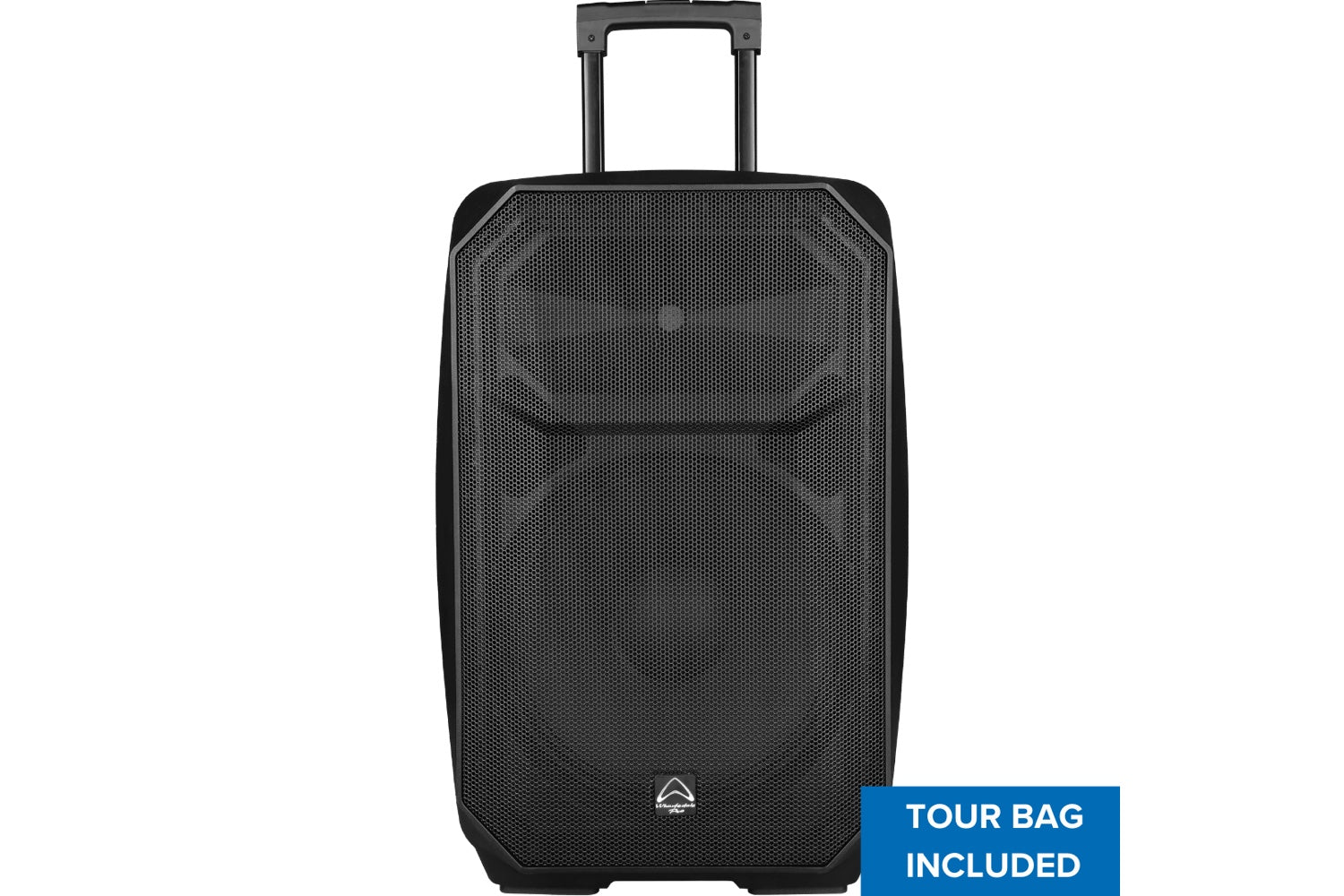

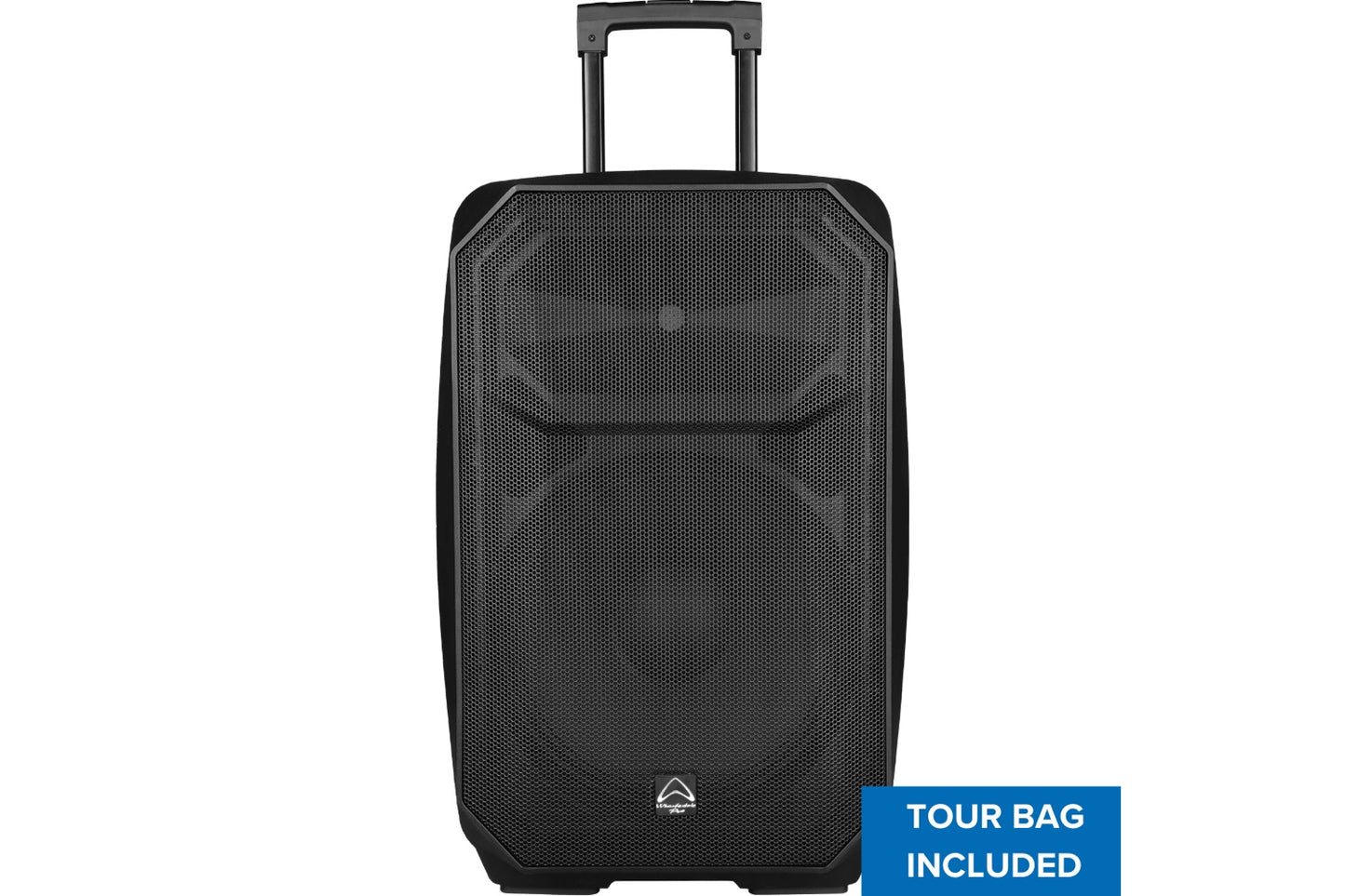

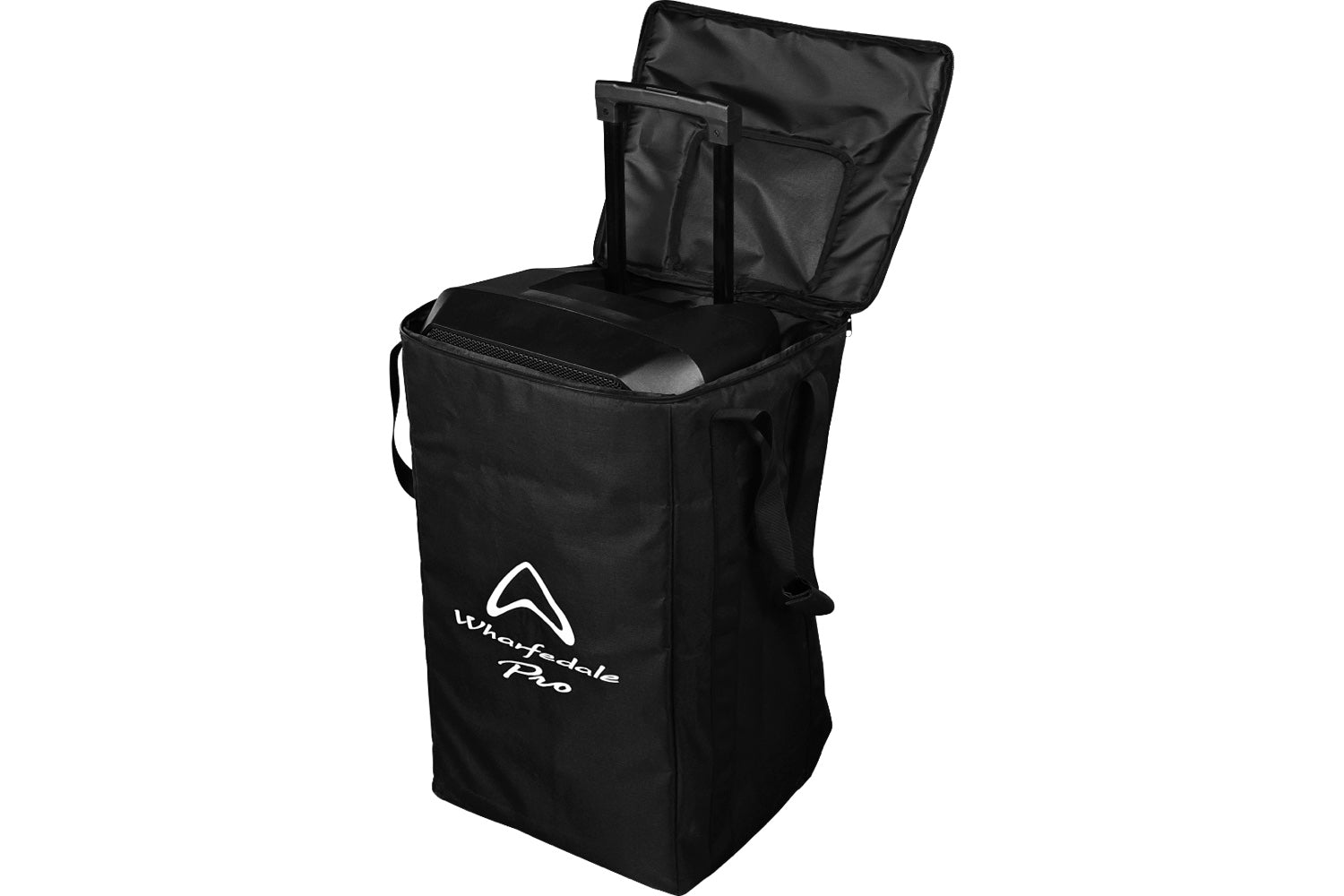

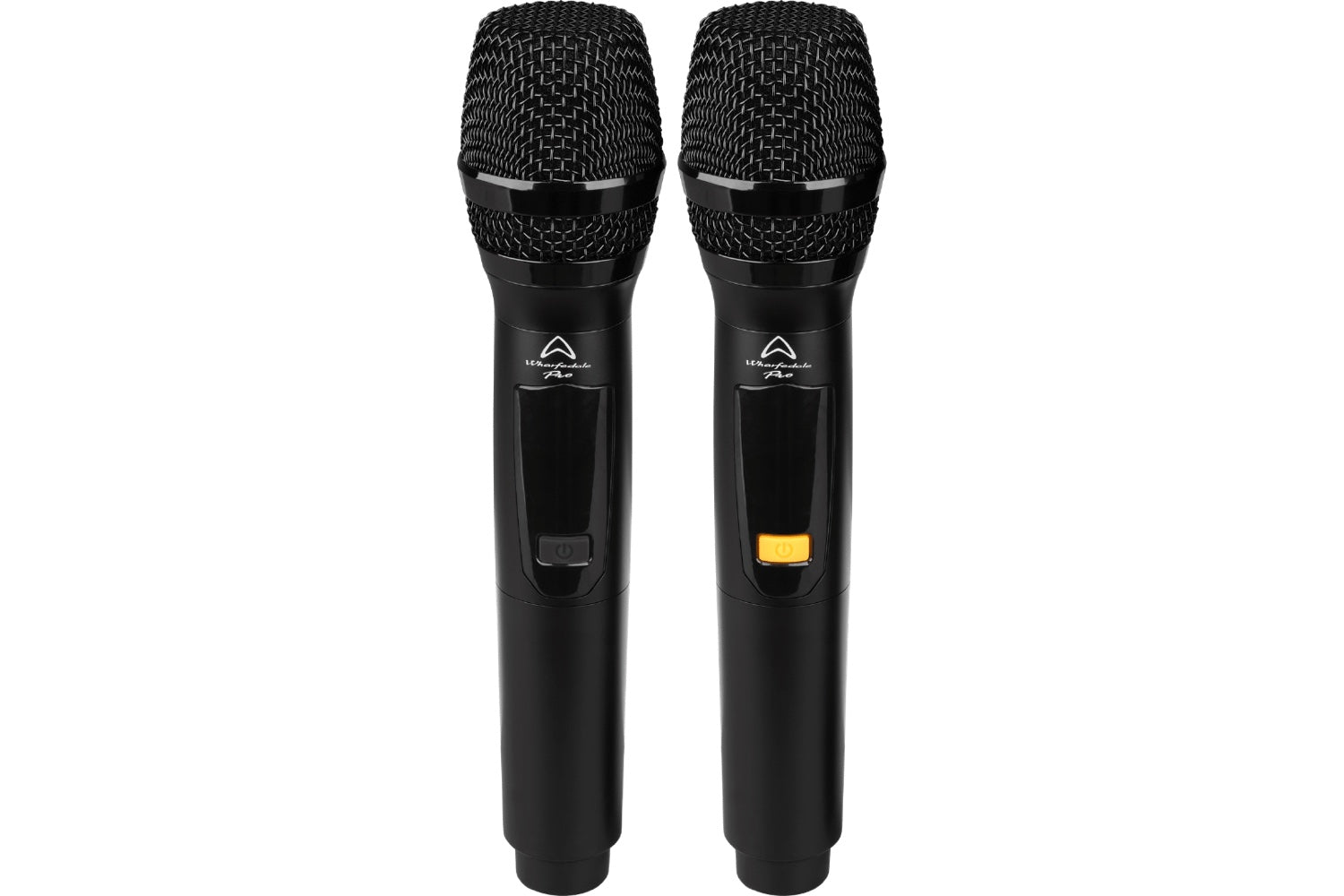

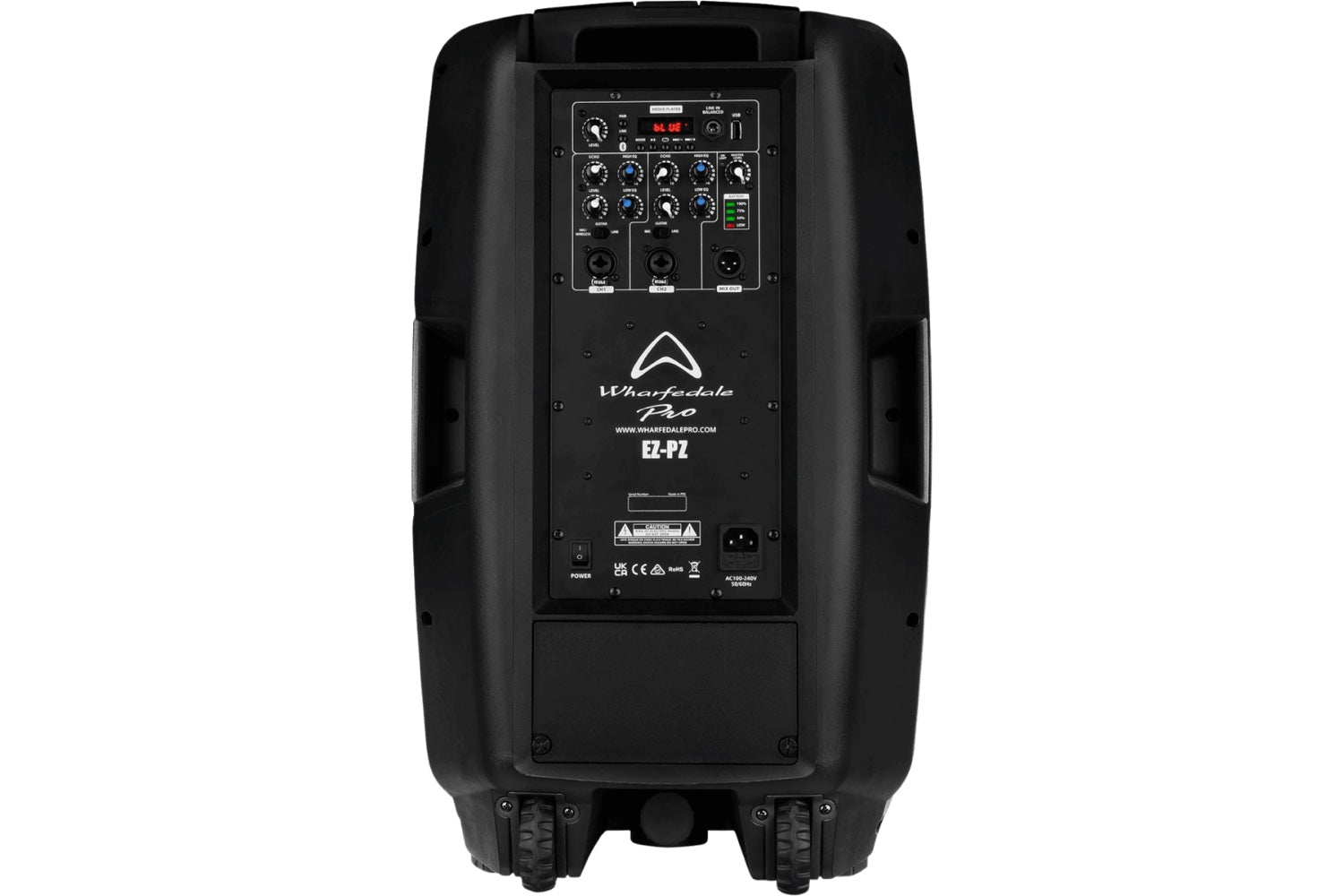

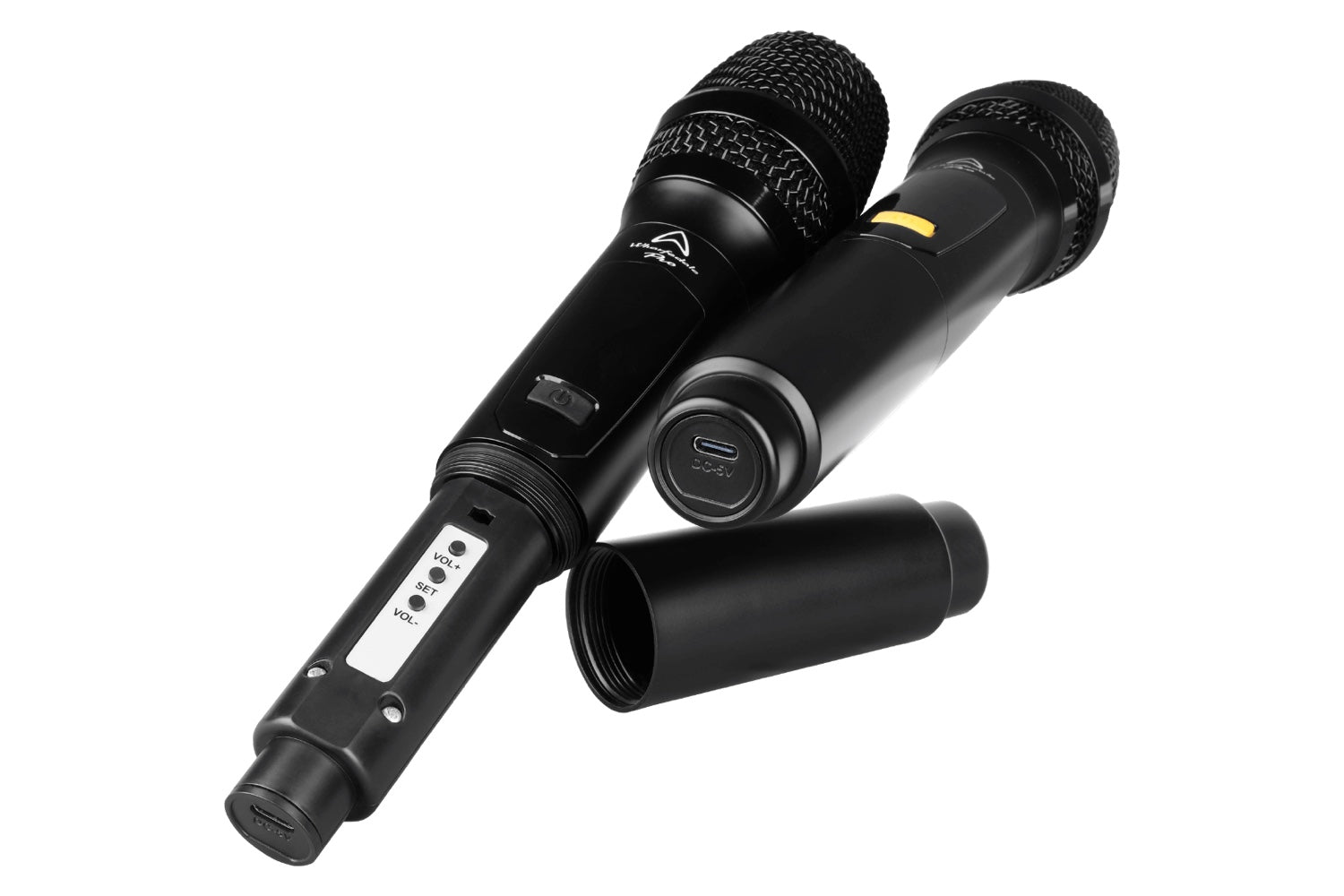

Featuring a powerful 14-inch LF driver, EZ-PZ stands apart in its class with internal DSP using FIR processing, providing clarity and phase accuracy rarely found in portable systems. Supplied with two USB-chargeable wireless microphones and padded tour bag for extra protection, it is ready straight out of the box. Rear-panel tactile controls offer fast, confident operation, while the built-in media player supports Bluetooth and USB playback.
With inputs for wireless and wired microphones, guitar and line sources, EZ-PZ adapts easily to almost any application, making it a true all-in-one solution.
Specification
Value
Active or Passive
Active
System Type
Full-Range
Configuration
2-way
System Continuous Power
100 W
System Peak Power
200 W
Max SPL @ 1m
118 dB
Freq Response (+/-3 dB)
48 Hz – 18 kHz
Bluetooth
Yes
IP Certification
None
Driver Brand
Wharfedale Pro
LF Driver Size
14"
LF Voice Coil Size
2"
HF Driver Type
Compression Driver
HF Voice Coil Size
1.75"
HF Diaphragm Material
Titanium
HF Exit Size
1"
Preset Library
Yes
Input Connector
2 x XLR / 1/4” combi jack, 1/4” balanced
Waveguide Type
Constant Directivity
Enclosure Material
Black Polypropylene
Finish
Black Paint

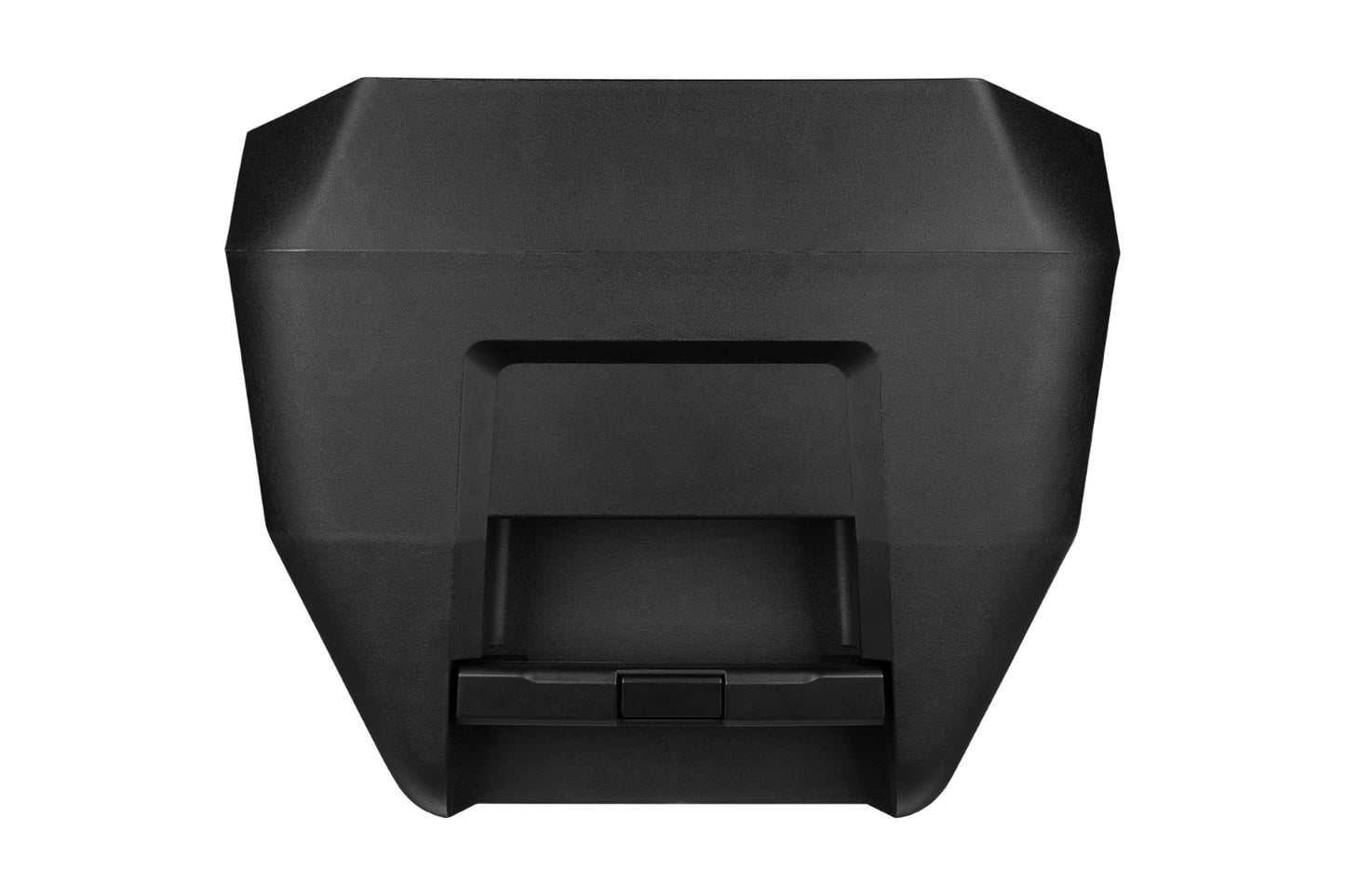

Handles
2
Deployment

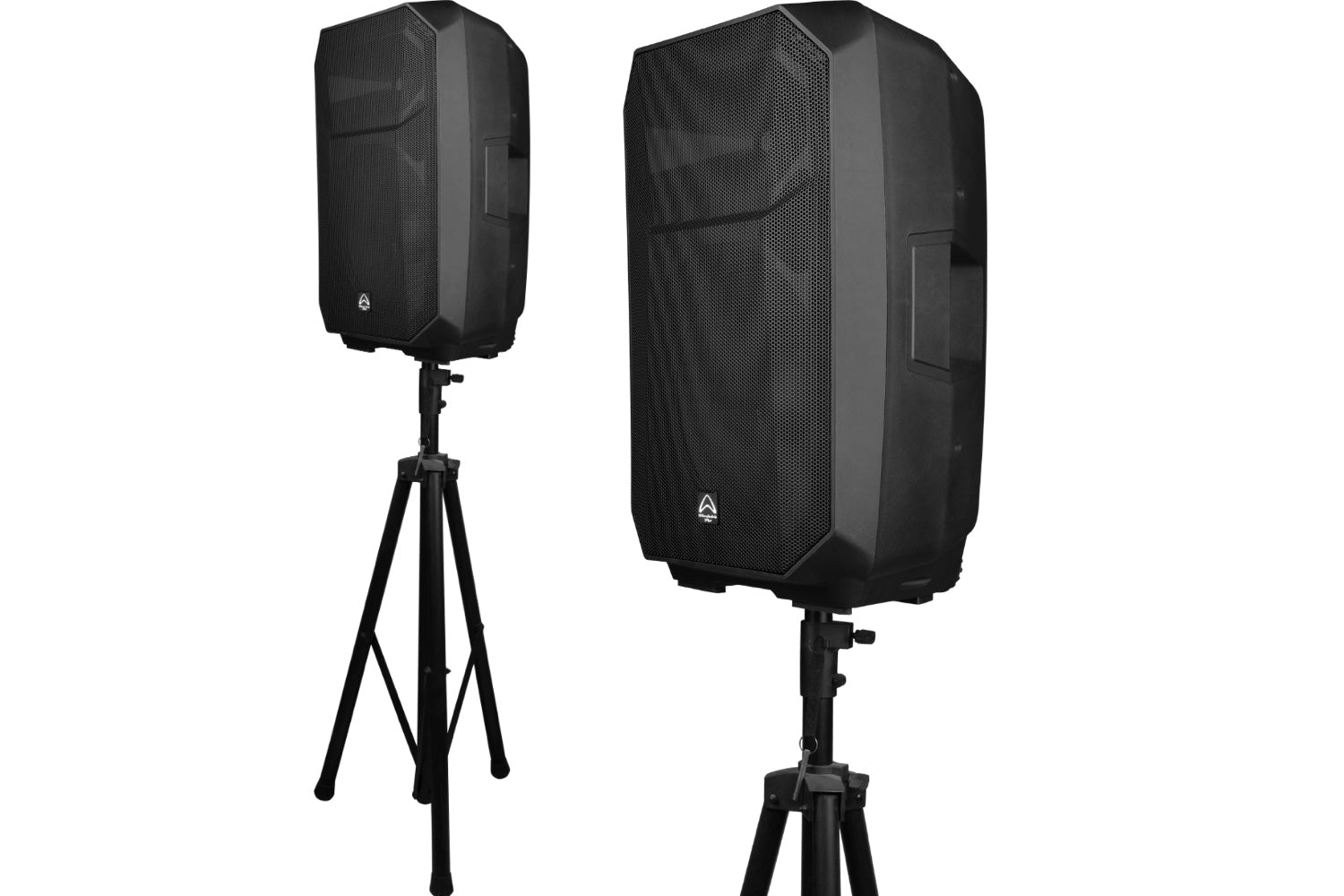

Ground, Pole

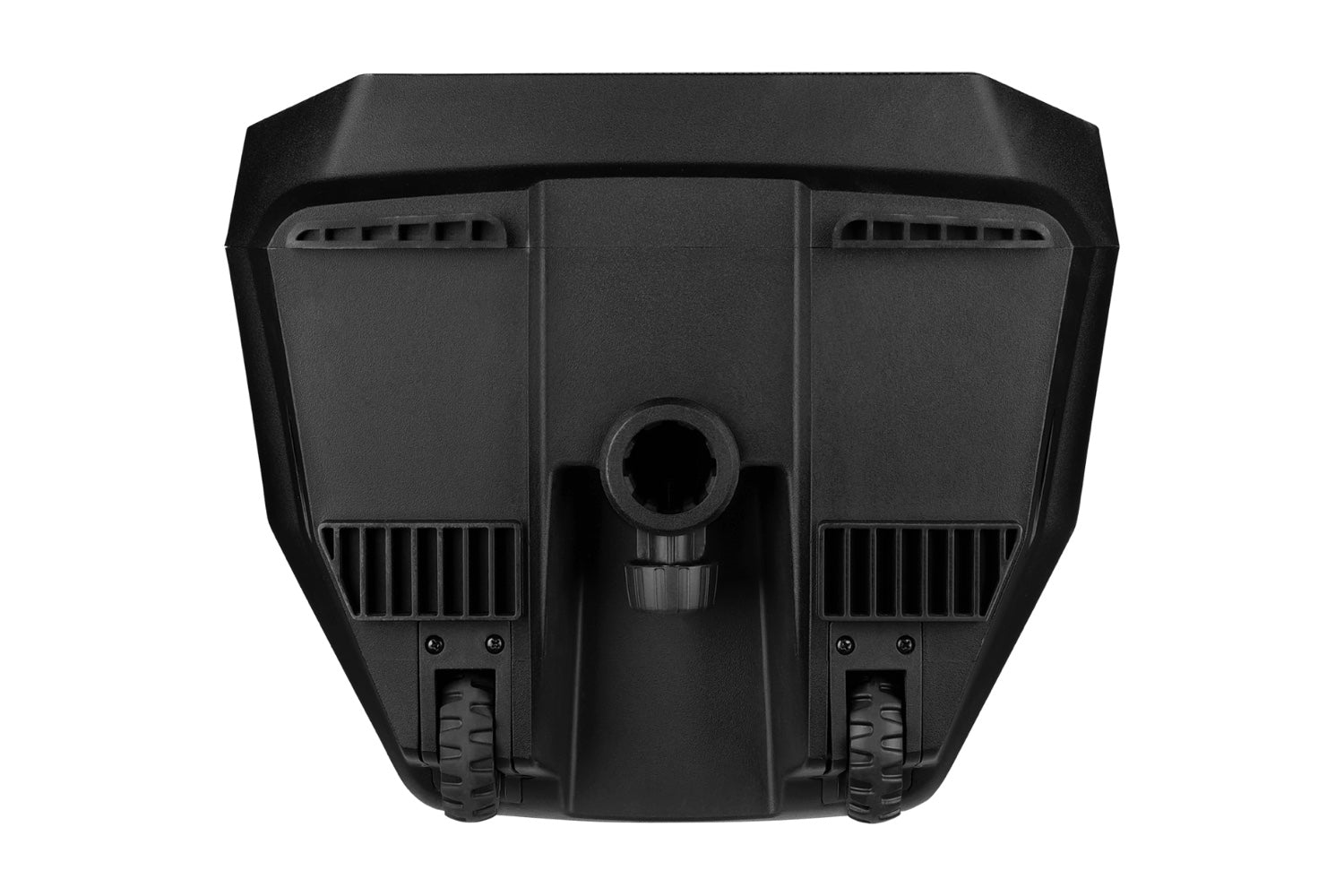

Pole Mount
35 mm
Brackets Included
No
Rigging
no
Nominal Coverage (H x V)
90° x 50°
Amplifier design
Class D
Clip Limiter
No
EQ Type
+/-6 dB Gain for bass and treble
Line output
Pin XLR
Main Power
AC 100 - 240 V~, 50 / 60 Hz
Included Accessory
Quick Start Guide, AC Cable, 2 x Wireless Mics, Tour Bag
