EZ-8A: THE NEXT GENERATION

Where will you go with yours?

• 8″ Coaxial 2-way Design: Studio-quality clarity in a high-output format

• Onboard FIR DSP Processing: Professional phase-accurate sound

• TWS Bluetooth connectivity: Wireless stereo pairing between two units

• USB-C charging support: Charge from modern power banks and adapters

• 6-Hour Lithium Battery: Lightweight, long-lasting performance

• 200 Watts Peak Power: High headroom and low-frequency impact

• Unique Cabinet Shape: Use as a vertical PA, floor monitor, or pole-mount

• Tour Bag Included: Professional protection for travel



MORE POWER, MORE IMPACT

The EZ-8A takes the portability of the EZ-Series and adds a larger 8" Coaxial driver. This provides increased low-frequency impact and a higher 115 dB SPL, making it the perfect choice for outdoor performances, larger presentations, or any environment where you need extra "throw" without sacrificing portability.



FIR DSP: HI-FI FOR THE ROAD

This isn't just regular 'DSP'. The EZ-8A features advanced FIR (Finite Impulse Response) filters. While standard portable speakers can suffer from phase distortion, our FIR processing ensures linear phase and timing. You get vocal clarity and instrument detail rarely found in battery-powered systems.



TWS & MODERN POWERING

Ditch the messy signal cables. With True Wireless Stereo (TWS), you can pair two EZ-8A units via Bluetooth for a massive wireless soundstage. For charging, we’ve moved to the modern standard: USB-C support. No more carrying proprietary heavy power bricks—charge your speaker with the same cables you use for your laptop.

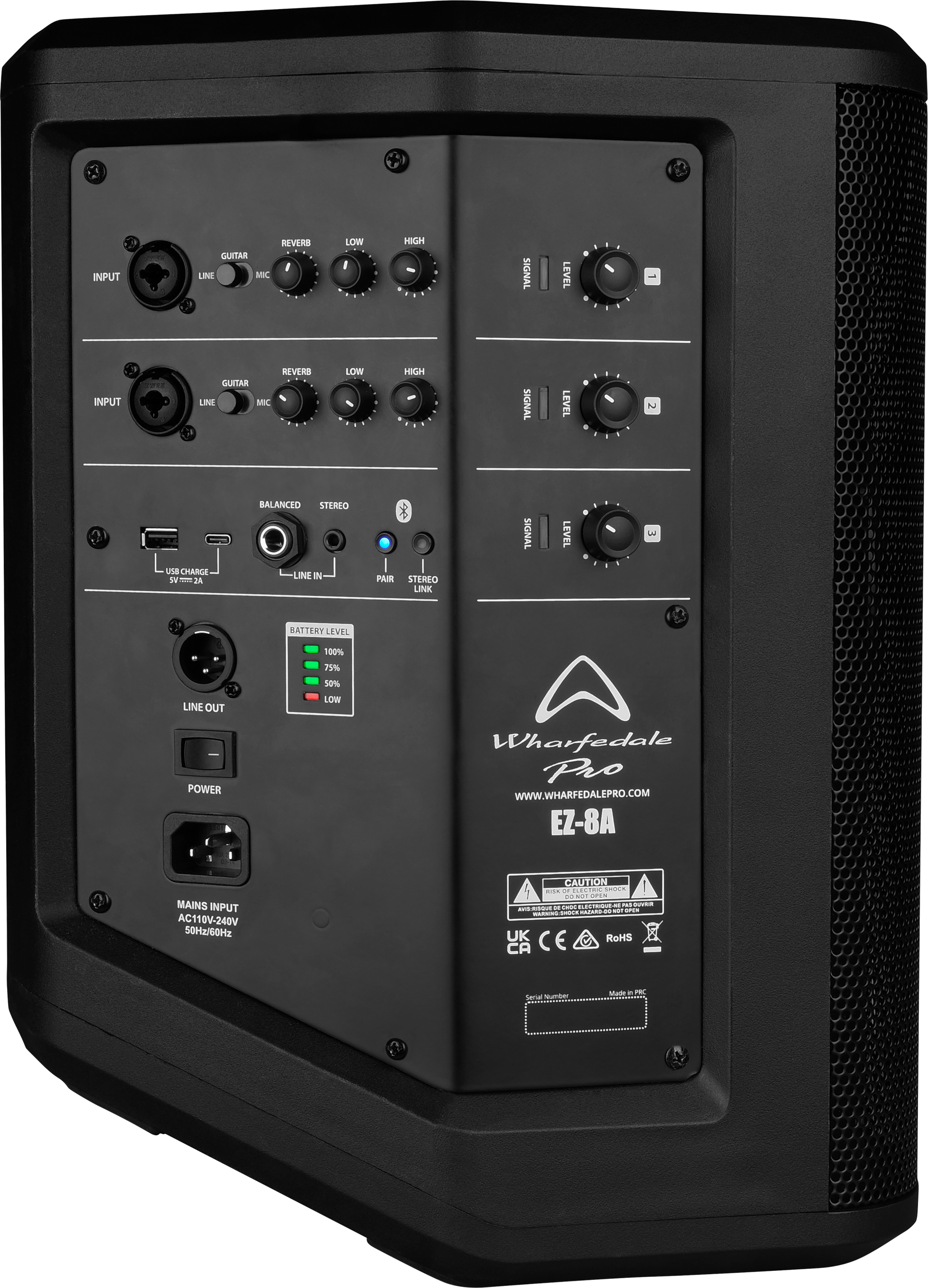

AROUND THE BACK

The rear panel is designed for the working professional. It features intuitive controls for input levels, Bluetooth pairing, and dedicated HF/LF level adjustments to tune the speaker to your room. With professional XLR / 1/4” combo jacks and 3.5 mm stereo inputs, the EZ-8A is ready to handle everything from a single microphone to a full DJ setup.



Model Name	EZ-8A
System Type	Active Portable PA with FIR DSP
Frequency Range (+/-3 dB)	60 Hz – 18 kHz
Nominal Impedance	4 Ω
LF Transducer size	8" Coaxial
LF Transducer voice coil	38.6 mm / 1.52"
HF Transducer	1" Coaxial Driver
Max SPL	115 dB
Mic/Line Input	2 x XLR / 1/4” Combo Jack
Aux Input	3.5 mm Stereo
Line Output	Balanced XLR
DSP Processing	Integrated with FIR Filters
Bluetooth	Yes (with TWS Stereo Link)
Power (Continuous)	100 W
Power (Peak)	200 W
Battery power	Up to 6 hours (Lithium Battery)
Charging	USB-C Support
Dimensions	403 x 305 x 320 mm
Net weight	7.9 kg
Gross weight	9.6 kg
Included Accessories	Padded Tour Bag, AC Cable





EZ-8A User Guide
