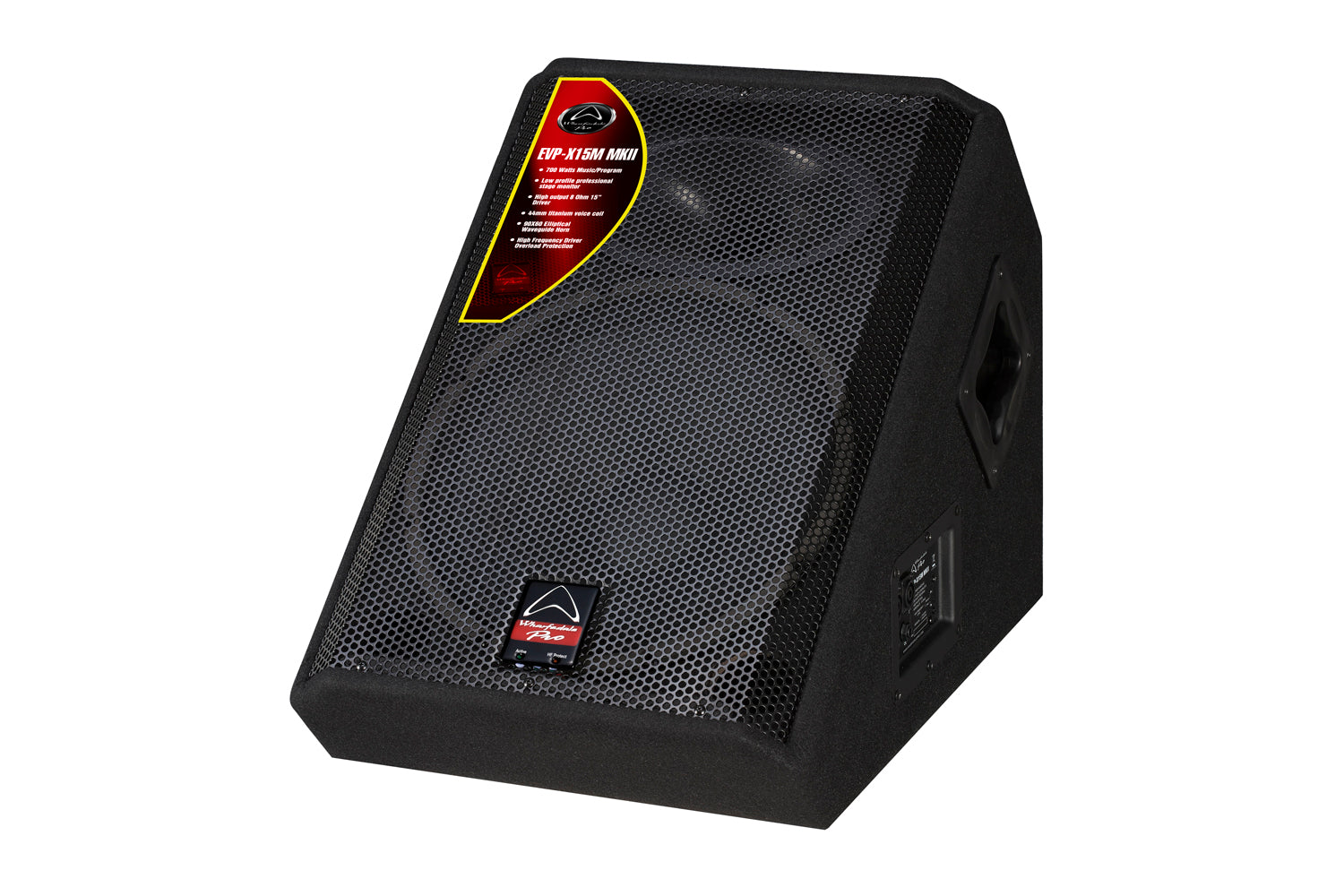

Wharfedale Pro EVP-X15MII Passive Floor Monitor

Wharfedale Pro EVP-X15MII Passive Floor Monitor

$269.00
$269.00
Sale Contact Us for Availability
  • 15″ floor monitor
  • 1.75″ voice coil HF driver
  • 15″ LF driver with 2.5″ voice coil
  • 350 watts AES (RMS)
  • 700 watts Programme
  • 1400 watts Peak
  • 130 dB Max SPL @ 1 meter

    ELIPTICAL WAVEGUIDES

    Full range models feature a 90° x 60° Elliptical Waveguide

    In real-world terms this means that the higher frequencies can be heard with definition at 90° in the horizontal plane, and 60° in the vertical.

    All full range models in the EVP-X MKII series use this same elliptical waveguide design which makes for controllable coverage when using multiple EVO-X series loudspeakers.

    TOUGH CARPET

    Each EVP-X MKII PA speaker and subwoofer is protected by a durable carpet covering and steel grille.

    The MKII version features a 4-way carry handle and a dual angle pole mount making it both portable and versatile for varying installation applications, ensuring the HF sound is directed straight at your audience.



     Specifications:

    Model Name EVP-X15M MKII
    System Type Passive
    Configuration Two-way Monitor
    Frequency Response (+/-3 dB) 50 Hz – 20 KHz
    Frequency Range (-10 dB) 45 Hz – 20 KHz
    Sensitivity (2.83 v / 1 m) 98 dB
    Calculated Maximum SPL @1 m 130 dB
    System Rated Impedance 8 Ω
    Low Frequency Transducer
    Size 381 mm / 15″
    Voice Coil Size 64.26 mm / 2.5″
    Rated Impedance 8 Ω
    LF Power (re:AES2-2012) 350 w
    High Frequency Transducer
    HF Driver Type Compression driver
    Voice Coil Size 44.5 mm / 1.75″
    Exit Size 25 mm / 1″
    Diaphragm Material Titanium
    Rated Impedance 8 Ω
    HF Power (re:AES2-2012) 40 w
    Nominal Coverage (H x V) 90° x 60°
    Power
    System Continuous Power 350 w
    System Programme Power 700 w
    System Peak Power 1400 w
    Crossover frequency 2.3 KHz
    Input Connector 2 x NL4 (speakON Compatible)
    + 2 x 1/4” Jacks
    Hardware
    Pole Mount
    Handles 2 on Sides
    Enclosure
    Enclosure Material Particle Board
    Finish Black Carpet
    Grille Material & Finish 1.2 mm Steel
    Dimensions – Unpacked
    Height 645 mm / 25.39″
    Width Front 445 mm / 17.52″
    Width Rear 445 mm / 17.52″
    Depth 473.5 mm / 18.64″
    Dimensions – Packed
    Height 501 mm / 19.72″
    Width Front 691 mm / 27.2″
    Width Rear 691 mm / 27.2″
    Depth 532 mm / 20.94″
    Weight
    Net Weight (kg / lbs) 20.9 kg / 45.98 lbs
    Gross Weight (kg / lbs) 24.4 kg / 53.7 lbs
