Wharfedale Pro

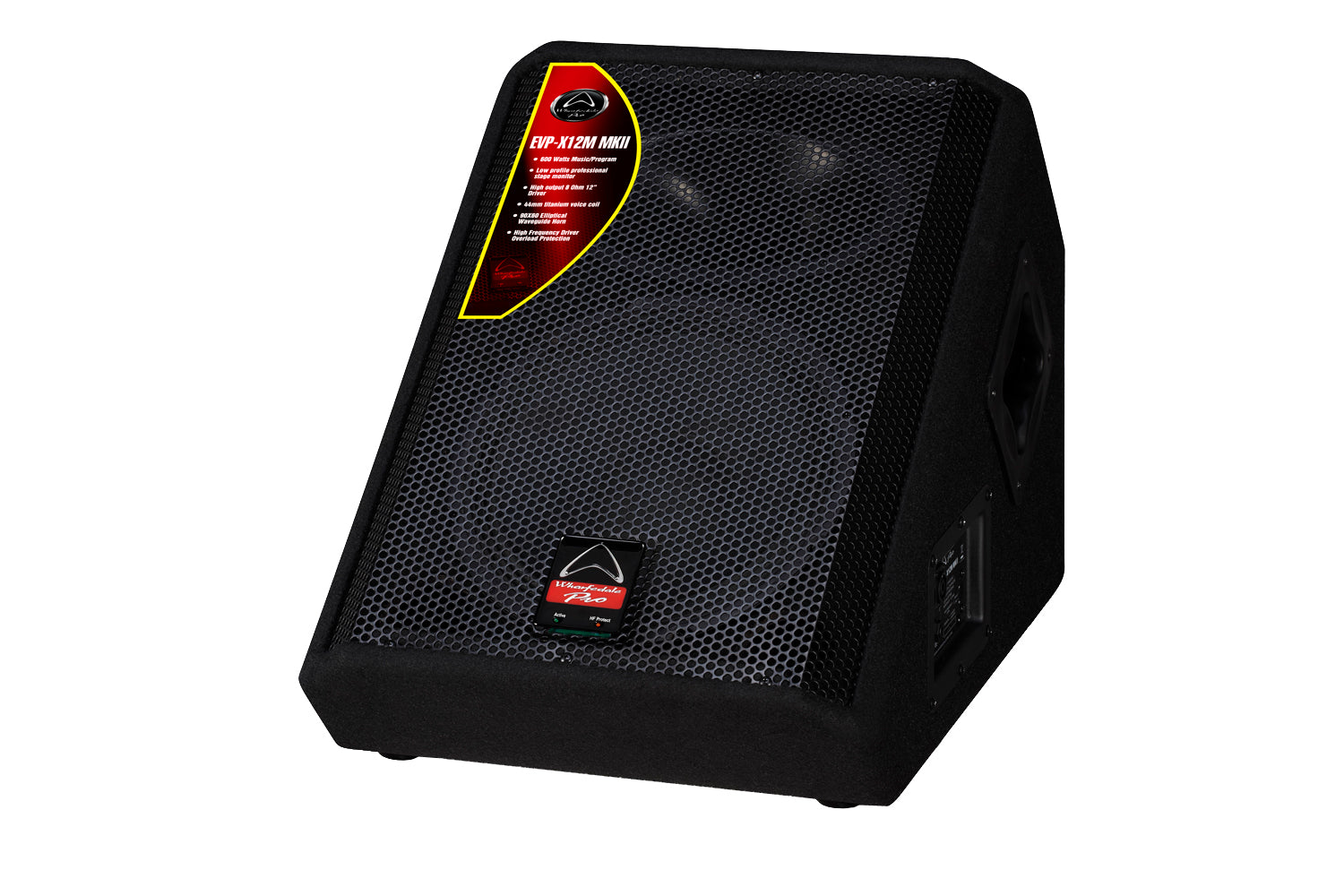

Wharfedale Pro EVP-X12PM Active Floor Monitor
Wharfedale Pro EVP-X12PM Active Floor Monitor
- 90° x 60° Elliptical Wave Guide Horn
- 1.75″ titanium diaphragm HF drivers
- High power handling, high efficiency
- ProTech™ Driver protection
- 5-Band Graphic EQ
- XLR / Jack Combi Input
- XLR Output
- Powered speaker output for driving additional passive monitor
- Durable black carpet covering
KEEP IT TIDY
EVP-XPM active floor monitors have been specifically designed to give maximum versatility on stage.
These are not just active monitors turned sideways but are built specifically as floor monitors. The inclusion internal amplification, a 5-band graphic EQ and well thought out connectors, reduces unnecessary cabling and additional hardware on stage. The balanced input uses a combi XLR/jack connector so it’s easy to always find suitable connection cables.
POWER OUT
EVP-XPM’s also feature a unique powered ‘Speaker output’ jack. This allows for connection to a passive secondary monitor (such as the EVP-X15M MKII) without the need for additional amplification or complex cabling. The speaker output system is designed to drive a passive loudspeaker with 8 ohm impedance.
A LITTLE LOVE AND PROTECTION
Externally the EVP-XPMs are protected by a durable carpet finish.
Internally the Dynamic / AGC protection circuitry provides extreme protection at both the driver and the amplifier stage so the EVP-XPM can be played at maximum levels over long periods without fear of system failure. The Green LED on the front of the EVP-XPM illuminates when the AGC is activated, similar to the orange LED on the front of the amplifier.
Specifications:
Model Name | EVP-X12PM |
---|---|
Configuration | 2-way Bi-Amplified |
High Frequency Transducer | 1.75″ Titanium Compression Driver |
Low Frequency Transducer | 12″ |
Frequency Response | 50 Hz – 20 KHz |
Power (RMS/Peak) | 300 W / 500 W |
EQ | 5-Band |
Enclosure Finish | Black Carpet |
Input | 1 x XLR Jack / Combi |
Output | 1 x XLR, 1 x 6.3 mm Jack (Powered output) |
Protection | Dynamic / AGC protection circuitry |
Dimensions (H x W x D) | 560 mm x 424 mm x 441 mm |
Net Weight | 22.5 kg |
