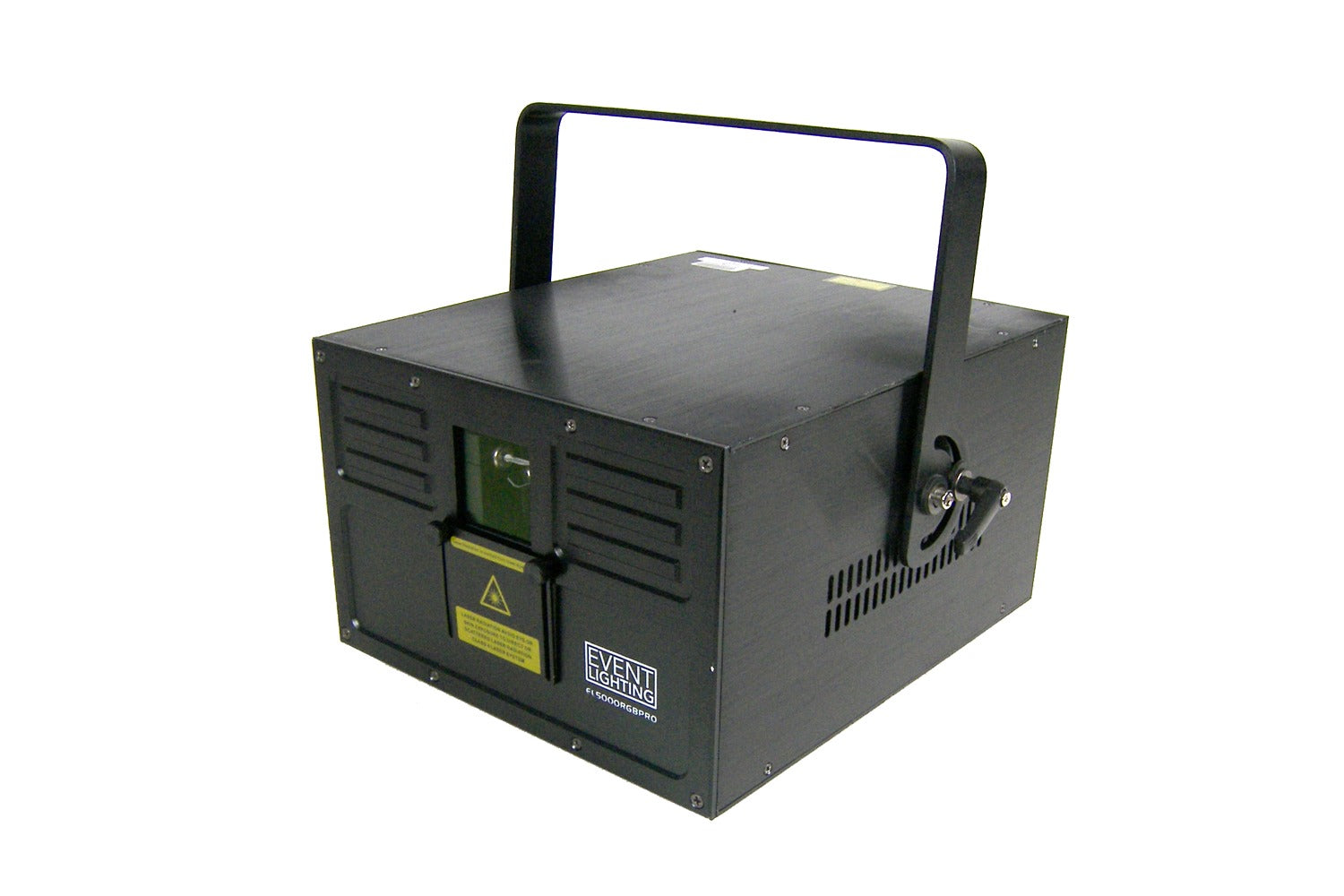

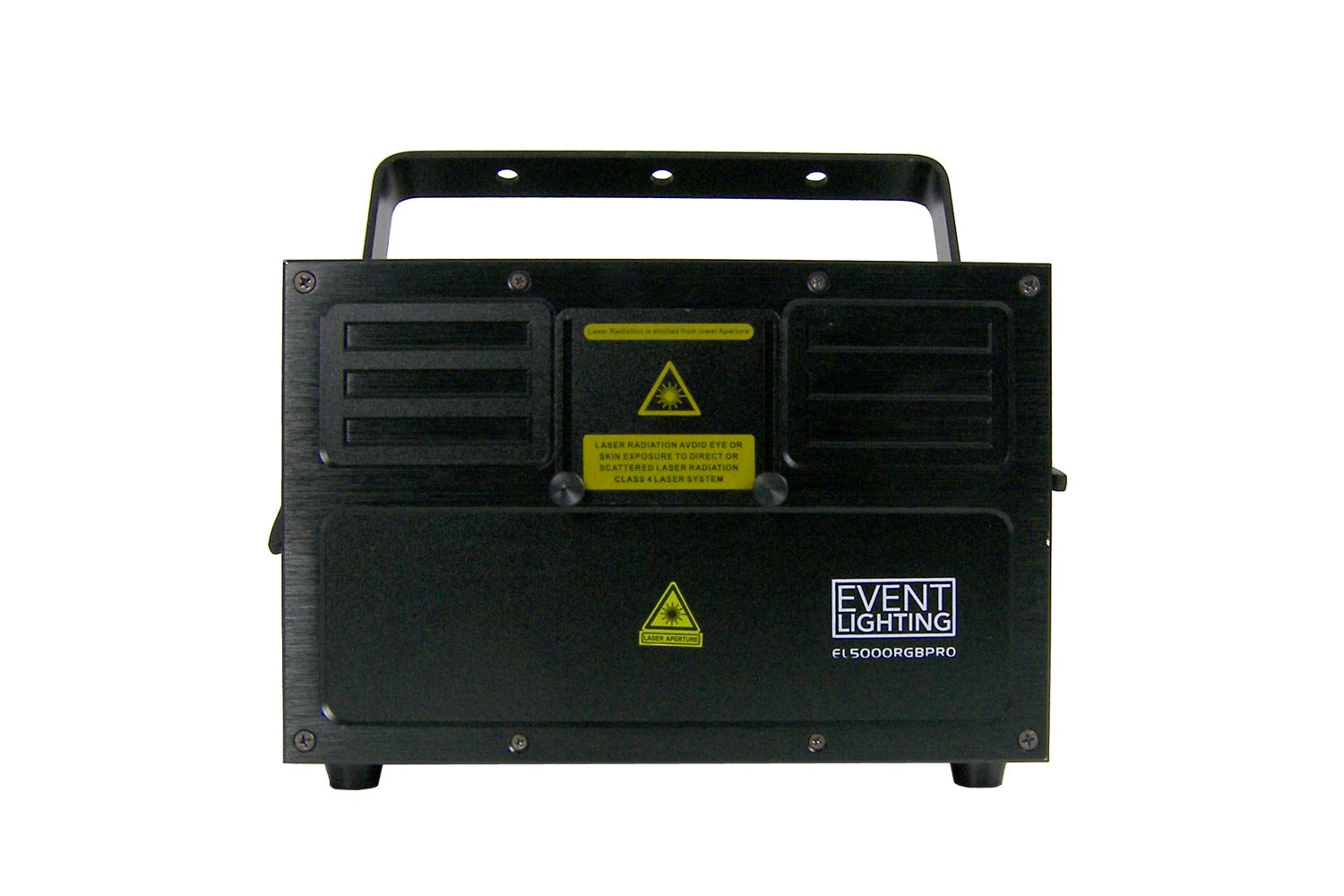

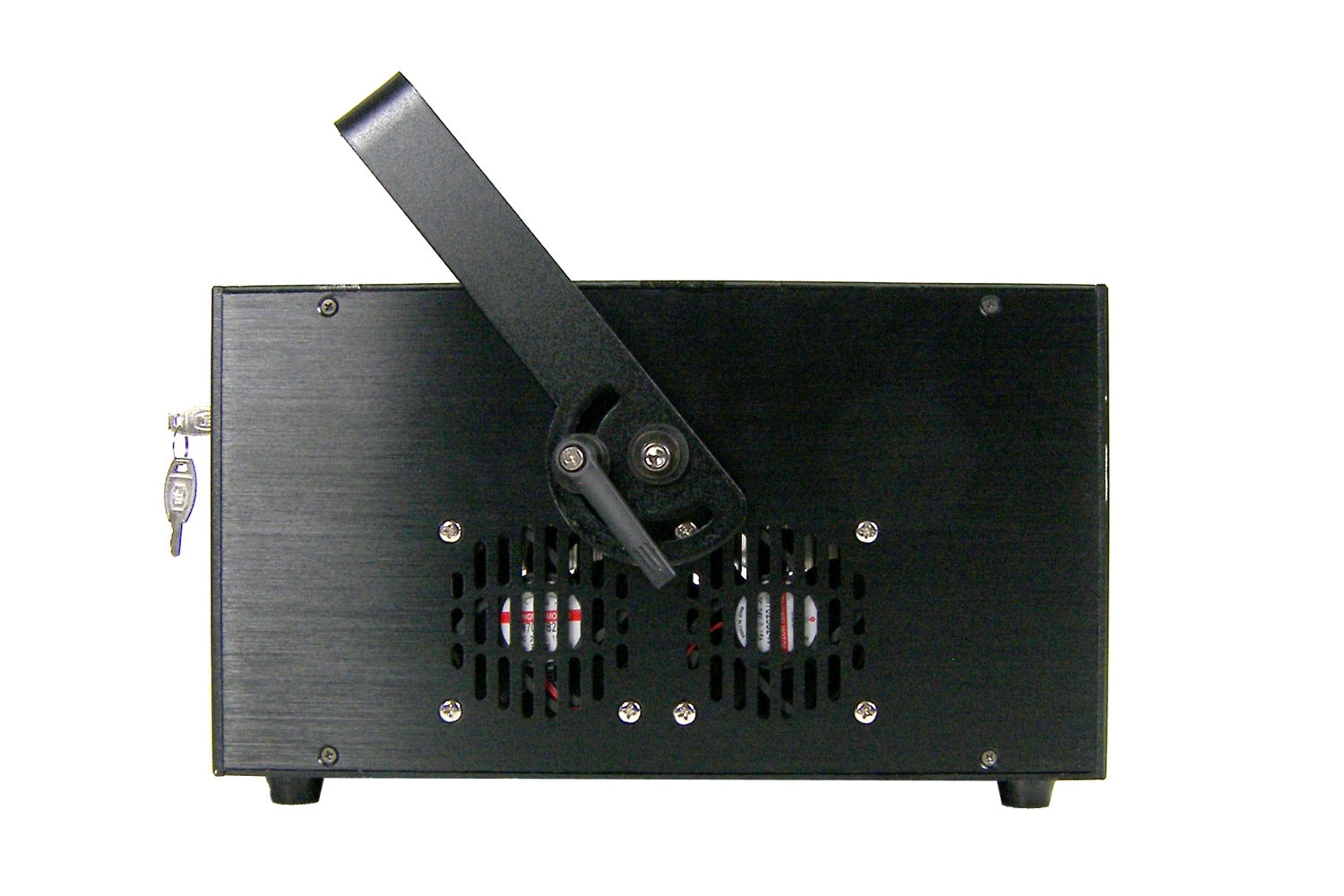

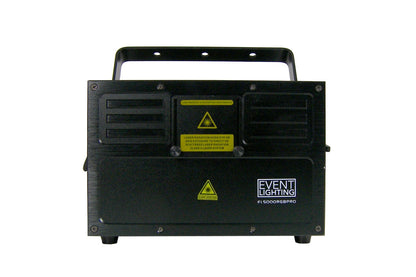

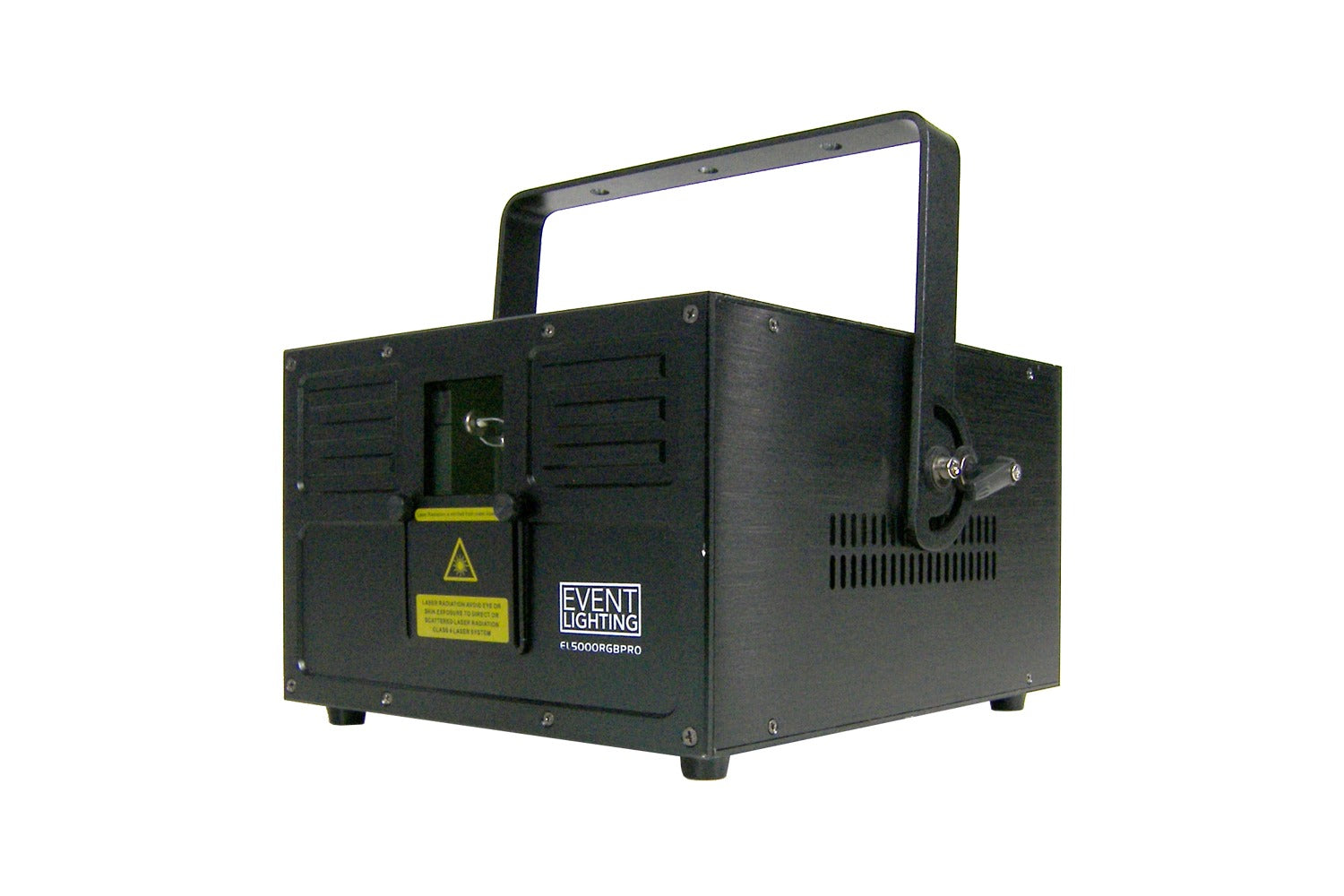

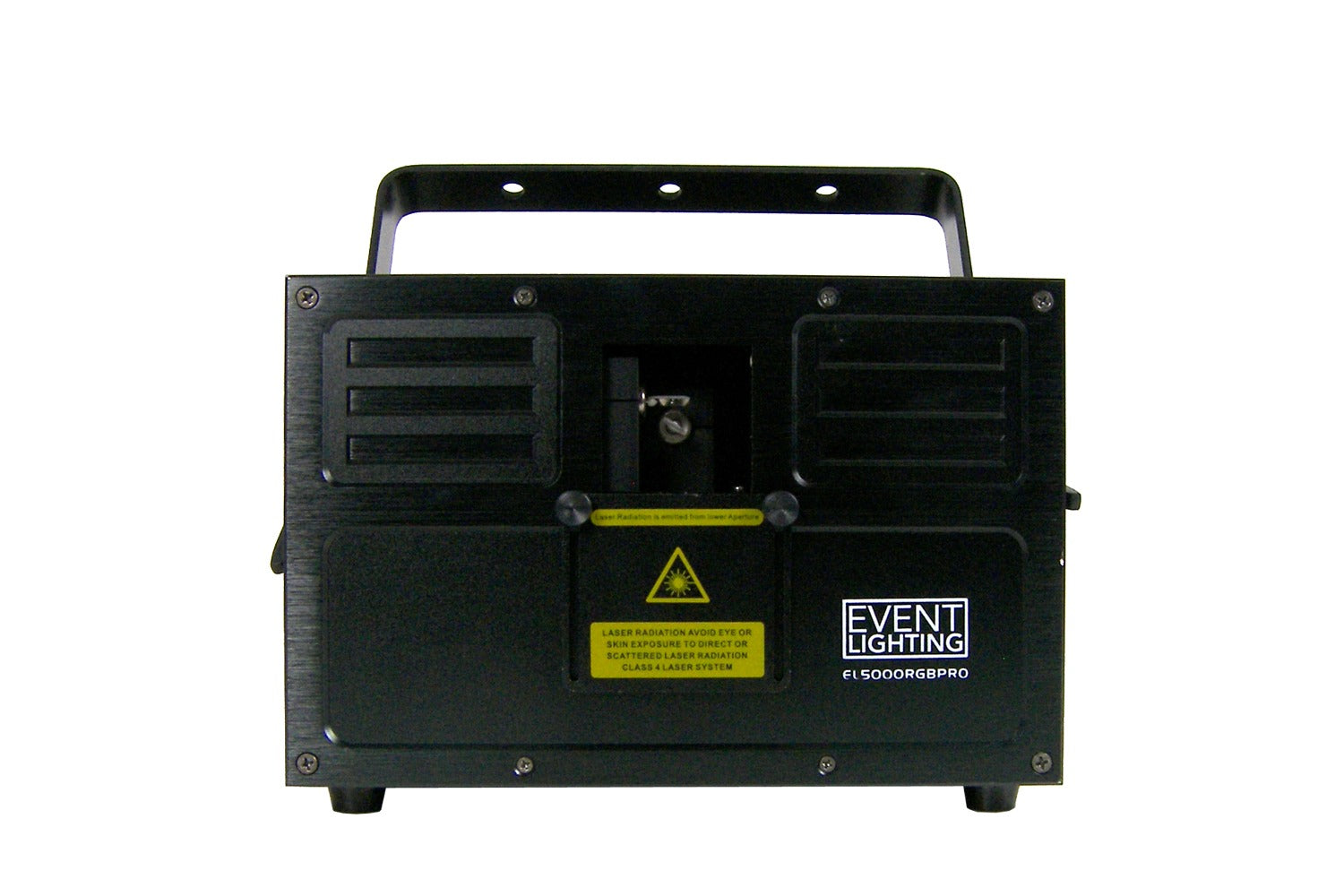

EL5KPRO - 5W RGB Full Colour Animation Laser

Photometrics

• Light Source: 5W RGB semi-conductor integrated laser
• Beam Angle: ±30°
• Scanning System: 30Kpps Scanner
• Wavelength:
  • Red: 638nm
  • Green: 638nm
  • Blue: 450nm
• Pulse duration and repetition/refresh rate: 1-100Hz
• Laser Class: 3B
• Maximum power output of each colour, and total for laser:
  • Red: 1000mW
  • Green: 1000mW
  • Blue: 3000mW
  • Total power for laser: 5000mW

Control

• Control mode: Auto/Sound/DMX512/ILDA/RJ45
• Channels：21CH /32CH /64CH
• Scanning system: 40Kpps Scanner, ±30º
• Modulation: Analog

Power

• Power consumption: 70W
• Input voltage: AC100-240V, 50/60Hz
• Fuse: BGDP ￠5x20mm 250VAC F5A
• Connection: True1 Input

Housing

• Surface temp: Tb=45ºC ( when the environment temp is 30ºC)
• Working temp: 10ºC to -65ºC
• N.W: 8.5Kg
• G.W: 16.5Kg

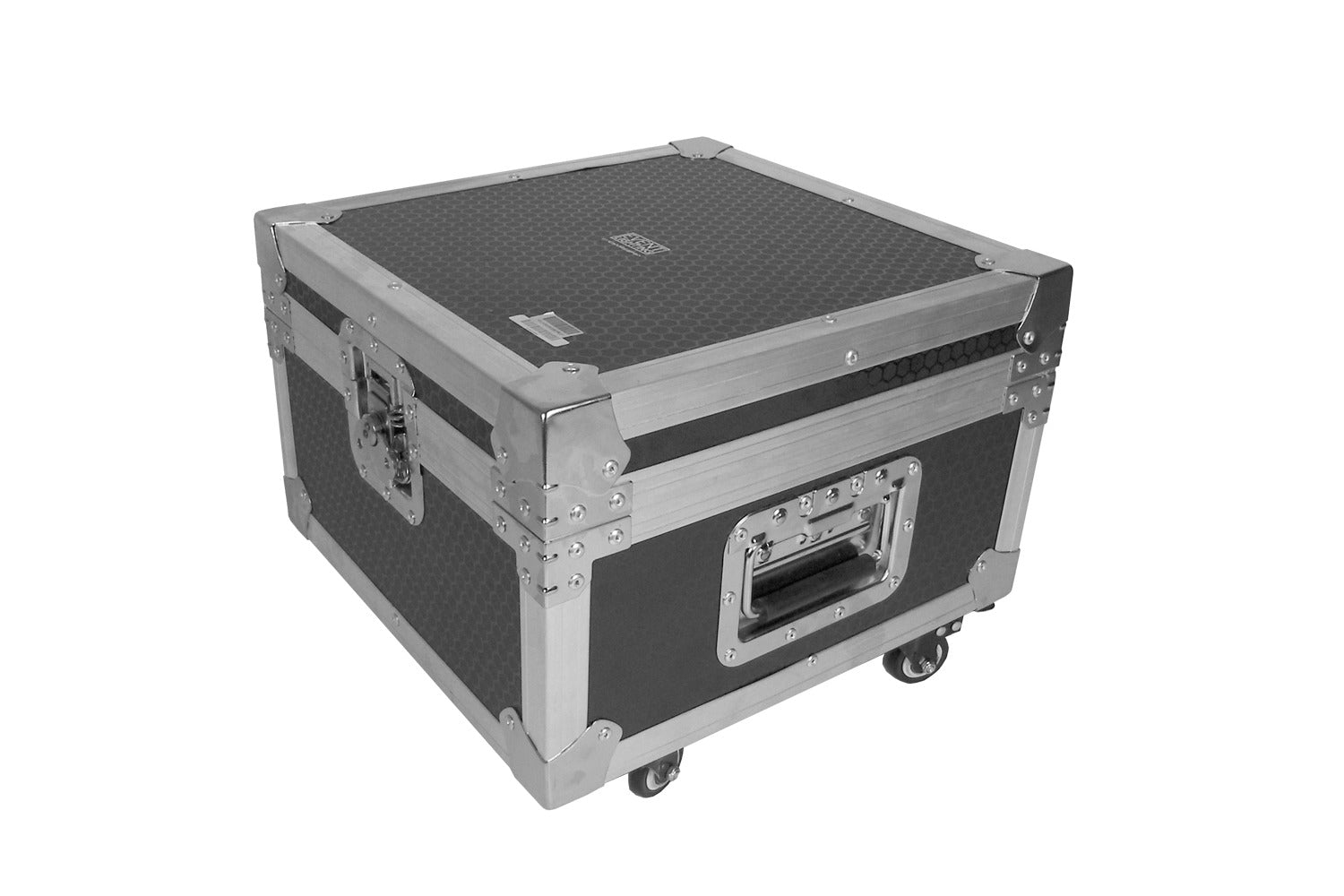

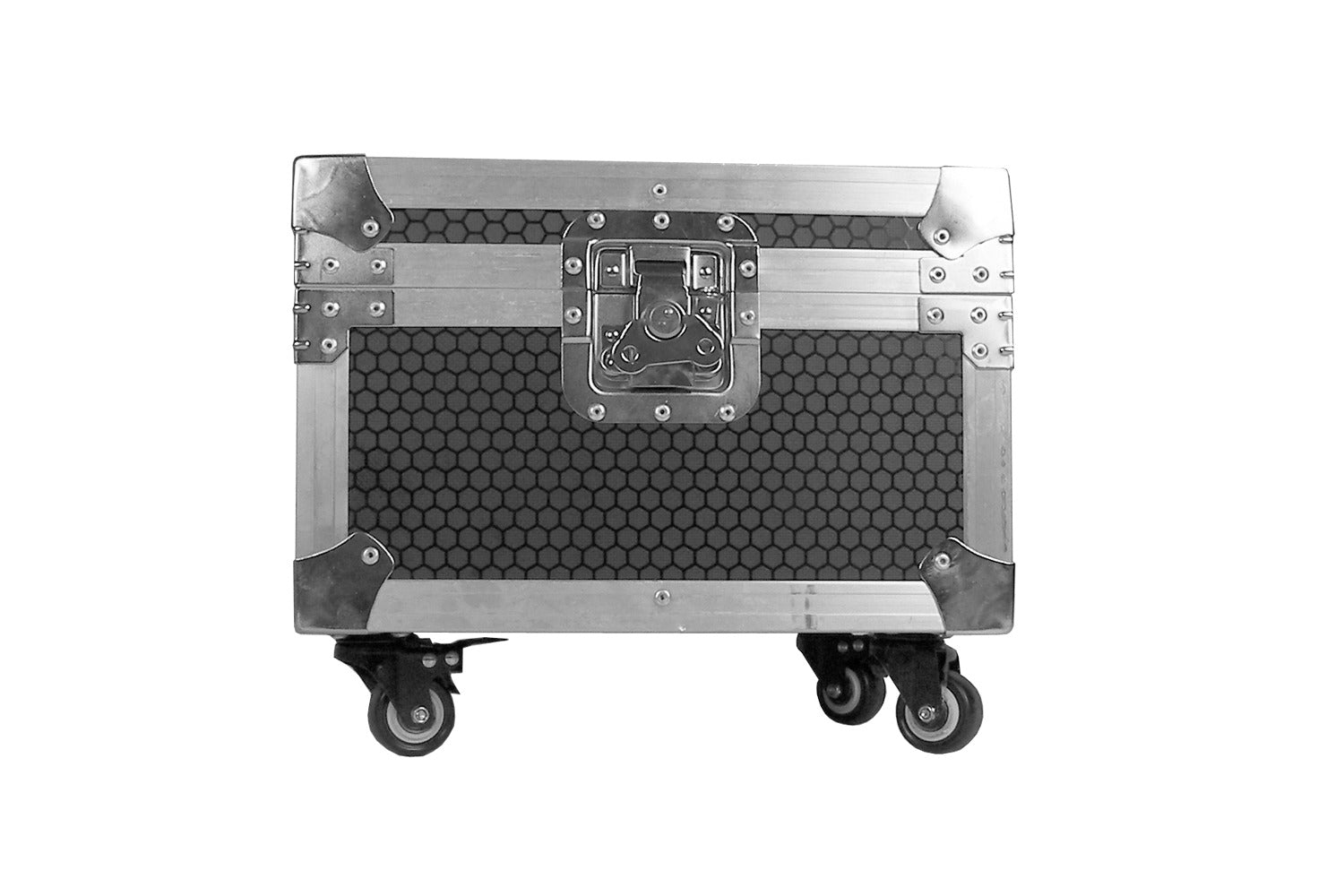

• Outer packing size: 38.5*38.5*32cm

Download the User Manual

Download the Conformity Declaration

Warranty: 3 years
