Wharfedale Pro

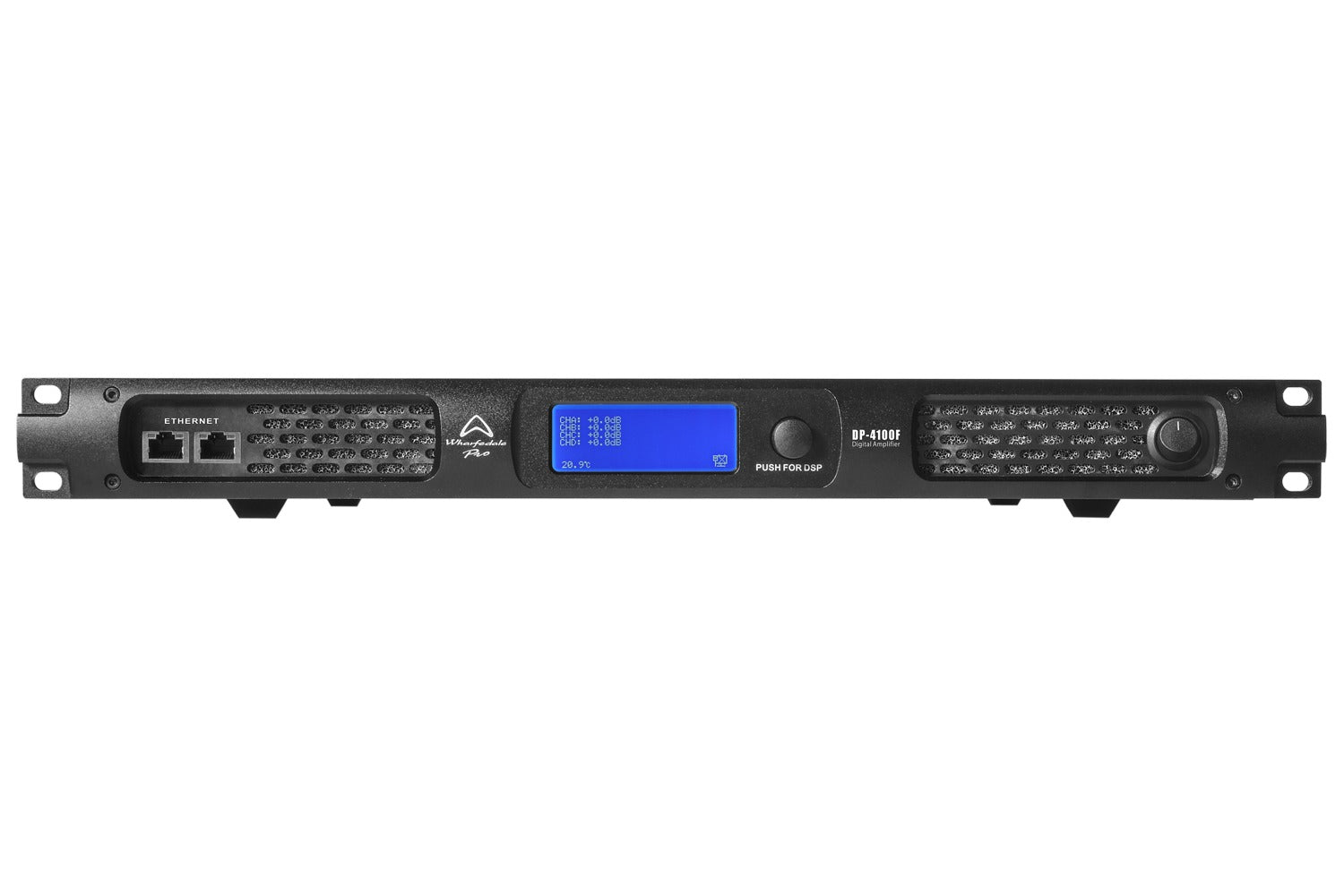

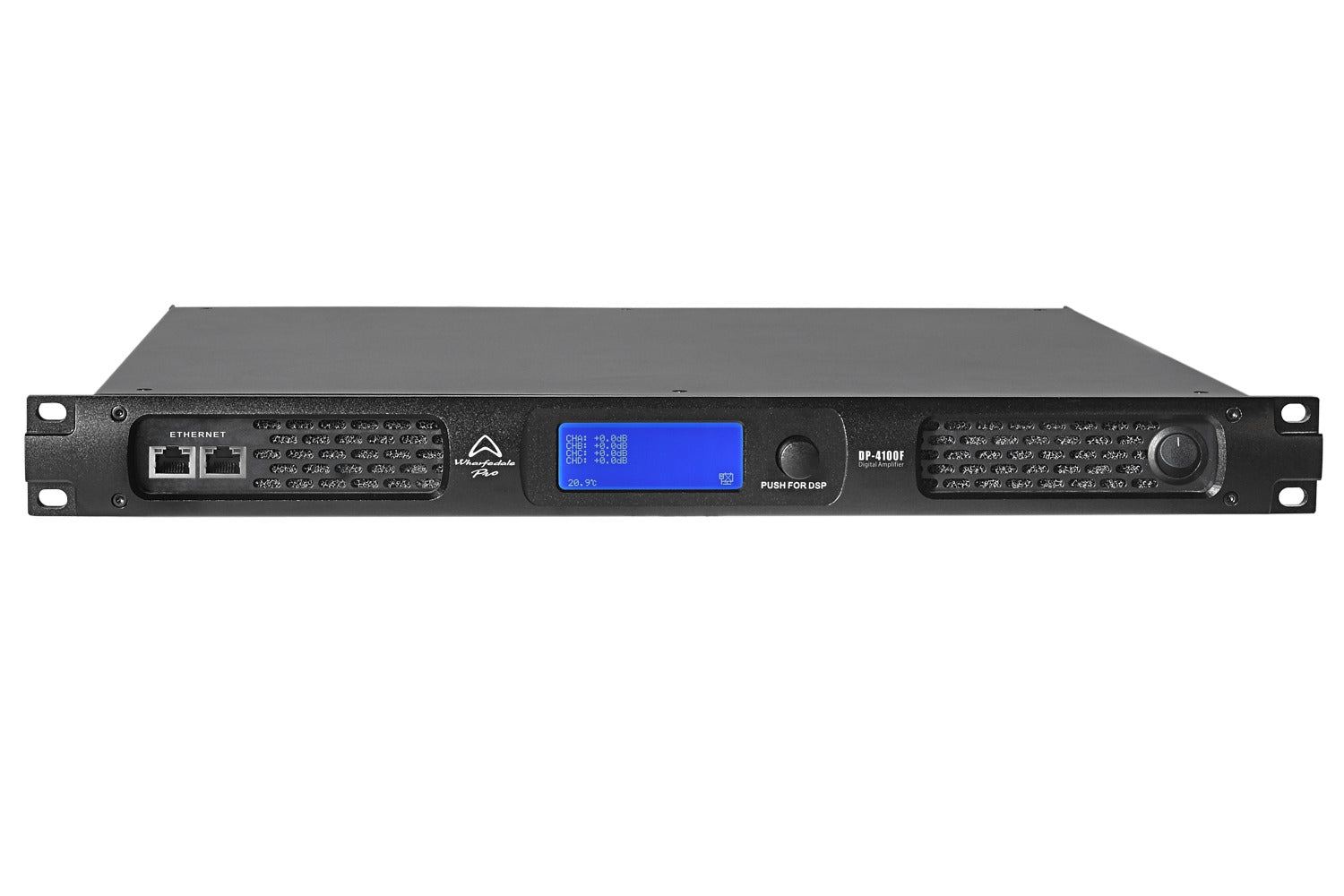

Wharfedale Pro DP-4100F Amplifier

Wharfedale Pro DP-4100F Amplifier

Regular price $2,749.00
Regular price Sale price $2,749.00
Sale Contact for Availability

DP-F SERIES

THINK DIF-FIR-ENTLY ABOUT AMPLIFIERS

  • Huge Class D power in a 1U rack
  • 4 discrete amplification channels
  • Internal DSP and computer control
  • Stable down to 2 Ω. Drive multiple speakers or line array elements
  • FIR filtering with 512 taps
  • 90 V to 260 V AC working voltage
  • Ethernet Network Connectors x 2
  • 70 V / 100 V compatible models

DP-4100F

  • 4 channels
  • 8 Ohm 4 x 1000 W
  • 4 Ohm 4 x 1700 W
  • 2 Ohm 4 x 2890 W
  • 16 Ohm Bridged 2 x 2000 W
  • 8 Ohm Bridged 2 x 3400 W
  • 4 Ohm Bridged 2 x 5780 W
  • 100 V Hi-Z : No
  • 70 V Hi-Z 4 x 1700 W

TAKE CONTROL

Harnessing the power of the internal DSP

The supplied editing software gives a practical overview of all system parameters and DSP features within the DP-F amplifier.

It is simple to monitor and edit the DP-F remotely.



FIR FILTERS

FIR Filtering gives

  • Independent control of magnitude and phase.
  • More detailed equalisation.
  • Optimization of frequency and power response.

STABLE DOWN TO 2 OHMSHuge output power and stable down to 2 Ohms

The power output figures of DP-F series are staggering. The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz with each channel working simultaneously.

DP-F amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.

ETHERNET X 2

Control is via the Ethernet network connectors on the front.

With the supplied control software all parameters can be edited and all performance functions can be remotely monitored.

BUILD YOUR SYSTEM

DP-F and DP-N amps are made for your big line array!



With just 3 pcs of DP-4100F or DP-4100N……massive systems can be created.



SPECIFICATIONS



Model DP-4100F
Rated Power (THD=1%,Each channel works simultaneously with continuous sinusoidal 1 KHz) 8 Ω / Stereo 4 x 1000 W
4 Ω / Stereo 4 x 1700 W
2 Ω / Stereo 4 x 2890 W
16 Ω / Bridge 2 x 2000 W
8 Ω / Bridge 2 x 3400 W
4 Ω / Bridge 2 x 5780 W
100 V Hi-Z
70 V Hi-Z 4 x 1700 W
Output RMS voltage 89.4 V
Maximum Input Level 8.7 Vrms(+21 dBu)(Default Gain)
Default Gain (Rated Power,1 KHz) 21 dB
Gain(Rated Power,1 KHz) 21 dB~39 dB
THD+N Typical value:0.05%(10% Rated Power,8 Ω)
Cross-Talk ≥90 dB(20 Hz-1 KHz,Below Rated Power,8 Ω)
Frequency Response Typical value:+0,-0.5 dB(10% Rated Power,20 Hz-20 KHz,8 Ω)
Input Impedance 20 kΩ(Balance),10 kΩ(Unbalance)
Damping Factor ≥1000(20 Hz-200 Hz,8 Ω)
SNR ≥105 dB (Default Gain, A weighted,20 Hz-20 KHz,8 Ω)
Main Power 90~260 VAC,50/60 Hz
Protection Power under-voltage protection、Amplifier output DC protection、Thermal Protection、 Temperature Power Control、Overload Power Control
Size(W×H×D) 483 x 45 x 376 mm
Net Weight 9.1 kg



WP DP-F user manual 20220323 (wharfedalepro.com)
