Wharfedale Pro

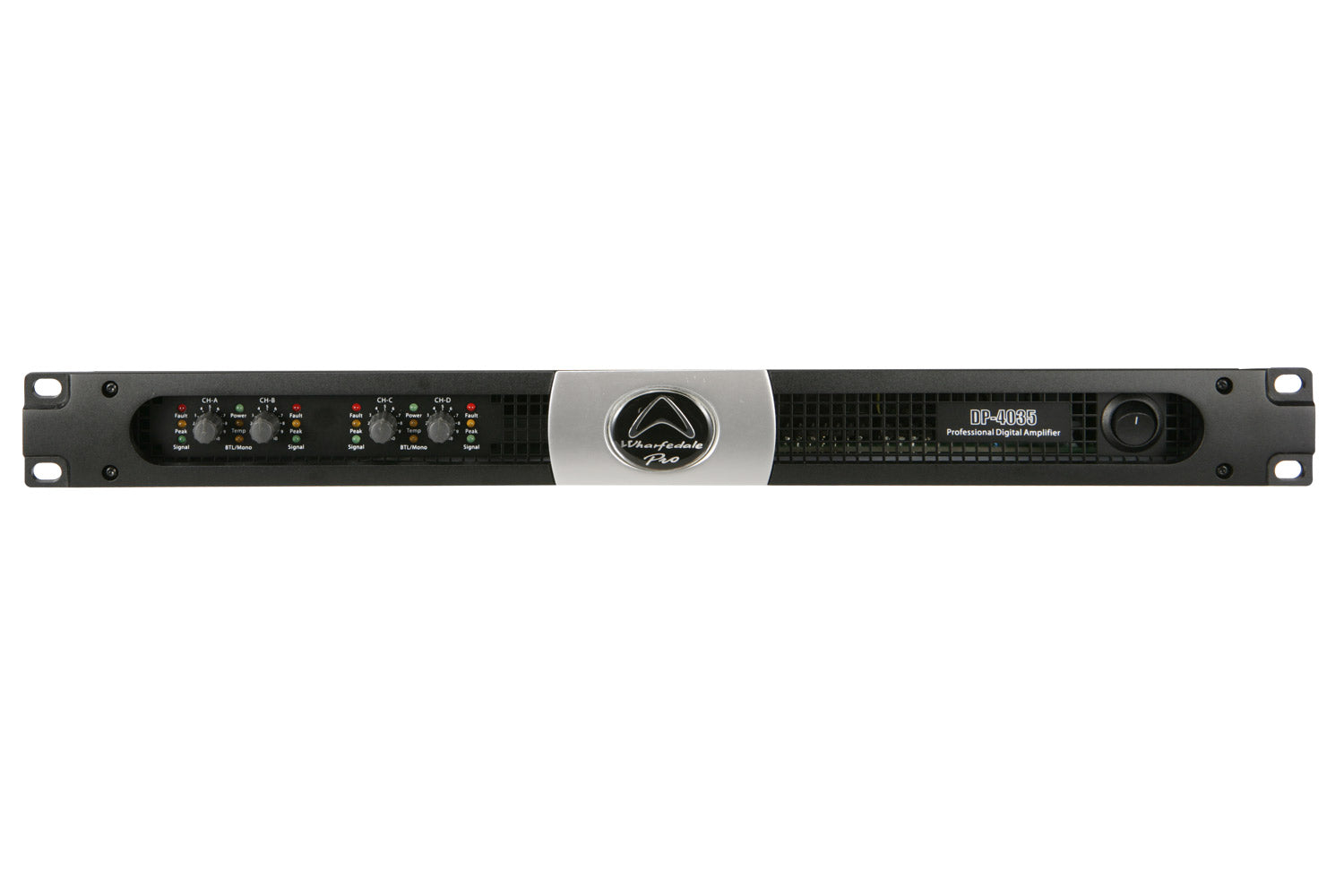

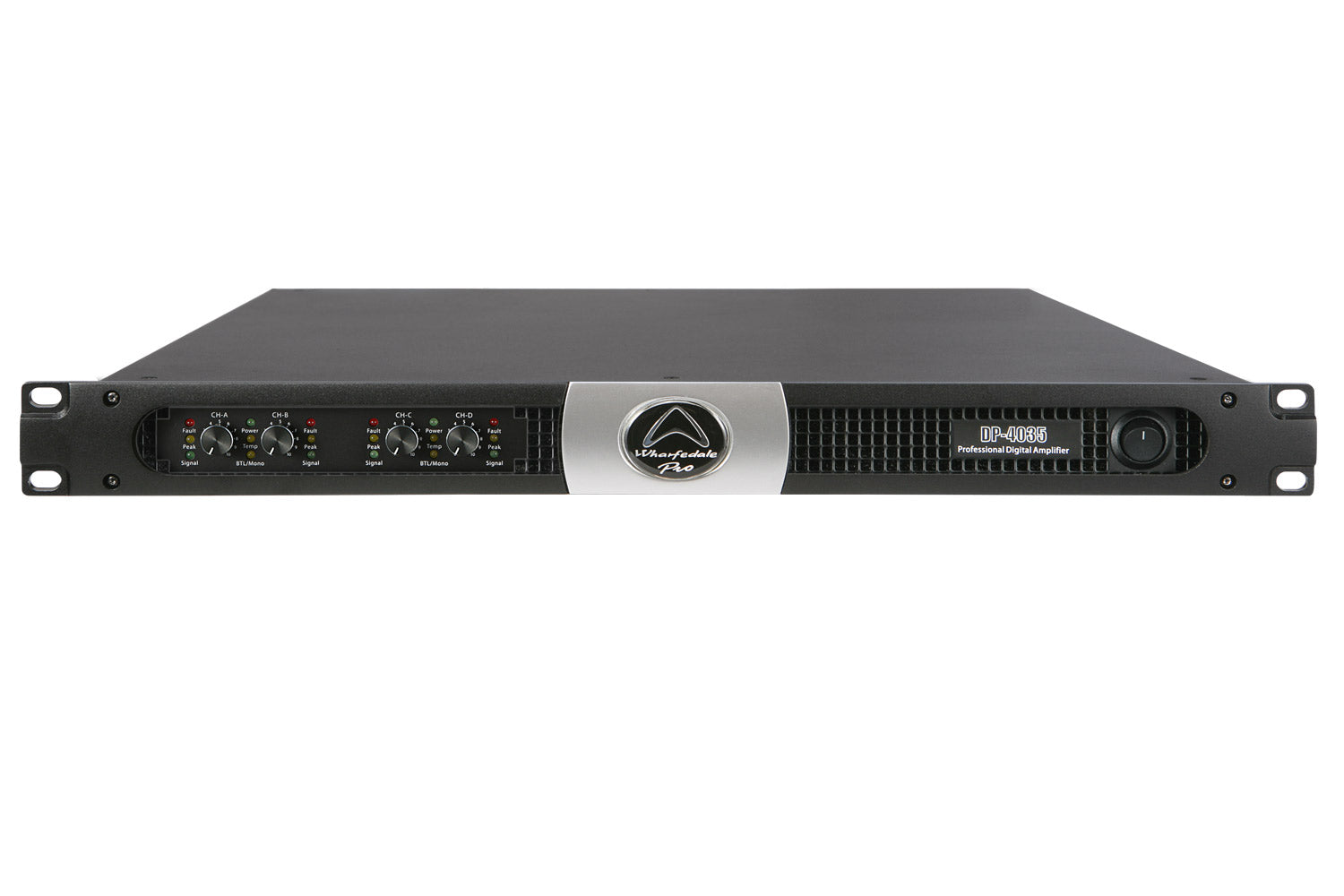

Wharfedale Pro DP-4035 Amplifier

Wharfedale Pro DP-4035 Amplifier

Regular price $1,079.00
Regular price Sale price $1,079.00
Sale Sold out

DP SERIES

LIGHT ON WEIGHT. HEAVY ON POWER.

  • Super light weight
  • 4 channel models
  • Stable down to 2Ω
  • Drive multiple 8Ω and 16Ω loudspeakers
  • 1 * Stereo model generating 6800 watts @ 8 Ω BTL.
  • Ultra-quiet variable speed fans  and advanced protection circuitry
  • 70 V / 100 V compatible models

DP-4035

  • 4 channels
  • 8 Ohm 4 x 350 Watts
  • 4 Ohm 4 x 595 Watts
  • 2 Ohm 4 x 1012 Watts
  • 16 Ohm Bridged 2 x 700 Watts
  • 8 Ohm Bridged 2 x 1190 Watts
  • 4 Ohm Bridged 2 x 2023 Watts
  • 100 V Hi-Z : No
  • 70 V Hi-Z : No


STABLE DOWN TO 2 OHMS

The power output figures of DP series are staggering.  The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz with each channel working simultaneously.

DP amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.



SPECIFICATIONS



Model DP-4035
Rated Power 8 Ω / Stereo 4 x 350 W
(THD=1%, 4 Ω / Stereo 4 x 595 W
Each chan works
simultaneously with
continuous sinusoidal
1 KHz)
2 Ω / Stereo 4 x 1010 W
16 Ω / Bridge 2 x 700 W
8 Ω / Bridge 2 x 1190 W
4 Ω / Bridge 2 x 2020 W
100 V Hi-Z
70 V Hi-Z
Output RMS voltage 52.9 V
Max Input Level 8.7 Vrms (+21 dBu)(Default Gain)
Default Gain
(Rated Power,1 KHz)
17 dB
Gain
(Rated Power,1 KHz)
17 dB~35 dB
THD+N Typical value:0.05% (10% Rated Power,8 Ω)
Cross-Talk ≥90 dB (20 Hz-1 KHz, below Rated Power,8 Ω)
Frequency Response Typical value:+0,-0.5 dB (10% Rated Power,20 Hz-20 KHz,8 Ω)
Input Impedance 20 kΩ (Balanced), 10 kΩ (Unbalanced)
Damping Factor ≥1000 (20 Hz-200 Hz,8 Ω)
SNR ≥105 dB (Default Gain, A weighted,20 Hz-20 KHz,8 Ω)
Main Power 90~260 VAC,50/60 Hz
Protection Power under-voltage, Amplifier output DC, Thermal, Temp Power Control, Overload Power Control
Size(W×H×D) mm 483 x 45 x 376
Net Weight 8.0 kg



Download user manual
