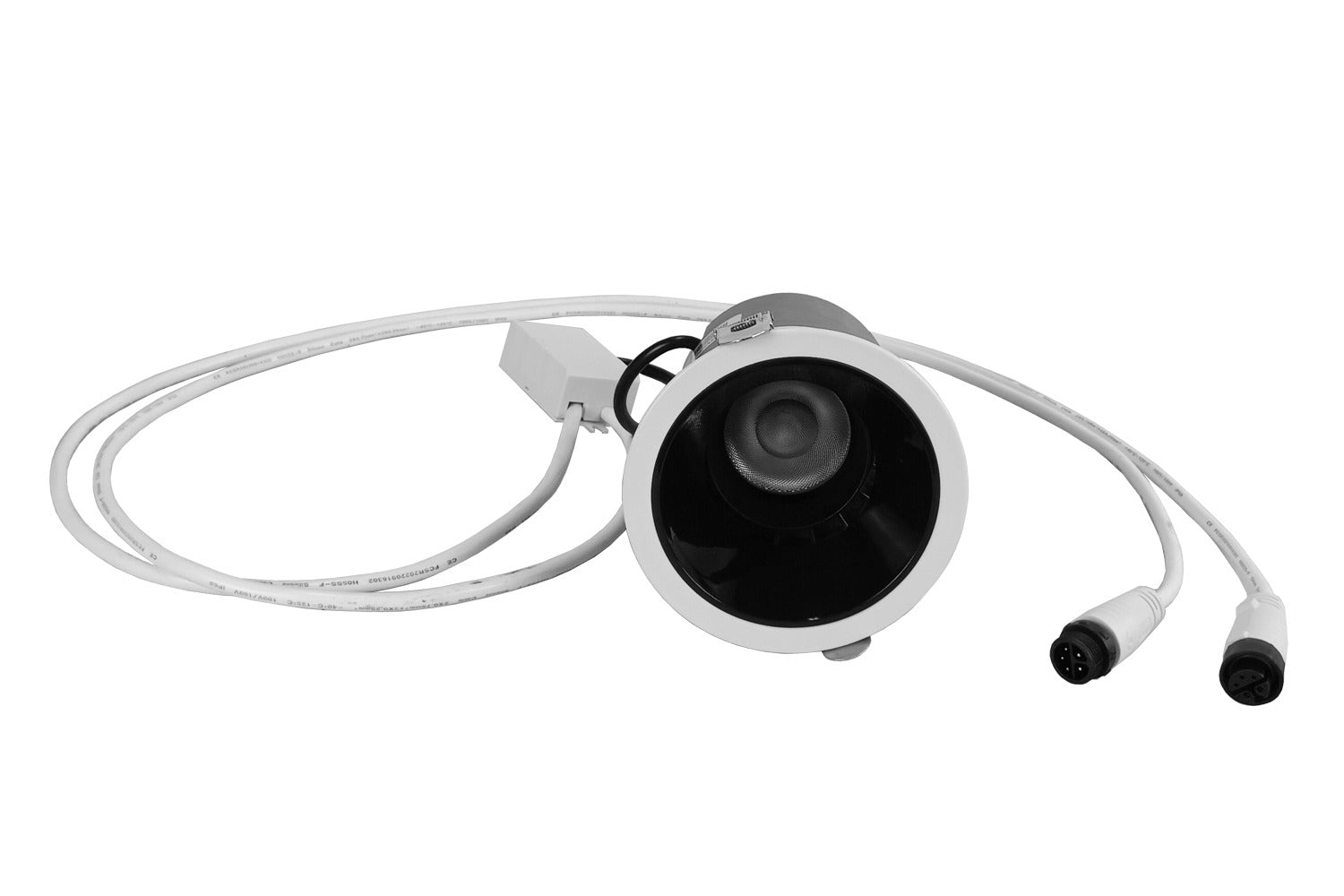

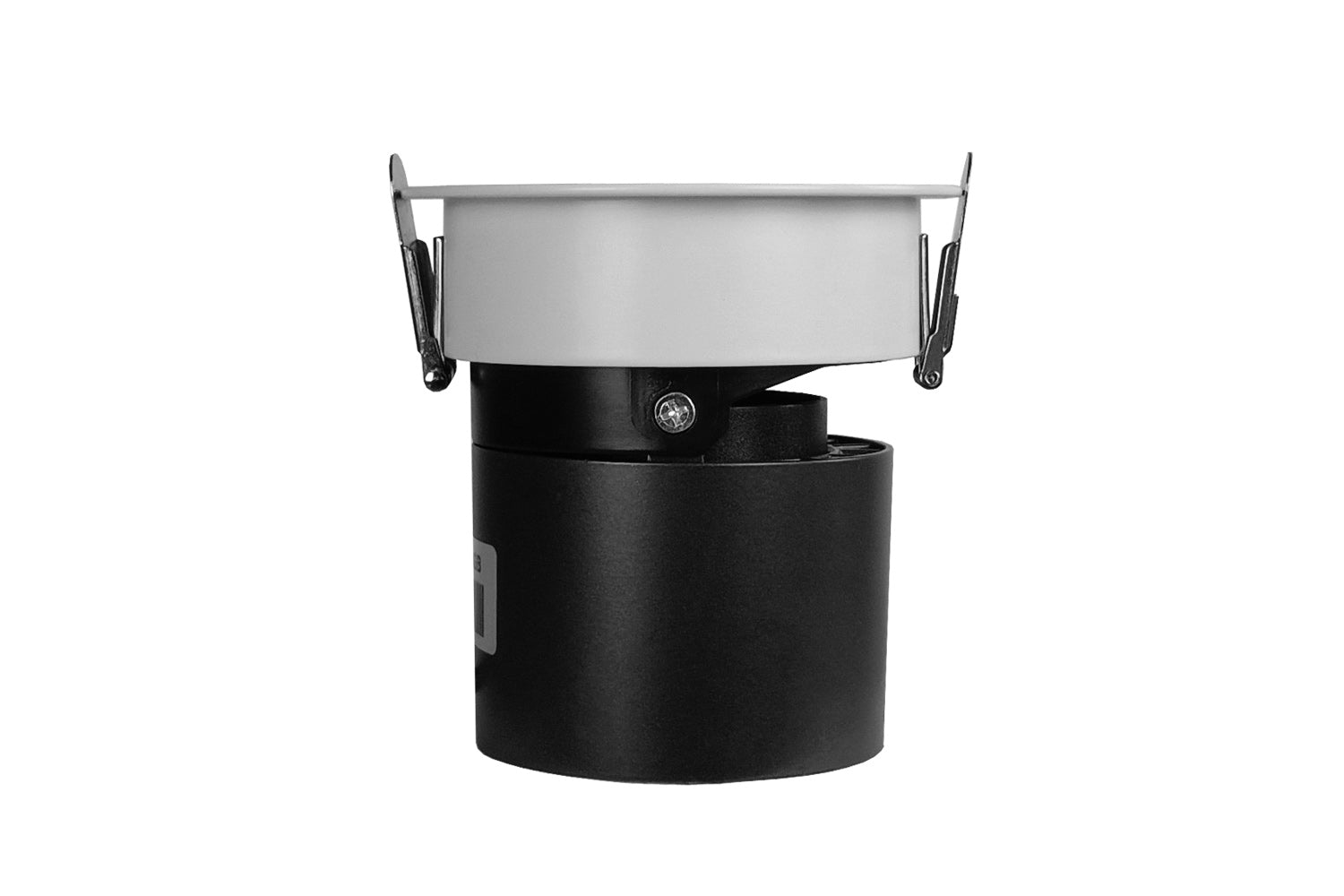

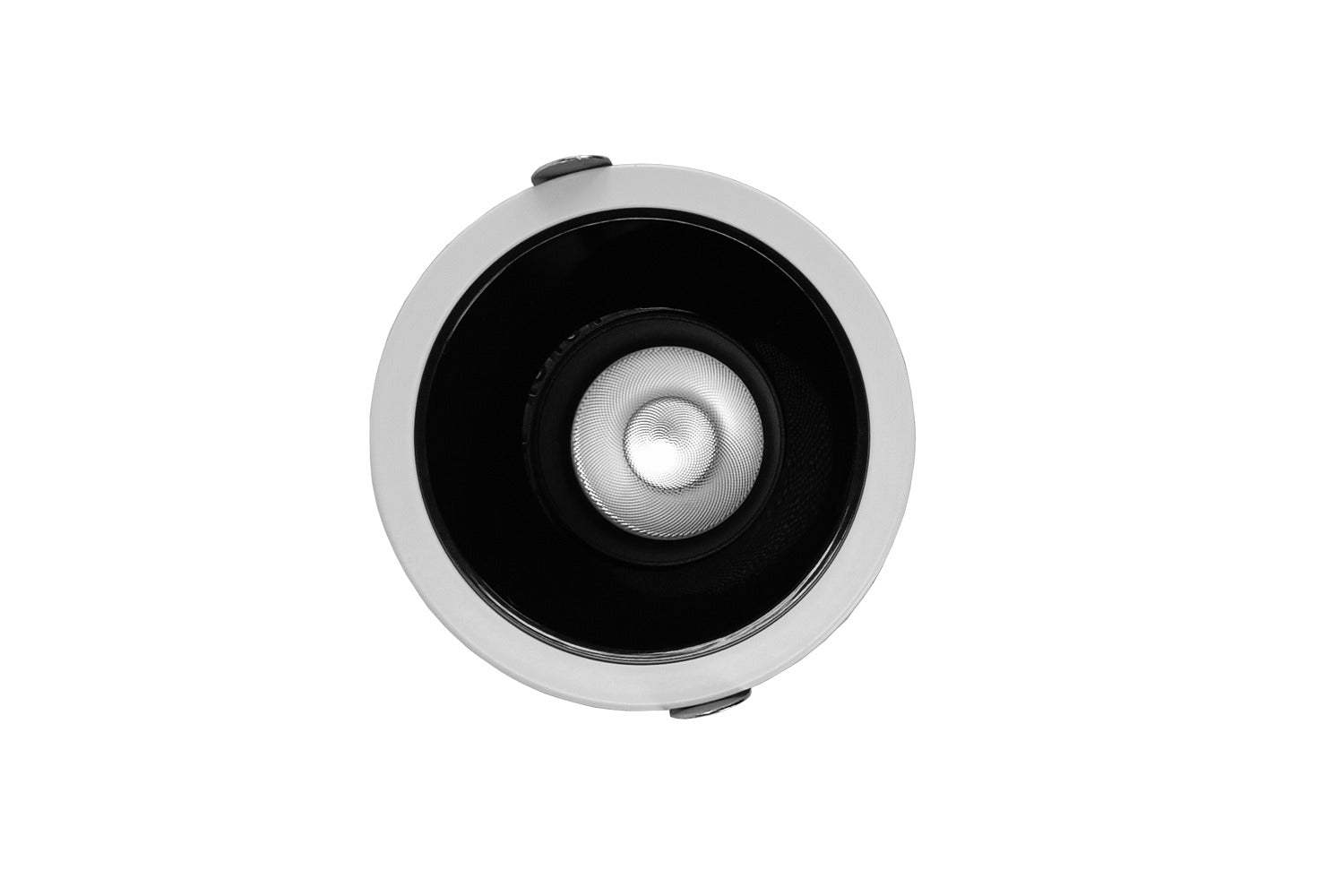

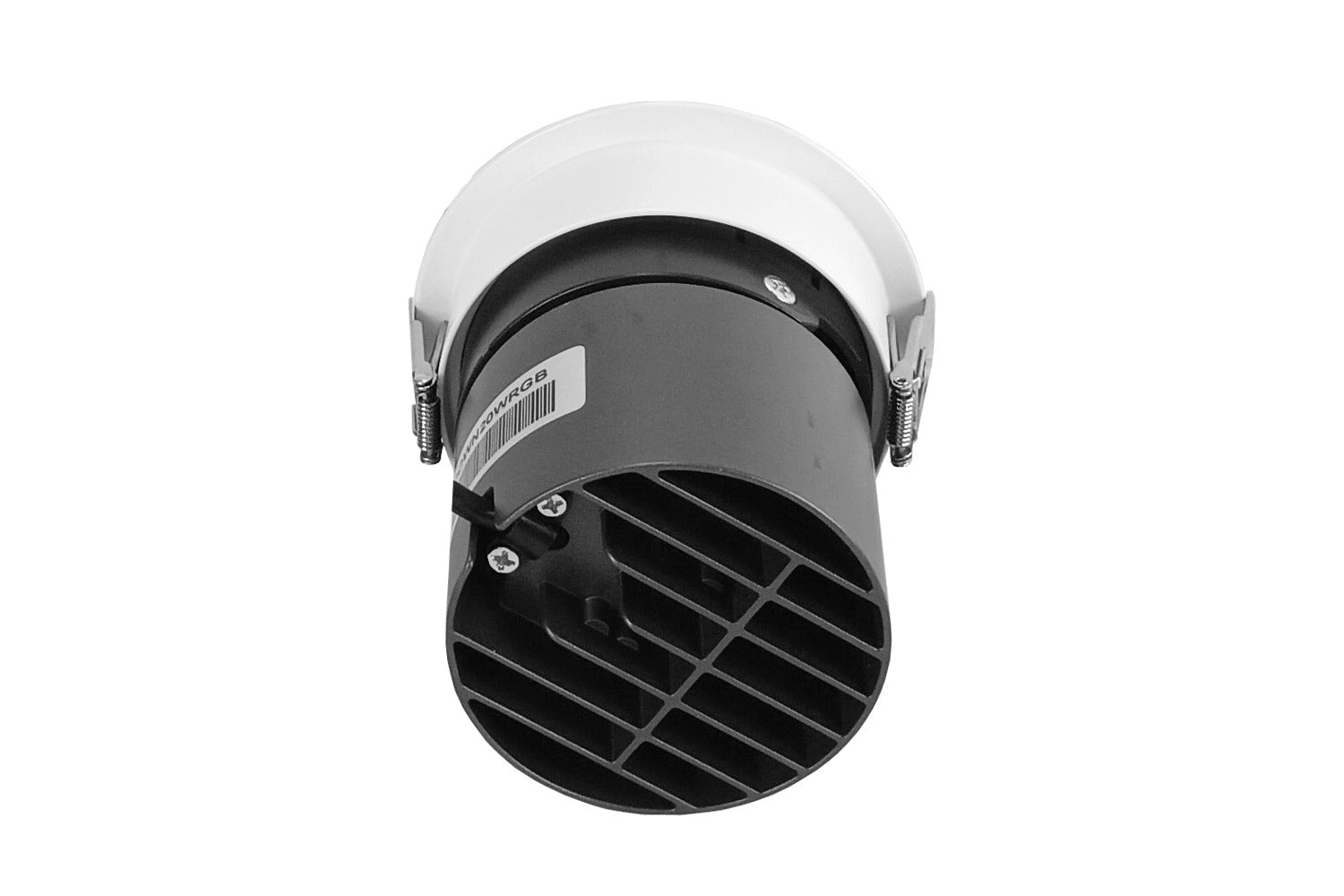

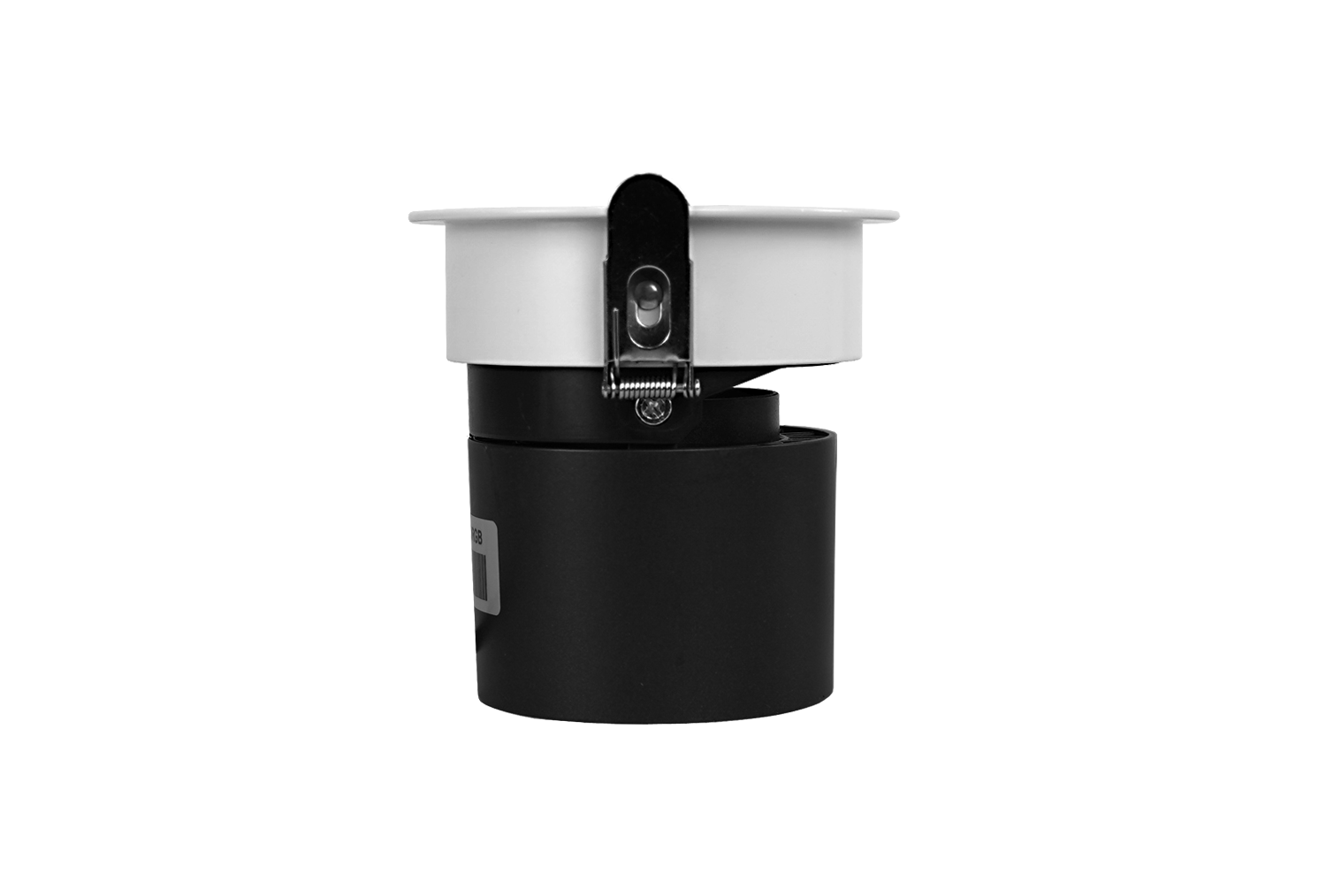

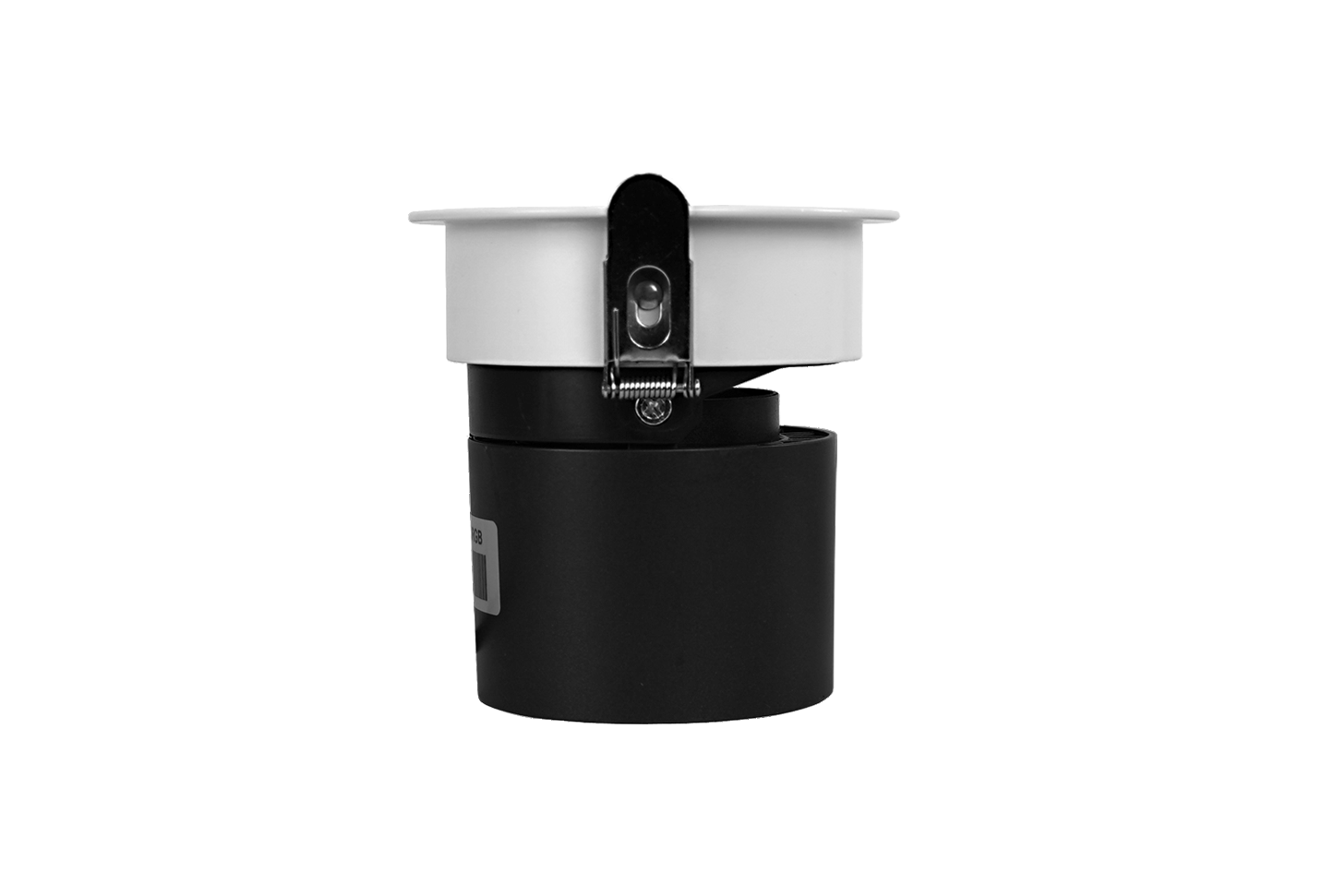

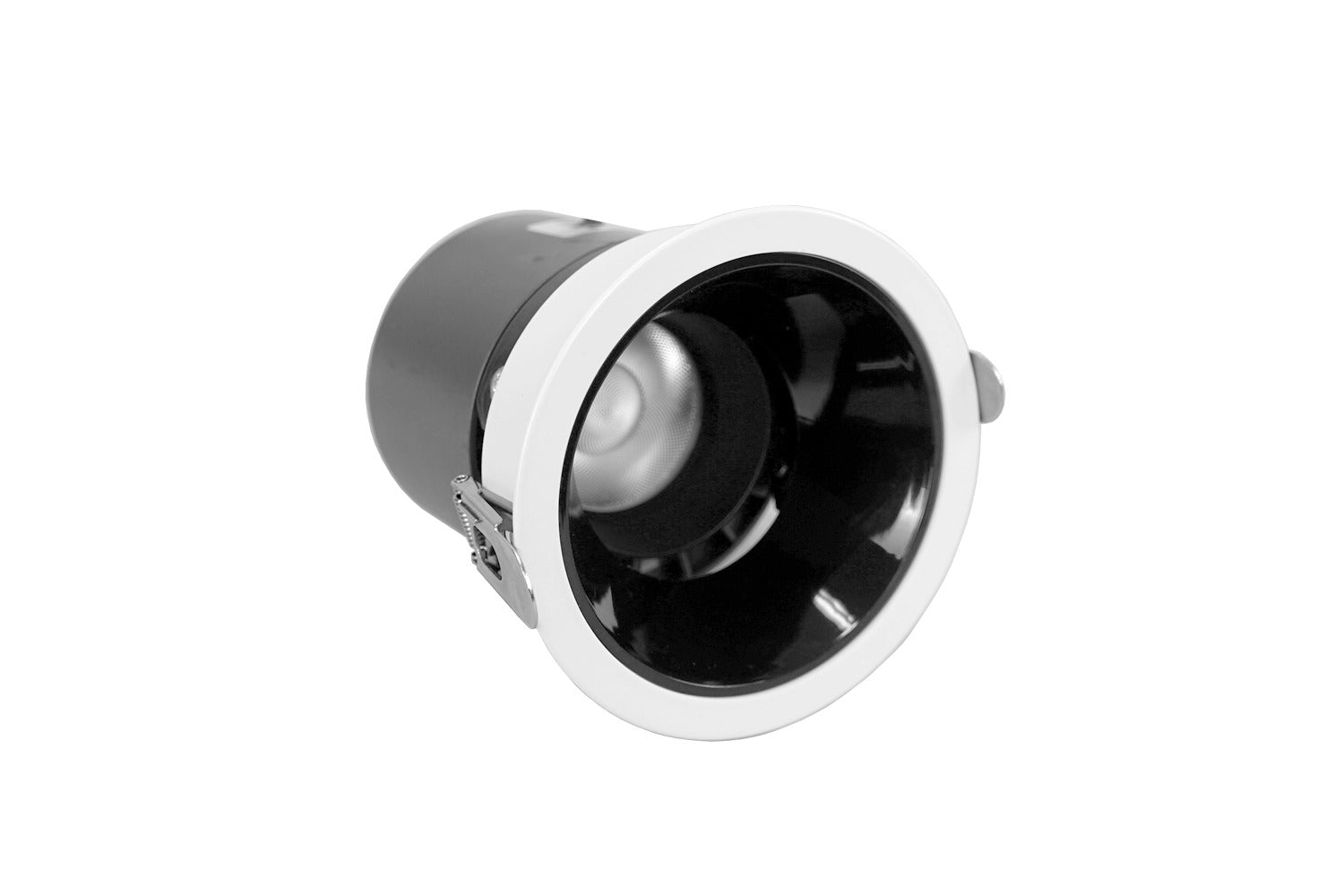

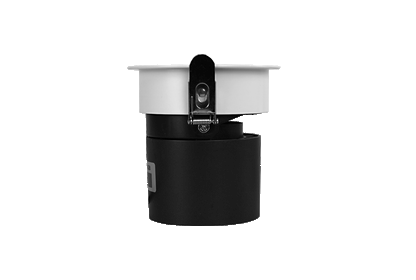

DOWN20RGB - 20w RGB 3-in-1 LED down light

20W RGB 3-in-1 LED Downlight, 24V, 95mm Hole Cut Out, In-line DMX Driver

Specifications:



Light source:

• 1 x 20W RGB 3-in-1 LED
• Beam Angle: 24°
• LED Lifespan: 50,000 hours

Effects:

• RGB Dimming: Yes

Control:

• Protocol: DMX512
• Channels: 3

Power:

• Input Voltage: DC24V
• Power Consumption: 20W
• Working current: 0.83A

Housing:

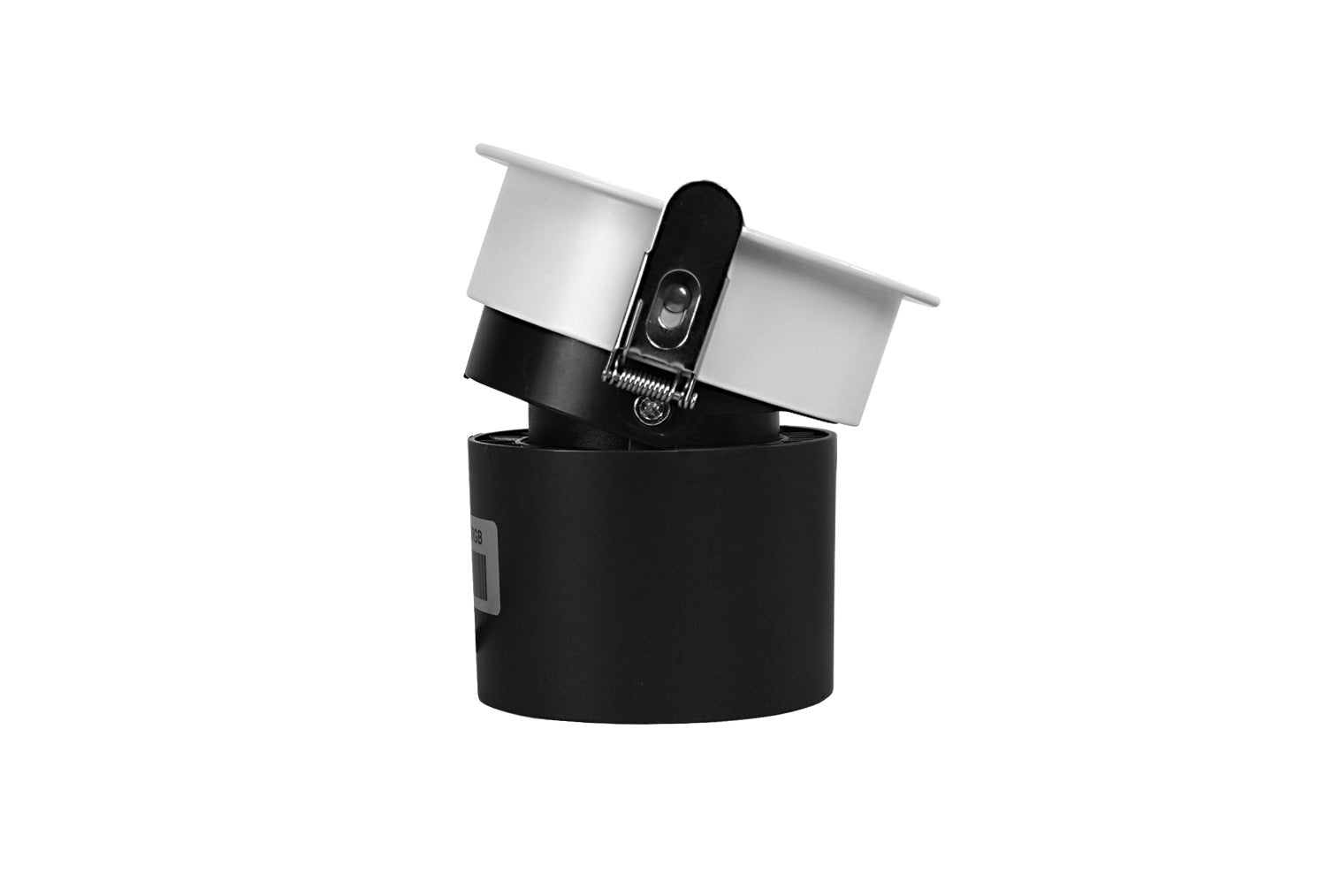

• Tilt Angle: 20°
• Cable length: 1m in/out

• IP rate: IP44

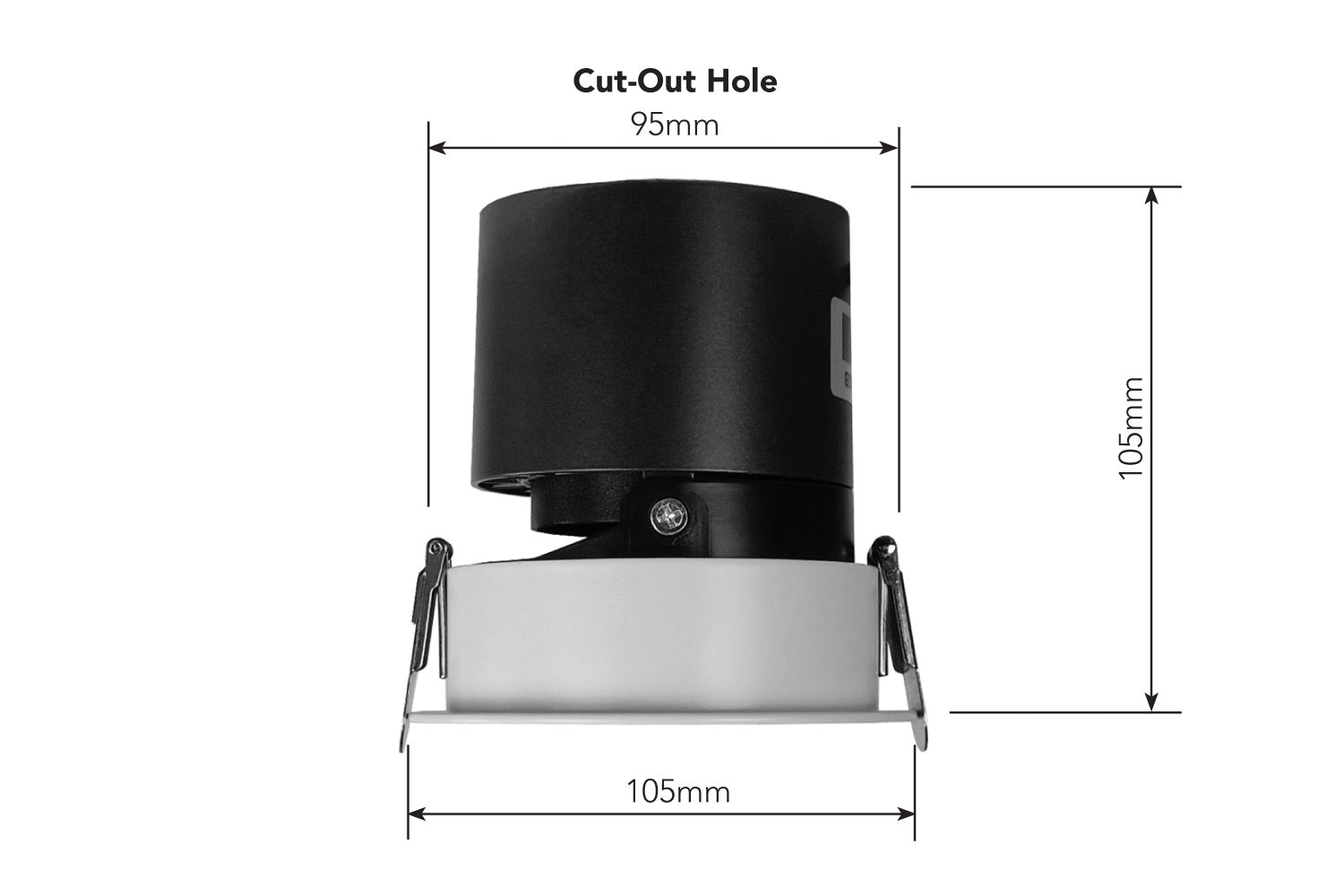

• Diameter: 105mm
• Hole size: 95mm
• Height: 105mm
• Weight: 0.5Kg

Optional Accessories:

• ARCW - Programmer and Controller
• IP2DMX - DMX Adaptor
• IP2T - T cable

• IP2EXT - Extension cable
• IP2PSU150 - Power supply
