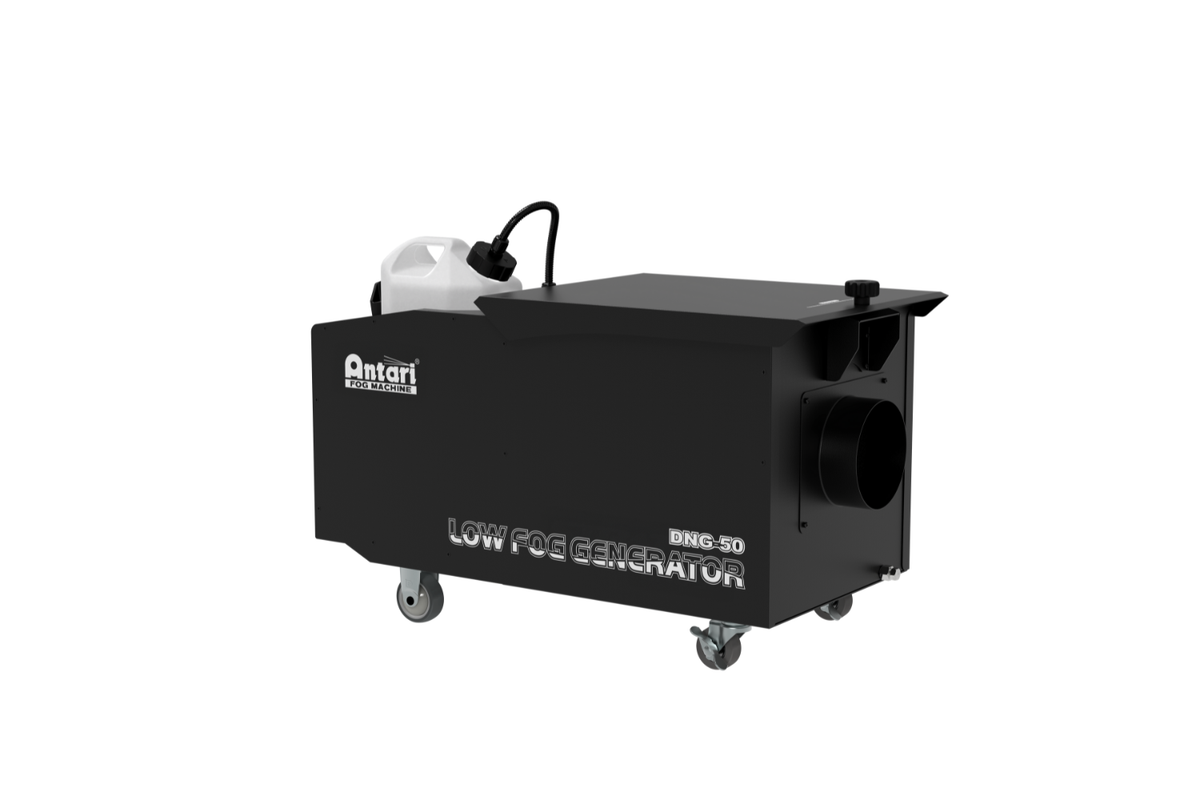

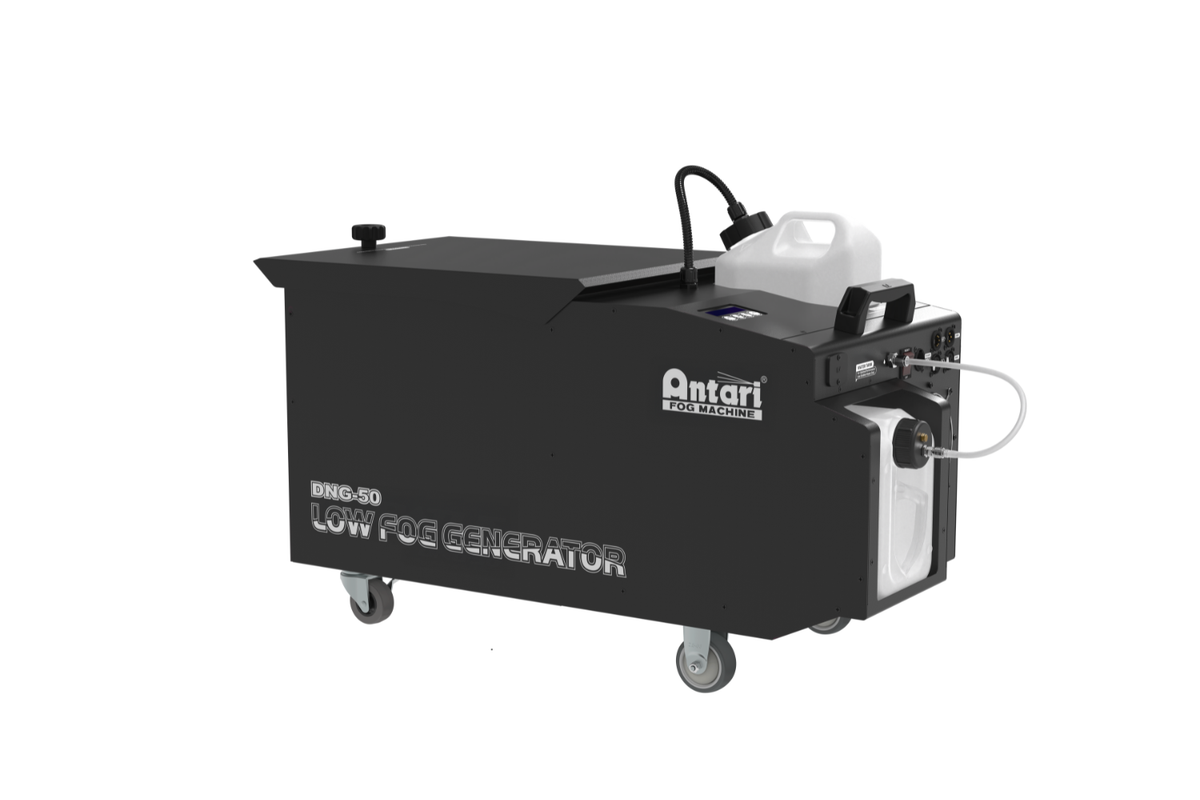

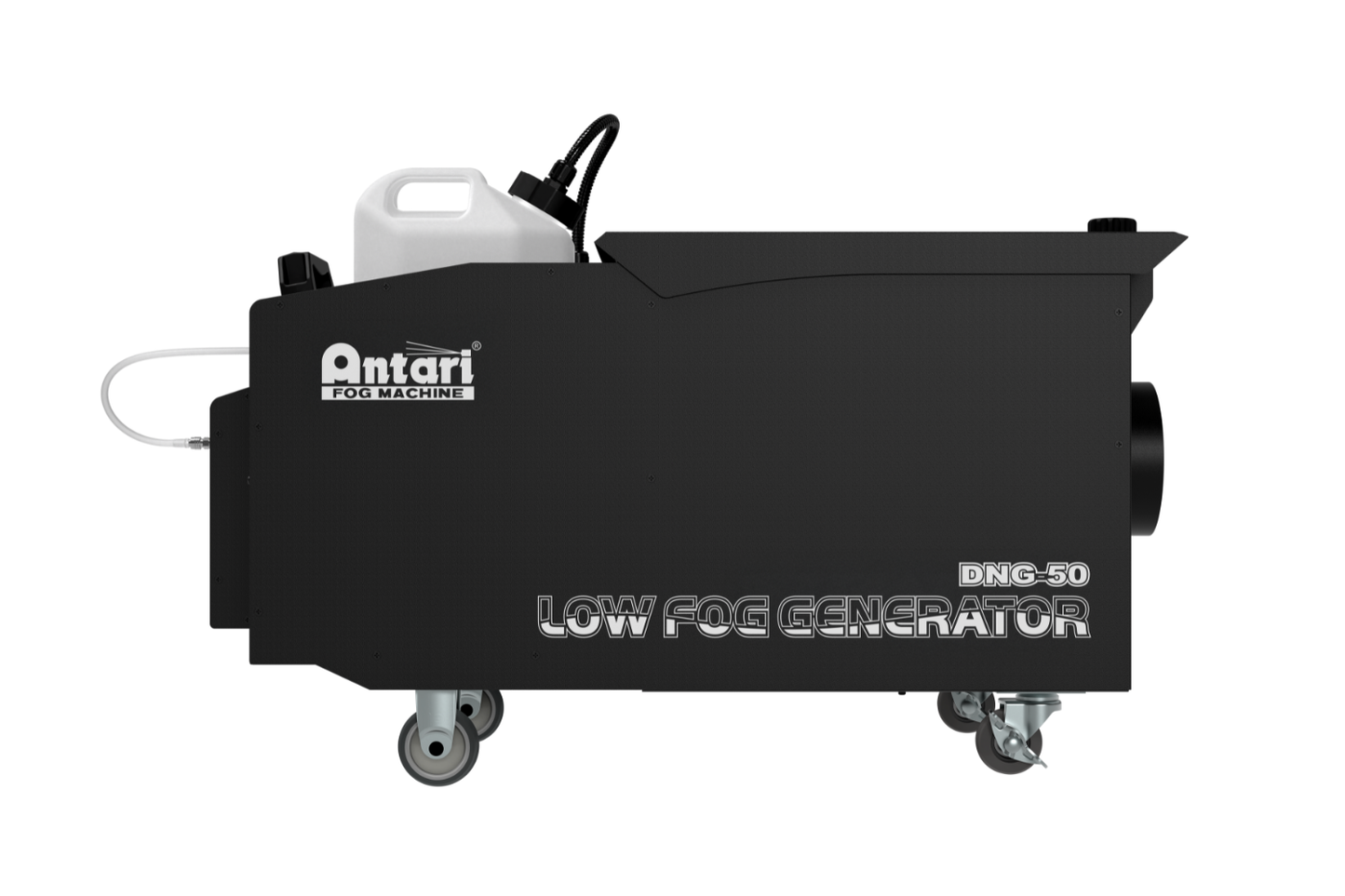

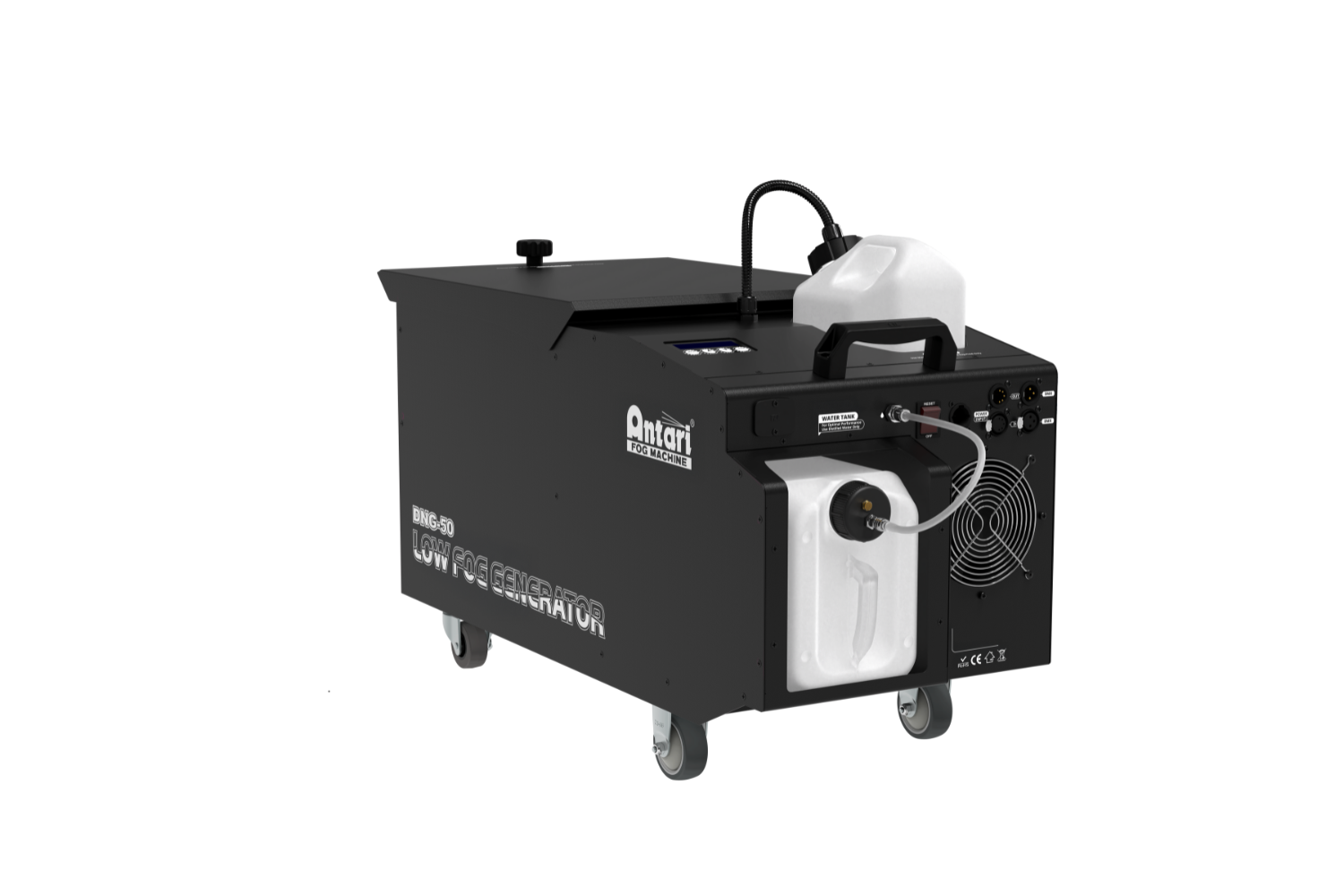

DNG50 - 1100W Log Fog Generator

Own the Stage — From the Ground Up

The DNG-50 delivers smooth, ground-hugging fog using advanced ultrasonic technology—no dry ice or CO₂ required. Designed for small to medium-sized venues, it produces clean, consistent low fog ideal for weddings, theaters, studios, and special events. Compact, quiet, and energy-efficient. Its perfect mix ratio keeps the fog close to the ground, creating immersive atmospheres with ease. Whether for permanent installs or mobile setups, the DNG-50 provides professional-grade fog effects with exceptional reliability and visual impact.

Features:

• No Dry Ice or CO₂ Required
• Continuous Low Fog Output
• Voltage Protection
• Low Water Level Sensor
• Optional Wireless/W-DMX Control Module

Specifications:

• Rated Voltage: AC 220 – 240V, 50 / 60 Hz 5.0ARated Power1100W
• Warm-Up Time: 2 Minutes (approx.)
• Fluid Consumption: 16 ml/min (100% Output)
• Fluid Tank Capacity: 2.5 Litres (0.21 gallon)
• Water Tank Capacity: 5 Litres (1.32 gallon)
• Compatible Fluid: Antari FLK High Density Fast Dissipating Fog Fluid (Recommended), FLL Low Fog Effects Fluid, Distilled water is recommended for usage in the water tank
• Ambient Temp. Range: 0°C – 40°C (32°F – 104°F)
• Control Methods: Manual, Timer, DMX512, Wireless (Optional), W-DMX (Optional)
• Interface: XLR 3-Pin/5-Pin Connector (DMX), SEETRONICS Connector (Power)
• DMX Channels: 1 Channel
• Included Accessories: 2 Meter Fog Conduction Hose
• Housing Materials: Steel
• Internal Materials: Aluminium
• Optional Accessories: WTR-110 Wireless Remote, ES-W-DMX Receiver
• Dimensions: L 813 W 355 H 491 mm (L 32.01 W 13.98 H 19.33 inch)
• Weight: 25.4 kg (56.00 lbs)

Download User Manual

Download Specification Sheet
