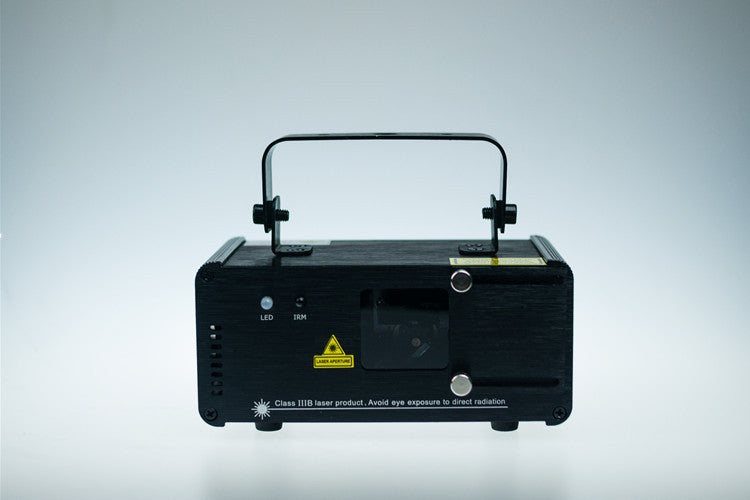

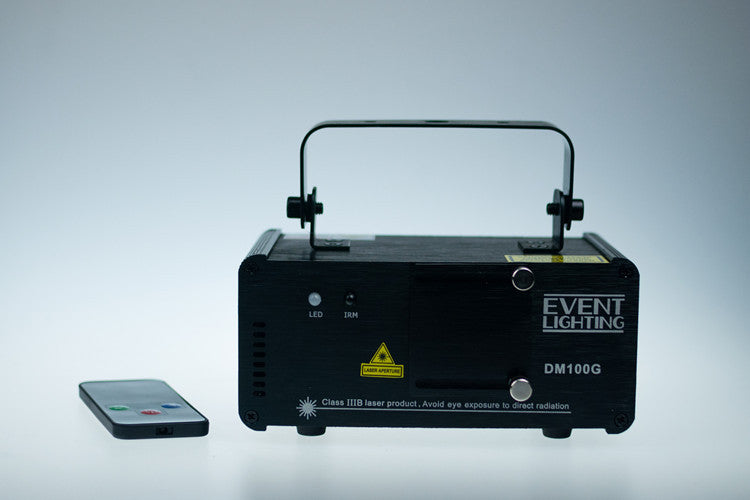

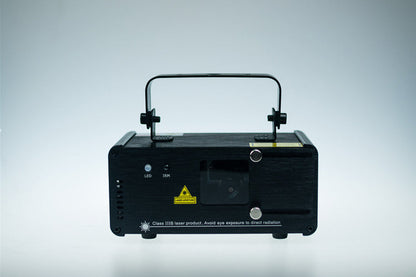

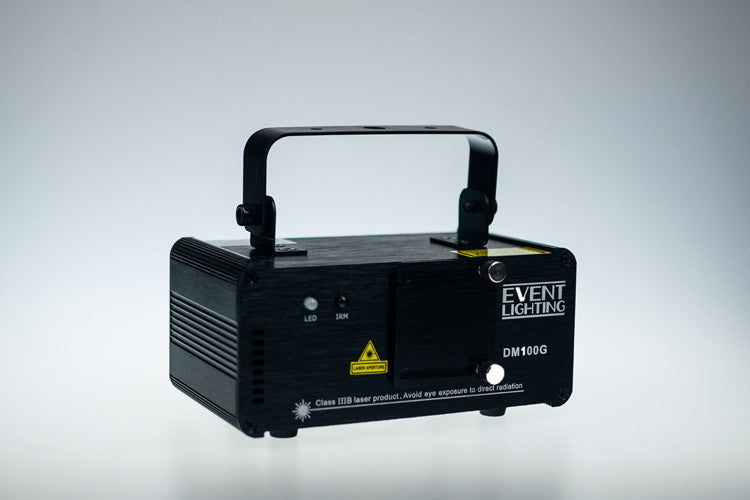

DM100G

Description:

• 100mW 532 nm Green Scanning laser with DMX, IR Remote control
• The most popular of the whole DM range is this 100mW Green laser. Includes great patterns, effects and on board DMX. Remote control can be used for home parties and mobile DJs.

Specifications:

• AC Adapter: 100~240V AC 50/60Hz input, 12V DC 1.5A output
• Power Consumption: 14W
• Laser Safety Standard: EN60825-1 2007
• Laser Classification： Class 3B
• Green Laser Medium DPSS： Nd:YVO4+KTP,532nm
• Laser Power: 100mW 532nm Green CW
• Beam Diameter：r <5mm at aperture
• Divergence(each beam)： <12 mrad
• Divergence(total light) ：<90 degrees
• Transverse Beam Mode： TEM00
• Sound Control: via built-in microphone

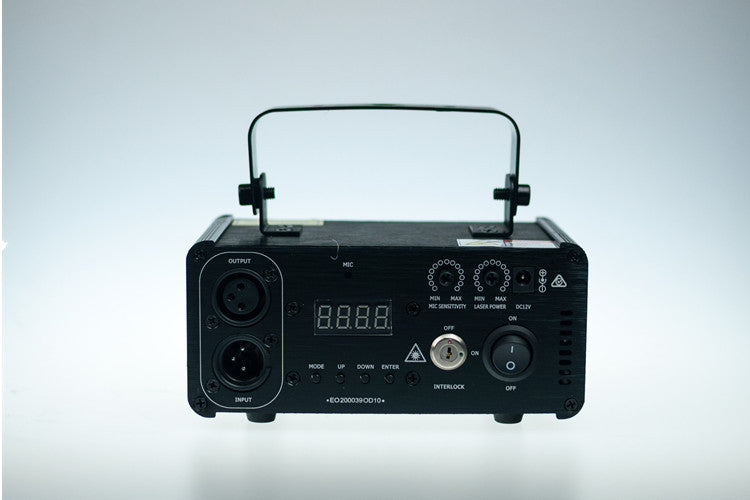

• DMX connection: 3-pin XLR
• DMX channels: 8 channels
• Infrared Remote Control: Yes

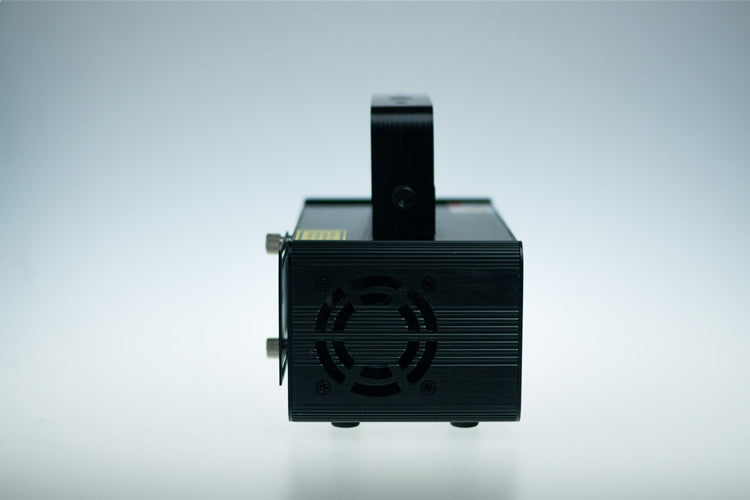

• Cooling ： Fan Cooling
• Condition Temperature: 10~40℃
• Measurement: 159mm x 90mm x 71mm
• Net Weight: 0.85Kg

User Manual Download
